GaudiPython.Bindings.iHistogramSvc Class Reference

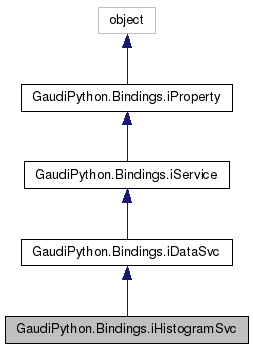

Inheritance diagram for GaudiPython.Bindings.iHistogramSvc:

Collaboration diagram for GaudiPython.Bindings.iHistogramSvc:

Public Member Functions
def	__init__ (self, name, ihs)
def	retrieve1D (self, path)
def	retrieve2D (self, path)
def	retrieve3D (self, path)
def	retrieveProfile1D (self, path)
def	retrieveProfile2D (self, path)
def	retrieve (self, path)
def	book (self, args)
def	bookProf (self, args)
def	__getitem__ (self, path)
def	getAsAIDA (self, path)
def	getAsROOT (self, path)
Public Member Functions inherited from GaudiPython.Bindings.iDataSvc
def	__init__ (self, name, idp)
def	registerObject (self, path, obj)
def	unregisterObject (self, path)
def	retrieveObject (self, path)
def	findObject (self, path)
def	getObject (self, path, args)
def	__getitem__ (self, path)
def	__setitem__ (self, path, obj)
def	__delitem__ (self, path)
def	leaves (self, node=None)
def	dump (self, node=None)
def	getList (self, node=None, lst=[], rootFID=None)
def	getHistoNames (self, node=None, lst=[])
def	setRoot (self, name, obj)
def	clearStore (self)
Public Member Functions inherited from GaudiPython.Bindings.iService
def	__init__ (self, name, isvc=None)
def	retrieveInterface (self)
def	initialize (self)
def	start (self)
def	stop (self)
def	finalize (self)
def	reinitialize (self)
def	restart (self)
def	isValid (self)
Public Member Functions inherited from GaudiPython.Bindings.iProperty
def	__init__ (self, name, ip=None)
def	getInterface (self)
def	retrieveInterface (self)
def	__call_interface_method__ (self, ifname, method, args)
def	__setattr__ (self, name, value)
def	__getattr__ (self, name)
def	properties (self)
def	name (self)

Detailed Description

Definition at line 657 of file Bindings.py.

Constructor & Destructor Documentation

def GaudiPython.Bindings.iHistogramSvc.__init__	(		self,
			name,
			ihs
	)

Definition at line 658 of file Bindings.py.

    def __init__(self, name, ihs):
        self.__dict__['_ihs'] = InterfaceCast(gbl.IHistogramSvc)(ihs)
        iDataSvc.__init__(self, name, ihs)

Member Function Documentation

def GaudiPython.Bindings.iHistogramSvc.__getitem__	(		self,
			path
	)

Retrieve the object from  Histogram Transient Store (by path)
The reference to AIDA histogram is returned (if possible)
>>> svc = ...
>>> histo = svc['path/to/my/histogram']

Definition at line 710 of file Bindings.py.

    def __getitem__(self, path):
        """
        Retrieve the object from  Histogram Transient Store (by path)
        The reference to AIDA histogram is returned (if possible)
        >>> svc = ...
        >>> histo = svc['path/to/my/histogram']
        """
        h = self.retrieve(path)
        if h:
            return h
        return iDataSvc.__getitem__(self, path)

def GaudiPython.Bindings.iHistogramSvc.book	(		self,
			args
	)

Book the histograms(1D,2D&3D) , see IHistogramSvc::book
>>> svc = ...
>>> histo = svc.book( .... )

Definition at line 694 of file Bindings.py.

    def book(self, *args):
        """
        Book the histograms(1D,2D&3D) , see IHistogramSvc::book
        >>> svc = ...
        >>> histo = svc.book( .... )
        """
        return apply(self._ihs.book, args)

def GaudiPython.Bindings.iHistogramSvc.bookProf	(		self,
			args
	)

Book the profile(1D&2D) histograms, see IHistogramSvc::bookProf
>>> svc = ...
>>> histo = svc.bookProf( .... )

Definition at line 702 of file Bindings.py.

    def bookProf(self, *args):
        """
        Book the profile(1D&2D) histograms, see IHistogramSvc::bookProf
        >>> svc = ...
        >>> histo = svc.bookProf( .... )
        """
        return apply(self._ihs.bookProf, args)

def GaudiPython.Bindings.iHistogramSvc.getAsAIDA	(		self,
			path
	)

Retrieve the histogram from  Histogram Transient Store (by path)
The reference to AIDA histogram is returned (if possible)
>>> svc = ...
>>> histo = svc.getAsAIDA ( 'path/to/my/histogram' )

Definition at line 722 of file Bindings.py.

    def getAsAIDA(self, path):
        """
        Retrieve the histogram from  Histogram Transient Store (by path)
        The reference to AIDA histogram is returned (if possible)
        >>> svc = ...
        >>> histo = svc.getAsAIDA ( 'path/to/my/histogram' )
        """
        return self.__getitem__(path)

def GaudiPython.Bindings.iHistogramSvc.getAsROOT	(		self,
			path
	)

Retrieve the histogram from  Histogram Transient Store (by path)
The Underlying native ROOT object is returned (if possible)
>>> svc = ...
>>> histo = svc.getAsROOT ( 'path/to/my/histogram' )

Definition at line 731 of file Bindings.py.

    def getAsROOT(self, path):
        """
        Retrieve the histogram from  Histogram Transient Store (by path)
        The Underlying native ROOT object is returned (if possible)
        >>> svc = ...
        >>> histo = svc.getAsROOT ( 'path/to/my/histogram' )
        """
        fun = gbl.Gaudi.Utils.Aida2ROOT.aida2root
        return fun(self.getAsAIDA(path))

# ----iNTupleSvc class---------------------------------------------------------

def GaudiPython.Bindings.iHistogramSvc.retrieve	(		self,
			path
	)

Retrieve AIDA histogram or AIDA profile histogram by path in Histogram Transient Store
>>> svc = ...
>>> histo = svc.retrieve ( 'path/to/my/histogram' )

Definition at line 677 of file Bindings.py.

    def retrieve(self, path):
        """
        Retrieve AIDA histogram or AIDA profile histogram by path in Histogram Transient Store
        >>> svc = ...
        >>> histo = svc.retrieve ( 'path/to/my/histogram' )
        """
        h = self.retrieve1D(path)
        if not h:
            h = self.retrieve2D(path)
        if not h:
            h = self.retrieve3D(path)
        if not h:
            h = self.retrieveProfile1D(path)
        if not h:
            h = self.retrieveProfile2D(path)
        return h

def GaudiPython.Bindings.iHistogramSvc.retrieve1D	(		self,
			path
	)

Definition at line 662 of file Bindings.py.

    def retrieve1D(self, path):
        return Helper.histo1D(self._ihs, path)

def GaudiPython.Bindings.iHistogramSvc.retrieve2D	(		self,
			path
	)

Definition at line 665 of file Bindings.py.

    def retrieve2D(self, path):
        return Helper.histo2D(self._ihs, path)

def GaudiPython.Bindings.iHistogramSvc.retrieve3D	(		self,
			path
	)

Definition at line 668 of file Bindings.py.

    def retrieve3D(self, path):
        return Helper.histo3D(self._ihs, path)

def GaudiPython.Bindings.iHistogramSvc.retrieveProfile1D	(		self,
			path
	)

Definition at line 671 of file Bindings.py.

    def retrieveProfile1D(self, path):
        return Helper.profile1D(self._ihs, path)

def GaudiPython.Bindings.iHistogramSvc.retrieveProfile2D	(		self,
			path
	)

Definition at line 674 of file Bindings.py.

    def retrieveProfile2D(self, path):
        return Helper.profile2D(self._ihs, path)

---

The documentation for this class was generated from the following file:

• GaudiPython/python/GaudiPython/Bindings.py
