Base class to all DataHandles interacting with the transient event store. More...

#include <GaudiKernel/EventDataHandle.h>

Inheritance diagram for Gaudi::EventDataHandle:

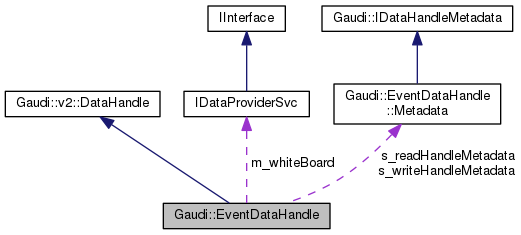

Collaboration diagram for Gaudi::EventDataHandle:

[legend]

Classes
class	Metadata
	DataHandle subclass metadata for event data handles. More...

Public Member Functions
void	initialize (const IDataHandleHolder &owner) final override
	Initialize the data handle. More...

Public Member Functions inherited from Gaudi::v2::DataHandle
	DataHandle (const DataHandle &)=delete

DataHandle &	operator= (const DataHandle &)=delete

	DataHandle (DataHandle &&)=default

DataHandle &	operator= (DataHandle &&)=delete

AccessMode	access () const

const DataObjID &	targetKey () const
	(Configurable) ID of the data being accessed via this handle More...

void	setTargetKey (const DataObjID &id)
	Change the ID of the target data. More...

bool	ownerSetupDone () const
	Truth that owner setup has been performed. More...

template<typename Owner , std::enable_if_t< std::is_base_of< IDataHandleHolder, Owner >::value > * = nullptr>
void	setOwner (Owner &owner)
	Setup the owner of this DataHandle. More...

Protected Types
using	AccessMode = DataHandle::AccessMode

Protected Member Functions
template<typename Owner >
	EventDataHandle (Owner &owner, const std::string &propertyName, DataObjID &&defaultID, const std::string &docString, const Metadata &metadata)
	Handles are constructed like a Gaudi property (and effectively behave as one, which sets the associated data object identifier) More...

Protected Member Functions inherited from Gaudi::v2::DataHandle
template<typename Owner , typename T = DataObjID, std::enable_if_t< std::is_base_of< IDataHandleHolder, Owner >::value > * = nullptr>
	DataHandle (Owner &owner, const std::string &propertyName, T &&defaultID, const std::string &docString, const IDataHandleMetadata &metadata)
	Handles are constructed like a Gaudi property (and effectively behave as one, which sets the associated data object identifier) More...

template<typename T = DataObjID>
	DataHandle (const std::string &propertyName, T &&defaultID, const std::string &docString, const IDataHandleMetadata &metadata)
	The above constructor is easier to use correctly, and therefore preferred. More...

Protected Attributes
IDataProviderSvc *	m_whiteBoard = nullptr
	Pointer to the whiteboard, set during initialize() More...

Static Protected Attributes
static const Metadata	s_readHandleMetadata

static const Metadata	s_writeHandleMetadata

Private Member Functions
void	registerToOwner (IDataHandleHolder &owner)
	Register ourselves to the owner (algorithm or tool) More...

Additional Inherited Members
Public Types inherited from Gaudi::v2::DataHandle
using	AccessMode = IDataHandleMetadata::AccessMode

Detailed Description

Base class to all DataHandles interacting with the transient event store.

This is internal machinery which clients can safely ignore.

Definition at line 32 of file EventDataHandle.h.

Member Typedef Documentation

using Gaudi::EventDataHandle::AccessMode = DataHandle::AccessMode

protected

Definition at line 39 of file EventDataHandle.h.

Constructor & Destructor Documentation

template<typename Owner >

Gaudi::EventDataHandle::EventDataHandle	(	Owner &	owner,
		const std::string &	propertyName,
		DataObjID &&	defaultID,
		const std::string &	docString,
		const Metadata &	metadata
	)

inlineprotected

Handles are constructed like a Gaudi property (and effectively behave as one, which sets the associated data object identifier)

Definition at line 65 of file EventDataHandle.h.

         : DataHandle{owner, propertyName, std::move( defaultID ), docString, metadata}
     {
       registerToOwner( owner );
     }

Member Function Documentation

void Gaudi::EventDataHandle::initialize ( const IDataHandleHolder & owner )

finaloverridevirtual

Initialize the data handle.

Implements Gaudi::v2::DataHandle.

Definition at line 12 of file EventDataHandle.cpp.

   {
     auto whiteBoard = owner.eventSvc();
     if ( !whiteBoard ) throw std::runtime_error( "Failed to access whiteboard" );
     m_whiteBoard = whiteBoard.get();
   }

void Gaudi::EventDataHandle::registerToOwner ( IDataHandleHolder & owner )

private

Register ourselves to the owner (algorithm or tool)

Definition at line 10 of file EventDataHandle.cpp.

10 { owner.registerDataHandle( *this ); }

IDataHandleHolder::registerDataHandle

virtual void registerDataHandle(Gaudi::v2::DataHandle &)=0

Register a data handle of this algorithm/tool.

Member Data Documentation

IDataProviderSvc* Gaudi::EventDataHandle::m_whiteBoard = nullptr

protected

Pointer to the whiteboard, set during initialize()

Definition at line 73 of file EventDataHandle.h.

const EventDataHandle::Metadata Gaudi::EventDataHandle::s_readHandleMetadata

staticprotected

Definition at line 59 of file EventDataHandle.h.

const EventDataHandle::Metadata Gaudi::EventDataHandle::s_writeHandleMetadata

staticprotected

Definition at line 60 of file EventDataHandle.h.

The documentation for this class was generated from the following files:

GaudiKernel/GaudiKernel/EventDataHandle.h
GaudiKernel/src/Lib/EventDataHandle.cpp
