DataHandleHolderBase< BASE > Class Template Reference

Common infrastructure for classes that manage data handles and other Scheduler-known data dependencies. More...

#include <GaudiKernel/DataHandleHolderBase.h>

Inheritance diagram for DataHandleHolderBase< BASE >:

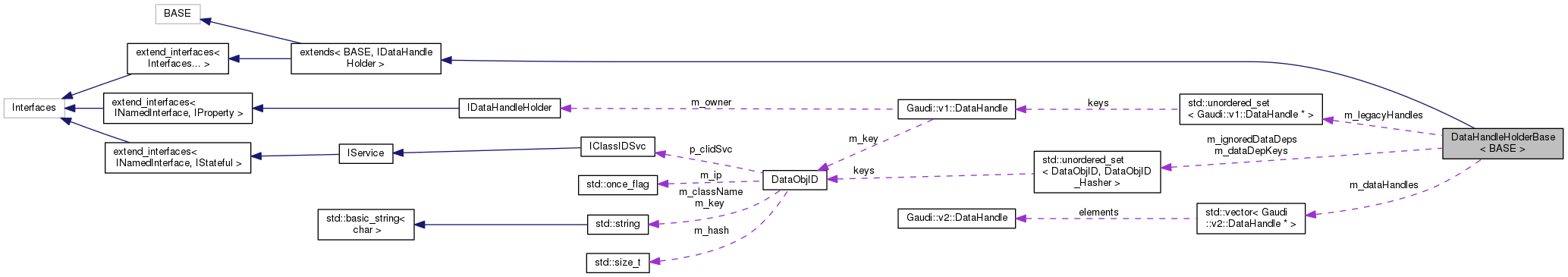

Collaboration diagram for DataHandleHolderBase< BASE >:

Public Member Functions
template<typename... Args>
	DataHandleHolderBase (Args &&...args)
	NOTE: Cannot use "using Super::Super;" due to a GCC 6 bug. More...
void	registerDataHandle (Gaudi::v2::DataHandle &handle) final override
	Register a data handle of this algorithm/tool. More...
void	addDataDependency (const DataObjID &key, AccessMode access) final override
	Add a data dependency, even after initialization. More...
const DataObjIDColl &	dataDependencies (AccessMode access) const final override
	Tell which whiteboard keys the algorithm will be reading or writing. More...
void	declare (Gaudi::v1::DataHandle &handle) override
	Declare ownership of a legacy DataHandle. More...
void	renounce (Gaudi::v1::DataHandle &handle) override
	Discard ownership of a legacy DataHandle. More...
const DataObjIDColl *	allDataDependencies () const final override
Public Member Functions inherited from extends< BASE, IDataHandleHolder >
void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...
StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...
std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...

Protected Types
enum	CircularDepAction { CircularDepAction::Abort, CircularDepAction::Ignore }
	A circular dependency handling action. More...
using	DataObjIDMapping = std::function< boost::optional< DataObjID >(const DataObjID &)>
	DataObjID mapping function, with optimized identity mapping case. More...
using	CircularDepHandler = std::function< CircularDepAction(const DataObjID &)>
	A circular dependency handler, which can take any user-specified step (e.g. More...

Protected Member Functions
void	updateDataDependencies (const DataObjIDMapping &keyMap)
	Update the key of each registered data dependency, using a user-defined mapping from the old to the new key. More...
void	collectExplicitDataDependencies ()
	Collect all explicit data dependencies in a single place. More...
StatusCode	handleCircularDataDependencies (CircularDepHandler &&circularDepHandler)
	Look for circular dependencies and let a user-specified handler deal with each of them. More...
void	collectImplicitDataDependencies (const IDataHandleHolder *child)
	Add the dependencies of another DataHandleHolder to our dependency list. More...
const DataObjIDColl &	ignoredDataDependencies (AccessMode access) const
	Tell which data dependencies have been ignored due to an empty key. More...
void	initializeDataHandleHolder ()
	Initialize the DataHandles. More...

Private Types
using	Super = extends< BASE, IDataHandleHolder >
using	AccessMode = Gaudi::v2::DataHandle::AccessMode
using	DataHandleList = std::vector< Gaudi::v2::DataHandle * >

Private Member Functions
bool	isNewDataDependency (const Gaudi::v2::DataHandle &handle) const
	Check if a data dependency has not been declared before (new DataHandle version) More...
bool	isNewDataDependency (const Gaudi::v1::DataHandle &handle) const
	Check if a data dependency has not been declared before (new DataHandle version) More...
template<typename KeyHolderColl >
void	collectDependencies (const KeyHolderColl keyHolderArray[])
void	collectDependencies (const std::unordered_set< Gaudi::v1::DataHandle * > legacyHandles)
	Specialization of extractDependencies for legacy DataHandles. More...

Static Private Member Functions
static size_t	accessToIndex (AccessMode access)
	Convert a data dependency access mode to its index in our internal storage. More...
static const DataObjID &	accessKey (const Gaudi::v2::DataHandle *handlePtr)
	Access the key of a DataHandle. More...
static const DataObjID &	accessKey (const DataObjID &key)
	Access the key of a DataObjID (identity function) More...
static const DataObjID &	accessKey (const Gaudi::v1::DataHandle *handlePtr)
	Access the key of a legacy (non-reentrant) DataHandle. More...
template<typename KeyHolder >
static void	extractKey (DataObjIDColl &validOutput, DataObjIDColl &ignoredOutput, const KeyHolder &holder)
	Extract the key of a key holder, putting empty keys on an ignore list. More...
template<typename KeyHolderColl >
static void	extractKeys (DataObjIDColl &validOutput, DataObjIDColl &ignoredOutput, const KeyHolderColl &keyHolders)
	Extract non-empty DataObjID keys from a collection of key holders. More...
static void	updateKey (Gaudi::v2::DataHandle *target, DataObjID &&key)
	Update the key of a DataHandle. More...
static void	updateKey (DataObjID &target, DataObjID &&key)
	Update the key of a DataObjID. More...
static void	updateKey (Gaudi::v1::DataHandle *target, DataObjID &&key)
	Update the key of a legacy (non-reentrant) DataHandle. More...
template<typename KeyHolderColl >
static void	updateDependencies (KeyHolderColl &keyHolders, const DataObjIDMapping &keyMap)
	Update the DataObjID keys of a collection of key holders. More...
static void	updateDependencies (DataObjIDColl &keys, const DataObjIDMapping &keyMap)
	Specialization of the above algorithm for DataObjIDColls, where updating the keys in place is not possible. More...
static void	updateDependencies (Gaudi::Property< DataObjIDColl > &keys, const DataObjIDMapping &keyMap)
	Specialization for properties which accesses the inner collection. More...
template<typename KeyHolderColl >
static void	updateDependencies (KeyHolderColl keyHoldersArray[], const DataObjIDMapping &keyMap)
	Specialization of the above algorithm for arrays of KeyHolderColls. More...

Private Attributes
DataHandleList	m_dataHandles [NUM_ACCESS_MODES]
std::unordered_set< Gaudi::v1::DataHandle * >	m_legacyHandles
Gaudi::Property< DataObjIDColl >	m_extraDeps [NUM_ACCESS_MODES]
DataObjIDColl	m_dataDepKeys [NUM_ACCESS_MODES]
bool	m_explicitDepsCollected = false
	Truth that all explicit data dependencies have already been collected in a single list. More...
DataObjIDColl	m_ignoredDataDeps [NUM_ACCESS_MODES]

Static Private Attributes
static constexpr size_t	NUM_ACCESS_MODES = static_cast<size_t>( AccessMode::NUM_ACCESS_MODES )

Additional Inherited Members
Public Types inherited from extends< BASE, IDataHandleHolder >
using	base_class = extends
	Typedef to this class. More...
using	extend_interfaces_base = extend_interfaces< Interfaces... >
	Typedef to the base of this class. More...
Public Types inherited from extend_interfaces< Interfaces... >
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids... >::type
	take union of the ext_iids of all Interfaces... More...

Detailed Description

template<typename BASE>
class DataHandleHolderBase< BASE >

Common infrastructure for classes that manage data handles and other Scheduler-known data dependencies.

This template is intended to be used as a common base class of Algorithms and AlgTools. It factors out the bookkeeping associated with DataHandles and other explicitly declared data dependencies.

Definition at line 27 of file DataHandleHolderBase.h.

Member Typedef Documentation

template<typename BASE>

using DataHandleHolderBase< BASE >::AccessMode = Gaudi::v2::DataHandle::AccessMode

private

Definition at line 30 of file DataHandleHolderBase.h.

template<typename BASE>

using DataHandleHolderBase< BASE >::CircularDepHandler = std::function<CircularDepAction( const DataObjID& )>

protected

A circular dependency handler, which can take any user-specified step (e.g.

logging), then produces a dependency handling action.

See CircularDepAction documentation for more information.

Definition at line 224 of file DataHandleHolderBase.h.

template<typename BASE>

using DataHandleHolderBase< BASE >::DataHandleList = std::vector<Gaudi::v2::DataHandle*>

private

Definition at line 319 of file DataHandleHolderBase.h.

template<typename BASE>

using DataHandleHolderBase< BASE >::DataObjIDMapping = std::function<boost::optional<DataObjID>( const DataObjID& )>

protected

DataObjID mapping function, with optimized identity mapping case.

This construct is used when updating the DataObjIDs associated with data dependencies, which is needed for some legacy workarounds.

The mapping function shall return boost::none when no change is required, and the modified DataObjID otherwise. This design optimizes the "no change" case, which is expected to be the norm.

Definition at line 141 of file DataHandleHolderBase.h.

template<typename BASE>

using DataHandleHolderBase< BASE >::Super = extends<BASE, IDataHandleHolder>

private

Definition at line 29 of file DataHandleHolderBase.h.

Member Enumeration Documentation

template<typename BASE>

enum DataHandleHolderBase::CircularDepAction

strongprotected

A circular dependency handling action.

A Gaudi Algorithm with circular dependencies is not schedulable: the Scheduler will not run it until all of its data dependencies are present, but it must be run for at least one of its dependencies to be created. As a result of this deadlock, the Scheduler will stall.

Most circular dependencies are the result of a bug, in which case aborting framework initialization is the right course of action. But some circular dependencies accidentally emerge as a result of Algs having inner structure (e.g. calling multiple AlgTools/SubAlgs which generate each other's inputs). In this latter case, silently breaking up the circularity by deleting the conflicting input dependency may be the right course of action.

The user-specified circular dependency handler will notify the DataHandleHolder of its decision with this enum.

Enumerator
Abort	The framework cannot recover from this circular dependency and will shut down, iteration should be terminated.
Ignore	The circular dependency is assumed to be a false alarm (e.g. data dependencies from inner AlgTools) and the corresponding input dependency can be deleted to avoid scheduler stalls.

Definition at line 208 of file DataHandleHolderBase.h.

                               {
    Abort,

    Ignore
  };

Constructor & Destructor Documentation

template<typename BASE>

template<typename... Args>

DataHandleHolderBase< BASE >::DataHandleHolderBase ( Args &&...  args )

inline

NOTE: Cannot use "using Super::Super;" due to a GCC 6 bug.

Definition at line 35 of file DataHandleHolderBase.h.

                                         : Super( std::forward<Args>( args )... )
  {
  }

Member Function Documentation

template<typename BASE>

static const DataObjID& DataHandleHolderBase< BASE >::accessKey ( const Gaudi::v2::DataHandle *  handlePtr )

inlinestaticprivate

Access the key of a DataHandle.

Definition at line 371 of file DataHandleHolderBase.h.

{ return handlePtr->targetKey(); }

template<typename BASE>

static const DataObjID& DataHandleHolderBase< BASE >::accessKey ( const DataObjID &  key )

inlinestaticprivate

Access the key of a DataObjID (identity function)

Definition at line 374 of file DataHandleHolderBase.h.

{ return key; }

template<typename BASE>

static const DataObjID& DataHandleHolderBase< BASE >::accessKey ( const Gaudi::v1::DataHandle *  handlePtr )

inlinestaticprivate

Access the key of a legacy (non-reentrant) DataHandle.

Definition at line 377 of file DataHandleHolderBase.h.

{ return handlePtr->fullKey(); }

template<typename BASE>

static size_t DataHandleHolderBase< BASE >::accessToIndex ( AccessMode  access )

inlinestaticprivate

Convert a data dependency access mode to its index in our internal storage.

Definition at line 346 of file DataHandleHolderBase.h.

{ return static_cast<size_t>( access ); }

template<typename BASE>

void DataHandleHolderBase< BASE >::addDataDependency ( const DataObjID &  key, AccessMode  access  )

inlinefinaloverride

Add a data dependency, even after initialization.

DataHandles are the preferred way to declare statically known data dependencies. However, there are cases in which an Algorithm's data dependencies are only known at execution time, typically when data is loaded on demand from a file or database. In this case, this method should be used to declare those dynamic data dependencies.

Definition at line 62 of file DataHandleHolderBase.h.

  {
    auto index = accessToIndex( access );
    m_dataDepKeys[index].insert( key );
  }

template<typename BASE>

const DataObjIDColl* DataHandleHolderBase< BASE >::allDataDependencies ( ) const

inlinefinaloverride

Definition at line 122 of file DataHandleHolderBase.h.

  {
    if ( !m_explicitDepsCollected ) {
      throw GaudiException( "Cannot read data dependencies before they are collected", this->name(),
                            StatusCode::FAILURE );
    }
    return m_dataDepKeys;
  }

template<typename BASE>

template<typename KeyHolderColl >

void DataHandleHolderBase< BASE >::collectDependencies ( const KeyHolderColl  keyHolderArray[] )

inlineprivate

Definition at line 408 of file DataHandleHolderBase.h.

  {
    for ( size_t i = 0; i < NUM_ACCESS_MODES; ++i ) {
      extractKeys( m_dataDepKeys[i], m_ignoredDataDeps[i], keyHolderArray[i] );
    }
  }

template<typename BASE>

void DataHandleHolderBase< BASE >::collectDependencies ( const std::unordered_set< Gaudi::v1::DataHandle * >  legacyHandles )

inlineprivate

Specialization of extractDependencies for legacy DataHandles.

These need special treatment, among other things because they can be both reading from and writing to a given whiteboard location.

Definition at line 420 of file DataHandleHolderBase.h.

  {
    DataObjIDColl& validInputs    = m_dataDepKeys[accessToIndex( AccessMode::Read )];
    DataObjIDColl& validOutputs   = m_dataDepKeys[accessToIndex( AccessMode::Write )];
    DataObjIDColl& ignoredInputs  = m_ignoredDataDeps[accessToIndex( AccessMode::Read )];
    DataObjIDColl& ignoredOutputs = m_ignoredDataDeps[accessToIndex( AccessMode::Write )];

    for ( auto handle : legacyHandles ) {
      if ( handle->mode() & Gaudi::v1::DataHandle::Reader ) {
        extractKey( validInputs, ignoredInputs, handle );
      }
      if ( handle->mode() & Gaudi::v1::DataHandle::Writer ) {
        extractKey( validOutputs, ignoredOutputs, handle );
      }
    }
  }

template<typename BASE>

void DataHandleHolderBase< BASE >::collectExplicitDataDependencies ( )

inlineprotected

Collect all explicit data dependencies in a single place.

Like updateDataDependencies(), this method must be called at a framework initialization stage where the DataObjIDs associated with data dependencies are set in stone and will not change anymore.

For optimal performance, it should also be called after any call to updateKeys (see that method's documentation for more info).

Definition at line 173 of file DataHandleHolderBase.h.

  {
    // Considering this function's interface contract, calling it multiple
    // times is very likely to be the result of a usage error.
    if ( m_explicitDepsCollected ) {
      throw GaudiException( "Explicit dependencies may only be collected once", this->name(), StatusCode::FAILURE );
    }

    // Collect the centralized lists of inputs and outputs
    collectDependencies( m_dataHandles );
    collectDependencies( m_extraDeps );
    collectDependencies( m_legacyHandles );

    // Take note that the explicit dependencies have been collected
    m_explicitDepsCollected = true;
  }

template<typename BASE>

void DataHandleHolderBase< BASE >::collectImplicitDataDependencies ( const IDataHandleHolder *  child )

inlineprotected

Add the dependencies of another DataHandleHolder to our dependency list.

This method is used to collect the implicit data dependencies that appear when an Algorithm holds inner Tools and SubAlgs, which have data dependencies themselves. We need this so that the Scheduler can see those "inner" dependencies.

This method must be called after the dependencies of the child Tool/Algorithm have been collected. This includes implicit dependencies, if applicable.

Definition at line 279 of file DataHandleHolderBase.h.

  {
    if ( !child ) return; // Framework randomly sends nulls to this function...
    collectDependencies( child->allDataDependencies() );
  }

template<typename BASE>

const DataObjIDColl& DataHandleHolderBase< BASE >::dataDependencies ( AccessMode  access ) const

inlinefinaloverride

Tell which whiteboard keys the algorithm will be reading or writing.

This function will only provide the full dependency list after it has been collected, which happens during initialization.

Definition at line 73 of file DataHandleHolderBase.h.

  {
    auto index = accessToIndex( access );
    return allDataDependencies()[index];
  }

template<typename BASE>

void DataHandleHolderBase< BASE >::declare ( Gaudi::v1::DataHandle &  handle )

inlineoverride

Declare ownership of a legacy DataHandle.

Definition at line 80 of file DataHandleHolderBase.h.

  {
    if ( m_explicitDepsCollected && isNewDataDependency( handle ) ) {
      throw GaudiException( "Cannot register a new data handle after data dependency collection", this->name(),
                            StatusCode::FAILURE );
    }

    if ( !handle.owner() ) {
      handle.setOwner( this );
    } else if ( handle.owner() != this ) {
      throw GaudiException( "Attempt to declare foreign handle with algorithm!", this->name(), StatusCode::FAILURE );
    }

    m_legacyHandles.insert( &handle );
  }

template<typename BASE>

template<typename KeyHolder >

static void DataHandleHolderBase< BASE >::extractKey ( DataObjIDColl &  validOutput, DataObjIDColl &  ignoredOutput, const KeyHolder &  holder  )

inlinestaticprivate

Extract the key of a key holder, putting empty keys on an ignore list.

Definition at line 381 of file DataHandleHolderBase.h.

  {
    const DataObjID& key = accessKey( holder );
    if ( !key.empty() ) {
      validOutput.insert( key );
    } else {
      ignoredOutput.insert( key );
    }
  }

template<typename BASE>

template<typename KeyHolderColl >

static void DataHandleHolderBase< BASE >::extractKeys ( DataObjIDColl &  validOutput, DataObjIDColl &  ignoredOutput, const KeyHolderColl &  keyHolders  )

inlinestaticprivate

Extract non-empty DataObjID keys from a collection of key holders.

Given an output key collection and a collection of objects that have an associated DataObjID key which can be accessed via an overload of accessKey(), extract the keys, filter out empty ones, and store the rest in the output collection.

Definition at line 399 of file DataHandleHolderBase.h.

  {
    validOutput.reserve( keyHolders.size() );
    for ( const auto& holder : keyHolders ) {
      extractKey( validOutput, ignoredOutput, holder );
    }
  }

template<typename BASE>

StatusCode DataHandleHolderBase< BASE >::handleCircularDataDependencies ( CircularDepHandler &&  circularDepHandler )

inlineprotected

Look for circular dependencies and let a user-specified handler deal with each of them.

This method must be called after explicit dependencies have been collected, as otherwise it may miss some circular dependencies.

Definition at line 232 of file DataHandleHolderBase.h.

  {
    // Make sure that explicit dependencies have been collected beforehand
    if ( !m_explicitDepsCollected ) {
      throw GaudiException( "Explicit dependencies must be collected first", this->name(), StatusCode::FAILURE );
    }

    // Go through the output dependencies, looking for circular input
    // dependencies
    //
    // We must use this inefficient O(N²) iteration pattern because circular
    // dependency handling may mutate the input dependency list,
    // invalidating any iterator to that list.
    //
    const DataObjIDColl& outputKeys = m_dataDepKeys[accessToIndex( AccessMode::Write )];
    DataObjIDColl&       inputKeys  = m_dataDepKeys[accessToIndex( AccessMode::Read )];
    for ( const auto& outputKey : outputKeys ) {
      auto inputPos = inputKeys.find( outputKey );
      if ( inputPos != inputKeys.end() ) {
        // Call the user circular dependency handler on each dependency
        switch ( circularDepHandler( *inputPos ) ) {
        // Abort iteration if asked to do so
        case CircularDepAction::Abort:
          return StatusCode::FAILURE;

        // Break the circular dependency otherwise
        case CircularDepAction::Ignore:
          inputKeys.erase( inputPos );
        }
      }
    }

    // If control reached this point, we are fine
    return StatusCode::SUCCESS;
  }

template<typename BASE>

const DataObjIDColl& DataHandleHolderBase< BASE >::ignoredDataDependencies ( AccessMode  access ) const

inlineprotected

Tell which data dependencies have been ignored due to an empty key.

The interface caveats described in inputKeys() also apply here.

Definition at line 289 of file DataHandleHolderBase.h.

  {
    if ( !m_explicitDepsCollected ) {
      throw GaudiException( "Cannot read ignored data dependencies before they are collected", this->name(),
                            StatusCode::FAILURE );
    }
    return m_ignoredDataDeps[accessToIndex( access )];
  }

template<typename BASE>

void DataHandleHolderBase< BASE >::initializeDataHandleHolder ( )

inlineprotected

Initialize the DataHandles.

This operation accesses framework services and must therefore be run after the host Algorithm or AlgTool has been sysInitialized.

Definition at line 303 of file DataHandleHolderBase.h.

  {
    for ( auto handle : m_legacyHandles ) handle->init();

    for ( auto handleArray : m_dataHandles ) {
      for ( auto handle : handleArray ) {
        handle->initialize( *this );
      }
    }
  }

template<typename BASE>

bool DataHandleHolderBase< BASE >::isNewDataDependency ( const Gaudi::v2::DataHandle &  handle ) const

inlineprivate

Check if a data dependency has not been declared before (new DataHandle version)

Definition at line 349 of file DataHandleHolderBase.h.

  {
    auto index = accessToIndex( handle.access() );
    return m_dataDepKeys[index].find( handle.targetKey() ) == m_dataDepKeys[index].end();
  }

template<typename BASE>

bool DataHandleHolderBase< BASE >::isNewDataDependency ( const Gaudi::v1::DataHandle &  handle ) const

inlineprivate

Check if a data dependency has not been declared before (new DataHandle version)

Definition at line 356 of file DataHandleHolderBase.h.

  {
    bool result = false;
    if ( handle.mode() & Gaudi::v1::DataHandle::Reader ) {
      auto index = accessToIndex( AccessMode::Read );
      result &= ( m_dataDepKeys[index].find( handle.fullKey() ) == m_dataDepKeys[index].end() );
    }
    if ( handle.mode() & Gaudi::v1::DataHandle::Writer ) {
      auto index = accessToIndex( AccessMode::Write );
      result &= ( m_dataDepKeys[index].find( handle.fullKey() ) == m_dataDepKeys[index].end() );
    }
    return result;
  }

template<typename BASE>

void DataHandleHolderBase< BASE >::registerDataHandle ( Gaudi::v2::DataHandle &  handle )

inlinefinaloverride

Register a data handle of this algorithm/tool.

You should not need to call this method manually, as it is automatically called by the DataHandle constructor.

Definition at line 44 of file DataHandleHolderBase.h.

  {
    if ( m_explicitDepsCollected && isNewDataDependency( handle ) ) {
      throw GaudiException( "Cannot register a new data handle after data dependency collection", this->name(),
                            StatusCode::FAILURE );
    }
    auto index = accessToIndex( handle.access() );
    m_dataHandles[index].push_back( &handle );
  }

template<typename BASE>

void DataHandleHolderBase< BASE >::renounce ( Gaudi::v1::DataHandle &  handle )

inlineoverride

Discard ownership of a legacy DataHandle.

Definition at line 97 of file DataHandleHolderBase.h.

  {
    // In general, deleting a DataHandle after the data dependencies have been
    // collected is bogus, because this change will not propagate to the data
    // dependency list, and to our clients that have queried and potentially
    // made copies of this list, such as the Scheduler.
    //
    // Nevertheless, this operation is safe and should be allowed during
    // and after Algorithm finalization.
    //
    if ( m_explicitDepsCollected &&
         dynamic_cast<IStateful*>( this )->targetFSMState() >= Gaudi::StateMachine::INITIALIZED ) {
      throw GaudiException( "Cannot discard legacy handle after data dependency collection", this->name(),
                            StatusCode::FAILURE );
    }

    if ( handle.owner() != this ) {
      throw GaudiException( "Attempt to renounce foreign handle with algorithm!", this->name(), StatusCode::FAILURE );
    }

    m_legacyHandles.erase( &handle );
  }

template<typename BASE>

void DataHandleHolderBase< BASE >::updateDataDependencies ( const DataObjIDMapping &  keyMap )

inlineprotected

Update the key of each registered data dependency, using a user-defined mapping from the old to the new key.

This method must be called at a framework initialization stage where the DataObjIDs associated with data dependencies are guaranteed not to change anymore. Otherwise the DataObjIDs changes brought by this update will be overwritten.

It should also be called before the explicit dependencies are collected by collectExplicitDependencies(), as otherwise the DataObjIDs modifications will be carried out in two different places, resulting in worse performance.

Definition at line 156 of file DataHandleHolderBase.h.

  {
    updateDependencies( m_dataHandles, keyMap );
    updateDependencies( m_legacyHandles, keyMap );
    updateDependencies( m_dataDepKeys, keyMap );
    updateDependencies( m_extraDeps, keyMap );
  }

template<typename BASE>

template<typename KeyHolderColl >

static void DataHandleHolderBase< BASE >::updateDependencies ( KeyHolderColl &  keyHolders, const DataObjIDMapping &  keyMap  )

inlinestaticprivate

Update the DataObjID keys of a collection of key holders.

Access the key from each key holder using accessKey, pass it through a user-defined transform, and if the result is different from the original key update the key using updateKey.

Definition at line 453 of file DataHandleHolderBase.h.

  {
    for ( auto& holder : keyHolders ) {
      const DataObjID& oldKey    = accessKey( holder );
      auto             mappedKey = keyMap( oldKey );
      if ( mappedKey ) {
        updateKey( holder, *std::move( mappedKey ) );
      }
    }
  }

template<typename BASE>

static void DataHandleHolderBase< BASE >::updateDependencies ( DataObjIDColl &  keys, const DataObjIDMapping &  keyMap  )

inlinestaticprivate

Specialization of the above algorithm for DataObjIDColls, where updating the keys in place is not possible.

Definition at line 466 of file DataHandleHolderBase.h.

  {
    DataObjIDColl result;
    result.reserve( keys.size() );
    for ( const auto& key : keys ) {
      result.emplace( keyMap( key ).value_or( key ) );
    }
    keys = std::move( result );
  }

template<typename BASE>

static void DataHandleHolderBase< BASE >::updateDependencies ( Gaudi::Property< DataObjIDColl > &  keys, const DataObjIDMapping &  keyMap  )

inlinestaticprivate

Specialization for properties which accesses the inner collection.

Definition at line 477 of file DataHandleHolderBase.h.

  {
    updateDependencies( keys.value(), keyMap );
  }

template<typename BASE>

template<typename KeyHolderColl >

static void DataHandleHolderBase< BASE >::updateDependencies ( KeyHolderColl  keyHoldersArray[], const DataObjIDMapping &  keyMap  )

inlinestaticprivate

Specialization of the above algorithm for arrays of KeyHolderColls.

Definition at line 484 of file DataHandleHolderBase.h.

  {
    for ( size_t i = 0; i < NUM_ACCESS_MODES; ++i ) {
      updateDependencies( keyHoldersArray[i], keyMap );
    }
  }

template<typename BASE>

static void DataHandleHolderBase< BASE >::updateKey ( Gaudi::v2::DataHandle *  target, DataObjID &&  key  )

inlinestaticprivate

Update the key of a DataHandle.

Definition at line 438 of file DataHandleHolderBase.h.

{ target->setTargetKey( std::move( key ) ); }

template<typename BASE>

static void DataHandleHolderBase< BASE >::updateKey ( DataObjID &  target, DataObjID &&  key  )

inlinestaticprivate

Update the key of a DataObjID.

Definition at line 441 of file DataHandleHolderBase.h.

{ target = std::move( key ); }

template<typename BASE>

static void DataHandleHolderBase< BASE >::updateKey ( Gaudi::v1::DataHandle *  target, DataObjID &&  key  )

inlinestaticprivate

Update the key of a legacy (non-reentrant) DataHandle.

Definition at line 444 of file DataHandleHolderBase.h.

{ target->setKey( std::move( key ) ); }

Member Data Documentation

template<typename BASE>

DataObjIDColl DataHandleHolderBase< BASE >::m_dataDepKeys[NUM_ACCESS_MODES]

private

Definition at line 335 of file DataHandleHolderBase.h.

template<typename BASE>

DataHandleList DataHandleHolderBase< BASE >::m_dataHandles[NUM_ACCESS_MODES]

private

Definition at line 320 of file DataHandleHolderBase.h.

template<typename BASE>

bool DataHandleHolderBase< BASE >::m_explicitDepsCollected = false

private

Truth that all explicit data dependencies have already been collected in a single list.

Definition at line 339 of file DataHandleHolderBase.h.

template<typename BASE>

Gaudi::Property<DataObjIDColl> DataHandleHolderBase< BASE >::m_extraDeps[NUM_ACCESS_MODES]

private

Initial value:

{{this, "ExtraInputs", DataObjIDColl{}},
                                                               {this, "ExtraOutputs", DataObjIDColl{}}}

Definition at line 331 of file DataHandleHolderBase.h.

template<typename BASE>

DataObjIDColl DataHandleHolderBase< BASE >::m_ignoredDataDeps[NUM_ACCESS_MODES]

private

Definition at line 343 of file DataHandleHolderBase.h.

template<typename BASE>

std::unordered_set<Gaudi::v1::DataHandle*> DataHandleHolderBase< BASE >::m_legacyHandles

private

Definition at line 323 of file DataHandleHolderBase.h.

template<typename BASE>

constexpr size_t DataHandleHolderBase< BASE >::NUM_ACCESS_MODES = static_cast<size_t>( AccessMode::NUM_ACCESS_MODES )

staticprivate

Definition at line 316 of file DataHandleHolderBase.h.

---

The documentation for this class was generated from the following file:

• GaudiKernel/GaudiKernel/DataHandleHolderBase.h
