Class representing an event slot. More...

#include <src/EventSlot.h>

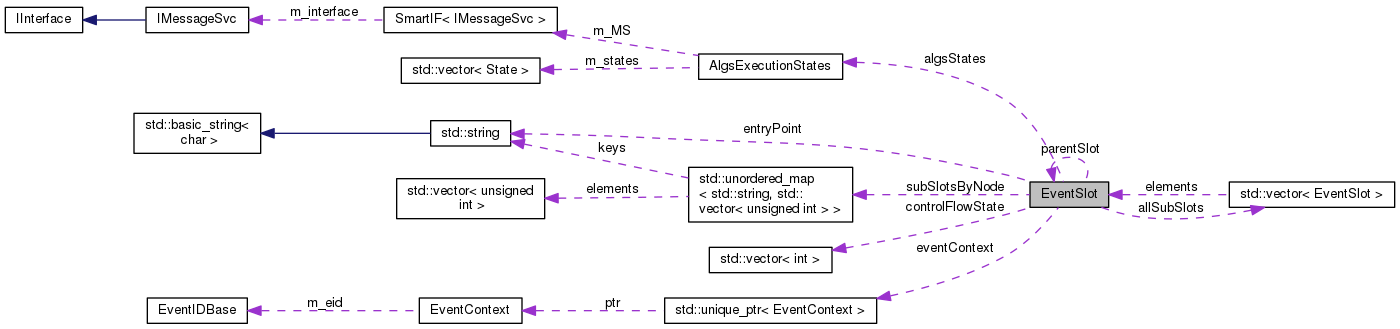

Collaboration diagram for EventSlot:

[legend]

Public Member Functions
	EventSlot (unsigned int numberOfAlgorithms, unsigned int numberOfControlFlowNodes, SmartIF< IMessageSvc > MS)
	Construct a slot. More...

	EventSlot (const EventSlot &)=delete
	Copy constructor. More...

EventSlot &	operator= (const EventSlot &)=delete
	Assignment operator. More...

	EventSlot (EventSlot &&)=default
	Move constructor. More...

EventSlot &	operator= (EventSlot &&)=default
	Move assignment. More...

	EventSlot (EventSlot &original, std::unique_ptr< EventContext > theeventContext, const std::string &nodeName)
	Construct a (sub)slot, nested to 'original' parent slot, with CF states copied from the parent. More...

void	reset (EventContext *theeventContext)
	Reset all resources in order to reuse the slot (thread-unsafe) More...

void	addSubSlot (std::unique_ptr< EventContext > viewContext, const std::string &nodeName)
	Add a subslot to the slot (this constructs a new slot and registers it with the parent one) More...

void	disableSubSlots (const std::string &nodeName)
	Disable event views for a given CF view node by registering an empty container Contact B. More...

Public Attributes
std::unique_ptr< EventContext >	eventContext
	Cache for the eventContext. More...

AlgsExecutionStates	algsStates
	Vector of algorithms states. More...

std::vector< int >	controlFlowState
	State of the control flow. More...

bool	complete = false
	Flags completion of the event. More...

std::string	entryPoint
	Event Views bookkeeping (TODO: optimize view bookkeeping) More...

EventSlot *	parentSlot = nullptr
	Pointer to parent slot (null for top level) More...

std::unordered_map< std::string, std::vector< unsigned int > >	subSlotsByNode
	Listing of sub-slots by the node (name) they are attached to. More...

std::vector< EventSlot >	allSubSlots
	Actual sub-slot instances. More...

Detailed Description

Class representing an event slot.

Definition at line 14 of file EventSlot.h.

Constructor & Destructor Documentation

EventSlot::EventSlot	(	unsigned int	numberOfAlgorithms,
		unsigned int	numberOfControlFlowNodes,
		SmartIF< IMessageSvc >	MS
	)

inline

Construct a slot.

Definition at line 16 of file EventSlot.h.

17 : algsStates( numberOfAlgorithms, MS ), controlFlowState( numberOfControlFlowNodes, -1 ){};

EventSlot::controlFlowState

std::vector< int > controlFlowState

State of the control flow.

Definition: EventSlot.h:77

EventSlot::algsStates

AlgsExecutionStates algsStates

Vector of algorithms states.

Definition: EventSlot.h:75

EventSlot::EventSlot ( const EventSlot & )

delete

Copy constructor.

EventSlot::EventSlot ( EventSlot && )

default

Move constructor.

EventSlot::EventSlot	(	EventSlot &	original,
		std::unique_ptr< EventContext >	theeventContext,
		const std::string &	nodeName
	)

inline

Construct a (sub)slot, nested to 'original' parent slot, with CF states copied from the parent.

Definition at line 29 of file EventSlot.h.

       : eventContext( std::move( theeventContext ) )
       , algsStates( original.algsStates )
       , controlFlowState( original.controlFlowState )
       , entryPoint( nodeName )
       , parentSlot( &original ) {
     algsStates.reset();
   };

Member Function Documentation

void EventSlot::addSubSlot	(	std::unique_ptr< EventContext >	viewContext,
		const std::string &	nodeName
	)

inline

Add a subslot to the slot (this constructs a new slot and registers it with the parent one)

Definition at line 51 of file EventSlot.h.

                                                                                         {
     unsigned int lastIndex = allSubSlots.size();

     auto search = subSlotsByNode.find( nodeName );
     if ( search != subSlotsByNode.end() )
       subSlotsByNode[nodeName].push_back( lastIndex );
     else
       subSlotsByNode.emplace( std::piecewise_construct, std::forward_as_tuple( nodeName ),
                               std::forward_as_tuple( 1, lastIndex ) );

     // Make new slot and nest it into the top slot
     viewContext->setSubSlot( lastIndex );
     allSubSlots.emplace_back( *this, std::move( viewContext ), nodeName );
   }

void EventSlot::disableSubSlots ( const std::string & nodeName )

inline

Disable event views for a given CF view node by registering an empty container Contact B.

W. Wynne for more details on the reasoning about this design choice

Definition at line 68 of file EventSlot.h.

                                                     {
     subSlotsByNode.emplace( std::piecewise_construct, std::forward_as_tuple( nodeName ), std::forward_as_tuple() );
   }

EventSlot& EventSlot::operator= ( const EventSlot & )

delete

Assignment operator.

EventSlot& EventSlot::operator= ( EventSlot && )

default

Move assignment.

void EventSlot::reset ( EventContext * theeventContext )

inline

Reset all resources in order to reuse the slot (thread-unsafe)

Definition at line 39 of file EventSlot.h.

                                               {
     eventContext.reset( theeventContext );
     algsStates.reset();
     controlFlowState.assign( controlFlowState.size(), -1 );
     complete = false;
     entryPoint.clear();
     parentSlot = nullptr;
     subSlotsByNode.clear();
     allSubSlots.clear();
   };

Member Data Documentation

AlgsExecutionStates EventSlot::algsStates

Vector of algorithms states.

Definition at line 75 of file EventSlot.h.

std::vector<EventSlot> EventSlot::allSubSlots

Actual sub-slot instances.

Definition at line 90 of file EventSlot.h.

bool EventSlot::complete = false

Flags completion of the event.

Definition at line 79 of file EventSlot.h.

std::vector<int> EventSlot::controlFlowState

State of the control flow.

Definition at line 77 of file EventSlot.h.

std::string EventSlot::entryPoint

Event Views bookkeeping (TODO: optimize view bookkeeping)

Name of the node this slot is attached to ("" for top level)

Definition at line 84 of file EventSlot.h.

std::unique_ptr<EventContext> EventSlot::eventContext

Cache for the eventContext.

Definition at line 73 of file EventSlot.h.

EventSlot* EventSlot::parentSlot = nullptr

Pointer to parent slot (null for top level)

Definition at line 86 of file EventSlot.h.

std::unordered_map<std::string, std::vector<unsigned int> > EventSlot::subSlotsByNode

Listing of sub-slots by the node (name) they are attached to.

Definition at line 88 of file EventSlot.h.

The documentation for this struct was generated from the following file:

GaudiHive/src/EventSlot.h
