precedence::EntityState Struct Reference

#include <src/PRGraph/PrecedenceRulesGraph.h>

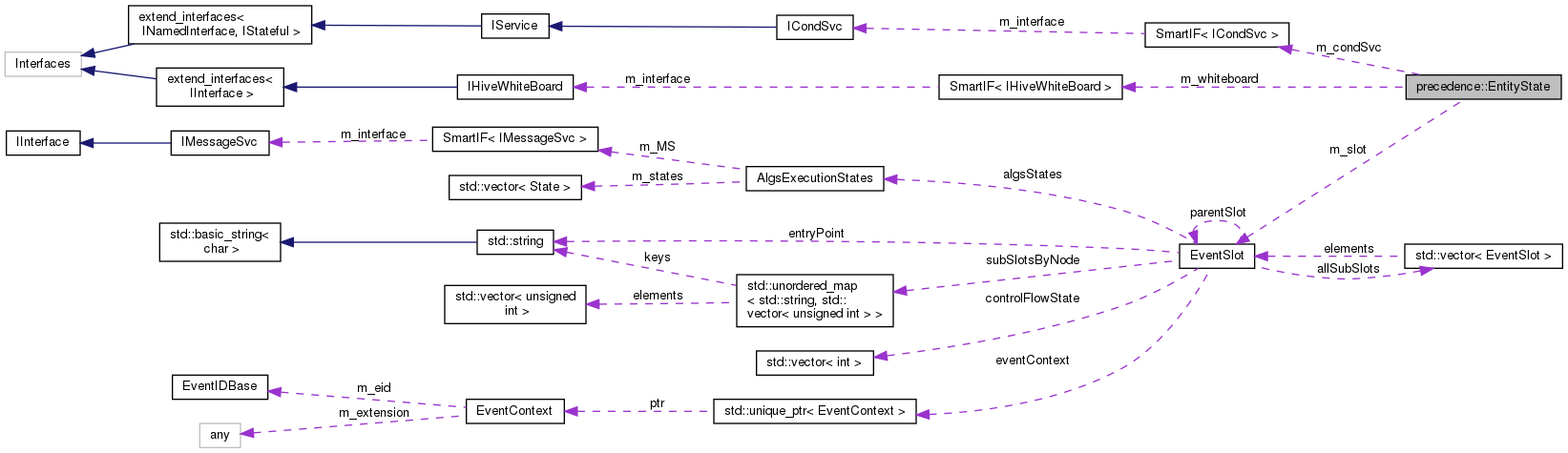

Collaboration diagram for precedence::EntityState:

Public Member Functions
	EntityState (const EventSlot &slot, SmartIF< ISvcLocator > &svcLocator, bool conditionsEnabled)
std::string	operator() (const AlgoProps &props) const
std::string	operator() (const DecisionHubProps &) const
std::string	operator() (const DataProps &props) const
std::string	operator() (const CondDataProps &props) const

Public Attributes
const EventSlot &	m_slot
SmartIF< IHiveWhiteBoard >	m_whiteboard
SmartIF< ICondSvc >	m_condSvc
bool	m_conditionsEnabled {false}

Detailed Description

Definition at line 188 of file PrecedenceRulesGraph.h.

Constructor & Destructor Documentation

EntityState()

precedence::EntityState::EntityState ( const EventSlot &  slot, SmartIF< ISvcLocator > &  svcLocator, bool  conditionsEnabled  )

inline

Definition at line 189 of file PrecedenceRulesGraph.h.

        : m_slot( slot ), m_conditionsEnabled( conditionsEnabled ) {
      SmartIF<IMessageSvc> msgSvc{svcLocator};
      MsgStream            log{msgSvc, "EntityState.Getter"};

      // Figure if we can discover the data object states
      m_whiteboard = svcLocator->service<IHiveWhiteBoard>( "EventDataSvc", false );
      if ( !m_whiteboard.isValid() ) {
        log << MSG::WARNING << "Failed to locate EventDataSvc: no way to add DO "
            << "states to the TTT dump " << endmsg;
      }

      if ( m_conditionsEnabled ) {
        // Figure if we can discover Condition data object states
        m_condSvc = svcLocator->service<ICondSvc>( "CondSvc", false );
        if ( !m_condSvc.isValid() )
          log << MSG::WARNING << "Failed to locate CondSvc: no way to add Condition DO "
              << "states to the TTT dump " << endmsg;
      }

      if ( !m_slot.eventContext->valid() )
        log << MSG::WARNING << "Event context is invalid: no way to add DO states"
            << " in the TTT dump" << endmsg;
    }

Member Function Documentation

operator()() [1/4]

std::string precedence::EntityState::operator() ( const AlgoProps &  props ) const

inline

Definition at line 215 of file PrecedenceRulesGraph.h.

                                                         {
      std::ostringstream oss;
      oss << m_slot.algsStates[props.m_algoIndex];
      return oss.str();
    }

operator()() [2/4]

std::string precedence::EntityState::operator() ( const DecisionHubProps &  ) const

inline

Definition at line 221 of file PrecedenceRulesGraph.h.

{ return ""; }

operator()() [3/4]

std::string precedence::EntityState::operator() ( const DataProps &  props ) const

inline

Definition at line 223 of file PrecedenceRulesGraph.h.

                                                         {
      std::string state;

      if ( m_whiteboard.isValid() && m_slot.eventContext->valid() )
        if ( m_whiteboard->selectStore( m_slot.eventContext->slot() ).isSuccess() )
          state = m_whiteboard->exists( props.m_id ) ? "Produced" : "Missing";

      return state;
    }

operator()() [4/4]

std::string precedence::EntityState::operator() ( const CondDataProps &  props ) const

inline

Definition at line 233 of file PrecedenceRulesGraph.h.

                                                             {
      std::string state;

      if ( m_condSvc.isValid() && m_slot.eventContext->valid() )
        state = m_condSvc->isValidID( *( m_slot.eventContext ), props.m_id ) ? "Produced" : "Missing";

      return state;
    }

Member Data Documentation

m_conditionsEnabled

bool precedence::EntityState::m_conditionsEnabled {false}

Definition at line 246 of file PrecedenceRulesGraph.h.

m_condSvc

SmartIF<ICondSvc> precedence::EntityState::m_condSvc

Definition at line 245 of file PrecedenceRulesGraph.h.

m_slot

const EventSlot& precedence::EntityState::m_slot

Definition at line 242 of file PrecedenceRulesGraph.h.

m_whiteboard

SmartIF<IHiveWhiteBoard> precedence::EntityState::m_whiteboard

Definition at line 244 of file PrecedenceRulesGraph.h.

---

The documentation for this struct was generated from the following file:

• GaudiHive/src/PRGraph/PrecedenceRulesGraph.h
