Sequencer for executing several algorithms, stopping when one is faulty. More...

#include <GaudiAlg/GaudiSequencer.h>

Inheritance diagram for GaudiSequencer:

[legend]

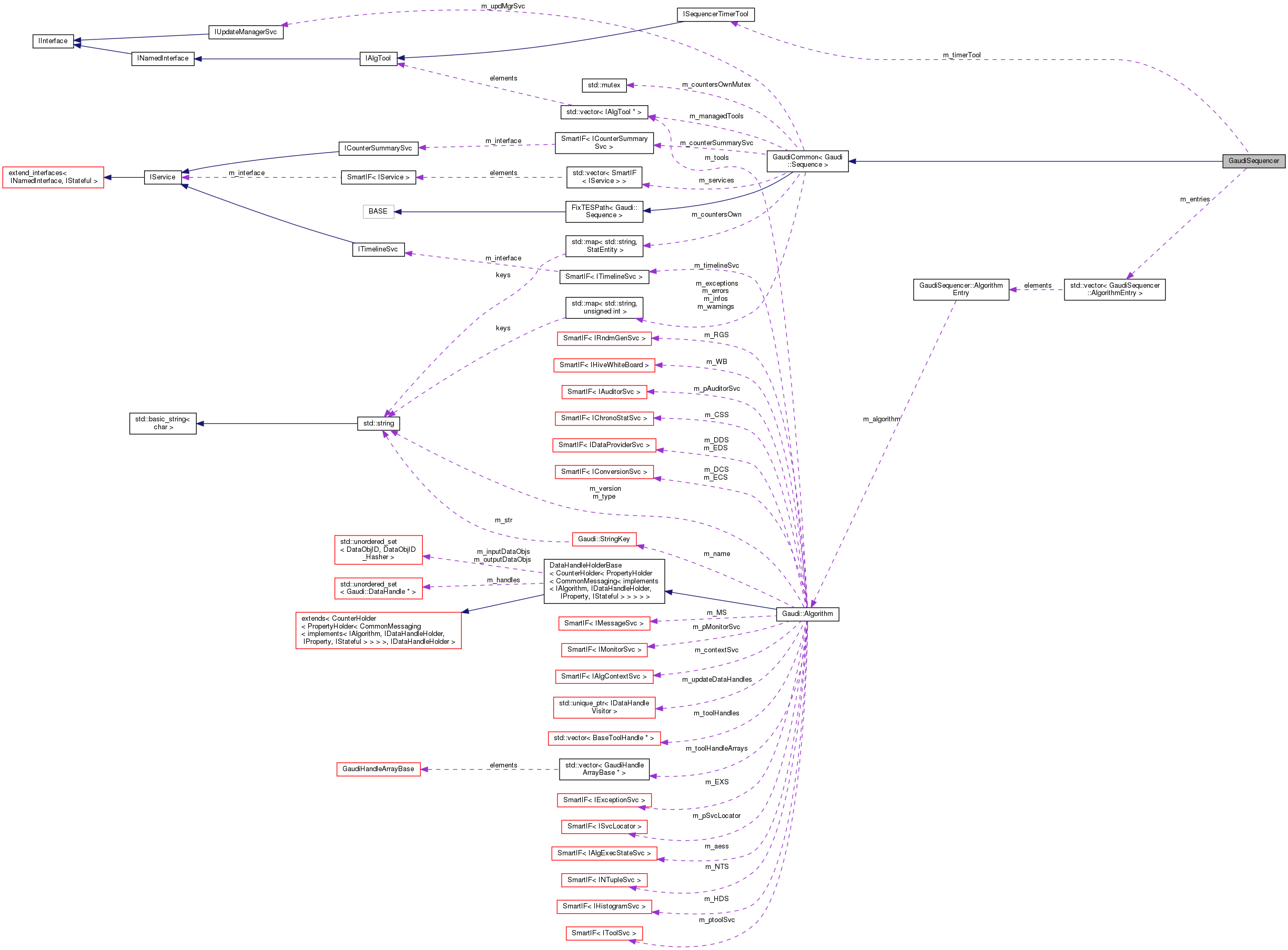

Collaboration diagram for GaudiSequencer:

[legend]

Classes
class	AlgorithmEntry

Public Member Functions
StatusCode	initialize () override

StatusCode	execute (const EventContext &ctx) const override

StatusCode	sysExecute (const EventContext &ctx) override

std::ostream &	toControlFlowExpression (std::ostream &os) const override
	Produce string represention of the control flow expression. More...

template<typename U = PBASE, typename = std::enable_if_t<std::is_base_of_v<Gaudi::Algorithm, PBASE>, U>>
	GaudiCommon (const std::string &name, ISvcLocator *pSvcLocator)
	Standard constructor. More...

template<typename U = PBASE, typename = std::enable_if_t<std::is_base_of_v<AlgTool, PBASE>, U>>
	GaudiCommon (const std::string &type, const std::string &name, const IInterface *ancestor)
	Standard constructor. More...

Public Member Functions inherited from GaudiCommon< Gaudi::Sequence >
Gaudi::Utils::GetData< TYPE >::return_type	get (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Templated access to the data in Gaudi Transient Store. More...

Gaudi::Utils::GetData< TYPE >::return_type	getIfExists (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Quicker version of the get function which bypasses the check on the retrieved data. More...

bool	exist (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Check the existence of a data object or container in the Gaudi Transient Event Store. More...

Gaudi::Utils::GetData< TYPE >::return_type	getOrCreate (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Get the existing data object from Gaudi Event Transient store. More...

DataObject *	put (IDataProviderSvc *svc, std::unique_ptr< DataObject > object, const std::string &location, const bool useRootInTES=true) const
	Register a data object or container into Gaudi Event Transient Store. More...

DataObject *	put (IDataProviderSvc svc, DataObject object, const std::string &location, const bool useRootInTES=true) const

TOOL *	tool (const std::string &type, const std::string &name, const IInterface *parent=0, bool create=true) const
	Useful method for the easy location of tools. More...

TOOL *	tool (const std::string &type, const IInterface *parent=0, bool create=true) const
	A useful method for the easy location of tools. More...

SmartIF< SERVICE >	svc (const std::string &name, const bool create=true) const
	A useful method for the easy location of services. More...

IUpdateManagerSvc *	updMgrSvc () const
	Short-cut to locate the Update Manager Service. More...

WARN_UNUSED StatusCode	Error (const std::string &msg, const StatusCode st=StatusCode::FAILURE, const size_t mx=10) const
	Print the error message and return with the given StatusCode. More...

WARN_UNUSED StatusCode	Warning (const std::string &msg, const StatusCode st=StatusCode::FAILURE, const size_t mx=10) const
	Print the warning message and return with the given StatusCode. More...

WARN_UNUSED StatusCode	Info (const std::string &msg, const StatusCode st=StatusCode::SUCCESS, const size_t mx=10) const
	Print the info message and return with the given StatusCode. More...

WARN_UNUSED StatusCode	Print (const std::string &msg, const StatusCode st=StatusCode::SUCCESS, const MSG::Level lev=MSG::INFO) const
	Print the message and return with the given StatusCode. More...

void	Assert (const bool ok, const std::string &message="", const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Assertion - throw exception if the given condition is not fulfilled. More...

void	Assert (const bool ok, const char *message, const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Assertion - throw exception if the given condition is not fulfilled. More...

void	Exception (const std::string &msg, const GaudiException &exc, const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Create and (re)-throw a given GaudiException. More...

void	Exception (const std::string &msg, const std::exception &exc, const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Create and (re)-throw a given exception. More...

void	Exception (const std::string &msg="no message", const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Create and throw an exception with the given message. More...

StatEntity &	counter (const std::string &tag) const
	accessor to certain counter by name More...

StatEntity &	counter (const std::string &tag)

bool	typePrint () const
	Insert the actual C++ type of the algorithm/tool in the messages ? More...

bool	propsPrint () const
	Print properties at initialization ? More...

bool	statPrint () const
	Print statistical counters at finalization ? More...

bool	errorsPrint () const
	Print error counters at finalization ? More...

long	printStat (const MSG::Level level=MSG::ALWAYS) const
	perform the actual printout of statistical counters More...

long	printErrors (const MSG::Level level=MSG::ALWAYS) const
	perform the actual printout of error counters More...

long	printProps (const MSG::Level level=MSG::ALWAYS) const
	perform the actual printout of properties More...

void	registerCondition (const std::string &condition, StatusCode(CallerClass::*mf)()=nullptr)
	register the current instance to the UpdateManagerSvc as a consumer for a condition. More...

void	registerCondition (const std::string &condition, CondType &condPtrDest, StatusCode(CallerClass::mf)()=NULL)
	register the current instance to the UpdateManagerSvc as a consumer for a condition. More...

void	registerCondition (char condition, StatusCode(CallerClass::mf)()=NULL)
	just to avoid conflicts with the version using a pointer to a template class. More...

void	registerCondition (TargetClass condition, StatusCode(CallerClass::mf)()=NULL)
	register the current instance to the UpdateManagerSvc as a consumer for a condition. More...

StatusCode	runUpdate ()
	asks the UpdateManagerSvc to perform an update of the instance (if needed) without waiting the next BeginEvent incident. More...

	GaudiCommon (const std::string &name, ISvcLocator *pSvcLocator)
	Algorithm constructor - the SFINAE constraint below ensures that this is constructor is only defined if PBASE derives from Algorithm. More...

	GaudiCommon (const std::string &type, const std::string &name, const IInterface *ancestor)
	Tool constructor - SFINAE-ed to insure this constructor is only defined if PBASE derives from AlgTool. More...

StatusCode	initialize () override
	standard initialization method More...

StatusCode	finalize () override
	standard finalization method More...

StatusCode	release (const IInterface *interface) const
	Manual forced (and 'safe') release of the active tool or service. More...

const Services &	services () const
	get the list of aquired services More...

const std::string &	context () const
	Returns the "context" string. Used to identify different processing states. More...

Public Member Functions inherited from FixTESPath< BASE >
template<typename U = BASE, typename = std::enable_if_t<std::is_base_of_v<Gaudi::Algorithm, BASE>, U>>
	FixTESPath (const std::string &name, ISvcLocator *pSvcLocator)
	Algorithm constructor - the SFINAE constraint below ensures that this is constructor is only defined if BASE derives from Algorithm. More...

template<typename U = BASE, typename = std::enable_if_t<std::is_base_of_v<AlgTool, BASE>, U>>
	FixTESPath (const std::string &type, const std::string &name, const IInterface *ancestor)
	Tool constructor - SFINAE-ed to insure this constructor is only defined if BASE derives from AlgTool. More...

StatusCode	initialize () override

const std::string &	rootInTES () const
	Returns the "rootInTES" string. More...

std::string	fullTESLocation (std::string_view location, bool useRootInTES) const
	Returns the full correct event location given the rootInTes settings. More...

Private Member Functions
StatusCode	decodeNames ()
	Decode a vector of string. More...

void	membershipHandler ()
	for asynchronous changes in the list of algorithms More...

Private Attributes
Gaudi::Property< std::vector< std::string > >	m_vetoObjs

Gaudi::Property< std::vector< std::string > >	m_requireObjs

Gaudi::Property< std::vector< std::string > >	m_names

Gaudi::Property< bool >	m_sequential = {this, "Sequential", false, "execute members one at a time"}

Gaudi::Property< bool >	m_modeOR = {this, "ModeOR", false, "use OR logic instead of AND"}

Gaudi::Property< bool >	m_ignoreFilter = {this, "IgnoreFilterPassed", false, "always continue"}

Gaudi::Property< bool >	m_measureTime = {this, "MeasureTime", false, "measure time"}

Gaudi::Property< bool >	m_returnOK = {this, "ReturnOK", false, "forces the sequencer to return a good status"}

Gaudi::Property< bool >	m_shortCircuit = {this, "ShortCircuit", true, "stop processing as soon as possible"}

Gaudi::Property< bool >	m_invert = {this, "Invert", false, "invert the logic result of the sequencer"}

std::vector< AlgorithmEntry >	m_entries
	List of algorithms to process. More...

ISequencerTimerTool *	m_timerTool = nullptr
	Pointer to the timer tool. More...

int	m_timer
	Timer number for the sequencer. More...

Additional Inherited Members
Protected Types inherited from GaudiCommon< Gaudi::Sequence >
using	base_class = FixTESPath< Gaudi::Sequence >

typedef std::map< std::string, StatEntity >	StatisticsOwn
	the actual type of general counters More...

typedef std::map< std::string, std::reference_wrapper< Gaudi::Accumulators::PrintableCounter > >	Statistics

typedef std::map< std::string, unsigned int >	Counter
	the actual type error/warning counter More...

typedef std::vector< IAlgTool * >	AlgTools
	storage for active tools More...

typedef std::vector< SmartIF< IService > >	Services
	storage for active services More...

Protected Member Functions inherited from GaudiCommon< Gaudi::Sequence >
StatusCode	releaseTool (const IAlgTool *tool) const
	manual forced (and 'safe') release of the tool More...

StatusCode	releaseSvc (const IInterface *svc) const
	manual forced (and 'safe') release of the service More...

Protected Attributes inherited from GaudiCommon< Gaudi::Sequence >
SmartIF< ICounterSummarySvc >	m_counterSummarySvc
	a pointer to the CounterSummarySvc More...

Static Protected Attributes inherited from GaudiCommon< Gaudi::Sequence >
static const bool	IgnoreRootInTES
	Simple definition to be used with the new useRootInTES argument get<TYPE> and put methods. More...

static const bool	UseRootInTES
	Simple definition to be used with the new useRootInTES argument get<TYPE> and put methods. More...

Detailed Description

Sequencer for executing several algorithms, stopping when one is faulty.

Default behaviour (ModeOR=False) is to execute all algorithms until one returns filterPassed() = False. If ShortCircuit is set to False, then all algorithms will be executed.

In OR mode, the logic is opposite. All algorithms until one returns filterPassed() = True. To then exit one must conter-intuitively set ShortCircuit to False. If the default value ShortCircuit=True is left then all algorithms will be executed.

Author: Olivier Callot

Date: 2004-05-13

Definition at line 28 of file GaudiSequencer.h.

Member Function Documentation

◆ decodeNames()

StatusCode GaudiSequencer::decodeNames ( )

private

Decode a vector of string.

Definition at line 172 of file GaudiSequencer.cpp.

                                        {
   StatusCode final = StatusCode::SUCCESS;
   m_entries.clear();

   //== Get the "Context" option if in the file...
   auto jos = service<IJobOptionsSvc>( "JobOptionsSvc" );

   //= Get the Application manager, to see if algorithm exist
   auto appMgr = service<IAlgManager>( "ApplicationMgr" );
   for ( const auto& item : m_names.value() ) {
     const Gaudi::Utils::TypeNameString typeName( item );
     const std::string&                 theName = typeName.name();
     const std::string&                 theType = typeName.type();

     //== Check wether the specified algorithm already exists. If not, create it
     StatusCode          result = StatusCode::SUCCESS;
     SmartIF<IAlgorithm> myIAlg = appMgr->algorithm( typeName, false ); // do not create it now
     if ( !myIAlg ) {
       // ensure some magic properties are set while we create the subalgorithm so
       // that it effectively inherites 'our' settings -- if they have non-default
       // values... and are not set explicitly already.
       populate_JobOptionsSvc_t populate_guard{theName, jos, std::forward_as_tuple( "Context", context() ),
                                               std::forward_as_tuple( "RootInTES", rootInTES() )};
       Gaudi::Algorithm*        myAlg = nullptr;
       result                         = createSubAlgorithm( theType, theName, myAlg );
       myIAlg                         = myAlg; // ensure that myIAlg.isValid() from here onwards!
     } else {
       Gaudi::Algorithm* myAlg = dynamic_cast<Gaudi::Algorithm*>( myIAlg.get() );
       if ( myAlg ) {
         subAlgorithms()->push_back( myAlg );
         // when the algorithm is not created, the ref count is short by one, so we have to fix it.
         myAlg->addRef();
       }
     }

     // propagate the sub-algorithm into own state.
     if ( result.isSuccess() && Gaudi::StateMachine::INITIALIZED <= FSMState() && myIAlg &&
          Gaudi::StateMachine::INITIALIZED > myIAlg->FSMState() ) {
       StatusCode sc = myIAlg->sysInitialize();
       if ( sc.isFailure() ) result = sc;
     }

     // propagate the sub-algorithm into own state.
     if ( result.isSuccess() && Gaudi::StateMachine::RUNNING <= FSMState() && myIAlg &&
          Gaudi::StateMachine::RUNNING > myIAlg->FSMState() ) {
       StatusCode sc = myIAlg->sysStart();
       if ( sc.isFailure() ) result = sc;
     }

     //== Is it an Algorithm ?  Strange test...
     if ( result.isSuccess() ) {
       // TODO: (MCl) it is possible to avoid the dynamic_cast in most of the
       //             cases by keeping the result of createSubAlgorithm.
       Gaudi::Algorithm* myAlg = dynamic_cast<Gaudi::Algorithm*>( myIAlg.get() );
       if ( myAlg ) {
         // Note: The reference counting is kept by the system of sub-algorithms
         m_entries.emplace_back( myAlg );
         if ( msgLevel( MSG::DEBUG ) ) debug() << "Added algorithm " << theName << endmsg;
       } else {
         warning() << theName << " is not a Gaudi::Algorithm - failed dynamic_cast" << endmsg;
         final = StatusCode::FAILURE;
       }
     } else {
       warning() << "Unable to find or create " << theName << endmsg;
       final = result;
     }
   }

   //== Print the list of algorithms
   MsgStream& msg = info();
   if ( m_modeOR ) msg << "OR ";
   msg << "Member list: ";
   GaudiUtils::details::ostream_joiner( msg, m_entries, ", ",
                                        []( auto& os, const AlgorithmEntry& e ) -> decltype( auto ) {
                                          Gaudi::Algorithm* alg = e.algorithm();
                                          std::string       typ = System::typeinfoName( typeid( *alg ) );
                                          os << typ;
                                          if ( alg->name() != typ ) os << "/" << alg->name();
                                          return os;
                                        } );
   if ( !isDefault( context() ) ) msg << ", with context '" << context() << "'";
   if ( !isDefault( rootInTES() ) ) msg << ", with rootInTES '" << rootInTES() << "'";
   msg << endmsg;

   return final;
 }

◆ execute()

StatusCode GaudiSequencer::execute ( const EventContext & ctx ) const

override

Definition at line 107 of file GaudiSequencer.cpp.

                                                                   {

   if ( m_measureTime ) m_timerTool->start( m_timer );

   if ( msgLevel( MSG::DEBUG ) ) debug() << "==> Execute" << endmsg;

   StatusCode result = StatusCode( StatusCode::SUCCESS, true );

   bool seqPass = !m_modeOR; //  for OR, result will be false, unless (at least) one is true
                             //  for AND, result will be true, unless (at least) one is false
                             //    also see comment below ....

   for ( auto& entry : m_entries ) {
     Gaudi::Algorithm* myAlg = entry.algorithm();
     if ( !myAlg->isEnabled() ) continue;
     if ( myAlg->execState( ctx ).state() != AlgExecState::State::Done ) {

       if ( m_measureTime ) m_timerTool->start( entry.timer() );
       result = myAlg->sysExecute( ctx );
       if ( m_measureTime ) m_timerTool->stop( entry.timer() );
       if ( !result.isSuccess() ) break; //== Abort and return bad status
     }
     //== Check the returned status
     if ( !m_ignoreFilter ) {
       bool passed = myAlg->execState( ctx ).filterPassed();
       if ( msgLevel( MSG::VERBOSE ) )
         verbose() << "Algorithm " << myAlg->name() << " returned filter passed " << ( passed ? "true" : "false" )
                   << endmsg;
       if ( entry.reverse() ) passed = !passed;

       //== indicate our own result. For OR, exit as soon as true.
       //        If no more, will exit with false.
       //== for AND, exit as soon as false. Else, will be true (default)

       // if not short-circuiting, make sure we latch iPass to 'true' in
       // OR mode (i.e. it is sufficient for one item to be true in order
       // to be true at the end, and thus we start out at 'false'), and latch
       // to 'false' in AND mode (i.e. it is sufficient for one item to
       // be false to the false in the end, and thus we start out at 'true')
       // -- i.e. we should not just blindly return the 'last' passed status!

       // or to put it another way: in OR mode, we don't care about things
       // which are false, as they leave our current state alone (provided
       // we stared as 'false'!), and in AND mode, we keep our current
       // state until someone returns 'false' (provided we started as 'true')
       if ( m_modeOR ? passed : !passed ) {
         seqPass = passed;
         if ( msgLevel( MSG::VERBOSE ) ) verbose() << "SeqPass is now " << ( seqPass ? "true" : "false" ) << endmsg;
         if ( m_shortCircuit ) break;
       }
     }
   }
   if ( msgLevel( MSG::VERBOSE ) ) verbose() << "SeqPass is " << ( seqPass ? "true" : "false" ) << endmsg;
   auto& state = execState( ctx );
   if ( !m_ignoreFilter && !m_entries.empty() ) state.setFilterPassed( m_invert ? !seqPass : seqPass );
   state.setState( AlgExecState::State::Done );

   if ( m_measureTime ) m_timerTool->stop( m_timer );

   return m_returnOK ? ( result.ignore(), StatusCode::SUCCESS ) : result;
 }

◆ GaudiCommon() [1/2]

template<typename U = PBASE, typename = std::enable_if_t<std::is_base_of_v<AlgTool, PBASE>, U>>

GaudiCommon< PBASE >::GaudiCommon	(	typename U	= `PBASE`,
		typename	= `std::enable_if_t<std::is_base_of_v<AlgTool, PBASE>, U>`
	)

inline

Standard constructor.

Definition at line 648 of file GaudiCommon.h.

       : base_class( type, name, ancestor ) {
     initGaudiCommonConstructor( this->parent() );
   }

◆ GaudiCommon() [2/2]

template<typename U = PBASE, typename = std::enable_if_t<std::is_base_of_v<Gaudi::Algorithm, PBASE>, U>>

GaudiCommon< PBASE >::GaudiCommon	(	typename U	= `PBASE`,
		typename	= `std::enable_if_t<std::is_base_of_v<Gaudi::Algorithm, PBASE>, U>`
	)

inline

Standard constructor.

Definition at line 642 of file GaudiCommon.h.

                                                                  : base_class( name, pSvcLocator ) {
     initGaudiCommonConstructor();
   }

◆ initialize()

StatusCode GaudiSequencer::initialize ( )

override

Definition at line 73 of file GaudiSequencer.cpp.

                                       {
   // Note: not calling base class initialize because we want to reimplement the loop over sub algs
   if ( msgLevel( MSG::DEBUG ) ) debug() << "==> Initialise" << endmsg;

   auto status = decodeNames();
   if ( !status.isSuccess() ) return status;

   m_timerTool = tool<ISequencerTimerTool>( "SequencerTimerTool" );

   if ( m_timerTool->globalTiming() ) m_measureTime = true;

   if ( m_measureTime ) {
     m_timer = m_timerTool->addTimer( name() );
     m_timerTool->increaseIndent();
   } else {
     release( m_timerTool );
     m_timerTool = nullptr;
   }

   //== Initialize the algorithms
   for ( auto& entry : m_entries ) {
     if ( m_measureTime ) { entry.setTimer( m_timerTool->addTimer( entry.algorithm()->name() ) ); }

     status = entry.algorithm()->sysInitialize();
     if ( !status.isSuccess() ) { return Error( "Can not initialize " + entry.algorithm()->name(), status ); }
   }
   if ( m_measureTime ) m_timerTool->decreaseIndent();

   return StatusCode::SUCCESS;
 }

◆ membershipHandler()

void GaudiSequencer::membershipHandler ( )

private

for asynchronous changes in the list of algorithms

Definition at line 262 of file GaudiSequencer.cpp.

                                        {
   // no action for not-yet initialized sequencer
   if ( Gaudi::StateMachine::INITIALIZED > FSMState() ) return; // RETURN

   decodeNames().ignore();

   if ( !m_measureTime ) return; // RETURN

   // add the entries into timer table:

   if ( !m_timerTool ) { m_timerTool = tool<ISequencerTimerTool>( "SequencerTimerTool" ); }

   if ( m_timerTool->globalTiming() ) m_measureTime = true;

   m_timer = m_timerTool->addTimer( name() );
   m_timerTool->increaseIndent();

   for ( auto& entry : m_entries ) { entry.setTimer( m_timerTool->addTimer( entry.algorithm()->name() ) ); }

   m_timerTool->decreaseIndent();
 }

◆ sysExecute()

StatusCode GaudiSequencer::sysExecute ( const EventContext & ctx )

override

< guard/sentry

Definition at line 306 of file GaudiSequencer.cpp.

                                                                {
   StatusCode sc{StatusCode::SUCCESS};

   IAlgContextSvc* algCtx = nullptr;
   if ( registerContext() ) { algCtx = contextSvc(); }
   // Lock the context
   Gaudi::Utils::AlgContext cnt( this, algCtx, ctx );

   // Do not execute if one or more of the m_vetoObjs exist in TES
   const auto it = find_if( begin( m_vetoObjs ), end( m_vetoObjs ),
                            [&]( const std::string& loc ) { return this->exist<DataObject>( evtSvc(), loc ); } );
   if ( it != end( m_vetoObjs ) ) {
     if ( msgLevel( MSG::DEBUG ) ) debug() << *it << " found, skipping event " << endmsg;
     return sc;
   }

   // Execute if m_requireObjs is empty
   // or if one or more of the m_requireObjs exist in TES
   bool doIt = m_requireObjs.empty() ||
               any_of( begin( m_requireObjs ), end( m_requireObjs ),
                       [&]( const std::string& loc ) { return this->exist<DataObject>( evtSvc(), loc ); } );

   // execute the generic method:
   if ( doIt ) sc = GaudiCommon<Gaudi::Sequence>::sysExecute( ctx );
   return sc;
 }

◆ toControlFlowExpression()

std::ostream & GaudiSequencer::toControlFlowExpression ( std::ostream & os ) const

override

Produce string represention of the control flow expression.

Definition at line 284 of file GaudiSequencer.cpp.

                                                                           {
   if ( m_invert ) os << "~";
   // the default filterpass value for an empty sequencer depends on ModeOR
   if ( m_entries.empty() ) return os << ( ( !m_modeOR ) ? "CFTrue" : "CFFalse" );

   // if we have only one element, we do not need a name
   if ( m_entries.size() > 1 ) os << "seq(";

   const auto op    = m_modeOR ? " | " : " & ";
   const auto last  = end( m_entries );
   const auto first = begin( m_entries );
   for ( auto iterator = first; iterator != last; ++iterator ) {
     if ( iterator != first ) os << op;
     if ( iterator->reverse() ) os << "~";
     iterator->algorithm()->toControlFlowExpression( os );
   }

   if ( m_entries.size() > 1 ) os << ")";
   return os;
 }

Member Data Documentation

◆ m_entries

std::vector<AlgorithmEntry> GaudiSequencer::m_entries

private

List of algorithms to process.

Definition at line 80 of file GaudiSequencer.h.

◆ m_ignoreFilter

Gaudi::Property<bool> GaudiSequencer::m_ignoreFilter = {this, "IgnoreFilterPassed", false, "always continue"}

private

Definition at line 74 of file GaudiSequencer.h.

◆ m_invert

Gaudi::Property<bool> GaudiSequencer::m_invert = {this, "Invert", false, "invert the logic result of the sequencer"}

private

Definition at line 78 of file GaudiSequencer.h.

◆ m_measureTime

Gaudi::Property<bool> GaudiSequencer::m_measureTime = {this, "MeasureTime", false, "measure time"}

private

Definition at line 75 of file GaudiSequencer.h.

◆ m_modeOR

Gaudi::Property<bool> GaudiSequencer::m_modeOR = {this, "ModeOR", false, "use OR logic instead of AND"}

private

Definition at line 73 of file GaudiSequencer.h.

◆ m_names

Gaudi::Property<std::vector<std::string> > GaudiSequencer::m_names

private

Initial value:

= {

this, "Members", {}, &GaudiSequencer::membershipHandler, "list of algorithms"}

Definition at line 70 of file GaudiSequencer.h.

◆ m_requireObjs

Gaudi::Property<std::vector<std::string> > GaudiSequencer::m_requireObjs

private

Initial value:

{

this, "RequireObjects", {}, "execute only if one or more of these TES objects exist"}

Definition at line 67 of file GaudiSequencer.h.

◆ m_returnOK

Gaudi::Property<bool> GaudiSequencer::m_returnOK = {this, "ReturnOK", false, "forces the sequencer to return a good status"}

private

Definition at line 76 of file GaudiSequencer.h.

◆ m_sequential

Gaudi::Property<bool> GaudiSequencer::m_sequential = {this, "Sequential", false, "execute members one at a time"}

private

Definition at line 72 of file GaudiSequencer.h.

◆ m_shortCircuit

Gaudi::Property<bool> GaudiSequencer::m_shortCircuit = {this, "ShortCircuit", true, "stop processing as soon as possible"}

private

Definition at line 77 of file GaudiSequencer.h.

◆ m_timer

int GaudiSequencer::m_timer

private

Timer number for the sequencer.

Definition at line 82 of file GaudiSequencer.h.

◆ m_timerTool

ISequencerTimerTool* GaudiSequencer::m_timerTool = nullptr

private

Pointer to the timer tool.

Definition at line 81 of file GaudiSequencer.h.

◆ m_vetoObjs

Gaudi::Property<std::vector<std::string> > GaudiSequencer::m_vetoObjs

private

Initial value:

{

this, "VetoObjects", {}, "skip execute if one or more of these TES objects exist"}

Definition at line 65 of file GaudiSequencer.h.

The documentation for this class was generated from the following files:

GaudiAlg/GaudiAlg/GaudiSequencer.h
GaudiAlg/src/lib/GaudiSequencer.cpp

Classes

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ decodeNames()

◆ execute()

◆ GaudiCommon() [1/2]

◆ GaudiCommon() [2/2]

◆ initialize()

◆ membershipHandler()

◆ sysExecute()

◆ toControlFlowExpression()

Member Data Documentation

◆ m_entries

◆ m_ignoreFilter

◆ m_invert

◆ m_measureTime

◆ m_modeOR

◆ m_names

◆ m_requireObjs

◆ m_returnOK

◆ m_sequential

◆ m_shortCircuit

◆ m_timer

◆ m_timerTool

◆ m_vetoObjs
