THistSvc Class Reference

#include </builds/gaudi/Gaudi/GaudiSvc/src/THistSvc/THistSvc.h>

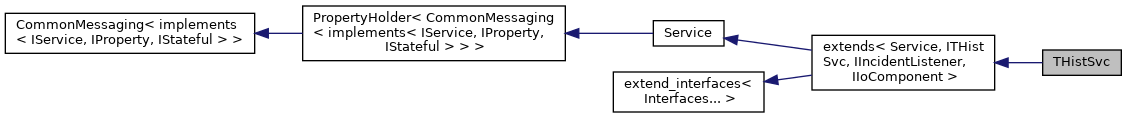

Inheritance diagram for THistSvc:
Inheritance graph
[legend]

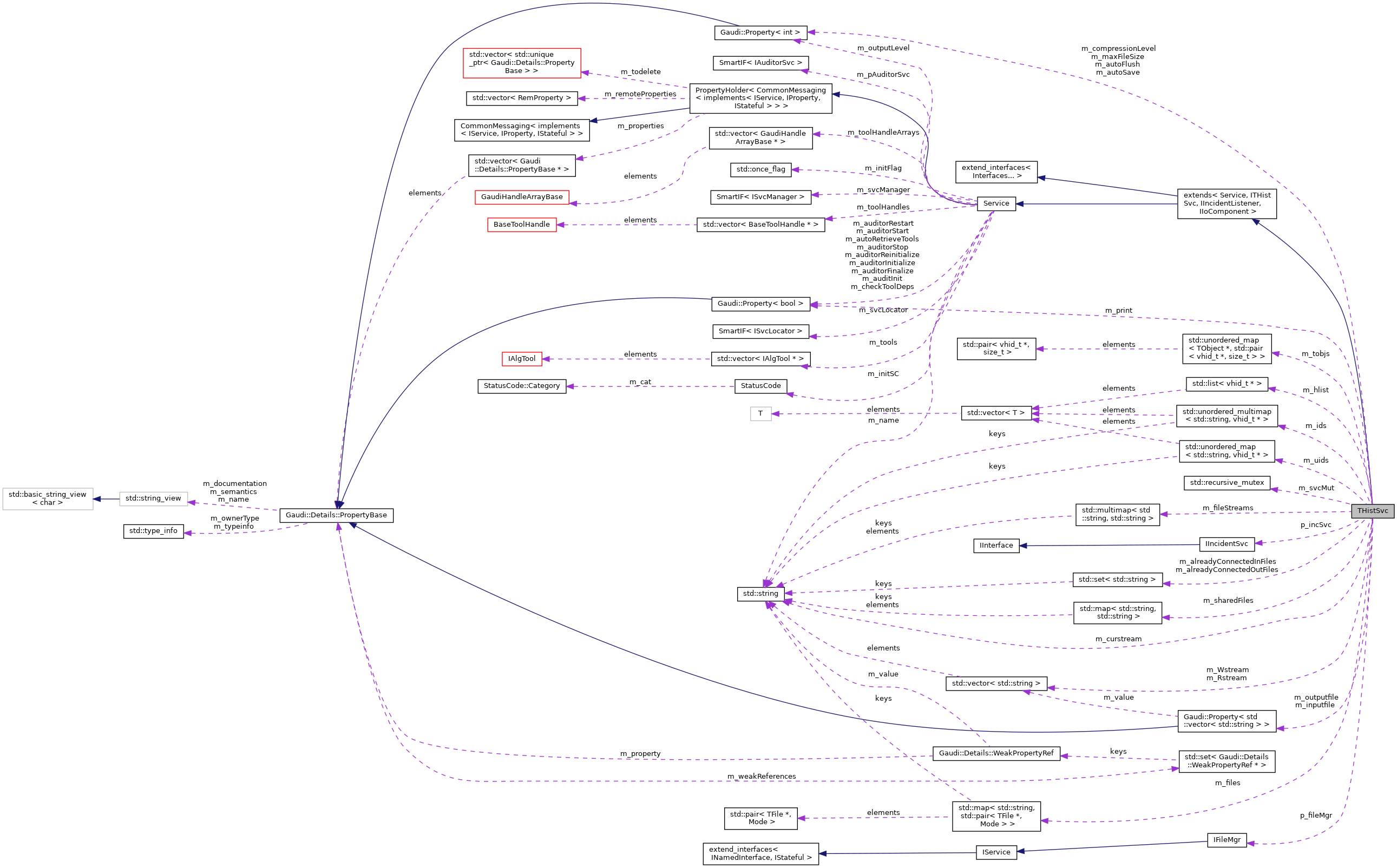

Collaboration diagram for THistSvc:
Collaboration graph
[legend]

Classes

class  GlobalDirectoryRestore
 Helper class that manages ROOts global directory and file. More...

struct  THistID
 Helper struct that bundles the histogram ID with a mutex, TFile and TObject*. More...


Public Member Functions

StatusCode initialize () override

StatusCode reinitialize () override

StatusCode finalize () override

void handle (const Incident &) override

StatusCode io_reinit () override
 callback method to reinitialize the internal state of the component for I/O purposes (e.g. More...

Functions to manage ROOT histograms of any kind
StatusCode regHist (const std::string &name) override
 Register a new ROOT histogram TH*X with a name. More...

StatusCode regHist (const std::string &name, std::unique_ptr< TH1 > hist) override
 Register an existing ROOT histogram TH*X with name and moved unique_ptr. More...

StatusCode regHist (const std::string &name, std::unique_ptr< TH1 > hist, TH1 *hist_ptr) override
 Register an existing ROOT histogram TH*X with name and moved unique_ptr. More...

StatusCode regHist (const std::string &name, TH1 *) override

StatusCode getHist (const std::string &name, TH1 *&, size_t index=0) const override
 Return histogram with given name as TH1*, THistSvcMT still owns object. More...

StatusCode getHist (const std::string &name, TH2 *&, size_t index=0) const override
 Return histogram with given name as TH2*, THistSvcMT still owns object. More...

StatusCode getHist (const std::string &name, TH3 *&, size_t index=0) const override
 Return histogram with given name as TH3*, THistSvcMT still owns object. More...

Functions to manage TTrees
StatusCode regTree (const std::string &name) override
 Register a new TTree with a given name. More...

StatusCode regTree (const std::string &name, std::unique_ptr< TTree >) override
 Register an existing TTree with a given name and moved unique_ptr. More...

StatusCode regTree (const std::string &name, TTree *) override

StatusCode getTree (const std::string &name, TTree *&) const override
 Return TTree with given name. More...

Functions to manage TGraphs
StatusCode regGraph (const std::string &name) override
 Register a new TGraph with a given name. More...

StatusCode regGraph (const std::string &name, std::unique_ptr< TGraph >) override
 Register an existing TGraph with a given name and moved unique_ptr. More...

virtual StatusCode regGraph (const std::string &name, TGraph *) override

StatusCode getGraph (const std::string &name, TGraph *&) const override
 Return TGraph with given name. More...

StatusCode regEfficiency (const std::string &name) override
 Register a new TEfficiency with a given name. More...

StatusCode regEfficiency (const std::string &name, std::unique_ptr< TEfficiency >) override
 Register an existing TEfficiency with a given name and moved unique_ptr. More...

virtual StatusCode regEfficiency (const std::string &name, TEfficiency *) override

StatusCode getEfficiency (const std::string &name, TEfficiency *&) const override
 Return TEfficiency with given name. More...

Functions managing shared objects
StatusCode regShared (const std::string &name, std::unique_ptr< TH1 >, LockedHandle< TH1 > &) override
 Register shared object of type TH1 and return LockedHandle for that object. More...

StatusCode regShared (const std::string &name, std::unique_ptr< TH2 >, LockedHandle< TH2 > &) override
 Register shared object of type TH2 and return LockedHandle for that object. More...

StatusCode regShared (const std::string &name, std::unique_ptr< TH3 >, LockedHandle< TH3 > &) override
 Register shared object of type TH3 and return LockedHandle for that object. More...

StatusCode regShared (const std::string &name, std::unique_ptr< TGraph >, LockedHandle< TGraph > &) override
 Register shared object of type TGraph and return LockedHandle for that object. More...

StatusCode regShared (const std::string &name, std::unique_ptr< TEfficiency >, LockedHandle< TEfficiency > &) override
 Register shared object of type TEfficiency and return LockedHandle for that object. More...

StatusCode getShared (const std::string &name, LockedHandle< TH1 > &) const override
 Retrieve shared object with given name as TH1 through LockedHandle. More...

StatusCode getShared (const std::string &name, LockedHandle< TH2 > &) const override
 Retrieve shared object with given name as TH2 through LockedHandle. More...

StatusCode getShared (const std::string &name, LockedHandle< TH3 > &) const override
 Retrieve shared object with given name as TH3 through LockedHandle. More...

StatusCode getShared (const std::string &name, LockedHandle< TGraph > &) const override
 Retrieve shared object with given name as TGraph through LockedHandle. More...

StatusCode getShared (const std::string &name, LockedHandle< TEfficiency > &) const override
 Retrieve shared object with given name as TEfficiency through LockedHandle. More...

Functions that work on any TObject in the THistSvcMT
StatusCode deReg (const std::string &name) override
 Deregister object with given name and give up ownership (without deletion!) More...

StatusCode deReg (TObject *obj) override
 Deregister obejct identified by TObject* and give up ownership (without deletion!) More...

StatusCode merge (const std::string &id) override
 Merge all clones for object with a given id. More...

StatusCode merge (TObject *) override
 Merge all clones for given TObject*. More...

bool exists (const std::string &name) const override
 Check if object with given name is managed by THistSvcMT exists calls existsHist and only works for TH1-descendants. More...

bool existsHist (const std::string &name) const override
 Check if histogram with given name is managed by THistSvcMT. More...

bool existsTree (const std::string &name) const override
 Check if tree with given name is managed by THistSvcMT. More...

bool existsGraph (const std::string &name) const override
 Check if graph with given name is managed by THistSvcMT. More...

bool existsEfficiency (const std::string &name) const override
 Check if TEfficiency with given name is managed by THistSvcMT. More...

Functions returning lists of all histograms, trees and graphs
std::vector< std::string > getHists () const override

std::vector< std::string > getTrees () const override

std::vector< std::string > getGraphs () const override

std::vector< std::string > getEfficiencies () const override

StatusCode getTHists (TDirectory *td, TList &, bool recurse=false) const override

StatusCode getTHists (const std::string &name, TList &, bool recurse=false) const override

StatusCode getTHists (TDirectory *td, TList &tl, bool recurse=false, bool reg=false) override

StatusCode getTHists (const std::string &name, TList &tl, bool recurse=false, bool reg=false) override

StatusCode getTTrees (TDirectory *td, TList &, bool recurse=false) const override

StatusCode getTTrees (const std::string &name, TList &, bool recurse=false) const override

StatusCode getTTrees (TDirectory *td, TList &tl, bool recurse=false, bool reg=false) override

StatusCode getTTrees (const std::string &name, TList &tl, bool recurse=false, bool reg=false) override

StatusCode getTEfficiencies (TDirectory *td, TList &, bool recurse=false) const override

StatusCode getTEfficiencies (const std::string &name, TList &, bool recurse=false) const override

StatusCode getTEfficiencies (TDirectory *td, TList &tl, bool recurse=false, bool reg=false) override

StatusCode getTEfficiencies (const std::string &name, TList &tl, bool recurse=false, bool reg=false) override

- Public Member Functions inherited from extends< Service, ITHistSvc, IIncidentListener, IIoComponent >
void * i_cast (const InterfaceID &tid) const override
 Implementation of IInterface::i_cast. More...

StatusCode queryInterface (const InterfaceID &ti, void **pp) override
 Implementation of IInterface::queryInterface. More...

std::vector< std::string > getInterfaceNames () const override
 Implementation of IInterface::getInterfaceNames. More...

- Public Member Functions inherited from Service
const std::string & name () const override
 Retrieve name of the service
More...

StatusCode configure () override

StatusCode initialize () override

StatusCode start () override

StatusCode stop () override

StatusCode finalize () override

StatusCode terminate () override

Gaudi::StateMachine::State FSMState () const override

Gaudi::StateMachine::State targetFSMState () const override

StatusCode reinitialize () override

StatusCode restart () override

StatusCode sysInitialize () override
 Initialize Service
More...

StatusCode sysStart () override
 Initialize Service
More...

StatusCode sysStop () override
 Initialize Service
More...

StatusCode sysFinalize () override
 Finalize Service
More...

StatusCode sysReinitialize () override
 Re-initialize the Service. More...

StatusCode sysRestart () override
 Re-initialize the Service. More...

 Service (std::string name, ISvcLocator *svcloc)
 Standard Constructor
More...

SmartIF< ISvcLocator > & serviceLocator () const override
 Retrieve pointer to service locator
More...

StatusCode setProperties ()

template<class T >
StatusCode service (const std::string &name, const T *&psvc, bool createIf=true) const
 Access a service by name, creating it if it doesn't already exist. More...

template<class T >
StatusCode service (const std::string &name, T *&psvc, bool createIf=true) const

template<typename IFace = IService>
SmartIF< IFace > service (const std::string &name, bool createIf=true) const

template<class T >
StatusCode service (const std::string &svcType, const std::string &svcName, T *&psvc) const
 Access a service by name and type, creating it if it doesn't already exist. More...

template<class T >
Gaudi::Details::PropertyBase * declareProperty (const std::string &name, ToolHandle< T > &hndl, const std::string &doc="none")

template<class T >
StatusCode declareTool (ToolHandle< T > &handle, bool createIf=true)

template<class T >
StatusCode declareTool (ToolHandle< T > &handle, std::string toolTypeAndName, bool createIf=true)
 Declare used tool. More...

template<class T >
Gaudi::Details::PropertyBase * declareProperty (const std::string &name, ToolHandleArray< T > &hndlArr, const std::string &doc="none")

template<class T >
void addToolsArray (ToolHandleArray< T > &hndlArr)

const std::vector< IAlgTool * > & tools () const

SmartIF< IAuditorSvc > & auditorSvc () const
 The standard auditor service.May not be invoked before sysInitialize() has been invoked. More...

- Public Member Functions inherited from PropertyHolder< CommonMessaging< implements< IService, IProperty, IStateful > > >
 PropertyHolder ()=default

Gaudi::Details::PropertyBase & declareProperty (Gaudi::Details::PropertyBase &prop)
 Declare a property. More...

Gaudi::Details::PropertyBase * declareProperty (const std::string &name, TYPE &value, const std::string &doc="none")
 Helper to wrap a regular data member and use it as a regular property. More...

Gaudi::Details::PropertyBase * declareProperty (const std::string &name, Gaudi::Property< TYPE, VERIFIER, HANDLERS > &prop, const std::string &doc="none")
 Declare a PropertyBase instance setting name and documentation. More...

Gaudi::Details::PropertyBase * declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="")
 Declare a remote property. More...

StatusCode setProperty (const std::string &name, const Gaudi::Details::PropertyBase &p) override
 set the property from another property with a different name More...

StatusCode setProperty (const std::string &s) override
 set the property from the formatted string More...

StatusCode setProperty (const Gaudi::Details::PropertyBase &p)
 Set the property from a property. More...

virtual StatusCode setProperty (const std::string &name, const Gaudi::Details::PropertyBase &p)=0
 Set the property from a property with a different name. More...

virtual StatusCode setProperty (const std::string &s)=0
 Set the property by string. More...

StatusCode setProperty (const std::string &name, const char *v)
 Special case for string literals. More...

StatusCode setProperty (const std::string &name, const std::string &v)
 Special case for std::string. More...

StatusCode setProperty (const std::string &name, const TYPE &value)
 set the property form the value More...

StatusCode setPropertyRepr (const std::string &n, const std::string &r) override
 set the property from name and value string representation More...

StatusCode getProperty (Gaudi::Details::PropertyBase *p) const override
 get the property More...

const Gaudi::Details::PropertyBase & getProperty (std::string_view name) const override
 get the property by name More...

StatusCode getProperty (std::string_view n, std::string &v) const override
 convert the property to the string More...

const std::vector< Gaudi::Details::PropertyBase * > & getProperties () const override
 get all properties More...

bool hasProperty (std::string_view name) const override
 Return true if we have a property with the given name. More...

Gaudi::Details::PropertyBase * property (std::string_view name) const
 \fixme property and bindPropertiesTo should be protected More...

void bindPropertiesTo (Gaudi::Interfaces::IOptionsSvc &optsSvc)

 PropertyHolder (const PropertyHolder &)=delete

PropertyHolder & operator= (const PropertyHolder &)=delete

- Public Member Functions inherited from CommonMessaging< implements< IService, IProperty, IStateful > >
MSG::Level msgLevel () const
 get the cached level (originally extracted from the embedded MsgStream) More...

bool msgLevel (MSG::Level lvl) const
 get the output level from the embedded MsgStream More...


Private Types

enum  Mode {
  READ, WRITE, UPDATE, APPEND,
  SHARE, INVALID
}
 Enumerating all possible file access modes. More...

typedef std::recursive_mutex THistSvcMutex_t

typedef std::mutex histMut_t


Private Member Functions

Templated helper functions to register and retrieve Histograms and TObjects
template<typename T >
StatusCode regHist_i (std::unique_ptr< T > hist, const std::string &name, bool shared)

template<typename T >
StatusCode regHist_i (std::unique_ptr< T > hist, const std::string &name, bool shared, THistID *&hid)

template<typename T >
T * getHist_i (const std::string &name, const size_t &ind=0, bool quiet=false) const

template<typename T >
T * readHist_i (const std::string &name) const

template<typename T >
LockedHandle< T > regShared_i (const std::string &id, std::unique_ptr< T > hist)

template<typename T >
LockedHandle< T > getShared_i (const std::string &name) const

Collection of private helper methods
template<typename T >
T * readHist (const std::string &name) const

TTree * readTree (const std::string &name) const

void updateFiles ()
 Handle case where TTree grows beyond TTree::fgMaxTreeSize. More...

StatusCode writeObjectsToFile ()

StatusCode connect (const std::string &)

TDirectory * changeDir (const THistSvc::THistID &hid) const

std::string stripDirectoryName (std::string &dir) const

void removeDoubleSlash (std::string &) const

void MergeRootFile (TDirectory *, TDirectory *)

bool findStream (const std::string &name, std::string &root, std::string &rem, TFile *&file) const

void parseString (const std::string &id, std::string &root, std::string &rem) const

void setupInputFile ()
 call-back method to handle input stream property More...

void setupOutputFile ()
 call-back method to handle output stream property More...

void copyFileLayout (TDirectory *, TDirectory *)
 helper function to recursively copy the layout of a TFile into a new TFile More...

size_t findHistID (const std::string &id, const THistID *&hid, const size_t &index=0) const

void dump () const

StatusCode merge (const THistID &)
 Helper method to merge THistID objects. More...

StatusCode merge (vhid_t *)
 Helper method to merge vectors of THistID. More...

StatusCode rootOpenAction (FILEMGR_CALLBACK_ARGS)

StatusCode rootOpenErrAction (FILEMGR_CALLBACK_ARGS)


Static Private Member Functions

static Mode charToMode (const char typ)
 Convert a char to a Mode enum. More...


Private Attributes

IIncidentSvc * p_incSvc = nullptr

IFileMgr * p_fileMgr = nullptr

bool m_signaledStop = false

bool m_delayConnect = false

bool m_okToConnect = false

const TClass * m_ttreeClass = nullptr
 Cached pointer to the TTree dictionary. More...

std::string m_curstream

THistSvcMutex_t m_svcMut

Gaudi properties
Gaudi::Property< int > m_autoSave {this, "AutoSave", 0}

Gaudi::Property< int > m_autoFlush {this, "AutoFlush", 0}

Gaudi::Property< bool > m_print {this, "PrintAll", false}

Gaudi::Property< int > m_maxFileSize

Gaudi::Property< int > m_compressionLevel

Gaudi::Property< std::vector< std::string > > m_outputfile

Gaudi::Property< std::vector< std::string > > m_inputfile


Container definitions

typedef std::vector< THistID > vhid_t

typedef std::list< vhid_t * > hlist_t

typedef std::unordered_map< std::string, vhid_t * > uidMap_t

typedef std::unordered_multimap< std::string, vhid_t * > idMap_t

typedef std::unordered_map< TObject *, std::pair< vhid_t *, size_t > > objMap_t

typedef std::multimap< std::string, std::string > streamMap

std::vector< std::string > m_Rstream

std::vector< std::string > m_Wstream

std::set< std::string > m_alreadyConnectedInFiles
 list of already connected files. More...

std::set< std::string > m_alreadyConnectedOutFiles
 list of already connected files. More...

hlist_t m_hlist

uidMap_t m_uids

idMap_t m_ids

objMap_t m_tobjs

std::map< std::string, std::pair< TFile *, Mode > > m_files

streamMap m_fileStreams

std::map< std::string, std::string > m_sharedFiles


Additional Inherited Members

- Public Types inherited from extends< Service, ITHistSvc, IIncidentListener, IIoComponent >
using base_class = extends
 Typedef to this class. More...

using extend_interfaces_base = extend_interfaces< Interfaces... >
 Typedef to the base of this class. More...

- Public Types inherited from Service
using Factory = Gaudi::PluginService::Factory< IService *(const std::string &, ISvcLocator *)>

- Public Types inherited from PropertyHolder< CommonMessaging< implements< IService, IProperty, IStateful > > >
using PropertyHolderImpl = PropertyHolder< CommonMessaging< implements< IService, IProperty, IStateful > > >
 Typedef used to refer to this class from derived classes, as in. More...

- Public Types inherited from CommonMessaging< implements< IService, IProperty, IStateful > >
using base_class = CommonMessaging

- Public Types inherited from extend_interfaces< Interfaces... >
using ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids... >::type
 take union of the ext_iids of all Interfaces... More...

- Protected Member Functions inherited from Service
std::vector< IAlgTool * > & tools ()

 ~Service () override
 Standard Destructor
More...

int outputLevel () const
 get the Service's output level More...

- Protected Member Functions inherited from CommonMessaging< implements< IService, IProperty, IStateful > >
MSG::Level setUpMessaging () const
 Set up local caches. More...

MSG::Level resetMessaging ()
 Reinitialize internal states. More...

void updateMsgStreamOutputLevel (int level)
 Update the output level of the cached MsgStream. More...

- Protected Attributes inherited from Service
Gaudi::StateMachine::State m_state = Gaudi::StateMachine::OFFLINE
 Service state
More...

Gaudi::StateMachine::State m_targetState = Gaudi::StateMachine::OFFLINE
 Service state
More...

Gaudi::Property< int > m_outputLevel {this, "OutputLevel", MSG::NIL, "output level"}
 flag indicating whether ToolHandle tools have been added to m_tools More...

Gaudi::Property< bool > m_auditInit {this, "AuditServices", false, "[[deprecated]] unused"}

Gaudi::Property< bool > m_auditorInitialize {this, "AuditInitialize", false, "trigger auditor on initialize()"}

Gaudi::Property< bool > m_auditorStart {this, "AuditStart", false, "trigger auditor on start()"}

Gaudi::Property< bool > m_auditorStop {this, "AuditStop", false, "trigger auditor on stop()"}

Gaudi::Property< bool > m_auditorFinalize {this, "AuditFinalize", false, "trigger auditor on finalize()"}

Gaudi::Property< bool > m_auditorReinitialize {this, "AuditReinitialize", false, "trigger auditor on reinitialize()"}

Gaudi::Property< bool > m_auditorRestart {this, "AuditRestart", false, "trigger auditor on restart()"}

Gaudi::Property< bool > m_autoRetrieveTools {this, "AutoRetrieveTools", true, "retrieve all AlgTools during initialize"}

Gaudi::Property< bool > m_checkToolDeps

SmartIF< IAuditorSvc > m_pAuditorSvc
 Auditor Service
More...


Detailed Description

Definition at line 41 of file THistSvc.h.

Member Typedef Documentation

◆ histMut_t

typedef std::mutex THistSvc::histMut_t
private

Definition at line 206 of file THistSvc.h.

◆ hlist_t

typedef std::list<vhid_t*> THistSvc::hlist_t
private

Definition at line 292 of file THistSvc.h.

◆ idMap_t

typedef std::unordered_multimap<std::string, vhid_t*> THistSvc::idMap_t
private

Definition at line 296 of file THistSvc.h.

◆ objMap_t

typedef std::unordered_map<TObject*, std::pair<vhid_t*, size_t> > THistSvc::objMap_t
private

Definition at line 297 of file THistSvc.h.

◆ streamMap

typedef std::multimap<std::string, std::string> THistSvc::streamMap
private

Definition at line 307 of file THistSvc.h.

◆ THistSvcMutex_t

typedef std::recursive_mutex THistSvc::THistSvcMutex_t
private

Definition at line 205 of file THistSvc.h.

◆ uidMap_t

typedef std::unordered_map<std::string, vhid_t*> THistSvc::uidMap_t
private

Definition at line 294 of file THistSvc.h.

◆ vhid_t

typedef std::vector<THistID> THistSvc::vhid_t
private

Definition at line 290 of file THistSvc.h.

Member Enumeration Documentation

◆ Mode

enum THistSvc::Mode
private

Enumerating all possible file access modes.

Enumerator
READ
WRITE
UPDATE
APPEND
SHARE
INVALID

Definition at line 222 of file THistSvc.h.

222 { READ, WRITE, UPDATE, APPEND, SHARE, INVALID };

Member Function Documentation

◆ changeDir()

TDirectory * THistSvc::changeDir ( const THistSvc::THistID &  hid) const
private

Definition at line 1758 of file THistSvc.cpp.

1758  {
1759  std::string uid = hid.id;
1760  TFile* file = hid.file;
1761  std::string stream, fdir, bdir, dir, id;
1762
1763  if ( file ) {
1764  file->cd( "/" );
1765  } else {
1766  gROOT->cd();
1767  }
1768
1769  fdir = uid;
1770  bdir = stripDirectoryName( fdir );
1771
1772  while ( ( dir = stripDirectoryName( fdir ) ) != "" ) {
1773  if ( !gDirectory->GetKey( dir.c_str() ) ) { gDirectory->mkdir( dir.c_str() ); }
1774  gDirectory->cd( dir.c_str() );
1775  }
1776
1777  return gDirectory;
1778 }

◆ charToMode()

static Mode THistSvc::charToMode ( const char  typ)
inlinestaticprivate

Convert a char to a Mode enum.

Definition at line 225 of file THistSvc.h.

225  {
226  switch ( typ ) {
227  case 'O':
228  return READ;
229  case 'A':
230  return APPEND;
231  case 'R':
232  return UPDATE;
233  case 'S':
234  return SHARE;
235  default:
236  return INVALID;
237  }
238  }

◆ connect()

StatusCode THistSvc::connect ( const std::string &  ident)
private

Definition at line 1581 of file THistSvc.cpp.

1581  {
1582  auto loc = ident.find( " " );
1583  std::string stream = ident.substr( 0, loc );
1584  char typ( 0 );
1585  typedef std::pair<std::string, std::string> Prop;
1586  std::vector<Prop> props;
1587  std::string filename, db_typ( "ROOT" );
1588  int cl( 1 );
1589
1590  if ( loc != std::string::npos ) {
1591  using Parser = Gaudi::Utils::AttribStringParser;
1592  for ( auto attrib : Parser( ident.substr( loc + 1 ) ) ) {
1593  auto TAG = boost::algorithm::to_upper_copy( attrib.tag );
1594  auto VAL = boost::algorithm::to_upper_copy( attrib.value );
1595
1596  if ( TAG == "FILE" || TAG == "DATAFILE" ) {
1597  filename = attrib.value;
1598  removeDoubleSlash( filename );
1599  } else if ( TAG == "OPT" ) {
1600  if ( VAL == "APPEND" || VAL == "UPDATE" ) {
1601  typ = 'A';
1602  } else if ( VAL == "CREATE" || VAL == "NEW" || VAL == "WRITE" ) {
1603  typ = 'N';
1604  } else if ( VAL == "RECREATE" ) {
1605  typ = 'R';
1606  } else if ( VAL == "SHARE" ) {
1607  typ = 'S';
1608  } else if ( VAL == "OLD" || VAL == "READ" ) {
1609  typ = 'O';
1610  } else {
1611  error() << "Unknown OPT: \"" << attrib.value << "\"" << endmsg;
1612  typ = 0;
1613  }
1614  } else if ( TAG == "TYP" ) {
1615  db_typ = std::move( attrib.value );
1616  } else if ( TAG == "CL" ) {
1617  cl = std::stoi( attrib.value );
1618  } else {
1619  props.emplace_back( attrib.tag, attrib.value );
1620  }
1621  }
1622  }
1623
1624  if ( stream == "temp" ) {
1625  error() << "in JobOption \"" << ident << "\": stream name \"temp\" reserved." << endmsg;
1626  return StatusCode::FAILURE;
1627  }
1628
1629  if ( db_typ != "ROOT" ) {
1630  error() << "in JobOption \"" << ident << "\": technology type \"" << db_typ << "\" not supported." << endmsg;
1631  return StatusCode::FAILURE;
1632  }
1633
1634  if ( m_files.find( stream ) != m_files.end() ) {
1635  error() << "in JobOption \"" << ident << "\":\n stream \"" << stream << "\" already connected to file: \""
1636  << m_files[stream].first->GetName() << "\"" << endmsg;
1637  return StatusCode::FAILURE;
1638  }
1639
1640  const auto newMode = charToMode( typ );
1641  if ( newMode == THistSvc::INVALID ) {
1642  error() << "No OPT= specified or unknown access mode in: " << ident << endmsg;
1643  return StatusCode::FAILURE;
1644  }
1645
1646  // Is this file already connected to another stream?
1647  if ( m_fileStreams.find( filename ) != m_fileStreams.end() ) {
1648  auto fitr = m_fileStreams.equal_range( filename );
1649
1650  const std::string& oldstream = fitr.first->second;
1651
1652  const auto& f_info = m_files[oldstream];
1653
1654  if ( newMode != f_info.second ) {
1655  error() << "in JobOption \"" << ident << "\":\n file \"" << filename << "\" already opened by stream: \""
1656  << oldstream << "\" with different access mode." << endmsg;
1657  return StatusCode::FAILURE;
1658  } else {
1659  TFile* f2 = f_info.first;
1660  m_files[stream] = std::make_pair( f2, newMode );
1661  if ( msgLevel( MSG::DEBUG ) )
1662  debug() << "Connecting stream: \"" << stream << "\" to previously opened TFile: \"" << filename << "\""
1663  << endmsg;
1664  return StatusCode::SUCCESS;
1665  }
1666  }
1667
1668  IIncidentSvc* pi = nullptr;
1669  if ( service( "IncidentSvc", pi ).isFailure() ) {
1670  error() << "Unable to get the IncidentSvc" << endmsg;
1671  return StatusCode::FAILURE;
1672  }
1673
1674  void* vf = nullptr;
1675  TFile* f = nullptr;
1676
1677  if ( newMode == THistSvc::READ ) {
1678  // old file
1679  int r = p_fileMgr->open( Io::ROOT, name(), filename, Io::READ, vf, "HIST" );
1680
1681  if ( r != 0 ) {
1682  error() << "Unable to open ROOT file " << filename << " for reading" << endmsg;
1683  return StatusCode::FAILURE;
1684  }
1685
1686  f = (TFile*)vf;
1687
1688  // FIX ME!
1689  pi->fireIncident( FileIncident( name(), "BeginHistFile", filename ) );
1690
1691  } else if ( newMode == THistSvc::WRITE ) {
1692  // new file. error if file exists
1693  int r = p_fileMgr->open( Io::ROOT, name(), filename, ( Io::WRITE | Io::CREATE | Io::EXCL ), vf, "HIST" );
1694
1695  if ( r != 0 ) {
1696  error() << "Unable to open ROOT file " << filename << " for writing" << endmsg;
1697  return StatusCode::FAILURE;
1698  }
1699
1700  f = (TFile*)vf;
1701
1702  } else if ( newMode == THistSvc::APPEND ) {
1703  // update file
1704  int r = p_fileMgr->open( Io::ROOT, name(), filename, ( Io::WRITE | Io::APPEND ), vf, "HIST" );
1705  if ( r != 0 ) {
1706  error() << "unable to open file \"" << filename << "\" for appending" << endmsg;
1707  return StatusCode::FAILURE;
1708  }
1709
1710  f = (TFile*)vf;
1711
1712  } else if ( newMode == THistSvc::SHARE ) {
1713  // SHARE file type
1714  // For SHARE files, all data will be stored in a temp file and will be
1715  // merged into the target file in writeObjectsToFile() when finalize(),
1716  // this help to solve some confliction. e.g. with storegate
1717  static int ishared = 0;
1718  std::string realfilename = filename;
1719  filename = "tmp_THistSvc_" + std::to_string( ishared++ ) + ".root";
1720
1721  if ( msgLevel( MSG::DEBUG ) ) {
1722  debug() << "Creating temp file \"" << filename << "\" and realfilename=" << realfilename << endmsg;
1723  }
1724  m_sharedFiles[stream] = realfilename;
1725
1726  int r = p_fileMgr->open( Io::ROOT, name(), filename, ( Io::WRITE | Io::CREATE | Io::EXCL ), vf, "HIST" );
1727
1728  if ( r != 0 ) {
1729  error() << "Unable to open ROOT file " << filename << " for writing" << endmsg;
1730  return StatusCode::FAILURE;
1731  }
1732
1733  f = (TFile*)vf;
1734
1735  } else if ( newMode == THistSvc::UPDATE ) {
1736  // update file
1737  int r = p_fileMgr->open( Io::ROOT, name(), filename, ( Io::WRITE | Io::CREATE ), vf, "HIST" );
1738
1739  if ( r != 0 ) {
1740  error() << "Unable to open ROOT file " << filename << " for appending" << endmsg;
1741  return StatusCode::FAILURE;
1742  }
1743
1744  f = (TFile*)vf;
1745  }
1746
1747  m_files[stream] = std::make_pair( f, newMode );
1748  m_fileStreams.insert( std::make_pair( filename, stream ) );
1749
1750  if ( msgLevel( MSG::DEBUG ) ) {
1751  debug() << "Opening TFile \"" << filename << "\" stream: \"" << stream << "\" mode: \"" << typ << "\""
1752  << " comp level: " << cl << endmsg;
1753  }
1754
1755  return StatusCode::SUCCESS;
1756 }

◆ copyFileLayout()

void THistSvc::copyFileLayout ( TDirectory *  destination,
TDirectory *  source
)
private

helper function to recursively copy the layout of a TFile into a new TFile

Definition at line 1941 of file THistSvc.cpp.

1941  {
1942  if ( msgLevel( MSG::DEBUG ) ) {
1943  debug() << "copyFileLayout() to destination path: " << destination->GetPath() << endmsg;
1944  }
1945
1946  // strip out URLs
1947  TString path( (char*)strstr( destination->GetPath(), ":" ) );
1948  path.Remove( 0, 2 );
1949
1950  source->cd( path );
1951  TDirectory* current_source_dir = gDirectory;
1952
1953  // loop over all keys in this directory
1954  TList* key_list = current_source_dir->GetListOfKeys();
1955  int n = key_list->GetEntries();
1956  for ( int j = 0; j < n; ++j ) {
1957  TKey* k = (TKey*)key_list->At( j );
1958  const std::string source_pathname = current_source_dir->GetPath() + std::string( "/" ) + k->GetName();
1959  TObject* o = source->Get( source_pathname.c_str() );
1960
1961  if ( o && o->IsA()->InheritsFrom( "TDirectory" ) ) {
1962  if ( msgLevel( MSG::VERBOSE ) ) { verbose() << " subdir [" << o->GetName() << "]..." << endmsg; }
1963  destination->cd();
1964  // Create directory if it does not exist yet
1965  TDirectory* destination_dir = destination->mkdir( o->GetName(), o->GetTitle() );
1966  if ( destination_dir == nullptr ) destination_dir = destination->GetDirectory( o->GetName() );
1967  copyFileLayout( destination_dir, source );
1968  }
1969  } // loop over keys
1970  return;
1971 }

◆ deReg() [1/2]

StatusCode THistSvc::deReg ( const std::string &  name)
override

Deregister object with given name and give up ownership (without deletion!)

Definition at line 577 of file THistSvc.cpp.

577  {
578  auto itr = m_uids.find( id );
579  if ( itr == m_uids.end() ) {
580  error() << "Problem deregistering id \"" << id << "\": not found in registry" << endmsg;
581  return StatusCode::FAILURE;
582  }
583
584  vhid_t* vh = itr->second;
585  debug() << "will deregister " << vh->size() << " elements of id \"" << id << "\"" << endmsg;
586  StatusCode sc( StatusCode::SUCCESS );
587  // vh will get deleted in deReg once empty, so we cannot query the list size in the loop
588  size_t vh_size = vh->size();
589  while ( vh_size-- ) {
590  if ( deReg( vh->back().obj ).isFailure() ) {
591  sc = StatusCode::FAILURE;
592  error() << "Problems deRegistering " << vh->size() << " element of id \"" << id << "\"" << endmsg;
593  break;
594  }
595  }
596
597  return sc;
598 }

◆ deReg() [2/2]

StatusCode THistSvc::deReg ( TObject *  obj)
override

Deregister obejct identified by TObject* and give up ownership (without deletion!)

Definition at line 600 of file THistSvc.cpp.

600  {
601  objMap_t::iterator obj_itr = m_tobjs.find( obj );
602  if ( obj_itr != m_tobjs.end() ) {
603  vhid_t* vhid = obj_itr->second.first;
604  THistID hid = obj_itr->second.first->at( obj_itr->second.second );
605
606  auto uid_itr = m_uids.find( hid.id );
607  if ( uid_itr == m_uids.end() ) {
608  error() << "Problems deregistering TObject \"" << obj->GetName() << "\" with id \"" << hid.id
609  << "\": not in uidMap" << endmsg;
610  return StatusCode::FAILURE;
611  }
612
613  if ( vhid->size() == 1 ) {
614  // We are the last object, so we have to delete vhid properly
615  debug() << "vhid for " << hid.id << " is empty. deleting" << endmsg;
616
617  std::string root, rem;
618  parseString( hid.id, root, rem );
619
620  auto mitr = m_ids.equal_range( rem );
621  auto id_itr = std::find_if( mitr.first, mitr.second,
622  [&]( idMap_t::const_reference i ) { return i.second->at( 0 ).obj == obj; } );
623  if ( id_itr == mitr.second ) {
624  error() << "Problems deregistering TObject \"" << obj->GetName() << "\" with id \"" << hid.id
625  << "\": not in idMap" << endmsg;
626  return StatusCode::FAILURE;
627  }
628
629  auto hlist_itr = std::find( m_hlist.begin(), m_hlist.end(), vhid );
630  if ( hlist_itr == m_hlist.end() ) {
631  error() << "Problems deregistering TObject \"" << obj->GetName() << "\" with id \"" << hid.id
632  << "\": not in hlist" << endmsg;
633  return StatusCode::FAILURE;
634  }
635
636  vhid->erase( vhid->begin() + obj_itr->second.second );
637  m_tobjs.erase( obj_itr );
638
639  m_uids.erase( uid_itr );
640  m_ids.erase( id_itr );
641  m_hlist.erase( hlist_itr );
642
643  delete vhid;
644
645  } else if ( vhid->size() > 1 ) {
646  m_tobjs.erase( obj_itr );
647  vhid->erase( vhid->begin() + obj_itr->second.second );
648
649  // vector of THistID is still not empty (i.e. other instances with same name registered)
650  } else {
651  error() << "Deregistration failed unexpectedly. (bug in THistSvc?)" << endmsg;
652  }
653  return StatusCode::SUCCESS;
654  } else {
655  error() << "Cannot unregister TObject \"" << obj->GetName() << "\": not known to THistSvc" << endmsg;
656  return StatusCode::FAILURE;
657  }
658 }

◆ dump()

void THistSvc::dump ( ) const
private

Definition at line 2018 of file THistSvc.cpp.

2018  {
2019  std::ostringstream ost;
2020
2021  // list< vector<THistID> >
2022  ost << "m_hlist: size: " << m_hlist.size() << "\n";
2023  for ( auto& vh : m_hlist ) {
2024  ost << " - " << vh->at( 0 ) << " :: [" << vh << "] " << vh->size() << " {";
2025  for ( auto& e : *vh ) {
2026  TObject* o = e.obj;
2027  ost << "[" << o << "]";
2028  }
2029  ost << "}\n";
2030  }
2031
2032  // map uid -> vector<THistID>*
2033  ost << "\n"
2034  << "m_uids: " << m_uids.size() << "\n";
2035  for ( auto& e : m_uids ) { ost << " - " << e.first << " [" << e.second << "]" << std::endl; }
2036
2037  // multimap id -> vector<THistID>*
2038  ost << "\n"
2039  << "m_ids: " << m_ids.size() << "\n";
2040  for ( auto& e : m_ids ) { ost << " - " << e.first << " [" << e.second << "]" << std::endl; }
2041
2042  // map TObject* -> THistID*
2043  ost << "\n"
2044  << "m_tobjs: " << m_tobjs.size() << "\n";
2045  for ( auto& e : m_tobjs ) {
2046  TObject* o = e.first;
2047  THistID& i = e.second.first->at( e.second.second );
2048  ost << " - " << o << " -> " << i << std::endl;
2049  }
2050
2051  debug() << "dumping THistSvc contents\n" << ost.str() << endmsg;
2052 }

◆ exists()

bool THistSvc::exists ( const std::string &  name) const
override

Check if object with given name is managed by THistSvcMT exists calls existsHist and only works for TH1-descendants.

Definition at line 680 of file THistSvc.cpp.

680 { return existsHist( name ); }

◆ existsEfficiency()

bool THistSvc::existsEfficiency ( const std::string &  name) const
override

Check if TEfficiency with given name is managed by THistSvcMT.

Definition at line 684 of file THistSvc.cpp.

684  {
685  return ( getHist_i<TEfficiency>( name, 0, true ) != nullptr );
686 }

◆ existsGraph()

bool THistSvc::existsGraph ( const std::string &  name) const
override

Check if graph with given name is managed by THistSvcMT.

Definition at line 688 of file THistSvc.cpp.

688  {
689  return ( getHist_i<TGraph>( name, 0, true ) != nullptr );
690 }

◆ existsHist()

bool THistSvc::existsHist ( const std::string &  name) const
override

Check if histogram with given name is managed by THistSvcMT.

Definition at line 682 of file THistSvc.cpp.

682 { return ( getHist_i<TH1>( name, 0, true ) != nullptr ); }

◆ existsTree()

bool THistSvc::existsTree ( const std::string &  name) const
override

Check if tree with given name is managed by THistSvcMT.

Definition at line 692 of file THistSvc.cpp.

692 { return ( getHist_i<TTree>( name, 0, true ) != nullptr ); }

◆ finalize()

StatusCode THistSvc::finalize ( )
override

Definition at line 197 of file THistSvc.cpp.

197  {
198  GlobalDirectoryRestore restore( m_svcMut );
199
200  if ( msgLevel( MSG::DEBUG ) ) {
201  dump();
202  debug() << "THistSvc::finalize" << endmsg;
203  }
204
205 #ifndef NDEBUG
206  if ( msgLevel( MSG::DEBUG ) ) {
207  const std::map<uidMap_t::key_type, uidMap_t::mapped_type> sorted_uids{begin( m_uids ), end( m_uids )};
208  for ( const auto& itr : sorted_uids ) {
209  THistID& thid = itr.second->at( 0 );
210  TObject* tobj = thid.obj;
211
212  std::string dirname( "none" );
213  if ( tobj && tobj->IsA()->InheritsFrom( "TTree" ) ) {
214  TTree* tree = dynamic_cast<TTree*>( tobj );
215  if ( tree->GetDirectory() != 0 ) { dirname = tree->GetDirectory()->GetPath(); }
216  } else if ( tobj && tobj->IsA()->InheritsFrom( "TGraph" ) ) {
217  if ( !thid.temp ) {
218  dirname = thid.file->GetPath();
219  std::string id2( thid.id );
220  id2.erase( 0, id2.find( "/", 1 ) );
221  id2.erase( id2.rfind( "/" ), id2.length() );
222  if ( id2.find( "/" ) == 0 ) { id2.erase( 0, 1 ); }
223  dirname += id2;
224  } else {
225  dirname = "/tmp";
226  }
227  } else if ( tobj && tobj->IsA()->InheritsFrom( "TH1" ) ) {
228  TH1* th = dynamic_cast<TH1*>( tobj );
229  if ( th == nullptr ) {
230  error() << "Couldn't dcast: " << itr.first << endmsg;
231  } else {
232  if ( th->GetDirectory() != 0 ) { dirname = th->GetDirectory()->GetPath(); }
233  }
234  } else if ( !tobj ) {
235  warning() << itr.first << " has NULL TObject ptr" << endmsg;
236  }
237  debug() << "finalize: " << thid << endmsg;
238  }
239  }
240 #endif
241
242  if ( writeObjectsToFile().isFailure() ) { error() << "problems writing histograms" << endmsg; }
243
244  if ( m_print ) { info() << "Listing contents of ROOT files: " << endmsg; }
245  std::vector<TFile*> deleted_files;
246  for ( auto& itr : m_files ) {
247  if ( std::find( deleted_files.begin(), deleted_files.end(), itr.second.first ) == deleted_files.end() ) {
248  deleted_files.push_back( itr.second.first );
249
250 #ifndef NDEBUG
251  if ( msgLevel( MSG::DEBUG ) ) {
252  debug() << "finalizing stream/file " << itr.first << ":" << itr.second.first->GetName() << endmsg;
253  }
254 #endif
255  } else {
256 #ifndef NDEBUG
257  if ( msgLevel( MSG::DEBUG ) ) { debug() << "already finalized stream " << itr.first << endmsg; }
258 #endif
259  continue;
260  }
261
262  if ( m_print && msgLevel( MSG::INFO ) ) {
263  info() << "==> File: " << itr.second.first->GetName() << " stream: " << itr.first << endmsg;
264
265  itr.second.first->Print( "base" );
266  }
267
268  std::string tmpfn = itr.second.first->GetName();
269
270  p_fileMgr->close( itr.second.first, name() );
271
272  IIncidentSvc* pIncidentSvc = nullptr;
273  if ( service( "IncidentSvc", pIncidentSvc ).isFailure() ) {
274  error() << "Unable to get the IncidentSvc" << endmsg;
275  return StatusCode::FAILURE;
276  }
277
278  if ( itr.second.second == SHARE ) {
279  // Merge File
280  void* vfile = nullptr;
281  int returncode =
282  p_fileMgr->open( Io::ROOT, name(), m_sharedFiles[itr.first], Io::WRITE | Io::APPEND, vfile, "HIST" );
283
284  if ( returncode ) {
285  error() << "unable to open Final Output File: \"" << m_sharedFiles[itr.first] << "\" for merging" << endmsg;
286  return StatusCode::FAILURE;
287  }
288
289  TFile* outputfile = (TFile*)vfile;
290  pIncidentSvc->fireIncident( FileIncident( name(), IncidentType::WroteToOutputFile, m_sharedFiles[itr.first] ) );
291
292  if ( msgLevel( MSG::DEBUG ) ) { debug() << "THistSvc::writeObjectsToFile()::Merging Rootfile " << endmsg; }
293
294  vfile = nullptr;
295  returncode = p_fileMgr->open( Io::ROOT, name(), tmpfn, Io::READ, vfile, "HIST" );
296
297  if ( returncode ) {
298  error() << "unable to open temporary file: \"" << tmpfn << endmsg;
299  return StatusCode::FAILURE;
300  }
301
302  TFile* inputfile = (TFile*)vfile;
303
304  outputfile->SetCompressionLevel( inputfile->GetCompressionLevel() );
305
306  MergeRootFile( outputfile, inputfile );
307
308  outputfile->Write();
309  p_fileMgr->close( outputfile, name() );
310  p_fileMgr->close( inputfile, name() );
311
312  if ( msgLevel( MSG::DEBUG ) ) { debug() << "Trying to remove temporary file \"" << tmpfn << "\"" << endmsg; }
313
314  std::remove( tmpfn.c_str() );
315  }
316  delete itr.second.first;
317  }
318
319  m_files.clear();
320  m_sharedFiles.clear();
321  m_fileStreams.clear();
322  m_hlist.clear(); // vhid* is deleted in m_tobjs
323  m_uids.clear(); // vhid* is deleted in m_tobjs
324  m_ids.clear(); // vhid* is deleted in m_tobjs
325
326  for ( auto& obj : m_tobjs ) {
327  // TObject*'s are already dealt with through root file i/o
328  // only delete vector if this object is index 0
329  if ( obj.second.second == 0 ) {
330  delete obj.second.first; // delete vhid*
331  }
332  }
333  m_tobjs.clear();
334
335  return Service::finalize();
336 }

◆ findHistID()

size_t THistSvc::findHistID ( const std::string &  id,
const THistID *&  hid,
const size_t &  index = 0
) const
private

Definition at line 1973 of file THistSvc.cpp.

1973  {
1974  GlobalDirectoryRestore restore( m_svcMut );
1975
1976  std::string idr( id );
1977  removeDoubleSlash( idr );
1978
1979  hid = 0;
1980
1981  if ( idr.find( "/" ) == 0 ) {
1982  // fully specified name, starts with "/"
1983  auto itr = m_uids.find( idr );
1984  if ( itr == m_uids.end() ) {
1985  // no matches found
1986  return 0;
1987  } else {
1988  // one or more matches found (clones).
1989  if ( index >= itr->second->size() ) {
1990  error() << "no index " << index << " found for Hist " << idr << endmsg;
1991  return 0;
1992  }
1993  hid = &( itr->second->at( index ) );
1994  return 1;
1995  }
1996  } else {
1997  // name not fully specified.
1998  auto mitr = m_ids.equal_range( idr );
1999  if ( mitr.first == mitr.second ) {
2000  // not found
2001  return 0;
2002  } else if ( distance( mitr.first, mitr.second ) == 1 ) {
2003  // one found
2004  if ( index >= mitr.first->second->size() ) {
2005  error() << "no index " << index << " found for Hist " << idr << endmsg;
2006  return 0;
2007  }
2008  hid = &( mitr.first->second->at( 0 ) );
2009  return 1;
2010  } else {
2011  // multiple matches
2012  hid = &( mitr.first->second->at( 0 ) );
2013  return distance( mitr.first, mitr.second );
2014  }
2015  }
2016 }

◆ findStream()

bool THistSvc::findStream ( const std::string &  name,
std::string &  root,
std::string &  rem,
TFile *&  file
) const
private

Definition at line 1847 of file THistSvc.cpp.

1847  {
1848  auto pos = id.find( "/" );
1849
1850  if ( pos == std::string::npos ) {
1851  // no "/" in id
1852  stream = "temp";
1853  rem = id;
1854  } else if ( pos != 0 ) {
1855  // id does not start with "/"
1856  stream = "temp";
1857  rem = id;
1858  } else {
1859  // id starts with "/"
1860
1861  auto pos2 = id.find( "/", pos + 1 );
1862
1863  if ( pos2 == std::string::npos ) {
1864  // need at least 2 "/" in format "/STREAM/name" or "/STREAM/dir/name"
1865  error() << "badly formed Hist/Tree id: \"" << id << "\"" << endmsg;
1866  return false;
1867  }
1868  parseString( id, stream, rem );
1869  }
1870
1871  if ( stream == "temp" ) {
1872  file = nullptr;
1873  return true;
1874  }
1875
1876  auto itr = m_files.find( stream );
1877  file = ( itr != m_files.end() ? itr->second.first : nullptr );
1878  if ( !file ) { warning() << "no stream \"" << stream << "\" associated with id: \"" << id << "\"" << endmsg; }
1879
1880  return true;
1881 }

◆ getEfficiencies()

std::vector< std::string > THistSvc::getEfficiencies ( ) const
override

Definition at line 718 of file THistSvc.cpp.

718  {
719  std::vector<std::string> names;
720  names.reserve( m_uids.size() );
721  transform_if(
722  std::begin( m_uids ), std::end( m_uids ), std::back_inserter( names ), select1st,
723  []( uidMap_t::const_reference i ) { return i.second->at( 0 ).obj->IsA()->InheritsFrom( "TEfficiency" ); } );
724  return names;
725 }

◆ getEfficiency()

StatusCode THistSvc::getEfficiency ( const std::string &  name,
TEfficiency *&  eff
) const
override

Return TEfficiency with given name.

Definition at line 477 of file THistSvc.cpp.

477  {
478  eff = getHist_i<TEfficiency>( id );
479  if ( eff != nullptr ) {
480  return StatusCode::SUCCESS;
481  } else {
482  return StatusCode::FAILURE;
483  }
484 }

◆ getGraph()

StatusCode THistSvc::getGraph ( const std::string &  name,
TGraph *&  graph
) const
override

Return TGraph with given name.

Definition at line 454 of file THistSvc.cpp.

454  {
455  graph = getHist_i<TGraph>( id );
456  if ( graph != nullptr ) {
457  return StatusCode::SUCCESS;
458  } else {
459  return StatusCode::FAILURE;
460  }
461 }

◆ getGraphs()

std::vector< std::string > THistSvc::getGraphs ( ) const
override

Definition at line 710 of file THistSvc.cpp.

710  {
711  std::vector<std::string> names;
712  names.reserve( m_uids.size() );
713  transform_if( std::begin( m_uids ), std::end( m_uids ), std::back_inserter( names ), select1st,
714  []( uidMap_t::const_reference i ) { return i.second->at( 0 ).obj->IsA()->InheritsFrom( "TGraph" ); } );
715  return names;
716 }

◆ getHist() [1/3]

StatusCode THistSvc::getHist ( const std::string &  name,
TH1 *&  hist,
size_t  index = 0
) const
override

Return histogram with given name as TH1*, THistSvcMT still owns object.

Definition at line 360 of file THistSvc.cpp.

360  {
361  hist = getHist_i<TH1>( id, ind );
362  if ( hist != nullptr ) {
363  return StatusCode::SUCCESS;
364  } else {
365  return StatusCode::FAILURE;
366  }
367 }

◆ getHist() [2/3]

StatusCode THistSvc::getHist ( const std::string &  name,
TH2 *&  hist,
size_t  index = 0
) const
override

Return histogram with given name as TH2*, THistSvcMT still owns object.

Definition at line 369 of file THistSvc.cpp.

369  {
370  hist = getHist_i<TH2>( id, ind );
371  if ( hist != nullptr ) {
372  return StatusCode::SUCCESS;
373  } else {
374  return StatusCode::FAILURE;
375  }
376 }

◆ getHist() [3/3]

StatusCode THistSvc::getHist ( const std::string &  name,
TH3 *&  hist,
size_t  index = 0
) const
override

Return histogram with given name as TH3*, THistSvcMT still owns object.

Definition at line 378 of file THistSvc.cpp.

378  {
379  hist = getHist_i<TH3>( id, ind );
380  if ( hist != nullptr ) {
381  return StatusCode::SUCCESS;
382  } else {
383  return StatusCode::FAILURE;
384  }
385 }

◆ getHist_i()

template<typename T >
T * THistSvc::getHist_i ( const std::string &  name,
const size_t &  ind = 0,
bool  quiet = false
) const
private

Definition at line 177 of file THistSvc.icc.

177  {
178  // id starts with "/": unique
179
180  GlobalDirectoryRestore restore( m_svcMut );
181
182  T* hist = nullptr;
183  const THistID* hid = nullptr;
184  size_t num = findHistID( id, hid, ind );
185  if ( num == 0 ) {
186  // no matches found
187  if ( !quiet ) { error() << "could not locate Hist with id \"" << id << "\"" << endmsg; }
188  return nullptr;
189  } else if ( num > 1 ) {
190  if ( !quiet ) {
191  // return failure if trying to GET a single hist
192  error() << "Multiple matches with id \"" << id << "\"."
193  << " Further specifications required." << endmsg;
194  return nullptr;
195  } else {
196  info() << "Found multiple matches with id \"" << id << "\"" << endmsg;
197  // return first match if just INQUIRING (i.e. != nullptr)
198  hist = dynamic_cast<T*>( hid->obj );
199  if ( hist == nullptr ) {
200  error() << "dcast failed, Hist id: \"" << id << "\"" << endmsg;
201  return nullptr;
202  }
203  }
204  } else {
205  hist = dynamic_cast<T*>( hid->obj );
206  if ( hist == nullptr ) {
207  error() << "dcast failed, Hist id: \"" << id << "\"" << endmsg;
208  return nullptr;
209  }
210  verbose() << "found unique Hist title: \"" << hist->GetTitle() << "\" id: \"" << id << "\"" << endmsg;
211  }
212
213  return hist;
214 }

◆ getHists()

std::vector< std::string > THistSvc::getHists ( ) const
override

Definition at line 694 of file THistSvc.cpp.

694  {
695  std::vector<std::string> names;
696  names.reserve( m_uids.size() );
697  transform_if( std::begin( m_uids ), std::end( m_uids ), std::back_inserter( names ), select1st,
698  []( uidMap_t::const_reference i ) { return i.second->at( 0 ).obj->IsA()->InheritsFrom( "TH1" ); } );
699  return names;
700 }

◆ getShared() [1/5]

StatusCode THistSvc::getShared ( const std::string &  name,
LockedHandle< TEfficiency > &  lh
) const
override

Retrieve shared object with given name as TEfficiency through LockedHandle.

Definition at line 568 of file THistSvc.cpp.

568  {
569  lh = getShared_i<TEfficiency>( name );
570  if ( lh ) {
571  return StatusCode::SUCCESS;
572  } else {
573  return StatusCode::FAILURE;
574  }
575 }

◆ getShared() [2/5]

StatusCode THistSvc::getShared ( const std::string &  name,
LockedHandle< TGraph > &  lh
) const
override

Retrieve shared object with given name as TGraph through LockedHandle.

Definition at line 559 of file THistSvc.cpp.

559  {
560  lh = getShared_i<TGraph>( name );
561  if ( lh ) {
562  return StatusCode::SUCCESS;
563  } else {
564  return StatusCode::FAILURE;
565  }
566 }

◆ getShared() [3/5]

StatusCode THistSvc::getShared ( const std::string &  name,
LockedHandle< TH1 > &  lh
) const
override

Retrieve shared object with given name as TH1 through LockedHandle.

Definition at line 532 of file THistSvc.cpp.

532  {
533  lh = getShared_i<TH1>( name );
534  if ( lh ) {
535  return StatusCode::SUCCESS;
536  } else {
537  return StatusCode::FAILURE;
538  }
539 }

◆ getShared() [4/5]

StatusCode THistSvc::getShared ( const std::string &  name,
LockedHandle< TH2 > &  lh
) const
override

Retrieve shared object with given name as TH2 through LockedHandle.

Definition at line 541 of file THistSvc.cpp.

541  {
542  lh = getShared_i<TH2>( name );
543  if ( lh ) {
544  return StatusCode::SUCCESS;
545  } else {
546  return StatusCode::FAILURE;
547  }
548 }

◆ getShared() [5/5]

StatusCode THistSvc::getShared ( const std::string &  name,
LockedHandle< TH3 > &  lh
) const
override

Retrieve shared object with given name as TH3 through LockedHandle.

Definition at line 550 of file THistSvc.cpp.

550  {
551  lh = getShared_i<TH3>( name );
552  if ( lh ) {
553  return StatusCode::SUCCESS;
554  } else {
555  return StatusCode::FAILURE;
556  }
557 }

◆ getShared_i()

template<typename T >
LockedHandle< T > THistSvc::getShared_i ( const std::string &  name) const
private

Definition at line 305 of file THistSvc.icc.

305  {
306  GlobalDirectoryRestore restore( m_svcMut );
307
308  const THistID* hid = nullptr;
309  size_t i = findHistID( name, hid );
310
311  LockedHandle<T> hist( nullptr, nullptr );
312
313  if ( i == 1 ) {
314  if ( !hid->shared ) {
315  error() << "getSharedHist: found Hist with id \"" << name << "\", but it's not marked as shared" << endmsg;
316  return hist;
317  }
318  T* h1 = dynamic_cast<T*>( hid->obj );
319  hist = LockedHandle<T>( h1, hid->mutex );
320
321  debug() << "getSharedHist: found THistID: " << *hid << endmsg;
322  } else if ( i == 0 ) {
323  error() << "no histograms matching id \"" << name << "\" found" << endmsg;
324  } else {
325  info() << "multiple matches for id \"" << name << "\" found [" << i << "], probably from different streams"
326  << endmsg;
327  }
328  return hist;
329 }

◆ getTEfficiencies() [1/4]

StatusCode THistSvc::getTEfficiencies ( const std::string &  name,
TList &  tl,
bool  recurse = false
) const
override

Definition at line 1153 of file THistSvc.cpp.

1153  {
1154
1155  GlobalDirectoryRestore restore( m_svcMut );
1156
1157  gErrorIgnoreLevel = kBreak;
1158
1159  StatusCode sc;
1160
1161  std::string stream, rem, r2;
1162  parseString( dir, stream, rem );
1163
1164  auto itr = m_files.find( stream );
1165  if ( itr != m_files.end() ) {
1166  r2 = itr->second.first->GetName();
1167  r2 += ":/";
1168  r2 += rem;
1169
1170  if ( msgLevel( MSG::DEBUG ) ) {
1171  debug() << "getTEfficiencies: \"" << dir << "\" looks like a stream name."
1172  << " associated TFile: \"" << itr->second.first->GetName() << "\"" << endmsg;
1173  }
1174
1175  if ( gDirectory->cd( r2.c_str() ) ) {
1176  m_curstream = stream;
1177  sc = getTEfficiencies( gDirectory, tl, rcs );
1178  m_curstream = "";
1179  return sc;
1180  } else {
1181  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getTEfficiencies: no such TDirectory \"" << r2 << "\"" << endmsg; }
1182  }
1183
1184  } else {
1185  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getTEfficiencies: stream \"" << stream << "\" not found" << endmsg; }
1186  }
1187
1188  if ( !gDirectory->cd( dir.c_str() ) ) {
1189  error() << "getTEfficiencies: No such TDirectory/stream \"" << dir << "\"" << endmsg;
1190  sc = StatusCode::FAILURE;
1191  } else {
1192  sc = getTHists( gDirectory, tl, rcs );
1193  }
1194
1195  return sc;
1196 }

◆ getTEfficiencies() [2/4]

StatusCode THistSvc::getTEfficiencies ( const std::string &  name,
TList &  tl,
bool  recurse = false,
bool  reg = false
)
override

Definition at line 1261 of file THistSvc.cpp.

1261  {
1262  GlobalDirectoryRestore restore( m_svcMut );
1263
1264  gErrorIgnoreLevel = kBreak;
1265
1266  StatusCode sc;
1267
1268  std::string stream, rem, r2;
1269  parseString( dir, stream, rem );
1270
1271  auto itr = m_files.find( stream );
1272  if ( itr != m_files.end() ) {
1273  r2 = itr->second.first->GetName();
1274  r2 += ":/";
1275  r2 += rem;
1276
1277  if ( msgLevel( MSG::DEBUG ) ) {
1278  debug() << "getTEfficiencies: \"" << dir << "\" looks like a stream name."
1279  << " associated TFile: \"" << itr->second.first->GetName() << "\"" << endmsg;
1280  }
1281
1282  if ( gDirectory->cd( r2.c_str() ) ) {
1283  m_curstream = stream;
1284  sc = getTEfficiencies( gDirectory, tl, rcs, reg );
1285  m_curstream.clear();
1286  return sc;
1287  }
1288  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getTEfficiencies: no such TDirectory \"" << r2 << "\"" << endmsg; }
1289  } else {
1290  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getTEfficiencies: stream \"" << stream << "\" not found" << endmsg; }
1291  }
1292
1293  if ( !gDirectory->cd( dir.c_str() ) ) {
1294  error() << "getTEfficiencies: No such TDirectory/stream \"" << dir << "\"" << endmsg;
1295  sc = StatusCode::FAILURE;
1296  } else {
1297  if ( reg ) {
1298  warning() << "Unable to register histograms automatically "
1299  << "without a valid stream name" << endmsg;
1300  reg = false;
1301  }
1302  sc = getTEfficiencies( gDirectory, tl, rcs, reg );
1303  }
1304
1305  return sc;
1306 }

◆ getTEfficiencies() [3/4]

StatusCode THistSvc::getTEfficiencies ( TDirectory *  td,
TList &  tl,
bool  recurse = false
) const
override

Definition at line 1107 of file THistSvc.cpp.

1107  {
1108  GlobalDirectoryRestore restore( m_svcMut );
1109
1110  gErrorIgnoreLevel = kBreak;
1111
1112  if ( !td->cd() ) {
1113  error() << "getTEfficiencies: No such TDirectory \"" << td->GetPath() << "\"" << endmsg;
1114  return StatusCode::FAILURE;
1115  }
1116
1117  if ( msgLevel( MSG::DEBUG ) ) {
1118  debug() << "getTEfficiencies: \"" << td->GetPath() << "\": found " << td->GetListOfKeys()->GetSize() << " keys"
1119  << endmsg;
1120  }
1121
1122  TIter nextkey( td->GetListOfKeys() );
1123  while ( TKey* key = (TKey*)nextkey() ) {
1124  auto& log = debug();
1125  if ( msgLevel( MSG::DEBUG ) ) log << " key: " << key->GetName();
1126  TObject* obj = key->ReadObj();
1127  if ( obj != 0 && obj->IsA()->InheritsFrom( "TDirectory" ) ) {
1128  if ( msgLevel( MSG::DEBUG ) ) log << " (" << obj->IsA()->GetName() << ")";
1129  } else if ( obj != 0 && obj->IsA()->InheritsFrom( "TEfficiency" ) ) {
1130  if ( msgLevel( MSG::DEBUG ) ) log << " (" << obj->IsA()->GetName() << ")";
1131  tl.Add( obj );
1132  } else if ( obj != 0 ) {
1133  if ( msgLevel( MSG::DEBUG ) ) log << " [" << obj->IsA()->GetName() << "]";
1134  }
1135  if ( msgLevel( MSG::DEBUG ) ) log << endmsg;
1136  }
1137
1138  // operate recursively
1139  if ( rcs ) {
1140  nextkey = td->GetListOfKeys();
1141  while ( TKey* key = (TKey*)nextkey() ) {
1142  TObject* obj = key->ReadObj();
1143  if ( obj && obj->IsA()->InheritsFrom( "TDirectory" ) ) {
1144  TDirectory* tt = dynamic_cast<TDirectory*>( obj );
1145  getTHists( tt, tl, rcs ).ignore( /* AUTOMATICALLY ADDED FOR gaudi/Gaudi!763 */ );
1146  }
1147  }
1148  }
1149
1150  return StatusCode::SUCCESS;
1151 }

◆ getTEfficiencies() [4/4]

StatusCode THistSvc::getTEfficiencies ( TDirectory *  td,
TList &  tl,
bool  recurse = false,
bool  reg = false
)
override

Definition at line 1198 of file THistSvc.cpp.

1198  {
1199  GlobalDirectoryRestore restore( m_svcMut );
1200
1201  gErrorIgnoreLevel = kBreak;
1202
1203  if ( !td->cd() ) {
1204  error() << "getTEfficiencies: No such TDirectory \"" << td->GetPath() << "\"" << endmsg;
1205  return StatusCode::FAILURE;
1206  }
1207
1208  if ( msgLevel( MSG::DEBUG ) ) {
1209  debug() << "getTEfficiencies: \"" << td->GetPath() << "\": found " << td->GetListOfKeys()->GetSize() << " keys"
1210  << endmsg;
1211  }
1212
1213  TIter nextkey( td->GetListOfKeys() );
1214  while ( TKey* key = (TKey*)nextkey() ) {
1215  auto& log = debug();
1216  if ( msgLevel( MSG::DEBUG ) ) log << " key: " << key->GetName();
1217  TObject* obj = key->ReadObj();
1218  if ( obj && obj->IsA()->InheritsFrom( "TDirectory" ) ) {
1219  if ( msgLevel( MSG::DEBUG ) ) log << " (" << obj->IsA()->GetName() << ")";
1220  } else if ( obj && obj->IsA()->InheritsFrom( "TEfficiency" ) ) {
1221  if ( msgLevel( MSG::DEBUG ) ) log << " (" << obj->IsA()->GetName() << ")";
1222  tl.Add( obj );
1223  if ( reg && m_curstream != "" ) {
1224  std::string dir = td->GetPath();
1225  std::string fil = td->GetFile()->GetName();
1226  dir.erase( 0, fil.length() + 1 );
1227  std::string id = "/" + m_curstream;
1228  if ( dir == "/" ) {
1229  id = id + "/" + key->GetName();
1230  } else {
1231  id = id + dir + "/" + key->GetName();
1232  }
1233  if ( !exists( id ) ) {
1234  if ( msgLevel( MSG::DEBUG ) ) log << " reg as \"" << id << "\"";
1235  regHist( id ).ignore();
1236  } else {
1237  if ( msgLevel( MSG::DEBUG ) ) log << " already registered";
1238  }
1239  }
1240  } else if ( obj ) {
1241  if ( msgLevel( MSG::DEBUG ) ) log << " [" << obj->IsA()->GetName() << "]";
1242  }
1243  if ( msgLevel( MSG::DEBUG ) ) log << endmsg;
1244  }
1245
1246  // operate recursively
1247  if ( rcs ) {
1248  nextkey = td->GetListOfKeys();
1249  while ( TKey* key = (TKey*)nextkey() ) {
1250  TObject* obj = key->ReadObj();
1251  if ( obj && obj->IsA()->InheritsFrom( "TDirectory" ) ) {
1252  TDirectory* tt = dynamic_cast<TDirectory*>( obj );
1253  getTEfficiencies( tt, tl, rcs, reg ).ignore( /* AUTOMATICALLY ADDED FOR gaudi/Gaudi!763 */ );
1254  }
1255  }
1256  }
1257
1258  return StatusCode::SUCCESS;
1259 }

◆ getTHists() [1/4]

StatusCode THistSvc::getTHists ( const std::string &  name,
TList &  tl,
bool  recurse = false
) const
override

Definition at line 772 of file THistSvc.cpp.

772  {
773
774  GlobalDirectoryRestore restore( m_svcMut );
775
776  gErrorIgnoreLevel = kBreak;
777
778  StatusCode sc;
779
780  std::string stream, rem, r2;
781  parseString( dir, stream, rem );
782
783  auto itr = m_files.find( stream );
784  if ( itr != m_files.end() ) {
785  r2 = itr->second.first->GetName();
786  r2 += ":/";
787  r2 += rem;
788
789  if ( msgLevel( MSG::DEBUG ) ) {
790  debug() << "getTHists: \"" << dir << "\" looks like a stream name."
791  << " associated TFile: \"" << itr->second.first->GetName() << "\"" << endmsg;
792  }
793
794  if ( gDirectory->cd( r2.c_str() ) ) {
795  m_curstream = stream;
796  sc = getTHists( gDirectory, tl, rcs );
797  m_curstream = "";
798  return sc;
799  } else {
800  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getTHists: no such TDirectory \"" << r2 << "\"" << endmsg; }
801  }
802
803  } else {
804  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getTHists: stream \"" << stream << "\" not found" << endmsg; }
805  }
806
807  if ( !gDirectory->cd( dir.c_str() ) ) {
808  error() << "getTHists: No such TDirectory/stream \"" << dir << "\"" << endmsg;
809  sc = StatusCode::FAILURE;
810  } else {
811  sc = getTHists( gDirectory, tl, rcs );
812  }
813
814  return sc;
815 }

◆ getTHists() [2/4]

StatusCode THistSvc::getTHists ( const std::string &  name,
TList &  tl,
bool  recurse = false,
bool  reg = false
)
override

Definition at line 879 of file THistSvc.cpp.

879  {
880  GlobalDirectoryRestore restore( m_svcMut );
881
882  gErrorIgnoreLevel = kBreak;
883
884  StatusCode sc;
885
886  std::string stream, rem, r2;
887  parseString( dir, stream, rem );
888
889  auto itr = m_files.find( stream );
890  if ( itr != m_files.end() ) {
891  r2 = itr->second.first->GetName();
892  r2 += ":/";
893  r2 += rem;
894
895  if ( msgLevel( MSG::DEBUG ) ) {
896  debug() << "getTHists: \"" << dir << "\" looks like a stream name."
897  << " associated TFile: \"" << itr->second.first->GetName() << "\"" << endmsg;
898  }
899
900  if ( gDirectory->cd( r2.c_str() ) ) {
901  m_curstream = stream;
902  sc = getTHists( gDirectory, tl, rcs, reg );
903  m_curstream.clear();
904  return sc;
905  }
906  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getTHists: no such TDirectory \"" << r2 << "\"" << endmsg; }
907  } else {
908  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getTHists: stream \"" << stream << "\" not found" << endmsg; }
909  }
910
911  if ( !gDirectory->cd( dir.c_str() ) ) {
912  error() << "getTHists: No such TDirectory/stream \"" << dir << "\"" << endmsg;
913  sc = StatusCode::FAILURE;
914  } else {
915  if ( reg ) {
916  warning() << "Unable to register histograms automatically "
917  << "without a valid stream name" << endmsg;
918  reg = false;
919  }
920  sc = getTHists( gDirectory, tl, rcs, reg );
921  }
922
923  return sc;
924 }

◆ getTHists() [3/4]

StatusCode THistSvc::getTHists ( TDirectory *  td,
TList &  tl,
bool  recurse = false
) const
override

Definition at line 727 of file THistSvc.cpp.

727  {
728  GlobalDirectoryRestore restore( m_svcMut );
729
730  gErrorIgnoreLevel = kBreak;
731
732  if ( !td->cd() ) {
733  error() << "getTHists: No such TDirectory \"" << td->GetPath() << "\"" << endmsg;
734  return StatusCode::FAILURE;
735  }
736
737  if ( msgLevel( MSG::DEBUG ) ) {
738  debug() << "getTHists: \"" << td->GetPath() << "\": found " << td->GetListOfKeys()->GetSize() << " keys" << endmsg;
739  }
740
741  TIter nextkey( td->GetListOfKeys() );
742  while ( TKey* key = (TKey*)nextkey() ) {
743  auto& log = debug();
744  if ( msgLevel( MSG::DEBUG ) ) log << " key: " << key->GetName();
745  TObject* obj = key->ReadObj();
746  if ( obj != 0 && obj->IsA()->InheritsFrom( "TDirectory" ) ) {
747  if ( msgLevel( MSG::DEBUG ) ) log << " (" << obj->IsA()->GetName() << ")";
748  } else if ( obj != 0 && obj->IsA()->InheritsFrom( "TH1" ) ) {
749  if ( msgLevel( MSG::DEBUG ) ) log << " (" << obj->IsA()->GetName() << ")";
750  tl.Add( obj );
751  } else if ( obj != 0 ) {
752  if ( msgLevel( MSG::DEBUG ) ) log << " [" << obj->IsA()->GetName() << "]";
753  }
754  if ( msgLevel( MSG::DEBUG ) ) log << endmsg;
755  }
756
757  // operate recursively
758  if ( rcs ) {
759  nextkey = td->GetListOfKeys();
760  while ( TKey* key = (TKey*)nextkey() ) {
761  TObject* obj = key->ReadObj();
762  if ( obj && obj->IsA()->InheritsFrom( "TDirectory" ) ) {
763  TDirectory* tt = dynamic_cast<TDirectory*>( obj );
764  getTHists( tt, tl, rcs ).ignore( /* AUTOMATICALLY ADDED FOR gaudi/Gaudi!763 */ );
765  }
766  }
767  }
768
769  return StatusCode::SUCCESS;
770 }

◆ getTHists() [4/4]

StatusCode THistSvc::getTHists ( TDirectory *  td,
TList &  tl,
bool  recurse = false,
bool  reg = false
)
override

Definition at line 817 of file THistSvc.cpp.

817  {
818  GlobalDirectoryRestore restore( m_svcMut );
819
820  gErrorIgnoreLevel = kBreak;
821
822  if ( !td->cd() ) {
823  error() << "getTHists: No such TDirectory \"" << td->GetPath() << "\"" << endmsg;
824  return StatusCode::FAILURE;
825  }
826
827  if ( msgLevel( MSG::DEBUG ) ) {
828  debug() << "getTHists: \"" << td->GetPath() << "\": found " << td->GetListOfKeys()->GetSize() << " keys" << endmsg;
829  }
830
831  TIter nextkey( td->GetListOfKeys() );
832  while ( TKey* key = (TKey*)nextkey() ) {
833  auto& log = debug();
834  if ( msgLevel( MSG::DEBUG ) ) log << " key: " << key->GetName();
835  TObject* obj = key->ReadObj();
836  if ( obj && obj->IsA()->InheritsFrom( "TDirectory" ) ) {
837  if ( msgLevel( MSG::DEBUG ) ) log << " (" << obj->IsA()->GetName() << ")";
838  } else if ( obj && obj->IsA()->InheritsFrom( "TH1" ) ) {
839  if ( msgLevel( MSG::DEBUG ) ) log << " (" << obj->IsA()->GetName() << ")";
840  tl.Add( obj );
841  if ( reg && m_curstream != "" ) {
842  std::string dir = td->GetPath();
843  std::string fil = td->GetFile()->GetName();
844  dir.erase( 0, fil.length() + 1 );
845  std::string id = "/" + m_curstream;
846  if ( dir == "/" ) {
847  id = id + "/" + key->GetName();
848  } else {
849  id = id + dir + "/" + key->GetName();
850  }
851  if ( !exists( id ) ) {
852  if ( msgLevel( MSG::DEBUG ) ) log << " reg as \"" << id << "\"";
853  regHist( id ).ignore();
854  } else {
855  if ( msgLevel( MSG::DEBUG ) ) log << " already registered";
856  }
857  }
858  } else if ( obj ) {
859  if ( msgLevel( MSG::DEBUG ) ) log << " [" << obj->IsA()->GetName() << "]";
860  }
861  if ( msgLevel( MSG::DEBUG ) ) log << endmsg;
862  }
863
864  // operate recursively
865  if ( rcs ) {
866  nextkey = td->GetListOfKeys();
867  while ( TKey* key = (TKey*)nextkey() ) {
868  TObject* obj = key->ReadObj();
869  if ( obj && obj->IsA()->InheritsFrom( "TDirectory" ) ) {
870  TDirectory* tt = dynamic_cast<TDirectory*>( obj );
871  getTHists( tt, tl, rcs, reg ).ignore( /* AUTOMATICALLY ADDED FOR gaudi/Gaudi!763 */ );
872  }
873  }
874  }
875
876  return StatusCode::SUCCESS;
877 }

◆ getTree()

StatusCode THistSvc::getTree ( const std::string &  name,
TTree *&  tree
) const
override

Return TTree with given name.

Definition at line 413 of file THistSvc.cpp.

413  {
414  tree = getHist_i<TTree>( id );
415  if ( tree != nullptr ) {
416  return StatusCode::SUCCESS;
417  } else {
418  return StatusCode::FAILURE;
419  }
420 }

◆ getTrees()

std::vector< std::string > THistSvc::getTrees ( ) const
override

Definition at line 702 of file THistSvc.cpp.

702  {
703  std::vector<std::string> names;
704  names.reserve( m_uids.size() );
705  transform_if( std::begin( m_uids ), std::end( m_uids ), std::back_inserter( names ), select1st,
706  []( uidMap_t::const_reference i ) { return i.second->at( 0 ).obj->IsA()->InheritsFrom( "TTree" ); } );
707  return names;
708 }

◆ getTTrees() [1/4]

StatusCode THistSvc::getTTrees ( const std::string &  name,
TList &  tl,
bool  recurse = false
) const
override

Definition at line 971 of file THistSvc.cpp.

971  {
972  GlobalDirectoryRestore restore( m_svcMut );
973
974  gErrorIgnoreLevel = kBreak;
975
976  StatusCode sc;
977
978  std::string stream, rem, r2;
979  parseString( dir, stream, rem );
980
981  auto itr = m_files.find( stream );
982  if ( itr != m_files.end() ) {
983  r2 = itr->second.first->GetName();
984  r2 += ":/";
985  r2 += rem;
986
987  if ( msgLevel( MSG::DEBUG ) ) {
988  debug() << "getTTrees: \"" << dir << "\" looks like a stream name."
989  << " associated TFile: \"" << itr->second.first->GetName() << "\"" << endmsg;
990  }
991
992  if ( gDirectory->cd( r2.c_str() ) ) { return getTTrees( gDirectory, tl, rcs ); }
993  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getTTrees: no such TDirectory \"" << r2 << "\"" << endmsg; }
994  } else {
995  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getTTrees: stream \"" << stream << "\" not found" << endmsg; }
996  }
997
998  if ( !gDirectory->cd( dir.c_str() ) ) {
999  error() << "getTTrees: No such TDirectory/stream \"" << dir << "\"" << endmsg;
1000  sc = StatusCode::FAILURE;
1001  } else {
1002  sc = getTTrees( gDirectory, tl, rcs );
1003  }
1004  return sc;
1005 }

◆ getTTrees() [2/4]

StatusCode THistSvc::getTTrees ( const std::string &  name,
TList &  tl,
bool  recurse = false,
bool  reg = false
)
override

Definition at line 1069 of file THistSvc.cpp.

1069  {
1070  GlobalDirectoryRestore restore( m_svcMut );
1071
1072  gErrorIgnoreLevel = kBreak;
1073
1074  StatusCode sc;
1075
1076  std::string stream, rem, r2;
1077  parseString( dir, stream, rem );
1078
1079  auto itr = m_files.find( stream );
1080  if ( itr != m_files.end() ) {
1081  r2 = itr->second.first->GetName();
1082  r2 += ":/";
1083  r2 += rem;
1084
1085  if ( msgLevel( MSG::DEBUG ) ) {
1086  debug() << "getTTrees: \"" << dir << "\" looks like a stream name."
1087  << " associated TFile: \"" << itr->second.first->GetName() << "\"" << endmsg;
1088  }
1089
1090  if ( gDirectory->cd( r2.c_str() ) ) {
1091  return getTTrees( gDirectory, tl, rcs, reg );
1092  } else {
1093  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getTTrees: no such TDirectory \"" << r2 << "\"" << endmsg; }
1094  }
1095  } else {
1096  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getTTrees: stream \"" << stream << "\" not found" << endmsg; }
1097  }
1098
1099  if ( !gDirectory->cd( dir.c_str() ) ) {
1100  error() << "getTTrees: No such TDirectory/stream \"" << dir << "\"" << endmsg;
1101  return StatusCode::FAILURE;
1102  }
1103
1104  return getTTrees( gDirectory, tl, rcs, reg );
1105 }

◆ getTTrees() [3/4]

StatusCode THistSvc::getTTrees ( TDirectory *  td,
TList &  tl,
bool  recurse = false
) const
override

Definition at line 926 of file THistSvc.cpp.

926  {
927  GlobalDirectoryRestore restore( m_svcMut );
928
929  gErrorIgnoreLevel = kBreak;
930
931  if ( !td->cd() ) {
932  error() << "getTTrees: No such TDirectory \"" << td->GetPath() << "\"" << endmsg;
933  return StatusCode::FAILURE;
934  }
935
936  if ( msgLevel( MSG::DEBUG ) ) {
937  debug() << "getTHists: \"" << td->GetPath() << "\": found " << td->GetListOfKeys()->GetSize() << " keys" << endmsg;
938  }
939
940  TIter nextkey( td->GetListOfKeys() );
941  while ( TKey* key = (TKey*)nextkey() ) {
942  auto& log = debug();
943  if ( msgLevel( MSG::DEBUG ) ) log << " key: " << key->GetName();
944  TObject* obj = key->ReadObj();
945  if ( obj != 0 && obj->IsA()->InheritsFrom( "TDirectory" ) ) {
946  if ( msgLevel( MSG::DEBUG ) ) log << " (" << obj->IsA()->GetName() << ")";
947  } else if ( obj != 0 && obj->IsA()->InheritsFrom( "TTree" ) ) {
948  if ( msgLevel( MSG::DEBUG ) ) log << " (" << obj->IsA()->GetName() << ")";
949  tl.Add( obj );
950  } else if ( obj != 0 ) {
951  if ( msgLevel( MSG::DEBUG ) ) log << " [" << obj->IsA()->GetName() << "]";
952  }
953  log << endmsg;
954  }
955
956  // operate recursively
957  if ( rcs ) {
958  nextkey = td->GetListOfKeys();
959  while ( TKey* key = (TKey*)nextkey() ) {
960  TObject* obj = key->ReadObj();
961  if ( obj && obj->IsA()->InheritsFrom( "TDirectory" ) ) {
962  TDirectory* tt = dynamic_cast<TDirectory*>( obj );
963  getTTrees( tt, tl, rcs ).ignore( /* AUTOMATICALLY ADDED FOR gaudi/Gaudi!763 */ );
964  }
965  }
966  }
967
968  return StatusCode::SUCCESS;
969 }

◆ getTTrees() [4/4]

StatusCode THistSvc::getTTrees ( TDirectory *  td,
TList &  tl,
bool  recurse = false,
bool  reg = false
)
override

Definition at line 1007 of file THistSvc.cpp.

1007  {
1008  GlobalDirectoryRestore restore( m_svcMut );
1009
1010  gErrorIgnoreLevel = kBreak;
1011
1012  if ( !td->cd() ) {
1013  error() << "getTTrees: No such TDirectory \"" << td->GetPath() << "\"" << endmsg;
1014  return StatusCode::FAILURE;
1015  }
1016
1017  if ( msgLevel( MSG::DEBUG ) ) {
1018  debug() << "getTHists: \"" << td->GetPath() << "\": found " << td->GetListOfKeys()->GetSize() << " keys" << endmsg;
1019  }
1020
1021  TIter nextkey( td->GetListOfKeys() );
1022  while ( TKey* key = (TKey*)nextkey() ) {
1023  auto& log = debug();
1024  if ( msgLevel( MSG::DEBUG ) ) log << " key: " << key->GetName();
1025  TObject* obj = key->ReadObj();
1026  if ( obj && obj->IsA()->InheritsFrom( "TDirectory" ) ) {
1027  if ( msgLevel( MSG::DEBUG ) ) log << " (" << obj->IsA()->GetName() << ")";
1028  } else if ( obj && obj->IsA()->InheritsFrom( "TTree" ) ) {
1029  if ( msgLevel( MSG::DEBUG ) ) log << " (" << obj->IsA()->GetName() << ")";
1030  tl.Add( obj );
1031  if ( reg && m_curstream != "" ) {
1032  std::string dir = td->GetPath();
1033  std::string fil = td->GetFile()->GetName();
1034  dir.erase( 0, fil.length() + 1 );
1035  std::string id = "/" + m_curstream;
1036  if ( dir == "/" ) {
1037  id = id + "/" + key->GetName();
1038  } else {
1039  id = id + dir + "/" + key->GetName();
1040  }
1041  if ( !exists( id ) ) {
1042  if ( msgLevel( MSG::DEBUG ) ) log << " reg as \"" << id << "\"";
1043  regHist( id ).ignore();
1044  } else {
1045  if ( msgLevel( MSG::DEBUG ) ) log << " already registered";
1046  }
1047  }
1048  } else if ( obj != 0 ) {
1049  if ( msgLevel( MSG::DEBUG ) ) log << " [" << obj->IsA()->GetName() << "]";
1050  }
1051  if ( msgLevel( MSG::DEBUG ) ) log << endmsg;
1052  }
1053
1054  // operate recursively
1055  if ( rcs ) {
1056  nextkey = td->GetListOfKeys();
1057  while ( TKey* key = (TKey*)nextkey() ) {
1058  TObject* obj = key->ReadObj();
1059  if ( obj && obj->IsA()->InheritsFrom( "TDirectory" ) ) {
1060  TDirectory* tt = dynamic_cast<TDirectory*>( obj );
1061  getTTrees( tt, tl, rcs, reg ).ignore( /* AUTOMATICALLY ADDED FOR gaudi/Gaudi!763 */ );
1062  }
1063  }
1064  }
1065
1066  return StatusCode::SUCCESS;
1067 }

◆ handle()

void THistSvc::handle ( const Incident &  )
override

Definition at line 1310 of file THistSvc.cpp.

1310  {
1311  if ( m_signaledStop ) return;
1312
1313  if ( m_maxFileSize.value() == -1 ) return;
1314
1315  // convert to bytes.
1316  Long64_t mfs = (Long64_t)m_maxFileSize.value() * (Long64_t)1048576;
1317  Long64_t mfs_warn = mfs * 95 / 100;
1318
1319  updateFiles();
1320
1321  for ( const auto& f : m_files ) {
1322  TFile* tf = f.second.first;
1323
1324 #ifndef NDEBUG
1325  if ( msgLevel( MSG::DEBUG ) ) {
1326  debug() << "stream: " << f.first << " name: " << tf->GetName() << " size: " << tf->GetSize() << endmsg;
1327  }
1328 #endif
1329
1330  // Signal job to terminate if output file is too large
1331  if ( tf->GetSize() > mfs ) {
1332
1333  m_signaledStop = true;
1334
1335  fatal() << "file \"" << tf->GetName() << "\" associated with stream \"" << f.first
1336  << "\" has exceeded the max file size of " << m_maxFileSize.value() << "MB. Terminating Job." << endmsg;
1337
1338  IEventProcessor* evt = nullptr;
1339  if ( service( "ApplicationMgr", evt, true ).isSuccess() ) {
1340  evt->stopRun().ignore( /* AUTOMATICALLY ADDED FOR gaudi/Gaudi!763 */ );
1341  evt->release();
1342  } else {
1343  abort();
1344  }
1345  } else if ( tf->GetSize() > mfs_warn ) {
1346  warning() << "file \"" << tf->GetName() << "\" associated with stream \"" << f.first
1347  << "\" is at 95% of its maximum allowable file size of " << m_maxFileSize.value() << "MB" << endmsg;
1348  }
1349  }
1350 }

◆ initialize()

StatusCode THistSvc::initialize ( )
override

Definition at line 79 of file THistSvc.cpp.

79  {
80  GlobalDirectoryRestore restore( m_svcMut );
81
82  StatusCode status = Service::initialize();
83
84  if ( status.isFailure() ) {
85  error() << "initializing service" << endmsg;
86  return status;
87  }
88
89  StatusCode st( StatusCode::SUCCESS );
90
91  try {
92  setupOutputFile();
93  } catch ( GaudiException& err ) {
94  error() << "Caught: " << err << endmsg;
95  st = StatusCode::FAILURE;
96  }
97
98  try {
99  setupInputFile();
100  } catch ( GaudiException& err ) {
101  error() << "Caught: " << err << endmsg;
102  st = StatusCode::FAILURE;
103  }
104
105  // Protect against multiple instances of TROOT
106  if ( !gROOT ) {
107  static TROOT root( "root", "ROOT I/O" );
108  // gDebug = 99;
109  } else {
110  if ( msgLevel( MSG::VERBOSE ) ) { verbose() << "ROOT already initialized, debug = " << gDebug << endmsg; }
111  }
112
113  if ( service( "IncidentSvc", p_incSvc, true ).isFailure() ) {
114  error() << "unable to get the IncidentSvc" << endmsg;
115  st = StatusCode::FAILURE;
116  } else {
117  p_incSvc->addListener( this, "EndEvent", 100, true );
118  }
119
120  if ( service( "FileMgr", p_fileMgr, true ).isFailure() ) {
121  error() << "unable to get the FileMgr" << endmsg;
122  st = StatusCode::FAILURE;
123  } else {
124  debug() << "got the FileMgr" << endmsg;
125  }
126
127  // Register open/close callback actions
128  using namespace std::placeholders;
129  auto boa = [this]( const Io::FileAttr* fa, const std::string& caller ) { return this->rootOpenAction( fa, caller ); };
130  if ( p_fileMgr->regAction( boa, Io::OPEN, Io::ROOT ).isFailure() ) {
131  error() << "unable to register ROOT file open action with FileMgr" << endmsg;
132  }
133  auto bea = [this]( const Io::FileAttr* fa, const std::string& caller ) {
134  return this->rootOpenErrAction( fa, caller );
135  };
136  if ( p_fileMgr->regAction( bea, Io::OPEN_ERR, Io::ROOT ).isFailure() ) {
137  error() << "unable to register ROOT file open Error action with FileMgr" << endmsg;
138  }
139
140  m_okToConnect = true;
141  if ( m_delayConnect ) {
142  if ( !m_inputfile.value().empty() ) setupInputFile();
143  if ( !m_outputfile.value().empty() ) setupOutputFile();
144  m_delayConnect = false;
145  }
146  m_alreadyConnectedOutFiles.clear();
147  m_alreadyConnectedInFiles.clear();
148
149  IIoComponentMgr* iomgr = nullptr;
150  if ( service( "IoComponentMgr", iomgr, true ).isFailure() ) {
151  error() << "unable to get the IoComponentMgr" << endmsg;
152  st = StatusCode::FAILURE;
153  } else {
154  if ( !iomgr->io_register( this ).isSuccess() ) {
155  error() << "could not register with the I/O component manager !" << endmsg;
156  st = StatusCode::FAILURE;
157  } else {
158  bool all_good = true;
159  // register input/output files...
160  for ( const auto& reg : m_files ) {
161  const std::string& fname = reg.second.first->GetName();
162  const IIoComponentMgr::IoMode::Type iomode =
163  ( reg.second.second == THistSvc::READ ? IIoComponentMgr::IoMode::READ : IIoComponentMgr::IoMode::WRITE );
164  if ( !iomgr->io_register( this, iomode, fname ).isSuccess() ) {
165  warning() << "could not register file [" << fname << "] with the I/O component manager..." << endmsg;
166  all_good = false;
167  } else {
168  info() << "registered file [" << fname << "]... [ok]" << endmsg;
169  }
170  }
171  if ( !all_good ) {
172  error() << "problem while registering input/output files with "
173  << "the I/O component manager !" << endmsg;
174  st = StatusCode::FAILURE;
175  }
176  }
177  }
178
179  // Cache a pointer to the TTree dictionary.
180  m_ttreeClass = TClass::GetClass( "TTree" );
181  if ( ( m_ttreeClass == nullptr ) || ( m_ttreeClass->IsLoaded() == false ) ) {
182  error() << "Could not access/load the dictionary for TTree!" << endmsg;
183  st = StatusCode::FAILURE;
184  }
185
186  if ( st.isFailure() ) { fatal() << "Unable to initialize THistSvc" << endmsg; }
187
188  return st;
189 }

◆ io_reinit()

StatusCode THistSvc::io_reinit ( )
override

callback method to reinitialize the internal state of the component for I/O purposes (e.g.

upon fork(2))

Definition at line 1355 of file THistSvc.cpp.

1355  {
1356  bool all_good = true;
1357  if ( msgLevel( MSG::DEBUG ) ) { debug() << "reinitializing I/O..." << endmsg; }
1358
1359  // retrieve the I/O component manager...
1360
1361  IIoComponentMgr* iomgr = nullptr;
1362
1363  if ( service( "IoComponentMgr", iomgr, true ).isFailure() ) {
1364  error() << "could not retrieve I/O component manager !" << endmsg;
1365  return StatusCode::FAILURE;
1366  }
1367
1368  GlobalDirectoryRestore restore( m_svcMut );
1369  // to hide the expected errors upon closing the files whose
1370  // file descriptors have been swept under the rug...
1371  gErrorIgnoreLevel = kFatal;
1372
1373  for ( auto& ifile : m_files ) {
1374  TFile* f = ifile.second.first;
1375  std::string fname = f->GetName();
1376  if ( msgLevel( MSG::DEBUG ) ) {
1377  debug() << "file [" << fname << "] mode: [" << f->GetOption() << "] r:" << f->GetFileBytesRead()
1378  << " w:" << f->GetFileBytesWritten() << " cnt:" << f->GetFileCounter() << endmsg;
1379  }
1380
1381  if ( ifile.second.second == READ ) {
1382  if ( msgLevel( MSG::DEBUG ) ) { debug() << " TFile opened in READ mode: not reassigning names" << endmsg; }
1383  continue;
1384  }
1385
1386  if ( !iomgr->io_retrieve( this, fname ).isSuccess() ) {
1387  error() << "could not retrieve new name for [" << fname << "] !!" << endmsg;
1388  all_good = false;
1389  continue;
1390  } else if ( fname.empty() ) {
1391  if ( msgLevel( MSG::DEBUG ) ) { debug() << "empty new name for [" << fname << "], skipping..." << endmsg; }
1392  continue;
1393  } else {
1394  if ( msgLevel( MSG::DEBUG ) ) { debug() << "got a new name [" << fname << "]..." << endmsg; }
1395  }
1396
1397  void* vf = nullptr;
1398  Option_t* opts = f->GetOption();
1399  int r = p_fileMgr->open( Io::ROOT, name(), fname, Io::WRITE, vf, "HIST" );
1400  if ( r != 0 ) {
1401  error() << "unable to open file \"" << fname << "\" for writing" << endmsg;
1402  return StatusCode::FAILURE;
1403  }
1404  TFile* newfile = (TFile*)vf;
1405  newfile->SetOption( opts );
1406
1407  if ( ifile.second.second != THistSvc::READ ) {
1408  copyFileLayout( newfile, f );
1409  ifile.second.first = newfile;
1410  }
1411
1412  // loop over all uids and migrate them to the new file
1413  for ( auto& uid : m_uids ) {
1414  for ( auto& hid : *uid.second ) {
1415  if ( hid.file != f ) continue;
1416  TDirectory* olddir = this->changeDir( hid );
1417  hid.file = newfile;
1418  // side-effect: create needed directories...
1419  TDirectory* newdir = this->changeDir( hid );
1420  TClass* cl = hid.obj->IsA();
1421
1422  // migrate the objects to the new file.
1423  // thanks to the object model of ROOT, it is super easy.
1424  if ( cl->InheritsFrom( "TTree" ) ) {
1425  dynamic_cast<TTree&>( *hid.obj ).SetDirectory( newdir );
1426  dynamic_cast<TTree&>( *hid.obj ).Reset();
1427  } else if ( cl->InheritsFrom( "TH1" ) ) {
1428  dynamic_cast<TH1&>( *hid.obj ).SetDirectory( newdir );
1429  dynamic_cast<TH1&>( *hid.obj ).Reset();
1430  } else if ( cl->InheritsFrom( "TEfficiency" ) ) {
1431  dynamic_cast<TEfficiency&>( *hid.obj ).SetDirectory( newdir );
1432  } else if ( cl->InheritsFrom( "TGraph" ) ) {
1433  olddir->Remove( hid.obj );
1434  newdir->Append( hid.obj );
1435  } else {
1436  error() << "id: \"" << hid.id << "\" is not a inheriting from a class "
1437  << "we know how to handle (received [" << cl->GetName() << "], "
1438  << "expected [TTree, TH1, TGraph or TEfficiency]) !" << endmsg << "attaching to current dir ["
1439  << newdir->GetPath() << "] "
1440  << "nonetheless..." << endmsg;
1441  olddir->Remove( hid.obj );
1442  newdir->Append( hid.obj );
1443  }
1444  }
1445  }
1446  f->ReOpen( "READ" );
1447  p_fileMgr->close( f, name() );
1448  f = newfile;
1449  }
1450
1451  return all_good ? StatusCode::SUCCESS : StatusCode::FAILURE;
1452 }

◆ merge() [1/4]

StatusCode THistSvc::merge ( const std::string &  id)
override

Merge all clones for object with a given id.

Definition at line 660 of file THistSvc.cpp.

660  {
661  uidMap_t::iterator itr = m_uids.find( name );
662  if ( itr == m_uids.end() ) {
663  error() << "merge: id \"" << name << "\" not found" << endmsg;
664  return StatusCode::FAILURE;
665  }
666
667  return merge( itr->second );
668 }

◆ merge() [2/4]

StatusCode THistSvc::merge ( const THistID &  hid)
private

Helper method to merge THistID objects.

Definition at line 2054 of file THistSvc.cpp.

2054 { return merge( hid.id ); }

◆ merge() [3/4]

StatusCode THistSvc::merge ( TObject *  obj)
override

Merge all clones for given TObject*.

Definition at line 670 of file THistSvc.cpp.

670  {
671  objMap_t::iterator itr = m_tobjs.find( obj );
672  if ( itr != m_tobjs.end() ) {
673  return merge( itr->second.first );
674  } else {
675  error() << "merge: unknown object " << obj << endmsg;
676  return StatusCode::FAILURE;
677  }
678 }

◆ merge() [4/4]

StatusCode THistSvc::merge ( vhid_t *  vh)
private

Helper method to merge vectors of THistID.

Definition at line 2056 of file THistSvc.cpp.

2056  {
2057  const std::string& name = vh->at( 0 ).id;
2058  if ( vh->size() == 1 ) {
2059  debug() << "merge: id: \"" << name << "\" is size 1. nothing to do" << endmsg;
2060  return StatusCode::SUCCESS;
2061  }
2062
2063  if ( !vh->at( 0 ).obj->IsA()->InheritsFrom( "TH1" ) ) {
2064  error() << "merge: id \"" << name << "\" is not a THn. Cannot merge" << endmsg;
2065  return StatusCode::FAILURE;
2066  }
2067
2068  TList* l = new TList();
2069  for ( size_t i = 1; i < vh->size(); ++i ) {
2070  debug() << "merge: id: \"" << name << "\" (" << vh->at( i ).obj << ") adding index " << i << endmsg;
2071  l->Add( vh->at( i ).obj );
2072  }
2073
2074  TH1* t0 = dynamic_cast<TH1*>( vh->at( 0 ).obj );
2075  if ( t0 == 0 ) {
2076  error() << "merge: could not dcast " << name << "(" << t0 << ") index " << 0 << " to TH1" << endmsg;
2077  return StatusCode::FAILURE;
2078  }
2079
2080  Long64_t n = t0->Merge( l );
2081
2082  debug() << "merge: id: \"" << name << "\" merged " << n << " entries" << endmsg;
2083
2084  for ( size_t i = 1; i < vh->size(); ++i ) {
2085  TH1* th = dynamic_cast<TH1*>( vh->at( i ).obj );
2086  if ( th != 0 ) {
2087  debug() << "clearing index " << i << "(" << th << ")" << endmsg;
2088  th->SetDirectory( nullptr );
2089  th->Reset();
2090  } else {
2091  error() << "merge: could not dcast " << name << " index " << i << " to TH1" << endmsg;
2092  return StatusCode::FAILURE;
2093  }
2094  }
2095  return StatusCode::SUCCESS;
2096 }

◆ MergeRootFile()

void THistSvc::MergeRootFile ( TDirectory *  target,
TDirectory *  source
)
private

Definition at line 1800 of file THistSvc.cpp.

1800  {
1801  if ( msgLevel( MSG::DEBUG ) ) { debug() << "Target path: " << target->GetPath() << endmsg; }
1802  TString path( (char*)strstr( target->GetPath(), ":" ) );
1803  path.Remove( 0, 2 );
1804
1805  source->cd( path );
1806  TDirectory* current_sourcedir = gDirectory;
1807
1808  // loop over all keys in this directory
1809  TList* lkeys = current_sourcedir->GetListOfKeys();
1810  int nkeys = lkeys->GetEntries();
1811  TKey* key = nullptr;
1812  for ( int jj = 0; jj < nkeys; jj++ ) {
1813  key = (TKey*)lkeys->At( jj );
1814  std::string pathnameinsource = current_sourcedir->GetPath() + std::string( "/" ) + key->GetName();
1815  if ( msgLevel( MSG::DEBUG ) ) { debug() << "Reading Key:" << pathnameinsource << endmsg; }
1816  TObject* obj = source->Get( pathnameinsource.c_str() );
1817
1818  if ( obj ) {
1819  if ( obj->IsA()->InheritsFrom( "TDirectory" ) ) {
1820  // it's a subdirectory
1821  if ( msgLevel( MSG::DEBUG ) ) { debug() << "Found subdirectory " << obj->GetName() << endmsg; }
1822
1823  // create a new subdir of same name and title in the target file
1824  target->cd();
1825  TDirectory* newtargetdir = target->mkdir( obj->GetName(), obj->GetTitle() );
1826
1827  MergeRootFile( newtargetdir, source );
1828
1829  } else if ( obj->IsA()->InheritsFrom( "TTree" ) ) {
1830  if ( msgLevel( MSG::DEBUG ) ) { debug() << "Found TTree " << obj->GetName() << endmsg; }
1831  TTree* mytree = dynamic_cast<TTree*>( obj );
1832  int nentries = (int)mytree->GetEntries();
1833  mytree->SetBranchStatus( "*", 1 );
1834
1835  if ( msgLevel( MSG::DEBUG ) ) { debug() << "Dumping TTree " << nentries << " entries" << endmsg; }
1836  target->cd();
1837  mytree->CloneTree();
1838
1839  } else {
1840  target->cd();
1841  obj->Write( key->GetName() );
1842  }
1843  }
1844  }
1845 }

◆ parseString()

void THistSvc::parseString ( const std::string &  id,
std::string &  root,
std::string &  rem
) const
private

Definition at line 1883 of file THistSvc.cpp.

1883  {
1884  auto pos = id.find( "/" );
1885
1886  if ( pos == std::string::npos ) {
1887  root.clear();
1888  rem = id;
1889  } else if ( pos == 0 ) {
1890  parseString( id.substr( 1 ), root, rem );
1891  } else {
1892  root = id.substr( 0, pos );
1893  rem = id.substr( pos + 1 );
1894  }
1895 }

◆ readHist()

template<typename T >
T * THistSvc::readHist ( const std::string &  name) const
private

Definition at line 1471 of file THistSvc.cpp.

1471  {
1472  return dynamic_cast<T*>( readHist_i<T>( id ) );
1473 }

◆ readHist_i()

template<typename T >
T * THistSvc::readHist_i ( const std::string &  name) const
private

Definition at line 217 of file THistSvc.icc.

217  {
218  GlobalDirectoryRestore restore( m_svcMut );
219
220  std::string idr( id );
221  removeDoubleSlash( idr );
222
223  std::string stream, rem, dir, fdir, bdir, fdir2;
224  TFile* file = nullptr;
225
226  if ( !findStream( idr, stream, rem, file ) ) { return nullptr; }
227
228  if ( !file ) {
229  error() << "no associated file found" << endmsg;
230  return nullptr;
231  }
232
233  file->cd( "/" );
234
235  fdir = idr;
236  bdir = stripDirectoryName( fdir );
237  fdir2 = fdir;
238  while ( ( dir = stripDirectoryName( fdir ) ) != "" ) {
239  if ( !gDirectory->GetKey( dir.c_str() ) ) {
240  error() << "Directory \"" << fdir2 << "\" doesnt exist in " << file->GetName() << endmsg;
241  return nullptr;
242  }
243  gDirectory->cd( dir.c_str() );
244  }
245
246  TObject* to = nullptr;
247  gDirectory->GetObject( fdir.c_str(), to );
248
249  if ( !to ) {
250  error() << "Could not get obj \"" << fdir << "\" in " << gDirectory->GetPath() << endmsg;
251  return nullptr;
252  }
253
254  T* hist = dynamic_cast<T*>( to );
255  if ( hist == nullptr ) {
256  error() << "Could not convert \"" << idr << "\" to a " << System::typeinfoName( typeid( *hist ) ) << " as is a "
257  << to->IsA()->GetName() << endmsg;
258  return nullptr;
259  }
260
261  if ( msgLevel( MSG::DEBUG ) ) {
262  debug() << "Read in " << hist->IsA()->GetName() << " \"" << hist->GetName() << "\" from file " << file->GetName()
263  << endmsg;
264  hist->Print();
265  }
266
267  return hist;
268 }

◆ readTree()

TTree * THistSvc::readTree ( const std::string &  name) const
private

Definition at line 1475 of file THistSvc.cpp.

1475 { return dynamic_cast<TTree*>( readHist_i<TTree>( id ) ); }

◆ regEfficiency() [1/3]

StatusCode THistSvc::regEfficiency ( const std::string &  name)
override

Register a new TEfficiency with a given name.

Definition at line 463 of file THistSvc.cpp.

463  {
464  std::unique_ptr<TEfficiency> eff = nullptr;
465  return regHist_i( std::move( eff ), id, false );
466 }

◆ regEfficiency() [2/3]

StatusCode THistSvc::regEfficiency ( const std::string &  name,
std::unique_ptr< TEfficiency >  eff
)
override

Register an existing TEfficiency with a given name and moved unique_ptr.

Definition at line 468 of file THistSvc.cpp.

468  {
469  return regHist_i( std::move( eff ), id, false );
470 }

◆ regEfficiency() [3/3]

StatusCode THistSvc::regEfficiency ( const std::string &  name,
TEfficiency *  eff_ptr
)
overridevirtual
Deprecated:
{Just kept for compatibiltiy to current ATLAS code.

Pleas use std::unique_ptrs instead!} Register a new TEfficiency with a given name and a raw pointer

Definition at line 472 of file THistSvc.cpp.

472  {
473  std::unique_ptr<TEfficiency> eff( eff_ptr );
474  return regHist_i( std::move( eff ), id, false );
475 }

◆ regGraph() [1/3]

StatusCode THistSvc::regGraph ( const std::string &  name)
override

Register a new TGraph with a given name.

Definition at line 422 of file THistSvc.cpp.

422  {
423  std::unique_ptr<TGraph> graph = std::make_unique<TGraph>();
424  return regHist_i( std::move( graph ), id, false );
425 }

◆ regGraph() [2/3]

StatusCode THistSvc::regGraph ( const std::string &  name,
std::unique_ptr< TGraph >  graph
)
override

Register an existing TGraph with a given name and moved unique_ptr.

Definition at line 427 of file THistSvc.cpp.

427  {
428  if ( strcmp( graph->GetName(), "Graph" ) == 0 ) {
429  std::string id2( id );
430  std::string::size_type i = id2.rfind( "/" );
431  if ( i != std::string::npos ) { id2.erase( 0, i + 1 ); }
432
433  info() << "setting name of TGraph id: \"" << id << "\" to \"" << id2 << "\" since it is unset" << endmsg;
434  graph->SetName( id2.c_str() );
435  }
436
437  return regHist_i( std::move( graph ), id, false );
438 }

◆ regGraph() [3/3]

StatusCode THistSvc::regGraph ( const std::string &  name,
TGraph *  graph_ptr
)
overridevirtual
Deprecated:
{Just kept for compatibiltiy to current ATLAS code.

Pleas use std::unique_ptrs instead!} Register a new TGraph with a given name and a raw pointer

Definition at line 440 of file THistSvc.cpp.

440  {
441  std::unique_ptr<TGraph> graph( graph_ptr );
442  if ( strcmp( graph->GetName(), "Graph" ) == 0 ) {
443  std::string id2( id );
444  std::string::size_type i = id2.rfind( "/" );
445  if ( i != std::string::npos ) { id2.erase( 0, i + 1 ); }
446
447  info() << "setting name of TGraph id: \"" << id << "\" to \"" << id2 << "\" since it is unset" << endmsg;
448  graph->SetName( id2.c_str() );
449  }
450
451  return regHist_i( std::move( graph ), id, false );
452 }

◆ regHist() [1/4]

StatusCode THistSvc::regHist ( const std::string &  name)
override

Register a new ROOT histogram TH*X with a name.

Definition at line 340 of file THistSvc.cpp.

340  {
341  std::unique_ptr<TH1> hist = nullptr;
342  return regHist_i( std::move( hist ), id, false );
343 }

◆ regHist() [2/4]

StatusCode THistSvc::regHist ( const std::string &  name,
std::unique_ptr< TH1 >  hist
)
override

Register an existing ROOT histogram TH*X with name and moved unique_ptr.

Parameters
[in]namedefines the histogram id/name under which it is recorded
[in]histtransfers ownership of the histogram to the THistSvc

Definition at line 345 of file THistSvc.cpp.

345  {
346  return regHist_i( std::move( hist ), id, false );
347 }

◆ regHist() [3/4]

StatusCode THistSvc::regHist ( const std::string &  name,
std::unique_ptr< TH1 >  hist,
TH1 *  hist_ptr
)
override

Register an existing ROOT histogram TH*X with name and moved unique_ptr.

Parameters
[in]namedefines the histogram id/name under which it is recorded
[in]histtransfers ownership of the histogram to the THistSvc
[out]hist_ptrfor compatibility: return raw pointer to managed object to support common usage in Athena

Definition at line 349 of file THistSvc.cpp.

349  {
350  // This is only to support a common use case where the histogram is used after its registration
351  if ( hist_ptr != nullptr ) { hist_ptr = hist.get(); }
352  return regHist_i( std::move( hist ), id, false );
353 }

◆ regHist() [4/4]

StatusCode THistSvc::regHist ( const std::string &  name,
TH1 *  hist_ptr
)
override
Deprecated:
{Just for compatibility purposes.

Ownership should be clearly managed.} Register an existing ROOT histogram TH*X with name and pointer

Definition at line 355 of file THistSvc.cpp.

355  {
356  std::unique_ptr<TH1> hist( hist_ptr );
357  return regHist_i( std::move( hist ), id, false );
358 }

◆ regHist_i() [1/2]

template<typename T >
StatusCode THistSvc::regHist_i ( std::unique_ptr< T >  hist,
const std::string &  name,
bool  shared
)
private

Definition at line 27 of file THistSvc.icc.

27  {
28  THistID* hid = nullptr;
29  return regHist_i( std::move( hist ), id, shared, hid );
30 }

◆ regHist_i() [2/2]

template<typename T >
StatusCode THistSvc::regHist_i ( std::unique_ptr< T >  hist,
const std::string &  name,
bool  shared,
THistID *&  hid
)
private

Definition at line 33 of file THistSvc.icc.

33  {
34  GlobalDirectoryRestore restore( m_svcMut );
35  phid = nullptr;
36
37  // It is sad that we lose propper memory management here
38  T* hist = nullptr;
39  if ( hist_unique.get() != nullptr ) { hist = hist_unique.release(); }
40  debug() << "regHist_i obj: " << hist << " id: " << id << " s: " << shared << endmsg;
41
42  std::string idr( id );
43  removeDoubleSlash( idr );
44
45  if ( idr.find( "/" ) == idr.length() ) {
46  error() << "Badly formed identifier \"" << idr << "\": "
47  << "Must not end with a /" << endmsg;
48  delete hist;
49  return StatusCode::FAILURE;
50  }
51
52  TFile* f = nullptr;
53  std::string stream, name;
54  if ( !findStream( idr, stream, name, f ) ) {
55  error() << "Could not register id: \"" << idr << "\"" << endmsg;
56  delete hist;
57  return StatusCode::FAILURE;
58  }
59
60  std::string uid = "/" + stream + "/" + name;
61
62  uidMap_t::iterator uitr = m_uids.find( uid );
63  bool exists( false );
64  if ( uitr != m_uids.end() ) {
65  exists = true;
66  TObject* t1 = uitr->second->at( 0 ).obj;
67  if ( hist->Compare( t1 ) != 0 ) {
68  error() << "previously registered object with identifier \"" << uid << "\" does not compare to this one"
69  << endmsg;
70  delete hist;
71  return StatusCode::FAILURE;
72  } else {
73  debug() << "previously registered id \"" << uid << "\": num " << uitr->second->size() << endmsg;
74  }
75  }
76
77  bool temp = false;
78  if ( !f ) {
79  temp = true;
80  if ( msgLevel( MSG::DEBUG ) ) { debug() << "Historgram with id \"" << idr << "\" is temporary" << endmsg; }
81  }
82
83  TObject* to = nullptr;
84  THistID hid;
85  // check to see if this hist is to be read in;
86  if ( !temp && m_files.find( stream )->second.second == READ ) {
87  if ( hist != 0 ) { warning() << "Registering id: \"" << idr << "\" with non zero pointer!" << endmsg; }
88
89  hist = readHist_i<T>( idr );
90  if ( hist == nullptr ) {
91  error() << "Unable to read in hist" << endmsg;
92  delete hist;
93  return StatusCode::FAILURE;
94  }
95  to = dynamic_cast<TObject*>( hist );
96  hid = THistID( uid, temp, to, f, m_files.find( stream )->second.second );
97  } else if ( !hist ) {
98  error() << "Unable to read in hist with id: \"" << idr << "\"" << endmsg;
99  delete hist;
100  return StatusCode::FAILURE;
101  } else {
102  to = dynamic_cast<TObject*>( hist );
103  if ( to == nullptr ) {
104  error() << "Could not dcast to TObject. id: \"" << idr << "\"" << endmsg;
105  delete hist;
106  return StatusCode::FAILURE;
107  }
108
109  auto oitr = m_tobjs.find( to );
110  if ( oitr != m_tobjs.end() ) {
111  error() << "already registered id: \"" << idr << "\" with identifier \""
112  << oitr->second.first->at( oitr->second.second ).id << "\"" << endmsg;
113  delete hist;
114  return StatusCode::FAILURE;
115  }
116
117  const auto findF = m_files.find( stream );
118  hid = ( findF != m_files.end() ? THistID( uid, temp, to, f, findF->second.second ) : THistID( uid, temp, to, f ) );
119
120  hid.shared = shared;
121  TDirectory* dir = changeDir( hid );
122
123  if ( TTree* tree = dynamic_cast<TTree*>( hist ) ) {
124  tree->SetDirectory( dir );
125  } else if ( TH1* th1 = dynamic_cast<TH1*>( hist ) ) {
126  th1->SetDirectory( dir );
127  } else if ( TEfficiency* teff = dynamic_cast<TEfficiency*>( hist ) ) {
128  teff->SetDirectory( dir );
129  } else if ( dynamic_cast<TGraph*>( hist ) ) {
130  dir->Append( hist );
131  } else {
132  error() << "id: \"" << idr << "\" is not a TH, TTree, TGraph, or TEfficiency. Attaching it to current dir."
133  << endmsg;
134  dir->Append( hist );
135  }
136  }
137
138  std::string fname;
139  if ( !f ) {
140  fname = "none";
141  } else {
142  fname = f->GetName();
143  }
144
145  debug() << "Registering" << ( shared ? " shared " : " " ) << System::typeinfoName( typeid( *hist ) ) << " title: \""
146  << hist->GetTitle() << "\" id: \"" << uid
147  << "\" dir: "
148  // << hist->GetDirectory()->GetPath() << " "
149  << changeDir( hid )->GetPath() << " file: " << fname << endmsg;
150
151  // create a mutex for all shared histograms
152  if ( shared ) { hid.mutex = new histMut_t; }
153
154  if ( exists ) {
155  vhid_t* vi = uitr->second;
156  vi->push_back( hid );
157  phid = &( vi->back() );
158
159  m_tobjs.emplace( to, std::pair<vhid_t*, size_t>( vi, vi->size() - 1 ) );
160  } else {
161  vhid_t* vi = new vhid_t{hid};
162  m_hlist.emplace( m_hlist.end(), vi );
163
164  phid = &( vi->back() );
165  m_uids.emplace( uid, vi );
166  m_ids.emplace( name, vi );
167
168  m_tobjs.emplace( to, std::pair<vhid_t*, size_t>( vi, 0 ) );
169  }
170
171  debug() << "regHist_i THistID: " << hid << endmsg;
172
173  return StatusCode::SUCCESS;
174 }

◆ regShared() [1/5]

StatusCode THistSvc::regShared ( const std::string &  name,
std::unique_ptr< TEfficiency >  eff,
LockedHandle< TEfficiency > &  lh
)
override

Register shared object of type TEfficiency and return LockedHandle for that object.

Definition at line 522 of file THistSvc.cpp.

523  {
524  lh = regShared_i<TEfficiency>( id, std::move( eff ) );
525  if ( lh ) {
526  return StatusCode::SUCCESS;
527  } else {
528  return StatusCode::FAILURE;
529  }
530 }

◆ regShared() [2/5]

StatusCode THistSvc::regShared ( const std::string &  name,
std::unique_ptr< TGraph >  graph,
LockedHandle< TGraph > &  lh
)
override

Register shared object of type TGraph and return LockedHandle for that object.

Definition at line 513 of file THistSvc.cpp.

513  {
514  lh = regShared_i<TGraph>( id, std::move( graph ) );
515  if ( lh ) {
516  return StatusCode::SUCCESS;
517  } else {
518  return StatusCode::FAILURE;
519  }
520 }

◆ regShared() [3/5]

StatusCode THistSvc::regShared ( const std::string &  name,
std::unique_ptr< TH1 >  hist,
LockedHandle< TH1 > &  lh
)
override

Register shared object of type TH1 and return LockedHandle for that object.

Definition at line 486 of file THistSvc.cpp.

486  {
487  lh = regShared_i<TH1>( id, std::move( hist ) );
488  if ( lh ) {
489  return StatusCode::SUCCESS;
490  } else {
491  return StatusCode::FAILURE;
492  }
493 }

◆ regShared() [4/5]

StatusCode THistSvc::regShared ( const std::string &  name,
std::unique_ptr< TH2 >  hist,
LockedHandle< TH2 > &  lh
)
override

Register shared object of type TH2 and return LockedHandle for that object.

Definition at line 495 of file THistSvc.cpp.

495  {
496  lh = regShared_i<TH2>( id, std::move( hist ) );
497  if ( lh ) {
498  return StatusCode::SUCCESS;
499  } else {
500  return StatusCode::FAILURE;
501  }
502 }

◆ regShared() [5/5]

StatusCode THistSvc::regShared ( const std::string &  name,
std::unique_ptr< TH3 >  hist,
LockedHandle< TH3 > &  lh
)
override

Register shared object of type TH3 and return LockedHandle for that object.

Definition at line 504 of file THistSvc.cpp.

504  {
505  lh = regShared_i<TH3>( id, std::move( hist ) );
506  if ( lh ) {
507  return StatusCode::SUCCESS;
508  } else {
509  return StatusCode::FAILURE;
510  }
511 }

◆ regShared_i()

template<typename T >
LockedHandle< T > THistSvc::regShared_i ( const std::string &  id,
std::unique_ptr< T >  hist
)
private

Definition at line 271 of file THistSvc.icc.

271  {
272  LockedHandle<T> lh( nullptr, nullptr );
273  const THistID* hid = nullptr;
274  if ( findHistID( id, hid ) == 0 ) {
275  T* phist = hist.get();
276  THistID* phid = nullptr;
277  if ( regHist_i( std::move( hist ), id, true, phid ).isSuccess() ) {
278  lh.set( phist, phid->mutex );
279
280  } else {
281  error() << "regSharedHist: unable to register shared hist with id \"" << id << "\"" << endmsg;
282  }
283  } else {
284  if ( !hid->shared ) {
285  error() << "regSharedHist: previously register Hist with id \"" << id << "\" was not marked shared" << endmsg;
286  }
287
288  if ( hist->Compare( hid->obj ) != 0 ) {
289  error() << "regSharedHist: Histogram " << id << " does not compare with " << hid << endmsg;
290  } else {
291  T* phist = dynamic_cast<T*>( hid->obj );
292  if ( phist == 0 ) {
293  error() << "regSharedHist: unable to dcast retrieved shared hist \"" << id << "\" of type "
294  << hid->obj->IsA()->GetName() << " to requested type " << System::typeinfoName( typeid( T ) ) << endmsg;
295  } else {
296  lh.set( phist, hid->mutex );
297  delete hist.release();
298  }
299  }
300  }
301  return lh;
302 }

◆ regTree() [1/3]

StatusCode THistSvc::regTree ( const std::string &  name)
override

Register a new TTree with a given name.

Definition at line 387 of file THistSvc.cpp.

387  {
388  std::unique_ptr<TTree> tree = nullptr;
389  return regHist_i( std::move( tree ), id, false );
390 }

◆ regTree() [2/3]

StatusCode THistSvc::regTree ( const std::string &  name,
std::unique_ptr< TTree >  tree
)
override

Register an existing TTree with a given name and moved unique_ptr.

Definition at line 392 of file THistSvc.cpp.

392  {
393  StatusCode sc = regHist_i( std::move( tree ), id, false );
394  TTree* tr = nullptr;
395  if ( getTree( id, tr ).isSuccess() && sc.isSuccess() ) {
396  if ( m_autoSave != 0 ) { tr->SetAutoSave( m_autoSave ); }
397  tr->SetAutoFlush( m_autoFlush );
398  }
399  return sc;
400 }

◆ regTree() [3/3]

StatusCode THistSvc::regTree ( const std::string &  name,
TTree *  tree_ptr
)
override
Deprecated:
{Just kept for compatibiltiy to current ATLAS code.

Pleas use std::unique_ptrs instead!} Register a new TTree with a given name and a raw pointer

Definition at line 402 of file THistSvc.cpp.

402  {
403  std::unique_ptr<TTree> tree( tree_ptr );
404  StatusCode sc = regHist_i( std::move( tree ), id, false );
405  TTree* tr = nullptr;
406  if ( getTree( id, tr ).isSuccess() && sc.isSuccess() ) {
407  if ( m_autoSave != 0 ) { tr->SetAutoSave( m_autoSave ); }
408  tr->SetAutoFlush( m_autoFlush );
409  }
410  return sc;
411 }

◆ reinitialize()

StatusCode THistSvc::reinitialize ( )
override

Definition at line 191 of file THistSvc.cpp.

191  {
192  GlobalDirectoryRestore restore( m_svcMut );
193  warning() << "reinitialize not implemented" << endmsg;
194  return StatusCode::SUCCESS;
195 }

◆ removeDoubleSlash()

void THistSvc::removeDoubleSlash ( std::string &  id) const
private

Definition at line 1796 of file THistSvc.cpp.

1796  {
1797  while ( id.find( "//" ) != std::string::npos ) { id.replace( id.find( "//" ), 2, "/" ); }
1798 }

◆ rootOpenAction()

StatusCode THistSvc::rootOpenAction ( FILEMGR_CALLBACK_ARGS  )
private

Definition at line 2098 of file THistSvc.cpp.

2098  {
2099  if ( fa->tech() != Io::ROOT ) {
2100  // This should never happen
2101  return StatusCode::SUCCESS;
2102  }
2103
2104  if ( fa->desc() != "HIST" ) { return StatusCode::SUCCESS; }
2105
2106  p_incSvc->fireIncident( FileIncident( caller, "OpenHistFile", fa->name() ) );
2107
2108  if ( fa->flags().isRead() ) {
2109  p_incSvc->fireIncident( FileIncident( caller, "BeginHistFile", fa->name() ) );
2110  } else if ( fa->flags().isWrite() ) {
2111  p_incSvc->fireIncident( FileIncident( caller, IncidentType::BeginOutputFile, fa->name() ) );
2112  } else {
2113  // for Io::RW
2114  p_incSvc->fireIncident( FileIncident( caller, IncidentType::BeginOutputFile, fa->name() ) );
2115  }
2116
2117  return StatusCode::SUCCESS;
2118 }

◆ rootOpenErrAction()

StatusCode THistSvc::rootOpenErrAction ( FILEMGR_CALLBACK_ARGS  )
private

Definition at line 2120 of file THistSvc.cpp.

2120  {
2121  if ( fa->tech() != Io::ROOT ) {
2122  // This should never happen
2123  return StatusCode::SUCCESS;
2124  }
2125
2126  if ( fa->desc() != "HIST" ) { return StatusCode::SUCCESS; }
2127
2128  if ( fa->flags().isRead() ) {
2129  p_incSvc->fireIncident( FileIncident( caller, IncidentType::FailInputFile, fa->name() ) );
2130  } else if ( fa->flags().isWrite() ) {
2131  p_incSvc->fireIncident( FileIncident( caller, IncidentType::FailOutputFile, fa->name() ) );
2132  } else {
2133  // for Io::RW
2134  p_incSvc->fireIncident( FileIncident( caller, "FailRWFile", fa->name() ) );
2135  }
2136
2137  return StatusCode::SUCCESS;
2138 }

◆ setupInputFile()

void THistSvc::setupInputFile ( )
private

call-back method to handle input stream property

Definition at line 1897 of file THistSvc.cpp.

1897  {
1898  if ( FSMState() < Gaudi::StateMachine::CONFIGURED || !m_okToConnect ) {
1899  debug() << "Delaying connection of Input Files until Initialize"
1900  << ". now in " << FSMState() << endmsg;
1901
1902  m_delayConnect = true;
1903  } else {
1904  debug() << "Now connecting of Input Files" << endmsg;
1905
1906  StatusCode sc = StatusCode::SUCCESS;
1907
1908  for ( const auto& itr : m_inputfile.value() ) {
1909  if ( m_alreadyConnectedInFiles.end() != m_alreadyConnectedInFiles.find( itr ) ) { continue; }
1910  if ( connect( itr ).isFailure() ) {
1911  sc = StatusCode::FAILURE;
1912  } else {
1913  m_alreadyConnectedInFiles.insert( itr );
1914  }
1915  }
1916
1917  if ( !sc.isSuccess() ) { throw GaudiException( "Problem connecting inputfile !!", name(), StatusCode::FAILURE ); }
1918  }
1919 }

◆ setupOutputFile()

void THistSvc::setupOutputFile ( )
private

call-back method to handle output stream property

Definition at line 1921 of file THistSvc.cpp.

1921  {
1922  if ( FSMState() < Gaudi::StateMachine::CONFIGURED || !m_okToConnect ) {
1923  debug() << "Delaying connection of Output Files until Initialize"
1924  << ". now in " << FSMState() << endmsg;
1925  m_delayConnect = true;
1926  } else {
1927  StatusCode sc = StatusCode::SUCCESS;
1928  for ( const auto& itr : m_outputfile.value() ) {
1929  if ( m_alreadyConnectedOutFiles.end() != m_alreadyConnectedOutFiles.find( itr ) ) { continue; }
1930  if ( connect( itr ).isFailure() ) {
1931  sc = StatusCode::FAILURE;
1932  } else {
1933  m_alreadyConnectedOutFiles.insert( itr );
1934  }
1935  }
1936
1937  if ( !sc.isSuccess() ) { throw GaudiException( "Problem connecting outputfile !!", name(), StatusCode::FAILURE ); }
1938  }
1939 }

◆ stripDirectoryName()

std::string THistSvc::stripDirectoryName ( std::string &  dir) const
private

Definition at line 1780 of file THistSvc.cpp.

1780  {
1781  std::string::size_type i = dir.find( "/" );
1782
1783  if ( i == std::string::npos ) return {};
1784
1785  if ( i == 0 ) {
1786  dir.erase( 0, 1 );
1787  return stripDirectoryName( dir );
1788  }
1789
1790  std::string root = dir.substr( 0, i );
1791  dir.erase( 0, i );
1792
1793  return root;
1794 }

◆ updateFiles()

void THistSvc::updateFiles ( )
private

Handle case where TTree grows beyond TTree::fgMaxTreeSize.

Definition at line 1477 of file THistSvc.cpp.

1477  {
1478  // If TTrees grow beyond TTree::fgMaxTreeSize, a new file is
1479  // automatically created by root, and the old one closed. We
1480  // need to migrate all the UIDs over to show the correct file
1481  // pointer. This is ugly.
1482
1483  if ( msgLevel( MSG::DEBUG ) ) debug() << "updateFiles()" << endmsg;
1484
1485  for ( auto uitr = m_uids.begin(); uitr != m_uids.end(); ++uitr ) {
1486  for ( auto& hid : *( uitr->second ) ) {
1487 #ifndef NDEBUG
1488  if ( msgLevel( MSG::VERBOSE ) )
1489  verbose() << " update: " << uitr->first << " " << hid.id << " " << hid.mode << endmsg;
1490 #endif
1491  TObject* to = hid.obj;
1492  TFile* oldFile = hid.file;
1493  // A little sanity check.
1494  assert( m_ttreeClass != nullptr );
1495  if ( !to ) {
1496  warning() << uitr->first << ": TObject == 0" << endmsg;
1497  } else if ( hid.temp || hid.mode == READ ) {
1498 // do nothing - no need to check how big the file is since we
1499 // are just reading it.
1500 #ifndef NDEBUG
1501  if ( msgLevel( MSG::VERBOSE ) ) verbose() << " skipping" << endmsg;
1502 #endif
1503  } else if ( to->IsA()->InheritsFrom( m_ttreeClass ) ) {
1504  TTree* tr = dynamic_cast<TTree*>( to );
1505  TFile* newFile = tr->GetCurrentFile();
1506
1507  if ( oldFile != newFile ) {
1508  std::string newFileName = newFile->GetName();
1509  std::string oldFileName, streamName, rem;
1510  TFile* dummy = nullptr;
1511  findStream( hid.id, streamName, rem, dummy );
1512
1513  for ( auto& itr : m_files ) {
1514  if ( itr.second.first == oldFile ) { itr.second.first = newFile; }
1515  }
1516
1517  for ( auto uitr2 = uitr; uitr2 != m_uids.end(); ++uitr2 ) {
1518  for ( auto& hid2 : *( uitr2->second ) ) {
1519  if ( hid2.file == oldFile ) { hid2.file = newFile; }
1520  }
1521  }
1522
1523  auto sitr = std::find_if( std::begin( m_fileStreams ), std::end( m_fileStreams ),
1524  [&]( streamMap::const_reference s ) { return s.second == streamName; } );
1525  if ( sitr != std::end( m_fileStreams ) ) oldFileName = sitr->first;
1526
1527 #ifndef NDEBUG
1528  if ( msgLevel( MSG::DEBUG ) ) {
1529  debug() << "migrating uid: " << hid.id << " stream: " << streamName << " oldFile: " << oldFileName
1530  << " newFile: " << newFileName << endmsg;
1531  }
1532 #endif
1533
1534  if ( !oldFileName.empty() ) {
1535  auto i = m_fileStreams.lower_bound( oldFileName );
1536  while ( i != std::end( m_fileStreams ) && i->first == oldFileName ) {
1537 #ifndef NDEBUG
1538  if ( msgLevel( MSG::DEBUG ) ) {
1539  debug() << "changing filename \"" << i->first << "\" to \"" << newFileName << "\" for stream \""
1540  << i->second << "\"" << endmsg;
1541  }
1542 #endif
1543  std::string nm = std::move( i->second );
1544  i = m_fileStreams.erase( i );
1545  m_fileStreams.emplace( newFileName, std::move( nm ) );
1546  }
1547  } else {
1548  error() << "Problems updating fileStreams with new file name" << endmsg;
1549  }
1550  }
1551  }
1552  }
1553  }
1554 }

◆ writeObjectsToFile()

StatusCode THistSvc::writeObjectsToFile ( )
private

Definition at line 1556 of file THistSvc.cpp.

1556  {
1557  updateFiles();
1558
1559  std::for_each( m_files.begin(), m_files.end(), []( std::pair<const std::string, std::pair<TFile*, Mode>>& i ) {
1560  auto mode = i.second.second;
1561  auto file = i.second.first;
1562  if ( mode == WRITE || mode == UPDATE || mode == SHARE ) {
1563  file->Write( "", TObject::kOverwrite );
1564  } else if ( mode == APPEND ) {
1565  file->Write( "" );
1566  }
1567  } );
1568
1569  if ( msgLevel( MSG::DEBUG ) ) {
1570  debug() << "THistSvc::writeObjectsToFile()::List of Files connected in ROOT " << endmsg;
1571  TSeqCollection* filelist = gROOT->GetListOfFiles();
1572  for ( int ii = 0; ii < filelist->GetEntries(); ii++ ) {
1573  debug() << "THistSvc::writeObjectsToFile()::List of Files connected in ROOT: \"" << filelist->At( ii )->GetName()
1574  << "\"" << endmsg;
1575  }
1576  }
1577
1578  return StatusCode::SUCCESS;
1579 }

Member Data Documentation

◆ m_alreadyConnectedInFiles

std::set<std::string> THistSvc::m_alreadyConnectedInFiles
private

list of already connected files.

This is to keep track of files registered by the setupInputFile callback method

Definition at line 282 of file THistSvc.h.

◆ m_alreadyConnectedOutFiles

std::set<std::string> THistSvc::m_alreadyConnectedOutFiles
private

list of already connected files.

This is to keep track of files registered by the setupOutputFile callback method

Definition at line 286 of file THistSvc.h.

◆ m_autoFlush

Gaudi::Property<int> THistSvc::m_autoFlush {this, "AutoFlush", 0}
private

Definition at line 381 of file THistSvc.h.

◆ m_autoSave

Gaudi::Property<int> THistSvc::m_autoSave {this, "AutoSave", 0}
private

Definition at line 380 of file THistSvc.h.

◆ m_compressionLevel

Gaudi::Property<int> THistSvc::m_compressionLevel
private
Initial value:
{this, "CompressionLevel", 1, [this]( auto& ) {
this->warning()
<< "\"CompressionLevel\" Property has been deprecated. "
<< "Set it via the \"CL=\" parameter in the \"Output\" Property"
<< endmsg;
}}

Definition at line 386 of file THistSvc.h.

◆ m_curstream

std::string THistSvc::m_curstream
mutableprivate

Definition at line 409 of file THistSvc.h.

◆ m_delayConnect

bool THistSvc::m_delayConnect = false
private

Definition at line 403 of file THistSvc.h.

◆ m_files

std::map<std::string, std::pair<TFile*, Mode> > THistSvc::m_files
private

Definition at line 306 of file THistSvc.h.

◆ m_fileStreams

streamMap THistSvc::m_fileStreams
private

Definition at line 308 of file THistSvc.h.

◆ m_hlist

hlist_t THistSvc::m_hlist
private

Definition at line 299 of file THistSvc.h.

◆ m_ids

idMap_t THistSvc::m_ids
private

Definition at line 301 of file THistSvc.h.

◆ m_inputfile

Gaudi::Property<std::vector<std::string> > THistSvc::m_inputfile
private
Initial value:
{
this, "Input", {}, &THistSvc::setupInputFile, "", "OrderedSet<std::string>"}

Definition at line 394 of file THistSvc.h.

◆ m_maxFileSize

Gaudi::Property<int> THistSvc::m_maxFileSize
private
Initial value:
{this, "MaxFileSize", 10240,
"maximum file size in MB. if exceeded,"
" will cause an abort. -1 to never check."}

Definition at line 383 of file THistSvc.h.

◆ m_okToConnect

bool THistSvc::m_okToConnect = false
private

Definition at line 404 of file THistSvc.h.

◆ m_outputfile

Gaudi::Property<std::vector<std::string> > THistSvc::m_outputfile
private
Initial value:
{
this, "Output", {}, &THistSvc::setupOutputFile, "", "OrderedSet<std::string>"}

Definition at line 392 of file THistSvc.h.

◆ m_print

Gaudi::Property<bool> THistSvc::m_print {this, "PrintAll", false}
private

Definition at line 382 of file THistSvc.h.

◆ m_Rstream

std::vector<std::string> THistSvc::m_Rstream
private

Definition at line 278 of file THistSvc.h.

◆ m_sharedFiles

std::map<std::string, std::string> THistSvc::m_sharedFiles
private

Definition at line 311 of file THistSvc.h.

◆ m_signaledStop

bool THistSvc::m_signaledStop = false
private

Definition at line 402 of file THistSvc.h.

◆ m_svcMut

THistSvcMutex_t THistSvc::m_svcMut
mutableprivate

Definition at line 411 of file THistSvc.h.

◆ m_tobjs

objMap_t THistSvc::m_tobjs
private

Definition at line 304 of file THistSvc.h.

◆ m_ttreeClass

const TClass* THistSvc::m_ttreeClass = nullptr
private

Cached pointer to the TTree dictionary.

Definition at line 407 of file THistSvc.h.

◆ m_uids

uidMap_t THistSvc::m_uids
private

Definition at line 300 of file THistSvc.h.

◆ m_Wstream

std::vector<std::string> THistSvc::m_Wstream
private

Definition at line 278 of file THistSvc.h.

◆ p_fileMgr

IFileMgr* THistSvc::p_fileMgr = nullptr
private

Definition at line 400 of file THistSvc.h.

◆ p_incSvc

IIncidentSvc* THistSvc::p_incSvc = nullptr
private

Definition at line 399 of file THistSvc.h.

The documentation for this class was generated from the following files:
IOTest.evt
evt
Definition: IOTest.py:105
THistSvc::THistID::id
std::string id
Definition: THistSvc.h:242
MSG::DEBUG
@ DEBUG
Definition: IMessageSvc.h:25
Io::OPEN
@ OPEN
Definition: IFileMgr.h:278
IIoComponentMgr::IoMode::READ
@ READ
Definition: IIoComponentMgr.h:41
THistSvc::p_incSvc
IIncidentSvc * p_incSvc
Definition: THistSvc.h:399
THistSvc::m_autoFlush
Gaudi::Property< int > m_autoFlush
Definition: THistSvc.h:381
std::strcmp
T strcmp(T... args)
IEventProcessor
Definition: IEventProcessor.h:24
std::for_each
T for_each(T... args)
Write.stream
stream
Definition: Write.py:31
Service::initialize
StatusCode initialize() override
Definition: Service.cpp:118
THistSvc::INVALID
@ INVALID
Definition: THistSvc.h:222
THistSvc::UPDATE
@ UPDATE
Definition: THistSvc.h:222
std::string
STL class.
THistSvc::merge
StatusCode merge(const std::string &id) override
Merge all clones for object with a given id.
Definition: THistSvc.cpp:660
THistSvc::m_signaledStop
bool m_signaledStop
Definition: THistSvc.h:402
THistSvc::m_delayConnect
bool m_delayConnect
Definition: THistSvc.h:403
THistSvc::m_ttreeClass
const TClass * m_ttreeClass
Cached pointer to the TTree dictionary.
Definition: THistSvc.h:407
THistSvc::histMut_t
std::mutex histMut_t
Definition: THistSvc.h:206
Gaudi.Configuration.log
log
Definition: Configuration.py:24
std::move
T move(T... args)
StatusCode::isSuccess
bool isSuccess() const
Definition: StatusCode.h:355
MSG::INFO
@ INFO
Definition: IMessageSvc.h:25
IIncidentSvc::addListener
virtual void addListener(IIncidentListener *lis, const std::string &type="", long priority=0, bool rethrow=false, bool singleShot=false)=0
Add listener.
std::pair< std::string, std::string >
std::vector::reserve
T reserve(T... args)
THistSvc::copyFileLayout
void copyFileLayout(TDirectory *, TDirectory *)
helper function to recursively copy the layout of a TFile into a new TFile
Definition: THistSvc.cpp:1941
gaudirun.s
string s
Definition: gaudirun.py:328
THistSvc::m_curstream
std::string m_curstream
Definition: THistSvc.h:409
THistSvc::getTEfficiencies
StatusCode getTEfficiencies(TDirectory *td, TList &, bool recurse=false) const override
Definition: THistSvc.cpp:1107
THistSvc::getTTrees
StatusCode getTTrees(TDirectory *td, TList &, bool recurse=false) const override
Definition: THistSvc.cpp:926
std::vector
STL class.
std::string::find
T find(T... args)
std::list::size
T size(T... args)
THistSvc::writeObjectsToFile
StatusCode writeObjectsToFile()
Definition: THistSvc.cpp:1556
std::back_inserter
T back_inserter(T... args)
GaudiException
Definition: GaudiException.h:31
Io::READ
@ READ
Definition: IFileMgr.h:37
THistSvc::deReg
StatusCode deReg(const std::string &name) override
Deregister object with given name and give up ownership (without deletion!)
Definition: THistSvc.cpp:577
std::unordered_map::emplace
T emplace(T... args)
Io::WRITE
@ WRITE
Definition: IFileMgr.h:38
Gaudi::Units::nm
constexpr double nm
Definition: SystemOfUnits.h:97
std::unique_ptr::get
T get(T... args)
gaudiComponentHelp.root
root
Definition: gaudiComponentHelp.py:38
std::distance
T distance(T... args)
std::unique_ptr::release
T release(T... args)
THistSvc::setupInputFile
void setupInputFile()
call-back method to handle input stream property
Definition: THistSvc.cpp:1897
THistSvc::m_hlist
hlist_t m_hlist
Definition: THistSvc.h:299
THistSvc::m_autoSave
Gaudi::Property< int > m_autoSave
Definition: THistSvc.h:380
System::typeinfoName
GAUDI_API const std::string typeinfoName(const std::type_info &)
Get platform independent information about the class type.
Definition: System.cpp:308
THistSvc::getTHists
StatusCode getTHists(TDirectory *td, TList &, bool recurse=false) const override
Definition: THistSvc.cpp:727
THistSvc::m_inputfile
Gaudi::Property< std::vector< std::string > > m_inputfile
Definition: THistSvc.h:394
IIncidentSvc::fireIncident
virtual void fireIncident(const Incident &incident)=0
Fire an Incident.
CommonMessaging< implements< IService, IProperty, IStateful > >::msgLevel
MSG::Level msgLevel() const
get the cached level (originally extracted from the embedded MsgStream)
Definition: CommonMessaging.h:148
Service::finalize
StatusCode finalize() override
Definition: Service.cpp:222
Service::FSMState
Gaudi::StateMachine::State FSMState() const override
Definition: Service.h:62
graphanalysis.filename
string filename
Definition: graphanalysis.py:130
THistSvc::rootOpenAction
StatusCode rootOpenAction(FILEMGR_CALLBACK_ARGS)
Definition: THistSvc.cpp:2098
IIoComponentMgr::IoMode::Type
Type
Definition: IIoComponentMgr.h:41
THistSvc::setupOutputFile
void setupOutputFile()
call-back method to handle output stream property
Definition: THistSvc.cpp:1921
std::map::clear
T clear(T... args)
THistSvc::m_print
Gaudi::Property< bool > m_print
Definition: THistSvc.h:382
THistSvc::stripDirectoryName
std::string stripDirectoryName(std::string &dir) const
Definition: THistSvc.cpp:1780
std::vector::push_back
T push_back(T... args)
THistSvc::vhid_t
std::vector< THistID > vhid_t
Definition: THistSvc.h:290
std::placeholders
std::stoi
T stoi(T... args)
THistSvc::rootOpenErrAction
StatusCode rootOpenErrAction(FILEMGR_CALLBACK_ARGS)
Definition: THistSvc.cpp:2120
plotSpeedupsPyRoot.graph
graph
Definition: plotSpeedupsPyRoot.py:151
Gaudi::StateMachine::CONFIGURED
@ CONFIGURED
Definition: StateMachine.h:24
Service::name
const std::string & name() const override
Retrieve name of the service
Definition: Service.cpp:332
StatusCode
Definition: StatusCode.h:65
IFileMgr::regAction
virtual StatusCode regAction(Io::bfcn_action_t, const Io::Action &, const std::string &d="")=0
Io::ROOT
@ ROOT
Definition: IFileMgr.h:156
gaudirun.opts
opts
Definition: gaudirun.py:319
THistSvc::parseString
void parseString(const std::string &id, std::string &root, std::string &rem) const
Definition: THistSvc.cpp:1883
std::string::at
T at(T... args)
HistoDumpEx.r
r
Definition: HistoDumpEx.py:20
THistSvc::SHARE
@ SHARE
Definition: THistSvc.h:222
THistSvc::m_maxFileSize
Gaudi::Property< int > m_maxFileSize
Definition: THistSvc.h:383
CLHEP::begin
double * begin(CLHEP::HepVector &v)
Definition: TupleAlg.cpp:45
THistSvc::findStream
bool findStream(const std::string &name, std::string &root, std::string &rem, TFile *&file) const
Definition: THistSvc.cpp:1847
TemplatedAlg
Definition: TemplatedAlg.h:25
THistSvc::m_tobjs
objMap_t m_tobjs
Definition: THistSvc.h:304
IIoComponentMgr::io_register
virtual StatusCode io_register(IIoComponent *iocomponent)=0
: allow a IIoComponent to register itself with this manager so appropriate actions can be taken when ...
std::string::c_str
T c_str(T... args)
THistSvc::charToMode
static Mode charToMode(const char typ)
Convert a char to a Mode enum.
Definition: THistSvc.h:225
THistSvc::m_outputfile
Gaudi::Property< std::vector< std::string > > m_outputfile
Definition: THistSvc.h:392
Io::FileAttr
Definition: IFileMgr.h:171
THistSvc::THistID::file
TFile * file
Definition: THistSvc.h:245
Gaudi::Property::value
const ValueType & value() const
Backward compatibility (.
Definition: Property.h:240
std::to_string
T to_string(T... args)
GaudiPython.HistoUtils.path
path
Definition: HistoUtils.py:943
THistSvc::changeDir
TDirectory * changeDir(const THistSvc::THistID &hid) const
Definition: THistSvc.cpp:1758
Io::EXCL
@ EXCL
Definition: IFileMgr.h:42
GaudiPython.Bindings.nullptr
nullptr
Definition: Bindings.py:74
std::unordered_map::erase
T erase(T... args)
THistSvc::APPEND
@ APPEND
Definition: THistSvc.h:222
THistSvc::m_ids
idMap_t m_ids
Definition: THistSvc.h:301
THistSvc::m_okToConnect
bool m_okToConnect
Definition: THistSvc.h:404
genconfuser.verbose
verbose
Definition: genconfuser.py:29
THistSvc::regHist
StatusCode regHist(const std::string &name) override
Register a new ROOT histogram TH*X with a name.
Definition: THistSvc.cpp:340
THistSvc::removeDoubleSlash
void removeDoubleSlash(std::string &) const
Definition: THistSvc.cpp:1796
endmsg
MsgStream & endmsg(MsgStream &s)
MsgStream Modifier: endmsg. Calls the output method of the MsgStream.
Definition: MsgStream.h:203
std::remove
T remove(T... args)
std::map
STL class.
GlobalDirectoryRestore
Definition: RConverter.h:26
THistSvc::READ
@ READ
Definition: THistSvc.h:222
GaudiPluginService.cpluginsvc.n
n
Definition: cpluginsvc.py:221
THistSvc::getTree
StatusCode getTree(const std::string &name, TTree *&) const override
Return TTree with given name.
Definition: THistSvc.cpp:413
StatusCode::ignore
const StatusCode & ignore() const
Allow discarding a StatusCode without warning.
Definition: StatusCode.h:156
THistSvc::m_alreadyConnectedOutFiles
std::set< std::string > m_alreadyConnectedOutFiles
list of already connected files.
Definition: THistSvc.h:286
std::strstr
T strstr(T... args)
std::string::substr
T substr(T... args)
std::ostringstream
STL class.
THistSvc::regHist_i
StatusCode regHist_i(std::unique_ptr< T > hist, const std::string &name, bool shared)
Definition: THistSvc.icc:27
StatusCode::isFailure
bool isFailure() const
Definition: StatusCode.h:142
std::multimap::equal_range
T equal_range(T... args)
FileIncident
This class is the FileIncident.
Definition: FileIncident.h:27
THistSvc::WRITE
@ WRITE
Definition: THistSvc.h:222
std::multimap::lower_bound
T lower_bound(T... args)
MSG::VERBOSE
@ VERBOSE
Definition: IMessageSvc.h:25
StatusCode::SUCCESS
constexpr static const auto SUCCESS
Definition: StatusCode.h:100
std::endl
T endl(T... args)
THistSvc::m_files
std::map< std::string, std::pair< TFile *, Mode > > m_files
Definition: THistSvc.h:306
gaudirun.l
dictionary l
Definition: gaudirun.py:553
ProduceConsume.props
props
Definition: ProduceConsume.py:54
THistSvc::connect
StatusCode connect(const std::string &)
Definition: THistSvc.cpp:1581
std::list::begin
T begin(T... args)
THistSvc::p_fileMgr
IFileMgr * p_fileMgr
Definition: THistSvc.h:400
THistSvc::existsHist
bool existsHist(const std::string &name) const override
Check if histogram with given name is managed by THistSvcMT.
Definition: THistSvc.cpp:682
std::multimap::insert
T insert(T... args)
THistSvc::exists
bool exists(const std::string &name) const override
Check if object with given name is managed by THistSvcMT exists calls existsHist and only works for T...
Definition: THistSvc.cpp:680
std::string::empty
T empty(T... args)
IIoComponentMgr
Definition: IIoComponentMgr.h:32
Io::OPEN_ERR
@ OPEN_ERR
Definition: IFileMgr.h:278
HistoDumpEx.h1
h1
Definition: HistoDumpEx.py:22
THistSvc::m_uids
uidMap_t m_uids
Definition: THistSvc.h:300
std::ostringstream::str
T str(T... args)
THistSvc::m_alreadyConnectedInFiles
std::set< std::string > m_alreadyConnectedInFiles
list of already connected files.
Definition: THistSvc.h:282
THistSvc::updateFiles
void updateFiles()
Handle case where TTree grows beyond TTree::fgMaxTreeSize.
Definition: THistSvc.cpp:1477
std::make_pair
T make_pair(T... args)
IFileMgr::close
virtual Io::close_t close(const Io::Fd, const std::string &caller)=0
std::map::end
T end(T... args)
IIoComponentMgr::io_retrieve
virtual std::vector< std::string > io_retrieve(IIoComponent *iocomponent)=0
: retrieve all registered filenames for a given IIoComponent
IOTest.end
end
Definition: IOTest.py:123
StatusCode::FAILURE
constexpr static const auto FAILURE
Definition: StatusCode.h:101
LockedHandle
Definition: LockedHandle.h:38
THistSvc::m_svcMut
THistSvcMutex_t m_svcMut
Definition: THistSvc.h:411
THistSvc::findHistID
size_t findHistID(const std::string &id, const THistID *&hid, const size_t &index=0) const
Definition: THistSvc.cpp:1973
IIncidentSvc
Definition: IIncidentSvc.h:33
THistSvc::m_fileStreams
streamMap m_fileStreams
Definition: THistSvc.h:308
std::unique_ptr
STL class.
Gaudi::Units::pi
constexpr double pi
Definition: PhysicalConstants.h:55
Gaudi::Utils::AttribStringParser
Parse attribute strings allowing iteration over the various attributes.
Definition: AttribStringParser.h:40
IFileMgr::open
virtual Io::open_t open(const Io::IoTech &, const std::string &caller, const std::string &fname, const Io::IoFlags &, Io::Fd &, void *&, const std::string &desc, const bool shared=false)=0
ProduceConsume.key
key
Definition: ProduceConsume.py:52
Service::service
StatusCode service(const std::string &name, const T *&psvc, bool createIf=true) const
Access a service by name, creating it if it doesn't already exist.
Definition: Service.h:94
Io::APPEND
@ APPEND
Definition: IFileMgr.h:45
std::abort
T abort(T... args)
THistSvc::m_sharedFiles
std::map< std::string, std::string > m_sharedFiles
Definition: THistSvc.h:311
THistSvc::dump
void dump() const
Definition: THistSvc.cpp:2018
IIoComponentMgr::IoMode::WRITE
@ WRITE
Definition: IIoComponentMgr.h:41
THistSvc::MergeRootFile
void MergeRootFile(TDirectory *, TDirectory *)
Definition: THistSvc.cpp:1800
Io::CREATE
@ CREATE
Definition: IFileMgr.h:41
