Gaudi::Accumulators::Axis< Arithmetic > Struct Template Reference

Definition of an Histogram Axis. More...

#include </builds/gaudi/Gaudi/GaudiKernel/include/Gaudi/Accumulators/Histogram.h>

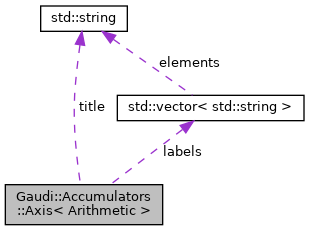

Collaboration diagram for Gaudi::Accumulators::Axis< Arithmetic >:

Public Member Functions
	Axis (unsigned int _nBins, Arithmetic _minValue, Arithmetic _maxValue, std::string _title={}, std::vector< std::string > _labels={})
	Axis (Gaudi::Histo1DDef const &def)
unsigned int	index (Arithmetic value) const
	returns the bin number for a given value, ranging from 0 (underflow) to nBins+1 (overflow) More...

Public Attributes
unsigned int	nBins
	number of bins for this Axis More...
Arithmetic	minValue
	min and max values on this axis More...
Arithmetic	maxValue
std::string	title
	title of this axis More...
std::vector< std::string >	labels
	labels for the bins More...
Arithmetic	ratio
	precomputed ratio to convert a value into bin number equal to nBins/(maxValue-minValue) More...

Detailed Description

template<typename Arithmetic>
struct Gaudi::Accumulators::Axis< Arithmetic >

Definition of an Histogram Axis.

Definition at line 154 of file Histogram.h.

Constructor & Destructor Documentation

Axis() [1/2]

template<typename Arithmetic >

Gaudi::Accumulators::Axis< Arithmetic >::Axis ( unsigned int  _nBins, Arithmetic  _minValue, Arithmetic  _maxValue, std::string  _title = {}, std::vector< std::string >  _labels = {}  )

inline

Definition at line 155 of file Histogram.h.

                                                                                              {},
          std::vector<std::string> _labels = {} )
        : nBins( _nBins )
        , minValue( _minValue )
        , maxValue( _maxValue )
        , title( std::move( _title ) )
        , labels( std::move( _labels ) )
        , ratio( _nBins / ( _maxValue - _minValue ) ) {
      details::requireValidTitle( title );
      for ( const auto& s : labels ) details::requireValidTitle( s );
    };

Axis() [2/2]

template<typename Arithmetic >

Gaudi::Accumulators::Axis< Arithmetic >::Axis ( Gaudi::Histo1DDef const &  def )

inlineexplicit

Definition at line 166 of file Histogram.h.

        : Axis( (unsigned int)def.bins(), def.lowEdge(), def.highEdge(), def.title() ){};

Member Function Documentation

index()

template<typename Arithmetic >

unsigned int Gaudi::Accumulators::Axis< Arithmetic >::index ( Arithmetic  value ) const

inline

returns the bin number for a given value, ranging from 0 (underflow) to nBins+1 (overflow)

Definition at line 183 of file Histogram.h.

                                                 {
      int idx = std::floor( ( value - minValue ) * ratio ) + 1;
      return idx < 0 ? 0 : ( (unsigned int)idx > nBins ? nBins + 1 : (unsigned int)idx );
    }

Member Data Documentation

labels

template<typename Arithmetic >

std::vector<std::string> Gaudi::Accumulators::Axis< Arithmetic >::labels

labels for the bins

Definition at line 175 of file Histogram.h.

maxValue

template<typename Arithmetic >

Arithmetic Gaudi::Accumulators::Axis< Arithmetic >::maxValue

Definition at line 171 of file Histogram.h.

minValue

template<typename Arithmetic >

Arithmetic Gaudi::Accumulators::Axis< Arithmetic >::minValue

min and max values on this axis

Definition at line 171 of file Histogram.h.

nBins

template<typename Arithmetic >

unsigned int Gaudi::Accumulators::Axis< Arithmetic >::nBins

number of bins for this Axis

Definition at line 169 of file Histogram.h.

ratio

template<typename Arithmetic >

Arithmetic Gaudi::Accumulators::Axis< Arithmetic >::ratio

precomputed ratio to convert a value into bin number equal to nBins/(maxValue-minValue)

Definition at line 180 of file Histogram.h.

title

template<typename Arithmetic >

std::string Gaudi::Accumulators::Axis< Arithmetic >::title

title of this axis

Definition at line 173 of file Histogram.h.

---

The documentation for this struct was generated from the following file:

• GaudiKernel/include/Gaudi/Accumulators/Histogram.h
