#include </builds/gaudi/Gaudi/GaudiExamples/include/GaudiExamples/MyTrack.h>

Inheritance diagram for Gaudi::Examples::MyTrack:

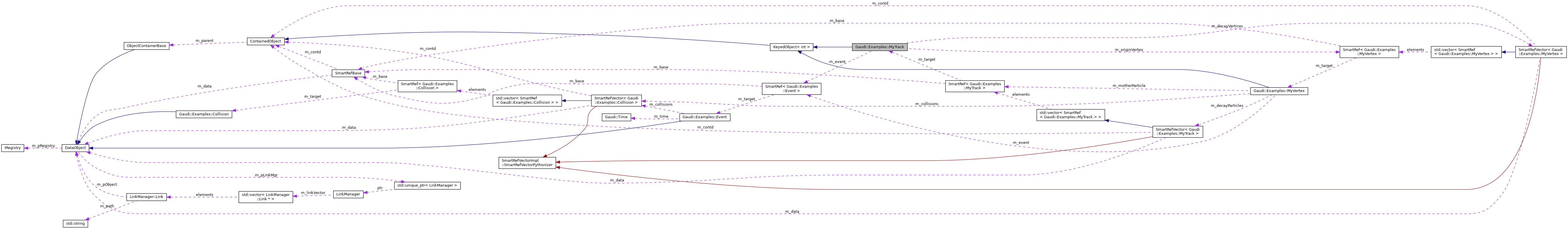

Collaboration diagram for Gaudi::Examples::MyTrack:

[legend]

Public Types
typedef std::vector< MyTrack * >	Vector
	the type of plain vector More...

typedef std::vector< const MyTrack * >	ConstVector
	the type of vector of const-pointers More...

typedef SharedObjectsContainer< MyTrack >	Selection
	the type of selection More...

typedef KeyedContainer< MyTrack, Containers::HashMap >	Container
	the actual type of container in TES More...

Public Types inherited from KeyedObject< int >
typedef int	key_type
	Definition of the key-type to access object. More...

Public Member Functions
	MyTrack ()
	Standard constructor. More...

	MyTrack (float x, float y, float z)
	Standard constructor. More...

	MyTrack (const MyTrack &t)

	~MyTrack () override
	Standard Destructor. More...

const CLID &	clID () const override
	Retrieve pointer to class definition structure. More...

float	px () const
	Accessors: Retrieve x-component of the track momentum. More...

float	py () const
	Accessors: Retrieve y-component of the track momentum. More...

float	pz () const
	Accessors: Retrieve z-component of the track momentum. More...

void	setPx (float px)
	Accessors: Update x-component of the track momentum. More...

void	setPy (float py)
	Accessors: Update y-component of the track momentum. More...

void	setPz (float pz)
	Accessors: Update z-component of the track momentum. More...

const Event *	event () const
	Access to the source track object (constant case) More...

void	setEvent (Event *evt)
	Access to event object. More...

const MyVertex *	originVertex () const
	Origin vertex. More...

void	setOriginVertex (MyVertex *origin)
	Set origin vertex. More...

const SmartRefVector< MyVertex > &	decayVertices () const
	Access to decay vertices. More...

void	addDecayVertex (MyVertex *vtx)
	Add decay vertex. More...

void	removeDecayVertex (MyVertex *vtx)
	Remove decay vertex. More...

StreamBuffer &	serialize (StreamBuffer &s) const override
	Serialize the object for writing. More...

StreamBuffer &	serialize (StreamBuffer &s) override
	Serialize the object for reading. More...

Public Member Functions inherited from KeyedObject< int >
	KeyedObject ()=default
	Standard Constructor. The object key is preset to the invalid value. More...

	KeyedObject (const key_type &kval)
	Standard Constructor accepting the object's key. More...

	~KeyedObject () override
	Standard destructor. More...

const key_type &	key () const
	Retrieve Key of the object. More...

bool	hasKey () const
	Check if the object has a key assigned or not. More...

long	index () const override
	Distance in the parent container. More...

StreamBuffer &	serialize (StreamBuffer &s) const override
	Serialize the object for writing. More...

StreamBuffer &	serialize (StreamBuffer &s) override
	Serialize the object for reading. More...

Public Member Functions inherited from ContainedObject
const ObjectContainerBase *	parent () const
	Access to parent object. More...

void	setParent (ObjectContainerBase *value)
	Update parent member. More...

virtual long	index () const
	Distance in the parent container. More...

virtual std::ostream &	fillStream (std::ostream &s) const
	Fill the output stream (ASCII) More...

Static Public Member Functions
static const CLID &	classID ()

Static Public Member Functions inherited from ContainedObject
static const CLID &	classID ()

Protected Attributes
float	m_px
	The track momentum. More...

float	m_py

float	m_pz

SmartRef< Event >	m_event
	Link to Top level event. More...

SmartRef< MyVertex >	m_originVertex
	Link to origin vertex. More...

SmartRefVector< MyVertex >	m_decayVertices
	Links to all decay vertices. More...

Protected Attributes inherited from KeyedObject< int >
key_type	m_key
	Object Key. More...

long	m_refCount
	Reference counter. More...

bool	m_hasKey
	Boolean to indicate wether a key was already assigned. More...

Friends
class	GaudiObjectHandler< MyTrack >

Additional Inherited Members
Protected Types inherited from KeyedObject< int >
typedef Containers::key_traits< key_type >	traits
	definition of the container key traits to be made friend More...

Protected Member Functions inherited from KeyedObject< int >
unsigned long	addRef ()
	Add reference to object (Increase reference counter). More...

unsigned long	release ()
	Release reference. If the reference count is ZERO, delete the object. More...

void	setKey (const key_type &key)
	Set object key. More...

Protected Member Functions inherited from ContainedObject
	ContainedObject ()=default
	Constructors. More...

	ContainedObject (const ContainedObject &)
	Copy constructor and assignement: do NOT copy the parent reference... More...

ContainedObject &	operator= (const ContainedObject &)

virtual	~ContainedObject ()
	Destructor. More...

Detailed Description

Definition at line 47 of file MyTrack.h.

Member Typedef Documentation

◆ ConstVector

typedef std::vector<const MyTrack*> Gaudi::Examples::MyTrack::ConstVector

the type of vector of const-pointers

Definition at line 61 of file MyTrack.h.

◆ Container

typedef KeyedContainer<MyTrack, Containers::HashMap> Gaudi::Examples::MyTrack::Container

the actual type of container in TES

Definition at line 69 of file MyTrack.h.

◆ Selection

typedef SharedObjectsContainer<MyTrack> Gaudi::Examples::MyTrack::Selection

the type of selection

Definition at line 63 of file MyTrack.h.

◆ Vector

typedef std::vector<MyTrack*> Gaudi::Examples::MyTrack::Vector

the type of plain vector

Definition at line 59 of file MyTrack.h.

Constructor & Destructor Documentation

◆ MyTrack() [1/3]

MyTrack::MyTrack ( )

Standard constructor.

Definition at line 27 of file MyTrack.cpp.

                  : m_px( 0.0 ), m_py( 0.0 ), m_pz( 0.0 ) {
   // m_event(this);
   // m_originVertex(this);
   // m_decayVertices(this);
   s_instances.count++;
 }

◆ MyTrack() [2/3]

MyTrack::MyTrack	(	float	x,
		float	y,
		float	z
	)

Standard constructor.

Definition at line 35 of file MyTrack.cpp.

                                             : m_px( x ), m_py( y ), m_pz( z ) {
   // m_event(this);
   // m_originVertex(this);
   // m_decayVertices(this);
   s_instances.count++;
 }

◆ MyTrack() [3/3]

MyTrack::MyTrack ( const MyTrack & t )

Definition at line 42 of file MyTrack.cpp.

                                    : KeyedObject<int>( t.key() ), m_px( t.m_px ), m_py( t.m_py ), m_pz( t.m_pz ) {
   s_instances.count++;
 }

◆ ~MyTrack()

MyTrack::~MyTrack ( )

override

Standard Destructor.

Definition at line 47 of file MyTrack.cpp.

47 { s_instances.count--; }

Member Function Documentation

◆ addDecayVertex()

void Gaudi::Examples::MyTrack::addDecayVertex ( MyVertex * vtx )

inline

Add decay vertex.

Definition at line 155 of file MyTrack.h.

155 { m_decayVertices.push_back( SmartRef<MyVertex>( vtx ) ); }

◆ classID()

static const CLID& Gaudi::Examples::MyTrack::classID ( )

inlinestatic

Definition at line 92 of file MyTrack.h.

92 { return CLID_MyTrack; }

◆ clID()

const CLID& Gaudi::Examples::MyTrack::clID ( ) const

inlineoverridevirtual

Retrieve pointer to class definition structure.

Reimplemented from ContainedObject.

Definition at line 91 of file MyTrack.h.

91 { return classID(); }

◆ decayVertices()

const SmartRefVector< MyVertex > & Gaudi::Examples::MyTrack::decayVertices ( ) const

inline

Access to decay vertices.

Definition at line 152 of file MyTrack.h.

152 { return m_decayVertices; }

◆ event()

const Event* Gaudi::Examples::MyTrack::event ( ) const

inline

Access to the source track object (constant case)

Definition at line 107 of file MyTrack.h.

107 { return m_event; }

◆ originVertex()

const MyVertex * Gaudi::Examples::MyTrack::originVertex ( ) const

inline

Origin vertex.

Definition at line 146 of file MyTrack.h.

146 { return m_originVertex; }

◆ px()

float Gaudi::Examples::MyTrack::px ( ) const

inline

Accessors: Retrieve x-component of the track momentum.

Definition at line 94 of file MyTrack.h.

94 { return m_px; }

◆ py()

float Gaudi::Examples::MyTrack::py ( ) const

inline

Accessors: Retrieve y-component of the track momentum.

Definition at line 96 of file MyTrack.h.

96 { return m_py; }

◆ pz()

float Gaudi::Examples::MyTrack::pz ( ) const

inline

Accessors: Retrieve z-component of the track momentum.

Definition at line 98 of file MyTrack.h.

98 { return m_pz; }

◆ removeDecayVertex()

void Gaudi::Examples::MyTrack::removeDecayVertex ( MyVertex * vtx )

inline

Remove decay vertex.

Definition at line 158 of file MyTrack.h.

                                                           {
       SmartRefVector<MyVertex>::iterator i;
       for ( i = m_decayVertices.begin(); i != m_decayVertices.end(); ++i ) {
         if ( i->target() == vtx ) {
           m_decayVertices.erase( i );
           return;
         }
       }
     }

◆ serialize() [1/2]

StreamBuffer & Gaudi::Examples::MyTrack::serialize ( StreamBuffer & s ) const

inlineoverridevirtual

Serialize the object for writing.

Reimplemented from ContainedObject.

Definition at line 169 of file MyTrack.h.

                                                                    {
 #ifdef __PLAIN_GAUDI
       ContainedObject::serialize( s );
 #else
       KeyedObject<int>::serialize( s );
 #endif
       return s << m_event( this ) << m_originVertex( this ) << m_decayVertices( this ) << m_px << m_py << m_pz;
     }

◆ serialize() [2/2]

StreamBuffer & Gaudi::Examples::MyTrack::serialize ( StreamBuffer & s )

inlineoverridevirtual

Serialize the object for reading.

Reimplemented from ContainedObject.

Definition at line 179 of file MyTrack.h.

                                                              {
 #ifdef __PLAIN_GAUDI
       ContainedObject::serialize( s );
 #else
       KeyedObject<int>::serialize( s );
 #endif
       return s >> m_event( this ) >> m_originVertex( this ) >> m_decayVertices( this ) >> m_px >> m_py >> m_pz;
     }

◆ setEvent()

void Gaudi::Examples::MyTrack::setEvent ( Event * evt )

inline

Access to event object.

Definition at line 109 of file MyTrack.h.

109 { m_event = evt; }

◆ setOriginVertex()

void Gaudi::Examples::MyTrack::setOriginVertex ( MyVertex * origin )

inline

Set origin vertex.

Definition at line 149 of file MyTrack.h.

149 { m_originVertex = origin; }

◆ setPx()

void Gaudi::Examples::MyTrack::setPx ( float px )

inline

Accessors: Update x-component of the track momentum.

Definition at line 100 of file MyTrack.h.

100 { m_px = px; }

◆ setPy()

void Gaudi::Examples::MyTrack::setPy ( float py )

inline

Accessors: Update y-component of the track momentum.

Definition at line 102 of file MyTrack.h.

102 { m_py = py; }

◆ setPz()

void Gaudi::Examples::MyTrack::setPz ( float pz )

inline

Accessors: Update z-component of the track momentum.

Definition at line 104 of file MyTrack.h.

104 { m_pz = pz; }

Friends And Related Function Documentation

◆ GaudiObjectHandler< MyTrack >

friend class GaudiObjectHandler< MyTrack >

friend

Definition at line 135 of file MyTrack.h.

Member Data Documentation

◆ m_decayVertices

SmartRefVector<MyVertex> Gaudi::Examples::MyTrack::m_decayVertices

protected

Links to all decay vertices.

Definition at line 80 of file MyTrack.h.

◆ m_event

SmartRef<Event> Gaudi::Examples::MyTrack::m_event

protected

Link to Top level event.

Definition at line 76 of file MyTrack.h.

◆ m_originVertex

SmartRef<MyVertex> Gaudi::Examples::MyTrack::m_originVertex

protected

Link to origin vertex.

Definition at line 78 of file MyTrack.h.

◆ m_px

float Gaudi::Examples::MyTrack::m_px

protected

The track momentum.

Definition at line 74 of file MyTrack.h.

◆ m_py

float Gaudi::Examples::MyTrack::m_py

protected

Definition at line 74 of file MyTrack.h.

◆ m_pz

float Gaudi::Examples::MyTrack::m_pz

protected

Definition at line 74 of file MyTrack.h.

The documentation for this class was generated from the following files:

GaudiExamples/include/GaudiExamples/MyTrack.h
GaudiExamples/src/Lib/MyTrack.cpp

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ConstVector

◆ Container

◆ Selection

◆ Vector

Constructor & Destructor Documentation

◆ MyTrack() [1/3]

◆ MyTrack() [2/3]

◆ MyTrack() [3/3]

◆ ~MyTrack()

Member Function Documentation

◆ addDecayVertex()

◆ classID()

◆ clID()

◆ decayVertices()

◆ event()

◆ originVertex()

◆ px()

◆ py()

◆ pz()

◆ removeDecayVertex()

◆ serialize() [1/2]

◆ serialize() [2/2]

◆ setEvent()

◆ setOriginVertex()

◆ setPx()

◆ setPy()

◆ setPz()

Friends And Related Function Documentation

◆ GaudiObjectHandler< MyTrack >

Member Data Documentation

◆ m_decayVertices

◆ m_event

◆ m_originVertex

◆ m_px

◆ m_py

◆ m_pz
