THistSvc Class Reference

#include </builds/gaudi/Gaudi/GaudiSvc/src/THistSvc/THistSvc.h>

Inheritance diagram for THistSvc:
Inheritance graph
[legend]

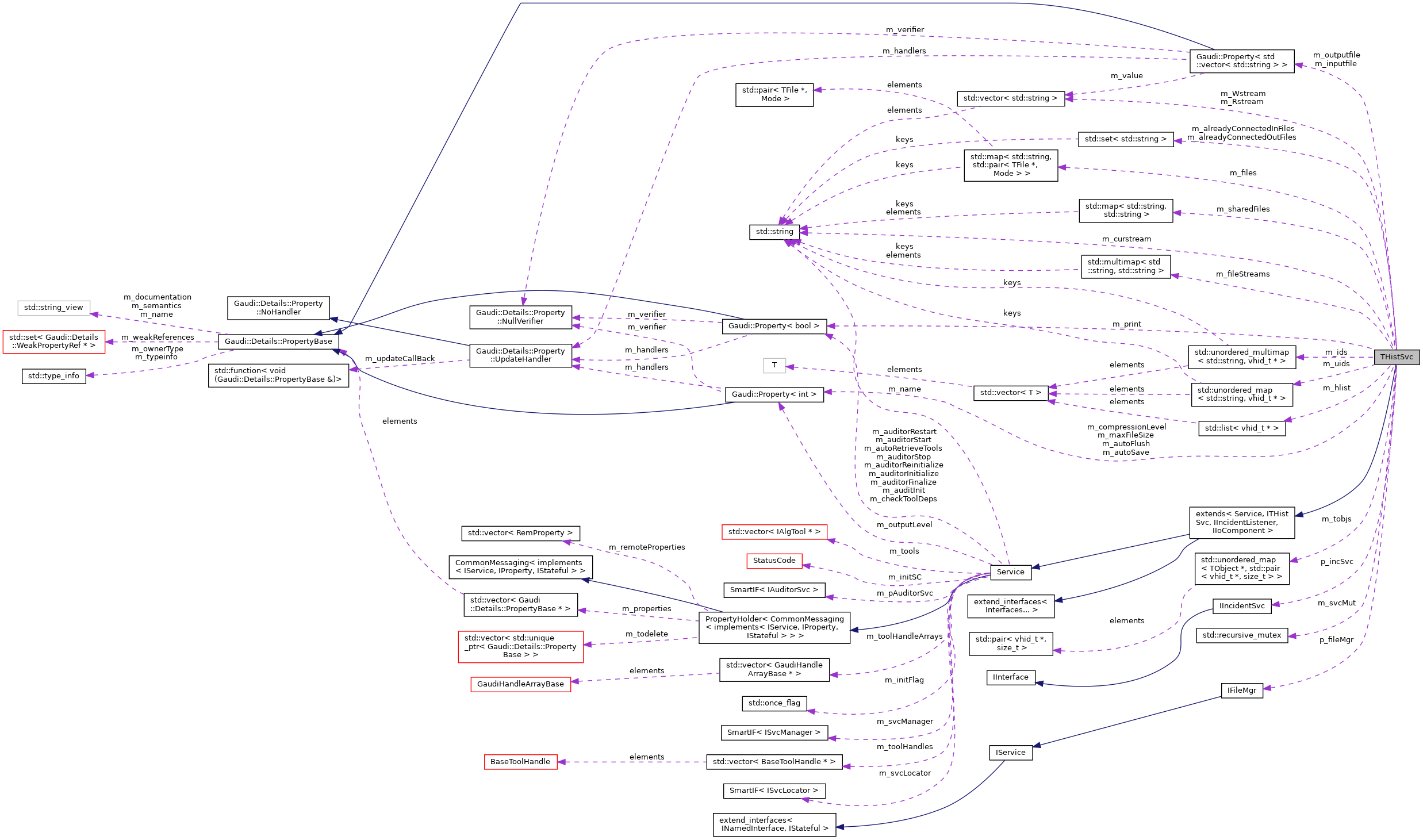

Collaboration diagram for THistSvc:
Collaboration graph
[legend]

Classes

class  GlobalDirectoryRestore
 Helper class that manages ROOts global directory and file. More...

struct  THistID
 Helper struct that bundles the histogram ID with a mutex, TFile and TObject*. More...


Public Member Functions

StatusCode initialize () override

StatusCode reinitialize () override

StatusCode finalize () override

void handle (const Incident &) override

StatusCode io_reinit () override
 callback method to reinitialize the internal state of the component for I/O purposes (e.g. More...

Functions to manage ROOT histograms of any kind
StatusCode regHist (const std::string &name) override
 Register a new ROOT histogram TH*X with a name. More...

StatusCode regHist (const std::string &name, std::unique_ptr< TH1 > hist) override
 Register an existing ROOT histogram TH*X with name and moved unique_ptr. More...

StatusCode regHist (const std::string &name, std::unique_ptr< TH1 > hist, TH1 *hist_ptr) override
 Register an existing ROOT histogram TH*X with name and moved unique_ptr. More...

StatusCode regHist (const std::string &name, TH1 *) override

StatusCode getHist (const std::string &name, TH1 *&, size_t index=0) const override
 Return histogram with given name as TH1*, THistSvcMT still owns object. More...

StatusCode getHist (const std::string &name, TH2 *&, size_t index=0) const override
 Return histogram with given name as TH2*, THistSvcMT still owns object. More...

StatusCode getHist (const std::string &name, TH3 *&, size_t index=0) const override
 Return histogram with given name as TH3*, THistSvcMT still owns object. More...

Functions to manage TTrees
StatusCode regTree (const std::string &name) override
 Register a new TTree with a given name. More...

StatusCode regTree (const std::string &name, std::unique_ptr< TTree >) override
 Register an existing TTree with a given name and moved unique_ptr. More...

StatusCode regTree (const std::string &name, TTree *) override

StatusCode getTree (const std::string &name, TTree *&) const override
 Return TTree with given name. More...

Functions to manage TGraphs
StatusCode regGraph (const std::string &name) override
 Register a new TGraph with a given name. More...

StatusCode regGraph (const std::string &name, std::unique_ptr< TGraph >) override
 Register an existing TGraph with a given name and moved unique_ptr. More...

virtual StatusCode regGraph (const std::string &name, TGraph *) override

StatusCode getGraph (const std::string &name, TGraph *&) const override
 Return TGraph with given name. More...

StatusCode regEfficiency (const std::string &name) override
 Register a new TEfficiency with a given name. More...

StatusCode regEfficiency (const std::string &name, std::unique_ptr< TEfficiency >) override
 Register an existing TEfficiency with a given name and moved unique_ptr. More...

virtual StatusCode regEfficiency (const std::string &name, TEfficiency *) override

StatusCode getEfficiency (const std::string &name, TEfficiency *&) const override
 Return TEfficiency with given name. More...

Functions managing shared objects
StatusCode regShared (const std::string &name, std::unique_ptr< TH1 >, LockedHandle< TH1 > &) override
 Register shared object of type TH1 and return LockedHandle for that object. More...

StatusCode regShared (const std::string &name, std::unique_ptr< TH2 >, LockedHandle< TH2 > &) override
 Register shared object of type TH2 and return LockedHandle for that object. More...

StatusCode regShared (const std::string &name, std::unique_ptr< TH3 >, LockedHandle< TH3 > &) override
 Register shared object of type TH3 and return LockedHandle for that object. More...

StatusCode regShared (const std::string &name, std::unique_ptr< TGraph >, LockedHandle< TGraph > &) override
 Register shared object of type TGraph and return LockedHandle for that object. More...

StatusCode regShared (const std::string &name, std::unique_ptr< TEfficiency >, LockedHandle< TEfficiency > &) override
 Register shared object of type TEfficiency and return LockedHandle for that object. More...

StatusCode getShared (const std::string &name, LockedHandle< TH1 > &) const override
 Retrieve shared object with given name as TH1 through LockedHandle. More...

StatusCode getShared (const std::string &name, LockedHandle< TH2 > &) const override
 Retrieve shared object with given name as TH2 through LockedHandle. More...

StatusCode getShared (const std::string &name, LockedHandle< TH3 > &) const override
 Retrieve shared object with given name as TH3 through LockedHandle. More...

StatusCode getShared (const std::string &name, LockedHandle< TGraph > &) const override
 Retrieve shared object with given name as TGraph through LockedHandle. More...

StatusCode getShared (const std::string &name, LockedHandle< TEfficiency > &) const override
 Retrieve shared object with given name as TEfficiency through LockedHandle. More...

Functions that work on any TObject in the THistSvcMT
StatusCode deReg (const std::string &name) override
 Deregister object with given name and give up ownership (without deletion!) More...

StatusCode deReg (TObject *obj) override
 Deregister obejct identified by TObject* and give up ownership (without deletion!) More...

StatusCode merge (const std::string &id) override
 Merge all clones for object with a given id. More...

StatusCode merge (TObject *) override
 Merge all clones for given TObject*. More...

bool exists (const std::string &name) const override
 Check if object with given name is managed by THistSvcMT exists calls existsHist and only works for TH1-descendants. More...

bool existsHist (const std::string &name) const override
 Check if histogram with given name is managed by THistSvcMT. More...

bool existsTree (const std::string &name) const override
 Check if tree with given name is managed by THistSvcMT. More...

bool existsGraph (const std::string &name) const override
 Check if graph with given name is managed by THistSvcMT. More...

bool existsEfficiency (const std::string &name) const override
 Check if TEfficiency with given name is managed by THistSvcMT. More...

Functions returning lists of all histograms, trees and graphs
std::vector< std::string > getHists () const override

std::vector< std::string > getTrees () const override

std::vector< std::string > getGraphs () const override

std::vector< std::string > getEfficiencies () const override

StatusCode getTHists (TDirectory *td, TList &, bool recurse=false) const override

StatusCode getTHists (const std::string &name, TList &, bool recurse=false) const override

StatusCode getTHists (TDirectory *td, TList &tl, bool recurse=false, bool reg=false) override

StatusCode getTHists (const std::string &name, TList &tl, bool recurse=false, bool reg=false) override

StatusCode getTTrees (TDirectory *td, TList &, bool recurse=false) const override

StatusCode getTTrees (const std::string &name, TList &, bool recurse=false) const override

StatusCode getTTrees (TDirectory *td, TList &tl, bool recurse=false, bool reg=false) override

StatusCode getTTrees (const std::string &name, TList &tl, bool recurse=false, bool reg=false) override

StatusCode getTEfficiencies (TDirectory *td, TList &, bool recurse=false) const override

StatusCode getTEfficiencies (const std::string &name, TList &, bool recurse=false) const override

StatusCode getTEfficiencies (TDirectory *td, TList &tl, bool recurse=false, bool reg=false) override

StatusCode getTEfficiencies (const std::string &name, TList &tl, bool recurse=false, bool reg=false) override

- Public Member Functions inherited from extends< Service, ITHistSvc, IIncidentListener, IIoComponent >
void * i_cast (const InterfaceID &tid) const override
 Implementation of IInterface::i_cast. More...

StatusCode queryInterface (const InterfaceID &ti, void **pp) override
 Implementation of IInterface::queryInterface. More...

std::vector< std::string > getInterfaceNames () const override
 Implementation of IInterface::getInterfaceNames. More...

- Public Member Functions inherited from Service
const std::string & name () const override
 Retrieve name of the service
More...

StatusCode configure () override

StatusCode initialize () override

StatusCode start () override

StatusCode stop () override

StatusCode finalize () override

StatusCode terminate () override

Gaudi::StateMachine::State FSMState () const override

Gaudi::StateMachine::State targetFSMState () const override

StatusCode reinitialize () override

StatusCode restart () override

StatusCode sysInitialize () override
 Initialize Service
More...

StatusCode sysStart () override
 Initialize Service
More...

StatusCode sysStop () override
 Initialize Service
More...

StatusCode sysFinalize () override
 Finalize Service
More...

StatusCode sysReinitialize () override
 Re-initialize the Service. More...

StatusCode sysRestart () override
 Re-initialize the Service. More...

 Service (std::string name, ISvcLocator *svcloc)
 Standard Constructor
More...

SmartIF< ISvcLocator > & serviceLocator () const override
 Retrieve pointer to service locator
More...

template<class T >
StatusCode service (const std::string &name, const T *&psvc, bool createIf=true) const
 Access a service by name, creating it if it doesn't already exist. More...

template<class T >
StatusCode service (const std::string &name, T *&psvc, bool createIf=true) const

template<typename IFace = IService>
SmartIF< IFace > service (const std::string &name, bool createIf=true) const

template<class T >
StatusCode service (const std::string &svcType, const std::string &svcName, T *&psvc) const
 Access a service by name and type, creating it if it doesn't already exist. More...

template<class T >
Gaudi::Details::PropertyBase * declareProperty (const std::string &name, ToolHandle< T > &hndl, const std::string &doc="none")

template<class T >
StatusCode declareTool (ToolHandle< T > &handle, bool createIf=true)

template<class T >
StatusCode declareTool (ToolHandle< T > &handle, std::string toolTypeAndName, bool createIf=true)
 Declare used tool. More...

template<class T >
Gaudi::Details::PropertyBase * declareProperty (const std::string &name, ToolHandleArray< T > &hndlArr, const std::string &doc="none")

template<class T >
void addToolsArray (ToolHandleArray< T > &hndlArr)

const std::vector< IAlgTool * > & tools () const

SmartIF< IAuditorSvc > & auditorSvc () const
 The standard auditor service.May not be invoked before sysInitialize() has been invoked. More...

- Public Member Functions inherited from PropertyHolder< CommonMessaging< implements< IService, IProperty, IStateful > > >
 PropertyHolder ()=default

Gaudi::Details::PropertyBase & declareProperty (Gaudi::Details::PropertyBase &prop)
 Declare a property. More...

Gaudi::Details::PropertyBase * declareProperty (const std::string &name, TYPE &value, const std::string &doc="none")
 Helper to wrap a regular data member and use it as a regular property. More...

Gaudi::Details::PropertyBase * declareProperty (const std::string &name, Gaudi::Property< TYPE, VERIFIER, HANDLERS > &prop, const std::string &doc="none")
 Declare a PropertyBase instance setting name and documentation. More...

Gaudi::Details::PropertyBase * declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="")
 Declare a remote property. More...

StatusCode setProperty (const std::string &name, const Gaudi::Details::PropertyBase &p) override
 set the property from another property with a different name More...

StatusCode setProperty (const std::string &s) override
 set the property from the formatted string More...

StatusCode setProperty (const Gaudi::Details::PropertyBase &p)
 Set the property from a property. More...

virtual StatusCode setProperty (const std::string &name, const Gaudi::Details::PropertyBase &p)=0
 Set the property from a property with a different name. More...

virtual StatusCode setProperty (const std::string &s)=0
 Set the property by string. More...

StatusCode setProperty (const std::string &name, const char *v)
 Special case for string literals. More...

StatusCode setProperty (const std::string &name, const std::string &v)
 Special case for std::string. More...

StatusCode setProperty (const std::string &name, const TYPE &value)
 set the property form the value More...

StatusCode setPropertyRepr (const std::string &n, const std::string &r) override
 set the property from name and value string representation More...

StatusCode getProperty (Gaudi::Details::PropertyBase *p) const override
 get the property More...

const Gaudi::Details::PropertyBase & getProperty (std::string_view name) const override
 get the property by name More...

StatusCode getProperty (std::string_view n, std::string &v) const override
 convert the property to the string More...

const std::vector< Gaudi::Details::PropertyBase * > & getProperties () const override
 get all properties More...

bool hasProperty (std::string_view name) const override
 Return true if we have a property with the given name. More...

Gaudi::Details::PropertyBase * property (std::string_view name) const
 \fixme property and bindPropertiesTo should be protected More...

void bindPropertiesTo (Gaudi::Interfaces::IOptionsSvc &optsSvc)

 PropertyHolder (const PropertyHolder &)=delete

PropertyHolder & operator= (const PropertyHolder &)=delete

- Public Member Functions inherited from CommonMessaging< implements< IService, IProperty, IStateful > >
MSG::Level msgLevel () const
 get the cached level (originally extracted from the embedded MsgStream) More...

bool msgLevel (MSG::Level lvl) const
 get the output level from the embedded MsgStream More...


Private Types

enum  Mode {
  READ, WRITE, UPDATE, APPEND,
  SHARE, INVALID
}
 Enumerating all possible file access modes. More...

enum  ObjectType {
  ObjectType::UNKNOWN, ObjectType::TH1, ObjectType::TTREE, ObjectType::TGRAPH,
  ObjectType::TEFFICIENCY
}
 Possible TObject types. More...

typedef std::recursive_mutex THistSvcMutex_t

typedef std::mutex histMut_t


Private Member Functions

Templated helper functions to register and retrieve Histograms and TObjects
template<typename T >
StatusCode regHist_i (std::unique_ptr< T > hist, const std::string &name, bool shared)

template<typename T >
StatusCode regHist_i (std::unique_ptr< T > hist, const std::string &name, bool shared, THistID *&hid)

template<typename T >
T * getHist_i (const std::string &name, const size_t &ind=0, bool quiet=false) const

template<typename T >
T * readHist_i (const std::string &name) const

template<typename T >
LockedHandle< T > regShared_i (const std::string &id, std::unique_ptr< T > hist)

template<typename T >
LockedHandle< T > getShared_i (const std::string &name) const

Collection of private helper methods
template<typename T >
T * readHist (const std::string &name) const

TTree * readTree (const std::string &name) const

void updateFiles ()
 Handle case where TTree grows beyond TTree::fgMaxTreeSize. More...

StatusCode writeObjectsToFile ()

StatusCode connect (const std::string &)

TDirectory * changeDir (const THistSvc::THistID &hid) const

std::string stripDirectoryName (std::string &dir) const

void removeDoubleSlash (std::string &) const

void MergeRootFile (TDirectory *, TDirectory *)

bool findStream (const std::string &name, std::string &root, std::string &rem, TFile *&file) const

void parseString (const std::string &id, std::string &root, std::string &rem) const

void setupInputFile ()
 call-back method to handle input stream property More...

void setupOutputFile ()
 call-back method to handle output stream property More...

void copyFileLayout (TDirectory *, TDirectory *)
 helper function to recursively copy the layout of a TFile into a new TFile More...

size_t findHistID (const std::string &id, const THistID *&hid, const size_t &index=0) const

void dump () const

StatusCode merge (const THistID &)
 Helper method to merge THistID objects. More...

StatusCode merge (vhid_t *)
 Helper method to merge vectors of THistID. More...

StatusCode rootOpenAction (FILEMGR_CALLBACK_ARGS)

StatusCode rootOpenErrAction (FILEMGR_CALLBACK_ARGS)


Static Private Member Functions

static Mode charToMode (const char typ)
 Convert a char to a Mode enum. More...


Private Attributes

IIncidentSvc * p_incSvc = nullptr

IFileMgr * p_fileMgr = nullptr

bool m_signaledStop = false

bool m_delayConnect = false

bool m_okToConnect = false

bool m_hasTTrees = false

std::string m_curstream

THistSvcMutex_t m_svcMut

Gaudi properties
Gaudi::Property< int > m_autoSave { this, "AutoSave", 0 }

Gaudi::Property< int > m_autoFlush { this, "AutoFlush", 0 }

Gaudi::Property< bool > m_print { this, "PrintAll", false }

Gaudi::Property< int > m_maxFileSize

Gaudi::Property< int > m_compressionLevel

Gaudi::Property< std::vector< std::string > > m_outputfile

Gaudi::Property< std::vector< std::string > > m_inputfile


Container definitions

typedef std::vector< THistID > vhid_t

typedef std::list< vhid_t * > hlist_t

typedef std::unordered_map< std::string, vhid_t * > uidMap_t

typedef std::unordered_multimap< std::string, vhid_t * > idMap_t

typedef std::unordered_map< TObject *, std::pair< vhid_t *, size_t > > objMap_t

typedef std::multimap< std::string, std::string > streamMap

std::vector< std::string > m_Rstream

std::vector< std::string > m_Wstream

std::set< std::string > m_alreadyConnectedInFiles
 list of already connected files. More...

std::set< std::string > m_alreadyConnectedOutFiles
 list of already connected files. More...

hlist_t m_hlist

uidMap_t m_uids

idMap_t m_ids

objMap_t m_tobjs

std::map< std::string, std::pair< TFile *, Mode > > m_files

streamMap m_fileStreams

std::map< std::string, std::string > m_sharedFiles


Additional Inherited Members

- Public Types inherited from extends< Service, ITHistSvc, IIncidentListener, IIoComponent >
using base_class = extends
 Typedef to this class. More...

using extend_interfaces_base = extend_interfaces< Interfaces... >
 Typedef to the base of this class. More...

- Public Types inherited from Service
using Factory = Gaudi::PluginService::Factory< IService *(const std::string &, ISvcLocator *)>

- Public Types inherited from PropertyHolder< CommonMessaging< implements< IService, IProperty, IStateful > > >
using PropertyHolderImpl = PropertyHolder< CommonMessaging< implements< IService, IProperty, IStateful > > >
 Typedef used to refer to this class from derived classes, as in. More...

- Public Types inherited from CommonMessaging< implements< IService, IProperty, IStateful > >
using base_class = CommonMessaging

- Public Types inherited from extend_interfaces< Interfaces... >
using ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids... >::type
 take union of the ext_iids of all Interfaces... More...

- Protected Member Functions inherited from Service
std::vector< IAlgTool * > & tools ()

 ~Service () override
 Standard Destructor
More...

int outputLevel () const
 get the Service's output level More...

- Protected Member Functions inherited from CommonMessaging< implements< IService, IProperty, IStateful > >
MSG::Level setUpMessaging () const
 Set up local caches. More...

MSG::Level resetMessaging ()
 Reinitialize internal states. More...

void updateMsgStreamOutputLevel (int level)
 Update the output level of the cached MsgStream. More...

- Protected Attributes inherited from Service
Gaudi::StateMachine::State m_state = Gaudi::StateMachine::OFFLINE
 Service state
More...

Gaudi::StateMachine::State m_targetState = Gaudi::StateMachine::OFFLINE
 Service state
More...

Gaudi::Property< int > m_outputLevel { this, "OutputLevel", MSG::NIL, "output level" }
 flag indicating whether ToolHandle tools have been added to m_tools More...

Gaudi::Property< bool > m_auditInit { this, "AuditServices", false, "[[deprecated]] unused" }

Gaudi::Property< bool > m_auditorInitialize { this, "AuditInitialize", false, "trigger auditor on initialize()" }

Gaudi::Property< bool > m_auditorStart { this, "AuditStart", false, "trigger auditor on start()" }

Gaudi::Property< bool > m_auditorStop { this, "AuditStop", false, "trigger auditor on stop()" }

Gaudi::Property< bool > m_auditorFinalize { this, "AuditFinalize", false, "trigger auditor on finalize()" }

Gaudi::Property< bool > m_auditorReinitialize { this, "AuditReinitialize", false, "trigger auditor on reinitialize()" }

Gaudi::Property< bool > m_auditorRestart { this, "AuditRestart", false, "trigger auditor on restart()" }

Gaudi::Property< bool > m_autoRetrieveTools

Gaudi::Property< bool > m_checkToolDeps

SmartIF< IAuditorSvc > m_pAuditorSvc
 Auditor Service
More...


Detailed Description

Definition at line 41 of file THistSvc.h.

Member Typedef Documentation

◆ histMut_t

typedef std::mutex THistSvc::histMut_t
private

Definition at line 206 of file THistSvc.h.

◆ hlist_t

typedef std::list<vhid_t*> THistSvc::hlist_t
private

Definition at line 286 of file THistSvc.h.

◆ idMap_t

typedef std::unordered_multimap<std::string, vhid_t*> THistSvc::idMap_t
private

Definition at line 290 of file THistSvc.h.

◆ objMap_t

typedef std::unordered_map<TObject*, std::pair<vhid_t*, size_t> > THistSvc::objMap_t
private

Definition at line 291 of file THistSvc.h.

◆ streamMap

typedef std::multimap<std::string, std::string> THistSvc::streamMap
private

Definition at line 301 of file THistSvc.h.

◆ THistSvcMutex_t

typedef std::recursive_mutex THistSvc::THistSvcMutex_t
private

Definition at line 205 of file THistSvc.h.

◆ uidMap_t

typedef std::unordered_map<std::string, vhid_t*> THistSvc::uidMap_t
private

Definition at line 288 of file THistSvc.h.

◆ vhid_t

typedef std::vector<THistID> THistSvc::vhid_t
private

Definition at line 284 of file THistSvc.h.

Member Enumeration Documentation

◆ Mode

enum THistSvc::Mode
private

Enumerating all possible file access modes.

Enumerator
READ
WRITE
UPDATE
APPEND
SHARE
INVALID

Definition at line 222 of file THistSvc.h.

222 { READ, WRITE, UPDATE, APPEND, SHARE, INVALID };

◆ ObjectType

enum THistSvc::ObjectType
strongprivate

Possible TObject types.

Enumerator
UNKNOWN
TH1
TTREE
TGRAPH
TEFFICIENCY

Definition at line 225 of file THistSvc.h.

225 { UNKNOWN, TH1, TTREE, TGRAPH, TEFFICIENCY };

Member Function Documentation

◆ changeDir()

TDirectory * THistSvc::changeDir ( const THistSvc::THistID &  hid) const
private

Definition at line 1746 of file THistSvc.cpp.

1746  {
1747  std::string uid = hid.id;
1748  TFile* file = hid.file;
1749  std::string stream, fdir, bdir, dir, id;
1750
1751  if ( file ) {
1752  file->cd( "/" );
1753  } else {
1754  gROOT->cd();
1755  }
1756
1757  fdir = uid;
1758  bdir = stripDirectoryName( fdir );
1759
1760  while ( ( dir = stripDirectoryName( fdir ) ) != "" ) {
1761  if ( !gDirectory->GetKey( dir.c_str() ) ) { gDirectory->mkdir( dir.c_str() ); }
1762  gDirectory->cd( dir.c_str() );
1763  }
1764
1765  return gDirectory;
1766 }

◆ charToMode()

static Mode THistSvc::charToMode ( const char  typ)
inlinestaticprivate

Convert a char to a Mode enum.

Definition at line 228 of file THistSvc.h.

228  {
229  switch ( typ ) {
230  case 'O':
231  return READ;
232  case 'A':
233  return APPEND;
234  case 'R':
235  return UPDATE;
236  case 'S':
237  return SHARE;
238  default:
239  return INVALID;
240  }
241  }

◆ connect()

StatusCode THistSvc::connect ( const std::string &  ident)
private

Definition at line 1569 of file THistSvc.cpp.

1569  {
1570  auto loc = ident.find( " " );
1571  std::string stream = ident.substr( 0, loc );
1572  char typ( 0 );
1573  typedef std::pair<std::string, std::string> Prop;
1574  std::vector<Prop> props;
1575  std::string filename, db_typ( "ROOT" );
1576  int cl( 1 );
1577
1578  if ( loc != std::string::npos ) {
1579  using Parser = Gaudi::Utils::AttribStringParser;
1580  for ( auto attrib : Parser( ident.substr( loc + 1 ) ) ) {
1581  auto TAG = boost::algorithm::to_upper_copy( attrib.tag );
1582  auto VAL = boost::algorithm::to_upper_copy( attrib.value );
1583
1584  if ( TAG == "FILE" || TAG == "DATAFILE" ) {
1585  filename = attrib.value;
1586  removeDoubleSlash( filename );
1587  } else if ( TAG == "OPT" ) {
1588  if ( VAL == "APPEND" || VAL == "UPDATE" ) {
1589  typ = 'A';
1590  } else if ( VAL == "CREATE" || VAL == "NEW" || VAL == "WRITE" ) {
1591  typ = 'N';
1592  } else if ( VAL == "RECREATE" ) {
1593  typ = 'R';
1594  } else if ( VAL == "SHARE" ) {
1595  typ = 'S';
1596  } else if ( VAL == "OLD" || VAL == "READ" ) {
1597  typ = 'O';
1598  } else {
1599  error() << "Unknown OPT: \"" << attrib.value << "\"" << endmsg;
1600  typ = 0;
1601  }
1602  } else if ( TAG == "TYP" ) {
1603  db_typ = std::move( attrib.value );
1604  } else if ( TAG == "CL" ) {
1605  cl = std::stoi( attrib.value );
1606  } else {
1607  props.emplace_back( attrib.tag, attrib.value );
1608  }
1609  }
1610  }
1611
1612  if ( stream == "temp" ) {
1613  error() << "in JobOption \"" << ident << "\": stream name \"temp\" reserved." << endmsg;
1614  return StatusCode::FAILURE;
1615  }
1616
1617  if ( db_typ != "ROOT" ) {
1618  error() << "in JobOption \"" << ident << "\": technology type \"" << db_typ << "\" not supported." << endmsg;
1619  return StatusCode::FAILURE;
1620  }
1621
1622  if ( m_files.find( stream ) != m_files.end() ) {
1623  error() << "in JobOption \"" << ident << "\":\n stream \"" << stream << "\" already connected to file: \""
1624  << m_files[stream].first->GetName() << "\"" << endmsg;
1625  return StatusCode::FAILURE;
1626  }
1627
1628  const auto newMode = charToMode( typ );
1629  if ( newMode == THistSvc::INVALID ) {
1630  error() << "No OPT= specified or unknown access mode in: " << ident << endmsg;
1631  return StatusCode::FAILURE;
1632  }
1633
1634  // Is this file already connected to another stream?
1635  if ( m_fileStreams.find( filename ) != m_fileStreams.end() ) {
1636  auto fitr = m_fileStreams.equal_range( filename );
1637
1638  const std::string& oldstream = fitr.first->second;
1639
1640  const auto& f_info = m_files[oldstream];
1641
1642  if ( newMode != f_info.second ) {
1643  error() << "in JobOption \"" << ident << "\":\n file \"" << filename << "\" already opened by stream: \""
1644  << oldstream << "\" with different access mode." << endmsg;
1645  return StatusCode::FAILURE;
1646  } else {
1647  TFile* f2 = f_info.first;
1648  m_files[stream] = std::make_pair( f2, newMode );
1649  if ( msgLevel( MSG::DEBUG ) )
1650  debug() << "Connecting stream: \"" << stream << "\" to previously opened TFile: \"" << filename << "\""
1651  << endmsg;
1652  return StatusCode::SUCCESS;
1653  }
1654  }
1655
1656  IIncidentSvc* pi = nullptr;
1657  if ( service( "IncidentSvc", pi ).isFailure() ) {
1658  error() << "Unable to get the IncidentSvc" << endmsg;
1659  return StatusCode::FAILURE;
1660  }
1661
1662  void* vf = nullptr;
1663  TFile* f = nullptr;
1664
1665  if ( newMode == THistSvc::READ ) {
1666  // old file
1667  int r = p_fileMgr->open( Io::ROOT, name(), filename, Io::READ, vf, "HIST" );
1668
1669  if ( r != 0 ) {
1670  error() << "Unable to open ROOT file " << filename << " for reading" << endmsg;
1671  return StatusCode::FAILURE;
1672  }
1673
1674  f = (TFile*)vf;
1675
1676  // FIX ME!
1677  pi->fireIncident( FileIncident( name(), "BeginHistFile", filename ) );
1678
1679  } else if ( newMode == THistSvc::WRITE ) {
1680  // new file. error if file exists
1681  int r = p_fileMgr->open( Io::ROOT, name(), filename, ( Io::WRITE | Io::CREATE | Io::EXCL ), vf, "HIST" );
1682
1683  if ( r != 0 ) {
1684  error() << "Unable to open ROOT file " << filename << " for writing" << endmsg;
1685  return StatusCode::FAILURE;
1686  }
1687
1688  f = (TFile*)vf;
1689
1690  } else if ( newMode == THistSvc::APPEND ) {
1691  // update file
1692  int r = p_fileMgr->open( Io::ROOT, name(), filename, ( Io::WRITE | Io::APPEND ), vf, "HIST" );
1693  if ( r != 0 ) {
1694  error() << "unable to open file \"" << filename << "\" for appending" << endmsg;
1695  return StatusCode::FAILURE;
1696  }
1697
1698  f = (TFile*)vf;
1699
1700  } else if ( newMode == THistSvc::SHARE ) {
1701  // SHARE file type
1702  // For SHARE files, all data will be stored in a temp file and will be
1703  // merged into the target file in writeObjectsToFile() when finalize(),
1704  // this help to solve some confliction. e.g. with storegate
1705  static int ishared = 0;
1706  std::string realfilename = filename;
1707  filename = "tmp_THistSvc_" + std::to_string( ishared++ ) + ".root";
1708
1709  if ( msgLevel( MSG::DEBUG ) ) {
1710  debug() << "Creating temp file \"" << filename << "\" and realfilename=" << realfilename << endmsg;
1711  }
1712  m_sharedFiles[stream] = realfilename;
1713
1714  int r = p_fileMgr->open( Io::ROOT, name(), filename, ( Io::WRITE | Io::CREATE | Io::EXCL ), vf, "HIST" );
1715
1716  if ( r != 0 ) {
1717  error() << "Unable to open ROOT file " << filename << " for writing" << endmsg;
1718  return StatusCode::FAILURE;
1719  }
1720
1721  f = (TFile*)vf;
1722
1723  } else if ( newMode == THistSvc::UPDATE ) {
1724  // update file
1725  int r = p_fileMgr->open( Io::ROOT, name(), filename, ( Io::WRITE | Io::CREATE ), vf, "HIST" );
1726
1727  if ( r != 0 ) {
1728  error() << "Unable to open ROOT file " << filename << " for appending" << endmsg;
1729  return StatusCode::FAILURE;
1730  }
1731
1732  f = (TFile*)vf;
1733  }
1734
1735  m_files[stream] = std::make_pair( f, newMode );
1736  m_fileStreams.insert( std::make_pair( filename, stream ) );
1737
1738  if ( msgLevel( MSG::DEBUG ) ) {
1739  debug() << "Opening TFile \"" << filename << "\" stream: \"" << stream << "\" mode: \"" << typ << "\""
1740  << " comp level: " << cl << endmsg;
1741  }
1742
1743  return StatusCode::SUCCESS;
1744 }

◆ copyFileLayout()

void THistSvc::copyFileLayout ( TDirectory *  destination,
TDirectory *  source
)
private

helper function to recursively copy the layout of a TFile into a new TFile

Definition at line 1929 of file THistSvc.cpp.

1929  {
1930  if ( msgLevel( MSG::DEBUG ) ) {
1931  debug() << "copyFileLayout() to destination path: " << destination->GetPath() << endmsg;
1932  }
1933
1934  // strip out URLs
1935  TString path( (char*)strstr( destination->GetPath(), ":" ) );
1936  path.Remove( 0, 2 );
1937
1938  source->cd( path );
1939  TDirectory* current_source_dir = gDirectory;
1940
1941  // loop over all keys in this directory
1942  TList* key_list = current_source_dir->GetListOfKeys();
1943  int n = key_list->GetEntries();
1944  for ( int j = 0; j < n; ++j ) {
1945  TKey* k = (TKey*)key_list->At( j );
1946  const std::string source_pathname = current_source_dir->GetPath() + std::string( "/" ) + k->GetName();
1947  TObject* o = source->Get( source_pathname.c_str() );
1948
1949  if ( o && o->IsA()->InheritsFrom( "TDirectory" ) ) {
1950  if ( msgLevel( MSG::VERBOSE ) ) { verbose() << " subdir [" << o->GetName() << "]..." << endmsg; }
1951  destination->cd();
1952  // Create directory if it does not exist yet
1953  TDirectory* destination_dir = destination->mkdir( o->GetName(), o->GetTitle() );
1954  if ( destination_dir == nullptr ) destination_dir = destination->GetDirectory( o->GetName() );
1955  copyFileLayout( destination_dir, source );
1956  }
1957  } // loop over keys
1958  return;
1959 }

◆ deReg() [1/2]

StatusCode THistSvc::deReg ( const std::string &  name)
override

Deregister object with given name and give up ownership (without deletion!)

Definition at line 570 of file THistSvc.cpp.

570  {
571  auto itr = m_uids.find( id );
572  if ( itr == m_uids.end() ) {
573  error() << "Problem deregistering id \"" << id << "\": not found in registry" << endmsg;
574  return StatusCode::FAILURE;
575  }
576
577  vhid_t* vh = itr->second;
578
579  if ( msgLevel( MSG::DEBUG ) ) {
580  debug() << "will deregister " << vh->size() << " elements of id \"" << id << "\"" << endmsg;
581  }
582  StatusCode sc( StatusCode::SUCCESS );
583  // vh will get deleted in deReg once empty, so we cannot query the list size in the loop
584  size_t vh_size = vh->size();
585  while ( vh_size-- ) {
586  if ( deReg( vh->back().obj ).isFailure() ) {
587  sc = StatusCode::FAILURE;
588  error() << "Problems deRegistering " << vh->size() << " element of id \"" << id << "\"" << endmsg;
589  break;
590  }
591  }
592
593  return sc;
594 }

◆ deReg() [2/2]

StatusCode THistSvc::deReg ( TObject *  obj)
override

Deregister obejct identified by TObject* and give up ownership (without deletion!)

Definition at line 596 of file THistSvc.cpp.

596  {
597  objMap_t::iterator obj_itr = m_tobjs.find( obj );
598  if ( obj_itr != m_tobjs.end() ) {
599  vhid_t* vhid = obj_itr->second.first;
600  THistID hid = obj_itr->second.first->at( obj_itr->second.second );
601
602  auto uid_itr = m_uids.find( hid.id );
603  if ( uid_itr == m_uids.end() ) {
604  error() << "Problems deregistering TObject \"" << obj->GetName() << "\" with id \"" << hid.id
605  << "\": not in uidMap" << endmsg;
606  return StatusCode::FAILURE;
607  }
608
609  if ( vhid->size() == 1 ) {
610  // We are the last object, so we have to delete vhid properly
611  if ( msgLevel( MSG::DEBUG ) ) { debug() << "vhid for " << hid.id << " is empty. deleting" << endmsg; }
612
613  std::string root, rem;
614  parseString( hid.id, root, rem );
615
616  auto mitr = m_ids.equal_range( rem );
617  auto id_itr = std::find_if( mitr.first, mitr.second,
618  [&]( idMap_t::const_reference i ) { return i.second->at( 0 ).obj == obj; } );
619  if ( id_itr == mitr.second ) {
620  error() << "Problems deregistering TObject \"" << obj->GetName() << "\" with id \"" << hid.id
621  << "\": not in idMap" << endmsg;
622  return StatusCode::FAILURE;
623  }
624
625  auto hlist_itr = std::find( m_hlist.begin(), m_hlist.end(), vhid );
626  if ( hlist_itr == m_hlist.end() ) {
627  error() << "Problems deregistering TObject \"" << obj->GetName() << "\" with id \"" << hid.id
628  << "\": not in hlist" << endmsg;
629  return StatusCode::FAILURE;
630  }
631
632  vhid->erase( vhid->begin() + obj_itr->second.second );
633  m_tobjs.erase( obj_itr );
634
635  m_uids.erase( uid_itr );
636  m_ids.erase( id_itr );
637  m_hlist.erase( hlist_itr );
638
639  delete vhid;
640
641  } else if ( vhid->size() > 1 ) {
642  m_tobjs.erase( obj_itr );
643  vhid->erase( vhid->begin() + obj_itr->second.second );
644
645  // vector of THistID is still not empty (i.e. other instances with same name registered)
646  } else {
647  error() << "Deregistration failed unexpectedly. (bug in THistSvc?)" << endmsg;
648  }
649  return StatusCode::SUCCESS;
650  } else {
651  error() << "Cannot unregister TObject \"" << obj->GetName() << "\": not known to THistSvc" << endmsg;
652  return StatusCode::FAILURE;
653  }
654 }

◆ dump()

void THistSvc::dump ( ) const
private

Definition at line 2006 of file THistSvc.cpp.

2006  {
2007  std::ostringstream ost;
2008
2009  // list< vector<THistID> >
2010  ost << "m_hlist: size: " << m_hlist.size() << "\n";
2011  for ( auto& vh : m_hlist ) {
2012  ost << " - " << vh->at( 0 ) << " :: [" << vh << "] " << vh->size() << " {";
2013  for ( auto& e : *vh ) {
2014  TObject* o = e.obj;
2015  ost << "[" << o << "]";
2016  }
2017  ost << "}\n";
2018  }
2019
2020  // map uid -> vector<THistID>*
2021  ost << "\n"
2022  << "m_uids: " << m_uids.size() << "\n";
2023  for ( auto& e : m_uids ) { ost << " - " << e.first << " [" << e.second << "]" << std::endl; }
2024
2025  // multimap id -> vector<THistID>*
2026  ost << "\n"
2027  << "m_ids: " << m_ids.size() << "\n";
2028  for ( auto& e : m_ids ) { ost << " - " << e.first << " [" << e.second << "]" << std::endl; }
2029
2030  // map TObject* -> THistID*
2031  ost << "\n"
2032  << "m_tobjs: " << m_tobjs.size() << "\n";
2033  for ( auto& e : m_tobjs ) {
2034  TObject* o = e.first;
2035  THistID& i = e.second.first->at( e.second.second );
2036  ost << " - " << o << " -> " << i << std::endl;
2037  }
2038
2039  debug() << "dumping THistSvc contents\n" << ost.str() << endmsg;
2040 }

◆ exists()

bool THistSvc::exists ( const std::string &  name) const
override

Check if object with given name is managed by THistSvcMT exists calls existsHist and only works for TH1-descendants.

Definition at line 676 of file THistSvc.cpp.

676 { return existsHist( name ); }

◆ existsEfficiency()

bool THistSvc::existsEfficiency ( const std::string &  name) const
override

Check if TEfficiency with given name is managed by THistSvcMT.

Definition at line 680 of file THistSvc.cpp.

680  {
681  return ( getHist_i<TEfficiency>( name, 0, true ) != nullptr );
682 }

◆ existsGraph()

bool THistSvc::existsGraph ( const std::string &  name) const
override

Check if graph with given name is managed by THistSvcMT.

Definition at line 684 of file THistSvc.cpp.

684  {
685  return ( getHist_i<TGraph>( name, 0, true ) != nullptr );
686 }

◆ existsHist()

bool THistSvc::existsHist ( const std::string &  name) const
override

Check if histogram with given name is managed by THistSvcMT.

Definition at line 678 of file THistSvc.cpp.

678 { return ( getHist_i<TH1>( name, 0, true ) != nullptr ); }

◆ existsTree()

bool THistSvc::existsTree ( const std::string &  name) const
override

Check if tree with given name is managed by THistSvcMT.

Definition at line 688 of file THistSvc.cpp.

688 { return ( getHist_i<TTree>( name, 0, true ) != nullptr ); }

◆ finalize()

StatusCode THistSvc::finalize ( )
override

Definition at line 190 of file THistSvc.cpp.

190  {
191  GlobalDirectoryRestore restore( m_svcMut );
192
193  if ( msgLevel( MSG::DEBUG ) ) {
194  dump();
195  debug() << "THistSvc::finalize" << endmsg;
196  }
197
198 #ifndef NDEBUG
199  if ( msgLevel( MSG::DEBUG ) ) {
200  const std::map<uidMap_t::key_type, uidMap_t::mapped_type> sorted_uids{ begin( m_uids ), end( m_uids ) };
201  for ( const auto& itr : sorted_uids ) {
202  THistID& thid = itr.second->at( 0 );
203  TObject* tobj = thid.obj;
204
205  std::string dirname( "none" );
206  if ( tobj && thid.type == ObjectType::TTREE ) {
207  TTree* tree = dynamic_cast<TTree*>( tobj );
208  if ( tree->GetDirectory() != 0 ) { dirname = tree->GetDirectory()->GetPath(); }
209  } else if ( tobj && thid.type == ObjectType::TGRAPH ) {
210  if ( !thid.temp ) {
211  dirname = thid.file->GetPath();
212  std::string id2( thid.id );
213  id2.erase( 0, id2.find( "/", 1 ) );
214  id2.erase( id2.rfind( "/" ), id2.length() );
215  if ( id2.find( "/" ) == 0 ) { id2.erase( 0, 1 ); }
216  dirname += id2;
217  } else {
218  dirname = "/tmp";
219  }
220  } else if ( tobj && thid.type == ObjectType::TH1 ) {
221  TH1* th = dynamic_cast<TH1*>( tobj );
222  if ( th == nullptr ) {
223  error() << "Couldn't dcast: " << itr.first << endmsg;
224  } else {
225  if ( th->GetDirectory() != 0 ) { dirname = th->GetDirectory()->GetPath(); }
226  }
227  } else if ( !tobj ) {
228  warning() << itr.first << " has NULL TObject ptr" << endmsg;
229  }
230  debug() << "finalize: " << thid << endmsg;
231  }
232  }
233 #endif
234
235  if ( writeObjectsToFile().isFailure() ) { error() << "problems writing histograms" << endmsg; }
236
237  if ( m_print ) { info() << "Listing contents of ROOT files: " << endmsg; }
238  std::vector<TFile*> deleted_files;
239  for ( auto& itr : m_files ) {
240  if ( std::find( deleted_files.begin(), deleted_files.end(), itr.second.first ) == deleted_files.end() ) {
241  deleted_files.push_back( itr.second.first );
242
243 #ifndef NDEBUG
244  if ( msgLevel( MSG::DEBUG ) ) {
245  debug() << "finalizing stream/file " << itr.first << ":" << itr.second.first->GetName() << endmsg;
246  }
247 #endif
248  } else {
249 #ifndef NDEBUG
250  if ( msgLevel( MSG::DEBUG ) ) { debug() << "already finalized stream " << itr.first << endmsg; }
251 #endif
252  continue;
253  }
254
255  if ( m_print && msgLevel( MSG::INFO ) ) {
256  info() << "==> File: " << itr.second.first->GetName() << " stream: " << itr.first << endmsg;
257
258  itr.second.first->Print( "base" );
259  }
260
261  std::string tmpfn = itr.second.first->GetName();
262
263  p_fileMgr->close( itr.second.first, name() );
264
265  IIncidentSvc* pIncidentSvc = nullptr;
266  if ( service( "IncidentSvc", pIncidentSvc ).isFailure() ) {
267  error() << "Unable to get the IncidentSvc" << endmsg;
268  return StatusCode::FAILURE;
269  }
270
271  if ( itr.second.second == SHARE ) {
272  // Merge File
273  void* vfile = nullptr;
274  int returncode =
275  p_fileMgr->open( Io::ROOT, name(), m_sharedFiles[itr.first], Io::WRITE | Io::APPEND, vfile, "HIST" );
276
277  if ( returncode ) {
278  error() << "unable to open Final Output File: \"" << m_sharedFiles[itr.first] << "\" for merging" << endmsg;
279  return StatusCode::FAILURE;
280  }
281
282  TFile* outputfile = (TFile*)vfile;
283  pIncidentSvc->fireIncident( FileIncident( name(), IncidentType::WroteToOutputFile, m_sharedFiles[itr.first] ) );
284
285  if ( msgLevel( MSG::DEBUG ) ) { debug() << "THistSvc::writeObjectsToFile()::Merging Rootfile " << endmsg; }
286
287  vfile = nullptr;
288  returncode = p_fileMgr->open( Io::ROOT, name(), tmpfn, Io::READ, vfile, "HIST" );
289
290  if ( returncode ) {
291  error() << "unable to open temporary file: \"" << tmpfn << endmsg;
292  return StatusCode::FAILURE;
293  }
294
295  TFile* inputfile = (TFile*)vfile;
296
297  outputfile->SetCompressionLevel( inputfile->GetCompressionLevel() );
298
299  MergeRootFile( outputfile, inputfile );
300
301  outputfile->Write();
302  p_fileMgr->close( outputfile, name() );
303  p_fileMgr->close( inputfile, name() );
304
305  if ( msgLevel( MSG::DEBUG ) ) { debug() << "Trying to remove temporary file \"" << tmpfn << "\"" << endmsg; }
306
307  std::remove( tmpfn.c_str() );
308  }
309  delete itr.second.first;
310  }
311
312  m_files.clear();
313  m_sharedFiles.clear();
314  m_fileStreams.clear();
315  m_hlist.clear(); // vhid* is deleted in m_tobjs
316  m_uids.clear(); // vhid* is deleted in m_tobjs
317  m_ids.clear(); // vhid* is deleted in m_tobjs
318
319  for ( auto& obj : m_tobjs ) {
320  // TObject*'s are already dealt with through root file i/o
321  // only delete vector if this object is index 0
322  if ( obj.second.second == 0 ) {
323  delete obj.second.first; // delete vhid*
324  }
325  }
326  m_tobjs.clear();
327
328  return Service::finalize();
329 }

◆ findHistID()

size_t THistSvc::findHistID ( const std::string &  id,
const THistID *&  hid,
const size_t &  index = 0
) const
private

Definition at line 1961 of file THistSvc.cpp.

1961  {
1962  GlobalDirectoryRestore restore( m_svcMut );
1963
1964  std::string idr( id );
1965  removeDoubleSlash( idr );
1966
1967  hid = 0;
1968
1969  if ( idr.find( "/" ) == 0 ) {
1970  // fully specified name, starts with "/"
1971  auto itr = m_uids.find( idr );
1972  if ( itr == m_uids.end() ) {
1973  // no matches found
1974  return 0;
1975  } else {
1976  // one or more matches found (clones).
1977  if ( index >= itr->second->size() ) {
1978  error() << "no index " << index << " found for Hist " << idr << endmsg;
1979  return 0;
1980  }
1981  hid = &( itr->second->at( index ) );
1982  return 1;
1983  }
1984  } else {
1985  // name not fully specified.
1986  auto mitr = m_ids.equal_range( idr );
1987  if ( mitr.first == mitr.second ) {
1988  // not found
1989  return 0;
1990  } else if ( distance( mitr.first, mitr.second ) == 1 ) {
1991  // one found
1992  if ( index >= mitr.first->second->size() ) {
1993  error() << "no index " << index << " found for Hist " << idr << endmsg;
1994  return 0;
1995  }
1996  hid = &( mitr.first->second->at( 0 ) );
1997  return 1;
1998  } else {
1999  // multiple matches
2000  hid = &( mitr.first->second->at( 0 ) );
2001  return distance( mitr.first, mitr.second );
2002  }
2003  }
2004 }

◆ findStream()

bool THistSvc::findStream ( const std::string &  name,
std::string &  root,
std::string &  rem,
TFile *&  file
) const
private

Definition at line 1835 of file THistSvc.cpp.

1835  {
1836  auto pos = id.find( "/" );
1837
1838  if ( pos == std::string::npos ) {
1839  // no "/" in id
1840  stream = "temp";
1841  rem = id;
1842  } else if ( pos != 0 ) {
1843  // id does not start with "/"
1844  stream = "temp";
1845  rem = id;
1846  } else {
1847  // id starts with "/"
1848
1849  auto pos2 = id.find( "/", pos + 1 );
1850
1851  if ( pos2 == std::string::npos ) {
1852  // need at least 2 "/" in format "/STREAM/name" or "/STREAM/dir/name"
1853  error() << "badly formed Hist/Tree id: \"" << id << "\"" << endmsg;
1854  return false;
1855  }
1856  parseString( id, stream, rem );
1857  }
1858
1859  if ( stream == "temp" ) {
1860  file = nullptr;
1861  return true;
1862  }
1863
1864  auto itr = m_files.find( stream );
1865  file = ( itr != m_files.end() ? itr->second.first : nullptr );
1866  if ( !file ) { warning() << "no stream \"" << stream << "\" associated with id: \"" << id << "\"" << endmsg; }
1867
1868  return true;
1869 }

◆ getEfficiencies()

std::vector< std::string > THistSvc::getEfficiencies ( ) const
override

Definition at line 714 of file THistSvc.cpp.

714  {
715  std::vector<std::string> names;
716  names.reserve( m_uids.size() );
717  transform_if( std::begin( m_uids ), std::end( m_uids ), std::back_inserter( names ), select1st,
718  []( uidMap_t::const_reference i ) { return i.second->at( 0 ).type == ObjectType::TEFFICIENCY; } );
719  return names;
720 }

◆ getEfficiency()

StatusCode THistSvc::getEfficiency ( const std::string &  name,
TEfficiency *&  eff
) const
override

Return TEfficiency with given name.

Definition at line 470 of file THistSvc.cpp.

470  {
471  eff = getHist_i<TEfficiency>( id );
472  if ( eff != nullptr ) {
473  return StatusCode::SUCCESS;
474  } else {
475  return StatusCode::FAILURE;
476  }
477 }

◆ getGraph()

StatusCode THistSvc::getGraph ( const std::string &  name,
TGraph *&  graph
) const
override

Return TGraph with given name.

Definition at line 447 of file THistSvc.cpp.

447  {
448  graph = getHist_i<TGraph>( id );
449  if ( graph != nullptr ) {
450  return StatusCode::SUCCESS;
451  } else {
452  return StatusCode::FAILURE;
453  }
454 }

◆ getGraphs()

std::vector< std::string > THistSvc::getGraphs ( ) const
override

Definition at line 706 of file THistSvc.cpp.

706  {
707  std::vector<std::string> names;
708  names.reserve( m_uids.size() );
709  transform_if( std::begin( m_uids ), std::end( m_uids ), std::back_inserter( names ), select1st,
710  []( uidMap_t::const_reference i ) { return i.second->at( 0 ).type == ObjectType::TGRAPH; } );
711  return names;
712 }

◆ getHist() [1/3]

StatusCode THistSvc::getHist ( const std::string &  name,
TH1 *&  hist,
size_t  index = 0
) const
override

Return histogram with given name as TH1*, THistSvcMT still owns object.

Definition at line 353 of file THistSvc.cpp.

353  {
354  hist = getHist_i<TH1>( id, ind );
355  if ( hist != nullptr ) {
356  return StatusCode::SUCCESS;
357  } else {
358  return StatusCode::FAILURE;
359  }
360 }

◆ getHist() [2/3]

StatusCode THistSvc::getHist ( const std::string &  name,
TH2 *&  hist,
size_t  index = 0
) const
override

Return histogram with given name as TH2*, THistSvcMT still owns object.

Definition at line 362 of file THistSvc.cpp.

362  {
363  hist = getHist_i<TH2>( id, ind );
364  if ( hist != nullptr ) {
365  return StatusCode::SUCCESS;
366  } else {
367  return StatusCode::FAILURE;
368  }
369 }

◆ getHist() [3/3]

StatusCode THistSvc::getHist ( const std::string &  name,
TH3 *&  hist,
size_t  index = 0
) const
override

Return histogram with given name as TH3*, THistSvcMT still owns object.

Definition at line 371 of file THistSvc.cpp.

371  {
372  hist = getHist_i<TH3>( id, ind );
373  if ( hist != nullptr ) {
374  return StatusCode::SUCCESS;
375  } else {
376  return StatusCode::FAILURE;
377  }
378 }

◆ getHist_i()

template<typename T >
T * THistSvc::getHist_i ( const std::string &  name,
const size_t &  ind = 0,
bool  quiet = false
) const
private

Definition at line 189 of file THistSvc.icc.

189  {
190  // id starts with "/": unique
191
192  GlobalDirectoryRestore restore( m_svcMut );
193
194  T* hist = nullptr;
195  const THistID* hid = nullptr;
196  size_t num = findHistID( id, hid, ind );
197  if ( num == 0 ) {
198  // no matches found
199  if ( !quiet ) { error() << "could not locate Hist with id \"" << id << "\"" << endmsg; }
200  return nullptr;
201  } else if ( num > 1 ) {
202  if ( !quiet ) {
203  // return failure if trying to GET a single hist
204  error() << "Multiple matches with id \"" << id << "\"."
205  << " Further specifications required." << endmsg;
206  return nullptr;
207  } else {
208  info() << "Found multiple matches with id \"" << id << "\"" << endmsg;
209  // return first match if just INQUIRING (i.e. != nullptr)
210  hist = dynamic_cast<T*>( hid->obj );
211  if ( hist == nullptr ) {
212  error() << "dcast failed, Hist id: \"" << id << "\"" << endmsg;
213  return nullptr;
214  }
215  }
216  } else {
217  hist = dynamic_cast<T*>( hid->obj );
218  if ( hist == nullptr ) {
219  error() << "dcast failed, Hist id: \"" << id << "\"" << endmsg;
220  return nullptr;
221  }
222  if ( msgLevel( MSG::VERBOSE ) ) {
223  verbose() << "found unique Hist title: \"" << hist->GetTitle() << "\" id: \"" << id << "\"" << endmsg;
224  }
225  }
226
227  return hist;
228 }

◆ getHists()

std::vector< std::string > THistSvc::getHists ( ) const
override

Definition at line 690 of file THistSvc.cpp.

690  {
691  std::vector<std::string> names;
692  names.reserve( m_uids.size() );
693  transform_if( std::begin( m_uids ), std::end( m_uids ), std::back_inserter( names ), select1st,
694  []( uidMap_t::const_reference i ) { return i.second->at( 0 ).type == ObjectType::TH1; } );
695  return names;
696 }

◆ getShared() [1/5]

StatusCode THistSvc::getShared ( const std::string &  name,
LockedHandle< TEfficiency > &  lh
) const
override

Retrieve shared object with given name as TEfficiency through LockedHandle.

Definition at line 561 of file THistSvc.cpp.

561  {
562  lh = getShared_i<TEfficiency>( name );
563  if ( lh ) {
564  return StatusCode::SUCCESS;
565  } else {
566  return StatusCode::FAILURE;
567  }
568 }

◆ getShared() [2/5]

StatusCode THistSvc::getShared ( const std::string &  name,
LockedHandle< TGraph > &  lh
) const
override

Retrieve shared object with given name as TGraph through LockedHandle.

Definition at line 552 of file THistSvc.cpp.

552  {
553  lh = getShared_i<TGraph>( name );
554  if ( lh ) {
555  return StatusCode::SUCCESS;
556  } else {
557  return StatusCode::FAILURE;
558  }
559 }

◆ getShared() [3/5]

StatusCode THistSvc::getShared ( const std::string &  name,
LockedHandle< TH1 > &  lh
) const
override

Retrieve shared object with given name as TH1 through LockedHandle.

Definition at line 525 of file THistSvc.cpp.

525  {
526  lh = getShared_i<TH1>( name );
527  if ( lh ) {
528  return StatusCode::SUCCESS;
529  } else {
530  return StatusCode::FAILURE;
531  }
532 }

◆ getShared() [4/5]

StatusCode THistSvc::getShared ( const std::string &  name,
LockedHandle< TH2 > &  lh
) const
override

Retrieve shared object with given name as TH2 through LockedHandle.

Definition at line 534 of file THistSvc.cpp.

534  {
535  lh = getShared_i<TH2>( name );
536  if ( lh ) {
537  return StatusCode::SUCCESS;
538  } else {
539  return StatusCode::FAILURE;
540  }
541 }

◆ getShared() [5/5]

StatusCode THistSvc::getShared ( const std::string &  name,
LockedHandle< TH3 > &  lh
) const
override

Retrieve shared object with given name as TH3 through LockedHandle.

Definition at line 543 of file THistSvc.cpp.

543  {
544  lh = getShared_i<TH3>( name );
545  if ( lh ) {
546  return StatusCode::SUCCESS;
547  } else {
548  return StatusCode::FAILURE;
549  }
550 }

◆ getShared_i()

template<typename T >
LockedHandle< T > THistSvc::getShared_i ( const std::string &  name) const
private

Definition at line 319 of file THistSvc.icc.

319  {
320  GlobalDirectoryRestore restore( m_svcMut );
321
322  const THistID* hid = nullptr;
323  size_t i = findHistID( name, hid );
324
325  LockedHandle<T> hist( nullptr, nullptr );
326
327  if ( i == 1 ) {
328  if ( !hid->shared ) {
329  error() << "getSharedHist: found Hist with id \"" << name << "\", but it's not marked as shared" << endmsg;
330  return hist;
331  }
332  T* h1 = dynamic_cast<T*>( hid->obj );
333  hist = LockedHandle<T>( h1, hid->mutex );
334
335  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getSharedHist: found THistID: " << *hid << endmsg; }
336  } else if ( i == 0 ) {
337  error() << "no histograms matching id \"" << name << "\" found" << endmsg;
338  } else {
339  info() << "multiple matches for id \"" << name << "\" found [" << i << "], probably from different streams"
340  << endmsg;
341  }
342  return hist;
343 }

◆ getTEfficiencies() [1/4]

StatusCode THistSvc::getTEfficiencies ( const std::string &  name,
TList &  tl,
bool  recurse = false
) const
override

Definition at line 1148 of file THistSvc.cpp.

1148  {
1149
1150  GlobalDirectoryRestore restore( m_svcMut );
1151
1152  gErrorIgnoreLevel = kBreak;
1153
1154  StatusCode sc;
1155
1156  std::string stream, rem, r2;
1157  parseString( dir, stream, rem );
1158
1159  auto itr = m_files.find( stream );
1160  if ( itr != m_files.end() ) {
1161  r2 = itr->second.first->GetName();
1162  r2 += ":/";
1163  r2 += rem;
1164
1165  if ( msgLevel( MSG::DEBUG ) ) {
1166  debug() << "getTEfficiencies: \"" << dir << "\" looks like a stream name."
1167  << " associated TFile: \"" << itr->second.first->GetName() << "\"" << endmsg;
1168  }
1169
1170  if ( gDirectory->cd( r2.c_str() ) ) {
1171  m_curstream = stream;
1172  sc = getTEfficiencies( gDirectory, tl, rcs );
1173  m_curstream = "";
1174  return sc;
1175  } else {
1176  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getTEfficiencies: no such TDirectory \"" << r2 << "\"" << endmsg; }
1177  }
1178
1179  } else {
1180  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getTEfficiencies: stream \"" << stream << "\" not found" << endmsg; }
1181  }
1182
1183  if ( !gDirectory->cd( dir.c_str() ) ) {
1184  error() << "getTEfficiencies: No such TDirectory/stream \"" << dir << "\"" << endmsg;
1185  sc = StatusCode::FAILURE;
1186  } else {
1187  sc = getTHists( gDirectory, tl, rcs );
1188  }
1189
1190  return sc;
1191 }

◆ getTEfficiencies() [2/4]

StatusCode THistSvc::getTEfficiencies ( const std::string &  name,
TList &  tl,
bool  recurse = false,
bool  reg = false
)
override

Definition at line 1256 of file THistSvc.cpp.

1256  {
1257  GlobalDirectoryRestore restore( m_svcMut );
1258
1259  gErrorIgnoreLevel = kBreak;
1260
1261  StatusCode sc;
1262
1263  std::string stream, rem, r2;
1264  parseString( dir, stream, rem );
1265
1266  auto itr = m_files.find( stream );
1267  if ( itr != m_files.end() ) {
1268  r2 = itr->second.first->GetName();
1269  r2 += ":/";
1270  r2 += rem;
1271
1272  if ( msgLevel( MSG::DEBUG ) ) {
1273  debug() << "getTEfficiencies: \"" << dir << "\" looks like a stream name."
1274  << " associated TFile: \"" << itr->second.first->GetName() << "\"" << endmsg;
1275  }
1276
1277  if ( gDirectory->cd( r2.c_str() ) ) {
1278  m_curstream = stream;
1279  sc = getTEfficiencies( gDirectory, tl, rcs, reg );
1280  m_curstream.clear();
1281  return sc;
1282  }
1283  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getTEfficiencies: no such TDirectory \"" << r2 << "\"" << endmsg; }
1284  } else {
1285  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getTEfficiencies: stream \"" << stream << "\" not found" << endmsg; }
1286  }
1287
1288  if ( !gDirectory->cd( dir.c_str() ) ) {
1289  error() << "getTEfficiencies: No such TDirectory/stream \"" << dir << "\"" << endmsg;
1290  sc = StatusCode::FAILURE;
1291  } else {
1292  if ( reg ) {
1293  warning() << "Unable to register histograms automatically "
1294  << "without a valid stream name" << endmsg;
1295  reg = false;
1296  }
1297  sc = getTEfficiencies( gDirectory, tl, rcs, reg );
1298  }
1299
1300  return sc;
1301 }

◆ getTEfficiencies() [3/4]

StatusCode THistSvc::getTEfficiencies ( TDirectory *  td,
TList &  tl,
bool  recurse = false
) const
override

Definition at line 1102 of file THistSvc.cpp.

1102  {
1103  GlobalDirectoryRestore restore( m_svcMut );
1104
1105  gErrorIgnoreLevel = kBreak;
1106
1107  if ( !td->cd() ) {
1108  error() << "getTEfficiencies: No such TDirectory \"" << td->GetPath() << "\"" << endmsg;
1109  return StatusCode::FAILURE;
1110  }
1111
1112  if ( msgLevel( MSG::DEBUG ) ) {
1113  debug() << "getTEfficiencies: \"" << td->GetPath() << "\": found " << td->GetListOfKeys()->GetSize() << " keys"
1114  << endmsg;
1115  }
1116
1117  TIter nextkey( td->GetListOfKeys() );
1118  while ( TKey* key = (TKey*)nextkey() ) {
1119  auto& log = debug();
1120  if ( msgLevel( MSG::DEBUG ) ) log << " key: " << key->GetName();
1121  TObject* obj = key->ReadObj();
1122  if ( obj != 0 && obj->IsA()->InheritsFrom( "TDirectory" ) ) {
1123  if ( msgLevel( MSG::DEBUG ) ) log << " (" << obj->IsA()->GetName() << ")";
1124  } else if ( obj != 0 && obj->IsA()->InheritsFrom( "TEfficiency" ) ) {
1125  if ( msgLevel( MSG::DEBUG ) ) log << " (" << obj->IsA()->GetName() << ")";
1126  tl.Add( obj );
1127  } else if ( obj != 0 ) {
1128  if ( msgLevel( MSG::DEBUG ) ) log << " [" << obj->IsA()->GetName() << "]";
1129  }
1130  if ( msgLevel( MSG::DEBUG ) ) log << endmsg;
1131  }
1132
1133  // operate recursively
1134  if ( rcs ) {
1135  nextkey = td->GetListOfKeys();
1136  while ( TKey* key = (TKey*)nextkey() ) {
1137  TObject* obj = key->ReadObj();
1138  if ( obj && obj->IsA()->InheritsFrom( "TDirectory" ) ) {
1139  TDirectory* tt = dynamic_cast<TDirectory*>( obj );
1140  getTHists( tt, tl, rcs ).ignore( /* AUTOMATICALLY ADDED FOR gaudi/Gaudi!763 */ );
1141  }
1142  }
1143  }
1144
1145  return StatusCode::SUCCESS;
1146 }

◆ getTEfficiencies() [4/4]

StatusCode THistSvc::getTEfficiencies ( TDirectory *  td,
TList &  tl,
bool  recurse = false,
bool  reg = false
)
override

Definition at line 1193 of file THistSvc.cpp.

1193  {
1194  GlobalDirectoryRestore restore( m_svcMut );
1195
1196  gErrorIgnoreLevel = kBreak;
1197
1198  if ( !td->cd() ) {
1199  error() << "getTEfficiencies: No such TDirectory \"" << td->GetPath() << "\"" << endmsg;
1200  return StatusCode::FAILURE;
1201  }
1202
1203  if ( msgLevel( MSG::DEBUG ) ) {
1204  debug() << "getTEfficiencies: \"" << td->GetPath() << "\": found " << td->GetListOfKeys()->GetSize() << " keys"
1205  << endmsg;
1206  }
1207
1208  TIter nextkey( td->GetListOfKeys() );
1209  while ( TKey* key = (TKey*)nextkey() ) {
1210  auto& log = debug();
1211  if ( msgLevel( MSG::DEBUG ) ) log << " key: " << key->GetName();
1212  TObject* obj = key->ReadObj();
1213  if ( obj && obj->IsA()->InheritsFrom( "TDirectory" ) ) {
1214  if ( msgLevel( MSG::DEBUG ) ) log << " (" << obj->IsA()->GetName() << ")";
1215  } else if ( obj && obj->IsA()->InheritsFrom( "TEfficiency" ) ) {
1216  if ( msgLevel( MSG::DEBUG ) ) log << " (" << obj->IsA()->GetName() << ")";
1217  tl.Add( obj );
1218  if ( reg && m_curstream != "" ) {
1219  std::string dir = td->GetPath();
1220  std::string fil = td->GetFile()->GetName();
1221  dir.erase( 0, fil.length() + 1 );
1222  std::string id = "/" + m_curstream;
1223  if ( dir == "/" ) {
1224  id = id + "/" + key->GetName();
1225  } else {
1226  id = id + dir + "/" + key->GetName();
1227  }
1228  if ( !exists( id ) ) {
1229  if ( msgLevel( MSG::DEBUG ) ) log << " reg as \"" << id << "\"";
1230  regHist( id ).ignore();
1231  } else {
1232  if ( msgLevel( MSG::DEBUG ) ) log << " already registered";
1233  }
1234  }
1235  } else if ( obj ) {
1236  if ( msgLevel( MSG::DEBUG ) ) log << " [" << obj->IsA()->GetName() << "]";
1237  }
1238  if ( msgLevel( MSG::DEBUG ) ) log << endmsg;
1239  }
1240
1241  // operate recursively
1242  if ( rcs ) {
1243  nextkey = td->GetListOfKeys();
1244  while ( TKey* key = (TKey*)nextkey() ) {
1245  TObject* obj = key->ReadObj();
1246  if ( obj && obj->IsA()->InheritsFrom( "TDirectory" ) ) {
1247  TDirectory* tt = dynamic_cast<TDirectory*>( obj );
1248  getTEfficiencies( tt, tl, rcs, reg ).ignore( /* AUTOMATICALLY ADDED FOR gaudi/Gaudi!763 */ );
1249  }
1250  }
1251  }
1252
1253  return StatusCode::SUCCESS;
1254 }

◆ getTHists() [1/4]

StatusCode THistSvc::getTHists ( const std::string &  name,
TList &  tl,
bool  recurse = false
) const
override

Definition at line 767 of file THistSvc.cpp.

767  {
768
769  GlobalDirectoryRestore restore( m_svcMut );
770
771  gErrorIgnoreLevel = kBreak;
772
773  StatusCode sc;
774
775  std::string stream, rem, r2;
776  parseString( dir, stream, rem );
777
778  auto itr = m_files.find( stream );
779  if ( itr != m_files.end() ) {
780  r2 = itr->second.first->GetName();
781  r2 += ":/";
782  r2 += rem;
783
784  if ( msgLevel( MSG::DEBUG ) ) {
785  debug() << "getTHists: \"" << dir << "\" looks like a stream name."
786  << " associated TFile: \"" << itr->second.first->GetName() << "\"" << endmsg;
787  }
788
789  if ( gDirectory->cd( r2.c_str() ) ) {
790  m_curstream = stream;
791  sc = getTHists( gDirectory, tl, rcs );
792  m_curstream = "";
793  return sc;
794  } else {
795  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getTHists: no such TDirectory \"" << r2 << "\"" << endmsg; }
796  }
797
798  } else {
799  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getTHists: stream \"" << stream << "\" not found" << endmsg; }
800  }
801
802  if ( !gDirectory->cd( dir.c_str() ) ) {
803  error() << "getTHists: No such TDirectory/stream \"" << dir << "\"" << endmsg;
804  sc = StatusCode::FAILURE;
805  } else {
806  sc = getTHists( gDirectory, tl, rcs );
807  }
808
809  return sc;
810 }

◆ getTHists() [2/4]

StatusCode THistSvc::getTHists ( const std::string &  name,
TList &  tl,
bool  recurse = false,
bool  reg = false
)
override

Definition at line 874 of file THistSvc.cpp.

874  {
875  GlobalDirectoryRestore restore( m_svcMut );
876
877  gErrorIgnoreLevel = kBreak;
878
879  StatusCode sc;
880
881  std::string stream, rem, r2;
882  parseString( dir, stream, rem );
883
884  auto itr = m_files.find( stream );
885  if ( itr != m_files.end() ) {
886  r2 = itr->second.first->GetName();
887  r2 += ":/";
888  r2 += rem;
889
890  if ( msgLevel( MSG::DEBUG ) ) {
891  debug() << "getTHists: \"" << dir << "\" looks like a stream name."
892  << " associated TFile: \"" << itr->second.first->GetName() << "\"" << endmsg;
893  }
894
895  if ( gDirectory->cd( r2.c_str() ) ) {
896  m_curstream = stream;
897  sc = getTHists( gDirectory, tl, rcs, reg );
898  m_curstream.clear();
899  return sc;
900  }
901  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getTHists: no such TDirectory \"" << r2 << "\"" << endmsg; }
902  } else {
903  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getTHists: stream \"" << stream << "\" not found" << endmsg; }
904  }
905
906  if ( !gDirectory->cd( dir.c_str() ) ) {
907  error() << "getTHists: No such TDirectory/stream \"" << dir << "\"" << endmsg;
908  sc = StatusCode::FAILURE;
909  } else {
910  if ( reg ) {
911  warning() << "Unable to register histograms automatically "
912  << "without a valid stream name" << endmsg;
913  reg = false;
914  }
915  sc = getTHists( gDirectory, tl, rcs, reg );
916  }
917
918  return sc;
919 }

◆ getTHists() [3/4]

StatusCode THistSvc::getTHists ( TDirectory *  td,
TList &  tl,
bool  recurse = false
) const
override

Definition at line 722 of file THistSvc.cpp.

722  {
723  GlobalDirectoryRestore restore( m_svcMut );
724
725  gErrorIgnoreLevel = kBreak;
726
727  if ( !td->cd() ) {
728  error() << "getTHists: No such TDirectory \"" << td->GetPath() << "\"" << endmsg;
729  return StatusCode::FAILURE;
730  }
731
732  if ( msgLevel( MSG::DEBUG ) ) {
733  debug() << "getTHists: \"" << td->GetPath() << "\": found " << td->GetListOfKeys()->GetSize() << " keys" << endmsg;
734  }
735
736  TIter nextkey( td->GetListOfKeys() );
737  while ( TKey* key = (TKey*)nextkey() ) {
738  auto& log = debug();
739  if ( msgLevel( MSG::DEBUG ) ) log << " key: " << key->GetName();
740  TObject* obj = key->ReadObj();
741  if ( obj != 0 && obj->IsA()->InheritsFrom( "TDirectory" ) ) {
742  if ( msgLevel( MSG::DEBUG ) ) log << " (" << obj->IsA()->GetName() << ")";
743  } else if ( obj != 0 && obj->IsA()->InheritsFrom( "TH1" ) ) {
744  if ( msgLevel( MSG::DEBUG ) ) log << " (" << obj->IsA()->GetName() << ")";
745  tl.Add( obj );
746  } else if ( obj != 0 ) {
747  if ( msgLevel( MSG::DEBUG ) ) log << " [" << obj->IsA()->GetName() << "]";
748  }
749  if ( msgLevel( MSG::DEBUG ) ) log << endmsg;
750  }
751
752  // operate recursively
753  if ( rcs ) {
754  nextkey = td->GetListOfKeys();
755  while ( TKey* key = (TKey*)nextkey() ) {
756  TObject* obj = key->ReadObj();
757  if ( obj && obj->IsA()->InheritsFrom( "TDirectory" ) ) {
758  TDirectory* tt = dynamic_cast<TDirectory*>( obj );
759  getTHists( tt, tl, rcs ).ignore( /* AUTOMATICALLY ADDED FOR gaudi/Gaudi!763 */ );
760  }
761  }
762  }
763
764  return StatusCode::SUCCESS;
765 }

◆ getTHists() [4/4]

StatusCode THistSvc::getTHists ( TDirectory *  td,
TList &  tl,
bool  recurse = false,
bool  reg = false
)
override

Definition at line 812 of file THistSvc.cpp.

812  {
813  GlobalDirectoryRestore restore( m_svcMut );
814
815  gErrorIgnoreLevel = kBreak;
816
817  if ( !td->cd() ) {
818  error() << "getTHists: No such TDirectory \"" << td->GetPath() << "\"" << endmsg;
819  return StatusCode::FAILURE;
820  }
821
822  if ( msgLevel( MSG::DEBUG ) ) {
823  debug() << "getTHists: \"" << td->GetPath() << "\": found " << td->GetListOfKeys()->GetSize() << " keys" << endmsg;
824  }
825
826  TIter nextkey( td->GetListOfKeys() );
827  while ( TKey* key = (TKey*)nextkey() ) {
828  auto& log = debug();
829  if ( msgLevel( MSG::DEBUG ) ) log << " key: " << key->GetName();
830  TObject* obj = key->ReadObj();
831  if ( obj && obj->IsA()->InheritsFrom( "TDirectory" ) ) {
832  if ( msgLevel( MSG::DEBUG ) ) log << " (" << obj->IsA()->GetName() << ")";
833  } else if ( obj && obj->IsA()->InheritsFrom( "TH1" ) ) {
834  if ( msgLevel( MSG::DEBUG ) ) log << " (" << obj->IsA()->GetName() << ")";
835  tl.Add( obj );
836  if ( reg && m_curstream != "" ) {
837  std::string dir = td->GetPath();
838  std::string fil = td->GetFile()->GetName();
839  dir.erase( 0, fil.length() + 1 );
840  std::string id = "/" + m_curstream;
841  if ( dir == "/" ) {
842  id = id + "/" + key->GetName();
843  } else {
844  id = id + dir + "/" + key->GetName();
845  }
846  if ( !exists( id ) ) {
847  if ( msgLevel( MSG::DEBUG ) ) log << " reg as \"" << id << "\"";
848  regHist( id ).ignore();
849  } else {
850  if ( msgLevel( MSG::DEBUG ) ) log << " already registered";
851  }
852  }
853  } else if ( obj ) {
854  if ( msgLevel( MSG::DEBUG ) ) log << " [" << obj->IsA()->GetName() << "]";
855  }
856  if ( msgLevel( MSG::DEBUG ) ) log << endmsg;
857  }
858
859  // operate recursively
860  if ( rcs ) {
861  nextkey = td->GetListOfKeys();
862  while ( TKey* key = (TKey*)nextkey() ) {
863  TObject* obj = key->ReadObj();
864  if ( obj && obj->IsA()->InheritsFrom( "TDirectory" ) ) {
865  TDirectory* tt = dynamic_cast<TDirectory*>( obj );
866  getTHists( tt, tl, rcs, reg ).ignore( /* AUTOMATICALLY ADDED FOR gaudi/Gaudi!763 */ );
867  }
868  }
869  }
870
871  return StatusCode::SUCCESS;
872 }

◆ getTree()

StatusCode THistSvc::getTree ( const std::string &  name,
TTree *&  tree
) const
override

Return TTree with given name.

Definition at line 406 of file THistSvc.cpp.

406  {
407  tree = getHist_i<TTree>( id );
408  if ( tree != nullptr ) {
409  return StatusCode::SUCCESS;
410  } else {
411  return StatusCode::FAILURE;
412  }
413 }

◆ getTrees()

std::vector< std::string > THistSvc::getTrees ( ) const
override

Definition at line 698 of file THistSvc.cpp.

698  {
699  std::vector<std::string> names;
700  names.reserve( m_uids.size() );
701  transform_if( std::begin( m_uids ), std::end( m_uids ), std::back_inserter( names ), select1st,
702  []( uidMap_t::const_reference i ) { return i.second->at( 0 ).type == ObjectType::TTREE; } );
703  return names;
704 }

◆ getTTrees() [1/4]

StatusCode THistSvc::getTTrees ( const std::string &  name,
TList &  tl,
bool  recurse = false
) const
override

Definition at line 966 of file THistSvc.cpp.

966  {
967  GlobalDirectoryRestore restore( m_svcMut );
968
969  gErrorIgnoreLevel = kBreak;
970
971  StatusCode sc;
972
973  std::string stream, rem, r2;
974  parseString( dir, stream, rem );
975
976  auto itr = m_files.find( stream );
977  if ( itr != m_files.end() ) {
978  r2 = itr->second.first->GetName();
979  r2 += ":/";
980  r2 += rem;
981
982  if ( msgLevel( MSG::DEBUG ) ) {
983  debug() << "getTTrees: \"" << dir << "\" looks like a stream name."
984  << " associated TFile: \"" << itr->second.first->GetName() << "\"" << endmsg;
985  }
986
987  if ( gDirectory->cd( r2.c_str() ) ) { return getTTrees( gDirectory, tl, rcs ); }
988  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getTTrees: no such TDirectory \"" << r2 << "\"" << endmsg; }
989  } else {
990  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getTTrees: stream \"" << stream << "\" not found" << endmsg; }
991  }
992
993  if ( !gDirectory->cd( dir.c_str() ) ) {
994  error() << "getTTrees: No such TDirectory/stream \"" << dir << "\"" << endmsg;
995  sc = StatusCode::FAILURE;
996  } else {
997  sc = getTTrees( gDirectory, tl, rcs );
998  }
999  return sc;
1000 }

◆ getTTrees() [2/4]

StatusCode THistSvc::getTTrees ( const std::string &  name,
TList &  tl,
bool  recurse = false,
bool  reg = false
)
override

Definition at line 1064 of file THistSvc.cpp.

1064  {
1065  GlobalDirectoryRestore restore( m_svcMut );
1066
1067  gErrorIgnoreLevel = kBreak;
1068
1069  StatusCode sc;
1070
1071  std::string stream, rem, r2;
1072  parseString( dir, stream, rem );
1073
1074  auto itr = m_files.find( stream );
1075  if ( itr != m_files.end() ) {
1076  r2 = itr->second.first->GetName();
1077  r2 += ":/";
1078  r2 += rem;
1079
1080  if ( msgLevel( MSG::DEBUG ) ) {
1081  debug() << "getTTrees: \"" << dir << "\" looks like a stream name."
1082  << " associated TFile: \"" << itr->second.first->GetName() << "\"" << endmsg;
1083  }
1084
1085  if ( gDirectory->cd( r2.c_str() ) ) {
1086  return getTTrees( gDirectory, tl, rcs, reg );
1087  } else {
1088  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getTTrees: no such TDirectory \"" << r2 << "\"" << endmsg; }
1089  }
1090  } else {
1091  if ( msgLevel( MSG::DEBUG ) ) { debug() << "getTTrees: stream \"" << stream << "\" not found" << endmsg; }
1092  }
1093
1094  if ( !gDirectory->cd( dir.c_str() ) ) {
1095  error() << "getTTrees: No such TDirectory/stream \"" << dir << "\"" << endmsg;
1096  return StatusCode::FAILURE;
1097  }
1098
1099  return getTTrees( gDirectory, tl, rcs, reg );
1100 }

◆ getTTrees() [3/4]

StatusCode THistSvc::getTTrees ( TDirectory *  td,
TList &  tl,
bool  recurse = false
) const
override

Definition at line 921 of file THistSvc.cpp.

921  {
922  GlobalDirectoryRestore restore( m_svcMut );
923
924  gErrorIgnoreLevel = kBreak;
925
926  if ( !td->cd() ) {
927  error() << "getTTrees: No such TDirectory \"" << td->GetPath() << "\"" << endmsg;
928  return StatusCode::FAILURE;
929  }
930
931  if ( msgLevel( MSG::DEBUG ) ) {
932  debug() << "getTHists: \"" << td->GetPath() << "\": found " << td->GetListOfKeys()->GetSize() << " keys" << endmsg;
933  }
934
935  TIter nextkey( td->GetListOfKeys() );
936  while ( TKey* key = (TKey*)nextkey() ) {
937  auto& log = debug();
938  if ( msgLevel( MSG::DEBUG ) ) log << " key: " << key->GetName();
939  TObject* obj = key->ReadObj();
940  if ( obj != 0 && obj->IsA()->InheritsFrom( "TDirectory" ) ) {
941  if ( msgLevel( MSG::DEBUG ) ) log << " (" << obj->IsA()->GetName() << ")";
942  } else if ( obj != 0 && obj->IsA()->InheritsFrom( "TTree" ) ) {
943  if ( msgLevel( MSG::DEBUG ) ) log << " (" << obj->IsA()->GetName() << ")";
944  tl.Add( obj );
945  } else if ( obj != 0 ) {
946  if ( msgLevel( MSG::DEBUG ) ) log << " [" << obj->IsA()->GetName() << "]";
947  }
948  log << endmsg;
949  }
950
951  // operate recursively
952  if ( rcs ) {
953  nextkey = td->GetListOfKeys();
954  while ( TKey* key = (TKey*)nextkey() ) {
955  TObject* obj = key->ReadObj();
956  if ( obj && obj->IsA()->InheritsFrom( "TDirectory" ) ) {
957  TDirectory* tt = dynamic_cast<TDirectory*>( obj );
958  getTTrees( tt, tl, rcs ).ignore( /* AUTOMATICALLY ADDED FOR gaudi/Gaudi!763 */ );
959  }
960  }
961  }
962
963  return StatusCode::SUCCESS;
964 }

◆ getTTrees() [4/4]

StatusCode THistSvc::getTTrees ( TDirectory *  td,
TList &  tl,
bool  recurse = false,
bool  reg = false
)
override

Definition at line 1002 of file THistSvc.cpp.

1002  {
1003  GlobalDirectoryRestore restore( m_svcMut );
1004
1005  gErrorIgnoreLevel = kBreak;
1006
1007  if ( !td->cd() ) {
1008  error() << "getTTrees: No such TDirectory \"" << td->GetPath() << "\"" << endmsg;
1009  return StatusCode::FAILURE;
1010  }
1011
1012  if ( msgLevel( MSG::DEBUG ) ) {
1013  debug() << "getTHists: \"" << td->GetPath() << "\": found " << td->GetListOfKeys()->GetSize() << " keys" << endmsg;
1014  }
1015
1016  TIter nextkey( td->GetListOfKeys() );
1017  while ( TKey* key = (TKey*)nextkey() ) {
1018  auto& log = debug();
1019  if ( msgLevel( MSG::DEBUG ) ) log << " key: " << key->GetName();
1020  TObject* obj = key->ReadObj();
1021  if ( obj && obj->IsA()->InheritsFrom( "TDirectory" ) ) {
1022  if ( msgLevel( MSG::DEBUG ) ) log << " (" << obj->IsA()->GetName() << ")";
1023  } else if ( obj && obj->IsA()->InheritsFrom( "TTree" ) ) {
1024  if ( msgLevel( MSG::DEBUG ) ) log << " (" << obj->IsA()->GetName() << ")";
1025  tl.Add( obj );
1026  if ( reg && m_curstream != "" ) {
1027  std::string dir = td->GetPath();
1028  std::string fil = td->GetFile()->GetName();
1029  dir.erase( 0, fil.length() + 1 );
1030  std::string id = "/" + m_curstream;
1031  if ( dir == "/" ) {
1032  id = id + "/" + key->GetName();
1033  } else {
1034  id = id + dir + "/" + key->GetName();
1035  }
1036  if ( !exists( id ) ) {
1037  if ( msgLevel( MSG::DEBUG ) ) log << " reg as \"" << id << "\"";
1038  regHist( id ).ignore();
1039  } else {
1040  if ( msgLevel( MSG::DEBUG ) ) log << " already registered";
1041  }
1042  }
1043  } else if ( obj != 0 ) {
1044  if ( msgLevel( MSG::DEBUG ) ) log << " [" << obj->IsA()->GetName() << "]";
1045  }
1046  if ( msgLevel( MSG::DEBUG ) ) log << endmsg;
1047  }
1048
1049  // operate recursively
1050  if ( rcs ) {
1051  nextkey = td->GetListOfKeys();
1052  while ( TKey* key = (TKey*)nextkey() ) {
1053  TObject* obj = key->ReadObj();
1054  if ( obj && obj->IsA()->InheritsFrom( "TDirectory" ) ) {
1055  TDirectory* tt = dynamic_cast<TDirectory*>( obj );
1056  getTTrees( tt, tl, rcs, reg ).ignore( /* AUTOMATICALLY ADDED FOR gaudi/Gaudi!763 */ );
1057  }
1058  }
1059  }
1060
1061  return StatusCode::SUCCESS;
1062 }

◆ handle()

void THistSvc::handle ( const Incident &  )
override

Definition at line 1305 of file THistSvc.cpp.

1305  {
1306  if ( m_signaledStop ) return;
1307
1308  if ( m_maxFileSize.value() == -1 ) return;
1309
1310  // convert to bytes.
1311  Long64_t mfs = (Long64_t)m_maxFileSize.value() * (Long64_t)1048576;
1312  Long64_t mfs_warn = mfs * 95 / 100;
1313
1314  updateFiles();
1315
1316  for ( const auto& f : m_files ) {
1317  TFile* tf = f.second.first;
1318
1319 #ifndef NDEBUG
1320  if ( msgLevel( MSG::DEBUG ) ) {
1321  debug() << "stream: " << f.first << " name: " << tf->GetName() << " size: " << tf->GetSize() << endmsg;
1322  }
1323 #endif
1324
1325  // Signal job to terminate if output file is too large
1326  if ( tf->GetSize() > mfs ) {
1327
1328  m_signaledStop = true;
1329
1330  fatal() << "file \"" << tf->GetName() << "\" associated with stream \"" << f.first
1331  << "\" has exceeded the max file size of " << m_maxFileSize.value() << "MB. Terminating Job." << endmsg;
1332
1333  IEventProcessor* evt = nullptr;
1334  if ( service( "ApplicationMgr", evt, true ).isSuccess() ) {
1335  evt->stopRun().ignore( /* AUTOMATICALLY ADDED FOR gaudi/Gaudi!763 */ );
1336  evt->release();
1337  } else {
1338  abort();
1339  }
1340  } else if ( tf->GetSize() > mfs_warn ) {
1341  warning() << "file \"" << tf->GetName() << "\" associated with stream \"" << f.first
1342  << "\" is at 95% of its maximum allowable file size of " << m_maxFileSize.value() << "MB" << endmsg;
1343  }
1344  }
1345 }

◆ initialize()

StatusCode THistSvc::initialize ( )
override

Definition at line 79 of file THistSvc.cpp.

79  {
80  GlobalDirectoryRestore restore( m_svcMut );
81
82  StatusCode status = Service::initialize();
83
84  if ( status.isFailure() ) {
85  error() << "initializing service" << endmsg;
86  return status;
87  }
88
89  StatusCode st( StatusCode::SUCCESS );
90
91  try {
92  setupOutputFile();
93  } catch ( GaudiException& err ) {
94  error() << "Caught: " << err << endmsg;
95  st = StatusCode::FAILURE;
96  }
97
98  try {
99  setupInputFile();
100  } catch ( GaudiException& err ) {
101  error() << "Caught: " << err << endmsg;
102  st = StatusCode::FAILURE;
103  }
104
105  // Protect against multiple instances of TROOT
106  if ( !gROOT ) {
107  static TROOT root( "root", "ROOT I/O" );
108  // gDebug = 99;
109  } else {
110  if ( msgLevel( MSG::VERBOSE ) ) { verbose() << "ROOT already initialized, debug = " << gDebug << endmsg; }
111  }
112
113  if ( service( "IncidentSvc", p_incSvc, true ).isFailure() ) {
114  error() << "unable to get the IncidentSvc" << endmsg;
115  st = StatusCode::FAILURE;
116  } else {
117  p_incSvc->addListener( this, "EndEvent", 100, true );
118  }
119
120  if ( service( "FileMgr", p_fileMgr, true ).isFailure() ) {
121  error() << "unable to get the FileMgr" << endmsg;
122  st = StatusCode::FAILURE;
123  } else {
124  if ( msgLevel( MSG::DEBUG ) ) { debug() << "got the FileMgr" << endmsg; }
125  }
126
127  // Register open/close callback actions
128  using namespace std::placeholders;
129  auto boa = [this]( const Io::FileAttr* fa, const std::string& caller ) { return this->rootOpenAction( fa, caller ); };
130  if ( p_fileMgr->regAction( boa, Io::OPEN, Io::ROOT ).isFailure() ) {
131  error() << "unable to register ROOT file open action with FileMgr" << endmsg;
132  }
133  auto bea = [this]( const Io::FileAttr* fa, const std::string& caller ) {
134  return this->rootOpenErrAction( fa, caller );
135  };
136  if ( p_fileMgr->regAction( bea, Io::OPEN_ERR, Io::ROOT ).isFailure() ) {
137  error() << "unable to register ROOT file open Error action with FileMgr" << endmsg;
138  }
139
140  m_okToConnect = true;
141  if ( m_delayConnect ) {
142  if ( !m_inputfile.value().empty() ) setupInputFile();
143  if ( !m_outputfile.value().empty() ) setupOutputFile();
144  m_delayConnect = false;
145  }
146  m_alreadyConnectedOutFiles.clear();
147  m_alreadyConnectedInFiles.clear();
148
149  IIoComponentMgr* iomgr = nullptr;
150  if ( service( "IoComponentMgr", iomgr, true ).isFailure() ) {
151  error() << "unable to get the IoComponentMgr" << endmsg;
152  st = StatusCode::FAILURE;
153  } else {
154  if ( !iomgr->io_register( this ).isSuccess() ) {
155  error() << "could not register with the I/O component manager !" << endmsg;
156  st = StatusCode::FAILURE;
157  } else {
158  bool all_good = true;
159  // register input/output files...
160  for ( const auto& reg : m_files ) {
161  const std::string& fname = reg.second.first->GetName();
162  const IIoComponentMgr::IoMode::Type iomode =
163  ( reg.second.second == THistSvc::READ ? IIoComponentMgr::IoMode::READ : IIoComponentMgr::IoMode::WRITE );
164  if ( !iomgr->io_register( this, iomode, fname ).isSuccess() ) {
165  warning() << "could not register file [" << fname << "] with the I/O component manager..." << endmsg;
166  all_good = false;
167  } else {
168  info() << "registered file [" << fname << "]... [ok]" << endmsg;
169  }
170  }
171  if ( !all_good ) {
172  error() << "problem while registering input/output files with "
173  << "the I/O component manager !" << endmsg;
174  st = StatusCode::FAILURE;
175  }
176  }
177  }
178
179  if ( st.isFailure() ) { fatal() << "Unable to initialize THistSvc" << endmsg; }
180
181  return st;
182 }

◆ io_reinit()

StatusCode THistSvc::io_reinit ( )
override

callback method to reinitialize the internal state of the component for I/O purposes (e.g.

upon fork(2))

Definition at line 1350 of file THistSvc.cpp.

1350  {
1351  bool all_good = true;
1352  if ( msgLevel( MSG::DEBUG ) ) { debug() << "reinitializing I/O..." << endmsg; }
1353
1354  // retrieve the I/O component manager...
1355
1356  IIoComponentMgr* iomgr = nullptr;
1357
1358  if ( service( "IoComponentMgr", iomgr, true ).isFailure() ) {
1359  error() << "could not retrieve I/O component manager !" << endmsg;
1360  return StatusCode::FAILURE;
1361  }
1362
1363  GlobalDirectoryRestore restore( m_svcMut );
1364  // to hide the expected errors upon closing the files whose
1365  // file descriptors have been swept under the rug...
1366  gErrorIgnoreLevel = kFatal;
1367
1368  for ( auto& ifile : m_files ) {
1369  TFile* f = ifile.second.first;
1370  std::string fname = f->GetName();
1371  if ( msgLevel( MSG::DEBUG ) ) {
1372  debug() << "file [" << fname << "] mode: [" << f->GetOption() << "] r:" << f->GetFileBytesRead()
1373  << " w:" << f->GetFileBytesWritten() << " cnt:" << f->GetFileCounter() << endmsg;
1374  }
1375
1376  if ( ifile.second.second == READ ) {
1377  if ( msgLevel( MSG::DEBUG ) ) { debug() << " TFile opened in READ mode: not reassigning names" << endmsg; }
1378  continue;
1379  }
1380
1381  if ( !iomgr->io_retrieve( this, fname ).isSuccess() ) {
1382  error() << "could not retrieve new name for [" << fname << "] !!" << endmsg;
1383  all_good = false;
1384  continue;
1385  } else if ( fname.empty() ) {
1386  if ( msgLevel( MSG::DEBUG ) ) { debug() << "empty new name for [" << fname << "], skipping..." << endmsg; }
1387  continue;
1388  } else {
1389  if ( msgLevel( MSG::DEBUG ) ) { debug() << "got a new name [" << fname << "]..." << endmsg; }
1390  }
1391
1392  void* vf = nullptr;
1393  Option_t* opts = f->GetOption();
1394  int r = p_fileMgr->open( Io::ROOT, name(), fname, Io::WRITE, vf, "HIST" );
1395  if ( r != 0 ) {
1396  error() << "unable to open file \"" << fname << "\" for writing" << endmsg;
1397  return StatusCode::FAILURE;
1398  }
1399  TFile* newfile = (TFile*)vf;
1400  newfile->SetOption( opts );
1401
1402  if ( ifile.second.second != THistSvc::READ ) {
1403  copyFileLayout( newfile, f );
1404  ifile.second.first = newfile;
1405  }
1406
1407  // loop over all uids and migrate them to the new file
1408  for ( auto& uid : m_uids ) {
1409  for ( auto& hid : *uid.second ) {
1410  if ( hid.file != f ) continue;
1411  TDirectory* olddir = this->changeDir( hid );
1412  hid.file = newfile;
1413  // side-effect: create needed directories...
1414  TDirectory* newdir = this->changeDir( hid );
1415  TClass* cl = hid.obj->IsA();
1416
1417  // migrate the objects to the new file.
1418  // thanks to the object model of ROOT, it is super easy.
1419  if ( hid.type == ObjectType::TTREE ) {
1420  TTree& tree = dynamic_cast<TTree&>( *hid.obj );
1421  tree.SetDirectory( newdir );
1422  tree.Reset();
1423  } else if ( hid.type == ObjectType::TH1 ) {
1424  TH1& hist = dynamic_cast<TH1&>( *hid.obj );
1425  hist.SetDirectory( newdir );
1426  hist.Reset();
1427  } else if ( hid.type == ObjectType::TEFFICIENCY ) {
1428  dynamic_cast<TEfficiency&>( *hid.obj ).SetDirectory( newdir );
1429  } else if ( hid.type == ObjectType::TGRAPH ) {
1430  olddir->Remove( hid.obj );
1431  newdir->Append( hid.obj );
1432  } else {
1433  error() << "id: \"" << hid.id << "\" is not a inheriting from a class "
1434  << "we know how to handle (received [" << cl->GetName() << "], "
1435  << "expected [TTree, TH1, TGraph or TEfficiency]) !" << endmsg << "attaching to current dir ["
1436  << newdir->GetPath() << "] "
1437  << "nonetheless..." << endmsg;
1438  olddir->Remove( hid.obj );
1439  newdir->Append( hid.obj );
1440  }
1441  }
1442  }
1443  f->ReOpen( "READ" );
1444  p_fileMgr->close( f, name() );
1445  f = newfile;
1446  }
1447
1448  return all_good ? StatusCode::SUCCESS : StatusCode::FAILURE;
1449 }

◆ merge() [1/4]

StatusCode THistSvc::merge ( const std::string &  id)
override

Merge all clones for object with a given id.

Definition at line 656 of file THistSvc.cpp.

656  {
657  uidMap_t::iterator itr = m_uids.find( name );
658  if ( itr == m_uids.end() ) {
659  error() << "merge: id \"" << name << "\" not found" << endmsg;
660  return StatusCode::FAILURE;
661  }
662
663  return merge( itr->second );
664 }

◆ merge() [2/4]

StatusCode THistSvc::merge ( const THistID &  hid)
private

Helper method to merge THistID objects.

Definition at line 2042 of file THistSvc.cpp.

2042 { return merge( hid.id ); }

◆ merge() [3/4]

StatusCode THistSvc::merge ( TObject *  obj)
override

Merge all clones for given TObject*.

Definition at line 666 of file THistSvc.cpp.

666  {
667  objMap_t::iterator itr = m_tobjs.find( obj );
668  if ( itr != m_tobjs.end() ) {
669  return merge( itr->second.first );
670  } else {
671  error() << "merge: unknown object " << obj << endmsg;
672  return StatusCode::FAILURE;
673  }
674 }

◆ merge() [4/4]

StatusCode THistSvc::merge ( vhid_t *  vh)
private

Helper method to merge vectors of THistID.

Definition at line 2044 of file THistSvc.cpp.

2044  {
2045  const std::string& name = vh->at( 0 ).id;
2046  if ( vh->size() == 1 ) {
2047  debug() << "merge: id: \"" << name << "\" is size 1. nothing to do" << endmsg;
2048  return StatusCode::SUCCESS;
2049  }
2050
2051  if ( vh->at( 0 ).type != ObjectType::TH1 ) {
2052  error() << "merge: id \"" << name << "\" is not a THn. Cannot merge" << endmsg;
2053  return StatusCode::FAILURE;
2054  }
2055
2056  TList* l = new TList();
2057  for ( size_t i = 1; i < vh->size(); ++i ) {
2058  debug() << "merge: id: \"" << name << "\" (" << vh->at( i ).obj << ") adding index " << i << endmsg;
2059  l->Add( vh->at( i ).obj );
2060  }
2061
2062  TH1* t0 = dynamic_cast<TH1*>( vh->at( 0 ).obj );
2063  if ( t0 == 0 ) {
2064  error() << "merge: could not dcast " << name << "(" << t0 << ") index " << 0 << " to TH1" << endmsg;
2065  return StatusCode::FAILURE;
2066  }
2067
2068  Long64_t n = t0->Merge( l );
2069
2070  debug() << "merge: id: \"" << name << "\" merged " << n << " entries" << endmsg;
2071
2072  for ( size_t i = 1; i < vh->size(); ++i ) {
2073  TH1* th = dynamic_cast<TH1*>( vh->at( i ).obj );
2074  if ( th != 0 ) {
2075  debug() << "clearing index " << i << "(" << th << ")" << endmsg;
2076  th->SetDirectory( nullptr );
2077  th->Reset();
2078  } else {
2079  error() << "merge: could not dcast " << name << " index " << i << " to TH1" << endmsg;
2080  return StatusCode::FAILURE;
2081  }
2082  }
2083  return StatusCode::SUCCESS;
2084 }

◆ MergeRootFile()

void THistSvc::MergeRootFile ( TDirectory *  target,
TDirectory *  source
)
private

Definition at line 1788 of file THistSvc.cpp.

1788  {
1789  if ( msgLevel( MSG::DEBUG ) ) { debug() << "Target path: " << target->GetPath() << endmsg; }
1790  TString path( (char*)strstr( target->GetPath(), ":" ) );
1791  path.Remove( 0, 2 );
1792
1793  source->cd( path );
1794  TDirectory* current_sourcedir = gDirectory;
1795
1796  // loop over all keys in this directory
1797  TList* lkeys = current_sourcedir->GetListOfKeys();
1798  int nkeys = lkeys->GetEntries();
1799  TKey* key = nullptr;
1800  for ( int jj = 0; jj < nkeys; jj++ ) {
1801  key = (TKey*)lkeys->At( jj );
1802  std::string pathnameinsource = current_sourcedir->GetPath() + std::string( "/" ) + key->GetName();
1803  if ( msgLevel( MSG::DEBUG ) ) { debug() << "Reading Key:" << pathnameinsource << endmsg; }
1804  TObject* obj = source->Get( pathnameinsource.c_str() );
1805
1806  if ( obj ) {
1807  if ( obj->IsA()->InheritsFrom( "TDirectory" ) ) {
1808  // it's a subdirectory
1809  if ( msgLevel( MSG::DEBUG ) ) { debug() << "Found subdirectory " << obj->GetName() << endmsg; }
1810
1811  // create a new subdir of same name and title in the target file
1812  target->cd();
1813  TDirectory* newtargetdir = target->mkdir( obj->GetName(), obj->GetTitle() );
1814
1815  MergeRootFile( newtargetdir, source );
1816
1817  } else if ( obj->IsA()->InheritsFrom( "TTree" ) ) {
1818  if ( msgLevel( MSG::DEBUG ) ) { debug() << "Found TTree " << obj->GetName() << endmsg; }
1819  TTree* mytree = dynamic_cast<TTree*>( obj );
1820  int nentries = (int)mytree->GetEntries();
1821  mytree->SetBranchStatus( "*", 1 );
1822
1823  if ( msgLevel( MSG::DEBUG ) ) { debug() << "Dumping TTree " << nentries << " entries" << endmsg; }
1824  target->cd();
1825  mytree->CloneTree();
1826
1827  } else {
1828  target->cd();
1829  obj->Write( key->GetName() );
1830  }
1831  }
1832  }
1833 }

◆ parseString()

void THistSvc::parseString ( const std::string &  id,
std::string &  root,
std::string &  rem
) const
private

Definition at line 1871 of file THistSvc.cpp.

1871  {
1872  auto pos = id.find( "/" );
1873
1874  if ( pos == std::string::npos ) {
1875  root.clear();
1876  rem = id;
1877  } else if ( pos == 0 ) {
1878  parseString( id.substr( 1 ), root, rem );
1879  } else {
1880  root = id.substr( 0, pos );
1881  rem = id.substr( pos + 1 );
1882  }
1883 }

◆ readHist()

template<typename T >
T * THistSvc::readHist ( const std::string &  name) const
private

Definition at line 1468 of file THistSvc.cpp.

1468  {
1469  return dynamic_cast<T*>( readHist_i<T>( id ) );
1470 }

◆ readHist_i()

template<typename T >
T * THistSvc::readHist_i ( const std::string &  name) const
private

Definition at line 231 of file THistSvc.icc.

231  {
232  GlobalDirectoryRestore restore( m_svcMut );
233
234  std::string idr( id );
235  removeDoubleSlash( idr );
236
237  std::string stream, rem, dir, fdir, bdir, fdir2;
238  TFile* file = nullptr;
239
240  if ( !findStream( idr, stream, rem, file ) ) { return nullptr; }
241
242  if ( !file ) {
243  error() << "no associated file found" << endmsg;
244  return nullptr;
245  }
246
247  file->cd( "/" );
248
249  fdir = idr;
250  bdir = stripDirectoryName( fdir );
251  fdir2 = fdir;
252  while ( ( dir = stripDirectoryName( fdir ) ) != "" ) {
253  if ( !gDirectory->GetKey( dir.c_str() ) ) {
254  error() << "Directory \"" << fdir2 << "\" doesnt exist in " << file->GetName() << endmsg;
255  return nullptr;
256  }
257  gDirectory->cd( dir.c_str() );
258  }
259
260  TObject* to = nullptr;
261  gDirectory->GetObject( fdir.c_str(), to );
262
263  if ( !to ) {
264  error() << "Could not get obj \"" << fdir << "\" in " << gDirectory->GetPath() << endmsg;
265  return nullptr;
266  }
267
268  T* hist = dynamic_cast<T*>( to );
269  if ( hist == nullptr ) {
270  error() << "Could not convert \"" << idr << "\" to a " << System::typeinfoName( typeid( *hist ) ) << " as is a "
271  << to->IsA()->GetName() << endmsg;
272  return nullptr;
273  }
274
275  if ( msgLevel( MSG::DEBUG ) ) {
276  debug() << "Read in " << hist->IsA()->GetName() << " \"" << hist->GetName() << "\" from file " << file->GetName()
277  << endmsg;
278  hist->Print();
279  }
280
281  return hist;
282 }

◆ readTree()

TTree * THistSvc::readTree ( const std::string &  name) const
private

Definition at line 1472 of file THistSvc.cpp.

1472 { return dynamic_cast<TTree*>( readHist_i<TTree>( id ) ); }

◆ regEfficiency() [1/3]

StatusCode THistSvc::regEfficiency ( const std::string &  name)
override

Register a new TEfficiency with a given name.

Definition at line 456 of file THistSvc.cpp.

456  {
457  std::unique_ptr<TEfficiency> eff = nullptr;
458  return regHist_i( std::move( eff ), id, false );
459 }

◆ regEfficiency() [2/3]

StatusCode THistSvc::regEfficiency ( const std::string &  name,
std::unique_ptr< TEfficiency >  eff
)
override

Register an existing TEfficiency with a given name and moved unique_ptr.

Definition at line 461 of file THistSvc.cpp.

461  {
462  return regHist_i( std::move( eff ), id, false );
463 }

◆ regEfficiency() [3/3]

StatusCode THistSvc::regEfficiency ( const std::string &  name,
TEfficiency *  eff_ptr
)
overridevirtual
Deprecated:
{Just kept for compatibiltiy to current ATLAS code.

Pleas use std::unique_ptrs instead!} Register a new TEfficiency with a given name and a raw pointer

Definition at line 465 of file THistSvc.cpp.

465  {
466  std::unique_ptr<TEfficiency> eff( eff_ptr );
467  return regHist_i( std::move( eff ), id, false );
468 }

◆ regGraph() [1/3]

StatusCode THistSvc::regGraph ( const std::string &  name)
override

Register a new TGraph with a given name.

Definition at line 415 of file THistSvc.cpp.

415  {
416  std::unique_ptr<TGraph> graph = std::make_unique<TGraph>();
417  return regHist_i( std::move( graph ), id, false );
418 }

◆ regGraph() [2/3]

StatusCode THistSvc::regGraph ( const std::string &  name,
std::unique_ptr< TGraph >  graph
)
override

Register an existing TGraph with a given name and moved unique_ptr.

Definition at line 420 of file THistSvc.cpp.

420  {
421  if ( strcmp( graph->GetName(), "Graph" ) == 0 ) {
422  std::string id2( id );
423  std::string::size_type i = id2.rfind( "/" );
424  if ( i != std::string::npos ) { id2.erase( 0, i + 1 ); }
425
426  info() << "setting name of TGraph id: \"" << id << "\" to \"" << id2 << "\" since it is unset" << endmsg;
427  graph->SetName( id2.c_str() );
428  }
429
430  return regHist_i( std::move( graph ), id, false );
431 }

◆ regGraph() [3/3]

StatusCode THistSvc::regGraph ( const std::string &  name,
TGraph *  graph_ptr
)
overridevirtual
Deprecated:
{Just kept for compatibiltiy to current ATLAS code.

Pleas use std::unique_ptrs instead!} Register a new TGraph with a given name and a raw pointer

Definition at line 433 of file THistSvc.cpp.

433  {
434  std::unique_ptr<TGraph> graph( graph_ptr );
435  if ( strcmp( graph->GetName(), "Graph" ) == 0 ) {
436  std::string id2( id );
437  std::string::size_type i = id2.rfind( "/" );
438  if ( i != std::string::npos ) { id2.erase( 0, i + 1 ); }
439
440  info() << "setting name of TGraph id: \"" << id << "\" to \"" << id2 << "\" since it is unset" << endmsg;
441  graph->SetName( id2.c_str() );
442  }
443
444  return regHist_i( std::move( graph ), id, false );
445 }

◆ regHist() [1/4]

StatusCode THistSvc::regHist ( const std::string &  name)
override

Register a new ROOT histogram TH*X with a name.

Definition at line 333 of file THistSvc.cpp.

333  {
334  std::unique_ptr<TH1> hist = nullptr;
335  return regHist_i( std::move( hist ), id, false );
336 }

◆ regHist() [2/4]

StatusCode THistSvc::regHist ( const std::string &  name,
std::unique_ptr< TH1 >  hist
)
override

Register an existing ROOT histogram TH*X with name and moved unique_ptr.

Parameters
[in]namedefines the histogram id/name under which it is recorded
[in]histtransfers ownership of the histogram to the THistSvc

Definition at line 338 of file THistSvc.cpp.

338  {
339  return regHist_i( std::move( hist ), id, false );
340 }

◆ regHist() [3/4]

StatusCode THistSvc::regHist ( const std::string &  name,
std::unique_ptr< TH1 >  hist,
TH1 *  hist_ptr
)
override

Register an existing ROOT histogram TH*X with name and moved unique_ptr.

Parameters
[in]namedefines the histogram id/name under which it is recorded
[in]histtransfers ownership of the histogram to the THistSvc
[out]hist_ptrfor compatibility: return raw pointer to managed object to support common usage in Athena

Definition at line 342 of file THistSvc.cpp.

342  {
343  // This is only to support a common use case where the histogram is used after its registration
344  if ( hist_ptr != nullptr ) { hist_ptr = hist.get(); }
345  return regHist_i( std::move( hist ), id, false );
346 }

◆ regHist() [4/4]

StatusCode THistSvc::regHist ( const std::string &  name,
TH1 *  hist_ptr
)
override
Deprecated:
{Just for compatibility purposes.

Ownership should be clearly managed.} Register an existing ROOT histogram TH*X with name and pointer

Definition at line 348 of file THistSvc.cpp.

348  {
349  std::unique_ptr<TH1> hist( hist_ptr );
350  return regHist_i( std::move( hist ), id, false );
351 }

◆ regHist_i() [1/2]

template<typename T >
StatusCode THistSvc::regHist_i ( std::unique_ptr< T >  hist,
const std::string &  name,
bool  shared
)
private

Definition at line 27 of file THistSvc.icc.

27  {
28  THistID* hid = nullptr;
29  return regHist_i( std::move( hist ), id, shared, hid );
30 }

◆ regHist_i() [2/2]

template<typename T >
StatusCode THistSvc::regHist_i ( std::unique_ptr< T >  hist,
const std::string &  name,
bool  shared,
THistID *&  hid
)
private

Definition at line 33 of file THistSvc.icc.

33  {
34  GlobalDirectoryRestore restore( m_svcMut );
35  phid = nullptr;
36
37  // It is sad that we lose propper memory management here
38  T* hist = nullptr;
39  if ( hist_unique.get() != nullptr ) { hist = hist_unique.release(); }
40  if ( msgLevel( MSG::DEBUG ) ) {
41  debug() << "regHist_i obj: " << hist << " id: " << id << " s: " << shared << endmsg;
42  }
43
44  std::string idr( id );
45  removeDoubleSlash( idr );
46
47  if ( idr.find( "/" ) == idr.length() ) {
48  error() << "Badly formed identifier \"" << idr << "\": "
49  << "Must not end with a /" << endmsg;
50  delete hist;
51  return StatusCode::FAILURE;
52  }
53
54  TFile* f = nullptr;
55  std::string stream, name;
56  if ( !findStream( idr, stream, name, f ) ) {
57  error() << "Could not register id: \"" << idr << "\"" << endmsg;
58  delete hist;
59  return StatusCode::FAILURE;
60  }
61
62  std::string uid = "/" + stream + "/" + name;
63
64  uidMap_t::iterator uitr = m_uids.find( uid );
65  bool exists( false );
66  if ( uitr != m_uids.end() ) {
67  exists = true;
68  TObject* t1 = uitr->second->at( 0 ).obj;
69  if ( hist->Compare( t1 ) != 0 ) {
70  error() << "previously registered object with identifier \"" << uid << "\" does not compare to this one"
71  << endmsg;
72  delete hist;
73  return StatusCode::FAILURE;
74  } else {
75  if ( msgLevel( MSG::DEBUG ) ) {
76  debug() << "previously registered id \"" << uid << "\": num " << uitr->second->size() << endmsg;
77  }
78  }
79  }
80
81  bool temp = false;
82  if ( !f ) {
83  temp = true;
84  if ( msgLevel( MSG::DEBUG ) ) { debug() << "Historgram with id \"" << idr << "\" is temporary" << endmsg; }
85  }
86
87  TObject* to = nullptr;
88  THistID hid;
89  // check to see if this hist is to be read in;
90  if ( !temp && m_files.find( stream )->second.second == READ ) {
91  if ( hist != 0 ) { warning() << "Registering id: \"" << idr << "\" with non zero pointer!" << endmsg; }
92
93  hist = readHist_i<T>( idr );
94  if ( hist == nullptr ) {
95  error() << "Unable to read in hist" << endmsg;
96  delete hist;
97  return StatusCode::FAILURE;
98  }
99  to = dynamic_cast<TObject*>( hist );
100  hid = THistID( uid, temp, to, f, m_files.find( stream )->second.second );
101  } else if ( !hist ) {
102  error() << "Unable to read in hist with id: \"" << idr << "\"" << endmsg;
103  delete hist;
104  return StatusCode::FAILURE;
105  } else {
106  to = dynamic_cast<TObject*>( hist );
107  if ( to == nullptr ) {
108  error() << "Could not dcast to TObject. id: \"" << idr << "\"" << endmsg;
109  delete hist;
110  return StatusCode::FAILURE;
111  }
112
113  auto oitr = m_tobjs.find( to );
114  if ( oitr != m_tobjs.end() ) {
115  error() << "already registered id: \"" << idr << "\" with identifier \""
116  << oitr->second.first->at( oitr->second.second ).id << "\"" << endmsg;
117  delete hist;
118  return StatusCode::FAILURE;
119  }
120
121  const auto findF = m_files.find( stream );
122  hid = ( findF != m_files.end() ? THistID( uid, temp, to, f, findF->second.second ) : THistID( uid, temp, to, f ) );
123
124  hid.shared = shared;
125  TDirectory* dir = changeDir( hid );
126
127  if ( TTree* tree = dynamic_cast<TTree*>( hist ) ) {
128  tree->SetDirectory( dir );
129  hid.type = ObjectType::TTREE;
130  m_hasTTrees = true; // at least one TTree is registered
131  } else if ( TH1* th1 = dynamic_cast<TH1*>( hist ) ) {
132  th1->SetDirectory( dir );
133  hid.type = ObjectType::TH1;
134  } else if ( TEfficiency* teff = dynamic_cast<TEfficiency*>( hist ) ) {
135  teff->SetDirectory( dir );
136  hid.type = ObjectType::TEFFICIENCY;
137  } else if ( dynamic_cast<TGraph*>( hist ) ) {
138  dir->Append( hist );
139  hid.type = ObjectType::TGRAPH;
140  } else {
141  error() << "id: \"" << idr << "\" is not a TH, TTree, TGraph, or TEfficiency. Attaching it to current dir."
142  << endmsg;
143  dir->Append( hist );
144  hid.type = ObjectType::UNKNOWN;
145  }
146  }
147
148  std::string fname;
149  if ( !f ) {
150  fname = "none";
151  } else {
152  fname = f->GetName();
153  }
154
155  if ( msgLevel( MSG::DEBUG ) ) {
156  debug() << "Registering" << ( shared ? " shared " : " " ) << System::typeinfoName( typeid( *hist ) ) << " title: \""
157  << hist->GetTitle() << "\" id: \"" << uid
158  << "\" dir: "
159  // << hist->GetDirectory()->GetPath() << " "
160  << changeDir( hid )->GetPath() << " file: " << fname << endmsg;
161  }
162
163  // create a mutex for all shared histograms
164  if ( shared ) { hid.mutex = new histMut_t; }
165
166  if ( exists ) {
167  vhid_t* vi = uitr->second;
168  vi->push_back( hid );
169  phid = &( vi->back() );
170
171  m_tobjs.emplace( to, std::pair<vhid_t*, size_t>( vi, vi->size() - 1 ) );
172  } else {
173  vhid_t* vi = new vhid_t{ hid };
174  m_hlist.emplace( m_hlist.end(), vi );
175
176  phid = &( vi->back() );
177  m_uids.emplace( uid, vi );
178  m_ids.emplace( name, vi );
179
180  m_tobjs.emplace( to, std::pair<vhid_t*, size_t>( vi, 0 ) );
181  }
182
183  if ( msgLevel( MSG::DEBUG ) ) { debug() << "regHist_i THistID: " << hid << endmsg; }
184
185  return StatusCode::SUCCESS;
186 }

◆ regShared() [1/5]

StatusCode THistSvc::regShared ( const std::string &  name,
std::unique_ptr< TEfficiency >  eff,
LockedHandle< TEfficiency > &  lh
)
override

Register shared object of type TEfficiency and return LockedHandle for that object.

Definition at line 515 of file THistSvc.cpp.

516  {
517  lh = regShared_i<TEfficiency>( id, std::move( eff ) );
518  if ( lh ) {
519  return StatusCode::SUCCESS;
520  } else {
521  return StatusCode::FAILURE;
522  }
523 }

◆ regShared() [2/5]

StatusCode THistSvc::regShared ( const std::string &  name,
std::unique_ptr< TGraph >  graph,
LockedHandle< TGraph > &  lh
)
override

Register shared object of type TGraph and return LockedHandle for that object.

Definition at line 506 of file THistSvc.cpp.

506  {
507  lh = regShared_i<TGraph>( id, std::move( graph ) );
508  if ( lh ) {
509  return StatusCode::SUCCESS;
510  } else {
511  return StatusCode::FAILURE;
512  }
513 }

◆ regShared() [3/5]

StatusCode THistSvc::regShared ( const std::string &  name,
std::unique_ptr< TH1 >  hist,
LockedHandle< TH1 > &  lh
)
override

Register shared object of type TH1 and return LockedHandle for that object.

Definition at line 479 of file THistSvc.cpp.

479  {
480  lh = regShared_i<TH1>( id, std::move( hist ) );
481  if ( lh ) {
482  return StatusCode::SUCCESS;
483  } else {
484  return StatusCode::FAILURE;
485  }
486 }

◆ regShared() [4/5]

StatusCode THistSvc::regShared ( const std::string &  name,
std::unique_ptr< TH2 >  hist,
LockedHandle< TH2 > &  lh
)
override

Register shared object of type TH2 and return LockedHandle for that object.

Definition at line 488 of file THistSvc.cpp.

488  {
489  lh = regShared_i<TH2>( id, std::move( hist ) );
490  if ( lh ) {
491  return StatusCode::SUCCESS;
492  } else {
493  return StatusCode::FAILURE;
494  }
495 }

◆ regShared() [5/5]

StatusCode THistSvc::regShared ( const std::string &  name,
std::unique_ptr< TH3 >  hist,
LockedHandle< TH3 > &  lh
)
override

Register shared object of type TH3 and return LockedHandle for that object.

Definition at line 497 of file THistSvc.cpp.

497  {
498  lh = regShared_i<TH3>( id, std::move( hist ) );
499  if ( lh ) {
500  return StatusCode::SUCCESS;
501  } else {
502  return StatusCode::FAILURE;
503  }
504 }

◆ regShared_i()

template<typename T >
LockedHandle< T > THistSvc::regShared_i ( const std::string &  id,
std::unique_ptr< T >  hist
)
private

Definition at line 285 of file THistSvc.icc.

285  {
286  LockedHandle<T> lh( nullptr, nullptr );
287  const THistID* hid = nullptr;
288  if ( findHistID( id, hid ) == 0 ) {
289  T* phist = hist.get();
290  THistID* phid = nullptr;
291  if ( regHist_i( std::move( hist ), id, true, phid ).isSuccess() ) {
292  lh.set( phist, phid->mutex );
293
294  } else {
295  error() << "regSharedHist: unable to register shared hist with id \"" << id << "\"" << endmsg;
296  }
297  } else {
298  if ( !hid->shared ) {
299  error() << "regSharedHist: previously register Hist with id \"" << id << "\" was not marked shared" << endmsg;
300  }
301
302  if ( hist->Compare( hid->obj ) != 0 ) {
303  error() << "regSharedHist: Histogram " << id << " does not compare with " << hid << endmsg;
304  } else {
305  T* phist = dynamic_cast<T*>( hid->obj );
306  if ( phist == 0 ) {
307  error() << "regSharedHist: unable to dcast retrieved shared hist \"" << id << "\" of type "
308  << hid->obj->IsA()->GetName() << " to requested type " << System::typeinfoName( typeid( T ) ) << endmsg;
309  } else {
310  lh.set( phist, hid->mutex );
311  delete hist.release();
312  }
313  }
314  }
315  return lh;
316 }

◆ regTree() [1/3]

StatusCode THistSvc::regTree ( const std::string &  name)
override

Register a new TTree with a given name.

Definition at line 380 of file THistSvc.cpp.

380  {
381  std::unique_ptr<TTree> tree = nullptr;
382  return regHist_i( std::move( tree ), id, false );
383 }

◆ regTree() [2/3]

StatusCode THistSvc::regTree ( const std::string &  name,
std::unique_ptr< TTree >  tree
)
override

Register an existing TTree with a given name and moved unique_ptr.

Definition at line 385 of file THistSvc.cpp.

385  {
386  StatusCode sc = regHist_i( std::move( tree ), id, false );
387  TTree* tr = nullptr;
388  if ( getTree( id, tr ).isSuccess() && sc.isSuccess() ) {
389  if ( m_autoSave != 0 ) { tr->SetAutoSave( m_autoSave ); }
390  tr->SetAutoFlush( m_autoFlush );
391  }
392  return sc;
393 }

◆ regTree() [3/3]

StatusCode THistSvc::regTree ( const std::string &  name,
TTree *  tree_ptr
)
override
Deprecated:
{Just kept for compatibiltiy to current ATLAS code.

Pleas use std::unique_ptrs instead!} Register a new TTree with a given name and a raw pointer

Definition at line 395 of file THistSvc.cpp.

395  {
396  std::unique_ptr<TTree> tree( tree_ptr );
397  StatusCode sc = regHist_i( std::move( tree ), id, false );
398  TTree* tr = nullptr;
399  if ( getTree( id, tr ).isSuccess() && sc.isSuccess() ) {
400  if ( m_autoSave != 0 ) { tr->SetAutoSave( m_autoSave ); }
401  tr->SetAutoFlush( m_autoFlush );
402  }
403  return sc;
404 }

◆ reinitialize()

StatusCode THistSvc::reinitialize ( )
override

Definition at line 184 of file THistSvc.cpp.

184  {
185  GlobalDirectoryRestore restore( m_svcMut );
186  warning() << "reinitialize not implemented" << endmsg;
187  return StatusCode::SUCCESS;
188 }

◆ removeDoubleSlash()

void THistSvc::removeDoubleSlash ( std::string &  id) const
private

Definition at line 1784 of file THistSvc.cpp.

1784  {
1785  while ( id.find( "//" ) != std::string::npos ) { id.replace( id.find( "//" ), 2, "/" ); }
1786 }

◆ rootOpenAction()

StatusCode THistSvc::rootOpenAction ( FILEMGR_CALLBACK_ARGS  )
private

Definition at line 2086 of file THistSvc.cpp.

2086  {
2087  if ( fa->tech() != Io::ROOT ) {
2088  // This should never happen
2089  return StatusCode::SUCCESS;
2090  }
2091
2092  if ( fa->desc() != "HIST" ) { return StatusCode::SUCCESS; }
2093
2094  p_incSvc->fireIncident( FileIncident( caller, "OpenHistFile", fa->name() ) );
2095
2096  if ( fa->flags().isRead() ) {
2097  p_incSvc->fireIncident( FileIncident( caller, "BeginHistFile", fa->name() ) );
2098  } else if ( fa->flags().isWrite() ) {
2099  p_incSvc->fireIncident( FileIncident( caller, IncidentType::BeginOutputFile, fa->name() ) );
2100  } else {
2101  // for Io::RW
2102  p_incSvc->fireIncident( FileIncident( caller, IncidentType::BeginOutputFile, fa->name() ) );
2103  }
2104
2105  return StatusCode::SUCCESS;
2106 }

◆ rootOpenErrAction()

StatusCode THistSvc::rootOpenErrAction ( FILEMGR_CALLBACK_ARGS  )
private

Definition at line 2108 of file THistSvc.cpp.

2108  {
2109  if ( fa->tech() != Io::ROOT ) {
2110  // This should never happen
2111  return StatusCode::SUCCESS;
2112  }
2113
2114  if ( fa->desc() != "HIST" ) { return StatusCode::SUCCESS; }
2115
2116  if ( fa->flags().isRead() ) {
2117  p_incSvc->fireIncident( FileIncident( caller, IncidentType::FailInputFile, fa->name() ) );
2118  } else if ( fa->flags().isWrite() ) {
2119  p_incSvc->fireIncident( FileIncident( caller, IncidentType::FailOutputFile, fa->name() ) );
2120  } else {
2121  // for Io::RW
2122  p_incSvc->fireIncident( FileIncident( caller, "FailRWFile", fa->name() ) );
2123  }
2124
2125  return StatusCode::SUCCESS;
2126 }

◆ setupInputFile()

void THistSvc::setupInputFile ( )
private

call-back method to handle input stream property

Definition at line 1885 of file THistSvc.cpp.

1885  {
1886  if ( FSMState() < Gaudi::StateMachine::CONFIGURED || !m_okToConnect ) {
1887  debug() << "Delaying connection of Input Files until Initialize"
1888  << ". now in " << FSMState() << endmsg;
1889
1890  m_delayConnect = true;
1891  } else {
1892  debug() << "Now connecting of Input Files" << endmsg;
1893
1894  StatusCode sc = StatusCode::SUCCESS;
1895
1896  for ( const auto& itr : m_inputfile.value() ) {
1897  if ( m_alreadyConnectedInFiles.end() != m_alreadyConnectedInFiles.find( itr ) ) { continue; }
1898  if ( connect( itr ).isFailure() ) {
1899  sc = StatusCode::FAILURE;
1900  } else {
1901  m_alreadyConnectedInFiles.insert( itr );
1902  }
1903  }
1904
1905  if ( !sc.isSuccess() ) { throw GaudiException( "Problem connecting inputfile !!", name(), StatusCode::FAILURE ); }
1906  }
1907 }

◆ setupOutputFile()

void THistSvc::setupOutputFile ( )
private

call-back method to handle output stream property

Definition at line 1909 of file THistSvc.cpp.

1909  {
1910  if ( FSMState() < Gaudi::StateMachine::CONFIGURED || !m_okToConnect ) {
1911  debug() << "Delaying connection of Output Files until Initialize"
1912  << ". now in " << FSMState() << endmsg;
1913  m_delayConnect = true;
1914  } else {
1915  StatusCode sc = StatusCode::SUCCESS;
1916  for ( const auto& itr : m_outputfile.value() ) {
1917  if ( m_alreadyConnectedOutFiles.end() != m_alreadyConnectedOutFiles.find( itr ) ) { continue; }
1918  if ( connect( itr ).isFailure() ) {
1919  sc = StatusCode::FAILURE;
1920  } else {
1921  m_alreadyConnectedOutFiles.insert( itr );
1922  }
1923  }
1924
1925  if ( !sc.isSuccess() ) { throw GaudiException( "Problem connecting outputfile !!", name(), StatusCode::FAILURE ); }
1926  }
1927 }

◆ stripDirectoryName()

std::string THistSvc::stripDirectoryName ( std::string &  dir) const
private

Definition at line 1768 of file THistSvc.cpp.

1768  {
1769  std::string::size_type i = dir.find( "/" );
1770
1771  if ( i == std::string::npos ) return {};
1772
1773  if ( i == 0 ) {
1774  dir.erase( 0, 1 );
1775  return stripDirectoryName( dir );
1776  }
1777
1778  std::string root = dir.substr( 0, i );
1779  dir.erase( 0, i );
1780
1781  return root;
1782 }

◆ updateFiles()

void THistSvc::updateFiles ( )
private

Handle case where TTree grows beyond TTree::fgMaxTreeSize.

Definition at line 1474 of file THistSvc.cpp.

1474  {
1475
1476  if ( !m_hasTTrees ) return;
1477
1478  // If TTrees grow beyond TTree::fgMaxTreeSize, a new file is
1479  // automatically created by root, and the old one closed. We
1480  // need to migrate all the UIDs over to show the correct file
1481  // pointer. This is ugly.
1482
1483  for ( auto uitr = m_uids.begin(); uitr != m_uids.end(); ++uitr ) {
1484  for ( auto& hid : *( uitr->second ) ) {
1485
1486  // Only relevant for TTrees and if not in read mode
1487  if ( hid.type != ObjectType::TTREE || hid.temp || hid.mode == READ || hid.obj == nullptr ) continue;
1488
1489  if ( msgLevel( MSG::VERBOSE ) )
1490  verbose() << " update: " << uitr->first << " " << hid.id << " " << hid.mode << endmsg;
1491
1492  TTree* tr = dynamic_cast<TTree*>( hid.obj );
1493  TFile* oldFile = hid.file;
1494  TFile* newFile = tr->GetCurrentFile();
1495
1496  if ( oldFile != newFile ) {
1497  std::string newFileName = newFile->GetName();
1498  std::string oldFileName, streamName, rem;
1499  TFile* dummy = nullptr;
1500  findStream( hid.id, streamName, rem, dummy );
1501
1502  for ( auto& itr : m_files ) {
1503  if ( itr.second.first == oldFile ) { itr.second.first = newFile; }
1504  }
1505
1506  for ( auto uitr2 = uitr; uitr2 != m_uids.end(); ++uitr2 ) {
1507  for ( auto& hid2 : *( uitr2->second ) ) {
1508  if ( hid2.file == oldFile ) { hid2.file = newFile; }
1509  }
1510  }
1511
1512  auto sitr = std::find_if( std::begin( m_fileStreams ), std::end( m_fileStreams ),
1513  [&]( streamMap::const_reference s ) { return s.second == streamName; } );
1514  if ( sitr != std::end( m_fileStreams ) ) oldFileName = sitr->first;
1515
1516 #ifndef NDEBUG
1517  if ( msgLevel( MSG::DEBUG ) ) {
1518  debug() << "migrating uid: " << hid.id << " stream: " << streamName << " oldFile: " << oldFileName
1519  << " newFile: " << newFileName << endmsg;
1520  }
1521 #endif
1522
1523  if ( !oldFileName.empty() ) {
1524  auto i = m_fileStreams.lower_bound( oldFileName );
1525  while ( i != std::end( m_fileStreams ) && i->first == oldFileName ) {
1526 #ifndef NDEBUG
1527  if ( msgLevel( MSG::DEBUG ) ) {
1528  debug() << "changing filename \"" << i->first << "\" to \"" << newFileName << "\" for stream \""
1529  << i->second << "\"" << endmsg;
1530  }
1531 #endif
1532  std::string nm = std::move( i->second );
1533  i = m_fileStreams.erase( i );
1534  m_fileStreams.emplace( newFileName, std::move( nm ) );
1535  }
1536  } else {
1537  error() << "Problems updating fileStreams with new file name" << endmsg;
1538  }
1539  }
1540  }
1541  }
1542 }

◆ writeObjectsToFile()

StatusCode THistSvc::writeObjectsToFile ( )
private

Definition at line 1544 of file THistSvc.cpp.

1544  {
1545  updateFiles();
1546
1547  std::for_each( m_files.begin(), m_files.end(), []( std::pair<const std::string, std::pair<TFile*, Mode>>& i ) {
1548  auto mode = i.second.second;
1549  auto file = i.second.first;
1550  if ( mode == WRITE || mode == UPDATE || mode == SHARE ) {
1551  file->Write( "", TObject::kOverwrite );
1552  } else if ( mode == APPEND ) {
1553  file->Write( "" );
1554  }
1555  } );
1556
1557  if ( msgLevel( MSG::DEBUG ) ) {
1558  debug() << "THistSvc::writeObjectsToFile()::List of Files connected in ROOT " << endmsg;
1559  TSeqCollection* filelist = gROOT->GetListOfFiles();
1560  for ( int ii = 0; ii < filelist->GetEntries(); ii++ ) {
1561  debug() << "THistSvc::writeObjectsToFile()::List of Files connected in ROOT: \"" << filelist->At( ii )->GetName()
1562  << "\"" << endmsg;
1563  }
1564  }
1565
1566  return StatusCode::SUCCESS;
1567 }

Member Data Documentation

◆ m_alreadyConnectedInFiles

std::set<std::string> THistSvc::m_alreadyConnectedInFiles
private

list of already connected files.

This is to keep track of files registered by the setupInputFile callback method

Definition at line 276 of file THistSvc.h.

◆ m_alreadyConnectedOutFiles

std::set<std::string> THistSvc::m_alreadyConnectedOutFiles
private

list of already connected files.

This is to keep track of files registered by the setupOutputFile callback method

Definition at line 280 of file THistSvc.h.

◆ m_autoFlush

Gaudi::Property<int> THistSvc::m_autoFlush { this, "AutoFlush", 0 }
private

Definition at line 375 of file THistSvc.h.

◆ m_autoSave

Gaudi::Property<int> THistSvc::m_autoSave { this, "AutoSave", 0 }
private

Definition at line 374 of file THistSvc.h.

◆ m_compressionLevel

Gaudi::Property<int> THistSvc::m_compressionLevel
private
Initial value:
{ this, "CompressionLevel", 1, [this]( auto& ) {
this->warning()
<< "\"CompressionLevel\" Property has been deprecated. "
<< "Set it via the \"CL=\" parameter in the \"Output\" Property"
<< endmsg;
} }

Definition at line 380 of file THistSvc.h.

◆ m_curstream

std::string THistSvc::m_curstream
mutableprivate

Definition at line 401 of file THistSvc.h.

◆ m_delayConnect

bool THistSvc::m_delayConnect = false
private

Definition at line 397 of file THistSvc.h.

◆ m_files

std::map<std::string, std::pair<TFile*, Mode> > THistSvc::m_files
private

Definition at line 300 of file THistSvc.h.

◆ m_fileStreams

streamMap THistSvc::m_fileStreams
private

Definition at line 302 of file THistSvc.h.

◆ m_hasTTrees

bool THistSvc::m_hasTTrees = false
private

Definition at line 399 of file THistSvc.h.

◆ m_hlist

hlist_t THistSvc::m_hlist
private

Definition at line 293 of file THistSvc.h.

◆ m_ids

idMap_t THistSvc::m_ids
private

Definition at line 295 of file THistSvc.h.

◆ m_inputfile

Gaudi::Property<std::vector<std::string> > THistSvc::m_inputfile
private
Initial value:
{
this, "Input", {}, &THistSvc::setupInputFile, "", "OrderedSet<std::string>" }

Definition at line 388 of file THistSvc.h.

◆ m_maxFileSize

Gaudi::Property<int> THistSvc::m_maxFileSize
private
Initial value:
{ this, "MaxFileSize", 10240,
"maximum file size in MB. if exceeded,"
" will cause an abort. -1 to never check." }

Definition at line 377 of file THistSvc.h.

◆ m_okToConnect

bool THistSvc::m_okToConnect = false
private

Definition at line 398 of file THistSvc.h.

◆ m_outputfile

Gaudi::Property<std::vector<std::string> > THistSvc::m_outputfile
private
Initial value:
{
this, "Output", {}, &THistSvc::setupOutputFile, "", "OrderedSet<std::string>" }

Definition at line 386 of file THistSvc.h.

◆ m_print

Gaudi::Property<bool> THistSvc::m_print { this, "PrintAll", false }
private

Definition at line 376 of file THistSvc.h.

◆ m_Rstream

std::vector<std::string> THistSvc::m_Rstream
private

Definition at line 272 of file THistSvc.h.

◆ m_sharedFiles

std::map<std::string, std::string> THistSvc::m_sharedFiles
private

Definition at line 305 of file THistSvc.h.

◆ m_signaledStop

bool THistSvc::m_signaledStop = false
private

Definition at line 396 of file THistSvc.h.

◆ m_svcMut

THistSvcMutex_t THistSvc::m_svcMut
mutableprivate

Definition at line 403 of file THistSvc.h.

◆ m_tobjs

objMap_t THistSvc::m_tobjs
private

Definition at line 298 of file THistSvc.h.

◆ m_uids

uidMap_t THistSvc::m_uids
private

Definition at line 294 of file THistSvc.h.

◆ m_Wstream

std::vector<std::string> THistSvc::m_Wstream
private

Definition at line 272 of file THistSvc.h.

◆ p_fileMgr

IFileMgr* THistSvc::p_fileMgr = nullptr
private

Definition at line 394 of file THistSvc.h.

◆ p_incSvc

IIncidentSvc* THistSvc::p_incSvc = nullptr
private

Definition at line 393 of file THistSvc.h.

The documentation for this class was generated from the following files:
IOTest.evt
evt
Definition: IOTest.py:110
THistSvc::THistID::id
std::string id
Definition: THistSvc.h:245
MSG::DEBUG
@ DEBUG
Definition: IMessageSvc.h:25
Io::OPEN
@ OPEN
Definition: IFileMgr.h:278
IIoComponentMgr::IoMode::READ
@ READ
Definition: IIoComponentMgr.h:41
THistSvc::p_incSvc
IIncidentSvc * p_incSvc
Definition: THistSvc.h:393
THistSvc::m_autoFlush
Gaudi::Property< int > m_autoFlush
Definition: THistSvc.h:375
std::strcmp
T strcmp(T... args)
IEventProcessor
Definition: IEventProcessor.h:24
std::for_each
T for_each(T... args)
Write.stream
stream
Definition: Write.py:32
Service::initialize
StatusCode initialize() override
Definition: Service.cpp:118
THistSvc::INVALID
@ INVALID
Definition: THistSvc.h:222
THistSvc::UPDATE
@ UPDATE
Definition: THistSvc.h:222
std::string
STL class.
THistSvc::merge
StatusCode merge(const std::string &id) override
Merge all clones for object with a given id.
Definition: THistSvc.cpp:656
THistSvc::m_signaledStop
bool m_signaledStop
Definition: THistSvc.h:396
THistSvc::m_delayConnect
bool m_delayConnect
Definition: THistSvc.h:397
THistSvc::histMut_t
std::mutex histMut_t
Definition: THistSvc.h:206
Gaudi.Configuration.log
log
Definition: Configuration.py:28
std::move
T move(T... args)
StatusCode::isSuccess
bool isSuccess() const
Definition: StatusCode.h:314
MSG::INFO
@ INFO
Definition: IMessageSvc.h:25
IIncidentSvc::addListener
virtual void addListener(IIncidentListener *lis, const std::string &type="", long priority=0, bool rethrow=false, bool singleShot=false)=0
Add listener.
std::pair< std::string, std::string >
std::vector::reserve
T reserve(T... args)
THistSvc::copyFileLayout
void copyFileLayout(TDirectory *, TDirectory *)
helper function to recursively copy the layout of a TFile into a new TFile
Definition: THistSvc.cpp:1929
gaudirun.s
string s
Definition: gaudirun.py:346
THistSvc::m_curstream
std::string m_curstream
Definition: THistSvc.h:401
THistSvc::getTEfficiencies
StatusCode getTEfficiencies(TDirectory *td, TList &, bool recurse=false) const override
Definition: THistSvc.cpp:1102
THistSvc::getTTrees
StatusCode getTTrees(TDirectory *td, TList &, bool recurse=false) const override
Definition: THistSvc.cpp:921
std::vector
STL class.
std::string::find
T find(T... args)
std::list::size
T size(T... args)
THistSvc::writeObjectsToFile
StatusCode writeObjectsToFile()
Definition: THistSvc.cpp:1544
std::back_inserter
T back_inserter(T... args)
GaudiException
Definition: GaudiException.h:31
Io::READ
@ READ
Definition: IFileMgr.h:37
THistSvc::deReg
StatusCode deReg(const std::string &name) override
Deregister object with given name and give up ownership (without deletion!)
Definition: THistSvc.cpp:570
std::unordered_map::emplace
T emplace(T... args)
Io::WRITE
@ WRITE
Definition: IFileMgr.h:38
Gaudi::Units::nm
constexpr double nm
Definition: SystemOfUnits.h:97
std::unique_ptr::get
T get(T... args)
gaudiComponentHelp.root
root
Definition: gaudiComponentHelp.py:43
std::distance
T distance(T... args)
std::unique_ptr::release
T release(T... args)
THistSvc::setupInputFile
void setupInputFile()
call-back method to handle input stream property
Definition: THistSvc.cpp:1885
THistSvc::m_hlist
hlist_t m_hlist
Definition: THistSvc.h:293
THistSvc::m_autoSave
Gaudi::Property< int > m_autoSave
Definition: THistSvc.h:374
System::typeinfoName
GAUDI_API const std::string typeinfoName(const std::type_info &)
Get platform independent information about the class type.
Definition: System.cpp:310
THistSvc::getTHists
StatusCode getTHists(TDirectory *td, TList &, bool recurse=false) const override
Definition: THistSvc.cpp:722
THistSvc::m_inputfile
Gaudi::Property< std::vector< std::string > > m_inputfile
Definition: THistSvc.h:388
IIncidentSvc::fireIncident
virtual void fireIncident(const Incident &incident)=0
Fire an Incident.
CommonMessaging< implements< IService, IProperty, IStateful > >::msgLevel
MSG::Level msgLevel() const
get the cached level (originally extracted from the embedded MsgStream)
Definition: CommonMessaging.h:148
Service::finalize
StatusCode finalize() override
Definition: Service.cpp:222
Service::FSMState
Gaudi::StateMachine::State FSMState() const override
Definition: Service.h:62
graphanalysis.filename
string filename
Definition: graphanalysis.py:131
THistSvc::rootOpenAction
StatusCode rootOpenAction(FILEMGR_CALLBACK_ARGS)
Definition: THistSvc.cpp:2086
IIoComponentMgr::IoMode::Type
Type
Definition: IIoComponentMgr.h:41
THistSvc::setupOutputFile
void setupOutputFile()
call-back method to handle output stream property
Definition: THistSvc.cpp:1909
std::map::clear
T clear(T... args)
THistSvc::m_print
Gaudi::Property< bool > m_print
Definition: THistSvc.h:376
THistSvc::stripDirectoryName
std::string stripDirectoryName(std::string &dir) const
Definition: THistSvc.cpp:1768
std::vector::push_back
T push_back(T... args)
THistSvc::vhid_t
std::vector< THistID > vhid_t
Definition: THistSvc.h:284
std::placeholders
std::stoi
T stoi(T... args)
THistSvc::ObjectType::TEFFICIENCY
@ TEFFICIENCY
THistSvc::rootOpenErrAction
StatusCode rootOpenErrAction(FILEMGR_CALLBACK_ARGS)
Definition: THistSvc.cpp:2108
plotSpeedupsPyRoot.graph
graph
Definition: plotSpeedupsPyRoot.py:163
Gaudi::StateMachine::CONFIGURED
@ CONFIGURED
Definition: StateMachine.h:24
Service::name
const std::string & name() const override
Retrieve name of the service
Definition: Service.cpp:332
StatusCode
Definition: StatusCode.h:65
IFileMgr::regAction
virtual StatusCode regAction(Io::bfcn_action_t, const Io::Action &, const std::string &d="")=0
Io::ROOT
@ ROOT
Definition: IFileMgr.h:156
gaudirun.opts
opts
Definition: gaudirun.py:336
THistSvc::parseString
void parseString(const std::string &id, std::string &root, std::string &rem) const
Definition: THistSvc.cpp:1871
std::string::at
T at(T... args)
HistoDumpEx.r
r
Definition: HistoDumpEx.py:20
THistSvc::SHARE
@ SHARE
Definition: THistSvc.h:222
THistSvc::m_maxFileSize
Gaudi::Property< int > m_maxFileSize
Definition: THistSvc.h:377
CLHEP::begin
double * begin(CLHEP::HepVector &v)
Definition: TupleAlg.cpp:45
THistSvc::findStream
bool findStream(const std::string &name, std::string &root, std::string &rem, TFile *&file) const
Definition: THistSvc.cpp:1835
TemplatedAlg
Definition: TemplatedAlg.h:25
Io::UNKNOWN
@ UNKNOWN
Definition: IFileMgr.h:156
THistSvc::m_tobjs
objMap_t m_tobjs
Definition: THistSvc.h:298
IIoComponentMgr::io_register
virtual StatusCode io_register(IIoComponent *iocomponent)=0
: allow a IIoComponent to register itself with this manager so appropriate actions can be taken when ...
std::string::c_str
T c_str(T... args)
THistSvc::charToMode
static Mode charToMode(const char typ)
Convert a char to a Mode enum.
Definition: THistSvc.h:228
THistSvc::m_outputfile
Gaudi::Property< std::vector< std::string > > m_outputfile
Definition: THistSvc.h:386
Io::FileAttr
Definition: IFileMgr.h:171
THistSvc::THistID::file
TFile * file
Definition: THistSvc.h:247
Gaudi::Property::value
const ValueType & value() const
Backward compatibility (.
Definition: Property.h:240
std::to_string
T to_string(T... args)
GaudiPython.HistoUtils.path
path
Definition: HistoUtils.py:961
THistSvc::changeDir
TDirectory * changeDir(const THistSvc::THistID &hid) const
Definition: THistSvc.cpp:1746
THistSvc::ObjectType::TTREE
@ TTREE
Io::EXCL
@ EXCL
Definition: IFileMgr.h:42
GaudiPython.Bindings.nullptr
nullptr
Definition: Bindings.py:93
std::unordered_map::erase
T erase(T... args)
THistSvc::APPEND
@ APPEND
Definition: THistSvc.h:222
THistSvc::m_ids
idMap_t m_ids
Definition: THistSvc.h:295
THistSvc::m_okToConnect
bool m_okToConnect
Definition: THistSvc.h:398
genconfuser.verbose
verbose
Definition: genconfuser.py:30
THistSvc::regHist
StatusCode regHist(const std::string &name) override
Register a new ROOT histogram TH*X with a name.
Definition: THistSvc.cpp:333
THistSvc::removeDoubleSlash
void removeDoubleSlash(std::string &) const
Definition: THistSvc.cpp:1784
endmsg
MsgStream & endmsg(MsgStream &s)
MsgStream Modifier: endmsg. Calls the output method of the MsgStream.
Definition: MsgStream.h:203
std::remove
T remove(T... args)
std::map
STL class.
GlobalDirectoryRestore
Definition: RConverter.h:26
IOTest.end
def end
Definition: IOTest.py:128
THistSvc::READ
@ READ
Definition: THistSvc.h:222
GaudiPluginService.cpluginsvc.n
n
Definition: cpluginsvc.py:235
THistSvc::getTree
StatusCode getTree(const std::string &name, TTree *&) const override
Return TTree with given name.
Definition: THistSvc.cpp:406
StatusCode::ignore
const StatusCode & ignore() const
Allow discarding a StatusCode without warning.
Definition: StatusCode.h:139
THistSvc::m_alreadyConnectedOutFiles
std::set< std::string > m_alreadyConnectedOutFiles
list of already connected files.
Definition: THistSvc.h:280
std::strstr
T strstr(T... args)
std::string::substr
T substr(T... args)
std::ostringstream
STL class.
THistSvc::regHist_i
StatusCode regHist_i(std::unique_ptr< T > hist, const std::string &name, bool shared)
Definition: THistSvc.icc:27
StatusCode::isFailure
bool isFailure() const
Definition: StatusCode.h:129
std::multimap::equal_range
T equal_range(T... args)
FileIncident
This class is the FileIncident.
Definition: FileIncident.h:27
gaudirun.type
type
Definition: gaudirun.py:160
THistSvc::WRITE
@ WRITE
Definition: THistSvc.h:222
std::multimap::lower_bound
T lower_bound(T... args)
MSG::VERBOSE
@ VERBOSE
Definition: IMessageSvc.h:25
StatusCode::SUCCESS
constexpr static const auto SUCCESS
Definition: StatusCode.h:100
std::endl
T endl(T... args)
THistSvc::m_files
std::map< std::string, std::pair< TFile *, Mode > > m_files
Definition: THistSvc.h:300
gaudirun.l
dictionary l
Definition: gaudirun.py:580
ProduceConsume.props
props
Definition: ProduceConsume.py:84
THistSvc::connect
StatusCode connect(const std::string &)
Definition: THistSvc.cpp:1569
std::list::begin
T begin(T... args)
THistSvc::p_fileMgr
IFileMgr * p_fileMgr
Definition: THistSvc.h:394
THistSvc::existsHist
bool existsHist(const std::string &name) const override
Check if histogram with given name is managed by THistSvcMT.
Definition: THistSvc.cpp:678
std::multimap::insert
T insert(T... args)
THistSvc::exists
bool exists(const std::string &name) const override
Check if object with given name is managed by THistSvcMT exists calls existsHist and only works for T...
Definition: THistSvc.cpp:676
THistSvc::m_hasTTrees
bool m_hasTTrees
Definition: THistSvc.h:399
THistSvc::ObjectType::TGRAPH
@ TGRAPH
std::string::empty
T empty(T... args)
THistSvc::ObjectType::UNKNOWN
@ UNKNOWN
IIoComponentMgr
Definition: IIoComponentMgr.h:32
Io::OPEN_ERR
@ OPEN_ERR
Definition: IFileMgr.h:278
HistoDumpEx.h1
h1
Definition: HistoDumpEx.py:22
THistSvc::m_uids
uidMap_t m_uids
Definition: THistSvc.h:294
std::ostringstream::str
T str(T... args)
THistSvc::m_alreadyConnectedInFiles
std::set< std::string > m_alreadyConnectedInFiles
list of already connected files.
Definition: THistSvc.h:276
THistSvc::updateFiles
void updateFiles()
Handle case where TTree grows beyond TTree::fgMaxTreeSize.
Definition: THistSvc.cpp:1474
std::make_pair
T make_pair(T... args)
IFileMgr::close
virtual Io::close_t close(const Io::Fd, const std::string &caller)=0
std::map::end
T end(T... args)
IIoComponentMgr::io_retrieve
virtual std::vector< std::string > io_retrieve(IIoComponent *iocomponent)=0
: retrieve all registered filenames for a given IIoComponent
StatusCode::FAILURE
constexpr static const auto FAILURE
Definition: StatusCode.h:101
LockedHandle
Definition: LockedHandle.h:38
THistSvc::m_svcMut
THistSvcMutex_t m_svcMut
Definition: THistSvc.h:403
THistSvc::findHistID
size_t findHistID(const std::string &id, const THistID *&hid, const size_t &index=0) const
Definition: THistSvc.cpp:1961
THistSvc::ObjectType::TH1
@ TH1
IIncidentSvc
Definition: IIncidentSvc.h:33
THistSvc::m_fileStreams
streamMap m_fileStreams
Definition: THistSvc.h:302
std::unique_ptr
STL class.
Gaudi::Units::pi
constexpr double pi
Definition: PhysicalConstants.h:55
Gaudi::Utils::AttribStringParser
Parse attribute strings allowing iteration over the various attributes.
Definition: AttribStringParser.h:40
IFileMgr::open
virtual Io::open_t open(const Io::IoTech &, const std::string &caller, const std::string &fname, const Io::IoFlags &, Io::Fd &, void *&, const std::string &desc, const bool shared=false)=0
ProduceConsume.key
key
Definition: ProduceConsume.py:81
Service::service
StatusCode service(const std::string &name, const T *&psvc, bool createIf=true) const
Access a service by name, creating it if it doesn't already exist.
Definition: Service.h:88
Io::APPEND
@ APPEND
Definition: IFileMgr.h:45
std::abort
T abort(T... args)
THistSvc::m_sharedFiles
std::map< std::string, std::string > m_sharedFiles
Definition: THistSvc.h:305
THistSvc::dump
void dump() const
Definition: THistSvc.cpp:2006
IIoComponentMgr::IoMode::WRITE
@ WRITE
Definition: IIoComponentMgr.h:41
THistSvc::MergeRootFile
void MergeRootFile(TDirectory *, TDirectory *)
Definition: THistSvc.cpp:1788
Io::CREATE
@ CREATE
Definition: IFileMgr.h:41
