Small class representing an N tuple file in the transient store. More...

#include </builds/gaudi/Gaudi/GaudiKernel/include/GaudiKernel/NTuple.h>

Inheritance diagram for NTuple::File:

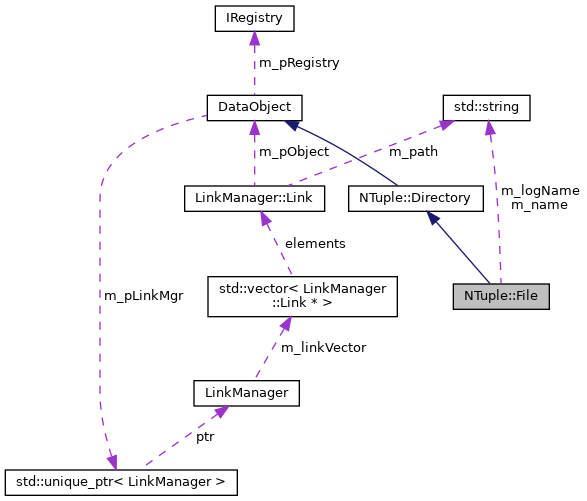

Collaboration diagram for NTuple::File:

[legend]

Public Member Functions
	File ()=default

	File (long type, std::string name, std::string logName)
	Standard constructor. More...

const CLID &	clID () const override
	class ID of the object More...

void	setType (const long typ)
	Set access type. More...

long	type () const
	Return access type. More...

const std::string &	name () const
	Retrun physical file name. More...

void	setName (std::string nam)
	Set access type. More...

const std::string &	logicalName () const

void	setLogicalName (std::string l)

void	setOpen (bool flag)
	Set "open" flag. More...

bool	isOpen () const
	Access "open" flag. More...

Public Member Functions inherited from DataObject
	DataObject ()
	Standard Constructor. More...

	DataObject (const DataObject &rhs)
	Copy Constructor. More...

DataObject &	operator= (const DataObject &rhs)
	Assignment Operator. More...

	DataObject (DataObject &&rhs)
	Move Constructor. More...

DataObject &	operator= (DataObject &&rhs)
	Move Assignment Operator. More...

virtual	~DataObject ()
	Standard Destructor. More...

virtual unsigned long	addRef ()
	Add reference to object. More...

virtual unsigned long	release ()
	release reference to object More...

const std::string &	name () const
	Retreive DataObject name. It is the name when registered in the store. More...

virtual StatusCode	update ()
	Provide empty placeholder for internal object reconfiguration callback. More...

void	setRegistry (IRegistry *pRegistry)
	Set pointer to Registry. More...

IRegistry *	registry () const
	Get pointer to Registry. More...

LinkManager *	linkMgr ()
	Retrieve Link manager. More...

const LinkManager *	linkMgr () const

unsigned char	version () const
	Retrieve version number of this object representation. More...

void	setVersion (unsigned char vsn)
	Set version number of this object representation. More...

unsigned long	refCount () const
	Return the refcount. More...

virtual std::ostream &	fillStream (std::ostream &s) const
	Fill the output stream (ASCII) More...

Static Public Member Functions
static const CLID &	classID ()
	class ID of the object More...

Static Public Member Functions inherited from NTuple::Directory
static const CLID &	classID ()
	class ID of the object More...

Static Public Member Functions inherited from DataObject
static const CLID &	classID ()
	Retrieve reference to class definition structure (static access) More...

Protected Attributes
std::string	m_name
	Physical file name. More...

std::string	m_logName
	Logical file name. More...

long	m_type = 0
	Access type. More...

bool	m_isOpen = false
	Flag to indicate wether the file was opened already. More...

Detailed Description

Small class representing an N tuple file in the transient store.

Definition at line 922 of file NTuple.h.

Constructor & Destructor Documentation

◆ File() [1/2]

NTuple::File::File ( )

default

◆ File() [2/2]

NTuple::File::File	(	long	type,
		std::string	name,
		std::string	logName
	)

inline

Standard constructor.

Definition at line 936 of file NTuple.h.

937 : m_name( std::move( name ) ), m_logName( std::move( logName ) ), m_type( type ) {}

Member Function Documentation

◆ classID()

static const CLID& NTuple::File::classID ( )

inlinestatic

class ID of the object

Definition at line 940 of file NTuple.h.

940 { return CLID_NTupleFile; }

◆ clID()

const CLID& NTuple::File::clID ( ) const

inlineoverridevirtual

class ID of the object

Reimplemented from NTuple::Directory.

Definition at line 942 of file NTuple.h.

942 { return classID(); }

◆ isOpen()

bool NTuple::File::isOpen ( ) const

inline

Access "open" flag.

Definition at line 958 of file NTuple.h.

958 { return m_isOpen; }

◆ logicalName()

const std::string& NTuple::File::logicalName ( ) const

inline

Definition at line 952 of file NTuple.h.

952 { return m_logName; }

◆ name()

const std::string& NTuple::File::name ( ) const

inline

Retrun physical file name.

Definition at line 948 of file NTuple.h.

948 { return m_name; }

◆ setLogicalName()

void NTuple::File::setLogicalName ( std::string l )

inline

Definition at line 954 of file NTuple.h.

954 { m_logName = std::move( l ); }

◆ setName()

void NTuple::File::setName ( std::string nam )

inline

Set access type.

Definition at line 950 of file NTuple.h.

950 { m_name = std::move( nam ); }

◆ setOpen()

void NTuple::File::setOpen ( bool flag )

inline

Set "open" flag.

Definition at line 956 of file NTuple.h.

956 { m_isOpen = flag; }

◆ setType()

void NTuple::File::setType ( const long typ )

inline

Set access type.

Definition at line 944 of file NTuple.h.

944 { m_type = typ; }

◆ type()

long NTuple::File::type ( ) const

inline

Return access type.

Definition at line 946 of file NTuple.h.

946 { return m_type; }

Member Data Documentation

◆ m_isOpen

bool NTuple::File::m_isOpen = false

protected

Flag to indicate wether the file was opened already.

Definition at line 931 of file NTuple.h.

◆ m_logName

std::string NTuple::File::m_logName

protected

Logical file name.

Definition at line 927 of file NTuple.h.

◆ m_name

std::string NTuple::File::m_name

protected

Physical file name.

Definition at line 925 of file NTuple.h.

◆ m_type

long NTuple::File::m_type = 0

protected

Access type.

Definition at line 929 of file NTuple.h.

The documentation for this class was generated from the following file:

GaudiKernel/include/GaudiKernel/NTuple.h
