INTuple Class Reference

#include <GaudiKernel/INTuple.h>

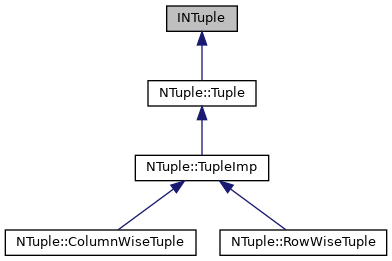

Inheritance diagram for INTuple:

Public Types
typedef std::vector< INTupleItem * >	ItemContainer

Public Member Functions
virtual ItemContainer &	items ()=0
	Access item container. More...
virtual const ItemContainer &	items () const =0
	Access item container (CONST) More...
virtual char *	setBuffer (char *buff)=0
	Attach data buffer. More...
virtual const char *	buffer () const =0
	Access data buffer (CONST) More...
virtual char *	buffer ()=0
	Access data buffer. More...
virtual const std::string &	title () const =0
	Object title. More...
virtual void	reset ()=0
	Reset all entries to their default values. More...
virtual const INTupleItem *	find (const std::string &name) const =0
	Find an item row of the Ntuple (CONST) More...
virtual INTupleItem *	find (const std::string &name)=0
	Find an item row of the Ntuple. More...
virtual StatusCode	add (INTupleItem *item)=0
	Add an item row to the N tuple. More...
virtual StatusCode	remove (INTupleItem *item)=0
	Remove an item row (identified by pointer) from the N tuple. More...
virtual StatusCode	remove (const std::string &name)=0
	Remove an item row (identified by name) from the N tuple. More...
virtual StatusCode	attachSelector (ISelectStatement *sel)=0
	Attach selector. More...
virtual ISelectStatement *	selector ()=0
	Access selector. More...
virtual StatusCode	write ()=0
	Write record of the NTuple (Shortcut of writeRecord) More...
virtual StatusCode	writeRecord ()=0
	Write record of the NTuple. More...
virtual StatusCode	read ()=0
	Read record of the NTuple (Shortcut of readRecord) More...
virtual StatusCode	readRecord ()=0
	Read record of the NTuple. More...
virtual StatusCode	save ()=0
	Save the NTuple. More...
virtual	~INTuple ()=default

Protected Member Functions
virtual INTupleItem *	i_find (const std::string &name) const =0
	Internally used by abstract classes. More...

Detailed Description

NTuple interface class definition

Definition of the interface to an Ntuple class beeing a sequence(=Item) of data entries.

Author

M.Frank

Definition at line 91 of file INTuple.h.

Member Typedef Documentation

ItemContainer

typedef std::vector<INTupleItem*> INTuple::ItemContainer

Definition at line 98 of file INTuple.h.

Constructor & Destructor Documentation

~INTuple()

virtual INTuple::~INTuple ( )

virtualdefault

Member Function Documentation

add()

virtual StatusCode INTuple::add ( INTupleItem *  item )

pure virtual

Add an item row to the N tuple.

Implemented in NTuple::TupleImp.

attachSelector()

virtual StatusCode INTuple::attachSelector ( ISelectStatement *  sel )

pure virtual

Attach selector.

Implemented in NTuple::TupleImp.

buffer() [1/2]

virtual const char* INTuple::buffer ( ) const

pure virtual

Access data buffer (CONST)

Implemented in NTuple::TupleImp.

buffer() [2/2]

virtual char* INTuple::buffer ( )

pure virtual

Access data buffer.

Implemented in NTuple::TupleImp.

find() [1/2]

virtual const INTupleItem* INTuple::find ( const std::string &  name ) const

pure virtual

Find an item row of the Ntuple (CONST)

Implemented in NTuple::TupleImp.

find() [2/2]

virtual INTupleItem* INTuple::find ( const std::string &  name )

pure virtual

Find an item row of the Ntuple.

Implemented in NTuple::TupleImp.

i_find()

virtual INTupleItem* INTuple::i_find ( const std::string &  name ) const

protectedpure virtual

Internally used by abstract classes.

Implemented in NTuple::TupleImp.

items() [1/2]

virtual const ItemContainer& INTuple::items ( ) const

pure virtual

Access item container (CONST)

Implemented in NTuple::TupleImp.

items() [2/2]

virtual ItemContainer& INTuple::items ( )

pure virtual

Access item container.

Implemented in NTuple::TupleImp.

read()

virtual StatusCode INTuple::read ( )

pure virtual

Read record of the NTuple (Shortcut of readRecord)

Implemented in NTuple::TupleImp.

readRecord()

virtual StatusCode INTuple::readRecord ( )

pure virtual

Read record of the NTuple.

Implemented in NTuple::TupleImp.

remove() [1/2]

virtual StatusCode INTuple::remove ( const std::string &  name )

pure virtual

Remove an item row (identified by name) from the N tuple.

Implemented in NTuple::TupleImp.

remove() [2/2]

virtual StatusCode INTuple::remove ( INTupleItem *  item )

pure virtual

Remove an item row (identified by pointer) from the N tuple.

Implemented in NTuple::TupleImp.

reset()

virtual void INTuple::reset ( )

pure virtual

Reset all entries to their default values.

Implemented in NTuple::TupleImp.

save()

virtual StatusCode INTuple::save ( )

pure virtual

Save the NTuple.

Implemented in NTuple::TupleImp.

selector()

virtual ISelectStatement* INTuple::selector ( )

pure virtual

Access selector.

Implemented in NTuple::TupleImp.

setBuffer()

virtual char* INTuple::setBuffer ( char *  buff )

pure virtual

Attach data buffer.

Implemented in NTuple::TupleImp.

title()

virtual const std::string& INTuple::title ( ) const

pure virtual

Object title.

Implemented in NTuple::TupleImp.

write()

virtual StatusCode INTuple::write ( )

pure virtual

Write record of the NTuple (Shortcut of writeRecord)

Implemented in NTuple::TupleImp.

writeRecord()

virtual StatusCode INTuple::writeRecord ( )

pure virtual

Write record of the NTuple.

Implemented in NTuple::TupleImp.

---

The documentation for this class was generated from the following file:

• GaudiKernel/include/GaudiKernel/INTuple.h
