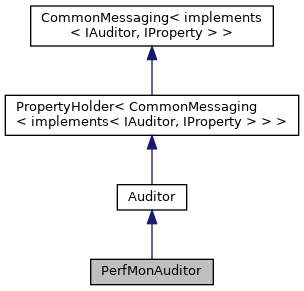

Inheritance diagram for PerfMonAuditor:

[legend]

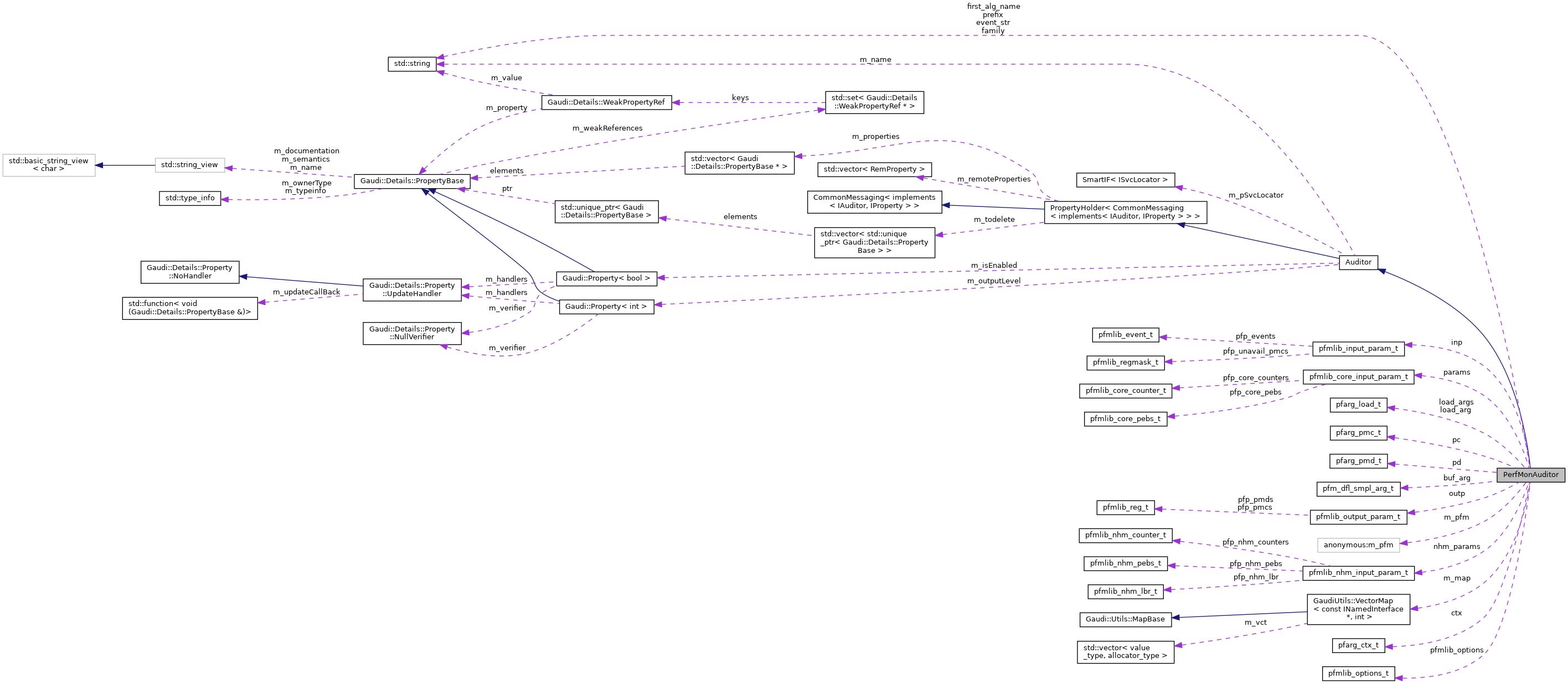

Collaboration diagram for PerfMonAuditor:

[legend]

Public Member Functions
void	before (StandardEventType evt, INamedInterface *alg) override

void	after (StandardEventType evt, INamedInterface *alg, const StatusCode &sc) override

StatusCode	initialize () override

StatusCode	finalize () override

int	is_nehalem ()

	PerfMonAuditor (const std::string &name, ISvcLocator *pSvc)

virtual	~PerfMonAuditor ()

void	after (StandardEventType, INamedInterface *, const StatusCode &) override

void	after (StandardEventType, const std::string &, const StatusCode &) override

void	after (CustomEventTypeRef, INamedInterface *, const StatusCode &) override

void	after (CustomEventTypeRef, const std::string &, const StatusCode &) override

void	before (StandardEventType, INamedInterface *) override
	The following methods are meant to be implemented by the child class... More...

void	before (StandardEventType, const std::string &) override

void	before (CustomEventTypeRef, INamedInterface *) override

void	before (CustomEventTypeRef, const std::string &) override

Public Member Functions inherited from Auditor
	Auditor (std::string name, ISvcLocator *svcloc)
	Constructor. More...

	Auditor (const Auditor &a)=delete

Auditor &	operator= (const Auditor &rhs)=delete

StatusCode	sysInitialize () override
	Initialization method invoked by the framework. More...

StatusCode	sysFinalize () override
	Finalization method invoked by the framework. More...

void	before (StandardEventType, INamedInterface *) override
	The following methods are meant to be implemented by the child class... More...

void	before (StandardEventType, const std::string &) override

void	before (CustomEventTypeRef, INamedInterface *) override

void	before (CustomEventTypeRef, const std::string &) override

void	after (StandardEventType, INamedInterface *, const StatusCode &) override

void	after (StandardEventType, const std::string &, const StatusCode &) override

void	after (CustomEventTypeRef, INamedInterface *, const StatusCode &) override

void	after (CustomEventTypeRef, const std::string &, const StatusCode &) override

void	beforeInitialize (INamedInterface *) override

void	afterInitialize (INamedInterface *) override

void	beforeReinitialize (INamedInterface *) override

void	afterReinitialize (INamedInterface *) override

void	beforeExecute (INamedInterface *) override

void	afterExecute (INamedInterface *, const StatusCode &) override

void	beforeFinalize (INamedInterface *) override

void	afterFinalize (INamedInterface *) override

const std::string &	name () const override

bool	isEnabled () const override

SmartIF< ISvcLocator > &	serviceLocator () const override
	The standard service locator. More...

template<class T >
StatusCode	service (std::string_view name, T *&svc, bool createIf=false) const
	Access a service by name, creating it if it doesn't already exist. More...

template<class T = IService>
SmartIF< T >	service (std::string_view name, bool createIf=false) const

Public Member Functions inherited from PropertyHolder< CommonMessaging< implements< IAuditor, IProperty > > >
	PropertyHolder ()=default

Gaudi::Details::PropertyBase &	declareProperty (Gaudi::Details::PropertyBase &prop)
	Declare a property. More...

Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, TYPE &value, const std::string &doc="none")
	Helper to wrap a regular data member and use it as a regular property. More...

Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, Gaudi::Property< TYPE, VERIFIER, HANDLERS > &prop, const std::string &doc="none")
	Declare a PropertyBase instance setting name and documentation. More...

Gaudi::Details::PropertyBase *	declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="")
	Declare a remote property. More...

StatusCode	setProperty (const std::string &name, const Gaudi::Details::PropertyBase &p) override
	set the property from another property with a different name More...

StatusCode	setProperty (const std::string &s) override
	set the property from the formatted string More...

StatusCode	setProperty (const Gaudi::Details::PropertyBase &p)
	Set the property from a property. More...

virtual StatusCode	setProperty (const std::string &name, const Gaudi::Details::PropertyBase &p)=0
	Set the property from a property with a different name. More...

virtual StatusCode	setProperty (const std::string &s)=0
	Set the property by string. More...

StatusCode	setProperty (const std::string &name, const char *v)
	Special case for string literals. More...

StatusCode	setProperty (const std::string &name, const std::string &v)
	Special case for std::string. More...

StatusCode	setProperty (const std::string &name, const TYPE &value)
	set the property form the value More...

StatusCode	setPropertyRepr (const std::string &n, const std::string &r) override
	set the property from name and value string representation More...

StatusCode	getProperty (Gaudi::Details::PropertyBase *p) const override
	get the property More...

const Gaudi::Details::PropertyBase &	getProperty (std::string_view name) const override
	get the property by name More...

StatusCode	getProperty (std::string_view n, std::string &v) const override
	convert the property to the string More...

const std::vector< Gaudi::Details::PropertyBase * > &	getProperties () const override
	get all properties More...

bool	hasProperty (std::string_view name) const override
	Return true if we have a property with the given name. More...

Gaudi::Details::PropertyBase *	property (std::string_view name) const
	\fixme property and bindPropertiesTo should be protected More...

void	bindPropertiesTo (Gaudi::Interfaces::IOptionsSvc &optsSvc)

	PropertyHolder (const PropertyHolder &)=delete

PropertyHolder &	operator= (const PropertyHolder &)=delete

Public Member Functions inherited from CommonMessaging< implements< IAuditor, IProperty > >
MSG::Level	msgLevel () const
	get the cached level (originally extracted from the embedded MsgStream) More...

bool	msgLevel (MSG::Level lvl) const
	get the output level from the embedded MsgStream More...

Private Types
typedef GaudiUtils::VectorMap< const INamedInterface *, int >	Map

Private Member Functions
void	i_beforeInitialize (INamedInterface *alg)

void	i_afterInitialize (INamedInterface *alg)

void	i_beforeExecute (INamedInterface *alg)

void	i_afterExecute (INamedInterface *alg)

	PerfMonAuditor ()

	PerfMonAuditor (const PerfMonAuditor &)

PerfMonAuditor &	operator= (const PerfMonAuditor &)

void	startpm ()

void	pausepm ()

void	stoppm ()

void	finalizepm ()

int	detect_unavail_pmu_regs (int fd, pfmlib_regmask_t r_pmcs, pfmlib_regmask_t r_pmds)

int	detect_unavail_pmcs (int fd, pfmlib_regmask_t *r_pmcs)

void	pfm_bv_set (uint64_t *bv, uint16_t rnum)

int	pfm_bv_isset (uint64_t *bv, uint16_t rnum)

void	pfm_bv_copy (uint64_t d, uint64_t j, uint16_t n)

void	start_smpl ()

void	stop_smpl ()

void	finalize_smpl ()

Static Private Member Functions
static void	process_smpl_buf (pfm_dfl_smpl_hdr_t *hdr, size_t entry_size)

static void	sigio_handler (int, siginfo_t , void )

Private Attributes
PFMon &	m_pfm

Map	m_map

int	m_indent

bool	m_inEvent

int	is_nehalem_ret

pfmlib_input_param_t	inp

pfmlib_output_param_t	outp

pfarg_ctx_t	ctx

pfarg_pmd_t	pd [NUM_PMDS]

pfarg_pmc_t	pc [NUM_PMCS]

pfarg_load_t	load_arg

int	fd

unsigned int	i

int	ret { 0 }

std::string	event_str [MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS]

std::string	prefix

std::string	family

char	event_cstr [MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS][MAX_EVENT_NAME_LENGTH]

char	prefix_cstr [MAX_PREFIX_NAME_LENGTH]

unsigned int	ph_ev_count { 0 }

bool	inv [MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS]

unsigned int	cmask [MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS]

unsigned int	start_at_event

pfmlib_core_input_param_t	params

pfmlib_nhm_input_param_t	nhm_params

int	used_counters_number

bool	nehalem

bool	westmere

bool	core

bool	sampling

pfm_dfl_smpl_arg_t	buf_arg

pfarg_load_t	load_args

void *	buf_addr

unsigned	num_counters

unsigned int	max_pmd

pfmlib_options_t	pfmlib_options

int	level

bool	first_alg

std::string	first_alg_name

bool	event_count_reached

Additional Inherited Members
Public Types inherited from Auditor
using	Factory = Gaudi::PluginService::Factory< IAuditor (const std::string &, ISvcLocator )>

Public Types inherited from PropertyHolder< CommonMessaging< implements< IAuditor, IProperty > > >
using	PropertyHolderImpl = PropertyHolder< CommonMessaging< implements< IAuditor, IProperty > > >
	Typedef used to refer to this class from derived classes, as in. More...

Public Types inherited from CommonMessaging< implements< IAuditor, IProperty > >
using	base_class = CommonMessaging

Protected Member Functions inherited from CommonMessaging< implements< IAuditor, IProperty > >
MSG::Level	setUpMessaging () const
	Set up local caches. More...

MSG::Level	resetMessaging ()
	Reinitialize internal states. More...

void	updateMsgStreamOutputLevel (int level)
	Update the output level of the cached MsgStream. More...

Detailed Description

Performance Monitoring Auditor that uses Perfmon2 library to monitor algorithms.

Author: Daniele Francesco KRUSE danie.nosp@m.le.f.nosp@m.rance.nosp@m.sco..nosp@m.kruse.nosp@m.@cer.nosp@m.n.ch

Date: 2009-10-28

Definition at line 208 of file PerfMonAuditor.cpp.

Member Typedef Documentation

◆ Map

typedef GaudiUtils::VectorMap<const INamedInterface*, int> PerfMonAuditor::Map

private

Definition at line 360 of file PerfMonAuditor.cpp.

Constructor & Destructor Documentation

◆ PerfMonAuditor() [1/3]

PerfMonAuditor::PerfMonAuditor	(	const std::string &	name,
		ISvcLocator *	pSvc
	)

inline

Definition at line 281 of file PerfMonAuditor.cpp.

       : // standard constructor
       Auditor( name, pSvc )
       , m_pfm( PFMon::instance() )
       , m_map()
       , m_indent( 0 )
       , m_inEvent( false ) {
     is_nehalem_ret = is_nehalem();
     declareProperty( "EVENT0", event_str[0] );
     declareProperty( "EVENT1", event_str[1] );
     declareProperty( "EVENT2", event_str[2] );
     declareProperty( "EVENT3", event_str[3] );
     declareProperty( "FAMILY", family );
     declareProperty( "PREFIX", prefix );
     declareProperty( "INV0", inv[0] );
     declareProperty( "INV1", inv[1] );
     declareProperty( "INV2", inv[2] );
     declareProperty( "INV3", inv[3] );
     declareProperty( "CMASK0", cmask[0] );
     declareProperty( "CMASK1", cmask[1] );
     declareProperty( "CMASK2", cmask[2] );
     declareProperty( "CMASK3", cmask[3] );
     declareProperty( "SP0", sp[0] );
     declareProperty( "SP1", sp[1] );
     declareProperty( "SP2", sp[2] );
     declareProperty( "SP3", sp[3] );
     declareProperty( "SAMPLE", sampling );
     declareProperty( "START_AT_EVENT", start_at_event );
     declareProperty( "IS_NEHALEM", is_nehalem_ret );

     /*
     // loading functions from PFM library
       void* handle = dlopen("libpfm.so", RTLD_NOW);
         if (!handle) {
     //      error() << "Cannot open library: " << dlerror() << endmsg;
         }
       typedef void (*hello_t)();
         hello_t hello = (hello_t) dlsym(handle, "hello");
         if (!hello) {
     //        error() << "Cannot load symbol 'hello': " << dlerror() << endmsg;
             dlclose(handle);
         }

         pfm_start = (pfm_start_t) dlsym(handle, "pfm_start");
         pfm_stop = (pfm_stop_t) dlsym(handle, "pfm_stop");
         pfm_self_stop = (pfm_self_stop_t) dlsym(handle, "pfm_stop"); //it's the same
         pfm_restart = (pfm_restart_t) dlsym(handle, "pfm_restart");
         //pfm_read_pmds = (pfm_read_pmds_t) dlsym(handle, "pfm_read_pmds");
         pfm_initialize = (pfm_initialize_t) dlsym(handle, "pfm_initialize");
         pfm_find_full_event = (pfm_find_full_event_t) dlsym(handle, "pfm_find_full_event");
         pfm_dispatch_events = (pfm_dispatch_events_t) dlsym(handle, "pfm_dispatch_events");
         pfm_create_context = (pfm_create_context_t) dlsym(handle, "pfm_create_context");
         pfm_write_pmcs = (pfm_write_pmcs_t) dlsym(handle, "pfm_write_pmcs");
         pfm_write_pmds = (pfm_write_pmds_t) dlsym(handle, "pfm_write_pmds");
         pfm_load_context = (pfm_load_context_t) dlsym(handle, "pfm_load_context");
         pfm_strerror = (pfm_strerror_t) dlsym(handle, "pfm_strerror");
         pfm_set_options = (pfm_set_options_t) dlsym(handle, "pfm_set_options");
         pfm_get_num_counters = (pfm_get_num_counters_t) dlsym(handle, "pfm_get_num_counters");
         // use it to do the calculation
     //    info() << "Calling hello..." << endmsg;
     //    hello();

         // close the library
     //    info() << "Closing library..." << endmsg;
         dlclose(handle);
     */

   }

◆ ~PerfMonAuditor()

virtual PerfMonAuditor::~PerfMonAuditor ( )

inlinevirtual

Definition at line 352 of file PerfMonAuditor.cpp.

352 {} // virtual destructor

◆ PerfMonAuditor() [2/3]

PerfMonAuditor::PerfMonAuditor ( )

private

◆ PerfMonAuditor() [3/3]

PerfMonAuditor::PerfMonAuditor ( const PerfMonAuditor & )

private

Member Function Documentation

◆ after() [1/5]

void Auditor::after

override

Definition at line 77 of file Auditor.cpp.

139 {}

◆ after() [2/5]

void Auditor::after

override

Definition at line 76 of file Auditor.cpp.

138 {}

◆ after() [3/5]

void PerfMonAuditor::after	(	StandardEventType	evt,
		INamedInterface *	alg,
		const StatusCode &	sc
	)

override

Definition at line 899 of file PerfMonAuditor.cpp.

                                                                                            {
   switch ( evt ) {
   case IAuditor::Initialize:
     i_afterInitialize( alg );
     break;
   case IAuditor::Execute:
     i_afterExecute( alg );
     break;
   default:
     break;
   }
   return;
 }

◆ after() [4/5]

void Auditor::after

override

Definition at line 74 of file Auditor.cpp.

136 {}

◆ after() [5/5]

void Auditor::after

override

Definition at line 73 of file Auditor.cpp.

                                                                                        {
   switch ( evt ) {
   case Initialize:
     afterInitialize( obj );
     break;
   case ReInitialize:
     afterReinitialize( obj );
     break;
   case Execute:
     afterExecute( obj, sc );
     break;
   case Finalize:
     afterFinalize( obj );
     break;
   case Start:
     break;
   case Stop:
     break;
   case ReStart:
     break;
   default:
     break; // do nothing
   }
 }

◆ before() [1/5]

void Auditor::before

override

Definition at line 71 of file Auditor.cpp.

109 {}

◆ before() [2/5]

void Auditor::before

override

Definition at line 70 of file Auditor.cpp.

108 {}

◆ before() [3/5]

void PerfMonAuditor::before	(	StandardEventType	evt,
		INamedInterface *	alg
	)

override

Definition at line 885 of file PerfMonAuditor.cpp.

                                                                          {
   switch ( evt ) {
   case IAuditor::Initialize:
     i_beforeInitialize( alg );
     break;
   case IAuditor::Execute:
     i_beforeExecute( alg );
     break;
   default:
     break;
   }
   return;
 }

◆ before() [4/5]

void Auditor::before

override

Definition at line 68 of file Auditor.cpp.

106 {}

◆ before() [5/5]

void Auditor::before

override

The following methods are meant to be implemented by the child class...

Definition at line 67 of file Auditor.cpp.

                                                                   {
   switch ( evt ) {
   case Initialize:
     beforeInitialize( obj );
     break;
   case ReInitialize:
     beforeReinitialize( obj );
     break;
   case Execute:
     beforeExecute( obj );
     break;
   case Finalize:
     beforeFinalize( obj );
     break;
   case Start:
     break;
   case Stop:
     break;
   case ReStart:
     break;
   default:
     break; // do nothing
   }
 }

◆ detect_unavail_pmcs()

int PerfMonAuditor::detect_unavail_pmcs	(	int	fd,
		pfmlib_regmask_t *	r_pmcs
	)

inlineprivate

Definition at line 399 of file PerfMonAuditor.cpp.

399 { return detect_unavail_pmu_regs( fd, r_pmcs, NULL ); }

◆ detect_unavail_pmu_regs()

int PerfMonAuditor::detect_unavail_pmu_regs	(	int	fd,
		pfmlib_regmask_t *	r_pmcs,
		pfmlib_regmask_t *	r_pmds
	)

private

◆ finalize()

StatusCode PerfMonAuditor::finalize ( )

overridevirtual

Reimplemented from Auditor.

Definition at line 877 of file PerfMonAuditor.cpp.

                                     {
   if ( sampling == 0 )
     finalizepm();
   else
     finalize_smpl();
   return Auditor::finalize();
 }

◆ finalize_smpl()

void PerfMonAuditor::finalize_smpl ( )

private

Definition at line 796 of file PerfMonAuditor.cpp.

                                    {
   int err;
   for ( int i = 0; i < used_counters_number; i++ ) {
     std::string filename = prefix_cstr;
     filename += '_';
     filename += event_cstr[i];

     for ( auto& c : filename )
       if ( c == ':' ) c = '-';

     if ( inv[i] ) filename += "_INV_1";
     if ( cmask[i] > 0 ) filename += "_CMASK_" + std::to_string( cmask[i] );
     filename += ".txt.gz";

     gzFile outfile = gzopen( filename.c_str(), "wb" );
     if ( outfile != NULL ) {
       if ( nehalem ) {
         gzprintf( outfile, "NHM " );
       } else if ( westmere ) {
         gzprintf( outfile, "WSM " );
       } else if ( core ) {
         gzprintf( outfile, "CORE " );
       }
       if ( gzprintf( outfile, "%s %d %d %d\n", event_cstr[i], cmask[i], inv[i], sp[i] ) <
            (int)strlen( event_cstr[i] ) ) {
         error() << "ERROR: gzputs err: " << gzerror( outfile, &err ) << ". Aborting..." << endmsg;
       }
       for ( std::map<std::string, std::map<unsigned long, unsigned int>>::iterator it = samples[i].begin();
             it != samples[i].end(); it++ ) {
         unsigned long long sum = 0;
         for ( std::map<unsigned long, unsigned int>::iterator jt = ( it->second ).begin(); jt != ( it->second ).end();
               jt++ ) {
           sum += jt->second;
         }
         if ( gzprintf( outfile, "%s%%%llu\n", ( it->first ).c_str(), sum ) < (int)( ( it->first ).length() ) ) {
           error() << "ERROR: gzputs err: " << gzerror( outfile, &err ) << ". Aborting..." << endmsg;
         }
         for ( std::map<unsigned long, unsigned int>::iterator jt = ( it->second ).begin(); jt != ( it->second ).end();
               jt++ ) {
           char sym_name[SYM_NAME_MAX_LENGTH];
           bzero( sym_name, SYM_NAME_MAX_LENGTH );
           const char* libName;
           const char* symbolName;
           int         libOffset = 0;
           int         offset    = 0;
           void*       sym_addr  = IgHookTrace::tosymbol( (void*)( jt->first ) );
           if ( sym_addr != NULL ) {
             bool success = IgHookTrace::symbol( sym_addr, symbolName, libName, offset, libOffset );
             if ( success ) {
               if ( symbolName != NULL && strlen( symbolName ) > 0 ) {
                 strcpy( sym_name, symbolName );
                 strcat( sym_name, " " );
               } else {
                 strcpy( sym_name, "??? " );
               }
               if ( libName != NULL && strlen( libName ) > 0 ) {
                 strcat( sym_name, libName );
                 strcat( sym_name, " " );
               } else {
                 strcat( sym_name, "??? " );
               }
               sprintf( sym_name + strlen( sym_name ), "%d ", libOffset );
               if ( strlen( sym_name ) <= 0 ) { error() << "ERROR: Symbol name length is zero. Aborting..." << endmsg; }
             } else {
               strcpy( sym_name, "??? ??? 0 " );
             }
           } else {
             strcpy( sym_name, "??? ??? 0 " );
           }
           if ( gzprintf( outfile, "%s %d\n", sym_name, jt->second ) < (int)strlen( sym_name ) ) {
             error() << "ERROR: gzputs err: " << gzerror( outfile, &err ) << endmsg;
           }
         }
       }
     } else {
       error() << "ERROR: Could not open file: " << filename << ". Aborting..." << endmsg;
     }
     gzclose( outfile );
   }
 }

◆ finalizepm()

void PerfMonAuditor::finalizepm ( )

private

Definition at line 516 of file PerfMonAuditor.cpp.

                                 {
   info() << "start of finalizepm ucn:" << used_counters_number << endmsg;
   for ( int i = 0; i < used_counters_number; i++ ) {
     std::string filename = prefix_cstr;
     filename += '_';
     filename += event_cstr[i];

     for ( auto& c : filename )
       if ( c == ':' ) c = '-';

     if ( inv[i] ) filename += "_INV_1";
     if ( cmask[i] > 0 ) filename += "_CMASK_" + std::to_string( cmask[i] );
     filename += ".txt";

     info() << "Filename:" << filename << endmsg;
     FILE* outfile = fopen( filename.c_str(), "w" );
     if ( nehalem ) {
       fprintf( outfile, "NHM " );
     } else if ( westmere ) {
       fprintf( outfile, "WSM " );
     } else if ( core ) {
       fprintf( outfile, "CORE " );
     }
     fprintf( outfile, "%s %d %d %d\n", event_cstr[i], cmask[i], inv[i], sp[i] );
     for ( std::map<std::string, std::vector<unsigned long int>>::iterator it = ( results[i] ).begin();
           it != ( results[i] ).end(); it++ ) {
       fprintf( outfile, "%s\n", ( it->first ).c_str() );
       for ( std::vector<unsigned long int>::iterator j = ( it->second ).begin(); j != ( it->second ).end(); j++ ) {
         fprintf( outfile, "%lu\n", *j );
       }
     }
     fclose( outfile );
   }
 }

◆ i_afterExecute()

void PerfMonAuditor::i_afterExecute ( INamedInterface * alg )

private

Definition at line 954 of file PerfMonAuditor.cpp.

                                                           {
   if ( !alg ) { return; } // info() << "after:inside! " << alg->name() << endmsg;

   if ( event_count_reached ) {
     // info() << "after:inside! " << alg->name() << endmsg;

     if ( sampling == 0 )
       stoppm();
     else
       stop_smpl();
     alg_stack.pop();
     --m_indent;
     if ( !alg_stack.empty() ) {
       if ( sampling == 0 )
         startpm();
       else
         start_smpl(); // resuming father algorithm counting
     }
   }
 }

◆ i_afterInitialize()

void PerfMonAuditor::i_afterInitialize ( INamedInterface * alg )

private

Definition at line 915 of file PerfMonAuditor.cpp.

915 {}

◆ i_beforeExecute()

void PerfMonAuditor::i_beforeExecute ( INamedInterface * alg )

private

Definition at line 917 of file PerfMonAuditor.cpp.

                                                            {
   if ( !alg ) return;
   // info() << "before:inside! " << alg->name() << endmsg;
   if ( first_alg ) {
     first_alg      = false;
     first_alg_name = alg->name();
     // info() << "first_alg_name= " << alg->name() << endmsg;
   }
   if ( !event_count_reached ) {
     if ( !first_alg_name.compare( alg->name() ) ) {
       ph_ev_count++;
       // info() << "EVENT COUNT: " << ph_ev_count << endmsg;
       if ( ph_ev_count == start_at_event ) {
         event_count_reached = true;
         // info() << "!!! EVENT COUNT REACHED: " << ph_ev_count << endmsg;
       }
     }
   }
   if ( event_count_reached ) {
     // info() << "before:inside! " << alg->name() << endmsg;

     if ( !alg_stack.empty() ) {
       if ( sampling == 0 )
         pausepm(); // pausing father algorithm counting
       else
         stop_smpl();
     }
     ++m_indent;
     std::vector<unsigned long int> zeroes( 4, 0 );
     alg_stack.push( std::make_pair( alg, zeroes ) );
     if ( sampling == 0 )
       startpm();
     else
       start_smpl();
   }
 }

◆ i_beforeInitialize()

void PerfMonAuditor::i_beforeInitialize ( INamedInterface * alg )

private

Definition at line 913 of file PerfMonAuditor.cpp.

913 {}

◆ initialize()

StatusCode PerfMonAuditor::initialize ( )

overridevirtual

Reimplemented from Auditor.

Definition at line 551 of file PerfMonAuditor.cpp.

                                       {
   if ( !m_pfm.loaded ) {
     error() << "pfm library could not be loaded" << endmsg;
     return StatusCode::FAILURE;
   }

   info() << "Initializing..." << endmsg;
   StatusCode sc = Auditor::initialize();
   if ( sc.isFailure() ) { return sc; }
   used_counters_number = 0;
   for ( int i = 0; i < MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS; i++ ) {
     if ( event_str[i].length() > 0 ) used_counters_number++;
   }
   for ( int i = 0; i < MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS; i++ ) { strcpy( event_cstr[i], event_str[i].c_str() ); }
   strcpy( prefix_cstr, prefix.c_str() );

   if ( m_pfm.pfm_initialize() != PFMLIB_SUCCESS ) { error() << "Cannot initialize perfmon!!" << endmsg; }
   ph_ev_count         = 0;
   first_alg           = true;
   event_count_reached = false;
   nehalem             = false;
   core                = false;
   westmere            = false;
   if ( family.compare( "CORE" ) == 0 )
     core = true;
   else if ( family.compare( "NEHALEM" ) == 0 )
     nehalem = true;
   else if ( family.compare( "WESTMERE" ) == 0 )
     westmere = true;
   else { error() << "ERROR: Unsupported processor family " << family << ". aborting..." << endmsg; }

   info() << "Initialized!" << endmsg;
   return StatusCode::SUCCESS;
 }

◆ is_nehalem()

int PerfMonAuditor::is_nehalem ( )

inline

Definition at line 224 of file PerfMonAuditor.cpp.

                           {
 #ifdef __ICC
 // Disable ICC remark #593: variable "x" was set but never used
 #  pragma warning( push )
 #  pragma warning( disable : 593 )
 #endif
     int a, b, c, d;
     cpuid( 1, a, b, c, d );
     int sse4_2_mask = 1 << 20;
     if ( c & sse4_2_mask )
       return 1;
     else
       return 0;
 #ifdef __ICC
 #  pragma warning( pop )
 #endif
   }

◆ operator=()

PerfMonAuditor& PerfMonAuditor::operator= ( const PerfMonAuditor & )

private

◆ pausepm()

void PerfMonAuditor::pausepm ( )

private

Definition at line 504 of file PerfMonAuditor.cpp.

                              {
   m_pfm.pfm_stop( fd );
   if ( m_pfm.pfm_read_pmds( fd, pd, inp.pfp_event_count ) == -1 ) { error() << "Could not read pmds" << endmsg; }

   for ( int i = 0; i < used_counters_number; i++ ) { alg_stack.top().second[i] += pd[i].reg_value; }

   close( fd );
 }

◆ pfm_bv_copy()

void PerfMonAuditor::pfm_bv_copy	(	uint64_t *	d,
		uint64_t *	j,
		uint16_t	n
	)

inlineprivate

Definition at line 404 of file PerfMonAuditor.cpp.

                                                            {
     if ( n <= BPL )
       *d = *j;
     else { memcpy( d, j, ( n >> LBPL ) * sizeof( uint64_t ) ); }
   }

◆ pfm_bv_isset()

int PerfMonAuditor::pfm_bv_isset	(	uint64_t *	bv,
		uint16_t	rnum
	)

inlineprivate

Definition at line 401 of file PerfMonAuditor.cpp.

                                                    {
     return bv[rnum >> LBPL] & ( 1UL << ( rnum & ( BPL - 1 ) ) ) ? 1 : 0;
   }

◆ pfm_bv_set()

void PerfMonAuditor::pfm_bv_set	(	uint64_t *	bv,
		uint16_t	rnum
	)

inlineprivate

Definition at line 400 of file PerfMonAuditor.cpp.

400 { bv[rnum >> LBPL] |= 1UL << ( rnum & ( BPL - 1 ) ); }

◆ process_smpl_buf()

void PerfMonAuditor::process_smpl_buf	(	pfm_dfl_smpl_hdr_t *	hdr,
		size_t	entry_size
	)

staticprivate

Definition at line 590 of file PerfMonAuditor.cpp.

                                                                                   {
   pfm_dfl_smpl_entry_t* ent;
   size_t                pos, count;
   uint64_t              entry;
   if ( hdr->hdr_overflows == last_overflow && hdr->hdr_count == last_count ) {
     printf( "skipping identical set of samples...\n" );
     return;
   }
   count = hdr->hdr_count;
   ent   = (pfm_dfl_smpl_entry_t*)( hdr + 1 );
   pos   = (unsigned long)ent;
   entry = collected_samples;
   while ( count-- ) {
     // if(ent->ovfl_pmd>=0 && ent->ovfl_pmd<=3)
     if ( ent->ovfl_pmd <= 3 ) {
       ( ( samples[ent->ovfl_pmd] )[( alg_stack.top().first )->name()] )[(unsigned long)( ent->ip )]++;
     }
     pos += entry_size;
     ent = (pfm_dfl_smpl_entry_t*)pos;
     entry++;
   }
   collected_samples = entry;
   last_overflow     = hdr->hdr_overflows;
   if ( last_count != hdr->hdr_count && ( last_count || last_overflow == 0 ) ) { collected_partial += hdr->hdr_count; }
   last_count = hdr->hdr_count;
   return;
 }

◆ sigio_handler()

void PerfMonAuditor::sigio_handler	(	int	,
		siginfo_t *	,
		void *
	)

staticprivate

Definition at line 623 of file PerfMonAuditor.cpp.

                                                                {
   PFMon&      pfm = PFMon::instance();
   pfarg_msg_t msg;
   int         fd = ctx_fd;
   int         r;
   if ( fd != ctx_fd ) {
     // error() << "ERROR: handler does not get valid file descriptor. Aborting..." << endmsg;
   }
   if ( pfm.pfm_read_pmds( fd, pd_smpl + 1, 1 ) == -1 ) {
     // error() << "ERROR: pfm_read_pmds: " << strerror(errno) << ". Aborting..." << endmsg;
   }
   while ( true ) {
     r = read( fd, &msg, sizeof( msg ) );
     if ( r != sizeof( msg ) ) {
       if ( r == -1 && errno == EINTR ) {
         printf( "read interrupted, retrying\n" );
         continue;
       }
       // error() << "ERROR: cannot read overflow message: " << strerror(errno) << ". Aborting..." << endmsg;
     }
     break;
   }
   switch ( msg.type ) {
   case PFM_MSG_OVFL: // the sampling buffer is full
     process_smpl_buf( hdr, entry_size );
     ovfl_count++;
     if ( pfm.pfm_restart( fd ) ) {
       if ( errno != EBUSY ) {
         // error() << "ERROR: pfm_restart error errno " << errno << ". Aborting..." << endmsg;
       } else {
         printf( "pfm_restart: task probably terminated \n" );
       }
     }
     break;
   default:
     // error() << "ERROR: unknown message type " << msg.type << ". Aborting..." << endmsg;
     break;
   }
 }

◆ start_smpl()

void PerfMonAuditor::start_smpl ( )

private

Definition at line 667 of file PerfMonAuditor.cpp.

                                 {
   ovfl_count    = 0;
   num_smpl_pmds = 0;
   last_overflow = ~0;
   max_pmd       = 0;
   memset( &pfmlib_options, 0, sizeof( pfmlib_options ) );
   pfmlib_options.pfm_debug   = 0;
   pfmlib_options.pfm_verbose = 0;
   m_pfm.pfm_set_options( &pfmlib_options );
   ret = m_pfm.pfm_initialize();
   if ( ret != PFMLIB_SUCCESS ) {
     error() << "ERROR: Cannot initialize library: " << m_pfm.pfm_strerror( ret ) << ". Aborting..." << endmsg;
   }
   struct sigaction act;
   memset( &act, 0, sizeof( act ) );
   act.sa_sigaction = sigio_handler; // dlopen() ==>
   // act.sa_handler = (sig_t)&sigio_handler;
   sigaction( SIGIO, &act, 0 );
   memset( &ctx, 0, sizeof( ctx ) );
   memset( &buf_arg, 0, sizeof( buf_arg ) );
   memset( &inp, 0, sizeof( inp ) );
   memset( &outp, 0, sizeof( outp ) );
   memset( pd_smpl, 0, sizeof( pd_smpl ) );
   memset( pc, 0, sizeof( pc ) );
   memset( &load_args, 0, sizeof( load_args ) );
   m_pfm.pfm_get_num_counters( &num_counters );
   memset( &params, 0, sizeof( params ) );
   memset( &nhm_params, 0, sizeof( nhm_params ) );

   for ( int i = 0; i < used_counters_number; i++ ) {
     ret = m_pfm.pfm_find_full_event( event_cstr[i], &inp.pfp_events[i] );
     if ( ret != PFMLIB_SUCCESS ) {
       error() << "ERROR: cannot find event: " << event_cstr[i] << ". Aborting..." << endmsg;
     }
   }
   inp.pfp_dfl_plm     = PFM_PLM3;
   inp.pfp_event_count = 4;
   for ( int i = 0; i < used_counters_number; i++ ) {
     if ( inv[i] ) {
       ( params.pfp_core_counters[i] ).flags |= PFM_CORE_SEL_INV;
       ( nhm_params.pfp_nhm_counters[i] ).flags |= PFM_NHM_SEL_INV;
     }
     if ( cmask[i] > 0 ) {
       ( params.pfp_core_counters[i] ).cnt_mask    = cmask[i];
       ( nhm_params.pfp_nhm_counters[i] ).cnt_mask = cmask[i];
     }
   }
   if ( nehalem || westmere ) {
     ret = m_pfm.pfm_dispatch_events( &inp, &nhm_params, &outp, NULL );
   } else {
     ret = m_pfm.pfm_dispatch_events( &inp, &params, &outp, NULL );
   }
   if ( ret != PFMLIB_SUCCESS ) {
     error() << "ERROR: cannot configure events: " << m_pfm.pfm_strerror( ret ) << ". Aborting..." << endmsg;
   }
   for ( unsigned int i = 0; i < outp.pfp_pmc_count; i++ ) {
     pc[i].reg_num   = outp.pfp_pmcs[i].reg_num;
     pc[i].reg_value = outp.pfp_pmcs[i].reg_value;
   }
   for ( unsigned int i = 0; i < outp.pfp_pmd_count; i++ ) {
     pd_smpl[i].reg_num = outp.pfp_pmds[i].reg_num;
     if ( i ) {
       pfm_bv_set( pd_smpl[0].reg_smpl_pmds, pd_smpl[i].reg_num );
       if ( pd_smpl[i].reg_num > max_pmd ) { max_pmd = pd_smpl[i].reg_num; }
       num_smpl_pmds++;
     }
   }
   for ( int i = 0; i < used_counters_number; i++ ) {
     pd_smpl[i].reg_flags |= PFM_REGFL_OVFL_NOTIFY | PFM_REGFL_RANDOM;
     pfm_bv_copy( pd_smpl[i].reg_reset_pmds, pd_smpl[i].reg_smpl_pmds, max_pmd );
     pd_smpl[i].reg_value       = (uint64_t)( sp[i] * -1 );
     pd_smpl[i].reg_short_reset = (uint64_t)( sp[i] * -1 );
     pd_smpl[i].reg_long_reset  = (uint64_t)( sp[i] * -1 );
     pd_smpl[i].reg_random_seed = 5;    // tocheck
     pd_smpl[i].reg_random_mask = 0xff; // tocheck
   }
   entry_size       = sizeof( pfm_dfl_smpl_entry_t ) + ( num_smpl_pmds << 3 );
   ctx.ctx_flags    = 0;
   buf_arg.buf_size = 3 * getpagesize() + 512;
   ctx_fd           = m_pfm.pfm_create_context( &ctx, (char*)FMT_NAME, &buf_arg, sizeof( buf_arg ) );
   if ( ctx_fd == -1 ) {
     if ( errno == ENOSYS ) {
       error() << "ERROR: Your kernel does not have performance monitoring support! Aborting..." << endmsg;
     }
     error() << "ERROR: Can't create PFM context " << strerror( errno ) << ". Aborting..." << endmsg;
   }
   buf_addr = mmap( NULL, buf_arg.buf_size, PROT_READ, MAP_PRIVATE, ctx_fd, 0 );
   if ( buf_addr == MAP_FAILED ) {
     error() << "ERROR: cannot mmap sampling buffer: " << strerror( errno ) << ". Aborting..." << endmsg;
   }
   hdr = (pfm_dfl_smpl_hdr_t*)buf_addr;
   if ( PFM_VERSION_MAJOR( hdr->hdr_version ) < 1 ) {
     error() << "ERROR: invalid buffer format version. Aborting..." << endmsg;
   }
   if ( m_pfm.pfm_write_pmcs( ctx_fd, pc, outp.pfp_pmc_count ) ) {
     error() << "ERROR: pfm_write_pmcs error errno " << strerror( errno ) << ". Aborting..." << endmsg;
   }
   if ( m_pfm.pfm_write_pmds( ctx_fd, pd_smpl, outp.pfp_pmd_count ) ) {
     error() << "ERROR: pfm_write_pmds error errno " << strerror( errno ) << ". Aborting..." << endmsg;
   }
   load_args.load_pid = getpid();
   if ( m_pfm.pfm_load_context( ctx_fd, &load_args ) ) {
     error() << "ERROR: pfm_load_context error errno " << strerror( errno ) << ". Aborting..." << endmsg;
   }
   ret = fcntl( ctx_fd, F_SETFL, fcntl( ctx_fd, F_GETFL, 0 ) | O_ASYNC );
   if ( ret == -1 ) { error() << "ERROR: cannot set ASYNC: " << strerror( errno ) << ". Aborting..." << endmsg; }
   ret = fcntl( ctx_fd, F_SETOWN, getpid() );
   if ( ret == -1 ) { error() << "ERROR: cannot setown: " << strerror( errno ) << ". Aborting..." << endmsg; }
   // pfm_self_start(ctx_fd); ==>
   m_pfm.pfm_start( ctx_fd, NULL );
 }

◆ startpm()

void PerfMonAuditor::startpm ( )

private

Definition at line 429 of file PerfMonAuditor.cpp.

                              {
   memset( &ctx, 0, sizeof( ctx ) );
   memset( &inp, 0, sizeof( inp ) );
   memset( &outp, 0, sizeof( outp ) );
   memset( pd, 0, sizeof( pd ) );
   memset( pc, 0, sizeof( pc ) );
   memset( &load_arg, 0, sizeof( load_arg ) );
   memset( &params, 0, sizeof( params ) );
   memset( &nhm_params, 0, sizeof( nhm_params ) );

   for ( int i = 0; i < used_counters_number; i++ ) {
     ret = m_pfm.pfm_find_full_event( event_cstr[i], &inp.pfp_events[i] );
     if ( ret != PFMLIB_SUCCESS ) {
       error() << "ERROR: cannot find event: " << event_cstr[i] << ". Aborting..." << endmsg;
     }
   }
   inp.pfp_dfl_plm     = PFM_PLM3;
   inp.pfp_event_count = 4;
   for ( int i = 0; i < used_counters_number; i++ ) {
     if ( inv[i] ) {
       ( params.pfp_core_counters[i] ).flags |= PFM_CORE_SEL_INV;
       ( nhm_params.pfp_nhm_counters[i] ).flags |= PFM_NHM_SEL_INV;
     }
     if ( cmask[i] > 0 ) {
       ( params.pfp_core_counters[i] ).cnt_mask    = cmask[i];
       ( nhm_params.pfp_nhm_counters[i] ).cnt_mask = cmask[i];
     }
   }
   if ( nehalem || westmere ) {
     ret = m_pfm.pfm_dispatch_events( &inp, &nhm_params, &outp, NULL );
   } else {
     ret = m_pfm.pfm_dispatch_events( &inp, &params, &outp, NULL );
   }
   if ( ret != PFMLIB_SUCCESS ) {
     error() << "ERROR: cannot dispatch events: " << m_pfm.pfm_strerror( ret ) << ". Aborting..." << endmsg;
   }
   for ( unsigned int i = 0; i < outp.pfp_pmc_count; i++ ) {
     pc[i].reg_num   = outp.pfp_pmcs[i].reg_num;
     pc[i].reg_value = outp.pfp_pmcs[i].reg_value;
   }
   for ( unsigned int i = 0; i < outp.pfp_pmd_count; i++ ) {
     pd[i].reg_num   = outp.pfp_pmds[i].reg_num;
     pd[i].reg_value = 0;
   }
   fd = m_pfm.pfm_create_context( &ctx, NULL, 0, 0 );
   if ( fd == -1 ) { error() << "ERROR: Context not created. Aborting..." << endmsg; }
   if ( m_pfm.pfm_write_pmcs( fd, pc, outp.pfp_pmc_count ) == -1 ) {
     error() << "ERROR: Could not write pmcs. Aborting..." << endmsg;
   }
   if ( m_pfm.pfm_write_pmds( fd, pd, outp.pfp_pmd_count ) == -1 ) {
     error() << "ERROR: Could not write pmds. Aborting..." << endmsg;
   }
   load_arg.load_pid = getpid();
   if ( m_pfm.pfm_load_context( fd, &load_arg ) == -1 ) {
     error() << "ERROR: Could not load context. Aborting..." << endmsg;
     //  error() << "Could not read pmds" << endmsg;
   }

   m_pfm.pfm_start( fd, NULL );
 }

◆ stop_smpl()

void PerfMonAuditor::stop_smpl ( )

private

Definition at line 783 of file PerfMonAuditor.cpp.

                                {
   m_pfm.pfm_self_stop( ctx_fd );
   process_smpl_buf( hdr, entry_size );
   close( ctx_fd );
   ret = munmap( hdr, buf_arg.buf_size );
   if ( ret ) { error() << "Cannot unmap buffer: %s" << strerror( errno ) << endmsg; }
   return;
 }

◆ stoppm()

void PerfMonAuditor::stoppm ( )

private

Definition at line 494 of file PerfMonAuditor.cpp.

                             {
   m_pfm.pfm_stop( fd );
   if ( m_pfm.pfm_read_pmds( fd, pd, inp.pfp_event_count ) == -1 ) { error() << "Could not read pmds" << endmsg; }
   for ( int i = 0; i < used_counters_number; i++ ) {
     results[i][( alg_stack.top().first )->name()].push_back( alg_stack.top().second[i] + pd[i].reg_value );
   }

   close( fd );
 }

Member Data Documentation

◆ buf_addr

void* PerfMonAuditor::buf_addr

private

Definition at line 417 of file PerfMonAuditor.cpp.

◆ buf_arg

pfm_dfl_smpl_arg_t PerfMonAuditor::buf_arg

private

Definition at line 415 of file PerfMonAuditor.cpp.

◆ cmask

unsigned int PerfMonAuditor::cmask[MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS]

private

Definition at line 388 of file PerfMonAuditor.cpp.

◆ core

bool PerfMonAuditor::core

private

Definition at line 395 of file PerfMonAuditor.cpp.

◆ ctx

pfarg_ctx_t PerfMonAuditor::ctx

private

Definition at line 370 of file PerfMonAuditor.cpp.

◆ event_count_reached

bool PerfMonAuditor::event_count_reached

private

Definition at line 426 of file PerfMonAuditor.cpp.

◆ event_cstr

char PerfMonAuditor::event_cstr[MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS][MAX_EVENT_NAME_LENGTH]

private

Definition at line 384 of file PerfMonAuditor.cpp.

◆ event_str

std::string PerfMonAuditor::event_str[MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS]

private

Definition at line 381 of file PerfMonAuditor.cpp.

◆ family

std::string PerfMonAuditor::family

private

Definition at line 383 of file PerfMonAuditor.cpp.

◆ fd

int PerfMonAuditor::fd

private

Definition at line 374 of file PerfMonAuditor.cpp.

◆ first_alg

bool PerfMonAuditor::first_alg

private

Definition at line 424 of file PerfMonAuditor.cpp.

◆ first_alg_name

std::string PerfMonAuditor::first_alg_name

private

Definition at line 425 of file PerfMonAuditor.cpp.

◆ i

unsigned int PerfMonAuditor::i

private

Definition at line 375 of file PerfMonAuditor.cpp.

◆ inp

pfmlib_input_param_t PerfMonAuditor::inp

private

Definition at line 368 of file PerfMonAuditor.cpp.

◆ inv

bool PerfMonAuditor::inv[MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS]

private

Definition at line 387 of file PerfMonAuditor.cpp.

◆ is_nehalem_ret

int PerfMonAuditor::is_nehalem_ret

private

Definition at line 366 of file PerfMonAuditor.cpp.

◆ level

int PerfMonAuditor::level

private

Definition at line 422 of file PerfMonAuditor.cpp.

◆ load_arg

pfarg_load_t PerfMonAuditor::load_arg

private

Definition at line 373 of file PerfMonAuditor.cpp.

◆ load_args

pfarg_load_t PerfMonAuditor::load_args

private

Definition at line 416 of file PerfMonAuditor.cpp.

◆ m_indent

int PerfMonAuditor::m_indent

private

Definition at line 362 of file PerfMonAuditor.cpp.

◆ m_inEvent

bool PerfMonAuditor::m_inEvent

private

Definition at line 363 of file PerfMonAuditor.cpp.

◆ m_map

Map PerfMonAuditor::m_map

private

Definition at line 361 of file PerfMonAuditor.cpp.

◆ m_pfm

PFMon& PerfMonAuditor::m_pfm

private

Definition at line 243 of file PerfMonAuditor.cpp.

◆ max_pmd

unsigned int PerfMonAuditor::max_pmd

private

Definition at line 419 of file PerfMonAuditor.cpp.

◆ nehalem

bool PerfMonAuditor::nehalem

private

Definition at line 393 of file PerfMonAuditor.cpp.

◆ nhm_params

pfmlib_nhm_input_param_t PerfMonAuditor::nhm_params

private

Definition at line 391 of file PerfMonAuditor.cpp.

◆ num_counters

unsigned PerfMonAuditor::num_counters

private

Definition at line 418 of file PerfMonAuditor.cpp.

◆ outp

pfmlib_output_param_t PerfMonAuditor::outp

private

Definition at line 369 of file PerfMonAuditor.cpp.

◆ params

pfmlib_core_input_param_t PerfMonAuditor::params

private

Definition at line 390 of file PerfMonAuditor.cpp.

◆ pc

pfarg_pmc_t PerfMonAuditor::pc[NUM_PMCS]

private

Definition at line 372 of file PerfMonAuditor.cpp.

◆ pd

pfarg_pmd_t PerfMonAuditor::pd[NUM_PMDS]

private

Definition at line 371 of file PerfMonAuditor.cpp.

◆ pfmlib_options

pfmlib_options_t PerfMonAuditor::pfmlib_options

private

Definition at line 420 of file PerfMonAuditor.cpp.

◆ ph_ev_count

unsigned int PerfMonAuditor::ph_ev_count { 0 }

private

Definition at line 386 of file PerfMonAuditor.cpp.

◆ prefix

std::string PerfMonAuditor::prefix

private

Definition at line 382 of file PerfMonAuditor.cpp.

◆ prefix_cstr

char PerfMonAuditor::prefix_cstr[MAX_PREFIX_NAME_LENGTH]

private

Definition at line 385 of file PerfMonAuditor.cpp.

◆ ret

int PerfMonAuditor::ret { 0 }

private

Definition at line 376 of file PerfMonAuditor.cpp.

◆ sampling

bool PerfMonAuditor::sampling

private

Definition at line 397 of file PerfMonAuditor.cpp.

◆ start_at_event

unsigned int PerfMonAuditor::start_at_event

private

Definition at line 389 of file PerfMonAuditor.cpp.

◆ used_counters_number

int PerfMonAuditor::used_counters_number

private

Definition at line 392 of file PerfMonAuditor.cpp.

◆ westmere

bool PerfMonAuditor::westmere

private

Definition at line 394 of file PerfMonAuditor.cpp.

The documentation for this class was generated from the following file:

GaudiProfiling/src/component/PerfMonAuditor.cpp

Public Member Functions

Private Types

Private Member Functions

Static Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Map

Constructor & Destructor Documentation

◆ PerfMonAuditor() [1/3]

◆ ~PerfMonAuditor()

◆ PerfMonAuditor() [2/3]

◆ PerfMonAuditor() [3/3]

Member Function Documentation

◆ after() [1/5]

◆ after() [2/5]

◆ after() [3/5]

◆ after() [4/5]

◆ after() [5/5]

◆ before() [1/5]

◆ before() [2/5]

◆ before() [3/5]

◆ before() [4/5]

◆ before() [5/5]

◆ detect_unavail_pmcs()

◆ detect_unavail_pmu_regs()

◆ finalize()

◆ finalize_smpl()

◆ finalizepm()

◆ i_afterExecute()

◆ i_afterInitialize()

◆ i_beforeExecute()

◆ i_beforeInitialize()

◆ initialize()

◆ is_nehalem()

◆ operator=()

◆ pausepm()

◆ pfm_bv_copy()

◆ pfm_bv_isset()

◆ pfm_bv_set()

◆ process_smpl_buf()

◆ sigio_handler()

◆ start_smpl()

◆ startpm()

◆ stop_smpl()

◆ stoppm()

Member Data Documentation

◆ buf_addr

◆ buf_arg

◆ cmask

◆ core

◆ ctx

◆ event_count_reached

◆ event_cstr

◆ event_str

◆ family

◆ fd

◆ first_alg

◆ first_alg_name

◆ i

◆ inp

◆ inv

◆ is_nehalem_ret

◆ level

◆ load_arg

◆ load_args

◆ m_indent

◆ m_inEvent

◆ m_map

◆ m_pfm

◆ max_pmd

◆ nehalem

◆ nhm_params

◆ num_counters

◆ outp

◆ params

◆ pc

◆ pd

◆ pfmlib_options
