#include </builds/gaudi/Gaudi/GaudiKernel/include/GaudiKernel/NTupleImplementation.h>

Inheritance diagram for NTuple::ColumnWiseTuple:

[legend]

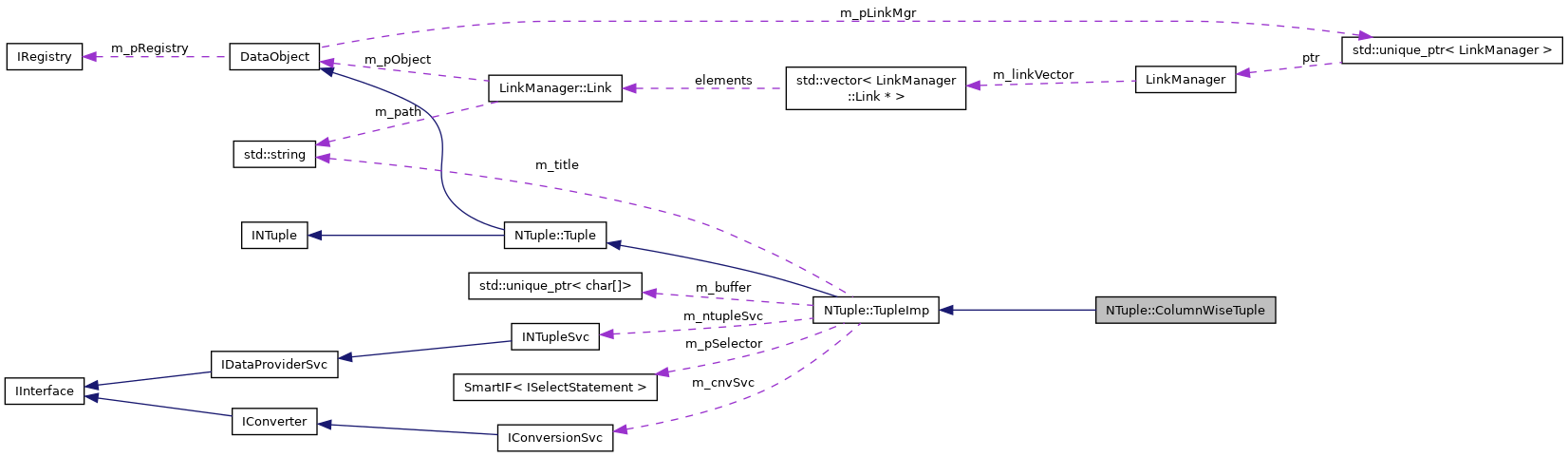

Collaboration diagram for NTuple::ColumnWiseTuple:

[legend]

Public Member Functions
	ColumnWiseTuple (std::string title)
	Standard Constructor. More...

const CLID &	clID () const override
	Retrieve Reference to class defininition structure. More...

Public Member Functions inherited from NTuple::TupleImp
INTupleItem *	i_find (const std::string &name) const override
	Internally used by abstract classes. More...

	TupleImp (std::string title)
	Standard Constructor. More...

	~TupleImp () override
	Standard Destructor. More...

ItemContainer &	items () override
	Access item container. More...

const ItemContainer &	items () const override
	Access item container (CONST) More...

const std::string &	title () const override
	Object title. More...

const INTupleItem *	find (const std::string &name) const override
	Find an item row of the Ntuple (CONST) More...

INTupleItem *	find (const std::string &name) override
	Find an item row of the Ntuple. More...

char *	buffer () override
	Access N tuple data buffer. More...

const char *	buffer () const override
	Access N tuple data buffer (CONST) More...

IConversionSvc *	conversionService () const
	Access conversion service. More...

void	setConversionService (IConversionSvc *svc)
	Access conversion service. More...

INTupleSvc *	tupleService () const
	Access conversion service. More...

void	setTupleService (INTupleSvc *svc)
	Access conversion service. More...

StatusCode	attachSelector (ISelectStatement *sel) override
	Attach selector. More...

ISelectStatement *	selector () override
	Access selector. More...

virtual char *	setBuffer (std::unique_ptr< char[]> &&buff)
	Set N tuple data buffer. More...

char *	setBuffer (char *buff) override
	Set N tuple data buffer. More...

void	reset () override
	Reset all entries to their default values. More...

StatusCode	add (INTupleItem *item) override
	Add an item row to the N tuple. More...

StatusCode	remove (INTupleItem *item) override
	Remove an item row (identified by pointer) from the N tuple. More...

StatusCode	remove (const std::string &name) override
	Remove an item row (identified by name) from the N tuple. More...

StatusCode	write () override
	Write record of the NTuple (Shortcut of writeRecord) More...

StatusCode	writeRecord () override
	Write record of the NTuple. More...

StatusCode	read () override
	Read record of the NTuple (Shortcut of readRecord) More...

StatusCode	readRecord () override
	Read record of the NTuple. More...

StatusCode	save () override
	Save the NTuple. More...

Public Member Functions inherited from NTuple::Tuple
template<class TYPE >
StatusCode	item (const std::string &name, Item< TYPE > &result)
	Locate a scalar Item of data to the N tuple type safe. More...

template<class TYPE >
StatusCode	item (const std::string &name, const Item< TYPE > &result) const
	Locate a scalar Item of data to the N tuple type safe (CONST) More...

template<class TYPE >
StatusCode	item (const std::string &name, Array< TYPE > &result)
	Locate a Array of data to the N tuple type safe. More...

template<class TYPE >
StatusCode	item (const std::string &name, const Array< TYPE > &result) const
	Locate a Array of data to the N tuple type safe (CONST) More...

template<class TYPE >
StatusCode	item (const std::string &name, Matrix< TYPE > &result)
	Locate a Matrix of data to the N tuple type safe. More...

template<class TYPE >
StatusCode	item (const std::string &name, const Matrix< TYPE > &result) const
	Locate a Matrix of data to the N tuple type safe (CONST) More...

template<class TYPE >
StatusCode	addItem (const std::string &name, Item< TYPE > &itm)
	Add a scalar data item a N tuple. More...

template<class TYPE >
StatusCode	addItem (const std::string &name, Item< TYPE * > &itm)
	Add an simple object item to an N tuple. More...

StatusCode	addItem (const std::string &name, Item< IOpaqueAddress * > &itm)
	Add an address object item to an N tuple: specialized call. More...

template<class TYPE , class RANGE >
StatusCode	addItem (const std::string &name, Item< TYPE > &itm, const RANGE low, const RANGE high)
	Add a scalar data item a N tuple with a range. More...

template<class TYPE >
StatusCode	addItem (const std::string &name, long dim, Array< TYPE > &array)
	Add an fixed-size Array of data to a column wise N tuple. More...

template<class TYPE , class RANGE >
StatusCode	addItem (const std::string &name, long dim, Array< TYPE > &array, const RANGE low, const RANGE high)
	Add an fixed-size Array of data to a column wise N tuple with a range. More...

template<class TYPE , class INDEX , class RANGE >
StatusCode	addItem (const std::string &name, Item< INDEX > &index, Array< TYPE > &array, const RANGE low, const RANGE high)
	Add an indexed Array of data to a column wise N tuple with a range. More...

template<class TYPE , class INDEX , class RANGE >
StatusCode	addIndexedItem (const std::string &name, Item< INDEX > &index, Array< TYPE > &array, const RANGE low, const RANGE high)
	Add an indexed Array of data to a column wise N tuple with a range. More...

template<class TYPE , class INDEX >
StatusCode	addItem (const std::string &name, Item< INDEX > &index, Array< TYPE > &array)
	Add an indexed Array of data to a column wise N tuple. More...

template<class TYPE , class INDEX >
StatusCode	addIndexedItem (const std::string &name, Item< INDEX > &index, Array< TYPE > &array)
	Add an indexed Array of data to a column wise N tuple. More...

template<class TYPE >
StatusCode	addItem (const std::string &name, long cols, long rows, Matrix< TYPE > &matrix)
	Add an fixed size Matrix of data to a column wise N tuple. More...

template<class TYPE , class RANGE >
StatusCode	addItem (const std::string &name, long cols, long rows, Matrix< TYPE > &result, const RANGE low, const RANGE high)
	Add an fixed size Matrix of data to a column wise N tuple. More...

template<class TYPE , class INDEX >
StatusCode	addItem (const std::string &name, Item< INDEX > &index, Matrix< TYPE > &matrix, long rows)
	Add an variable size Matrix of data to a column wise N tuple. More...

template<class TYPE , class INDEX >
StatusCode	addIndexedItem (const std::string &name, Item< INDEX > &col_index, long rows, Matrix< TYPE > &matrix)
	Add an variable size Matrix of data to a column wise N tuple. More...

template<class TYPE , class INDEX , class RANGE >
StatusCode	addItem (const std::string &name, Item< INDEX > &index, Matrix< TYPE > &matrix, long rows, const RANGE low, const RANGE high)
	Add an variable size Matrix of data to a column wise N tuple. More...

template<class TYPE , class INDEX , class RANGE >
StatusCode	addIndexedItem (const std::string &name, Item< INDEX > &index, long rows, Matrix< TYPE > &matrix, const RANGE low, const RANGE high)
	Add an variable size Matrix of data to a column wise N tuple. More...

Public Member Functions inherited from DataObject
	DataObject ()
	Standard Constructor. More...

	DataObject (const DataObject &rhs)
	Copy Constructor. More...

DataObject &	operator= (const DataObject &rhs)
	Assignment Operator. More...

	DataObject (DataObject &&rhs)
	Move Constructor. More...

DataObject &	operator= (DataObject &&rhs)
	Move Assignment Operator. More...

virtual	~DataObject ()
	Standard Destructor. More...

virtual unsigned long	addRef ()
	Add reference to object. More...

virtual unsigned long	release ()
	release reference to object More...

const std::string &	name () const
	Retreive DataObject name. It is the name when registered in the store. More...

virtual StatusCode	update ()
	Provide empty placeholder for internal object reconfiguration callback. More...

void	setRegistry (IRegistry *pRegistry)
	Set pointer to Registry. More...

IRegistry *	registry () const
	Get pointer to Registry. More...

LinkManager *	linkMgr ()
	Retrieve Link manager. More...

const LinkManager *	linkMgr () const

unsigned char	version () const
	Retrieve version number of this object representation. More...

void	setVersion (unsigned char vsn)
	Set version number of this object representation. More...

unsigned long	refCount () const
	Return the refcount. More...

virtual std::ostream &	fillStream (std::ostream &s) const
	Fill the output stream (ASCII) More...

Public Member Functions inherited from INTuple
virtual	~INTuple ()=default

Static Public Member Functions
static const CLID &	classID ()
	Static access to class defininition structure. More...

Static Public Member Functions inherited from DataObject
static const CLID &	classID ()
	Retrieve reference to class definition structure (static access) More...

Additional Inherited Members
Public Types inherited from INTuple
typedef std::vector< INTupleItem * >	ItemContainer

Protected Member Functions inherited from NTuple::Tuple
template<class TYPE >
StatusCode	i_item (const std::string &name, _Item< TYPE > *&result) const
	Locate a _Column of data to the N tuple type safe. More...

template<class TYPE >
StatusCode	i_item (const std::string &name, _Item< TYPE * > *&result) const
	Locate a _Column of data to the N tuple type unsafe for objects. More...

StatusCode	i_item (const std::string &name, _Item< IOpaqueAddress * > *&result) const
	Locate a _Column of data to the N tuple type safe. More...

template<class TYPE >
StatusCode	i_item (const std::string &name, _Array< TYPE > *&result) const
	Locate a _Array of data to the N tuple type safe. More...

template<class TYPE >
StatusCode	i_item (const std::string &name, _Matrix< TYPE > *&result) const
	Locate a _Matrix of data to the N tuple type safe. More...

template<class TYPE >
StatusCode	i_addItem (const std::string &name, long, const std::string &, TYPE low, TYPE high, _Item< TYPE > *&result)
	Add a _Item of data to the N tuple. More...

template<class TYPE >
StatusCode	i_addItem (const std::string &name, long dim, const std::string &index, TYPE low, TYPE high, _Array< TYPE > *&result)
	Add a _Item of data to the N tuple. More...

template<class TYPE >
StatusCode	i_addItem (const std::string &name, long dim1, long dim2, const std::string &index, TYPE low, TYPE high, _Matrix< TYPE > *&result)
	Add a _Item of data to the N tuple. More...

template<class TYPE >
StatusCode	i_addObject (const std::string &name, _Item< TYPE * > *&result, const std::type_info &)

Protected Attributes inherited from NTuple::TupleImp
ItemContainer	m_items
	Container with N tuple _Columns. More...

bool	m_isBooked = false
	Flag wether N tuple is booked. More...

std::string	m_title
	N tuple title. More...

SmartIF< ISelectStatement >	m_pSelector
	Possibly hanging selector. More...

std::unique_ptr< char[]>	m_buffer
	Buffer. More...

INTupleSvc *	m_ntupleSvc = nullptr
	Reference to N-tuple service used. More...

IConversionSvc *	m_cnvSvc = nullptr
	Reference to the conversion service used. More...

Detailed Description

Definition at line 107 of file NTupleImplementation.h.

Constructor & Destructor Documentation

◆ ColumnWiseTuple()

NTuple::ColumnWiseTuple::ColumnWiseTuple ( std::string title )

inline

Standard Constructor.

Definition at line 110 of file NTupleImplementation.h.

110 : TupleImp( std::move( title ) ) {}

Member Function Documentation

◆ classID()

static const CLID& NTuple::ColumnWiseTuple::classID ( )

inlinestatic

Static access to class defininition structure.

Definition at line 114 of file NTupleImplementation.h.

114 { return CLID_ColumnWiseTuple; }

◆ clID()

const CLID& NTuple::ColumnWiseTuple::clID ( ) const

inlineoverridevirtual

Retrieve Reference to class defininition structure.

Reimplemented from DataObject.

Definition at line 112 of file NTupleImplementation.h.

112 { return classID(); }

The documentation for this class was generated from the following file:

GaudiKernel/include/GaudiKernel/NTupleImplementation.h
