FiberManager Class Reference

#include </builds/gaudi/Gaudi/GaudiHive/src/FiberManager.h>

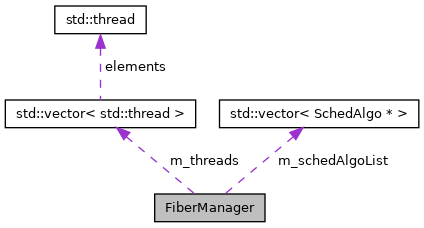

Collaboration diagram for FiberManager:

Public Member Functions
	FiberManager (int n_threads)
	FiberManager constructor. More...
	~FiberManager ()
template<typename F >
void	schedule (F &&func)
	Schedule work to run on the asynchronous pool. More...

Private Types
using	SchedAlgo = boost::fibers::algo::shared_work

Private Attributes
boost::fibers::condition_variable	m_shuttingDown_cv {}
boost::fibers::mutex	m_shuttingDown_mtx {}
std::vector< std::thread >	m_threads {}
std::vector< SchedAlgo * >	m_schedAlgoList {}

Detailed Description

The FiberManager manages a pool of threads used to run boost::fiber fibers.

These fibers can be suspended while waiting for GPU operations (with CUDA and HIP support built-in), remote I/O operations, and the like, providing a base for asynchronous algorithm support.

Author

Beojan Stanislaus

Version

1.0

Date

November 2023

Definition at line 34 of file FiberManager.h.

Member Typedef Documentation

SchedAlgo

using FiberManager::SchedAlgo = boost::fibers::algo::shared_work

private

Definition at line 60 of file FiberManager.h.

Constructor & Destructor Documentation

FiberManager()

FiberManager::FiberManager

(

int

n_threads

)

FiberManager constructor.

Parameters

n_threads

Number of threads for CPU portion of asynchronous algorithms. These are in addition to the TBB worker threads used for CPU algorithms.

Definition at line 14 of file FiberManager.cpp.

                                          {
  m_schedAlgoList.resize( n_threads + 1 );
  auto* main_algo_ptr             = new SchedAlgo( true );
  m_schedAlgoList.at( n_threads ) = main_algo_ptr;
#if ( BOOST_VERSION >= 108400 )
  boost::fibers::initialize_thread( main_algo_ptr,
                                    boost::fibers::make_stack_allocator_wrapper<boost::fibers::default_stack>() );
#else
  boost::fibers::context::active()->get_scheduler()->set_algo( main_algo_ptr );
#endif

  for ( int i = 0; i < n_threads; ++i ) {
    m_threads.emplace_back( std::thread( [this, i]() {
      auto* algo_ptr          = new SchedAlgo( true );
      m_schedAlgoList.at( i ) = algo_ptr;
#if ( BOOST_VERSION >= 108400 )
      boost::fibers::initialize_thread( algo_ptr,
                                        boost::fibers::make_stack_allocator_wrapper<boost::fibers::default_stack>() );
#else
      boost::fibers::context::active()->get_scheduler()->set_algo( algo_ptr );
#endif
      std::unique_lock lck{ m_shuttingDown_mtx };
      m_shuttingDown_cv.wait( lck );
    } ) );
  }
}

~FiberManager()

FiberManager::~FiberManager

(

)

Definition at line 41 of file FiberManager.cpp.

                            {
  m_shuttingDown_cv.notify_all();
  for ( std::thread& t : m_threads ) { t.join(); }
}

Member Function Documentation

schedule()

template<typename F >

void FiberManager::schedule ( F &&  func )

inline

Schedule work to run on the asynchronous pool.

AsynchronousAlgorithms should use a relatively small amount of CPU time, and should use boost::fiber functionality to yield while waiting for offloaded work to complete.

Parameters

func	The AlgTask, when used in AvalancheSchedulerSvc

Definition at line 54 of file FiberManager.h.

                            {
    boost::fibers::fiber( boost::fibers::launch::post, std::forward<F>( func ) ).detach();
    for ( auto* p : m_schedAlgoList ) { p->notify(); }
  }

Member Data Documentation

m_schedAlgoList

std::vector<SchedAlgo*> FiberManager::m_schedAlgoList {}

private

Definition at line 64 of file FiberManager.h.

m_shuttingDown_cv

boost::fibers::condition_variable FiberManager::m_shuttingDown_cv {}

private

Definition at line 61 of file FiberManager.h.

m_shuttingDown_mtx

boost::fibers::mutex FiberManager::m_shuttingDown_mtx {}

private

Definition at line 62 of file FiberManager.h.

m_threads

std::vector<std::thread> FiberManager::m_threads {}

private

Definition at line 63 of file FiberManager.h.

---

The documentation for this class was generated from the following files:

• GaudiHive/src/FiberManager.h
• GaudiHive/src/FiberManager.cpp
