Gaudi::Generic2D< INTERFACE, IMPLEMENTATION > Class Template Reference

#include <GaudiPI/Generic2D.h>

Inheritance diagram for Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >:
Inheritance graph
[legend]

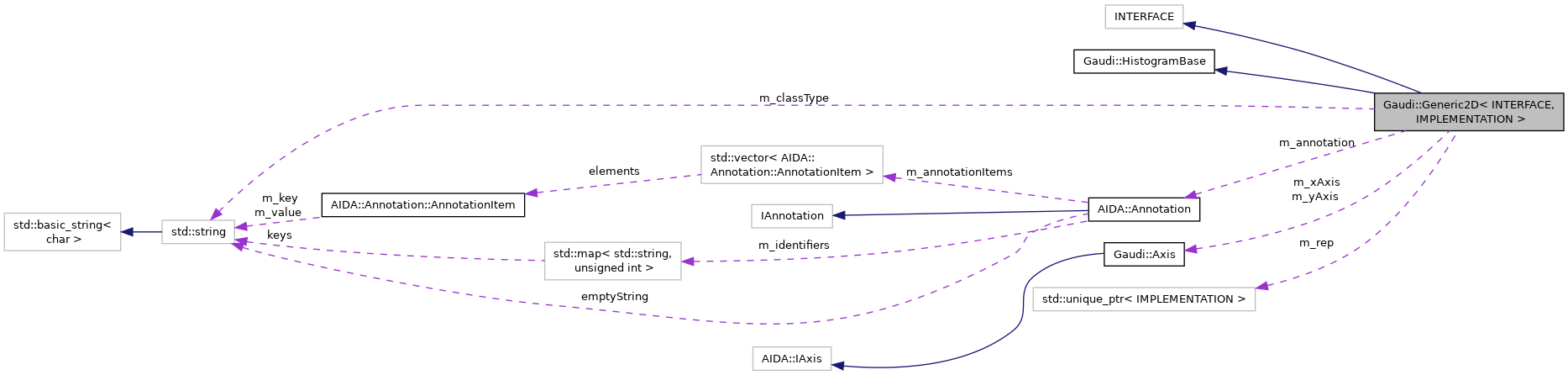

Collaboration diagram for Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >:
Collaboration graph
[legend]

Public Types

typedef Generic2D< INTERFACE, IMPLEMENTATION > Base


Public Member Functions

 Generic2D ()=default

TObject * representation () const override
 ROOT object implementation. More...

void adoptRepresentation (TObject *rep) override
 Adopt ROOT histogram representation. More...

std::string title () const override
 Get the title of the object. More...

bool setTitle (const std::string &title) override
 Set the title of the object. More...

std::string name () const
 object name More...

bool setName (const std::string &newName)
 Set the name of the object. More...

AIDA::IAnnotation & annotation () override
 Access annotation object. More...

const AIDA::IAnnotation & annotation () const override
 Access annotation object (cons) More...

const AIDA::IAxis & xAxis () const override
 Return the X axis. More...

const AIDA::IAxis & yAxis () const override
 Return the Y axis. More...

virtual int rIndexX (int index) const
 operator methods More...

virtual int rIndexY (int index) const
 operator methods More...

int entries () const override
 Get the number or all the entries. More...

int allEntries () const override
 Get the number or all the entries, both in range and underflow/overflow bins of the IProfile. More...

int extraEntries () const override
 Get the number of entries in the underflow and overflow bins. More...

double sumBinHeights () const override
 Get the sum of in range bin heights in the IProfile. More...

double sumAllBinHeights () const override
 Get the sum of all the bins heights (including underflow and overflow bin). More...

double sumExtraBinHeights () const override
 Get the sum of the underflow and overflow bin height. More...

double minBinHeight () const override
 Get the minimum height of the in-range bins. More...

double maxBinHeight () const override
 Get the maximum height of the in-range bins. More...

double binMeanX (int indexX, int indexY) const override
 The weighted mean along x of a given bin. More...

double binMeanY (int indexX, int indexY) const override
 The weighted mean along y of a given bin. More...

int binEntries (int indexX, int indexY) const override
 The number of entries (ie the number of times fill was called for this bin). More...

int binEntriesX (int indexX) const override
 Equivalent to projectionX().binEntries(indexX). More...

int binEntriesY (int indexY) const override
 Equivalent to projectionY().binEntries(indexY). More...

double binHeight (int indexX, int indexY) const override
 Total height of the corresponding bin (ie the sum of the weights in this bin). More...

double binHeightX (int indexX) const override
 Equivalent to projectionX().binHeight(indexX). More...

double binHeightY (int indexY) const override
 Equivalent to projectionY().binHeight(indexY). More...

double binError (int indexX, int indexY) const override
 The error on this bin. More...

virtual double binRms (int indexX, int indexY) const
 The spread (RMS) of this bin. More...

double meanX () const override
 Returns the mean of the profile, as calculated on filling-time projected on the X axis. More...

double meanY () const override
 Returns the mean of the profile, as calculated on filling-time projected on the Y axis. More...

double rmsX () const override
 Returns the rms of the profile as calculated on filling-time projected on the X axis. More...

double rmsY () const override
 Returns the rms of the profile as calculated on filling-time projected on the Y axis. More...

int coordToIndexX (double coordX) const override
 Convenience method, equivalent to xAxis().coordToIndex(coord). More...

int coordToIndexY (double coordY) const override
 Convenience method, equivalent to yAxis().coordToIndex(coord). More...

virtual double equivalentBinEntries () const
 Number of equivalent entries, i.e. SUM[ weight ] ^ 2 / SUM[ weight^2 ] More...

virtual bool scale (double scaleFactor)
 Scale the weights and the errors of all the IHistogram's bins (in-range and out-of-range ones) by a given scale factor. More...

bool add (const INTERFACE &h) override
 Modifies this profile by adding the contents of profile to it. More...

bool reset () override

void * cast (const std::string &className) const override
 Introspection method. More...

const std::string & userLevelClassType () const
 The AIDA user-level unterface leaf class type. More...

int dimension () const override
 Get the Histogram's dimension. More...

std::ostream & print (std::ostream &s) const override
 Print (ASCII) the histogram into the output stream. More...

std::ostream & write (std::ostream &s) const override
 Write (ASCII) the histogram table into the output stream. More...

int write (const char *file_name) const override
 Write (ASCII) the histogram table into a file. More...

void * cast (const std::string &className) const

int binEntries (int indexX, int indexY) const

void adoptRepresentation (TObject *rep)
 Adopt ROOT histogram representation. More...

void * cast (const std::string &className) const

int binEntries (int idX, int idY) const

void adoptRepresentation (TObject *rep)
 Adopt ROOT histogram representation. More...

- Public Member Functions inherited from Gaudi::HistogramBase
virtual ~HistogramBase ()=default


Protected Member Functions

 Generic2D (IMPLEMENTATION *p)
 constructor More...


Protected Attributes

Axis m_xAxis
 X axis member. More...

Axis m_yAxis
 Y axis member. More...

AIDA::Annotation m_annotation
 Object annotations. More...

std::unique_ptr< IMPLEMENTATION > m_rep
 Reference to underlying implementation. More...

std::string m_classType
 class type More...

int m_sumEntries = 0
 cache sumEntries (allEntries) when setting contents since Root can't compute by himself More...


Detailed Description

template<class INTERFACE, class IMPLEMENTATION>
class Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >

Common AIDA implementation stuff for histograms and profiles using ROOT implementations

Credits: This code is the result of some stripdown implementation of LCG/PI. Credits to them!

Author
M.Frank

Definition at line 45 of file Generic2D.h.

Member Typedef Documentation

◆ Base

template<class INTERFACE , class IMPLEMENTATION >
typedef Generic2D<INTERFACE, IMPLEMENTATION> Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::Base

Definition at line 47 of file Generic2D.h.

Constructor & Destructor Documentation

◆ Generic2D() [1/2]

template<class INTERFACE , class IMPLEMENTATION >
Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::Generic2D ( )
default

◆ Generic2D() [2/2]

template<class INTERFACE , class IMPLEMENTATION >
Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::Generic2D ( IMPLEMENTATION *  p)
inlineprotected

constructor

Definition at line 53 of file Generic2D.h.

53 : m_rep( p ) {}

Member Function Documentation

◆ add()

template<class INTERFACE , class IMPLEMENTATION >
bool Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::add ( const INTERFACE &  h)
override

Modifies this profile by adding the contents of profile to it.

Definition at line 297 of file Generic2D.h.

297  {
298  const Base* p = dynamic_cast<const Base*>( &hist );
299  if ( !p ) throw std::runtime_error( "Cannot add profile histograms of different implementations." );
300  m_rep->Add( p->m_rep.get() );
301  return true;
302  }

◆ adoptRepresentation() [1/3]

void Gaudi::Generic2D< AIDA::IProfile2D, TProfile2D >::adoptRepresentation ( TObject *  rep)
virtual

Adopt ROOT histogram representation.

Implements Gaudi::HistogramBase.

Definition at line 50 of file P2D.cpp.

50  {
51  TProfile2D* imp = dynamic_cast<TProfile2D*>( rep );
52  if ( !imp ) throw std::runtime_error( "Cannot adopt native histogram representation." );
53  m_rep.reset( imp );
54  m_xAxis.initialize( m_rep->GetXaxis(), true );
55  m_yAxis.initialize( m_rep->GetYaxis(), true );
56  setTitle( m_rep->GetTitle() );
57  }

◆ adoptRepresentation() [2/3]

void Gaudi::Generic2D< AIDA::IHistogram2D, TH2D >::adoptRepresentation ( TObject *  rep)
virtual

Adopt ROOT histogram representation.

Implements Gaudi::HistogramBase.

Definition at line 133 of file H2D.cpp.

133  {
134  TH2D* imp = dynamic_cast<TH2D*>( rep );
135  if ( !imp ) throw std::runtime_error( "Cannot adopt native histogram representation." );
136  m_rep.reset( imp );
137  m_xAxis.initialize( m_rep->GetXaxis(), true );
138  m_yAxis.initialize( m_rep->GetYaxis(), true );
139  const TArrayD* a = m_rep->GetSumw2();
140  if ( !a || ( a && a->GetSize() == 0 ) ) m_rep->Sumw2();
141  setTitle( m_rep->GetTitle() );
142  }

◆ adoptRepresentation() [3/3]

template<class INTERFACE , class IMPLEMENTATION >
void Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::adoptRepresentation ( TObject *  rep)
overridevirtual

Adopt ROOT histogram representation.

Implements Gaudi::HistogramBase.

◆ allEntries()

template<class INTERFACE , class IMPLEMENTATION >
int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::allEntries
override

Get the number or all the entries, both in range and underflow/overflow bins of the IProfile.

Definition at line 189 of file Generic2D.h.

189  {
190  return m_rep->GetEntries();
191  }

◆ annotation() [1/2]

template<class INTERFACE , class IMPLEMENTATION >
const AIDA::IAnnotation& Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::annotation ( ) const
inlineoverride

Access annotation object (cons)

Definition at line 71 of file Generic2D.h.

71 { return m_annotation; }

◆ annotation() [2/2]

template<class INTERFACE , class IMPLEMENTATION >
AIDA::IAnnotation& Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::annotation ( )
inlineoverride

Access annotation object.

Definition at line 69 of file Generic2D.h.

69 { return m_annotation; }

◆ binEntries() [1/3]

int Gaudi::Generic2D< AIDA::IProfile2D, TProfile2D >::binEntries ( int  idX,
int  idY
) const

Definition at line 44 of file P2D.cpp.

44  {
45  int rBin = m_rep->GetBin( rIndexX( idX ), rIndexY( idY ) );
46  return int( m_rep->GetBinEntries( rBin ) + 0.5 );
47  }

◆ binEntries() [2/3]

int Gaudi::Generic2D< IHistogram2D, TH2D >::binEntries ( int  indexX,
int  indexY
) const

Definition at line 126 of file H2D.cpp.

126  {
127  if ( binHeight( indexX, indexY ) <= 0 ) return 0;
128  double xx = binHeight( indexX, indexY ) / binError( indexX, indexY );
129  return int( xx * xx + 0.5 );
130  }

◆ binEntries() [3/3]

template<class INTERFACE , class IMPLEMENTATION >
int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binEntries ( int  indexX,
int  indexY
) const
override

The number of entries (ie the number of times fill was called for this bin).

◆ binEntriesX()

template<class INTERFACE , class IMPLEMENTATION >
int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binEntriesX ( int  indexX) const
override

Equivalent to projectionX().binEntries(indexX).

Definition at line 229 of file Generic2D.h.

229  {
230  int n = 0;
231  for ( int iY = -2; iY < yAxis().bins(); ++iY ) n += binEntries( index, iY );
232  return n;
233  }

◆ binEntriesY()

template<class INTERFACE , class IMPLEMENTATION >
int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binEntriesY ( int  indexY) const
override

Equivalent to projectionY().binEntries(indexY).

Definition at line 236 of file Generic2D.h.

236  {
237  int n = 0;
238  for ( int iX = -2; iX < xAxis().bins(); ++iX ) n += binEntries( iX, index );
239  return n;
240  }

◆ binError()

template<class INTERFACE , class IMPLEMENTATION >
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binError ( int  indexX,
int  indexY
) const
override

The error on this bin.

Definition at line 262 of file Generic2D.h.

262  {
263  return m_rep->GetBinError( rIndexX( indexX ), rIndexY( indexY ) );
264  }

◆ binHeight()

template<class INTERFACE , class IMPLEMENTATION >
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binHeight ( int  indexX,
int  indexY
) const
override

Total height of the corresponding bin (ie the sum of the weights in this bin).

Definition at line 243 of file Generic2D.h.

243  {
244  return m_rep->GetBinContent( rIndexX( indexX ), rIndexY( indexY ) );
245  }

◆ binHeightX()

template<class INTERFACE , class IMPLEMENTATION >
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binHeightX ( int  indexX) const
override

Equivalent to projectionX().binHeight(indexX).

Definition at line 248 of file Generic2D.h.

248  {
249  double s = 0;
250  for ( int iY = -2; iY < yAxis().bins(); ++iY ) { s += binHeight( index, iY ); }
251  return s;
252  }

◆ binHeightY()

template<class INTERFACE , class IMPLEMENTATION >
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binHeightY ( int  indexY) const
override

Equivalent to projectionY().binHeight(indexY).

Definition at line 255 of file Generic2D.h.

255  {
256  double s = 0;
257  for ( int iX = -2; iX < xAxis().bins(); ++iX ) s += binHeight( iX, index );
258  return s;
259  }

◆ binMeanX()

template<class INTERFACE , class IMPLEMENTATION >
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binMeanX ( int  indexX,
int  indexY
) const
override

The weighted mean along x of a given bin.

Definition at line 219 of file Generic2D.h.

219  {
220  return m_rep->GetXaxis()->GetBinCenter( rIndexX( indexX ) );
221  }

◆ binMeanY()

template<class INTERFACE , class IMPLEMENTATION >
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binMeanY ( int  indexX,
int  indexY
) const
override

The weighted mean along y of a given bin.

Definition at line 224 of file Generic2D.h.

224  {
225  return m_rep->GetYaxis()->GetBinCenter( rIndexY( indexY ) );
226  }

◆ binRms()

template<class INTERFACE , class IMPLEMENTATION >
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binRms ( int  indexX,
int  indexY
) const
virtual

The spread (RMS) of this bin.

Definition at line 214 of file Generic2D.h.

214  {
215  return m_rep->GetBinError( rIndexX( indexX ), rIndexY( indexY ) );
216  }

◆ cast() [1/3]

void * Gaudi::Generic2D< AIDA::IProfile2D, TProfile2D >::cast ( const std::string &  className) const

Definition at line 34 of file P2D.cpp.

34  {
35  return className == "AIDA::IProfile2D"
36  ? const_cast<AIDA::IProfile2D*>( static_cast<const AIDA::IProfile2D*>( this ) )
37  : className == "AIDA::IProfile" ? const_cast<AIDA::IProfile*>( static_cast<const AIDA::IProfile*>( this ) )
38  : className == "AIDA::IBaseHistogram"
39  ? const_cast<AIDA::IBaseHistogram*>( static_cast<const AIDA::IBaseHistogram*>( this ) )
40  : nullptr;
41  }

◆ cast() [2/3]

void * Gaudi::Generic2D< IHistogram2D, TH2D >::cast ( const std::string &  className) const

Definition at line 117 of file H2D.cpp.

117  {
118  if ( className == "AIDA::IHistogram2D" )
119  return (IHistogram2D*)this;
120  else if ( className == "AIDA::IHistogram" )
121  return (IHistogram*)this;
122  return nullptr;
123  }

◆ cast() [3/3]

template<class INTERFACE , class IMPLEMENTATION >
void* Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::cast ( const std::string &  className) const
override

Introspection method.

◆ coordToIndexX()

template<class INTERFACE , class IMPLEMENTATION >
int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::coordToIndexX ( double  coordX) const
override

Convenience method, equivalent to xAxis().coordToIndex(coord).

Definition at line 287 of file Generic2D.h.

287  {
288  return xAxis().coordToIndex( coord );
289  }

◆ coordToIndexY()

template<class INTERFACE , class IMPLEMENTATION >
int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::coordToIndexY ( double  coordY) const
override

Convenience method, equivalent to yAxis().coordToIndex(coord).

Definition at line 292 of file Generic2D.h.

292  {
293  return yAxis().coordToIndex( coord );
294  }

◆ dimension()

template<class INTERFACE , class IMPLEMENTATION >
int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::dimension ( ) const
inlineoverride

Get the Histogram's dimension.

Definition at line 145 of file Generic2D.h.

145 { return 2; }

◆ entries()

template<class INTERFACE , class IMPLEMENTATION >
int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::entries
override

Get the number or all the entries.

Definition at line 184 of file Generic2D.h.

184  {
185  return m_rep->GetEntries();
186  }

◆ equivalentBinEntries()

template<class INTERFACE , class IMPLEMENTATION >
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::equivalentBinEntries
virtual

Number of equivalent entries, i.e. SUM[ weight ] ^ 2 / SUM[ weight^2 ]

Definition at line 313 of file Generic2D.h.

313  {
314  if ( sumBinHeights() <= 0 ) return 0;
315  Stat_t stats[11]; // cover up to 3D...
316  m_rep->GetStats( stats );
317  return stats[0] * stats[0] / stats[1];
318  }

◆ extraEntries()

template<class INTERFACE , class IMPLEMENTATION >
int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::extraEntries
override

Get the number of entries in the underflow and overflow bins.

Definition at line 305 of file Generic2D.h.

305  {
306  return binEntries( AIDA::IAxis::UNDERFLOW_BIN, AIDA::IAxis::UNDERFLOW_BIN ) +
307  binEntries( AIDA::IAxis::UNDERFLOW_BIN, AIDA::IAxis::OVERFLOW_BIN ) +
308  binEntries( AIDA::IAxis::OVERFLOW_BIN, AIDA::IAxis::UNDERFLOW_BIN ) +
309  binEntries( AIDA::IAxis::OVERFLOW_BIN, AIDA::IAxis::OVERFLOW_BIN );
310  }

◆ maxBinHeight()

template<class INTERFACE , class IMPLEMENTATION >
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::maxBinHeight
override

Get the maximum height of the in-range bins.

Definition at line 199 of file Generic2D.h.

199  {
200  return m_rep->GetMaximum();
201  }

◆ meanX()

template<class INTERFACE , class IMPLEMENTATION >
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::meanX
override

Returns the mean of the profile, as calculated on filling-time projected on the X axis.

Definition at line 267 of file Generic2D.h.

267  {
268  return m_rep->GetMean( 1 );
269  }

◆ meanY()

template<class INTERFACE , class IMPLEMENTATION >
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::meanY
override

Returns the mean of the profile, as calculated on filling-time projected on the Y axis.

Definition at line 272 of file Generic2D.h.

272  {
273  return m_rep->GetMean( 2 );
274  }

◆ minBinHeight()

template<class INTERFACE , class IMPLEMENTATION >
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::minBinHeight
override

Get the minimum height of the in-range bins.

Definition at line 194 of file Generic2D.h.

194  {
195  return m_rep->GetMinimum();
196  }

◆ name()

template<class INTERFACE , class IMPLEMENTATION >
std::string Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::name ( ) const
inline

object name

Definition at line 65 of file Generic2D.h.

65 { return m_annotation.value( "Name" ); }

◆ print()

template<class INTERFACE , class IMPLEMENTATION >
std::ostream & Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::print ( std::ostream &  s) const
overridevirtual

Print (ASCII) the histogram into the output stream.

bin contents and errors are printed for all bins including under and overflows

Implements Gaudi::HistogramBase.

Definition at line 334 of file Generic2D.h.

334  {
336  m_rep->Print( "all" );
337  return s;
338  }

◆ representation()

template<class INTERFACE , class IMPLEMENTATION >
TObject* Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::representation ( ) const
inlineoverridevirtual

ROOT object implementation.

Implements Gaudi::HistogramBase.

Definition at line 57 of file Generic2D.h.

57 { return m_rep.get(); }

◆ reset()

template<class INTERFACE , class IMPLEMENTATION >
bool Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::reset
override

Definition at line 327 of file Generic2D.h.

327  {
328  m_sumEntries = 0;
329  m_rep->Reset();
330  return true;
331  }

◆ rIndexX()

template<class INTERFACE , class IMPLEMENTATION >
virtual int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::rIndexX ( int  index) const
inlinevirtual

operator methods

Definition at line 78 of file Generic2D.h.

78 { return m_xAxis.rIndex( index ); }

◆ rIndexY()

template<class INTERFACE , class IMPLEMENTATION >
virtual int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::rIndexY ( int  index) const
inlinevirtual

operator methods

Definition at line 80 of file Generic2D.h.

80 { return m_yAxis.rIndex( index ); }

◆ rmsX()

template<class INTERFACE , class IMPLEMENTATION >
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::rmsX
override

Returns the rms of the profile as calculated on filling-time projected on the X axis.

Definition at line 277 of file Generic2D.h.

277  {
278  return m_rep->GetRMS( 1 );
279  }

◆ rmsY()

template<class INTERFACE , class IMPLEMENTATION >
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::rmsY
override

Returns the rms of the profile as calculated on filling-time projected on the Y axis.

Definition at line 282 of file Generic2D.h.

282  {
283  return m_rep->GetRMS( 2 );
284  }

◆ scale()

template<class INTERFACE , class IMPLEMENTATION >
bool Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::scale ( double  scaleFactor)
virtual

Scale the weights and the errors of all the IHistogram's bins (in-range and out-of-range ones) by a given scale factor.

Definition at line 321 of file Generic2D.h.

321  {
322  m_rep->Scale( scaleFactor );
323  return true;
324  }

◆ setName()

template<class INTERFACE , class IMPLEMENTATION >
bool Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::setName ( const std::string &  newName)

Set the name of the object.

Definition at line 177 of file Generic2D.h.

177  {
178  m_rep->SetName( newName.c_str() );
179  m_annotation.setValue( "Name", newName );
180  return true;
181  }

◆ setTitle()

template<class INTERFACE , class IMPLEMENTATION >
bool Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::setTitle ( const std::string &  title)
override

Set the title of the object.

Definition at line 169 of file Generic2D.h.

169  {
170  m_rep->SetTitle( title.c_str() );
171  if ( !annotation().addItem( "Title", title ) ) m_annotation.setValue( "Title", title );
172  if ( !annotation().addItem( "title", title ) ) annotation().setValue( "title", title );
173  return true;
174  }

◆ sumAllBinHeights()

template<class INTERFACE , class IMPLEMENTATION >
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::sumAllBinHeights
override

Get the sum of all the bins heights (including underflow and overflow bin).

Definition at line 209 of file Generic2D.h.

209  {
210  return m_rep->GetSum();
211  }

◆ sumBinHeights()

template<class INTERFACE , class IMPLEMENTATION >
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::sumBinHeights
override

Get the sum of in range bin heights in the IProfile.

Definition at line 204 of file Generic2D.h.

204  {
205  return m_rep->GetSumOfWeights();
206  }

◆ sumExtraBinHeights()

template<class INTERFACE , class IMPLEMENTATION >
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::sumExtraBinHeights ( ) const
inlineoverride

Get the sum of the underflow and overflow bin height.

Definition at line 93 of file Generic2D.h.

93 { return sumAllBinHeights() - sumBinHeights(); }

◆ title()

template<class INTERFACE , class IMPLEMENTATION >
std::string Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::title ( ) const
inlineoverride

Get the title of the object.

Definition at line 61 of file Generic2D.h.

61 { return m_annotation.value( "Title" ); }

◆ userLevelClassType()

template<class INTERFACE , class IMPLEMENTATION >
const std::string& Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::userLevelClassType ( ) const
inline

The AIDA user-level unterface leaf class type.

Definition at line 143 of file Generic2D.h.

143 { return m_classType; }

◆ write() [1/2]

template<class INTERFACE , class IMPLEMENTATION >
int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::write ( const char *  file_name) const
overridevirtual

Write (ASCII) the histogram table into a file.

Implements Gaudi::HistogramBase.

Definition at line 357 of file Generic2D.h.

357  {
358  TFile* f = TFile::Open( file_name, "RECREATE" );
359  Int_t nbytes = m_rep->Write();
360  f->Close();
361  return nbytes;
362  }

◆ write() [2/2]

template<class INTERFACE , class IMPLEMENTATION >
std::ostream & Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::write ( std::ostream &  s) const
overridevirtual

Write (ASCII) the histogram table into the output stream.

Implements Gaudi::HistogramBase.

Definition at line 342 of file Generic2D.h.

342  {
343  s << std::endl << "2D Histogram Table: " << std::endl;
344  s << "BinX, BinY, Height, Error " << std::endl;
345  for ( int i = 0; i < xAxis().bins(); ++i ) {
346  for ( int j = 0; j < yAxis().bins(); ++j ) {
347  s << binMeanX( i, j ) << ", " << binMeanY( i, j ) << ", " << binHeight( i, j ) << ", " << binError( i, j )
348  << std::endl;
349  }
350  }
351  s << std::endl;
352  return s;
353  }

◆ xAxis()

template<class INTERFACE , class IMPLEMENTATION >
const AIDA::IAxis& Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::xAxis ( ) const
inlineoverride

Return the X axis.

Definition at line 74 of file Generic2D.h.

74 { return m_xAxis; }

◆ yAxis()

template<class INTERFACE , class IMPLEMENTATION >
const AIDA::IAxis& Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::yAxis ( ) const
inlineoverride

Return the Y axis.

Definition at line 76 of file Generic2D.h.

76 { return m_yAxis; }

Member Data Documentation

◆ m_annotation

template<class INTERFACE , class IMPLEMENTATION >
AIDA::Annotation Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_annotation
mutableprotected

Object annotations.

Definition at line 159 of file Generic2D.h.

◆ m_classType

template<class INTERFACE , class IMPLEMENTATION >
std::string Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_classType
protected

class type

Definition at line 163 of file Generic2D.h.

◆ m_rep

template<class INTERFACE , class IMPLEMENTATION >
std::unique_ptr<IMPLEMENTATION> Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep
protected

Reference to underlying implementation.

Definition at line 161 of file Generic2D.h.

◆ m_sumEntries

template<class INTERFACE , class IMPLEMENTATION >
int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_sumEntries = 0
protected

cache sumEntries (allEntries) when setting contents since Root can't compute by himself

Definition at line 165 of file Generic2D.h.

◆ m_xAxis

template<class INTERFACE , class IMPLEMENTATION >
Axis Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_xAxis
protected

X axis member.

Definition at line 155 of file Generic2D.h.

◆ m_yAxis

template<class INTERFACE , class IMPLEMENTATION >
Axis Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_yAxis
protected

Y axis member.

Definition at line 157 of file Generic2D.h.

The documentation for this class was generated from the following file:
Gaudi::Generic2D::Base
Generic2D< INTERFACE, IMPLEMENTATION > Base
Definition: Generic2D.h:47
Gaudi::Generic2D::binMeanX
double binMeanX(int indexX, int indexY) const override
The weighted mean along x of a given bin.
Definition: Generic2D.h:219
Gaudi::Generic2D::xAxis
const AIDA::IAxis & xAxis() const override
Return the X axis.
Definition: Generic2D.h:74
gaudirun.s
string s
Definition: gaudirun.py:346
Gaudi::Generic2D::m_annotation
AIDA::Annotation m_annotation
Object annotations.
Definition: Generic2D.h:159
Gaudi::Generic2D::rIndexY
virtual int rIndexY(int index) const
operator methods
Definition: Generic2D.h:80
Gaudi::Generic2D::rIndexX
virtual int rIndexX(int index) const
operator methods
Definition: Generic2D.h:78
Gaudi::Generic2D::setTitle
bool setTitle(const std::string &title) override
Set the title of the object.
Definition: Generic2D.h:169
Gaudi::Generic2D::binMeanY
double binMeanY(int indexX, int indexY) const override
The weighted mean along y of a given bin.
Definition: Generic2D.h:224
Gaudi::Generic2D::annotation
AIDA::IAnnotation & annotation() override
Access annotation object.
Definition: Generic2D.h:69
Gaudi::Generic2D::binEntries
int binEntries(int indexX, int indexY) const override
The number of entries (ie the number of times fill was called for this bin).
ProduceConsume.j
j
Definition: ProduceConsume.py:104
Gaudi::Generic2D::m_yAxis
Axis m_yAxis
Y axis member.
Definition: Generic2D.h:157
Gaudi::Axis::initialize
void initialize(TAxis *itaxi, bool)
Definition: Axis.h:62
Gaudi::Generic2D::m_classType
std::string m_classType
class type
Definition: Generic2D.h:163
AIDA::Annotation::value
std::string value(const std::string &key) const override
Retrieve the value for a given key.
Definition: Annotation.h:107
Gaudi::Generic2D::sumAllBinHeights
double sumAllBinHeights() const override
Get the sum of all the bins heights (including underflow and overflow bin).
Definition: Generic2D.h:209
Gaudi::Generic2D::yAxis
const AIDA::IAxis & yAxis() const override
Return the Y axis.
Definition: Generic2D.h:76
Gaudi::Generic2D::m_xAxis
Axis m_xAxis
X axis member.
Definition: Generic2D.h:155
Gaudi::Generic2D::title
std::string title() const override
Get the title of the object.
Definition: Generic2D.h:61
cpluginsvc.n
n
Definition: cpluginsvc.py:234
Gaudi::Generic2D::m_rep
std::unique_ptr< IMPLEMENTATION > m_rep
Reference to underlying implementation.
Definition: Generic2D.h:161
Gaudi::Generic2D::binHeight
double binHeight(int indexX, int indexY) const override
Total height of the corresponding bin (ie the sum of the weights in this bin).
Definition: Generic2D.h:243
Gaudi::Generic2D::m_sumEntries
int m_sumEntries
cache sumEntries (allEntries) when setting contents since Root can't compute by himself
Definition: Generic2D.h:165
Gaudi::Generic2D::binError
double binError(int indexX, int indexY) const override
The error on this bin.
Definition: Generic2D.h:262
Gaudi::Generic2D::sumBinHeights
double sumBinHeights() const override
Get the sum of in range bin heights in the IProfile.
Definition: Generic2D.h:204
AIDA::Annotation::setValue
void setValue(const std::string &key, const std::string &value) override
Set value for a given key.
Definition: Annotation.h:112
Gaudi::ParticleProperties::index
size_t index(const Gaudi::ParticleProperty *property, const Gaudi::Interfaces::IParticlePropertySvc *service)
helper utility for mapping of Gaudi::ParticleProperty object into non-negative integral sequential id...
Definition: IParticlePropertySvc.cpp:39
Gaudi::Axis::rIndex
int rIndex(int index) const
Convert a AIDA bin number on the axis to the ROOT bin number.
Definition: Axis.h:48
