#include </builds/gaudi/Gaudi/GaudiHive/src/HiveSlimEventLoopMgr.h>

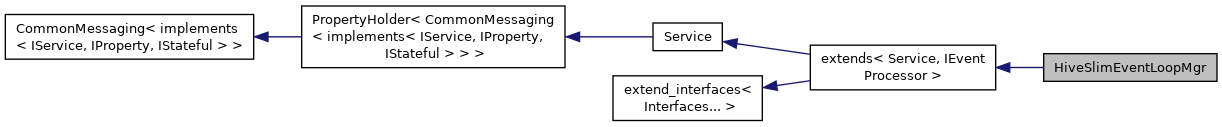

Inheritance diagram for HiveSlimEventLoopMgr:

[legend]

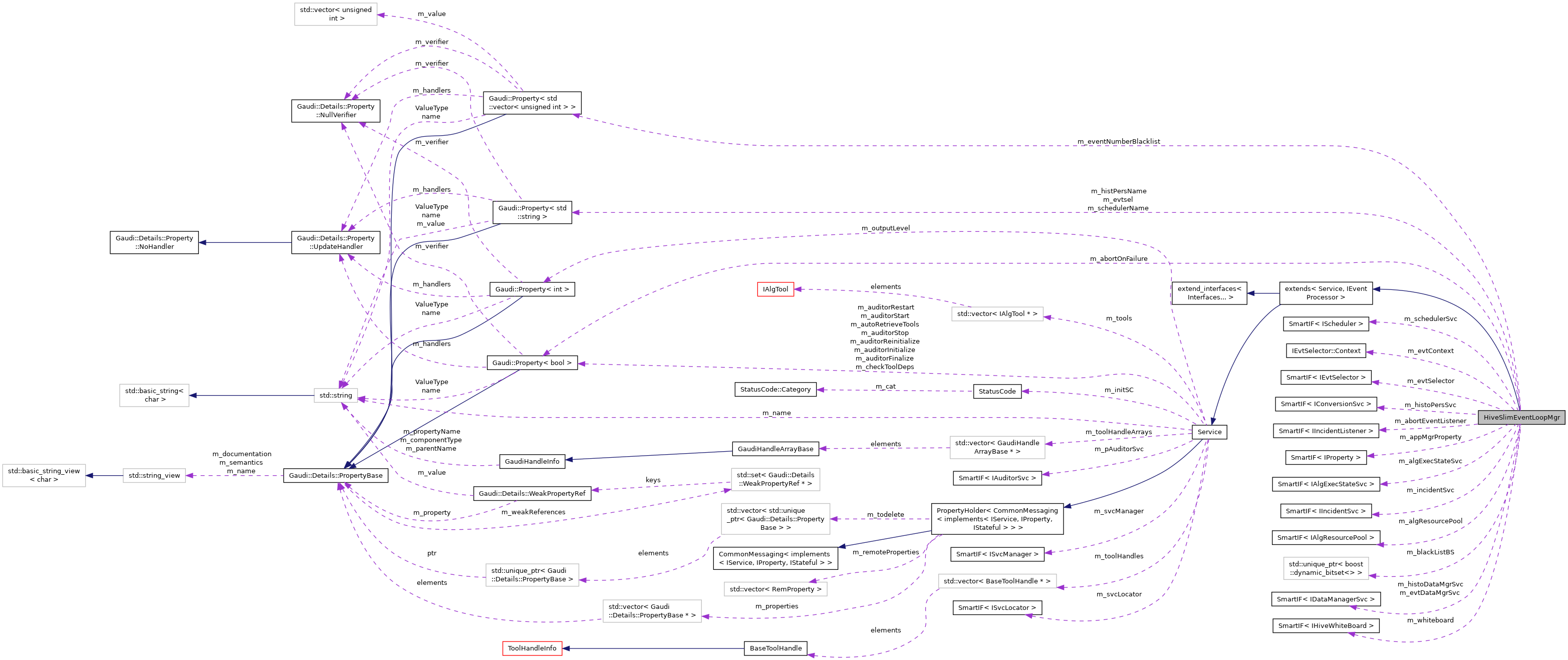

Collaboration diagram for HiveSlimEventLoopMgr:

[legend]

Public Member Functions
	~HiveSlimEventLoopMgr () override

StatusCode	getEventRoot (IOpaqueAddress *&refpAddr)
	Create event address using event selector. More...

StatusCode	initialize () override
	implementation of IService::initialize More...

StatusCode	reinitialize () override
	implementation of IService::reinitialize More...

StatusCode	stop () override
	implementation of IService::stop More...

StatusCode	finalize () override
	implementation of IService::finalize More...

StatusCode	nextEvent (int maxevt) override
	implementation of IService::nextEvent More...

EventContext	createEventContext () override
	implementation of IEventProcessor::createEventContext() More...

StatusCode	executeEvent (EventContext &&ctx) override
	implementation of IEventProcessor::executeEvent(EventContext&&) More...

StatusCode	executeRun (int maxevt) override
	implementation of IEventProcessor::executeRun() More...

StatusCode	stopRun () override
	implementation of IEventProcessor::stopRun() More...

Public Member Functions inherited from extends< Service, IEventProcessor >
void const *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...

StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...

std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...

Public Member Functions inherited from Service
const std::string &	name () const override
	Retrieve name of the service More...

StatusCode	configure () override

StatusCode	initialize () override

StatusCode	start () override

StatusCode	stop () override

StatusCode	finalize () override

StatusCode	terminate () override

Gaudi::StateMachine::State	FSMState () const override

Gaudi::StateMachine::State	targetFSMState () const override

StatusCode	reinitialize () override

StatusCode	restart () override

StatusCode	sysInitialize () override
	Initialize Service More...

StatusCode	sysStart () override
	Initialize Service More...

StatusCode	sysStop () override
	Initialize Service More...

StatusCode	sysFinalize () override
	Finalize Service More...

StatusCode	sysReinitialize () override
	Re-initialize the Service. More...

StatusCode	sysRestart () override
	Re-initialize the Service. More...

	Service (std::string name, ISvcLocator *svcloc)
	Standard Constructor More...

SmartIF< ISvcLocator > &	serviceLocator () const override
	Retrieve pointer to service locator More...

template<typename IFace = IService>
SmartIF< IFace >	service (const std::string &name, bool createIf=true) const

template<class T >
Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, ToolHandle< T > &hndl, const std::string &doc="none")

template<class T >
StatusCode	declareTool (ToolHandle< T > &handle, bool createIf=true)

template<class T >
StatusCode	declareTool (ToolHandle< T > &handle, const std::string &toolTypeAndName, bool createIf=true)
	Declare used tool. More...

template<class T >
Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, ToolHandleArray< T > &hndlArr, const std::string &doc="none")

template<class T >
void	addToolsArray (ToolHandleArray< T > &hndlArr)

const std::vector< IAlgTool * > &	tools () const

SmartIF< IAuditorSvc > &	auditorSvc () const
	The standard auditor service.May not be invoked before sysInitialize() has been invoked. More...

Public Member Functions inherited from PropertyHolder< CommonMessaging< implements< IService, IProperty, IStateful > > >
	PropertyHolder ()=default

Gaudi::Details::PropertyBase &	declareProperty (Gaudi::Details::PropertyBase &prop)
	Declare a property. More...

Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, Gaudi::Property< TYPE, VERIFIER, HANDLERS > &prop, const std::string &doc="none")
	Declare a PropertyBase instance setting name and documentation. More...

	requires (!Gaudi::Details::is_gaudi_property_v< TYPE >) Gaudi
	Helper to wrap a regular data member and use it as a regular property. More...

Gaudi::Details::PropertyBase *	declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="")
	Declare a remote property. More...

StatusCode	setProperty (const std::string &name, const Gaudi::Details::PropertyBase &p) override
	set the property from another property with a different name More...

StatusCode	setProperty (const std::string &s) override
	set the property from the formatted string More...

StatusCode	setProperty (const Gaudi::Details::PropertyBase &p)
	Set the property from a property. More...

virtual StatusCode	setProperty (const std::string &name, const Gaudi::Details::PropertyBase &p)=0
	Set the property from a property with a different name. More...

virtual StatusCode	setProperty (const std::string &s)=0
	Set the property by string. More...

StatusCode	setProperty (const std::string &name, const char *v)
	Special case for string literals. More...

StatusCode	setProperty (const std::string &name, const std::string &v)
	Special case for std::string. More...

StatusCode	setPropertyRepr (const std::string &n, const std::string &r) override
	set the property from name and value string representation More...

StatusCode	getProperty (Gaudi::Details::PropertyBase *p) const override
	get the property More...

const Gaudi::Details::PropertyBase &	getProperty (std::string_view name) const override
	get the property by name More...

StatusCode	getProperty (std::string_view n, std::string &v) const override
	convert the property to the string More...

const std::vector< Gaudi::Details::PropertyBase * > &	getProperties () const override
	get all properties More...

bool	hasProperty (std::string_view name) const override
	Return true if we have a property with the given name. More...

Gaudi::Details::PropertyBase *	property (std::string_view name) const
	\fixme property and bindPropertiesTo should be protected More...

void	bindPropertiesTo (Gaudi::Interfaces::IOptionsSvc &optsSvc)

	PropertyHolder (const PropertyHolder &)=delete

PropertyHolder &	operator= (const PropertyHolder &)=delete

Public Member Functions inherited from CommonMessaging< implements< IService, IProperty, IStateful > >
MSG::Level	msgLevel () const
	get the cached level (originally extracted from the embedded MsgStream) More...

bool	msgLevel (MSG::Level lvl) const
	get the output level from the embedded MsgStream More...

Protected Member Functions
StatusCode	clearWBSlot (int evtSlot)
	Clear a slot in the WB. More...

StatusCode	declareEventRootAddress ()
	Declare the root address of the event. More...

StatusCode	drainScheduler (int &finishedEvents)
	Drain the scheduler from all actions that may be queued. More...

Protected Member Functions inherited from Service
std::vector< IAlgTool * > &	tools ()

	~Service () override

int	outputLevel () const
	get the `Service's` output level More...

Protected Member Functions inherited from CommonMessaging< implements< IService, IProperty, IStateful > >
MSG::Level	setUpMessaging () const
	Set up local caches. More...

MSG::Level	resetMessaging ()
	Reinitialize internal states. More...

void	updateMsgStreamOutputLevel (int level)
	Update the output level of the cached MsgStream. More...

Protected Attributes
Gaudi::Property< std::string >	m_histPersName { this, "HistogramPersistency", "", "" }

Gaudi::Property< std::string >	m_evtsel { this, "EvtSel", "", "" }

Gaudi::Property< std::string >	m_schedulerName

Gaudi::Property< std::vector< unsigned int > >	m_eventNumberBlacklist { this, "EventNumberBlackList", {}, "" }

Gaudi::Property< bool >	m_abortOnFailure { this, "AbortOnFailure", true, "Abort job on event failure" }

SmartIF< IDataManagerSvc >	m_evtDataMgrSvc
	Reference to the Event Data Service's IDataManagerSvc interface. More...

SmartIF< IEvtSelector >	m_evtSelector
	Reference to the Event Selector. More...

IEvtSelector::Context *	m_evtContext = nullptr
	Event Iterator. More...

SmartIF< IDataManagerSvc >	m_histoDataMgrSvc
	Reference to the Histogram Data Service. More...

SmartIF< IConversionSvc >	m_histoPersSvc
	Reference to the Histogram Persistency Service. More...

SmartIF< IHiveWhiteBoard >	m_whiteboard
	Reference to the Whiteboard. More...

SmartIF< IAlgResourcePool >	m_algResourcePool
	Reference to the Algorithm resource pool. More...

SmartIF< IAlgExecStateSvc >	m_algExecStateSvc
	Reference to the AlgExecStateSvc. More...

SmartIF< IProperty >	m_appMgrProperty
	Property interface of ApplicationMgr. More...

bool	m_endEventFired = false
	Flag to avoid to fire the EnvEvent incident twice in a row (and also not before the first event) More...

SmartIF< IScheduler >	m_schedulerSvc
	A shortcut for the scheduler. More...

SmartIF< IIncidentListener >	m_abortEventListener
	Instance of the incident listener waiting for AbortEvent. More...

bool	m_scheduledStop = false
	Scheduled stop of event processing. More...

SmartIF< IIncidentSvc >	m_incidentSvc
	Reference to the incident service. More...

std::unique_ptr< boost::dynamic_bitset<> >	m_blackListBS

EventContext::ContextEvt_t	m_nevt { 0 }

Protected Attributes inherited from Service
Gaudi::StateMachine::State	m_state = Gaudi::StateMachine::OFFLINE
	Service state More...

Gaudi::StateMachine::State	m_targetState = Gaudi::StateMachine::OFFLINE
	Service state More...

Gaudi::Property< int >	m_outputLevel { this, "OutputLevel", MSG::NIL, "output level" }
	flag indicating whether ToolHandle tools have been added to m_tools More...

Gaudi::Property< bool >	m_auditorInitialize { this, "AuditInitialize", false, "trigger auditor on initialize()" }

Gaudi::Property< bool >	m_auditorStart { this, "AuditStart", false, "trigger auditor on start()" }

Gaudi::Property< bool >	m_auditorStop { this, "AuditStop", false, "trigger auditor on stop()" }

Gaudi::Property< bool >	m_auditorFinalize { this, "AuditFinalize", false, "trigger auditor on finalize()" }

Gaudi::Property< bool >	m_auditorReinitialize { this, "AuditReinitialize", false, "trigger auditor on reinitialize()" }

Gaudi::Property< bool >	m_auditorRestart { this, "AuditRestart", false, "trigger auditor on restart()" }

Gaudi::Property< bool >	m_autoRetrieveTools

Gaudi::Property< bool >	m_checkToolDeps

SmartIF< IAuditorSvc >	m_pAuditorSvc
	Auditor Service More...

Additional Inherited Members
Public Types inherited from extends< Service, IEventProcessor >
using	base_class = extends
	Typedef to this class. More...

using	extend_interfaces_base = extend_interfaces< Interfaces... >
	Typedef to the base of this class. More...

Public Types inherited from Service
using	Factory = Gaudi::PluginService::Factory< IService (const std::string &, ISvcLocator )>

Public Types inherited from PropertyHolder< CommonMessaging< implements< IService, IProperty, IStateful > > >
using	PropertyHolderImpl = PropertyHolder< CommonMessaging< implements< IService, IProperty, IStateful > > >
	Typedef used to refer to this class from derived classes, as in. More...

Public Types inherited from CommonMessaging< implements< IService, IProperty, IStateful > >
using	base_class = CommonMessaging

Public Types inherited from extend_interfaces< Interfaces... >
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids... >::type
	take union of the ext_iids of all Interfaces... More...

Detailed Description

Definition at line 31 of file HiveSlimEventLoopMgr.h.

Constructor & Destructor Documentation

◆ ~HiveSlimEventLoopMgr()

HiveSlimEventLoopMgr::~HiveSlimEventLoopMgr ( )

override

Definition at line 38 of file HiveSlimEventLoopMgr.cpp.

38 { delete m_evtContext; }

Member Function Documentation

◆ clearWBSlot()

StatusCode HiveSlimEventLoopMgr::clearWBSlot ( int evtSlot )

protected

Clear a slot in the WB.

Definition at line 563 of file HiveSlimEventLoopMgr.cpp.

                                                           {
   StatusCode sc = m_whiteboard->clearStore( evtSlot );
   if ( !sc.isSuccess() ) warning() << "Clear of Event data store failed" << endmsg;
   return m_whiteboard->freeStore( evtSlot );
 }

◆ createEventContext()

EventContext HiveSlimEventLoopMgr::createEventContext ( )

override

implementation of IEventProcessor::createEventContext()

Definition at line 488 of file HiveSlimEventLoopMgr.cpp.

                                                       {
   EventContext ctx{ m_nevt, m_whiteboard->allocateStore( m_nevt ) };
   ++m_nevt;

   StatusCode sc = m_whiteboard->selectStore( ctx.slot() );
   if ( sc.isFailure() ) {
     throw GaudiException( "Slot " + std::to_string( ctx.slot() ) + " could not be selected for the WhiteBoard", name(),
                           sc );
   }
   if ( declareEventRootAddress().isFailure() ) { // We ran out of events!
     // invalid context terminates the loop
     return EventContext{};
   }
   return ctx;
 }

◆ declareEventRootAddress()

StatusCode HiveSlimEventLoopMgr::declareEventRootAddress ( )

protected

Declare the root address of the event.

Definition at line 466 of file HiveSlimEventLoopMgr.cpp.

                                                          {
   StatusCode sc;
   if ( m_evtContext ) {
     //---This is the "event iterator" context from EventSelector
     IOpaqueAddress* pAddr = nullptr;
     sc                    = getEventRoot( pAddr );
     if ( !sc.isSuccess() ) {
       info() << "No more events in event selection " << endmsg;
       return StatusCode::FAILURE;
     }
     sc = m_evtDataMgrSvc->setRoot( "/Event", pAddr );
     if ( !sc.isSuccess() ) { warning() << "Error declaring event root address." << endmsg; }
   } else {
     //---In case of no event selector----------------
     sc = m_evtDataMgrSvc->setRoot( "/Event", new DataObject() );
     if ( !sc.isSuccess() ) { warning() << "Error declaring event root DataObject" << endmsg; }
   }
   return StatusCode::SUCCESS;
 }

◆ drainScheduler()

StatusCode HiveSlimEventLoopMgr::drainScheduler ( int & finishedEvents )

protected

Drain the scheduler from all actions that may be queued.

Definition at line 506 of file HiveSlimEventLoopMgr.cpp.

                                                                    {

   StatusCode sc( StatusCode::SUCCESS );

   // maybe we can do better
   std::vector<EventContext*> finishedEvtContexts;

   EventContext* finishedEvtContext( nullptr );

   // Here we wait not to loose cpu resources
   DEBUG_MSG << "Waiting for a context" << endmsg;
   sc = m_schedulerSvc->popFinishedEvent( finishedEvtContext );

   // We got past it: cache the pointer
   DEBUG_MSG << "Context " << ( sc.isSuccess() ? "obtained" : "not obtained: a problem in the scheduling?" ) << endmsg;
   finishedEvtContexts.push_back( finishedEvtContext );

   // Let's see if we can pop other event contexts
   while ( m_schedulerSvc->tryPopFinishedEvent( finishedEvtContext ).isSuccess() ) {
     finishedEvtContexts.push_back( finishedEvtContext );
   }

   // Now we flush them
   StatusCode finalSC;
   for ( auto& thisFinishedEvtContext : finishedEvtContexts ) {
     if ( !thisFinishedEvtContext ) {
       error() << "Detected nullptr ctxt before clearing WB!" << endmsg;
       finalSC = StatusCode::FAILURE;
       continue;
     }
     if ( m_algExecStateSvc->eventStatus( *thisFinishedEvtContext ) != EventStatus::Success ) {
       ( m_abortOnFailure ? fatal() : error() ) << "Failed event detected on " << thisFinishedEvtContext << endmsg;
       if ( m_abortOnFailure ) finalSC = StatusCode::FAILURE;
     }
     // shouldn't these incidents move to the forward scheduler?
     // If we want to consume incidents with an algorithm at the end of the graph
     // we need to add this to forward scheduler lambda action,
     // otherwise we have to do this serially on this thread!
     m_incidentSvc->fireIncident( Incident( name(), IncidentType::EndProcessing, *thisFinishedEvtContext ) );
     m_incidentSvc->fireIncident( Incident( name(), IncidentType::EndEvent, *thisFinishedEvtContext ) );

     DEBUG_MSG << "Clearing slot " << thisFinishedEvtContext->slot() << " (event " << thisFinishedEvtContext->evt()
               << ") of the whiteboard" << endmsg;

     StatusCode sc = clearWBSlot( thisFinishedEvtContext->slot() );
     if ( !sc.isSuccess() )
       error() << "Whiteboard slot " << thisFinishedEvtContext->slot() << " could not be properly cleared";

     delete thisFinishedEvtContext;

     ++finishedEvts;
   }
   return finalSC;
 }

◆ executeEvent()

StatusCode HiveSlimEventLoopMgr::executeEvent ( EventContext && ctx )

override

implementation of IEventProcessor::executeEvent(EventContext&&)

Definition at line 269 of file HiveSlimEventLoopMgr.cpp.

                                                                   {

   m_algExecStateSvc->reset( ctx );

   // Check if event number is in blacklist
   if ( m_blackListBS != nullptr ) { // we are processing a finite number of events, use bitset blacklist
     if ( m_blackListBS->test( ctx.evt() ) ) {
       VERBOSE_MSG << "Event " << ctx.evt() << " on black list" << endmsg;
       m_whiteboard->freeStore( ctx.slot() ).ignore( /* AUTOMATICALLY ADDED FOR gaudi/Gaudi!763 */ );
       return StatusCode::RECOVERABLE;
     }
   } else if ( std::binary_search( m_eventNumberBlacklist.begin(), m_eventNumberBlacklist.end(), ctx.evt() ) ) {
     VERBOSE_MSG << "Event " << ctx.evt() << " on black list" << endmsg;
     m_whiteboard->freeStore( ctx.slot() ).ignore( /* AUTOMATICALLY ADDED FOR gaudi/Gaudi!763 */ );
     return StatusCode::RECOVERABLE;
   }

   VERBOSE_MSG << "Beginning to process event " << ctx.evt() << endmsg;

   // An incident may schedule a stop, in which case is better to exit before the actual execution.
   if ( m_scheduledStop ) {
     always() << "Terminating event processing loop due to a stop scheduled by an incident listener" << endmsg;
     return StatusCode::SUCCESS;
   }

   // Fire BeginEvent "Incident"
   m_incidentSvc->fireIncident( std::make_unique<Incident>( name(), IncidentType::BeginEvent, ctx ) );

   // Now add event to the scheduler
   VERBOSE_MSG << "Adding event " << ctx.evt() << ", slot " << ctx.slot() << " to the scheduler" << endmsg;

   m_incidentSvc->fireIncident( std::make_unique<Incident>( name(), IncidentType::BeginProcessing, ctx ) );

   StatusCode addEventStatus = m_schedulerSvc->pushNewEvent( new EventContext{ std::move( ctx ) } );

   // If this fails, we need to wait for something to complete
   if ( !addEventStatus.isSuccess() ) {
     fatal() << "An event processing slot should be now free in the scheduler, but it appears not to be the case."
             << endmsg;
   }

   return StatusCode::SUCCESS;
 }

◆ executeRun()

StatusCode HiveSlimEventLoopMgr::executeRun ( int maxevt )

override

implementation of IEventProcessor::executeRun()

Definition at line 316 of file HiveSlimEventLoopMgr.cpp.

                                                         {
   StatusCode sc;
   bool       eventfailed = false;

   if ( maxevt > 0 ) { // finite number of events to process
     const unsigned int umaxevt = static_cast<unsigned int>( maxevt );
     m_blackListBS              = std::make_unique<boost::dynamic_bitset<>>( maxevt ); // all initialized to zero
     for ( unsigned int i = 0; i < m_eventNumberBlacklist.size() && m_eventNumberBlacklist[i] <= umaxevt;
           ++i ) { // black list is sorted in init
       m_blackListBS->set( m_eventNumberBlacklist[i], true );
     }
   }

   // Call now the nextEvent(...)
   sc = nextEvent( maxevt );
   if ( sc.isFailure() ) eventfailed = true;

   m_blackListBS.reset( nullptr );

   return eventfailed ? StatusCode::FAILURE : StatusCode::SUCCESS;
 }

◆ finalize()

StatusCode HiveSlimEventLoopMgr::finalize ( )

override

implementation of IService::finalize

Definition at line 207 of file HiveSlimEventLoopMgr.cpp.

                                           {

   StatusCode scRet;
   StatusCode sc = Service::finalize();

   if ( sc.isFailure() ) {
     scRet = StatusCode::FAILURE;
     error() << "Problems finalizing Service base class" << endmsg;
   }

   // Save Histograms Now
   if ( m_histoPersSvc ) {
     HistogramAgent agent;
     sc = m_histoDataMgrSvc->traverseTree( &agent );
     if ( sc.isSuccess() ) {
       const IDataSelector& objects = agent.selectedObjects();
       // skip /stat entry!
       sc = std::accumulate( begin( objects ), end( objects ), sc, [&]( StatusCode s, const auto& i ) {
         IOpaqueAddress* pAddr = nullptr;
         StatusCode      iret  = m_histoPersSvc->createRep( i, pAddr );
         if ( iret.isSuccess() ) i->registry()->setAddress( pAddr );
         return s.isFailure() ? s : iret;
       } );
       sc = std::accumulate( begin( objects ), end( objects ), sc, [&]( StatusCode s, const auto& i ) {
         IRegistry* reg  = i->registry();
         StatusCode iret = m_histoPersSvc->fillRepRefs( reg->address(), i );
         return s.isFailure() ? s : iret;
       } );
       if ( sc.isSuccess() ) {
         info() << "Histograms converted successfully according to request." << endmsg;
       } else {
         error() << "Error while saving Histograms." << endmsg;
       }
     } else {
       error() << "Error while traversing Histogram data store" << endmsg;
     }
   }

   scRet = sc;

   // Release event selector context
   if ( m_evtSelector && m_evtContext ) {
     m_evtSelector->releaseContext( m_evtContext ).ignore();
     m_evtContext = nullptr;
   }

   m_incidentSvc.reset();

   // Release all interfaces...
   m_histoDataMgrSvc.reset();
   m_histoPersSvc.reset();

   m_evtSelector.reset();
   m_whiteboard.reset();
   m_evtDataMgrSvc.reset();

   return scRet;
 }

◆ getEventRoot()

StatusCode HiveSlimEventLoopMgr::getEventRoot ( IOpaqueAddress *& refpAddr )

Create event address using event selector.

Definition at line 450 of file HiveSlimEventLoopMgr.cpp.

                                                                          {
   refpAddr      = nullptr;
   StatusCode sc = m_evtSelector->next( *m_evtContext );
   if ( sc.isFailure() ) return sc;
   // Create root address and assign address to data service
   sc = m_evtSelector->createAddress( *m_evtContext, refpAddr );
   if ( sc.isSuccess() ) return sc;
   sc = m_evtSelector->next( *m_evtContext );
   if ( sc.isFailure() ) return sc;
   sc = m_evtSelector->createAddress( *m_evtContext, refpAddr );
   if ( !sc.isSuccess() ) warning() << "Error creating IOpaqueAddress." << endmsg;
   return sc;
 }

◆ initialize()

StatusCode HiveSlimEventLoopMgr::initialize ( )

override

implementation of IService::initialize

Definition at line 43 of file HiveSlimEventLoopMgr.cpp.

                                             {
   StatusCode sc = Service::initialize();
   if ( !sc.isSuccess() ) {
     error() << "Failed to initialize Service Base class." << endmsg;
     return StatusCode::FAILURE;
   }

   // Get the references to the services that are needed by the ApplicationMgr itself
   m_incidentSvc = serviceLocator()->service( "IncidentSvc" );
   if ( !m_incidentSvc ) {
     fatal() << "Error retrieving IncidentSvc." << endmsg;
     return StatusCode::FAILURE;
   }

   // Setup access to event data services
   m_evtDataMgrSvc = serviceLocator()->service( "EventDataSvc" );
   if ( !m_evtDataMgrSvc ) {
     fatal() << "Error retrieving EventDataSvc interface IDataManagerSvc." << endmsg;
     return StatusCode::FAILURE;
   }
   m_whiteboard = serviceLocator()->service( "EventDataSvc" );
   if ( !m_whiteboard ) {
     fatal() << "Error retrieving EventDataSvc interface IHiveWhiteBoard." << endmsg;
     return StatusCode::FAILURE;
   }
   m_schedulerSvc = serviceLocator()->service( m_schedulerName );
   if ( !m_schedulerSvc ) {
     fatal() << "Error retrieving SchedulerSvc interface IScheduler." << endmsg;
     return StatusCode::FAILURE;
   }
   // Obtain the IProperty of the ApplicationMgr
   m_appMgrProperty = serviceLocator();
   if ( !m_appMgrProperty ) {
     fatal() << "IProperty interface not found in ApplicationMgr." << endmsg;
     return StatusCode::FAILURE;
   }

   // We do not expect a Event Selector necessarily being declared
   setProperty( m_appMgrProperty->getProperty( "EvtSel" ) ).ignore();

   if ( m_evtsel != "NONE" || m_evtsel.length() == 0 ) {
     m_evtSelector = serviceLocator()->service( "EventSelector" );
     if ( m_evtSelector ) {
       // Setup Event Selector
       sc = m_evtSelector->createContext( m_evtContext );
       if ( !sc.isSuccess() ) {
         fatal() << "Can not create the event selector Context." << endmsg;
         return sc;
       }
     } else {
       fatal() << "EventSelector not found." << endmsg;
       return sc;
     }
   } else {
     m_evtSelector = 0;
     m_evtContext  = 0;
     info() << "\"EventSelector\" disabled: no events will be processed from external input." << endmsg;
   }

   setProperty( m_appMgrProperty->getProperty( "HistogramPersistency" ) ).ignore();
   if ( m_histPersName != "NONE" && !m_histPersName.empty() ) {
     // Setup access to histogramming services
     m_histoDataMgrSvc = serviceLocator()->service( "HistogramDataSvc" );
     if ( !m_histoDataMgrSvc ) {
       fatal() << "Error retrieving HistogramDataSvc." << endmsg;
       return StatusCode::FAILURE;
     }
     // Setup histogram persistency
     m_histoPersSvc = serviceLocator()->service( "HistogramPersistencySvc" );
     if ( !m_histoPersSvc ) { warning() << "Histograms cannot not be saved - though required." << endmsg; }
   }

   // Setup algorithm resource pool
   m_algResourcePool = serviceLocator()->service( "AlgResourcePool" );
   if ( !m_algResourcePool ) {
     fatal() << "Error retrieving AlgResourcePool" << endmsg;
     return StatusCode::FAILURE;
   }

   m_algExecStateSvc = serviceLocator()->service( "AlgExecStateSvc" );
   if ( !m_algExecStateSvc ) {
     fatal() << "Error retrieving AlgExecStateSvc" << endmsg;
     return StatusCode::FAILURE;
   }

   std::sort( m_eventNumberBlacklist.begin(), m_eventNumberBlacklist.end() );
   info() << "Found " << m_eventNumberBlacklist.size() << " events in black list" << endmsg;

   return StatusCode::SUCCESS;
 }

◆ nextEvent()

StatusCode HiveSlimEventLoopMgr::nextEvent ( int maxevt )

override

implementation of IService::nextEvent

Definition at line 358 of file HiveSlimEventLoopMgr.cpp.

                                                        {

   // Calculate runtime
   using Clock = std::chrono::high_resolution_clock;

   // Reset the application return code.
   Gaudi::setAppReturnCode( m_appMgrProperty, Gaudi::ReturnCode::Success, true ).ignore();

   int finishedEvts = 0;
   int createdEvts  = 0;
   int skippedEvts  = 0;
   info() << "Starting loop on events" << endmsg;
   // Loop until the finished events did not reach the maxevt number
   bool loop_ended = false;
   // Run the first event before spilling more than one
   bool newEvtAllowed = false;

   constexpr double oneOver1024 = 1. / 1024.;

   uint       iteration  = 0;
   auto       start_time = Clock::now();
   StatusCode finalSC;
   while ( !loop_ended && ( maxevt < 0 || ( finishedEvts + skippedEvts ) < maxevt ) ) {
     DEBUG_MSG << "work loop iteration " << iteration++ << endmsg;
     // if the created events did not reach maxevt, create an event
     if ( ( newEvtAllowed || createdEvts == 0 ) &&  // Launch the first event alone
          createdEvts >= 0 &&                       // The events are not finished with an unlimited number of events
          ( createdEvts < maxevt || maxevt < 0 ) && // The events are not finished with a limited number of events
          m_schedulerSvc->freeSlots() > 0 &&        // There are still free slots in the scheduler
          m_whiteboard->freeSlots() > 0 &&          // There are still free slots in the whiteboard
          !m_scheduledStop                          // There is not a scheduled stop
     ) {

       if ( 1 == createdEvts ) // reset counter to count from event 1
         start_time = Clock::now();

       DEBUG_MSG << "createdEvts: " << createdEvts << ", freeslots: " << m_schedulerSvc->freeSlots() << endmsg;
       //  DP remove to remove the syscalls...
       //      if (0!=createdEvts){
       //        info()   << "Event Number = " << createdEvts
       //                 << " WSS (MB) = " << System::mappedMemory(System::MemoryUnit::kByte)*oneOver1024
       //                << " Time (s) = " << secsFromStart(start_time) << endmsg;
       //        }

       // TODO can we adapt the interface of executeEvent for a nicer solution?
       StatusCode sc = StatusCode::RECOVERABLE;
       while ( !sc.isSuccess()                               // we haven't created an event yet
               && ( createdEvts < maxevt || maxevt < 0 ) ) { // redunant check for maxEvts, can we do better?
         {
           auto ctx = createEventContext();
           if ( !ctx.valid() ) {
             createdEvts = -1;
             break; // invalid context means end of loop
           }
           sc = executeEvent( std::move( ctx ) );
         }
         if ( sc.isRecoverable() ) { // we skipped an event
           ++skippedEvts;
         } else if ( sc.isFailure() ) { // exit immediatly
           return sc;
         } // else we have an success --> exit loop
         ++createdEvts;
       }

     } // end if condition createdEvts < maxevt
     else {
       // all the events were created but not all finished or the slots were
       // all busy: the scheduler should finish its job

       DEBUG_MSG << "Draining the scheduler" << endmsg;

       // Pull out of the scheduler the finished events
       if ( drainScheduler( finishedEvts ).isFailure() ) {
         loop_ended = true;
         finalSC    = StatusCode::FAILURE;
       }
       newEvtAllowed = true;
     }
   } // end main loop on finished events
   auto end_time = Clock::now();

   info() << "---> Loop Finished (skipping 1st evt) - "
          << " WSS " << System::mappedMemory( System::MemoryUnit::kByte ) * oneOver1024 << " total time "
          << std::chrono::duration_cast<std::chrono::nanoseconds>( end_time - start_time ).count() << endmsg;
   info() << skippedEvts << " events were SKIPed" << endmsg;

   return finalSC;
 }

◆ reinitialize()

StatusCode HiveSlimEventLoopMgr::reinitialize ( )

override

implementation of IService::reinitialize

Definition at line 136 of file HiveSlimEventLoopMgr.cpp.

                                               {

   // Check to see whether a new Event Selector has been specified
   setProperty( m_appMgrProperty->getProperty( "EvtSel" ) ).ignore( /* AUTOMATICALLY ADDED FOR gaudi/Gaudi!763 */ );
   if ( m_evtsel != "NONE" || m_evtsel.empty() ) {
     auto       theSvc    = serviceLocator()->service( "EventSelector" );
     auto       theEvtSel = theSvc.as<IEvtSelector>();
     StatusCode sc;
     if ( theEvtSel && ( theEvtSel.get() != m_evtSelector.get() ) ) {
       // Setup Event Selector
       if ( m_evtSelector.get() && m_evtContext ) {
         // Need to release context before switching to new event selector
         m_evtSelector->releaseContext( m_evtContext ).ignore( /* AUTOMATICALLY ADDED FOR gaudi/Gaudi!763 */ );
         m_evtContext = nullptr;
       }
       m_evtSelector = theEvtSel;
       if ( theSvc->FSMState() == Gaudi::StateMachine::INITIALIZED ) {
         sc = theSvc->reinitialize();
         if ( !sc.isSuccess() ) {
           error() << "Failure Reinitializing EventSelector " << theSvc->name() << endmsg;
           return sc;
         }
       } else {
         sc = theSvc->sysInitialize();
         if ( !sc.isSuccess() ) {
           error() << "Failure Initializing EventSelector " << theSvc->name() << endmsg;
           return sc;
         }
       }
       sc = m_evtSelector->createContext( m_evtContext );
       if ( !sc.isSuccess() ) {
         error() << "Can not create Context " << theSvc->name() << endmsg;
         return sc;
       }

     } else if ( m_evtSelector ) {
       if ( m_evtContext ) {
         m_evtSelector->releaseContext( m_evtContext ).ignore( /* AUTOMATICALLY ADDED FOR gaudi/Gaudi!763 */ );
         m_evtContext = nullptr;
       }
       sc = m_evtSelector->createContext( m_evtContext );
       if ( !sc.isSuccess() ) {
         error() << "Can not create Context " << theSvc->name() << endmsg;
         return sc;
       }
     }
   } else if ( m_evtSelector && m_evtContext ) {
     m_evtSelector->releaseContext( m_evtContext ).ignore( /* AUTOMATICALLY ADDED FOR gaudi/Gaudi!763 */ );
     m_evtSelector = nullptr;
     m_evtContext  = nullptr;
   }
   return StatusCode::SUCCESS;
 }

◆ stop()

StatusCode HiveSlimEventLoopMgr::stop ( )

override

implementation of IService::stop

Definition at line 194 of file HiveSlimEventLoopMgr.cpp.

                                       {
   if ( !m_endEventFired ) {
     // Fire pending EndEvent incident
     m_incidentSvc->fireIncident( Incident( name(), IncidentType::EndEvent ) );
     m_endEventFired = true;
   }
   return StatusCode::SUCCESS;
 }

◆ stopRun()

StatusCode HiveSlimEventLoopMgr::stopRun ( )

override

implementation of IEventProcessor::stopRun()

Definition at line 341 of file HiveSlimEventLoopMgr.cpp.

                                          {
   // Set the application return code
   auto appmgr = serviceLocator()->as<IProperty>();
   if ( Gaudi::setAppReturnCode( appmgr, Gaudi::ReturnCode::ScheduledStop ).isFailure() ) {
     error() << "Could not set return code of the application (" << Gaudi::ReturnCode::ScheduledStop << ")" << endmsg;
   }
   m_scheduledStop = true;
   return StatusCode::SUCCESS;
 }

Member Data Documentation

◆ m_abortEventListener

SmartIF<IIncidentListener> HiveSlimEventLoopMgr::m_abortEventListener

protected

Instance of the incident listener waiting for AbortEvent.

Definition at line 72 of file HiveSlimEventLoopMgr.h.

◆ m_abortOnFailure

Gaudi::Property<bool> HiveSlimEventLoopMgr::m_abortOnFailure { this, "AbortOnFailure", true, "Abort job on event failure" }

protected

Definition at line 40 of file HiveSlimEventLoopMgr.h.

◆ m_algExecStateSvc

SmartIF<IAlgExecStateSvc> HiveSlimEventLoopMgr::m_algExecStateSvc

protected

Reference to the AlgExecStateSvc.

Definition at line 57 of file HiveSlimEventLoopMgr.h.

◆ m_algResourcePool

SmartIF<IAlgResourcePool> HiveSlimEventLoopMgr::m_algResourcePool

protected

Reference to the Algorithm resource pool.

Definition at line 55 of file HiveSlimEventLoopMgr.h.

◆ m_appMgrProperty

SmartIF<IProperty> HiveSlimEventLoopMgr::m_appMgrProperty

protected

Property interface of ApplicationMgr.

Definition at line 59 of file HiveSlimEventLoopMgr.h.

◆ m_blackListBS

std::unique_ptr<boost::dynamic_bitset<> > HiveSlimEventLoopMgr::m_blackListBS

protected

Definition at line 79 of file HiveSlimEventLoopMgr.h.

◆ m_endEventFired

bool HiveSlimEventLoopMgr::m_endEventFired = false

protected

Flag to avoid to fire the EnvEvent incident twice in a row (and also not before the first event)

Definition at line 62 of file HiveSlimEventLoopMgr.h.

◆ m_eventNumberBlacklist

Gaudi::Property<std::vector<unsigned int> > HiveSlimEventLoopMgr::m_eventNumberBlacklist { this, "EventNumberBlackList", {}, "" }

protected

Definition at line 39 of file HiveSlimEventLoopMgr.h.

◆ m_evtContext

IEvtSelector::Context* HiveSlimEventLoopMgr::m_evtContext = nullptr

protected

Event Iterator.

Definition at line 47 of file HiveSlimEventLoopMgr.h.

◆ m_evtDataMgrSvc

SmartIF<IDataManagerSvc> HiveSlimEventLoopMgr::m_evtDataMgrSvc

protected

Reference to the Event Data Service's IDataManagerSvc interface.

Definition at line 43 of file HiveSlimEventLoopMgr.h.

◆ m_evtsel

Gaudi::Property<std::string> HiveSlimEventLoopMgr::m_evtsel { this, "EvtSel", "", "" }

protected

Definition at line 35 of file HiveSlimEventLoopMgr.h.

◆ m_evtSelector

SmartIF<IEvtSelector> HiveSlimEventLoopMgr::m_evtSelector

protected

Reference to the Event Selector.

Definition at line 45 of file HiveSlimEventLoopMgr.h.

◆ m_histoDataMgrSvc

SmartIF<IDataManagerSvc> HiveSlimEventLoopMgr::m_histoDataMgrSvc

protected

Reference to the Histogram Data Service.

Definition at line 49 of file HiveSlimEventLoopMgr.h.

◆ m_histoPersSvc

SmartIF<IConversionSvc> HiveSlimEventLoopMgr::m_histoPersSvc

protected

Reference to the Histogram Persistency Service.

Definition at line 51 of file HiveSlimEventLoopMgr.h.

◆ m_histPersName

Gaudi::Property<std::string> HiveSlimEventLoopMgr::m_histPersName { this, "HistogramPersistency", "", "" }

protected

Definition at line 34 of file HiveSlimEventLoopMgr.h.

◆ m_incidentSvc

SmartIF<IIncidentSvc> HiveSlimEventLoopMgr::m_incidentSvc

protected

Reference to the incident service.

Definition at line 76 of file HiveSlimEventLoopMgr.h.

◆ m_nevt

EventContext::ContextEvt_t HiveSlimEventLoopMgr::m_nevt { 0 }

protected

Definition at line 81 of file HiveSlimEventLoopMgr.h.

◆ m_scheduledStop

bool HiveSlimEventLoopMgr::m_scheduledStop = false

protected

Scheduled stop of event processing.

Definition at line 74 of file HiveSlimEventLoopMgr.h.

◆ m_schedulerName

Gaudi::Property<std::string> HiveSlimEventLoopMgr::m_schedulerName

protected

Initial value:

{ this, "SchedulerName", "AvalancheSchedulerSvc",

"Name of the scheduler to be used" }

Definition at line 36 of file HiveSlimEventLoopMgr.h.

◆ m_schedulerSvc

SmartIF<IScheduler> HiveSlimEventLoopMgr::m_schedulerSvc

protected

A shortcut for the scheduler.

Definition at line 64 of file HiveSlimEventLoopMgr.h.

◆ m_whiteboard

SmartIF<IHiveWhiteBoard> HiveSlimEventLoopMgr::m_whiteboard

protected

Reference to the Whiteboard.

Definition at line 53 of file HiveSlimEventLoopMgr.h.

The documentation for this class was generated from the following files:

GaudiHive/src/HiveSlimEventLoopMgr.h
GaudiHive/src/HiveSlimEventLoopMgr.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~HiveSlimEventLoopMgr()

Member Function Documentation

◆ clearWBSlot()

◆ createEventContext()

◆ declareEventRootAddress()

◆ drainScheduler()

◆ executeEvent()

◆ executeRun()

◆ finalize()

◆ getEventRoot()

◆ initialize()

◆ nextEvent()

◆ reinitialize()

◆ stop()

◆ stopRun()

Member Data Documentation

◆ m_abortEventListener

◆ m_abortOnFailure

◆ m_algExecStateSvc

◆ m_algResourcePool

◆ m_appMgrProperty

◆ m_blackListBS

◆ m_endEventFired

◆ m_eventNumberBlacklist

◆ m_evtContext

◆ m_evtDataMgrSvc

◆ m_evtsel

◆ m_evtSelector

◆ m_histoDataMgrSvc

◆ m_histoPersSvc

◆ m_histPersName

◆ m_incidentSvc

◆ m_nevt

◆ m_scheduledStop

◆ m_schedulerName

◆ m_schedulerSvc

◆ m_whiteboard
