The simple representation of "simple 1-step" decay (there are no trees! More...

#include </builds/gaudi/Gaudi/GaudiPartProp/include/Gaudi/Decays/Decay.h>

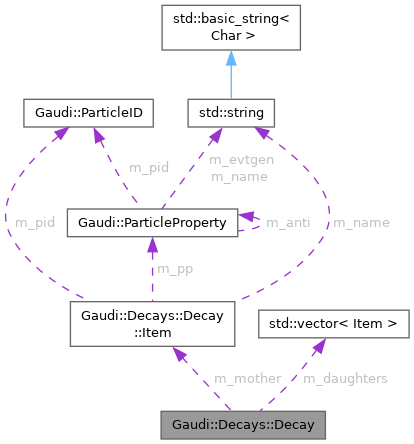

Collaboration diagram for Gaudi::Decays::Decay:

[legend]

Classes
class	Item
	the helper representation of the item in the decay chain More...

Public Types
typedef std::vector< Item >	Items
	the vector of items (the obvious representation of daughter particles)

Public Member Functions
	Decay ()=default

	Decay (const Gaudi::ParticleProperty mother, const std::vector< const Gaudi::ParticleProperty > &daughters)
	the constructor from mother and daughters

	Decay (const std::string &mother, const std::vector< std::string > &daughters)
	the constructor from mother and daughters

	Decay (const Gaudi::ParticleID &mother, const std::vector< Gaudi::ParticleID > &daughters)
	the constructor from mother and daughters

	Decay (const Item &mother, const std::vector< Item > &daughters)
	the constructor from mother and daughters

const Item &	mother () const
	get the mother(head) of the decay

const Items &	daughters () const
	get all daughters

const Items &	children () const
	get all daughters

size_t	nDaughters () const
	get the number of daughters

size_t	nChildren () const
	get the number of daughters

const Item &	operator() (const unsigned int index) const
	get the component by the number

const Item &	operator[] (const unsigned int index) const
	get the component by the number

void	setMother (const Item &mom)
	set the mother

void	setMother (const Gaudi::ParticleProperty *mom)
	set the mother

void	setMother (const std::string &mom)
	set the mother

void	setMother (const Gaudi::ParticleID &mom)
	set the mother

void	setDaughters (const Items &daugs)
	set the daughters

void	setDaughters (const std::vector< const Gaudi::ParticleProperty * > &daugs)
	set the daughters

void	setDaughters (const std::vector< std::string > &daugs)
	set the daughters

void	setDaughters (const std::vector< Gaudi::ParticleID > &daugs)
	set the daughters

void	setChildren (const Items &daugs)
	set the daughters

void	setChildren (const std::vector< const Gaudi::ParticleProperty * > &daugs)
	set the daughters

void	setChildren (const std::vector< std::string > &daugs)
	set the daughters

void	setChidlren (const std::vector< Gaudi::ParticleID > &daugs)
	set the daughters

Decay &	operator+= (const std::string &child)
	add the child

Decay &	operator+= (const Gaudi::ParticleID &child)
	add the child

Decay &	operator+= (const Gaudi::ParticleProperty *child)
	add the child

Decay &	operator+= (const Item &child)
	add the child

StatusCode	validate (const Gaudi::Interfaces::IParticlePropertySvc *svc) const
	validate the decay using the service

std::ostream &	fillStream (std::ostream &s) const
	the default printout

std::string	toString () const
	the conversion to the string

Public Attributes
Item	m_mother
	the head of the decay

Items	m_daughters
	the daughter particles

Detailed Description

The simple representation of "simple 1-step" decay (there are no trees!

Author: Vanya BELYAEV Ivan..nosp@m.Bely.nosp@m.aev@n.nosp@m.ikhe.nosp@m.f.nl

Date: 2008-03-31

Definition at line 32 of file Decay.h.

Member Typedef Documentation

◆ Items

typedef std::vector<Item> Gaudi::Decays::Decay::Items

the vector of items (the obvious representation of daughter particles)

Definition at line 73 of file Decay.h.

Constructor & Destructor Documentation

◆ Decay() [1/5]

Gaudi::Decays::Decay::Decay ( )

default

◆ Decay() [2/5]

Gaudi::Decays::Decay::Decay	(	const Gaudi::ParticleProperty *	mother,
		const std::vector< const Gaudi::ParticleProperty * > &	daughters )

the constructor from mother and daughters

Parameters

mother	the mother
daughters	the daughters

Definition at line 74 of file Decay.cpp.

    : m_mother( mother ) {
  setDaughters( daughters );
}

◆ Decay() [3/5]

Gaudi::Decays::Decay::Decay	(	const std::string &	mother,
		const std::vector< std::string > &	daughters )

the constructor from mother and daughters

Parameters

mother	the mother
daughters	the daughters

Definition at line 80 of file Decay.cpp.

                                                                                   : m_mother( mother ) {
  setDaughters( daughters );
}

◆ Decay() [4/5]

Gaudi::Decays::Decay::Decay	(	const Gaudi::ParticleID &	mother,
		const std::vector< Gaudi::ParticleID > &	daughters )

the constructor from mother and daughters

Parameters

mother	the mother
daughters	the daughters

Definition at line 84 of file Decay.cpp.

    : m_mother( mother ) {
  setDaughters( daughters );
}

◆ Decay() [5/5]

Gaudi::Decays::Decay::Decay	(	const Item &	mother,
		const std::vector< Item > &	daughters )

the constructor from mother and daughters

Parameters

mother	the mother
daughters	the daughters

Definition at line 89 of file Decay.cpp.

90 : m_mother( mother ), m_daughters( daughters ) {}

Gaudi::Decays::Decay::m_daughters

Items m_daughters

the daughter particles

Definition Decay.h:171

Member Function Documentation

◆ children()

const Items & Gaudi::Decays::Decay::children ( ) const

inline

get all daughters

Definition at line 108 of file Decay.h.

108{ return daughters(); }

◆ daughters()

const Items & Gaudi::Decays::Decay::daughters ( ) const

inline

get all daughters

Definition at line 106 of file Decay.h.

106{ return m_daughters; }

◆ fillStream()

std::ostream & Gaudi::Decays::Decay::fillStream ( std::ostream & s ) const

the default printout

Definition at line 105 of file Decay.cpp.

                                                         {
  m_mother.fillStream( s );
  if ( m_daughters.empty() ) { return s; }
  s << "->";
  // loop over daughters
  for ( const auto& dau : m_daughters ) { dau.fillStream( s ); }
  return s;
}

◆ mother()

const Item & Gaudi::Decays::Decay::mother ( ) const

inline

get the mother(head) of the decay

Definition at line 104 of file Decay.h.

104{ return m_mother; }

◆ nChildren()

size_t Gaudi::Decays::Decay::nChildren ( ) const

inline

get the number of daughters

Definition at line 112 of file Decay.h.

112{ return m_daughters.size(); }

◆ nDaughters()

size_t Gaudi::Decays::Decay::nDaughters ( ) const

inline

get the number of daughters

Definition at line 110 of file Decay.h.

110{ return m_daughters.size(); }

◆ operator()()

const Decays::Decay::Item & Gaudi::Decays::Decay::operator() ( const unsigned int index ) const

get the component by the number

Attention: index 0 corresponds to the mother particle

Parameters

index the index (0 corresponds to the mother particle)

Returns: the component

Definition at line 166 of file Decay.cpp.

                                                                               {
  if ( 0 == index ) { return m_mother; }
  return m_daughters[index - 1];
}

◆ operator+=() [1/4]

Decays::Decay & Gaudi::Decays::Decay::operator+= ( const Gaudi::ParticleID & child )

add the child

Definition at line 152 of file Decay.cpp.

152{ return ( *this ) += Item( child ); }

Gaudi::Decays::Decay::Item

the helper representation of the item in the decay chain

Definition Decay.h:39

◆ operator+=() [2/4]

Decays::Decay & Gaudi::Decays::Decay::operator+= ( const Gaudi::ParticleProperty * child )

add the child

Definition at line 154 of file Decay.cpp.

154{ return ( *this ) += Item( child ); }

◆ operator+=() [3/4]

Decays::Decay & Gaudi::Decays::Decay::operator+= ( const Item & child )

add the child

Definition at line 156 of file Decay.cpp.

                                                                   {
  m_daughters.push_back( child );
  return *this;
}

◆ operator+=() [4/4]

Decays::Decay & Gaudi::Decays::Decay::operator+= ( const std::string & child )

add the child

Definition at line 150 of file Decay.cpp.

150{ return ( *this ) += Item( child ); }

◆ operator[]()

const Item & Gaudi::Decays::Decay::operator[] ( const unsigned int index ) const

inline

get the component by the number

Attention: index 0 corresponds to th emother particle

Parameters

index the index (0 corresponds to the mother particle)

Returns: the component

Definition at line 124 of file Decay.h.

124{ return ( *this )( index ); }

◆ setChidlren()

void Gaudi::Decays::Decay::setChidlren ( const std::vector< Gaudi::ParticleID > & daugs )

inline

set the daughters

Definition at line 149 of file Decay.h.

149{ setDaughters( daugs ); }

◆ setChildren() [1/3]

void Gaudi::Decays::Decay::setChildren ( const Items & daugs )

inline

set the daughters

Definition at line 143 of file Decay.h.

143{ setDaughters( daugs ); }

◆ setChildren() [2/3]

void Gaudi::Decays::Decay::setChildren ( const std::vector< const Gaudi::ParticleProperty * > & daugs )

inline

set the daughters

Definition at line 145 of file Decay.h.

145{ setDaughters( daugs ); }

◆ setChildren() [3/3]

void Gaudi::Decays::Decay::setChildren ( const std::vector< std::string > & daugs )

inline

set the daughters

Definition at line 147 of file Decay.h.

147{ setDaughters( daugs ); }

◆ setDaughters() [1/4]

void Gaudi::Decays::Decay::setDaughters ( const Items & daugs )

set the daughters

Definition at line 148 of file Decay.cpp.

148{ m_daughters = daugs; }

◆ setDaughters() [2/4]

void Gaudi::Decays::Decay::setDaughters ( const std::vector< const Gaudi::ParticleProperty * > & daugs )

set the daughters

Definition at line 133 of file Decay.cpp.

                                                                                     {
  m_daughters.clear();
  for ( const auto& pp : daugs ) *this += pp;
}

◆ setDaughters() [3/4]

void Gaudi::Decays::Decay::setDaughters ( const std::vector< Gaudi::ParticleID > & daugs )

set the daughters

Definition at line 143 of file Decay.cpp.

                                                                        {
  m_daughters.clear();
  for ( const auto& pp : daugs ) *this += pp;
}

◆ setDaughters() [4/4]

void Gaudi::Decays::Decay::setDaughters ( const std::vector< std::string > & daugs )

set the daughters

Definition at line 138 of file Decay.cpp.

                                                                  {
  m_daughters.clear();
  for ( const auto& pp : daugs ) *this += pp;
}

◆ setMother() [1/4]

void Gaudi::Decays::Decay::setMother ( const Gaudi::ParticleID & mom )

set the mother

Definition at line 175 of file Decay.cpp.

175{ setMother( Item( mom ) ); }

Gaudi::Decays::Decay::setMother

void setMother(const Item &mom)

set the mother

Definition Decay.cpp:171

◆ setMother() [2/4]

void Gaudi::Decays::Decay::setMother ( const Gaudi::ParticleProperty * mom )

set the mother

Definition at line 173 of file Decay.cpp.

173{ setMother( Item( mom ) ); }

◆ setMother() [3/4]

void Gaudi::Decays::Decay::setMother ( const Item & mom )

set the mother

Definition at line 171 of file Decay.cpp.

171{ m_mother = mom; }

◆ setMother() [4/4]

void Gaudi::Decays::Decay::setMother ( const std::string & mom )

set the mother

Definition at line 177 of file Decay.cpp.

177{ setMother( Item( mom ) ); }

◆ toString()

std::string Gaudi::Decays::Decay::toString ( ) const

the conversion to the string

Definition at line 127 of file Decay.cpp.

                                      {
  std::ostringstream s;
  fillStream( s );
  return s.str();
}

◆ validate()

StatusCode Gaudi::Decays::Decay::validate ( const Gaudi::Interfaces::IParticlePropertySvc * svc ) const

validate the decay using the service

Definition at line 92 of file Decay.cpp.

                                                                                       {
  // validate the mother
  StatusCode sc = m_mother.validate( svc );
  if ( sc.isFailure() ) { return sc; }
  if ( m_daughters.empty() ) { return StatusCode::FAILURE; }
  // loop over daughters
  for ( auto idau = m_daughters.begin(); m_daughters.end() != idau; ++idau ) {
    sc = idau->validate( svc );
    if ( sc.isFailure() ) { return sc; }
  }
  return sc;
}

Member Data Documentation

◆ m_daughters

Items Gaudi::Decays::Decay::m_daughters

mutable

the daughter particles

Definition at line 171 of file Decay.h.

◆ m_mother

Item Gaudi::Decays::Decay::m_mother

mutable

the head of the decay

Definition at line 169 of file Decay.h.

The documentation for this class was generated from the following files:

GaudiPartProp/include/Gaudi/Decays/Decay.h
GaudiPartProp/src/Decay.cpp

Classes

Public Types

Public Member Functions

Public Attributes

Detailed Description

Member Typedef Documentation

◆ Items

Constructor & Destructor Documentation

◆ Decay() [1/5]

◆ Decay() [2/5]

◆ Decay() [3/5]

◆ Decay() [4/5]

◆ Decay() [5/5]

Member Function Documentation

◆ children()

◆ daughters()

◆ fillStream()

◆ mother()

◆ nChildren()

◆ nDaughters()

◆ operator()()

◆ operator+=() [1/4]

◆ operator+=() [2/4]

◆ operator+=() [3/4]

◆ operator+=() [4/4]

◆ operator[]()

◆ setChidlren()

◆ setChildren() [1/3]

◆ setChildren() [2/3]

◆ setChildren() [3/3]

◆ setDaughters() [1/4]

◆ setDaughters() [2/4]

◆ setDaughters() [3/4]

◆ setDaughters() [4/4]

◆ setMother() [1/4]

◆ setMother() [2/4]

◆ setMother() [3/4]

◆ setMother() [4/4]

◆ toString()

◆ validate()

Member Data Documentation

◆ m_daughters

◆ m_mother
