Gaudi::TestSuite::Counter Class Reference

#include </builds/gaudi/Gaudi/GaudiTestSuite/include/GaudiTestSuite/Counter.h>

Inheritance diagram for Gaudi::TestSuite::Counter:

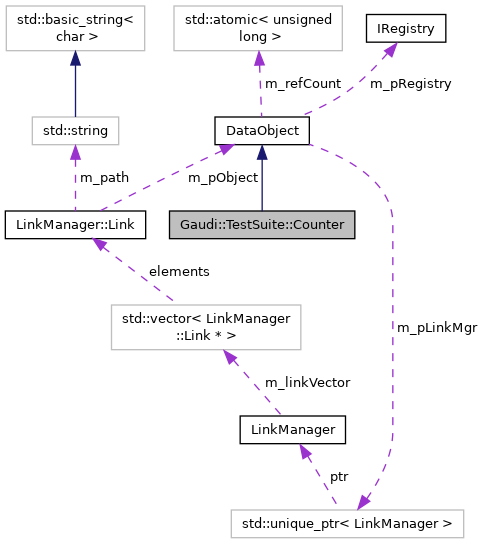

Collaboration diagram for Gaudi::TestSuite::Counter:

Classes
class	GaudiHistoAlgorithm
	Example of algorithm using histograms accumulators. More...
class	GaudiRootHistoAlgorithm
	Example of algorithm using root histograms accumulators. More...
class	HistoTimingAlg
	Simple timing of counter based histograms filling. More...

Public Types
using	HistoTimingAlgDA = HistoTimingAlg< double, Gaudi::Accumulators::atomicity::full >
using	HistoTimingAlgIA = HistoTimingAlg< unsigned int, Gaudi::Accumulators::atomicity::full >
using	HistoTimingAlgD = HistoTimingAlg< double, Gaudi::Accumulators::atomicity::none >
using	HistoTimingAlgI = HistoTimingAlg< unsigned int, Gaudi::Accumulators::atomicity::none >

Public Member Functions
	Counter ()
	Constructors. More...
const CLID &	clID () const override
	Retrieve reference to class definition structure. More...
int	value () const
	Retrieve counter value. More...
int	increment ()
	Increment counter. More...
int	decrement ()
	Decrement counter. More...
void	set (int val)
	Set value. More...
Public Member Functions inherited from DataObject
	DataObject ()
	Standard Constructor. More...
	DataObject (const DataObject &rhs)
	Copy Constructor. More...
DataObject &	operator= (const DataObject &rhs)
	Assignment Operator. More...
	DataObject (DataObject &&rhs)
	Move Constructor. More...
DataObject &	operator= (DataObject &&rhs)
	Move Assignment Operator. More...
virtual	~DataObject ()
	Standard Destructor. More...
virtual unsigned long	addRef ()
	Add reference to object. More...
virtual unsigned long	release ()
	release reference to object More...
const std::string &	name () const
	Retreive DataObject name. It is the name when registered in the store. More...
virtual StatusCode	update ()
	Provide empty placeholder for internal object reconfiguration callback. More...
void	setRegistry (IRegistry *pRegistry)
	Set pointer to Registry. More...
IRegistry *	registry () const
	Get pointer to Registry. More...
LinkManager *	linkMgr ()
	Retrieve Link manager. More...
const LinkManager *	linkMgr () const
unsigned char	version () const
	Retrieve version number of this object representation. More...
void	setVersion (unsigned char vsn)
	Set version number of this object representation. More...
unsigned long	refCount () const
	Return the refcount. More...
virtual std::ostream &	fillStream (std::ostream &s) const
	Fill the output stream (ASCII) More...

Static Public Member Functions
static const CLID &	classID ()
Static Public Member Functions inherited from DataObject
static const CLID &	classID ()
	Retrieve reference to class definition structure (static access) More...

Private Attributes
int	m_counter
	Counter number. More...

Detailed Description

Simple counter object

Author

Markus Frank

Definition at line 30 of file Counter.h.

Member Typedef Documentation

HistoTimingAlgD

using Gaudi::TestSuite::Counter::HistoTimingAlgD = HistoTimingAlg<double, Gaudi::Accumulators::atomicity::none>

Definition at line 71 of file CounterHistos.cpp.

HistoTimingAlgDA

using Gaudi::TestSuite::Counter::HistoTimingAlgDA = HistoTimingAlg<double, Gaudi::Accumulators::atomicity::full>

Definition at line 67 of file CounterHistos.cpp.

HistoTimingAlgI

using Gaudi::TestSuite::Counter::HistoTimingAlgI = HistoTimingAlg<unsigned int, Gaudi::Accumulators::atomicity::none>

Definition at line 73 of file CounterHistos.cpp.

HistoTimingAlgIA

using Gaudi::TestSuite::Counter::HistoTimingAlgIA = HistoTimingAlg<unsigned int, Gaudi::Accumulators::atomicity::full>

Definition at line 69 of file CounterHistos.cpp.

Constructor & Destructor Documentation

Counter()

Gaudi::TestSuite::Counter::Counter

(

)

Constructors.

Definition at line 15 of file Counter.cpp.

: DataObject(), m_counter( 0 ) {}

Member Function Documentation

classID()

static const CLID& Gaudi::TestSuite::Counter::classID ( )

inlinestatic

Definition at line 38 of file Counter.h.

{ return CLID_Counter; }

clID()

const CLID& Gaudi::TestSuite::Counter::clID ( ) const

inlineoverridevirtual

Retrieve reference to class definition structure.

Reimplemented from DataObject.

Definition at line 37 of file Counter.h.

{ return classID(); }

decrement()

int Gaudi::TestSuite::Counter::decrement ( )

inline

Decrement counter.

Definition at line 45 of file Counter.h.

{ return --m_counter; }

increment()

int Gaudi::TestSuite::Counter::increment ( )

inline

Increment counter.

Definition at line 43 of file Counter.h.

{ return ++m_counter; }

set()

void Gaudi::TestSuite::Counter::set ( int  val )

inline

Set value.

Definition at line 47 of file Counter.h.

{ m_counter = val; }

value()

int Gaudi::TestSuite::Counter::value ( ) const

inline

Retrieve counter value.

Definition at line 41 of file Counter.h.

{ return m_counter; }

Member Data Documentation

m_counter

int Gaudi::TestSuite::Counter::m_counter

private

Counter number.

Definition at line 51 of file Counter.h.

---

The documentation for this class was generated from the following files:

• GaudiTestSuite/include/GaudiTestSuite/Counter.h
• GaudiTestSuite/src/Histograms/CounterHistos.cpp
• GaudiTestSuite/src/Lib/Counter.cpp
