DataStreamTool Class Reference

#include <GaudiKernel/DataStreamTool.h>

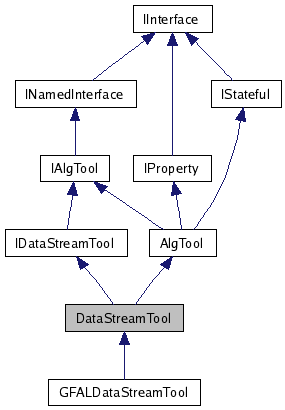

Inheritance diagram for DataStreamTool:

Inheritance graph
[legend]

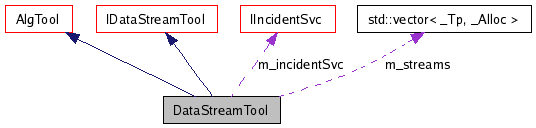

Collaboration diagram for DataStreamTool:

Collaboration graph
[legend]
List of all members.

Detailed Description

Author:
Andres Felipe Osorio Oliveros

Author:
Marco Clemencic
Date:
2006-09-21

Definition at line 29 of file DataStreamTool.h.

Public Types

typedef std::vector< EventSelectorDataStream * > Streams
typedef std::vector< StringProperty > Properties

Public Member Functions

 DataStreamTool (const std::string &type, const std::string &name, const IInterface *parent)
 Standard constructor.
virtual ~DataStreamTool ()
 Destructor.
virtual StatusCode initialize ()
 Initialization (from CONFIGURED to INITIALIZED).
virtual StatusCode addStream (const std::string &)
virtual StatusCode addStreams (const StreamSpecs &)
virtual StatusCode eraseStream (const std::string &)
virtual StatusCode finalize ()
 Finalize (from INITIALIZED to CONFIGURED).
virtual StatusCode initializeStream (EventSelectorDataStream *)
 Initialize newly opened stream.
virtual StatusCode finalizeStream (EventSelectorDataStream *)
 Finalize no longer needed stream.
virtual StatusCode getNextStream (const EventSelectorDataStream *&, size_type &)
virtual StatusCode getPreviousStream (const EventSelectorDataStream *&, size_type &)
virtual Streams & getStreams ()
virtual EventSelectorDataStream * lastStream ()
virtual Streams::iterator beginOfStreams ()
virtual Streams::iterator endOfStreams ()
virtual EventSelectorDataStream * getStream (const std::string &)
 Retrieve stream by name.
virtual EventSelectorDataStream * getStream (size_type)
virtual size_type size ()
virtual StatusCode clear ()

Protected Member Functions

virtual StatusCode createSelector (const std::string &, const std::string &, IEvtSelector *&)
virtual StatusCode createStream (const std::string &, const std::string &, EventSelectorDataStream *&)
StatusCode connectStream (EventSelectorDataStream *)
 Connect single stream by reference.
StatusCode connectStream (const std::string &)
 Connect single stream by name.
Streams::iterator getStreamIterator (const std::string &)

Protected Attributes

size_type m_streamID
size_type m_streamCount
Streams m_streams
StreamSpecs m_streamSpecs
IIncidentSvc * m_incidentSvc
 Reference to the indicent service.
bool m_reconfigure

Member Typedef Documentation

typedef std::vector<EventSelectorDataStream*> DataStreamTool::Streams

Definition at line 32 of file DataStreamTool.h.

typedef std::vector<StringProperty> DataStreamTool::Properties

Definition at line 33 of file DataStreamTool.h.

Constructor & Destructor Documentation

DataStreamTool::DataStreamTool ( const std::string &  type,
const std::string &  name,
const IInterface *  parent
)

Standard constructor.

Definition at line 34 of file DataStreamTool.cpp.

References m_incidentSvc, m_streamCount, and m_streamID.

00037   : AlgTool ( type, name , parent )
00038 {
00039   declareInterface<IDataStreamTool>(this);
00040
00041   m_incidentSvc       = 0;
00042   m_streamCount       = 0;
00043   m_streamID          = 0;
00044
00045 }

DataStreamTool::~DataStreamTool (  )  [virtual]

Destructor.

Definition at line 49 of file DataStreamTool.cpp.

00049                                 {
00050 }

Member Function Documentation

StatusCode DataStreamTool::initialize (  )  [virtual]

Initialization (from CONFIGURED to INITIALIZED).

Reimplemented from AlgTool.

Reimplemented in GFALDataStreamTool.

Definition at line 53 of file DataStreamTool.cpp.

References endreq(), MSG::FATAL, AlgTool::initialize(), StatusCode::isSuccess(), apmon_utils::logger(), m_incidentSvc, AlgTool::msgSvc(), AlgTool::name(), ISvcLocator::service(), AlgTool::serviceLocator(), and StatusCode::SUCCESS.

Referenced by GFALDataStreamTool::initialize().

00053                                       {
00054
00055   MsgStream logger(msgSvc(), name());
00056
00057   StatusCode status = AlgTool::initialize();
00058   if( !status.isSuccess() )  {
00059     logger << MSG::FATAL << "Error. Cannot initialize base class." << endreq;
00060     return status;
00061   }
00062
00063   // Get the references to the services that are needed by the ApplicationMgr itself
00064   status = serviceLocator()->service("IncidentSvc", m_incidentSvc, true);
00065   if( !status.isSuccess() )  {
00066     logger << MSG::FATAL << "Error retrieving IncidentSvc." << endreq;
00067     return status;
00068   }
00069
00070   return StatusCode::SUCCESS;
00071
00072 }

StatusCode DataStreamTool::addStream ( const std::string &   )  [virtual]

Implements IDataStreamTool.

Definition at line 74 of file DataStreamTool.cpp.

References _itoa(), createStream(), endmsg(), endreq(), MSG::ERROR, StatusCode::FAILURE, getStream(), StatusCode::isSuccess(), m_streamCount, m_streams, m_streamSpecs, AlgTool::msgSvc(), AlgTool::name(), std::vector< _Tp, _Alloc >::push_back(), Gaudi::Units::s, StatusCode::SUCCESS, and MSG::WARNING.

Referenced by addStreams().

00074                                                             {
00075
00076   if ( NULL != getStream(input) )   {
00077     MsgStream log(msgSvc(), name());
00078     log << MSG::WARNING << "Input stream " << input << "already in use" << endmsg;
00079   }
00080
00081   m_streamSpecs.push_back(input);
00082
00083   char txt[32];
00084
00085   std::string strname = name() + "_" + ::_itoa(++m_streamCount, txt, 10);
00086
00087   EventSelectorDataStream* s = 0;
00088
00089   StatusCode status = createStream(strname, input , s );
00090
00091   if( status.isSuccess() && 0 != s ) {
00092     s->addRef();
00093     m_streams.push_back(s);
00094     status = StatusCode::SUCCESS;
00095   }
00096   else {
00097     MsgStream log(msgSvc(), name());
00098     if (s) {
00099       s->release();
00100       log << MSG::ERROR << "Error connecting/creating Stream: " << s << endreq;
00101     }
00102     log << MSG::ERROR << "Error connecting/creating Stream: " << input << endreq;
00103     status = StatusCode::FAILURE;
00104   }
00105
00106   return status;
00107
00108 }

StatusCode DataStreamTool::addStreams ( const StreamSpecs &   )  [virtual]

Reimplemented in GFALDataStreamTool.

Definition at line 110 of file DataStreamTool.cpp.

References addStream(), StatusCode::isSuccess(), and StatusCode::SUCCESS.

Referenced by GFALDataStreamTool::addStreams().

00110                                                                 {
00111
00112   StatusCode status = StatusCode::SUCCESS;
00113
00114   for ( StreamSpecs::const_iterator itr = inputs.begin(); itr != inputs.end() && status.isSuccess(); ++itr )    {
00115
00116     status = addStream(*itr);
00117
00118   }
00119
00120   return status;
00121
00122 }

StatusCode DataStreamTool::eraseStream ( const std::string &   )  [virtual]

Implements IDataStreamTool.

Definition at line 204 of file DataStreamTool.cpp.

References std::vector< _Tp, _Alloc >::end(), std::vector< _Tp, _Alloc >::erase(), StatusCode::FAILURE, getStreamIterator(), m_streams, and StatusCode::SUCCESS.

Referenced by clear(), and GFALDataStreamTool::finalize().

00204                                                                  {
00205
00206   Streams::iterator i = getStreamIterator(info);
00207
00208   if ( m_streams.end() != i )   {
00209     (*i)->release();
00210     m_streams.erase(i);
00211     return StatusCode::SUCCESS;
00212   }
00213
00214   return StatusCode::FAILURE;
00215 }

StatusCode DataStreamTool::finalize (  )  [virtual]

Finalize (from INITIALIZED to CONFIGURED).

Reimplemented from AlgTool.

Reimplemented in GFALDataStreamTool.

Definition at line 124 of file DataStreamTool.cpp.

References clear(), AlgTool::finalize(), StatusCode::ignore(), m_incidentSvc, IInterface::release(), and StatusCode::SUCCESS.

Referenced by GFALDataStreamTool::finalize().

00124                                     {
00125
00126   StatusCode status = StatusCode::SUCCESS;
00127
00128   clear().ignore();
00129
00130   if( m_incidentSvc ) {
00131     m_incidentSvc->release();
00132     m_incidentSvc = 0 ;
00133   }
00134
00135   status = AlgTool::finalize();
00136
00137   return status;
00138
00139 }

StatusCode DataStreamTool::initializeStream ( EventSelectorDataStream *   )  [virtual]

Initialize newly opened stream.

Implements IDataStreamTool.

Definition at line 141 of file DataStreamTool.cpp.

References createSelector(), StatusCode::FAILURE, IID_IProperty, IID_IService, StatusCode::isSuccess(), SmartIFBase< TYPE >::isValid(), AlgTool::outputLevel(), IInterface::release(), and Gaudi::Units::s.

00141                                                                         {
00142   IEvtSelector* sel = 0;
00143   StatusCode status = s->initialize();
00144   if ( status.isSuccess() )   {
00145     status = createSelector(s->name(), s->selectorType(), sel);
00146     if ( status.isSuccess() )   {
00147       SmartIF<IProperty> prop(IID_IProperty, sel); //Att:IID_IProperty, IID_IService used to point to EventSelector
00148       SmartIF<IService>  isvc(IID_IService, sel);
00149       s->setSelector(sel);
00150       sel->release();  // No need of this interface anymore, it is passed to the stream
00151       if ( prop.isValid( ) && isvc.isValid( ) )   {
00152         const Properties& p = s->properties();
00153         for(Properties::const_iterator i=p.begin(); i!=p.end(); i++)   {
00154           prop->setProperty((*i)).ignore();
00155         }
00156         int output_level = this->outputLevel();
00157         prop->setProperty(IntegerProperty("OutputLevel",output_level)).ignore();
00158         // FIXME: (MCl) Why do we have to initialize the selector here?
00159         return isvc->sysInitialize();
00160       }
00161     }
00162   }
00163   return StatusCode::FAILURE;
00164 }

StatusCode DataStreamTool::finalizeStream ( EventSelectorDataStream *   )  [virtual]

Finalize no longer needed stream.

Implements IDataStreamTool.

Definition at line 182 of file DataStreamTool.cpp.

References IncidentType::EndStream, StatusCode::FAILURE, IIncidentSvc::fireIncident(), IID_IService, SmartIFBase< TYPE >::isValid(), m_incidentSvc, AlgTool::name(), Gaudi::Units::s, and StatusCode::SUCCESS.

Referenced by clear(), and GFALDataStreamTool::finalize().

00182                                                                       {
00183   if ( s )    {
00184     IEvtSelector* sel = const_cast<IEvtSelector*>(s->selector());
00185     if ( sel )    {
00186       SmartIF<IService>  isvc(IID_IService, sel);
00187       if ( isvc.isValid() )   {
00188         isvc->finalize().ignore();
00189         s->finalize().ignore();
00190         // Fire EndStream "Incident"
00191         m_incidentSvc->fireIncident(Incident(name(),IncidentType::EndStream));
00192         return StatusCode::SUCCESS;
00193       }
00194       // Failed to get service interface of sub-event selector
00195       return StatusCode::FAILURE;
00196     }
00197     // No selector (yet) attached - no need to finalize it!
00198     return StatusCode::SUCCESS;
00199   }
00200   return StatusCode::FAILURE;
00201 }

StatusCode DataStreamTool::getNextStream ( const EventSelectorDataStream *&  ,
size_type &
) [virtual]

Reimplemented in GFALDataStreamTool.

Definition at line 330 of file DataStreamTool.cpp.

References StatusCode::FAILURE, getStream(), m_streamID, and StatusCode::SUCCESS.

00331 {
00332
00333   EventSelectorDataStream * nextStream = getStream(dsid);
00334   if ( NULL == nextStream ) return StatusCode::FAILURE; //<-end of streams reached
00335
00336   esds = nextStream;
00337   ++m_streamID;
00338
00339   return StatusCode::SUCCESS;
00340
00341 }

StatusCode DataStreamTool::getPreviousStream ( const EventSelectorDataStream *&  ,
size_type &
) [virtual]

Definition at line 343 of file DataStreamTool.cpp.

References StatusCode::FAILURE, getStream(), m_streamID, and StatusCode::SUCCESS.

00344 {
00345
00346   EventSelectorDataStream * previousStream = getStream(dsid);
00347   if (  NULL == previousStream ) return StatusCode::FAILURE; //<-begin of streams reached
00348
00349   esds = previousStream;
00350   --m_streamID;
00351
00352   return StatusCode::SUCCESS;
00353
00354 }

virtual Streams& DataStreamTool::getStreams (  )  [inline, virtual]

Definition at line 62 of file DataStreamTool.h.

References m_streams.

00062 { return m_streams; };

EventSelectorDataStream * DataStreamTool::lastStream (  )  [virtual]

Implements IDataStreamTool.

Definition at line 247 of file DataStreamTool.cpp.

References std::vector< _Tp, _Alloc >::begin(), std::vector< _Tp, _Alloc >::end(), m_streams, and std::vector< _Tp, _Alloc >::size().

00248 {
00249   if (m_streams.size() > 1 )
00250     return *(--m_streams.end());
00251   else return *m_streams.begin();
00252
00253 }

virtual Streams::iterator DataStreamTool::beginOfStreams (  )  [inline, virtual]

Definition at line 66 of file DataStreamTool.h.

References std::vector< _Tp, _Alloc >::begin(), and m_streams.

00066 {return m_streams.begin(); };

virtual Streams::iterator DataStreamTool::endOfStreams (  )  [inline, virtual]

Definition at line 68 of file DataStreamTool.h.

References std::vector< _Tp, _Alloc >::end(), and m_streams.

00068 {return m_streams.end(); };

EventSelectorDataStream * DataStreamTool::getStream ( const std::string &   )  [virtual]

Retrieve stream by name.

Implements IDataStreamTool.

Definition at line 225 of file DataStreamTool.cpp.

References std::vector< _Tp, _Alloc >::end(), getStreamIterator(), and m_streams.

Referenced by addStream(), clear(), connectStream(), GFALDataStreamTool::finalize(), getNextStream(), GFALDataStreamTool::getNextStream(), and getPreviousStream().

00225                                                                            {
00226   Streams::iterator i = getStreamIterator(info);
00227   if ( m_streams.end() == i ) return NULL;
00228   return *i;
00229 }

EventSelectorDataStream * DataStreamTool::getStream ( size_type   )  [virtual]

Definition at line 240 of file DataStreamTool.cpp.

References m_streams, and std::vector< _Tp, _Alloc >::size().

00240                                                                    {
00241   if ( (pos >= 0) && ((size_t)pos < m_streams.size()) ) // pos has to point inside the vector
00242     return m_streams[pos];
00243   else
00244     return 0;
00245 }

virtual size_type DataStreamTool::size (  )  [inline, virtual]

Implements IDataStreamTool.

Definition at line 75 of file DataStreamTool.h.

References m_streams, and std::vector< _Tp, _Alloc >::size().

00075 { return m_streams.size(); };

StatusCode DataStreamTool::clear (  )  [virtual]

Implements IDataStreamTool.

Definition at line 257 of file DataStreamTool.cpp.

References endreq(), eraseStream(), MSG::ERROR, finalizeStream(), getStream(), StatusCode::ignore(), StatusCode::isSuccess(), m_streamSpecs, AlgTool::msgSvc(), AlgTool::name(), Gaudi::Units::s, and StatusCode::SUCCESS.

Referenced by finalize().

00258 {
00259
00260   StatusCode iret, status = StatusCode::SUCCESS;
00261   iret.ignore();
00262
00263   MsgStream log(msgSvc(), name());
00264
00265   // disconnect the streams
00266   for ( StreamSpecs::const_iterator il = m_streamSpecs.begin(); il != m_streamSpecs.end(); il++ ) {
00267     EventSelectorDataStream* s = getStream(*il);
00268     if ( NULL != s )   {
00269       if ( s->isInitialized() )    {
00270         iret = finalizeStream(s);
00271         if ( !iret.isSuccess() )  {
00272           log << MSG::ERROR << "Error finalizing Stream" << *il << endreq;
00273           status = iret;
00274         }
00275       }
00276       iret = eraseStream( *il );
00277       if ( !iret.isSuccess() )    {
00278         log << MSG::ERROR << "Error diconnecting Stream" << *il << endreq;
00279         status = iret;
00280       }
00281     }
00282   }
00283
00284   m_streamSpecs.clear();
00285
00286   return status;
00287 }

StatusCode DataStreamTool::createSelector ( const std::string &  ,
const std::string &  ,
IEvtSelector *&
) [protected, virtual]

Implements IDataStreamTool.

Definition at line 167 of file DataStreamTool.cpp.

References StatusCode::FAILURE, IID_IEvtSelector, StatusCode::isSuccess(), AlgTool::msgSvc(), AlgTool::name(), IInterface::queryInterface(), IInterface::release(), and AlgTool::serviceLocator().

Referenced by initializeStream().

00167                                                                                                         {
00168   MsgStream log(msgSvc(), name());
00169   IService* isvc = ROOT::Reflex::PluginService::Create<IService*>(typ, nam, serviceLocator());
00170   if ( isvc ) {
00171     StatusCode status = isvc->queryInterface(IID_IEvtSelector, (void**)&sel);
00172     if ( status.isSuccess() ) {
00173       return status;
00174     }
00175     sel = 0;
00176     isvc->release();
00177   }
00178   return StatusCode::FAILURE;
00179 }

StatusCode DataStreamTool::createStream ( const std::string &  ,
const std::string &  ,
EventSelectorDataStream *&
) [protected, virtual]

Implements IDataStreamTool.

Definition at line 217 of file DataStreamTool.cpp.

References AlgTool::serviceLocator(), and StatusCode::SUCCESS.

Referenced by addStream(), connectStream(), and GFALDataStreamTool::updateStreams().

00218                                                                            {
00219   stream = new EventSelectorDataStream(nam, info, serviceLocator());
00220
00221   return StatusCode::SUCCESS;
00222 }

StatusCode DataStreamTool::connectStream ( EventSelectorDataStream *   )  [protected]

Connect single stream by reference.

Definition at line 290 of file DataStreamTool.cpp.

References StatusCode::FAILURE, m_streams, std::vector< _Tp, _Alloc >::push_back(), Gaudi::Units::s, and StatusCode::SUCCESS.

Referenced by connectStream().

00291 {
00292
00293   if ( 0 != s )   {
00294     s->addRef();
00295     m_streams.push_back(s);
00296     return StatusCode::SUCCESS;
00297   }
00298
00299   return StatusCode::FAILURE;
00300
00301 }

StatusCode DataStreamTool::connectStream ( const std::string &   )  [protected]

Connect single stream by name.

Definition at line 303 of file DataStreamTool.cpp.

References _itoa(), connectStream(), createStream(), endmsg(), getStream(), StatusCode::isSuccess(), m_streamCount, AlgTool::msgSvc(), AlgTool::name(), Gaudi::Units::s, and MSG::WARNING.

00304 {
00305
00306   if ( NULL != getStream(info) )   {
00307     MsgStream log(msgSvc(), name());
00308     log << MSG::WARNING << "Input stream " << info << "already in use" << endmsg;
00309   }
00310   char txt[32];
00311   std::string nam = name() + "_" + ::_itoa(++m_streamCount, txt, 10);
00312   EventSelectorDataStream* s = 0;
00313   StatusCode status = createStream(nam, info, s);
00314   if ( status.isSuccess() )   {
00315     return connectStream(s);
00316   }
00317   s->release();
00318   return status;
00319
00320
00321 }

DataStreamTool::Streams::iterator DataStreamTool::getStreamIterator ( const std::string &   )  [protected]

Definition at line 231 of file DataStreamTool.cpp.

References std::vector< _Tp, _Alloc >::begin(), std::vector< _Tp, _Alloc >::end(), and m_streams.

Referenced by eraseStream(), getStream(), and GFALDataStreamTool::updateStreams().

00231                                                                                         {
00232   for ( Streams::iterator i = m_streams.begin(); i != m_streams.end(); i++ )    {
00233     if ( (*i)->definition() == info )    {
00234       return i;
00235     }
00236   }
00237   return m_streams.end();
00238 }

Member Data Documentation

size_type DataStreamTool::m_streamID [protected]

Definition at line 92 of file DataStreamTool.h.

Referenced by DataStreamTool(), GFALDataStreamTool::finalize(), getNextStream(), GFALDataStreamTool::getNextStream(), and getPreviousStream().

size_type DataStreamTool::m_streamCount [protected]

Definition at line 94 of file DataStreamTool.h.

Referenced by addStream(), GFALDataStreamTool::addStreams(), connectStream(), DataStreamTool(), GFALDataStreamTool::initialize(), and GFALDataStreamTool::updateStreams().

Streams DataStreamTool::m_streams [protected]

Definition at line 96 of file DataStreamTool.h.

Referenced by addStream(), beginOfStreams(), connectStream(), endOfStreams(), eraseStream(), getStream(), getStreamIterator(), getStreams(), lastStream(), size(), and GFALDataStreamTool::updateStreams().

StreamSpecs DataStreamTool::m_streamSpecs [protected]

Definition at line 98 of file DataStreamTool.h.

Referenced by addStream(), GFALDataStreamTool::addStreams(), clear(), GFALDataStreamTool::finalize(), and GFALDataStreamTool::setBlocks().

IIncidentSvc* DataStreamTool::m_incidentSvc [protected]

Reference to the indicent service.

Definition at line 101 of file DataStreamTool.h.

Referenced by DataStreamTool(), finalize(), finalizeStream(), and initialize().

bool DataStreamTool::m_reconfigure [protected]

Definition at line 103 of file DataStreamTool.h.

The documentation for this class was generated from the following files:
Generated at Fri Jul 18 12:07:03 2008 for Gaudi Framework, version v20r2 by Doxygen version 1.5.1 written by Dimitri van Heesch, © 1997-2004
