INTuple Class Reference

#include <GaudiKernel/INTuple.h>

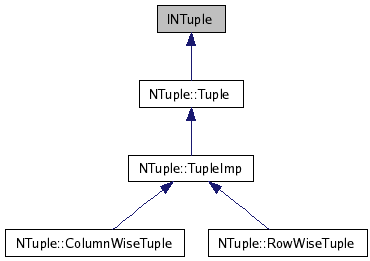

Inheritance diagram for INTuple:

[legend]List of all members.

---

Detailed Description

NTuple interface class definition.

Definition of the interface to an Ntuple class beeing a sequence(=Item) of data entries.

Author:

M.Frank

Definition at line 80 of file INTuple.h.

Public Types
typedef std::vector< INTupleItem * >	ItemContainer
Public Member Functions
virtual ItemContainer &	items ()=0
	Access item container.
virtual const ItemContainer &	items () const=0
	Access item container (CONST).
virtual void	setBuffer (char *buff)=0
	Attach data buffer.
virtual const char *	buffer () const=0
	Access data buffer (CONST).
virtual char *	buffer ()=0
	Access data buffer.
virtual const std::string &	title () const=0
	Object title.
virtual void	reset ()=0
	Reset all entries to their default values.
virtual const INTupleItem *	find (const std::string &name) const =0
	Find an item row of the Ntuple (CONST).
virtual INTupleItem *	find (const std::string &name)=0
	Find an item row of the Ntuple.
virtual StatusCode	add (INTupleItem *item)=0
	Add an item row to the N tuple.
virtual StatusCode	remove (INTupleItem *item)=0
	Remove an item row (identified by pointer) from the N tuple.
virtual StatusCode	remove (const std::string &name)=0
	Remove an item row (identified by name) from the N tuple.
virtual StatusCode	attachSelector (ISelectStatement *sel)=0
	Attach selector.
virtual ISelectStatement *	selector ()=0
	Access selector.
virtual StatusCode	write ()=0
	Write record of the NTuple (Shortcut of writeRecord).
virtual StatusCode	writeRecord ()=0
	Write record of the NTuple.
virtual StatusCode	read ()=0
	Read record of the NTuple (Shortcut of readRecord).
virtual StatusCode	readRecord ()=0
	Read record of the NTuple.
virtual StatusCode	save ()=0
	Save the NTuple.
virtual	~INTuple ()
Protected Member Functions
virtual INTupleItem *	i_find (const std::string &name) const =0
	Internally used by abstract classes.

---

Member Typedef Documentation

typedef std::vector< INTupleItem* > INTuple::ItemContainer

Definition at line 86 of file INTuple.h.

---

Constructor & Destructor Documentation

virtual INTuple::~INTuple

(

)

[inline, virtual]

Definition at line 125 of file INTuple.h.

{}

---

Member Function Documentation

virtual INTupleItem* INTuple::i_find

(

const std::string &

name

)

const [protected, pure virtual]

Internally used by abstract classes.

Implemented in NTuple::TupleImp.

Referenced by NTuple::Tuple::i_addItem(), NTuple::Tuple::i_addObject(), and NTuple::Tuple::i_item().

virtual ItemContainer& INTuple::items

(

)

[pure virtual]

Access item container.

Implemented in NTuple::TupleImp.

Referenced by PoolDbNTupleCnv::bindRead(), PoolDbNTupleCnv::bindWrite(), RootHistCnv::RCWNTupleCnv::book(), CollectionCloneAlg::book(), CollectionCloneAlg::checkInput(), PoolDbTupleCallback::configure(), PoolDbNTupleCnv::createRep(), HbookCnv::HCWNTupleCnv::declare(), GaudiAlg::PrintTuple::print(), RootHistCnv::RCWNTupleCnv::readData(), HbookCnv::HRWNTupleCnv::readData(), HbookCnv::HCWNTupleCnv::readData(), PoolDbNTupleCnv::readData(), RootHistCnv::RCWNTupleCnv::writeData(), HbookCnv::HRWNTupleCnv::writeData(), and HbookCnv::HCWNTupleCnv::writeData().

virtual const ItemContainer& INTuple::items

(

)

const [pure virtual]

Access item container (CONST).

Implemented in NTuple::TupleImp.

virtual void INTuple::setBuffer

(

char *

buff

)

[pure virtual]

Attach data buffer.

Implemented in NTuple::TupleImp.

Referenced by RootHistCnv::RCWNTupleCnv::book(), HbookCnv::HCWNTupleCnv::declare(), RootHistCnv::RCWNTupleCnv::load(), and HbookCnv::HCWNTupleCnv::load().

virtual const char* INTuple::buffer

(

)

const [pure virtual]

Access data buffer (CONST).

Implemented in NTuple::TupleImp.

Referenced by HbookCnv::HCWNTupleCnv::load(), RootHistCnv::RCWNTupleCnv::readData(), HbookCnv::HCWNTupleCnv::readData(), RootHistCnv::RCWNTupleCnv::writeData(), and HbookCnv::HCWNTupleCnv::writeData().

virtual char* INTuple::buffer

(

)

[pure virtual]

Access data buffer.

Implemented in NTuple::TupleImp.

virtual const std::string& INTuple::title

(

)

const [pure virtual]

Object title.

Implemented in NTuple::TupleImp.

Referenced by RootHistCnv::RCWNTupleCnv::book(), HbookCnv::HCWNTupleCnv::book(), CollectionCloneAlg::book(), PoolDbNTupleCnv::createRep(), GaudiAlg::PrintTuple::print(), HbookCnv::HCWNTupleCnv::readData(), and RootHistCnv::RRWNTupleCnv::writeData().

virtual void INTuple::reset

(

)

[pure virtual]

Reset all entries to their default values.

Implemented in NTuple::TupleImp.

Referenced by RootHistCnv::RRWNTupleCnv::writeData(), RootHistCnv::RCWNTupleCnv::writeData(), and HbookCnv::HCWNTupleCnv::writeData().

virtual const INTupleItem* INTuple::find

(

const std::string &

name

)

const [pure virtual]

Find an item row of the Ntuple (CONST).

Implemented in NTuple::TupleImp.

Referenced by CollectionCloneAlg::checkInput(), and NTuple::_DataImp< TYP >::indexItem().

virtual INTupleItem* INTuple::find

(

const std::string &

name

)

[pure virtual]

Find an item row of the Ntuple.

Implemented in NTuple::TupleImp.

virtual StatusCode INTuple::add

(

INTupleItem *

item

)

[pure virtual]

Add an item row to the N tuple.

Implemented in NTuple::TupleImp.

Referenced by createItem(), NTuple::Tuple::i_addItem(), NTuple::Tuple::i_addObject(), RootHistCnv::RCWNTupleCnv::load(), and HbookCnv::HCWNTupleCnv::load().

virtual StatusCode INTuple::remove

(

INTupleItem *

item

)

[pure virtual]

Remove an item row (identified by pointer) from the N tuple.

Implemented in NTuple::TupleImp.

virtual StatusCode INTuple::remove

(

const std::string &

name

)

[pure virtual]

Remove an item row (identified by name) from the N tuple.

Implemented in NTuple::TupleImp.

virtual StatusCode INTuple::attachSelector

(

ISelectStatement *

sel

)

[pure virtual]

Attach selector.

Implemented in NTuple::TupleImp.

Referenced by EventCollectionSelector::connectStatement().

virtual ISelectStatement* INTuple::selector

(

)

[pure virtual]

Access selector.

Implemented in NTuple::TupleImp.

Referenced by EventCollectionSelector::getNextRecord(), EventCollectionSelector::getPreviousRecord(), and PoolDbNTupleCnv::updateObj().

virtual StatusCode INTuple::write

(

)

[pure virtual]

Write record of the NTuple (Shortcut of writeRecord).

Implemented in NTuple::TupleImp.

Referenced by Tuples::TupleObj::write().

virtual StatusCode INTuple::writeRecord

(

)

[pure virtual]

Write record of the NTuple.

Implemented in NTuple::TupleImp.

virtual StatusCode INTuple::read

(

)

[pure virtual]

Read record of the NTuple (Shortcut of readRecord).

Implemented in NTuple::TupleImp.

virtual StatusCode INTuple::readRecord

(

)

[pure virtual]

Read record of the NTuple.

Implemented in NTuple::TupleImp.

virtual StatusCode INTuple::save

(

)

[pure virtual]

Save the NTuple.

Implemented in NTuple::TupleImp.

---

The documentation for this class was generated from the following file:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r2/GaudiKernel/v25r2/GaudiKernel/INTuple.h

---
