ObjectList< TYPE > Class Template Reference

#include <GaudiKernel/ObjectList.h>

Inheritance diagram for ObjectList< TYPE >:

Inheritance graph
[legend]

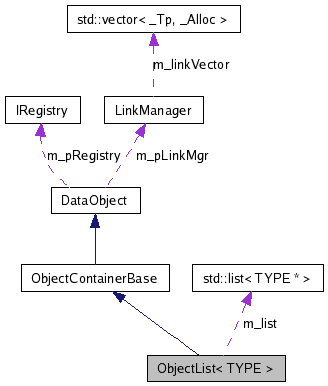

Collaboration diagram for ObjectList< TYPE >:

Collaboration graph
[legend]
List of all members.

Detailed Description

template<class TYPE>
class ObjectList< TYPE >

ObjectList is one of the basic Gaudi container classes capable of being registered in Data Stores.

It is based on Standard Library (STL) std::list (see STL Programmer's Guide) ObjectList has all functions of the std::list interface,

Each object is allowed to belong into a single container only. After inserting the object into the container, it takes over all responsibilities for the object. E.g. erasing the object from its container causes removing the object's pointer from the container and deleting the object itself.

Author:
Pavel Binko

Pere Mato

Date:
19/10/1999, 30/11/2000

Definition at line 38 of file ObjectList.h.

Public Types

typedef TYPE contained_type
typedef std::list< TYPE
* >::value_type 		value_type
typedef std::list< TYPE
* >::reference 		reference
typedef std::list< TYPE
* >::const_reference 		const_reference
typedef std::list< TYPE
* >::size_type 		size_type
typedef std::list< TYPE
* >::iterator 		iterator
typedef std::list< TYPE
* >::const_iterator 		const_iterator
typedef std::list< TYPE
* >::reverse_iterator 		reverse_iterator
typedef std::list< TYPE
* >::const_reverse_iterator 		const_reverse_iterator
typedef std::vector< TYPE
* >::pointer 		pointer
typedef std::vector< TYPE
* >::const_pointer 		const_pointer

Public Member Functions

 ObjectList ()
 Constructors.
 ObjectList (const char *name)
 ObjectList (const ObjectList< TYPE > &value)
 Copy Constructor.
virtual ~ObjectList ()
 Destructor.
virtual const CLID & clID () const
 Retrieve pointer to class defininition structure.
const ObjectList< TYPE > & operator= (const ObjectList< TYPE > &right)
 Clone operator.
ObjectList< TYPE >::iterator begin ()
 Return an iterator pointing to the beginning of the container.
ObjectList< TYPE >::const_iterator begin () const
 Return a const_iterator pointing to the beginning of the container.
ObjectList< TYPE >::iterator end ()
 Return an iterator pointing to the end of the container.
ObjectList< TYPE >::const_iterator end () const
 Return a const_iterator pointing to the end of the container.
ObjectList< TYPE >::reverse_iterator rbegin ()
 Return a reverse_iterator pointing to the beginning of the reversed container.
ObjectList< TYPE >::const_reverse_iterator rbegin () const
 Return a const_reverse_iterator pointing to the beginning of the reversed container.
ObjectList< TYPE >::reverse_iterator rend ()
 Return a reverse_iterator pointing to the end of the reversed container.
ObjectList< TYPE >::const_reverse_iterator rend () const
 Return a const_reverse_iterator pointing to the end of the reversed container.
ObjectList< TYPE >::size_type size () const
 Return the size of the container Size means the number of objects stored in the container, independently on the amount of information stored in each object.
virtual long numberOfObjects () const
 The same as size(), return number of objects in the container.
ObjectList< TYPE >::size_type max_size () const
 Return the largest possible size of the container.
bool empty () const
 Return true if the size of the container is 0.
ObjectList< TYPE >::reference front ()
 Return reference to the first element.
ObjectList< TYPE >::const_reference front () const
 Return const_reference to the first element.
ObjectList< TYPE >::reference back ()
 Return reference to the last element.
ObjectList< TYPE >::const_reference back () const
 Return const_reference to the last element.
void push_back (typename ObjectList< TYPE >::const_reference value)
 push_back = append = insert a new element at the end of the container
virtual long add (ContainedObject *pObject)
 Add an object to the container.
void pop_back ()
 pop_back = remove the last element from the container The removed object will be deleted (see the method release)
virtual long remove (ContainedObject *value)
 Release object from the container (the poiter will be removed from the container, but the object itself will remain alive) (see the method pop_back).
ObjectList< TYPE >::iterator insert (typename ObjectList< TYPE >::iterator position, typename ObjectList< TYPE >::const_reference value)
 Insert "value" before "position".
void erase (typename ObjectList< TYPE >::iterator position)
 Erase the object at "position" from the container. The removed object will be deleted.
void erase (typename ObjectList< TYPE >::iterator first, typename ObjectList< TYPE >::iterator last)
 Erase the range [first, last) from the container. The removed object will be deleted.
void clear ()
 Clear the entire content of the container and delete all contained objects.
virtual long index (const ContainedObject *obj) const
 Return distance of a given object from the beginning of its container It correcponds to the "index" ( from 0 to size()-1 ) If "obj" not fount, return -1.
virtual ContainedObject * containedObject (long dist) const
 Return const pointer to an object of a given distance.
virtual std::ostream & fillStream (std::ostream &s) const
 Fill the output stream (ASCII).

Static Public Member Functions

static const CLID & classID ()
 Retrieve reference to class definition structure (static access).

Private Attributes

std::list< TYPE * > m_list
 The STL list.

Member Typedef Documentation

template<class TYPE>
typedef TYPE ObjectList< TYPE >::contained_type

Definition at line 41 of file ObjectList.h.

template<class TYPE>
typedef std::list<TYPE*>::value_type ObjectList< TYPE >::value_type

Definition at line 42 of file ObjectList.h.

template<class TYPE>
typedef std::list<TYPE*>::reference ObjectList< TYPE >::reference

Definition at line 44 of file ObjectList.h.

template<class TYPE>
typedef std::list<TYPE*>::const_reference ObjectList< TYPE >::const_reference

Definition at line 45 of file ObjectList.h.

template<class TYPE>
typedef std::list<TYPE*>::size_type ObjectList< TYPE >::size_type

Definition at line 47 of file ObjectList.h.

template<class TYPE>
typedef std::list<TYPE*>::iterator ObjectList< TYPE >::iterator

Definition at line 49 of file ObjectList.h.

template<class TYPE>
typedef std::list<TYPE*>::const_iterator ObjectList< TYPE >::const_iterator

Definition at line 50 of file ObjectList.h.

template<class TYPE>
typedef std::list<TYPE*>::reverse_iterator ObjectList< TYPE >::reverse_iterator

Definition at line 52 of file ObjectList.h.

template<class TYPE>
typedef std::list<TYPE*>::const_reverse_iterator ObjectList< TYPE >::const_reverse_iterator

Definition at line 53 of file ObjectList.h.

template<class TYPE>
typedef std::vector<TYPE*>::pointer ObjectList< TYPE >::pointer

Definition at line 59 of file ObjectList.h.

template<class TYPE>
typedef std::vector<TYPE*>::const_pointer ObjectList< TYPE >::const_pointer

Definition at line 60 of file ObjectList.h.

Constructor & Destructor Documentation

template<class TYPE>
ObjectList< TYPE >::ObjectList (  )  [inline]

Constructors.

Definition at line 65 of file ObjectList.h.

00066     : m_list(0) { }

template<class TYPE>
ObjectList< TYPE >::ObjectList ( const char *  name  )  [inline]

Definition at line 67 of file ObjectList.h.

00068     : m_list(0) { }

template<class TYPE>
ObjectList< TYPE >::ObjectList ( const ObjectList< TYPE > &  value  )  [inline]

Copy Constructor.

Definition at line 70 of file ObjectList.h.

00071     : m_list(value.m_list) { }

template<class TYPE>
virtual ObjectList< TYPE >::~ObjectList (  )  [inline, virtual]

Destructor.

Definition at line 74 of file ObjectList.h.

References ObjectList< TYPE >::clear().

00074                         {
00075     clear();
00076   }

Member Function Documentation

template<class TYPE>
virtual const CLID& ObjectList< TYPE >::clID (  )  const [inline, virtual]

Retrieve pointer to class defininition structure.

Reimplemented from DataObject.

Definition at line 79 of file ObjectList.h.

References ObjectList< TYPE >::classID().

00079                                    {
00080     return ObjectList<TYPE>::classID();
00081   }

template<class TYPE>
static const CLID& ObjectList< TYPE >::classID (  )  [inline, static]

Retrieve reference to class definition structure (static access).

Reimplemented from DataObject.

Definition at line 82 of file ObjectList.h.

References CLID_ObjectList.

Referenced by ObjectList< TYPE >::clID().

00082                                {
00083     static CLID clid = TYPE::classID() + CLID_ObjectList;
00084     return clid;
00085   }

template<class TYPE>
const ObjectList<TYPE>& ObjectList< TYPE >::operator= ( const ObjectList< TYPE > &  right  )  [inline]

Clone operator.

Definition at line 88 of file ObjectList.h.

References ObjectList< TYPE >::m_list.

00088                                                                      {
00089     this->processingVersion = right.m_processingVersion;
00090     this->detectorDataObject = right.m_detectorDataObject;
00091     m_list = right.m_list;
00092     return *this;
00093   }

template<class TYPE>
ObjectList<TYPE>::iterator ObjectList< TYPE >::begin (  )  [inline]

Return an iterator pointing to the beginning of the container.

Definition at line 96 of file ObjectList.h.

References std::list< _Tp, _Alloc >::begin(), and ObjectList< TYPE >::m_list.

Referenced by ObjectList< TYPE >::clear(), ObjectList< TYPE >::containedObject(), ObjectList< TYPE >::index(), and ObjectList< TYPE >::remove().

00096                                              {
00097     return m_list.begin();
00098   }

template<class TYPE>
ObjectList<TYPE>::const_iterator ObjectList< TYPE >::begin (  )  const [inline]

Return a const_iterator pointing to the beginning of the container.

Definition at line 101 of file ObjectList.h.

References std::list< _Tp, _Alloc >::begin(), and ObjectList< TYPE >::m_list.

00101                                                          {
00102     return m_list.begin();
00103   }

template<class TYPE>
ObjectList<TYPE>::iterator ObjectList< TYPE >::end (  )  [inline]

Return an iterator pointing to the end of the container.

Definition at line 106 of file ObjectList.h.

References std::list< _Tp, _Alloc >::end(), and ObjectList< TYPE >::m_list.

Referenced by ObjectList< TYPE >::clear(), ObjectList< TYPE >::containedObject(), ObjectList< TYPE >::index(), and ObjectList< TYPE >::remove().

00106                                            {
00107     return m_list.end();
00108   }

template<class TYPE>
ObjectList<TYPE>::const_iterator ObjectList< TYPE >::end (  )  const [inline]

Return a const_iterator pointing to the end of the container.

Definition at line 111 of file ObjectList.h.

References std::list< _Tp, _Alloc >::end(), and ObjectList< TYPE >::m_list.

00111                                                        {
00112     return m_list.end();
00113   }

template<class TYPE>
ObjectList<TYPE>::reverse_iterator ObjectList< TYPE >::rbegin (  )  [inline]

Return a reverse_iterator pointing to the beginning of the reversed container.

Definition at line 117 of file ObjectList.h.

References ObjectList< TYPE >::m_list, and std::list< _Tp, _Alloc >::rbegin().

00117                                                       {
00118     return m_list.rbegin();
00119   }

template<class TYPE>
ObjectList<TYPE>::const_reverse_iterator ObjectList< TYPE >::rbegin (  )  const [inline]

Return a const_reverse_iterator pointing to the beginning of the reversed container.

Definition at line 122 of file ObjectList.h.

References ObjectList< TYPE >::m_list, and std::list< _Tp, _Alloc >::rbegin().

00122                                                                   {
00123     return m_list.rbegin();
00124   }

template<class TYPE>
ObjectList<TYPE>::reverse_iterator ObjectList< TYPE >::rend (  )  [inline]

Return a reverse_iterator pointing to the end of the reversed container.

Definition at line 127 of file ObjectList.h.

References ObjectList< TYPE >::m_list, and std::list< _Tp, _Alloc >::rend().

00127                                                     {
00128     return m_list.rend();
00129   }

template<class TYPE>
ObjectList<TYPE>::const_reverse_iterator ObjectList< TYPE >::rend (  )  const [inline]

Return a const_reverse_iterator pointing to the end of the reversed container.

Definition at line 132 of file ObjectList.h.

References ObjectList< TYPE >::m_list, and std::list< _Tp, _Alloc >::rend().

00132                                                                 {
00133     return m_list.rend();
00134   }

template<class TYPE>
ObjectList<TYPE>::size_type ObjectList< TYPE >::size (  )  const [inline]

Return the size of the container Size means the number of objects stored in the container, independently on the amount of information stored in each object.

Definition at line 138 of file ObjectList.h.

References ObjectList< TYPE >::m_list, and std::list< _Tp, _Alloc >::size().

Referenced by ObjectList< TYPE >::fillStream().

00138                                                    {
00139     return m_list.size();
00140   }

template<class TYPE>
virtual long ObjectList< TYPE >::numberOfObjects (  )  const [inline, virtual]

The same as size(), return number of objects in the container.

Implements ObjectContainerBase.

Definition at line 142 of file ObjectList.h.

References ObjectList< TYPE >::m_list, and std::list< _Tp, _Alloc >::size().

00142                                        {
00143     return m_list.size();
00144   }

template<class TYPE>
ObjectList<TYPE>::size_type ObjectList< TYPE >::max_size (  )  const [inline]

Return the largest possible size of the container.

Definition at line 147 of file ObjectList.h.

References ObjectList< TYPE >::m_list, and std::list< _Tp, _Alloc >::max_size().

00147                                                        {
00148     return m_list.max_size();
00149   }

template<class TYPE>
bool ObjectList< TYPE >::empty (  )  const [inline]

Return true if the size of the container is 0.

Definition at line 152 of file ObjectList.h.

References std::list< _Tp, _Alloc >::empty(), and ObjectList< TYPE >::m_list.

00152                       {
00153     return m_list.empty();
00154   }

template<class TYPE>
ObjectList<TYPE>::reference ObjectList< TYPE >::front (  )  [inline]

Return reference to the first element.

Definition at line 157 of file ObjectList.h.

References std::list< _Tp, _Alloc >::front(), and ObjectList< TYPE >::m_list.

00157                                               {
00158     return m_list.front();
00159   }

template<class TYPE>
ObjectList<TYPE>::const_reference ObjectList< TYPE >::front (  )  const [inline]

Return const_reference to the first element.

Definition at line 162 of file ObjectList.h.

References std::list< _Tp, _Alloc >::front(), and ObjectList< TYPE >::m_list.

00162                                                           {
00163     return m_list.front();
00164   }

template<class TYPE>
ObjectList<TYPE>::reference ObjectList< TYPE >::back (  )  [inline]

Return reference to the last element.

Definition at line 167 of file ObjectList.h.

References std::list< _Tp, _Alloc >::back(), and ObjectList< TYPE >::m_list.

00167                                              {
00168     return m_list.back();
00169   }

template<class TYPE>
ObjectList<TYPE>::const_reference ObjectList< TYPE >::back (  )  const [inline]

Return const_reference to the last element.

Definition at line 172 of file ObjectList.h.

References std::list< _Tp, _Alloc >::back(), and ObjectList< TYPE >::m_list.

00172                                                          {
00173     return m_list.back();
00174   }

template<class TYPE>
void ObjectList< TYPE >::push_back ( typename ObjectList< TYPE >::const_reference  value  )  [inline]

push_back = append = insert a new element at the end of the container

Definition at line 177 of file ObjectList.h.

References ObjectList< TYPE >::m_list, std::list< _Tp, _Alloc >::push_back(), and ObjectList< TYPE >::remove().

Referenced by ObjectList< TYPE >::add().

00177                                                                    {
00178     if( 0 != value->parent() ) {
00179       const_cast<ObjectContainerBase*>(value->parent())->remove(value);
00180     }
00181     value->setParent(this);
00182     m_list.push_back(value);
00183   }

template<class TYPE>
virtual long ObjectList< TYPE >::add ( ContainedObject *  pObject  )  [inline, virtual]

Add an object to the container.

Implements ObjectContainerBase.

Definition at line 186 of file ObjectList.h.

References ObjectList< TYPE >::m_list, ObjectList< TYPE >::push_back(), and std::list< _Tp, _Alloc >::size().

00186                                              {
00187     try {
00188       typename ObjectList<TYPE>::value_type ptr =
00189             dynamic_cast<typename ObjectList<TYPE>::value_type>(pObject);
00190       if ( 0 != ptr ) {
00191         push_back(ptr);
00192         return m_list.size()-1;
00193       }
00194     }
00195     catch(...) {
00196     }
00197     return -1;
00198   }

template<class TYPE>
void ObjectList< TYPE >::pop_back (  )  [inline]

pop_back = remove the last element from the container The removed object will be deleted (see the method release)

Definition at line 202 of file ObjectList.h.

References std::list< _Tp, _Alloc >::back(), ObjectList< TYPE >::m_list, and std::list< _Tp, _Alloc >::pop_back().

00202                    {
00203     typename ObjectList<TYPE>::value_type position = m_list.back();
00204     // Set the back pointer to 0 to avoid repetitional searching
00205     // for the object in the container, and deleting the object
00206     position->setParent (0);
00207     delete position;
00208     // Removing from the container itself
00209     m_list.pop_back();
00210   }

template<class TYPE>
virtual long ObjectList< TYPE >::remove ( ContainedObject *  value  )  [inline, virtual]

Release object from the container (the poiter will be removed from the container, but the object itself will remain alive) (see the method pop_back).

Implements ObjectContainerBase.

Definition at line 214 of file ObjectList.h.

References ObjectList< TYPE >::begin(), ObjectList< TYPE >::end(), and ObjectList< TYPE >::erase().

Referenced by ObjectList< TYPE >::push_back().

00214                                               {
00215     // Find the object of value value
00216     long idx = 0;
00217     typename ObjectList<TYPE>::iterator   iter;
00218     for( iter = begin(); iter != end(); iter++, idx++ )  {
00219       if( value == *iter ) {
00220         break;
00221       }
00222     }
00223     if( end() == iter )  {
00224       // Object cannot be released from the conatiner,
00225       // as it is not contained in it
00226       return -1;
00227     }
00228     else  {
00229       // Set the back pointer to 0 to avoid repetitional searching
00230       // for the object in the container and deleting the object
00231       (*iter)->setParent (0);
00232       erase(iter);
00233       return idx;
00234     }
00235   }

template<class TYPE>
ObjectList<TYPE>::iterator ObjectList< TYPE >::insert ( typename ObjectList< TYPE >::iterator  position,
typename ObjectList< TYPE >::const_reference  value
) [inline]

Insert "value" before "position".

Definition at line 238 of file ObjectList.h.

References std::list< _Tp, _Alloc >::insert(), and ObjectList< TYPE >::m_list.

00239                                                                                       {
00240     value->setParent(this);
00241     typename ObjectList<TYPE>::iterator i = m_list.insert(position, value);
00242     return i;
00243   }

template<class TYPE>
void ObjectList< TYPE >::erase ( typename ObjectList< TYPE >::iterator  position  )  [inline]

Erase the object at "position" from the container. The removed object will be deleted.

Definition at line 246 of file ObjectList.h.

References std::list< _Tp, _Alloc >::erase(), and ObjectList< TYPE >::m_list.

Referenced by ObjectList< TYPE >::clear(), and ObjectList< TYPE >::remove().

00246                                                            {
00247     if( 0 != (*position)->parent() ) {
00248       // Set the back pointer to 0 to avoid repetitional searching
00249       // for the object in the container, and deleting the object
00250       (*position)->setParent (0);
00251       delete *position;
00252     }
00253     // Removing from the container itself
00254     m_list.erase(position);
00255   }

template<class TYPE>
void ObjectList< TYPE >::erase ( typename ObjectList< TYPE >::iterator  first,
typename ObjectList< TYPE >::iterator  last
) [inline]

Erase the range [first, last) from the container. The removed object will be deleted.

Definition at line 258 of file ObjectList.h.

References std::list< _Tp, _Alloc >::erase(), and ObjectList< TYPE >::m_list.

00259                                                        {
00260     for( typename ObjectList<TYPE>::iterator iter = first; iter != last; iter++ )  {
00261       // Set the back pointer to 0 to avoid repetitional searching
00262       // for the object in the container, and deleting the object
00263       (*iter)->setParent (0);
00264       delete *iter;
00265     }
00266     // Removing from the container itself
00267     m_list.erase(first, last);
00268   }

template<class TYPE>
void ObjectList< TYPE >::clear (  )  [inline]

Clear the entire content of the container and delete all contained objects.

Definition at line 271 of file ObjectList.h.

References ObjectList< TYPE >::begin(), ObjectList< TYPE >::end(), and ObjectList< TYPE >::erase().

Referenced by ObjectList< TYPE >::~ObjectList().

00271                   {
00272     erase(begin(), end());
00273   }

template<class TYPE>
virtual long ObjectList< TYPE >::index ( const ContainedObject *  obj  )  const [inline, virtual]

Return distance of a given object from the beginning of its container It correcponds to the "index" ( from 0 to size()-1 ) If "obj" not fount, return -1.

Implements ObjectContainerBase.

Definition at line 277 of file ObjectList.h.

References ObjectList< TYPE >::begin(), and ObjectList< TYPE >::end().

00277                                                          {
00278     long i = 0;
00279     typename ObjectList<TYPE>::const_iterator   iter;
00280     for( iter = begin(); iter != end(); iter++ )  {
00281       if( *iter == obj ) {
00282         return i;
00283       }
00284       i++;
00285     }
00286     return -1;
00287   }

template<class TYPE>
virtual ContainedObject* ObjectList< TYPE >::containedObject ( long  dist  )  const [inline, virtual]

Return const pointer to an object of a given distance.

Implements ObjectContainerBase.

Definition at line 290 of file ObjectList.h.

References ObjectList< TYPE >::begin(), and ObjectList< TYPE >::end().

00290                                                               {
00291     long i = 0;
00292     typename ObjectList<TYPE>::const_iterator   iter;
00293     for( iter = begin(); iter != end(); iter++ )  {
00294       if( dist == i ) {
00295         return *iter;
00296       }
00297       i++;
00298     }
00299     return 0;
00300   }

template<class TYPE>
virtual std::ostream& ObjectList< TYPE >::fillStream ( std::ostream &  s  )  const [inline, virtual]

Fill the output stream (ASCII).

Reimplemented from DataObject.

Definition at line 303 of file ObjectList.h.

References std::list< _Tp, _Alloc >::begin(), count(), std::list< _Tp, _Alloc >::end(), ObjectList< TYPE >::m_list, Gaudi::Units::s, std::setw(), and ObjectList< TYPE >::size().

00303                                                                            {
00304     s << "class ObjectList :    size = "
00305       << std::setw(12)
00306       << size() << "\n";
00307     // Output the base class
00308     //ObjectContainerBase::fillStream(s);
00309     if ( 0 != size() ) {
00310       s << "\nContents of the STL list :";
00311       long   count = 0;
00312       typename ObjectList<TYPE>::const_iterator iter;
00313       for( iter = m_list.begin(); iter != m_list.end(); iter++, count++ ) {
00314         s << "\nIndex "
00315           << std::setw(12)
00316           << count
00317           << " of object of type "<< **iter;
00318       }
00319     }
00320     return s;
00321   }

Member Data Documentation

template<class TYPE>
std::list<TYPE*> ObjectList< TYPE >::m_list [private]

The STL list.

Definition at line 326 of file ObjectList.h.

Referenced by ObjectList< TYPE >::add(), ObjectList< TYPE >::back(), ObjectList< TYPE >::begin(), ObjectList< TYPE >::empty(), ObjectList< TYPE >::end(), ObjectList< TYPE >::erase(), ObjectList< TYPE >::fillStream(), ObjectList< TYPE >::front(), ObjectList< TYPE >::insert(), ObjectList< TYPE >::max_size(), ObjectList< TYPE >::numberOfObjects(), ObjectList< TYPE >::operator=(), ObjectList< TYPE >::pop_back(), ObjectList< TYPE >::push_back(), ObjectList< TYPE >::rbegin(), ObjectList< TYPE >::rend(), and ObjectList< TYPE >::size().

The documentation for this class was generated from the following file:
Generated at Fri Jul 18 12:08:44 2008 for Gaudi Framework, version v20r2 by Doxygen version 1.5.1 written by Dimitri van Heesch, © 1997-2004
