SmartRefBase Class Reference

#include <SmartRefBase.h>

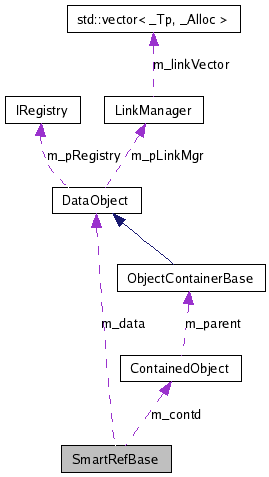

Collaboration diagram for SmartRefBase:

Collaboration graph
[legend]
List of all members.

Detailed Description

User example objects: SmartRefBase.

Description: Base class of SmartReference objects. The base class handles the object requests to the data store. The separation of the SmartReference and the base class is mainly to avoid code blow up, because if the object is not yet present serious work must be performed in order to request the object from the store and invoke object updates to keep pointers in sync.

Base Class: None

Dependencies: None

History :

    +---------+----------------------------------------------+--------+
    |    Date |                 Comment                      | Who    |
    +---------+----------------------------------------------+--------+
    | 21/06/99| Initial version.                             | MF     |
    +---------+----------------------------------------------+--------+
Author: M.Frank Version: 1.0

Definition at line 47 of file SmartRefBase.h.

Public Types

enum  { DATAOBJECT, CONTAINEDOBJECT }

Public Member Functions

const ContainedObject * accessData (const ContainedObject *typ) const
 Load on demand of ContainedObject like references.
const DataObject * accessData (const DataObject *typ) const
 Load on demand of DataObject like references.
bool isEqualEx (const DataObject *pObj, const SmartRefBase &c) const
 Extended equality check.
bool isEqualEx (const ContainedObject *pObj, const SmartRefBase &c) const
 Extended equality check.
bool isEqual (const ContainedObject *, const SmartRefBase &c) const
 Equality operator for ContainedObject like references.
bool isEqual (const DataObject *, const SmartRefBase &c) const
 Equality operator for DataObject like references.
void writeObject (const DataObject *pObject, StreamBuffer &s) const
 Output streamer for DataObject like references.
void writeObject (const ContainedObject *pObject, StreamBuffer &s) const
 Output streamer for ContainedObject like references.
DataObject * readObject (const DataObject *, StreamBuffer &s) const
 Input streamer for DataObject like references.
ContainedObject * readObject (const ContainedObject *, StreamBuffer &s) const
 Output streamer for ContainedObject like references.
void setObjectType (const ContainedObject *) const
void setObjectType (const DataObject *) const
const std::string & path () const
 Shortcut to access the path to the linked object.
int objectType () const
void set (DataObject *pObj, long hint_id, long link_id)
 Setup smart reference when reading. Must be allowed from external sources.

Public Attributes

long m_hintID
 Object data: ID of the link hint to the identifiable object.
long m_linkID
 Object data: ID of the object within the identifiable container (if any).
const DataObject * m_data
 Object data: Pointer to the identifiable object the link originates.
const ContainedObject * m_contd
 Object data: Pointer to the Contained object (if applicable).
long m_type

Member Enumeration Documentation

anonymous enum

Enumerator:
DATAOBJECT
CONTAINEDOBJECT

Definition at line 60 of file SmartRefBase.h.

00060 { DATAOBJECT, CONTAINEDOBJECT };

Member Function Documentation

const ContainedObject * SmartRefBase::accessData ( const ContainedObject *  typ  )  const

Load on demand of ContainedObject like references.

Definition at line 35 of file SmartRefBase.cpp.

References ObjectContainerBase::containedObject(), StreamBuffer::INVALID, m_data, m_hintID, and m_linkID.

Referenced by SmartRef< TYPE >::target().

00035                                                                                 {
00036   if ( m_hintID != StreamBuffer::INVALID && m_linkID != StreamBuffer::INVALID )   {
00037     const _Container* cnt = dynamic_cast<const _Container*>(accessData(m_data));
00038     if ( 0 != cnt )  {
00039       return cnt->containedObject(m_linkID);
00040     }
00041   }
00042   return 0;
00043 }

const DataObject * SmartRefBase::accessData ( const DataObject *  typ  )  const

Load on demand of DataObject like references.

Definition at line 46 of file SmartRefBase.cpp.

References IRegistry::dataSvc(), StreamBuffer::INVALID, LinkManager::link(), DataObject::linkMgr(), m_contd, m_data, m_hintID, LinkManager::Link::object(), ContainedObject::parent(), LinkManager::Link::path(), DataObject::registry(), IDataProviderSvc::retrieveObject(), and LinkManager::Link::setObject().

00046                                                                       {
00047   DataObject* target = 0;
00048   DataObject* source  =0;
00049   if ( 0 == m_data && 0 != m_contd )  {
00050     m_data = m_contd->parent();
00051   }
00052   source  = const_cast<DataObject*>(m_data);
00053   if ( m_hintID != StreamBuffer::INVALID && source != 0 )   {
00054     LinkManager* mgr = source->linkMgr();
00055     if ( 0 != mgr )   {
00056       LinkManager::Link* link = mgr->link(m_hintID);
00057       if ( 0 != link )  {
00058         target = link->object();
00059         if ( 0 == target )    {
00060           IRegistry* reg = source->registry();
00061           if ( 0 != reg )   {
00062             IDataProviderSvc* datasvc = reg->dataSvc();
00063             if ( 0 != datasvc )   {
00064               if ( datasvc->retrieveObject(link->path(), target).isSuccess() )   {
00065                 link->setObject(target);
00066               }
00067             }
00068           }
00069         }
00070       }
00071     }
00072   }
00073   return target;
00074 }

bool SmartRefBase::isEqualEx ( const DataObject *  pObj,
const SmartRefBase &  c
) const

Extended equality check.

Definition at line 77 of file SmartRefBase.cpp.

References c, IRegistry::identifier(), StreamBuffer::INVALID, LinkManager::link(), DataObject::linkMgr(), LinkManager::Link::path(), and DataObject::registry().

Referenced by isEqualEx(), and SmartRef< KeyType >::operator==().

00077                                                                                     {
00078   if ( c.m_hintID != StreamBuffer::INVALID && 0 != pObj )   {
00079     DataObject* source  = const_cast<DataObject*>(c.m_data);
00080     if ( 0 != source )   {
00081       LinkManager* mgr = source->linkMgr();
00082       if ( 0 != mgr )   {
00083         LinkManager::Link* link = mgr->link(c.m_hintID);
00084         if ( 0 != link )  {
00085           IRegistry* pReg = pObj->registry();
00086           if ( pReg != 0 )   {
00087             return link->path() == pReg->identifier();
00088           }
00089         }
00090       }
00091     }
00092   }
00093   return false;
00094 }

bool SmartRefBase::isEqualEx ( const ContainedObject *  pObj,
const SmartRefBase &  c
) const

Extended equality check.

Definition at line 97 of file SmartRefBase.cpp.

References c, ContainedObject::index(), isEqualEx(), and ContainedObject::parent().

00097                                                                                         {
00098   if ( isEqualEx(pObj->parent(), c) )   {
00099     return pObj->index() == c.m_linkID;
00100   }
00101   return false;
00102 }

bool SmartRefBase::isEqual ( const ContainedObject *  ,
const SmartRefBase &  c
) const [inline]

Equality operator for ContainedObject like references.

Definition at line 72 of file SmartRefBase.h.

References c, m_contd, m_data, m_hintID, and m_linkID.

Referenced by SmartRef< KeyType >::operator==().

00072                                                                                            {
00073     return (m_hintID == c.m_hintID && m_linkID == c.m_linkID &&
00074             m_data   == c.m_data   && m_contd  == c.m_contd);
00075   }

bool SmartRefBase::isEqual ( const DataObject *  ,
const SmartRefBase &  c
) const [inline]

Equality operator for DataObject like references.

Definition at line 77 of file SmartRefBase.h.

References c, m_data, and m_linkID.

00077                                                                                         {
00078     return m_linkID == c.m_linkID && m_data   == c.m_data;
00079   }

void SmartRefBase::writeObject ( const DataObject *  pObject,
StreamBuffer &  s
) const [inline]

Output streamer for DataObject like references.

Definition at line 81 of file SmartRefBase.h.

References m_hintID, and Gaudi::Units::s.

Referenced by SmartRef< TYPE >::writeRef().

00081                                                                           {
00082     s.addIdentifiedLink(pObject, m_hintID);
00083   }

void SmartRefBase::writeObject ( const ContainedObject *  pObject,
StreamBuffer &  s
) const [inline]

Output streamer for ContainedObject like references.

Definition at line 85 of file SmartRefBase.h.

References m_hintID, m_linkID, and Gaudi::Units::s.

00085                                                                                 {
00086     s.addContainedLink(pObject, m_hintID, m_linkID);
00087   }

DataObject* SmartRefBase::readObject ( const DataObject *  ,
StreamBuffer &  s
) const [inline]

Input streamer for DataObject like references.

Definition at line 89 of file SmartRefBase.h.

References m_hintID, and Gaudi::Units::s.

Referenced by SmartRef< TYPE >::readRef().

00089                                                                                        {
00090     DataObject* pObj = 0;
00091     s.getIdentifiedLink(pObj, m_hintID);
00092     return pObj;
00093   }

ContainedObject* SmartRefBase::readObject ( const ContainedObject *  ,
StreamBuffer &  s
) const [inline]

Output streamer for ContainedObject like references.

Definition at line 95 of file SmartRefBase.h.

References m_hintID, m_linkID, and Gaudi::Units::s.

00095                                                                                                {
00096     ContainedObject* pObj = 0;
00097     s.getContainedLink(pObj, m_hintID, m_linkID);
00098     return pObj;
00099   }

void SmartRefBase::setObjectType ( const ContainedObject *   )  const [inline]

Definition at line 100 of file SmartRefBase.h.

References CONTAINEDOBJECT, and m_type.

Referenced by SmartRef< KeyType >::_setEnvironment().

00100                                                               {
00101     m_type = CONTAINEDOBJECT;
00102   }

void SmartRefBase::setObjectType ( const DataObject *   )  const [inline]

Definition at line 103 of file SmartRefBase.h.

References DATAOBJECT, and m_type.

00103                                                           {
00104     m_type = DATAOBJECT;
00105   }

const std::string & SmartRefBase::path (  )  const

Shortcut to access the path to the linked object.

Definition at line 104 of file SmartRefBase.cpp.

References StreamBuffer::INVALID, LinkManager::link(), DataObject::linkMgr(), m_contd, m_data, m_hintID, ContainedObject::parent(), and LinkManager::Link::path().

Referenced by SmartRef< KeyType >::path().

00104                                            {
00105   static std::string s_empty_string = std::string();
00106   DataObject *source = 0;
00107   if ( 0 == m_data && 0 != m_contd )  {
00108     m_data = m_contd->parent();
00109   }
00110   source = const_cast<DataObject*>(m_data);
00111   if ( m_hintID != StreamBuffer::INVALID && source != 0 ) {
00112     LinkManager* mgr = source->linkMgr();
00113     if ( 0 != mgr ) {
00114       LinkManager::Link* link = mgr->link(m_hintID);
00115       if ( 0 != link )
00116         return link->path();
00117     }
00118   }
00119   return s_empty_string;
00120 }

int SmartRefBase::objectType (  )  const [inline]

Definition at line 111 of file SmartRefBase.h.

References m_type.

Referenced by PoolDbIOHandler< T >::get(), and PoolDbIOHandler< T >::put().

00111                           {
00112     return m_type;
00113   }

void SmartRefBase::set ( DataObject *  pObj,
long  hint_id,
long  link_id
)

Setup smart reference when reading. Must be allowed from external sources.

Definition at line 28 of file SmartRefBase.cpp.

References m_data, m_hintID, and m_linkID.

Referenced by PoolDbIOHandler< T >::put(), and SmartRef< KeyType >::set().

00028                                                                     {
00029   m_data = pObj;
00030   m_hintID = hint_id;
00031   m_linkID = link_id;
00032 }

Member Data Documentation

long SmartRefBase::m_hintID [mutable]

Object data: ID of the link hint to the identifiable object.

Definition at line 50 of file SmartRefBase.h.

Referenced by accessData(), SmartRef< KeyType >::hintID(), isEqual(), SmartRef< KeyType >::operator=(), path(), readObject(), set(), SmartRef< KeyType >::shouldFollowLink(), SmartRef< KeyType >::SmartRef(), and writeObject().

long SmartRefBase::m_linkID [mutable]

Object data: ID of the object within the identifiable container (if any).

Definition at line 52 of file SmartRefBase.h.

Referenced by accessData(), isEqual(), SmartRef< KeyType >::linkID(), SmartRef< KeyType >::operator=(), readObject(), set(), SmartRef< KeyType >::shouldFollowLink(), SmartRef< KeyType >::SmartRef(), and writeObject().

const DataObject* SmartRefBase::m_data [mutable]

Object data: Pointer to the identifiable object the link originates.

Definition at line 54 of file SmartRefBase.h.

Referenced by SmartRef< KeyType >::_setEnvironment(), accessData(), isEqual(), path(), set(), and SmartRef< KeyType >::SmartRef().

const ContainedObject* SmartRefBase::m_contd [mutable]

Object data: Pointer to the Contained object (if applicable).

Definition at line 56 of file SmartRefBase.h.

Referenced by SmartRef< KeyType >::_setEnvironment(), accessData(), isEqual(), path(), and SmartRef< KeyType >::SmartRef().

long SmartRefBase::m_type [mutable]

Definition at line 58 of file SmartRefBase.h.

Referenced by objectType(), and setObjectType().

The documentation for this class was generated from the following files:
Generated at Fri Jul 18 12:09:22 2008 for Gaudi Framework, version v20r2 by Doxygen version 1.5.1 written by Dimitri van Heesch, © 1997-2004
