Gaudi Framework, version v20r2
Generated: 18 Jul 2008
|
|
|
Generated: 18 Jul 2008 |
#include <GaudiKernel/ToolHandle.h>

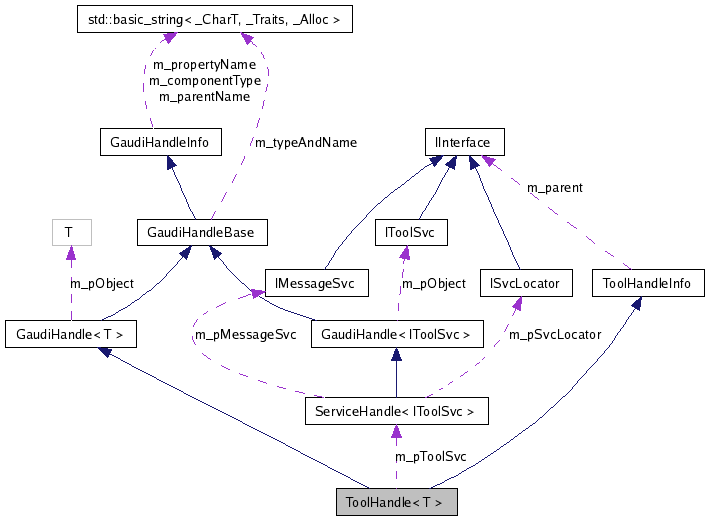

Inheritance diagram for ToolHandle< T >:
This allows better control through the framework of tool loading and usage. T is the AlgTool interface class (or concrete class) of the tool to use, and must derive from IAlgTool.
Definition at line 77 of file ToolHandle.h.
Public Member Functions | |
| ToolHandle (const IInterface *parent=0, bool createIf=true) | |
| Constructor for a tool with default tool type and name. | |
| ToolHandle (const std::string &toolTypeAndName, const IInterface *parent=0, bool createIf=true) | |
| Create a handle ('smart pointer') to a tool. | |
| StatusCode | retrieve () const |
| Retrieve the AlgTool. | |
| StatusCode | release () const |
| Release the AlgTool. | |
| virtual StatusCode | retrieve (T *&algTool) const |
| Do the real retrieval of the AlgTool. | |
| virtual StatusCode | release (T *algTool) const |
| Do the real release of the AlgTool. | |
Private Attributes | |
| ServiceHandle< IToolSvc > | m_pToolSvc |
| ToolHandle< T >::ToolHandle | ( | const IInterface * | parent = 0, |
|
| bool | createIf = true | |||
| ) | [inline] |
Constructor for a tool with default tool type and name.
Can be called only if the type T is a concrete tool type (not an interface), and you want to use the default name.
Definition at line 85 of file ToolHandle.h.
00086 : ToolHandleInfo(parent,createIf), 00087 GaudiHandle<T>( GaudiHandle<T>::getDefaultType(), 00088 ToolHandleInfo::toolComponentType(parent), 00089 ToolHandleInfo::toolParentName(parent) ), 00090 m_pToolSvc( "ToolSvc", GaudiHandleBase::parentName() ) 00091 {}
| ToolHandle< T >::ToolHandle | ( | const std::string & | toolTypeAndName, | |
| const IInterface * | parent = 0, |
|||
| bool | createIf = true | |||
| ) | [inline] |
Create a handle ('smart pointer') to a tool.
The arguments are passed on to ToolSvc, and have the same meaning:
StatusCode ToolSvc::retrieveTool ( const std::string& type , T*& tool , const IInterface* parent = 0 , bool createIf = true )
| toolType,: | "MyToolType/MyToolName" "MyToolType" is short for "MyToolType/MyToolType" 'MyToolType' is the name of the class of the concrete tool 'MyToolName' is to distinguish several tool instances of the same class | |
| parent,: | the parent Algorithm,Tool or Service of which this tool is a member. If non-zero, the the tool is a private tool of the parent, otherwise it is a public (shared) tool. | |
| createIf,: | if true, create tool if not yet existing. |
Definition at line 110 of file ToolHandle.h.
00111 : ToolHandleInfo(parent,createIf), 00112 GaudiHandle<T>( toolTypeAndName, 00113 ToolHandleInfo::toolComponentType(parent), 00114 ToolHandleInfo::toolParentName(parent) ), 00115 m_pToolSvc( "ToolSvc", GaudiHandleBase::parentName() ) 00116 {}
| StatusCode ToolHandle< T >::retrieve | ( | ) | const [inline] |
Retrieve the AlgTool.
Release existing tool if needed. Function must be repeated here to avoid hiding the function retrieve( T*& )
Reimplemented from GaudiHandle< T >.
Definition at line 120 of file ToolHandle.h.
References GaudiHandle< T >::retrieve().
00120 { // not really const, because it updates m_pObject 00121 return GaudiHandle<T>::retrieve(); 00122 }
| StatusCode ToolHandle< T >::release | ( | ) | const [inline] |
Release the AlgTool.
Function must be repeated here to avoid hiding the function release( T*& )
Reimplemented from GaudiHandle< T >.
Definition at line 126 of file ToolHandle.h.
References GaudiHandle< T >::release().
00126 { // not really const, because it updates m_pObject 00127 return GaudiHandle<T>::release(); 00128 }
| virtual StatusCode ToolHandle< T >::retrieve | ( | T *& | algTool | ) | const [inline, virtual] |
Do the real retrieval of the AlgTool.
Implements GaudiHandle< T >.
Definition at line 131 of file ToolHandle.h.
References ToolHandleInfo::createIf(), ToolHandle< T >::m_pToolSvc, ToolHandleInfo::parent(), ServiceHandle< T >::retrieve(), and GaudiHandleBase::typeAndName().
00131 { 00132 return m_pToolSvc->retrieve( GaudiHandleBase::typeAndName(), T::interfaceID(), 00133 (IAlgTool*&)(algTool), 00134 ToolHandleInfo::parent(), ToolHandleInfo::createIf() ); 00135 }
| virtual StatusCode ToolHandle< T >::release | ( | T * | algTool | ) | const [inline, virtual] |
Do the real release of the AlgTool.
Reimplemented from GaudiHandle< T >.
Definition at line 138 of file ToolHandle.h.
References ToolHandle< T >::m_pToolSvc.
00138 { 00139 return m_pToolSvc->releaseTool( algTool ); 00140 }
ServiceHandle<IToolSvc> ToolHandle< T >::m_pToolSvc [mutable, private] |
Definition at line 146 of file ToolHandle.h.
Referenced by ToolHandle< T >::release(), and ToolHandle< T >::retrieve().
