FuncMinimum Class Reference

#include <FuncMinimum.h>

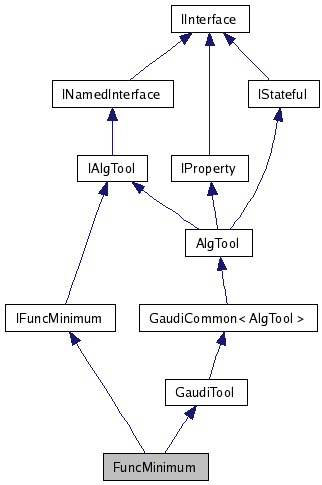

Inheritance diagram for FuncMinimum:

[legend]

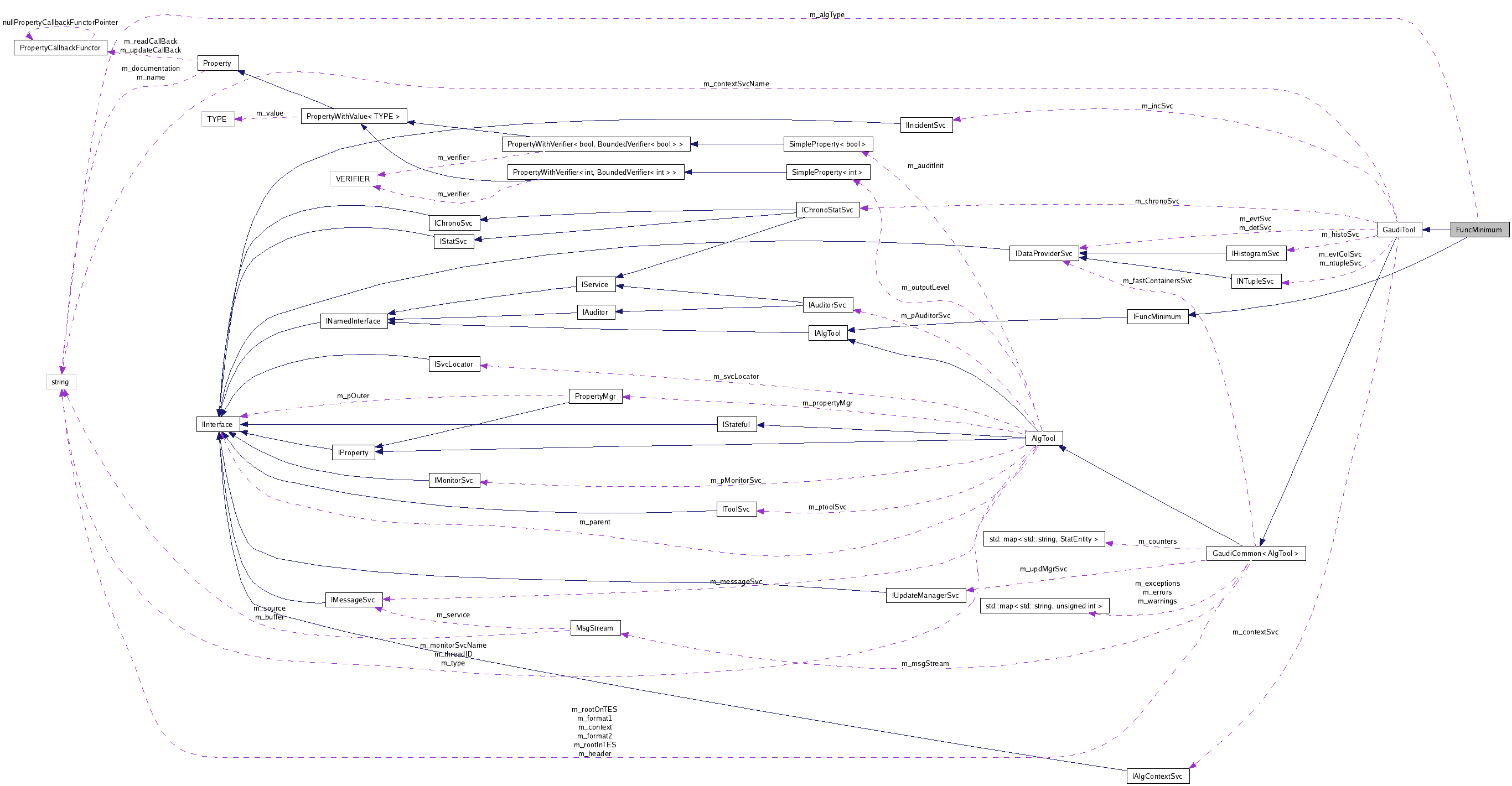

Collaboration diagram for FuncMinimum:

[legend]

List of all members.

Detailed Description

The simplest concrete implementation of IFuncMinimum interface.

See also:: GaudiGSL/IFuncMinimum.h

Author:: Kirill Miklyaev kirillm@iris1.itep.ru

Date:: 2002-09-14

Definition at line 29 of file FuncMinimum.h.


Public Types
typedef std::vector< const GenFunc * >	Gradient
Public Member Functions
virtual StatusCode	minimum (const GenFunc &func, Arg &arg) const
	Find minimum of the function "GenFunc".
virtual StatusCode	minimum (const GenFunc &func, Arg &arg, Covariance &covar) const
	Find minimum of the function "GenFunc".
virtual StatusCode	initialize ()
	Overriding initialize.
virtual StatusCode	finalize ()
	standard finalization method
virtual	~FuncMinimum ()
	Destructor.
	FuncMinimum (const std::string &type, const std::string &name, const IInterface *parent)
	Standard constructor.
Private Member Functions
	FuncMinimum ()
	default constructor is private
	FuncMinimum (const FuncMinimum &)
	copy constructor is private
FuncMinimum &	operator= (const FuncMinimum &)
	assignement operator is
Private Attributes
std::string	m_algType
double	m_max_iter
double	m_norm_gradient
double	m_step_size
double	m_tol
const gsl_multimin_fdfminimizer_type *	m_type
	AlgTool type (concrete class name).
Friends
class	ToolFactory< FuncMinimum >
Classes
class	FuncMinimumMisc

Member Typedef Documentation

typedef std::vector<const GenFunc*> FuncMinimum::Gradient

Definition at line 37 of file FuncMinimum.h.

Constructor & Destructor Documentation

FuncMinimum::~FuncMinimum ( ) [virtual]

Destructor.

Definition at line 359 of file FuncMinimum.cpp.

00361 {}

FuncMinimum::FuncMinimum	(	const std::string &	type,
		const std::string &	name,
		const IInterface *	parent
	)

Standard constructor.

See also:: GaudiTool

Parameters:

	type	tool type
	name	tool name
	parent	parent of the tool

declare my special interface

declare type of the algorithm for multidimensional minimization

declare maximum of iteration

declare the absolute tolerence for the Euclidean norm of the gradient

declare the size of the first trial step

declare the accuracy of the line minimization

Definition at line 61 of file FuncMinimum.cpp.

00064   : GaudiTool       ( type, name , parent )
00065   , m_algType       ( "conjugate_fr"      )
00066   , m_max_iter      ( 200                 )
00067   , m_norm_gradient ( 1.0e-10             )
00068   , m_step_size     ( 0.01                )
00069   , m_tol           ( 1e-10               )
00070   , m_type          ( 0                   )
00071 {
00072
00074   declareInterface <IFuncMinimum>(this);
00075
00077   declareProperty ( "Algorithm", m_algType       );
00079   declareProperty ( "Iteration", m_max_iter      );
00081   declareProperty ( "Gradient" , m_norm_gradient );
00083   declareProperty ( "Step_size", m_step_size     );
00085   declareProperty ( "Tol"      , m_tol           );
00086 }

FuncMinimum::FuncMinimum ( ) [private]

default constructor is private

FuncMinimum::FuncMinimum ( const FuncMinimum & ) [private]

copy constructor is private

Member Function Documentation

virtual StatusCode FuncMinimum::minimum	(	const GenFunc &	func,
		Arg &	arg
	)			const `[virtual]`

Find minimum of the function "GenFunc".

See also:: IFuncMinimum.h

Returns:: StatusCode

virtual StatusCode FuncMinimum::minimum	(	const GenFunc &	func,
		Arg &	arg,
		Covariance &	covar
	)			const `[virtual]`

Find minimum of the function "GenFunc".

See also:: IFuncMinimum.h

Returns:: StatusCode

StatusCode FuncMinimum::initialize ( ) [virtual]

Overriding initialize.

The algorithm for multidimensional minimization

Reimplemented from GaudiTool.

Definition at line 293 of file FuncMinimum.cpp.

00295 {
00296   StatusCode sc = GaudiTool::initialize() ;
00297
00298   MsgStream log( msgSvc() , name() ) ;
00299
00300   if ( sc.isFailure() )
00301     {
00302       return Error ("Could not initiliaze base class GaudiTool", sc);
00303     }
00304
00306   if(       "conjugate_fr" == m_algType )
00307     {
00308       m_type = gsl_multimin_fdfminimizer_conjugate_fr     ;
00309       log << MSG::DEBUG
00310           << "Minimization algorithm to be used: "
00311           << "'gsl_multimin_fdfminimizer_conjugate_fr'"
00312           << endreq;
00313     }
00314   else if ( "conjugate_pr" == m_algType )
00315     {
00316       m_type = gsl_multimin_fdfminimizer_conjugate_pr     ;
00317       log << MSG::DEBUG
00318           << "Minimization algorithm to be used: "
00319           << "'gsl_multimin_fdfminimizer_conjugate_pr'"
00320           << endreq;
00321     }
00322   else if ( "vector_bfgs" == m_algType )
00323     {
00324       m_type = gsl_multimin_fdfminimizer_vector_bfgs      ;
00325       log << MSG::DEBUG
00326           << "Minimization algorithm to be used: " <<
00327           "'gsl_multimin_fdfminimizer_vector_bfgs'" << endreq;
00328     }
00329   else if ( "steepest_descent" == m_algType )
00330     {
00331       m_type = gsl_multimin_fdfminimizer_steepest_descent ;
00332       log << MSG::DEBUG
00333           << "Minimization algorithm to be used: "
00334           << "'gsl_multimin_fdfminimizer_steepest_descent'"
00335           << endreq;
00336     }
00337   else
00338     {
00339       return Error(" Unknown algorith type '"
00340                    + std::string(m_algType) + "'");
00341     }
00342
00343   return StatusCode::SUCCESS;
00344 }

StatusCode FuncMinimum::finalize ( void ) [virtual]

standard finalization method

See also:: AlgTool
IAlgTool

Returns:: status code

Reimplemented from GaudiTool.

Definition at line 346 of file FuncMinimum.cpp.

00347 {
00348   StatusCode sc = GaudiTool::finalize() ;
00349
00350   MsgStream log( msgSvc() , name() ) ;
00351
00352   if ( sc.isFailure() )
00353     {
00354       return Error("Could not finaliaze base class GaudiTool", sc);
00355     }
00356   return StatusCode::SUCCESS;
00357 };

FuncMinimum& FuncMinimum::operator= ( const FuncMinimum & ) [private]

assignement operator is

Friends And Related Function Documentation

friend class ToolFactory< FuncMinimum > [friend]

Definition at line 35 of file FuncMinimum.h.

Member Data Documentation

std::string FuncMinimum::m_algType [private]

Definition at line 112 of file FuncMinimum.h.

double FuncMinimum::m_max_iter [private]

Definition at line 113 of file FuncMinimum.h.

double FuncMinimum::m_norm_gradient [private]

Definition at line 114 of file FuncMinimum.h.

double FuncMinimum::m_step_size [private]

Definition at line 115 of file FuncMinimum.h.

double FuncMinimum::m_tol [private]

Definition at line 116 of file FuncMinimum.h.

const gsl_multimin_fdfminimizer_type* FuncMinimum::m_type [private]

AlgTool type (concrete class name).

Reimplemented from AlgTool.

Definition at line 117 of file FuncMinimum.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r3/GaudiGSL/src/Components/FuncMinimum.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r3/GaudiGSL/src/Components/FuncMinimum.cpp

	Gaudi Framework, version v20r3
	Generated: 24 Nov 2008
