ITupleTool Class Reference

#include <GaudiTools/ITupleTool.h>

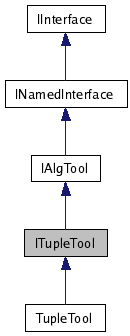

Inheritance diagram for ITupleTool:

[legend]

Collaboration diagram for ITupleTool:

[legend]

List of all members.

---

Detailed Description

Author:

Vanya BELYAEV Ivan.Belyaev@itep.ru

Date:

2004-06-28

Definition at line 33 of file ITupleTool.h.

Public Types
typedef Tuples::TupleID	TupleID
typedef Tuples::Tuple	Tuple
Public Member Functions
virtual Tuple	nTuple (const std::string &title, const CLID &clid=CLID_ColumnWiseTuple) const =0
	get N-tuple object ( book on-demand ) with unique identidier
virtual Tuple	nTuple (const TupleID &ID, const std::string &title="", const CLID &clid=CLID_ColumnWiseTuple) const =0
virtual Tuple	evtCol (const std::string &title, const CLID &clid=CLID_RowWiseTuple) const =0
virtual Tuple	evtCol (const TupleID &ID, const std::string &title="", const CLID &clid=CLID_RowWiseTuple) const =0
Static Public Member Functions
static const InterfaceID &	interfaceID ()
	Return the unique interface ID.
Protected Member Functions
virtual	~ITupleTool ()
	Destructor.

---

Member Typedef Documentation

typedef Tuples::TupleID ITupleTool::TupleID

Reimplemented in TupleTool.

Definition at line 36 of file ITupleTool.h.

typedef Tuples::Tuple ITupleTool::Tuple

Reimplemented in TupleTool.

Definition at line 37 of file ITupleTool.h.

---

Constructor & Destructor Documentation

ITupleTool::~ITupleTool

(

)

[protected, virtual]

Destructor.

virtual protected destructor

Definition at line 31 of file ITupleTool.cpp.

{}

---

Member Function Documentation

const InterfaceID & ITupleTool::interfaceID

(

)

[static]

Return the unique interface ID.

Reimplemented from IAlgTool.

Definition at line 25 of file ITupleTool.cpp.

{ return IID_ITupleTool ; };

virtual Tuple ITupleTool::nTuple	(	const std::string &	title,
		const CLID &	clid = CLID_ColumnWiseTuple
	)			const [pure virtual]

get N-tuple object ( book on-demand ) with unique identidier

  ITupleTool* tool = .. ;
  Tuple tuple = tool->nTuple( 'My tuple' ) ;
  tuple->column( "A" , sin(0.1) );
  tuple->column( "B" , cos(0.1) );
  tuple->column( "C" , tan(0.1) );
  tuple->write()

NTuple will be booked with automatically assigned numerical ID

Parameters:

	title	unique title for ntuple
	clid	class identifier

Returns:

ntuple object

Implemented in TupleTool.

virtual Tuple ITupleTool::nTuple	(	const TupleID &	ID,
		const std::string &	title = "",
		const CLID &	clid = CLID_ColumnWiseTuple
	)			const [pure virtual]

Implemented in TupleTool.

virtual Tuple ITupleTool::evtCol	(	const std::string &	title,
		const CLID &	clid = CLID_RowWiseTuple
	)			const [pure virtual]

Implemented in TupleTool.

virtual Tuple ITupleTool::evtCol	(	const TupleID &	ID,
		const std::string &	title = "",
		const CLID &	clid = CLID_RowWiseTuple
	)			const [pure virtual]

Implemented in TupleTool.

---

The documentation for this class was generated from the following files:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r3/GaudiAlg/GaudiAlg/ITupleTool.h
• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r3/GaudiAlg/src/lib/ITupleTool.cpp
