PoolDbNTupleCnv Class Reference

#include <PoolDb/PoolDbNTupleCnv.h>

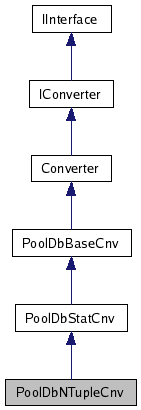

Inheritance diagram for PoolDbNTupleCnv:

[legend]

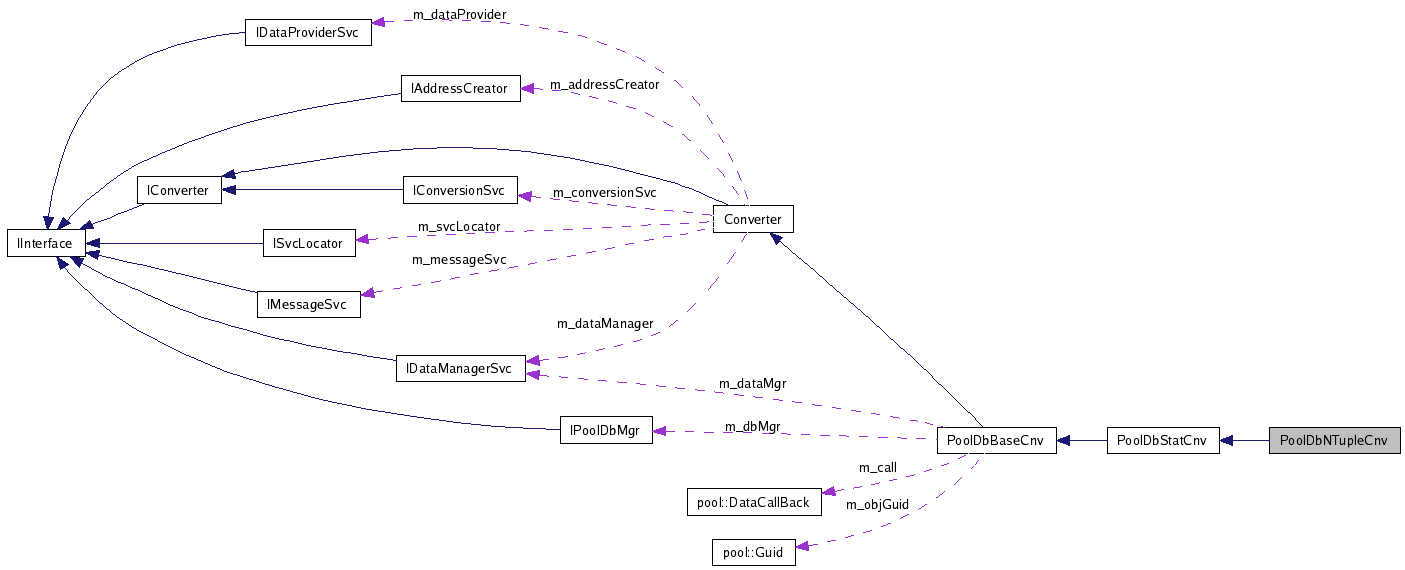

Collaboration diagram for PoolDbNTupleCnv:

[legend]

List of all members.

Detailed Description

NTuple converter class definition.

Description: Definition of the generic converter for row wise and column wise Ntuples.

Author:: M.Frank

Version:: 1.0

Definition at line 30 of file PoolDbNTupleCnv.h.


Public Member Functions
	PoolDbNTupleCnv (long typ, const CLID &clid, ISvcLocator *svc)
	Standard constructor.
virtual	~PoolDbNTupleCnv ()
	Standard destructor.
virtual StatusCode	createRep (DataObject pObject, IOpaqueAddress &refpAddress)
	Converter overrides: Convert the transient object to the requested representation.
virtual StatusCode	fillRepRefs (IOpaqueAddress pAddress, DataObject pObject)
	Resolve the references of the converted object.
virtual StatusCode	createObj (IOpaqueAddress pAddress, DataObject &refpObject)
	Converter overrides: Update the references of an updated transient object.
virtual StatusCode	fillObjRefs (IOpaqueAddress , DataObject )
	Converter overrides: Update the references of an updated transient object.
virtual StatusCode	updateObj (IOpaqueAddress pAddress, DataObject pObject)
	Update the transient object: NTuples end here when reading records.
virtual StatusCode	updateObjRefs (IOpaqueAddress , DataObject )
	Converter overrides: Update the references of an updated transient object.
virtual StatusCode	updateRep (IOpaqueAddress , DataObject )
	Converter overrides: Update the converted representation of a transient object.
virtual StatusCode	updateRepRefs (IOpaqueAddress , DataObject )
	Converter overrides: Update the converted representation of a transient object.
Protected Member Functions
StatusCode	bindRead (INTuple pTuple, PoolDbTupleCallback call)
	Callback to bind N-tuple data for reading.
StatusCode	readData (INTuple pTuple, PoolDbTupleCallback call)
	Callback to extract N-tuple data which needed to be put into BLOBs.
StatusCode	bindWrite (INTuple pTuple, PoolDbTupleCallback call)
	Callback to bind N-tuple data for writing.

Constructor & Destructor Documentation

PoolDbNTupleCnv::PoolDbNTupleCnv	(	long	typ,
		const CLID &	clid,
		ISvcLocator *	svc
	)

Standard constructor.

Parameters:

	clid	[IN] Class ID of the object type to be converted.
	db	[IN] Pointer to POOL database interface
	svc	[IN] Pointer to Gaudi service locator

Returns:: Reference to PoolDbNTupleCnv object

Definition at line 226 of file PoolDbNTupleCnv.cpp.

00227 : PoolDbStatCnv(typ, clid, svc)
00228 {
00229   m_class = 0;
00230 }

PoolDbNTupleCnv::~PoolDbNTupleCnv ( ) [virtual]

Standard destructor.

Definition at line 232 of file PoolDbNTupleCnv.cpp.

00232                                    {
00233 }

Member Function Documentation

StatusCode PoolDbNTupleCnv::bindRead	(	INTuple *	pTuple,
		PoolDbTupleCallback *	call
	)			`[protected]`

Callback to bind N-tuple data for reading.

Parameters:

	pTuple	[IN] Pointer to N-tuple structure
	call	[IN] Pointer to N-tuple callback structure

Returns:: StatusCode indicating success or failure

Definition at line 667 of file PoolDbNTupleCnv.cpp.

00669 {
00670   typedef INTuple::ItemContainer Cont;
00671   int cnt = 0;
00672   //pool::DbBlob&                  s       = cb->stream();
00673   std::vector<void*>&            addr    = cb->addresses();
00674   std::vector<PoolDbTokenWrap*>& links   = cb->links();
00675   const std::vector<int>&        mapping = cb->mapping();
00676   Cont&                          items   = nt->items();
00677   for (Cont::iterator i = items.begin(); i != items.end(); ++i, ++cnt )   {
00678     int count = mapping[cnt];
00679     if ( count >= 0 )  {
00680       char* buf = (char*)(*i)->buffer();
00681       switch( (*i)->type() )   {
00682         case DataTypeInfo::OBJECT_ADDR:
00683           addr[count] = &links[cnt];
00684           break;
00685         default:
00686           addr[count] = buf;
00687           break;
00688       }
00689     }
00690   }
00691   return S_OK;
00692 }

StatusCode PoolDbNTupleCnv::readData	(	INTuple *	pTuple,
		PoolDbTupleCallback *	call
	)			`[protected]`

Callback to extract N-tuple data which needed to be put into BLOBs.

Parameters:

	pTuple	[IN] Pointer to N-tuple structure
	call	[IN] Pointer to N-tuple callback structure

Returns:: StatusCode indicating success or failure

Definition at line 694 of file PoolDbNTupleCnv.cpp.

00696 {
00697   typedef INTuple::ItemContainer Cont;
00698   int cnt = 0;
00699   pool::DbBlob&                  s       = cb->stream();
00700   std::vector<PoolDbTokenWrap*>& links   = cb->links();
00701   const std::vector<int>&        mapping = cb->mapping();
00702   INTuple::ItemContainer&        items   = nt->items();
00703   for (Cont::iterator i = items.begin(); i != items.end(); ++i, ++cnt )   {
00704     int count = mapping[cnt];
00705     int typ   = (*i)->type();
00706     if(count < 0 || typ == DataTypeInfo::OBJECT_ADDR || typ == DataTypeInfo::POINTER)  {
00707       char* buf = (char*)(*i)->buffer();
00708       int sc = 11;
00709       switch( (*i)->type() )   {
00710       case DataTypeInfo::UCHAR:       sc=load<unsigned char> (s,buf); break;
00711       case DataTypeInfo::USHORT:      sc=load<unsigned short>(s,buf); break;
00712       case DataTypeInfo::UINT:        sc=load<unsigned int>  (s,buf); break;
00713       case DataTypeInfo::ULONG:       sc=load<unsigned long> (s,buf); break;
00714       case DataTypeInfo::CHAR:        sc=load<char>          (s,buf); break;
00715       case DataTypeInfo::SHORT:       sc=load<short>         (s,buf); break;
00716       case DataTypeInfo::INT:         sc=load<int>           (s,buf); break;
00717       case DataTypeInfo::LONG:        sc=load<long>          (s,buf); break;
00718       case DataTypeInfo::BOOL:        sc=load<bool>          (s,buf); break;
00719       case DataTypeInfo::FLOAT:       sc=load<float>         (s,buf); break;
00720       case DataTypeInfo::DOUBLE:      sc=load<double>        (s,buf); break;
00721       case DataTypeInfo::STRING:      sc=load<std::string>   (s,buf); break;
00722       case DataTypeInfo::NTCHAR:      sc=load<char*>         (s,buf); break;
00723       case DataTypeInfo::OBJECT_ADDR: sc=load(buf,links[count]);      break;
00724       case DataTypeInfo::POINTER:                                     break;
00725       case DataTypeInfo::UNKNOWN:                                     break;
00726       default:                                                        break;
00727       }
00728       if ( 0 != sc )  {
00729         MsgStream log(msgSvc(), "PoolDbNTupleCnv");
00730         log << MSG::DEBUG;
00731         switch (sc)  {
00732           case 10:
00733             log << "CANNOT Set Ntuple token: dynamic_cast<GenericAddress*> is NULL";
00734           break;
00735           case 11:
00736               log << "CANNOT Set Ntuple token: invalid address buffer";
00737           break;
00738         }
00739         log << endmsg;
00740       }
00741     }
00742   }
00743   return S_OK;
00744 }

StatusCode PoolDbNTupleCnv::bindWrite	(	INTuple *	pTuple,
		PoolDbTupleCallback *	call
	)			`[protected]`

Callback to bind N-tuple data for writing.

Parameters:

	pTuple	[IN] Pointer to N-tuple structure
	call	[IN] Pointer to N-tuple callback structure

Returns:: StatusCode indicating success or failure

Definition at line 747 of file PoolDbNTupleCnv.cpp.

00748 {
00749   int cnt = 0;
00750   pool::DbBlob&                  s       = cb->stream();
00751   std::vector<void*>&            addr    = cb->addresses();
00752   std::vector<PoolDbTokenWrap*>& links   = cb->links();
00753   const std::vector<int>&        mapping = cb->mapping();
00754   const INTuple::ItemContainer&  items   = nt->items();
00755   INTuple::ItemContainer::const_iterator i;
00756
00757   s.setMode(pool::DbBlob::WRITING);
00758   for(i = items.begin(); i != items.end(); ++i, ++cnt )   {
00759     char* b     = (char*)(*i)->buffer();
00760     int   len   = (*i)->filled();
00761     long  ndim  = (*i)->ndim();
00762     int   count = mapping[cnt];
00763     void* ptr = 0;
00764     switch( (*i)->type() )  {
00765     case DataTypeInfo::UCHAR:       ptr=save<unsigned char >(s,b,len,ndim>0); break;
00766     case DataTypeInfo::USHORT:      ptr=save<unsigned short>(s,b,len,ndim>0); break;
00767     case DataTypeInfo::UINT:        ptr=save<unsigned int  >(s,b,len,ndim>0); break;
00768     case DataTypeInfo::ULONG:       ptr=save<unsigned long >(s,b,len,ndim>0); break;
00769     case DataTypeInfo::CHAR:        ptr=save<char          >(s,b,len,ndim>0); break;
00770     case DataTypeInfo::SHORT:       ptr=save<short         >(s,b,len,ndim>0); break;
00771     case DataTypeInfo::INT:         ptr=save<int           >(s,b,len,ndim>0); break;
00772     case DataTypeInfo::LONG:        ptr=save<long          >(s,b,len,ndim>0); break;
00773     case DataTypeInfo::BOOL:        ptr=save<bool          >(s,b,len,ndim>0); break;
00774     case DataTypeInfo::FLOAT:       ptr=save<float         >(s,b,len,ndim>0); break;
00775     case DataTypeInfo::DOUBLE:      ptr=save<double        >(s,b,len,ndim>0); break;
00776     case DataTypeInfo::STRING:      ptr=save<std::string   >(s,b,len,ndim>0); break;
00777     case DataTypeInfo::NTCHAR:      ptr=save<char*         >(s,b,len,ndim>0); break;
00778     case DataTypeInfo::POINTER:     ptr=*(void**)b;                           break;
00779     case DataTypeInfo::OBJECT_ADDR: ptr=save(b,links[count]);                 break;
00780     case DataTypeInfo::UNKNOWN:                                               break;
00781     default:                     /* Do we have to take some action here ? */  break;
00782     }
00783     if ( count >= 0 )  {
00784       addr[count] = ptr;
00785     }
00786   }
00787   return S_OK;
00788 }

StatusCode PoolDbNTupleCnv::createRep	(	DataObject *	pObject,
		IOpaqueAddress *&	refpAddress
	)			`[virtual]`

Converter overrides: Convert the transient object to the requested representation.

Convert the transient object to the requested representation.

Parameters:

	pObject	[IN] Valid pointer to DataObject
	refpAddress	[OUT] Location to store pointer to the object's opaque address

Returns:: Status code indicating success or failure

Reimplemented from PoolDbBaseCnv.

Definition at line 414 of file PoolDbNTupleCnv.cpp.

00414                                                                     {
00415   IRegistry* pRegistry = pObj->registry();
00416   if ( 0 != pRegistry )  {
00417     pAddr = pRegistry->address();
00418     PoolDbAddress* pdbA = dynamic_cast<PoolDbAddress*>(pAddr);
00419     if ( 0 == pdbA )  {
00420       const INTuple* nt  = dynamic_cast<const INTuple*>(pObj);
00421       std::string    loc = containerName(pObj->registry());
00422       if ( 0 != nt )  {
00423         const INTuple::ItemContainer& items = nt->items();
00424         std::vector<const pool::DbColumn*> cols;
00425         std::vector<int> item_map(items.size()+1,-1);
00426         std::ostringstream os;
00427         int pool_type = 0;
00428         size_t item_no;
00429         os << nt->title()<<';'<<pObj->clID()<<';'<<items.size()<< ';';
00430         for(item_no = 0; item_no < items.size(); ++item_no ) {
00431           pool::DbColumn* col = 0;
00432           INTupleItem* it = items[item_no];
00433           os << '{'
00434              << it->name()      << ';'
00435              << it->type()      << ';'
00436              << it->length()    << ';'
00437              << it->ndim()      << ';'
00438              << it->hasIndex()  << ';';
00439           if ( it->hasIndex() )   {
00440             os << it->index() << ';';
00441             INTupleItem* itm = it->indexItem();
00442             switch( itm->type() )    {
00443             case DataTypeInfo::UCHAR:
00444               putRange(os, dynamic_cast<NTuple::_Data<unsigned char>*>(itm));
00445               break;
00446             case DataTypeInfo::USHORT:
00447               putRange(os, dynamic_cast<NTuple::_Data<unsigned short>*>(itm));
00448               break;
00449             case DataTypeInfo::UINT:
00450               putRange(os, dynamic_cast<NTuple::_Data<unsigned int>*>(itm));
00451               break;
00452             case DataTypeInfo::ULONG:
00453               putRange(os, dynamic_cast<NTuple::_Data<unsigned long>*>(itm));
00454               break;
00455             case DataTypeInfo::CHAR:
00456               putRange(os, dynamic_cast<NTuple::_Data<char>*>(itm));
00457               break;
00458             case DataTypeInfo::SHORT:
00459               putRange(os, dynamic_cast<NTuple::_Data<short>*>(itm));
00460               break;
00461             case DataTypeInfo::INT:
00462               putRange(os, dynamic_cast<NTuple::_Data<int>*>(itm));
00463               break;
00464             case DataTypeInfo::LONG:
00465               putRange(os, dynamic_cast<NTuple::_Data<long>*>(itm));
00466               break;
00467             default: {
00468               MsgStream err(msgSvc(), "NTuple:"+pRegistry->name());
00469               err << MSG::ERROR << "Column " << it->index()
00470                   << " is not a valid index column!" << endreq;
00471               return S_FAIL;
00472               }
00473             }
00474           }
00475           for ( long k = 0; k < it->ndim(); k++ )  {
00476             os << it->dim(k) << ';';
00477           }
00478           switch(it->type())  {
00479             case DataTypeInfo::STRING:
00480               pool_type = pool::DbColumn::STRING;
00481               os << 0 << ';' << 0 << ';';
00482               break;
00483             case DataTypeInfo::NTCHAR:
00484               pool_type = pool::DbColumn::NTCHAR;
00485               os << 0 << ';' << 0 << ';';
00486               break;
00487             case DataTypeInfo::OBJECT_ADDR:
00488               if ( it->length() == 1 )  {
00489                 col = new pool::DbColumn(it->name(),
00490                                          pool::typeName(typeid(PoolDbTokenWrap)),
00491                                          pool::DbColumn::POINTER,
00492                                          0);
00493                 item_map[item_no] = cols.size();
00494                 cols.push_back(col);
00495               }
00496               os << 0 << ';' << 0 << ';';
00497               break;
00498             case DataTypeInfo::POINTER:
00499               if ( it->length() == 1 )  {
00500                 ROOT::Reflex::Type typ = ROOT::Reflex::Type::ByName(it->typeName());
00501                 col = new pool::DbColumn(it->name(),
00502                                          typ.Name(ROOT::Reflex::SCOPED),
00503                                          pool::DbColumn::POINTER,
00504                                          0);
00505                 item_map[item_no] = cols.size();
00506                 cols.push_back(col);
00507                 os << 0 << ';' << 0 << ';';
00508               }
00509               break;
00510             case DataTypeInfo::UCHAR:
00511               pool_type = pool::DbColumn::UCHAR;
00512               putRange(os, dynamic_cast<NTuple::_Data<unsigned char>*>(it));
00513               goto MakeCol;
00514             case DataTypeInfo::USHORT:
00515               pool_type = pool::DbColumn::USHORT;
00516               putRange(os, dynamic_cast<NTuple::_Data<unsigned short>*>(it));
00517               goto MakeCol;
00518             case DataTypeInfo::UINT:
00519               pool_type = pool::DbColumn::UINT;
00520               putRange(os, dynamic_cast<NTuple::_Data<unsigned int>*>(it));
00521               goto MakeCol;
00522             case DataTypeInfo::ULONG:
00523               pool_type = pool::DbColumn::ULONG;
00524               putRange(os, dynamic_cast<NTuple::_Data<unsigned long>*>(it));
00525               goto MakeCol;
00526             case DataTypeInfo::CHAR:
00527               pool_type = pool::DbColumn::CHAR;
00528               putRange(os, dynamic_cast<NTuple::_Data<char>*>(it));
00529               goto MakeCol;
00530             case DataTypeInfo::SHORT:
00531               pool_type = pool::DbColumn::SHORT;
00532               putRange(os, dynamic_cast<NTuple::_Data<short>*>(it));
00533               goto MakeCol;
00534             case DataTypeInfo::INT:
00535               pool_type = pool::DbColumn::INT;
00536               putRange(os, dynamic_cast<NTuple::_Data<int>*>(it));
00537               goto MakeCol;
00538             case DataTypeInfo::LONG:
00539               pool_type = pool::DbColumn::LONG;
00540               putRange(os, dynamic_cast<NTuple::_Data<long>*>(it));
00541               goto MakeCol;
00542             case DataTypeInfo::BOOL:
00543               pool_type = pool::DbColumn::BOOL;
00544               putRange(os, dynamic_cast<NTuple::_Data<bool>*>(it));
00545               goto MakeCol;
00546             case DataTypeInfo::FLOAT:
00547               pool_type = pool::DbColumn::FLOAT;
00548               putRange(os, dynamic_cast<NTuple::_Data<float>*>(it));
00549               goto MakeCol;
00550             case DataTypeInfo::DOUBLE:
00551               pool_type = pool::DbColumn::DOUBLE;
00552               putRange(os, dynamic_cast<NTuple::_Data<double>*>(it));
00553               goto MakeCol;
00554   MakeCol:
00555               if ( it->length() == 1 )  {
00556                 pool::DbColumn* col = new pool::DbColumn(it->name(),
00557                                                          pool_type,
00558                                                          0,
00559                                                          DataTypeInfo::size(it->type()));
00560                 item_map[item_no] = cols.size();
00561                 cols.push_back(col);
00562               }
00563               // Everything else CANNOT be identified using SQL
00564             break;
00565             case DataTypeInfo::UNKNOWN:
00566             default:
00567               std::cout << "Create item[FAIL]]: " << it->name()
00568                         << " Typ:" << it->type() << std::endl;
00569               break;
00570           }
00571           os << '}';
00572         }
00573         item_map[item_no] = cols.size();
00574         pool::DbColumn* col =
00575           new pool::DbColumn("BlobData",
00576                              pool::DbColumn::BLOB,
00577                              0,
00578                              DataTypeInfo::size(pool::DbColumn::BLOB));
00579         cols.push_back(col);
00580         pool::Guid guid;
00581         std::string cntName = containerName(pRegistry);
00582         std::string path    = fileName(pRegistry);
00583         genMD5(os.str(), &guid);
00584         const pool::DbTypeInfo* typH = pool::DbTypeInfo::createEx(guid, cols);
00585         StatusCode sc = saveDescription(path,
00586                                         cntName,
00587                                         os.str(),
00588                                         typH->toString(),
00589                                         guid,
00590                                         pObj->clID(),
00591                                         "UPDATE");
00592         if ( sc.isSuccess() )  {
00593           // Check if the database container can be connected
00594           pool::DbContainer cntH(POOL_StorageType);
00595           StatusCode sc =
00596             m_dbMgr->connectContainer(IPoolDbMgr::UNKNOWN,
00597                                       path,
00598                                       cntName,
00599                                       pool::RECREATE|pool::UPDATE,
00600                                       typH,
00601                                       cntH);
00602           if ( sc.isSuccess() )  {
00603             PoolDbTupleCallback* hdlr = new PoolDbTupleCallback(pObj);
00604             pool::Token*         tok = new pool::Token(cntH.token());
00605             PoolDbAddress*       add = new PoolDbAddress(tok);
00606             hdlr->configure(nt, typH, cntH);
00607             tok->oid().second = 0;
00608             tok->release();
00609             pAddr = add;
00610             add->setHandler(hdlr);
00611             return m_dbMgr->commitOutput(path, true);
00612           }
00613           return S_FAIL;
00614         }
00615         return sc;
00616       }
00617     }
00618     else  {
00619       return S_OK;
00620     }
00621   }
00622   return S_FAIL;
00623 }

StatusCode PoolDbNTupleCnv::fillRepRefs	(	IOpaqueAddress *	pAddress,
		DataObject *	pObject
	)			`[virtual]`

Resolve the references of the converted object.

Parameters:

	pAddress	[IN] Valid pointer to the object's opaque address
	pObject	[IN] Valid pointer to DataObject

Returns:: Status code indicating success or failure

Reimplemented from PoolDbBaseCnv.

Definition at line 627 of file PoolDbNTupleCnv.cpp.

00628 {
00629   INTuple* pTuple = dynamic_cast<INTuple*>(pObj);
00630   if ( pTuple )  {
00631     IRegistry* pRegistry = pObj->registry();
00632     if ( 0 != pRegistry )  {
00633       pAddr = pRegistry->address();
00634       PoolDbAddress* pdbA = dynamic_cast<PoolDbAddress*>(pAddr);
00635       if ( 0 != pdbA )  {
00636         PoolDbTupleCallback* cb = dynamic_cast<PoolDbTupleCallback*>(pdbA->handler());
00637         if ( cb )  {
00638           const pool::DbTypeInfo* typH = dynamic_cast<const pool::DbTypeInfo*>(cb->shape());
00639           if ( typH )  {
00640             if ( bindWrite(pTuple, cb).isSuccess() )  {
00641               std::string path = fileName(pRegistry);
00642               std::string cntName = containerName(pRegistry);
00643               if ( !m_dbMgr->connectOutput(path, "UPDATE").isSuccess() )  {
00644                 MsgStream log(msgSvc(), "PoolDbNTupleCnv");
00645                 log << MSG::ERROR << "Error: connectOutput(path, UPDATE)" << endmsg;
00646                 return S_FAIL;
00647               }
00648               if ( m_dbMgr->markWrite(cb->clone(), cntName, &pdbA).isSuccess() ) {
00649                             if ( m_dbMgr->commitOutput(path, true).isSuccess() )  {
00650                               typedef INTuple::ItemContainer Cont;
00651                               Cont& it = pTuple->items();
00652                               for(Cont::iterator i = it.begin(); i != it.end(); ++i)  {
00653                                 (*i)->reset();
00654                               }
00655                               return S_OK;
00656                             }
00657               }
00658             }
00659           }
00660         }
00661       }
00662     }
00663   }
00664   return S_FAIL;
00665 }

StatusCode PoolDbNTupleCnv::createObj	(	IOpaqueAddress *	pAddress,
		DataObject *&	refpObject
	)			`[virtual]`

Converter overrides: Update the references of an updated transient object.

Parameters:

	pAddress	[IN] Valid pointer to the object's opaque address
	refpObject	[OUT] Location to store pointer to DataObject

Returns:: Status code indicating success or failure

Reimplemented from PoolDbBaseCnv.

Definition at line 237 of file PoolDbNTupleCnv.cpp.

00238 {
00239   StatusCode status = S_FAIL;
00240   PoolDbAddress* pdbA = dynamic_cast<PoolDbAddress*>(pAddress);
00241   if ( 0 != pdbA )  {
00242     const pool::Token* tok = pdbA->token();
00243     if ( tok )  {
00244       pool::DbContainer cntH(tok->technology());
00245       status = m_dbMgr->connect(tok->dbID(),tok->contID(),cntH);
00246       if ( status.isSuccess() ) {
00247         std::string par_val, par_guid, par_typ;
00248         std::auto_ptr<pool::DbSelect> iter(m_dbMgr->createSelect("*", tok->dbID(), "GaudiStatisticsDescription"));
00249         if ( iter.get() )  {
00250           pool::Token* token;
00251           ROOT::Reflex::Type typ = pool::DbReflex::forTypeName("PoolDbNTupleDescriptor");
00252           pool::DbObjectCallBack* call = new pool::DbObjectCallBack(typ);
00253           while( iter->next(token).isSuccess() )  {
00254             typedef pool::DbObjectHandle<pool::DbObject> ObjH;
00255             pool::DbContainer& cH = iter->container();
00256             if ( ObjH::openEx(cH, *token, call, pool::READ).isSuccess() )  {
00257               PoolDbNTupleDescriptor* ref = (PoolDbNTupleDescriptor*)call->object();
00258               if ( ref->container == tok->contID() )  {
00259                 par_val  = ref->description;
00260                 par_typ  = ref->optional;
00261                 par_guid = ref->guid;
00262                 token->release();
00263                 call->release();
00264                 call = 0;
00265                 delete ref;
00266                 break;
00267               }
00268               delete ref;
00269             }
00270             token->release();
00271           }
00272           if ( call ) call->release();
00273         }
00274         if ( !par_val.empty() && !par_guid.empty() && !par_typ.empty() )
00275         {
00276           SmartIF<INTupleSvc> ntupleSvc(IID_INTupleSvc, dataProvider());
00277           if ( ntupleSvc.isValid() )  {
00278             char c;
00279             CLID clid;
00280             int siz, typ;
00281             std::string title;
00282             NTuple::Tuple* nt = 0;
00283             std::istringstream is(par_val);
00284             std::getline(is, title, ';') >> clid >> c >> siz >> c;
00285             status = ntupleSvc->create(clid, title, nt);
00286             for ( int j = 0; j < siz && status.isSuccess(); j++ ) {
00287               is >> c;
00288               std::getline(is, title, ';') >> typ >> c;
00289               switch ( typ )    {
00290               case DataTypeInfo::UCHAR:
00291                 status = createItem(nt, is, title, (unsigned char)0);
00292                 break;
00293               case DataTypeInfo::USHORT:
00294                 status = createItem(nt, is, title, (unsigned short)0);
00295                 break;
00296               case DataTypeInfo::UINT:
00297                 status = createItem(nt, is, title, (unsigned int)0);
00298                 break;
00299               case DataTypeInfo::ULONG:
00300                 status = createItem(nt, is, title, (unsigned long)0);
00301                 break;
00302               case DataTypeInfo::CHAR:
00303                 status = createItem(nt, is, title, char(0));
00304                 break;
00305               case DataTypeInfo::SHORT:
00306                 status = createItem(nt, is, title, short(0));
00307                 break;
00308               case DataTypeInfo::INT:
00309                 status = createItem(nt, is, title, int(0));
00310                 break;
00311               case DataTypeInfo::LONG:
00312                 status = createItem(nt, is, title, long(0));
00313                 break;
00314               case DataTypeInfo::BOOL:
00315                 status = createItem(nt, is, title, false);
00316                 break;
00317               case DataTypeInfo::FLOAT:
00318                 status = createItem(nt, is, title, float(0.0));
00319                 break;
00320               case DataTypeInfo::DOUBLE:
00321                 status = createItem(nt, is, title, double(0.0));
00322                 break;
00323                 /*
00324               case DataTypeInfo::NTCHAR:
00325               case DataTypeInfo::LONG_NTCHAR:
00326                 status =
00327                 createItem(nt, is, title, (char*)0);
00328                 break;
00329               case DataTypeInfo::STRING:
00330               case DataTypeInfo::LONG_STRING:
00331                 status =
00332                 createItem(nt, is, title, std::string(""));
00333                 break;
00334                 */
00335               case DataTypeInfo::OBJECT_ADDR:
00336                 status = createItem(nt, is, title, (IOpaqueAddress*)0);
00337                 break;
00338               case DataTypeInfo::POINTER:
00339                 status = createItem(nt, is, title, (void*)0);
00340                 break;
00341               case DataTypeInfo::UNKNOWN:
00342               default:
00343                 status = S_FAIL;
00344                 break;
00345               }
00346               if ( !status.isSuccess() )  {
00347                 MsgStream err(msgSvc(),"NTupleCnv");
00348                 err << MSG::FATAL
00349                     << "Error connecting (Unknown) column:" << j << endmsg
00350                     << par_val << endmsg;
00351                 return makeError("createObj[NTuple]> Cannot determine column!");
00352               }
00353             }
00354             if ( status.isSuccess() )  {
00355               PoolDbTupleCallback* hdlr = new PoolDbTupleCallback(nt);
00356               const pool::DbTypeInfo* typ = pool::DbTypeInfo::fromString(par_typ);
00357               hdlr->configure(nt, typ, cntH);
00358               pdbA->setHandler(hdlr);
00359               refpObject  = nt;
00360             }
00361             else {
00362               refpObject = 0;
00363               if ( nt ) nt->release();
00364             }
00365           }
00366         }
00367       }
00368     }
00369   }
00370   return status;
00371 }

virtual StatusCode PoolDbNTupleCnv::fillObjRefs	(	IOpaqueAddress *	,
		DataObject *
	)			`[inline, virtual]`

Converter overrides: Update the references of an updated transient object.

Parameters:

	pAddress	[IN] Valid pointer to the object's opaque address
	pObject	[IN] Valid pointer to DataObject

Returns:: Status code indicating success or failure

Reimplemented from PoolDbBaseCnv.

Definition at line 117 of file PoolDbNTupleCnv.h.

00119   {  return StatusCode::SUCCESS;                                      }

StatusCode PoolDbNTupleCnv::updateObj	(	IOpaqueAddress *	pAddress,
		DataObject *	pObject
	)			`[virtual]`

Update the transient object: NTuples end here when reading records.

Parameters:

	pAddress	[IN] Valid pointer to the object's opaque address
	pObject	[IN] Valid pointer to DataObject

Returns:: Status code indicating success or failure

Reimplemented from PoolDbBaseCnv.

Definition at line 375 of file PoolDbNTupleCnv.cpp.

00375                                                                    {
00376   INTuple*       tupl = dynamic_cast<INTuple*>(pObj);
00377   PoolDbAddress* pdbA = dynamic_cast<PoolDbAddress*>(pAddr);
00378   if ( 0 != tupl && 0 != pdbA )  {
00379     PoolDbTupleCallback* hdlr = dynamic_cast<PoolDbTupleCallback*>(pdbA->handler());
00380     pool::DbSelect* it = hdlr->iterator();
00381     if ( 0 == it )  {
00382       it = hdlr->select(tupl->selector());
00383     }
00384     if ( it )  {
00385       pool::Token* t = 0;
00386       if ( hdlr->iterator()->next(t).isSuccess() )  {
00387         std::auto_ptr<pool::Token> next(t);
00388         // Now reload!
00389         if ( bindRead(tupl, hdlr).isSuccess() )  {
00390           // No support for SmartRefs<T> for N-tuples
00391           //pushCurrentDataObject((DataObject**)&pObj);
00392           if ( m_dbMgr->read(hdlr, *next.get()).isSuccess() )  {
00393             if ( readData(tupl, hdlr).isSuccess() )  {
00394               //popCurrentDataObject();
00395               return S_OK;
00396             }
00397             //popCurrentDataObject();
00398             return makeError("updateObj> Cannot interprete data.");
00399           }
00400           //popCurrentDataObject();
00401           return makeError("updateObj> Cannot read data.");
00402         }
00403         return makeError("updateObj> Cannot bind data.");
00404       }
00405       return S_FAIL;
00406     }
00407     return makeError("updateObj> Token selection failed!");
00408   }
00409   return makeError("updateObj> Invalid Tuple reference.");
00410 }

virtual StatusCode PoolDbNTupleCnv::updateObjRefs	(	IOpaqueAddress *	,
		DataObject *
	)			`[inline, virtual]`

Converter overrides: Update the references of an updated transient object.

Parameters:

	pAddress	[IN] Valid pointer to the object's opaque address
	pObject	[IN] Valid pointer to DataObject

Returns:: Status code indicating success or failure

Reimplemented from PoolDbBaseCnv.

Definition at line 139 of file PoolDbNTupleCnv.h.

00141   {  return StatusCode::SUCCESS;                                      }

virtual StatusCode PoolDbNTupleCnv::updateRep	(	IOpaqueAddress *	,
		DataObject *
	)			`[inline, virtual]`

Converter overrides: Update the converted representation of a transient object.

Parameters:

	pAddress	[IN] Valid pointer to the object's opaque address
	pObject	[IN] Valid pointer to DataObject

Returns:: Status code indicating success or failure

Reimplemented from PoolDbBaseCnv.

Definition at line 151 of file PoolDbNTupleCnv.h.

00153   {  return StatusCode::SUCCESS;                                      }

virtual StatusCode PoolDbNTupleCnv::updateRepRefs	(	IOpaqueAddress *	,
		DataObject *
	)			`[inline, virtual]`

Converter overrides: Update the converted representation of a transient object.

Parameters:

	pAddress	[IN] Valid pointer to the object's opaque address
	pObject	[IN] Valid pointer to DataObject

Returns:: Status code indicating success or failure

Reimplemented from PoolDbBaseCnv.

Definition at line 163 of file PoolDbNTupleCnv.h.

00165   {  return StatusCode::SUCCESS;                                      }

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r3/GaudiPoolDb/GaudiPoolDb/PoolDbNTupleCnv.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r3/GaudiPoolDb/src/PoolDbNTupleCnv.cpp

	Gaudi Framework, version v20r3
	Generated: 24 Nov 2008

Gaudi Framework, version v20r3

PoolDbNTupleCnv Class Reference

Detailed Description

Public Member Functions

Protected Member Functions

Constructor & Destructor Documentation

Member Function Documentation
