Property Class Reference

#include <GaudiKernel/Property.h>

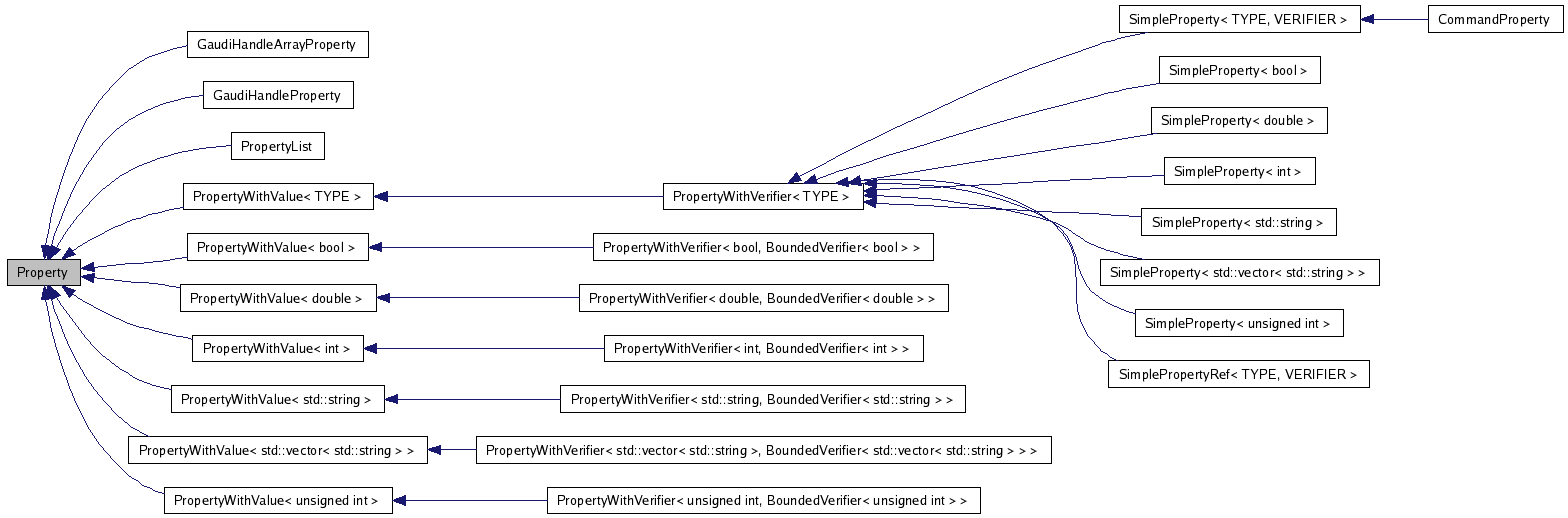

Inheritance diagram for Property:

[legend]

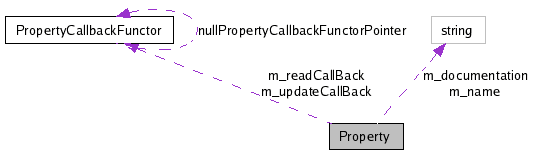

Collaboration diagram for Property:

[legend]

List of all members.

Detailed Description

Property base class allowing Property* collections to be "homogeneus".

Author:

Paul Maley

CTDay

Vanya BELYAEV ibelyaev@physics.syr.edu

Definition at line 46 of file Property.h.


Public Member Functions
const std::string &	name () const
	property name
const std::string &	documentation () const
	property documentation
const std::type_info *	type_info () const
	property type-info
std::string	type () const
	property type
virtual bool	load (Property &dest) const =0
	export the property value to the destination
virtual bool	assign (const Property &source)=0
	import the property value form the source
virtual std::string	toString () const =0
	value -> string
virtual StatusCode	fromString (const std::string &value)=0
	string -> value
const PropertyCallbackFunctor *	readCallBack () const
	Call-back functor at reading: the functor is ownered by property!
const PropertyCallbackFunctor *	updateCallBack () const
	Call-back functor for update: the funtor is ownered by property!
virtual void	declareReadHandler (PropertyCallbackFunctor *pf)
	set new callback for reading
virtual void	declareUpdateHandler (PropertyCallbackFunctor *pf)
	set new callback for update
template<class HT>
void	declareReadHandler (void(HT::MF)(Property &), HT instance)
template<class HT>
void	declareUpdateHandler (void(HT::MF)(Property &), HT instance)
virtual void	useReadHandler () const
	use the call-back function at reading
virtual void	useUpdateHandler ()
	use the call-back function at update
virtual	~Property ()
	virtual destructor
virtual Property *	clone () const =0
	clone: "virtual constructor"
void	setName (const std::string &value)
	set the new value for the property name
void	setDocumentation (const std::string &documentation)
	set the documentation string
virtual std::ostream &	fillStream (std::ostream &) const
	the printout of the property value
Protected Member Functions
	Property (const std::type_info &type, const std::string &name="")
	constructor from the property name and the type
	Property (const std::string &name, const std::type_info &type)
	constructor from the property name and the type
	Property (const Property &right)
	copy constructor
Property &	operator= (const Property &right)
	assignement operator
Protected Attributes
PropertyCallbackFunctor *	m_readCallBack
PropertyCallbackFunctor *	m_updateCallBack
Private Member Functions
	Property ()
Private Attributes
std::string	m_name
std::string	m_documentation
const std::type_info *	m_typeinfo

Constructor & Destructor Documentation

Property::~Property ( ) [virtual]

virtual destructor

Definition at line 112 of file Property.cpp.

00113 {
00114   if ( 0 != m_readCallBack   )
00115   { delete m_readCallBack    ; m_readCallBack    = 0 ; }
00116   if ( 0 != m_updateCallBack )
00117   { delete m_updateCallBack  ; m_updateCallBack  = 0 ; }
00118 }

Property::Property	(	const std::type_info &	type,
		const std::string &	name = `""`
	)			`[protected]`

constructor from the property name and the type

Definition at line 48 of file Property.cpp.

00050   : m_name            (  name )
00051   , m_documentation   ( name )
00052   , m_typeinfo        ( &type )
00053   , m_readCallBack    (  0  )
00054   , m_updateCallBack  (  0  )
00055 {}

Property::Property	(	const std::string &	name,
		const std::type_info &	type
	)			`[protected]`

constructor from the property name and the type

Definition at line 63 of file Property.cpp.

00065   : m_name            (  name )
00066   , m_documentation   ( name )
00067   , m_typeinfo        ( &type )
00068   , m_readCallBack    (  0  )
00069   , m_updateCallBack  (  0  )
00070 {}

Property::Property ( const Property & right ) [protected]

copy constructor

Definition at line 75 of file Property.cpp.

00076   : m_name     ( right.m_name     )
00077   , m_documentation ( right.m_documentation )
00078   , m_typeinfo ( right.m_typeinfo )
00079   , m_readCallBack   ( 0 )
00080   , m_updateCallBack ( 0 )
00081 {
00082   if ( 0 != right.m_readCallBack   )
00083   { m_readCallBack   = right.m_readCallBack   -> clone () ; }
00084   if ( 0 != right.m_updateCallBack )
00085   { m_updateCallBack = right.m_updateCallBack -> clone () ; }
00086 }

Property::Property ( ) [private]

Member Function Documentation

const std::string& Property::name ( ) const [inline]

property name

Definition at line 50 of file Property.h.

00050 { return m_name             ; } ;

const std::string& Property::documentation ( ) const [inline]

property documentation

Definition at line 52 of file Property.h.

00052 { return m_documentation; };

const std::type_info* Property::type_info ( ) const [inline]

property type-info

Definition at line 54 of file Property.h.

00054 { return m_typeinfo         ; } ;

std::string Property::type ( ) const [inline]

property type

Definition at line 56 of file Property.h.

00056 { return m_typeinfo->name() ; } ;

virtual bool Property::load ( Property & dest ) const [pure virtual]

export the property value to the destination

Implemented in PropertyWithValue< TYPE >, GaudiHandleProperty, GaudiHandleArrayProperty, PropertyList, PropertyWithValue< double >, PropertyWithValue< std::string >, PropertyWithValue< std::vector< std::string > >, PropertyWithValue< int >, PropertyWithValue< unsigned int >, and PropertyWithValue< bool >.

virtual bool Property::assign ( const Property & source ) [pure virtual]

import the property value form the source

Implemented in PropertyWithValue< TYPE >, GaudiHandleProperty, GaudiHandleArrayProperty, PropertyList, PropertyWithValue< double >, PropertyWithValue< std::string >, PropertyWithValue< std::vector< std::string > >, PropertyWithValue< int >, PropertyWithValue< unsigned int >, and PropertyWithValue< bool >.

virtual std::string Property::toString ( ) const [pure virtual]

value -> string

Implemented in PropertyWithValue< TYPE >, GaudiHandleProperty, GaudiHandleArrayProperty, PropertyWithValue< double >, PropertyWithValue< std::string >, PropertyWithValue< std::vector< std::string > >, PropertyWithValue< int >, PropertyWithValue< unsigned int >, and PropertyWithValue< bool >.

virtual StatusCode Property::fromString ( const std::string & value ) [pure virtual]

string -> value

Implemented in PropertyWithValue< TYPE >, GaudiHandleProperty, GaudiHandleArrayProperty, PropertyWithValue< double >, PropertyWithValue< std::string >, PropertyWithValue< std::vector< std::string > >, PropertyWithValue< int >, PropertyWithValue< unsigned int >, and PropertyWithValue< bool >.

const PropertyCallbackFunctor * Property::readCallBack ( ) const

Call-back functor at reading: the functor is ownered by property!

Definition at line 122 of file Property.cpp.

00123 { return m_readCallBack ; }

const PropertyCallbackFunctor * Property::updateCallBack ( ) const

Call-back functor for update: the funtor is ownered by property!

Definition at line 127 of file Property.cpp.

00128 { return m_updateCallBack ; }

void Property::declareReadHandler ( PropertyCallbackFunctor * pf ) [virtual]

set new callback for reading

Definition at line 132 of file Property.cpp.

00133 {
00134   if ( 0 != m_readCallBack   )
00135   { delete m_readCallBack    ; m_readCallBack    = 0 ; }
00136   m_readCallBack = pf ;
00137 }

void Property::declareUpdateHandler ( PropertyCallbackFunctor * pf ) [virtual]

set new callback for update

Definition at line 141 of file Property.cpp.

00142 {
00143   if ( 0 != m_updateCallBack   )
00144   { delete m_updateCallBack    ; m_updateCallBack    = 0 ; }
00145   m_updateCallBack = pf ;
00146 }

template<class HT>

void Property::declareReadHandler	(	void(HT::*)(Property &)	MF,
		HT *	instance
	)			`[inline]`

Definition at line 131 of file Property.h.

00132 { declareReadHandler ( new PropertyCallbackMemberFunctor< HT >( MF , obj ) ) ; }

template<class HT>

void Property::declareUpdateHandler	(	void(HT::*)(Property &)	MF,
		HT *	instance
	)			`[inline]`

Definition at line 136 of file Property.h.

00137 { declareUpdateHandler ( new PropertyCallbackMemberFunctor< HT >( MF , obj ) ) ; }

void Property::useReadHandler ( ) const [virtual]

use the call-back function at reading

Definition at line 150 of file Property.cpp.

00151 {
00152   if ( 0 == m_readCallBack ) { return ; }               // RETURN
00153   const Property& p = *this ;
00154   PropertyCallbackFunctor* theCallBack = m_readCallBack;
00155   // avoid infinite loop
00156   m_readCallBack = 0;
00157   (*theCallBack)( const_cast<Property&>(p) ) ;
00158   m_readCallBack = theCallBack;
00159 }

void Property::useUpdateHandler ( ) [virtual]

use the call-back function at update

Definition at line 163 of file Property.cpp.

00164 {
00165   if ( 0 == m_updateCallBack ) { return ; }              // RETURN
00166   PropertyCallbackFunctor* theCallBack = m_updateCallBack;
00167   // avoid infinite loop
00168   m_updateCallBack = 0;
00169   (*theCallBack)( *this ) ;
00170   m_updateCallBack = theCallBack;
00171 }

virtual Property* Property::clone ( ) const [pure virtual]

clone: "virtual constructor"

Implemented in SimpleProperty< TYPE, VERIFIER >, SimplePropertyRef< TYPE, VERIFIER >, GaudiHandleProperty, GaudiHandleArrayProperty, SimpleProperty< double >, SimpleProperty< std::string >, SimpleProperty< std::vector< std::string > >, SimpleProperty< int >, SimpleProperty< unsigned int >, and SimpleProperty< bool >.

void Property::setName ( const std::string & value ) [inline]

set the new value for the property name

Definition at line 91 of file Property.h.

00091 { m_name = value ; }

void Property::setDocumentation ( const std::string & documentation ) [inline]

set the documentation string

Definition at line 93 of file Property.h.

00093                                                           {
00094     m_documentation = documentation; };

std::ostream & Property::fillStream ( std::ostream & stream ) const [virtual]

the printout of the property value

Definition at line 176 of file Property.cpp.

00177 { return stream << " '" <<name() << "':" << toString() ; }

Property & Property::operator= ( const Property & right ) [protected]

assignement operator

Definition at line 90 of file Property.cpp.

00091 {
00092   if ( &right == this ) { return *this ; }
00093   //
00094   m_name     = right.m_name ;
00095   m_documentation = right.m_documentation ;
00096   m_typeinfo = right.m_typeinfo ;
00097   //
00098   if ( 0 !=       m_readCallBack   )
00099   { delete m_readCallBack   ; m_readCallBack   = 0 ; }
00100   if ( 0 !=       m_updateCallBack )
00101   { delete m_updateCallBack ; m_updateCallBack = 0 ; }
00102   if ( 0 != right.m_readCallBack   )
00103   { m_readCallBack   = right.m_readCallBack   -> clone () ; }
00104   if ( 0 != right.m_updateCallBack )
00105   { m_updateCallBack = right.m_updateCallBack -> clone () ; }
00106   //
00107   return *this ;
00108 }

Member Data Documentation

std::string Property::m_name [private]

Definition at line 115 of file Property.h.

std::string Property::m_documentation [private]

Definition at line 117 of file Property.h.

const std::type_info* Property::m_typeinfo [private]

Definition at line 119 of file Property.h.

PropertyCallbackFunctor* Property::m_readCallBack [mutable, protected]

Definition at line 122 of file Property.h.

PropertyCallbackFunctor* Property::m_updateCallBack [protected]

Definition at line 124 of file Property.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r3/GaudiKernel/GaudiKernel/Property.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r3/GaudiKernel/src/Lib/Property.cpp

	Gaudi Framework, version v20r3
	Generated: 24 Nov 2008
