TimingAuditor Class Reference

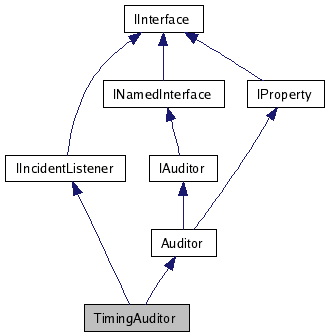

Inheritance diagram for TimingAuditor:

Inheritance graph
[legend]

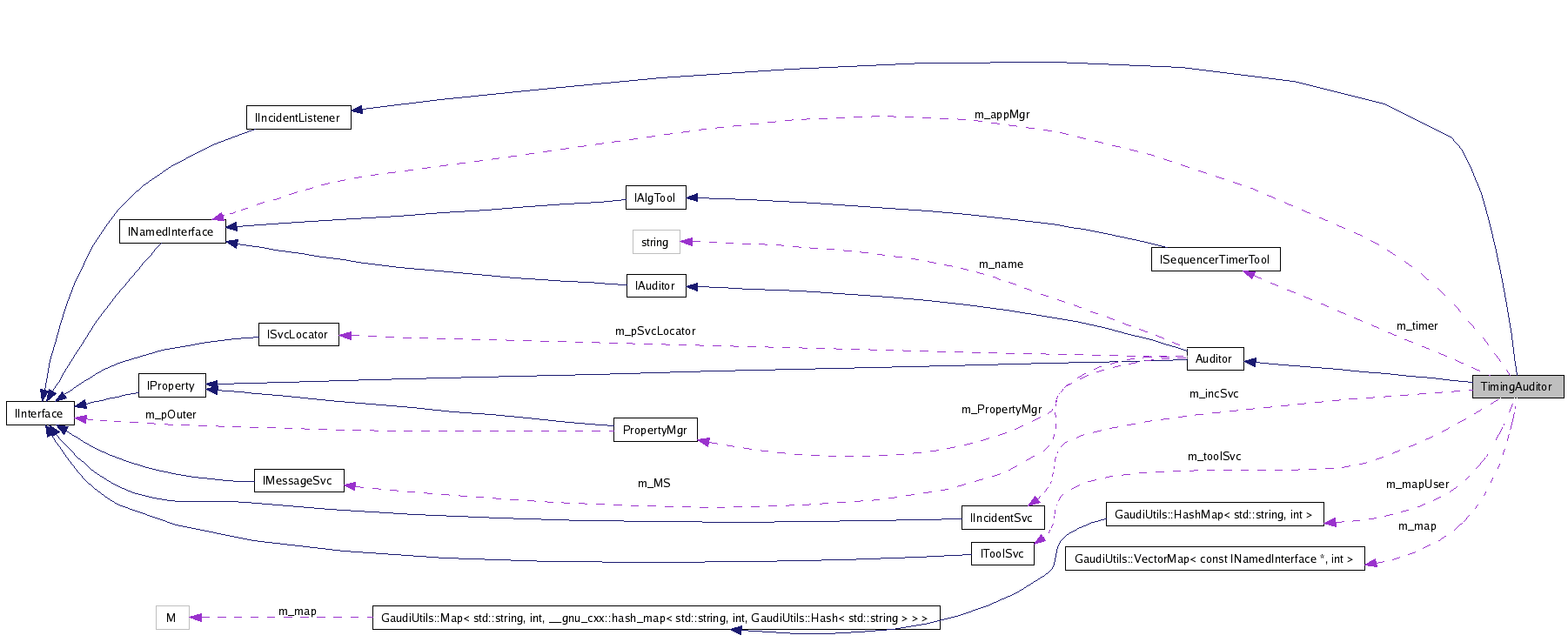

Collaboration diagram for TimingAuditor:

Collaboration graph
[legend]

List of all members.

Detailed Description

Simple auditor which uses SequencerTimerTool for *ALL* algoritms, inclusing the algorithm from main Gaudi "TopAlg" list and algorithms managed by Data-On-Demand Service.

Author:
Vanya BELYAEV ibelyaev@physics.syr.edu
Date:
2007-01-31

Definition at line 29 of file TimingAuditor.cpp.


Public Member Functions

virtual void before (StandardEventType evt, INamedInterface *alg)
 The following methods are meant to be implemented by the child class...
virtual void after (StandardEventType evt, INamedInterface *alg, const StatusCode &sc)
 Audit the end of a standard "event".
virtual void before (CustomEventTypeRef evt, const std::string &name)
virtual void after (CustomEventTypeRef evt, const std::string &name, const StatusCode &sc)
virtual void handle (const Incident &)
 Inform that a new incident has occured.
virtual StatusCode initialize ()
virtual StatusCode finalize ()
virtual StatusCode queryInterface (const InterfaceID &riid, void **ppvInterface)
 Query interfaces of Interface.
 TimingAuditor (const std::string &name, ISvcLocator *pSvc)
 standard constructor
virtual ~TimingAuditor ()
 virtual destructor

Private Types

typedef GaudiUtils::VectorMap
< const INamedInterface *, int > 		Map
typedef GaudiUtils::HashMap
< std::string, int > 		MapUser

Private Member Functions

void i_beforeInitialize (INamedInterface *alg)
void i_afterInitialize (INamedInterface *alg)
void i_beforeExecute (INamedInterface *alg)
void i_afterExecute (INamedInterface *alg)
 TimingAuditor ()
 TimingAuditor (const TimingAuditor &)
TimingAuditor & operator= (const TimingAuditor &)

Private Attributes

IToolSvc * m_toolSvc
 tool service
IIncidentSvc * m_incSvc
 incident service
ISequencerTimerTool * m_timer
 the timer tool
INamedInterface * m_appMgr
 ApplicationManager.
Map m_map
int m_indent
 indentation level
bool m_inEvent
 "In event" flag
bool m_goodForDOD
 "optimized for DOD"
MapUser m_mapUser
 map used to record user timing events

Member Typedef Documentation

typedef GaudiUtils::VectorMap<const INamedInterface*,int> TimingAuditor::Map [private]

Definition at line 97 of file TimingAuditor.cpp.

typedef GaudiUtils::HashMap<std::string,int> TimingAuditor::MapUser [private]

Definition at line 106 of file TimingAuditor.cpp.

Constructor & Destructor Documentation

TimingAuditor::TimingAuditor ( const std::string &  name,
ISvcLocator *  pSvc
) [inline]

standard constructor

Definition at line 59 of file TimingAuditor.cpp.

00061     : Auditor ( name , pSvc )
00062     //
00063     , m_toolSvc    ( 0 )
00064     , m_incSvc     ( 0 )
00065     //
00066     , m_timer      ( 0 )
00067     //
00068     , m_appMgr     ( 0 )
00069     //
00070     , m_map        (       )
00071     , m_indent     ( 0     )
00072     , m_inEvent    ( false )
00073     , m_goodForDOD ( false )
00074     , m_mapUser    (       )
00075   {
00076     declareProperty ( "OptimizedForDOD" , m_goodForDOD ) ;
00077   } ;

virtual TimingAuditor::~TimingAuditor (  )  [inline, virtual]

virtual destructor

Definition at line 79 of file TimingAuditor.cpp.

00079 {}

TimingAuditor::TimingAuditor (  )  [private]

TimingAuditor::TimingAuditor ( const TimingAuditor &   )  [private]

Member Function Documentation

void TimingAuditor::before ( StandardEventType  evt,
INamedInterface *  obj
) [virtual]

The following methods are meant to be implemented by the child class...

Reimplemented from Auditor.

Definition at line 215 of file TimingAuditor.cpp.

00216 {
00217   switch (evt) {
00218   case IAuditor::Initialize : i_beforeInitialize( alg ); break;
00219   case IAuditor::Execute    : i_beforeExecute( alg );    break;
00220   default: break;
00221   }
00222 }

void TimingAuditor::after ( StandardEventType  ,
INamedInterface *  ,
const StatusCode &  sc
) [virtual]

Audit the end of a standard "event".

Reimplemented from Auditor.

Definition at line 224 of file TimingAuditor.cpp.

00225 {
00226   switch (evt) {
00227   case IAuditor::Initialize : i_afterInitialize( alg ); break;
00228   case IAuditor::Execute    : i_afterExecute( alg ); break;
00229   default: break;
00230   }
00231 }

void TimingAuditor::before ( CustomEventTypeRef  evt,
const std::string &  name
) [virtual]

Reimplemented from Auditor.

Definition at line 298 of file TimingAuditor.cpp.

00299 {
00300   // Ignore obvious mistakes
00301   if ( name.empty() && evt.empty() ) { return; }
00302
00303   // look for the user timer in the map
00304   int timer = 0;
00305   std::string nick = name + ":" + evt;
00306   MapUser::iterator found = m_mapUser.find( nick );
00307
00308   if ( m_mapUser.end() == found ) {
00309     // add a new timer if not yet available
00310     timer = m_timer->addTimer( nick ) ;
00311     m_mapUser[nick] = timer;
00312   }
00313   else {
00314     timer = found->second;
00315   }
00316
00317   m_timer->start( timer );
00318 }

void TimingAuditor::after ( CustomEventTypeRef  evt,
const std::string &  name,
const StatusCode &  sc
) [virtual]

Reimplemented from Auditor.

Definition at line 320 of file TimingAuditor.cpp.

00321 {
00322   // Ignore obvious mistakes
00323   if ( name.empty() && evt.empty() ) { return; }
00324
00325   // look for the user timer in the map
00326   std::string nick = name + ":" + evt;
00327   MapUser::iterator found = m_mapUser.find( nick );
00328
00329   // We cannot do much if the timer is not available
00330   if ( m_mapUser.end() == found ) {
00331     MsgStream log(msgSvc(), this->name());
00332     log << MSG::WARNING << "Trying to stop the measure  of the timing for '"
00333                         << nick << "' but it was never started. Check the code"
00334                         << endmsg;
00335     return;
00336   }
00337   m_timer->stop( found->second );
00338 }

void TimingAuditor::i_beforeInitialize ( INamedInterface *  alg  )  [private]

Definition at line 233 of file TimingAuditor.cpp.

00234 {
00235   if ( m_goodForDOD ) { return ; }
00236   //
00237   if ( 0 == alg ) { return ; }
00238   Map::iterator found = m_map.find( alg ) ;
00239   if ( m_map.end() != found ) { return ; }
00240   ++m_indent ;
00241   std::string nick = alg->name() ;
00242   if ( 0 < m_indent ) { nick = std::string ( m_indent , ' ') + nick ; }
00243   if ( m_inEvent )
00244   {
00245     nick[0] = '*' ;
00246     MsgStream log( msgSvc() , name() ) ;
00247     log << MSG::DEBUG
00248         << "Insert non-structural component '"
00249         << alg->name() << "' of type '"
00250         << System::typeinfoName(typeid(*alg)) << "' at level "
00251         << m_indent << endreq ;
00252   }
00253   int timer = m_timer->addTimer( nick ) ;
00254   m_map.insert ( alg , timer ) ;
00255   m_timer->start( timer ) ;
00256 }

void TimingAuditor::i_afterInitialize ( INamedInterface *  alg  )  [private]

Definition at line 258 of file TimingAuditor.cpp.

00259 {
00260   if ( m_goodForDOD ) { return ; }
00261   if ( 0 == alg     ) { return ; }
00262   --m_indent ;
00263 }

void TimingAuditor::i_beforeExecute ( INamedInterface *  alg  )  [private]

Definition at line 265 of file TimingAuditor.cpp.

00266 {
00267   if ( 0 == alg ) { return ; }
00268   ++m_indent ;
00269   Map::iterator found = m_map.find( alg ) ;
00270   if ( m_map.end() == found )
00271   {
00272     MsgStream log( msgSvc() , name() ) ;
00273     log << MSG::DEBUG
00274         << "Insert non-structural component '"
00275         << alg->name() << "' of type '"
00276         << System::typeinfoName(typeid(*alg)) << "' at level "
00277         << m_indent << endreq ;
00278     std::string nick = alg->name() ;
00279     if ( 0 < m_indent  ) { nick = std::string ( m_indent , ' ') + nick ; }
00280     if ( !m_goodForDOD ) { nick[0]='*' ;}
00281     int timer = m_timer->addTimer( nick ) ;
00282     m_map.insert ( alg , timer ) ;
00283     m_timer->start( timer ) ;
00284     return ;
00285   }
00286   m_timer->start( found->second ) ;
00287 }

void TimingAuditor::i_afterExecute ( INamedInterface *  alg  )  [private]

Definition at line 289 of file TimingAuditor.cpp.

00290 {
00291   if ( 0 == alg ) { return ; }
00292   Map::iterator found = m_map.find( alg ) ;
00293   if ( m_map.end() == found ) { return ; }
00294   m_timer->stop( found->second ) ;
00295   --m_indent ;
00296 }

void TimingAuditor::handle ( const Incident &  i  )  [virtual]

Inform that a new incident has occured.

Implements IIncidentListener.

Definition at line 340 of file TimingAuditor.cpp.

00341 {
00342   if      ( IncidentType::BeginEvent == i.type () )
00343   {
00344     m_timer -> start ( m_map[ m_appMgr ] ) ;
00345     ++m_indent ;
00346     m_inEvent = true ;
00347   }
00348   else if ( IncidentType::EndEvent   == i.type () )
00349   {
00350     m_timer -> stop  ( m_map[ m_appMgr ] ) ;
00351     --m_indent ;
00352     m_inEvent = false ;
00353   }
00354 }

StatusCode TimingAuditor::initialize (  )  [virtual]

Reimplemented from Auditor.

Definition at line 128 of file TimingAuditor.cpp.

00129 {
00130   StatusCode sc = Auditor::initialize() ;
00131   if ( sc.isFailure() ) { return sc ; }                  // RETURN
00132
00133   MsgStream log ( msgSvc() , name() ) ;
00134
00135   // get tool service
00136   if ( 0 == m_toolSvc )
00137   {
00138     StatusCode sc = Auditor::service ( "ToolSvc" , m_toolSvc ) ;
00139     if ( sc.isFailure() )
00140     {
00141       log << "Could not retrieve 'ToolSvc' " << sc << endreq ;
00142       return sc ;                                        // RETURN
00143     }
00144     if ( 0 == m_timer )
00145     {
00146       sc = m_toolSvc->retrieveTool
00147         ( "SequencerTimerTool/TIMER" , m_timer , this  , true ) ;
00148       if ( sc.isFailure() )
00149       {
00150         log << MSG::ERROR
00151             << "Could not retrieve ISequencerTimerTool" << endreq ;
00152         return sc ;
00153       }
00154     }
00155   }
00156   // get incident service
00157   if ( 0 == m_incSvc )
00158   {
00159     StatusCode sc = Auditor::service ( "IncidentSvc" , m_incSvc ) ;
00160     if ( sc.isFailure() )
00161     {
00162       log << MSG::ERROR
00163           << "Could not retrieve 'IncidentSvc'" << sc << endreq ;
00164       return sc ;
00165     }
00166     m_incSvc -> addListener ( this , IncidentType::BeginEvent ) ;
00167     m_incSvc -> addListener ( this , IncidentType::EndEvent   ) ;
00168   }
00169   // get the application manager
00170   if ( 0 == m_appMgr )
00171   {
00172     StatusCode sc = Auditor::service ( "ApplicationMgr" , m_appMgr ) ;
00173     if ( sc.isFailure() )
00174     {
00175       log << MSG::ERROR
00176           << "Could not retrieve 'ApplicationMgr'" << sc << endreq ;
00177       return sc ;
00178     }
00179     if ( m_map.end() == m_map.find( m_appMgr ) )
00180     {
00181       int timer = m_timer->addTimer( "EVENT LOOP" ) ;
00182       m_map.insert ( m_appMgr , timer ) ;
00183     }
00184   }
00185   //
00186   return StatusCode::SUCCESS ;
00187 }

StatusCode TimingAuditor::finalize ( void   )  [virtual]

Reimplemented from Auditor.

Definition at line 189 of file TimingAuditor.cpp.

00190 {
00191   if ( 0 != m_incSvc )
00192   {
00193     m_incSvc -> removeListener ( this , IncidentType::BeginEvent ) ;
00194     m_incSvc -> removeListener ( this , IncidentType::EndEvent   ) ;
00195     m_incSvc -> release () ;
00196     m_incSvc = 0 ;
00197   }
00198   if ( 0 != m_toolSvc )
00199   {
00200     // the 2 following line are commented out: it is
00201     // is a temporary hack which prevent a crash due to a problem in
00202     // the reference counting
00203     //     if ( 0 != m_timer )
00204     //     { m_toolSvc -> releaseTool ( m_timer ) . ignore() ; m_timer = 0 ; }
00205     m_toolSvc -> release () ;
00206     m_toolSvc = 0 ;
00207   }
00208   if ( 0 != m_appMgr ) { m_appMgr -> release () ;  m_appMgr = 0 ; }
00209   // clear the map
00210   m_map.clear() ;
00211   // finalize the base class
00212   return Auditor::finalize () ;
00213 }

StatusCode TimingAuditor::queryInterface ( const InterfaceID &  riid,
void **  ppvInterface
) [virtual]

Query interfaces of Interface.

Parameters:
riid ID of Interface to be retrieved
ppvInterface Pointer to Location for interface pointer

Reimplemented from Auditor.

Definition at line 116 of file TimingAuditor.cpp.

00118 {
00119   if      ( 0 == ppv ) { return StatusCode::FAILURE ; }  // RETURN
00120   else if ( IIncidentListener::interfaceID() == riid )
00121   { *ppv = static_cast<IIncidentListener*> ( this ) ; }
00122   else
00123   { return Auditor::queryInterface( riid , ppv ) ; } // RETURN
00124   addRef() ;
00125   return StatusCode::SUCCESS ;
00126 } ;

TimingAuditor& TimingAuditor::operator= ( const TimingAuditor &   )  [private]

Member Data Documentation

IToolSvc* TimingAuditor::m_toolSvc [private]

tool service

Definition at line 89 of file TimingAuditor.cpp.

IIncidentSvc* TimingAuditor::m_incSvc [private]

incident service

Definition at line 91 of file TimingAuditor.cpp.

ISequencerTimerTool* TimingAuditor::m_timer [private]

the timer tool

Definition at line 93 of file TimingAuditor.cpp.

INamedInterface* TimingAuditor::m_appMgr [private]

ApplicationManager.

Definition at line 95 of file TimingAuditor.cpp.

Map TimingAuditor::m_map [private]

Definition at line 98 of file TimingAuditor.cpp.

int TimingAuditor::m_indent [private]

indentation level

Definition at line 100 of file TimingAuditor.cpp.

bool TimingAuditor::m_inEvent [private]

"In event" flag

Definition at line 102 of file TimingAuditor.cpp.

bool TimingAuditor::m_goodForDOD [private]

"optimized for DOD"

Definition at line 104 of file TimingAuditor.cpp.

MapUser TimingAuditor::m_mapUser [private]

map used to record user timing events

Definition at line 107 of file TimingAuditor.cpp.

The documentation for this class was generated from the following file:
Generated at Mon Nov 24 14:46:41 2008 for Gaudi Framework, version v20r3 by Doxygen version 1.5.6 written by Dimitri van Heesch, © 1997-2004
