CounterSvc Class Reference

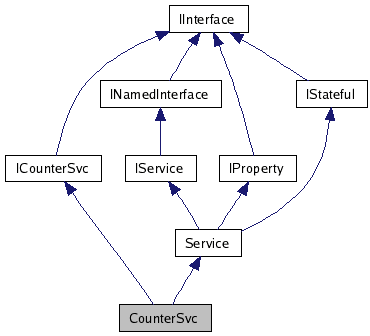

Inheritance diagram for CounterSvc:

[legend]

Collaboration diagram for CounterSvc:

[legend]

List of all members.

Detailed Description

Simple imeplementation of the abstract interface ICounterSvc.

Author:: Markus FRANK
Vanya BELYAEV ibelyaev@physics.syr.edu

Date:: 2007-05-25

Definition at line 27 of file CounterSvc.cpp.


Public Member Functions
	CounterSvc (const std::string &name, ISvcLocator *svcLoc)
	Standard Constructor.
virtual	~CounterSvc ()
	Standard destructor.
virtual StatusCode	queryInterface (const InterfaceID &riid, void **ppvI)
	Query interface.
virtual StatusCode	finalize ()
	Finalization.
virtual Counter *	get (const std::string &group, const std::string &name) const
	Access an existing counter object.
virtual ICounterSvc::Counters	get (const std::string &group) const
	get all counters form the given group:
virtual StatusCode	create (const std::string &group, const std::string &name, longlong initial_value, Counter *&refpCounter)
	Create a new counter object.
virtual CountObject	create (const std::string &group, const std::string &name, longlong initial_value=0)
	Create a new counter object.
virtual StatusCode	remove (const std::string &group, const std::string &name)
	Remove a counter object.
virtual StatusCode	remove (const std::string &group)
	Remove all counters of a givem group.
virtual StatusCode	remove ()
	Remove all known counter objects.
virtual StatusCode	print (const std::string &group, const std::string &name, Printout &printer) const
	Print counter value.
virtual StatusCode	print (const std::string &group, Printout &printer) const
	If no such counter exists the return code is COUNTER_NOT_PRESENT Note: This call is not direct access.
virtual StatusCode	print (const Counter *pCounter, Printout &printer) const
	Print counter value.
virtual StatusCode	print (const CountObject &pCounter, Printout &printer) const
	Print counter value.
virtual StatusCode	print (Printout &printer) const
virtual StatusCode	defaultPrintout (MsgStream &log, const Counter *pCounter) const
	Default Printout for counters.
void	print () const
	"standard" printout a'la GaudiCommon
Private Types
typedef GaudiUtils::HashMap < std::string, Counter * >	NameMap
typedef GaudiUtils::HashMap < std::string, NameMap >	CountMap
Private Member Functions
std::pair< std::string, std::string >	_find (const Counter *c) const
size_t	num () const
Private Attributes
CountMap	m_counts
	the actual map of counters
bool	m_print
	boolean flag to print statistics
std::string	m_header
	the header row
std::string	m_format1
	format for regular statistical printout rows
std::string	m_format2
	format for "efficiency" statistical printout rows
bool	m_useEffFormat
	flag to use the special "efficiency" format

Member Typedef Documentation

typedef GaudiUtils::HashMap<std::string,Counter*> CounterSvc::NameMap [private]

Definition at line 234 of file CounterSvc.cpp.

typedef GaudiUtils::HashMap<std::string,NameMap> CounterSvc::CountMap [private]

Definition at line 235 of file CounterSvc.cpp.

Constructor & Destructor Documentation

CounterSvc::CounterSvc	(	const std::string &	name,
		ISvcLocator *	svcLoc
	)			`[inline]`

Standard Constructor.

Definition at line 33 of file CounterSvc.cpp.

00035     : Service(name, svcLoc)
00036     , m_counts ()
00037     , m_print  ( true )
00038     //
00039     // the header row
00040     , m_header  ( "       Counter :: Group         |     #     |    sum     | mean/eff^* | rms/err^*  |     min     |     max     |")
00041     // format for regular statistical printout rows
00042     , m_format1 ( " %|15.15s|%|-15.15s|%|32t||%|10d| |%|11.7g| |%|#11.5g| |%|#11.5g| |%|#12.5g| |%|#12.5g| |"         )
00043     // format for "efficiency" statistical printout rows
00044     , m_format2 ( "*%|15.15s|%|-15.15s|%|32t||%|10d| |%|11.5g| |(%|#9.7g| +- %|-#9.7g|)%%|   -------   |   -------   |" )
00045     // flag to use the special "efficiency" format
00046     , m_useEffFormat ( true )
00047     //
00048   {
00049     declareProperty ("PrintStat" , m_print ) ;
00050     //
00051     declareProperty
00052       ( "StatTableHeader"        , m_header                          ,
00053         "The header row for the output Stat-table"                   ) ;
00054     //
00055     declareProperty
00056       ( "RegularRowFormat"       , m_format1                         ,
00057         "The format for the regular row in the output Stat-table"    ) ;
00058     //
00059     declareProperty
00060       ( "EfficiencyRowFormat"    , m_format2                         ,
00061         "The format for the regular row in the outptu Stat-table"    ) ;
00062     //
00063     declareProperty
00064       ( "UseEfficiencyRowFormat" , m_useEffFormat                    ,
00065         "Use the special format for printout of efficiency counters" ) ;
00066   }

virtual CounterSvc::~CounterSvc ( ) [inline, virtual]

Standard destructor.

Definition at line 68 of file CounterSvc.cpp.

00068 { remove().ignore() ; };

Member Function Documentation

virtual StatusCode CounterSvc::queryInterface	(	const InterfaceID &	riid,
		void **	ppvI
	)			`[inline, virtual]`

Query interface.

See also:: IInterface

Reimplemented from Service.

Definition at line 71 of file CounterSvc.cpp.

00072   {
00073     // valid placeholder?
00074     if ( 0 == ppvI ) { return StatusCode::FAILURE ; }  // RETURN
00075     if ( ICounterSvc::interfaceID() == riid )
00076     {
00077       *ppvI = static_cast<ICounterSvc*>(this);
00078       addRef(); // NB! : inrement the reference count!
00079       return StatusCode::SUCCESS;                     // RETURN
00080     }
00081     // Interface is not directly availible: try out a base class
00082     return Service::queryInterface( riid, ppvI );
00083   }

virtual StatusCode CounterSvc::finalize ( void ) [inline, virtual]

Finalization.

< finalize the base class

Reimplemented from Service.

Definition at line 85 of file CounterSvc.cpp.

00086   {
00087     if ( outputLevel() <= MSG::DEBUG || m_print ) { print () ; }
00088     remove().ignore() ;
00089     // finalize the base class
00090     return Service::finalize() ;
00091   }

CounterSvc::Counter * CounterSvc::get	(	const std::string &	group,
		const std::string &	name
	)			const `[virtual]`

Access an existing counter object.

Parameters:

	group	[IN] Hint for smart printing
	name	[IN] Counter name

Returns:: Pointer to existing counter object (NULL if non existing).

Implements ICounterSvc.

Definition at line 257 of file CounterSvc.cpp.

00259 {
00260   CountMap::const_iterator i = m_counts.find  ( grp ) ;
00261   if (  m_counts.end() == i ) { return 0 ; }                    // RETURN
00262   NameMap::const_iterator  j = i->second.find ( nam ) ;
00263   if ( i->second.end() == j ) { return 0 ; }                    // RETURN
00264   return j->second ;                                            // RETURN
00265 }

ICounterSvc::Counters CounterSvc::get ( const std::string & group ) const [virtual]

get all counters form the given group:

Implements ICounterSvc.

Definition at line 269 of file CounterSvc.cpp.

00270 {
00271   ICounterSvc::Counters result ;
00272   CountMap::const_iterator i = m_counts.find  ( group ) ;
00273   if (  m_counts.end() == i ) { return result ; } // RETURN
00274   for ( NameMap::const_iterator j = i->second.begin() ; i->second.end() != j ; ++j )
00275   { result.push_back( CountObject ( j->second, i->first , j->first ) ) ; }
00276   return result ;
00277 }

StatusCode CounterSvc::create	(	const std::string &	group,
		const std::string &	name,
		longlong	initial_value,
		Counter *&	refpCounter
	)			`[virtual]`

Create a new counter object.

If the counter object exists already the existing object is returned. In this event the return code is COUNTER_EXISTS. The ownership of the actual counter stays with the service.

Parameters:

	group	[IN] Hint for smart printing
	name	[IN] Counter name
	initial_value	[IN] Initial counter value
	refpCounter	[OUT] Reference to store pointer to counter.

Returns:: StatusCode indicating failure or success.

Implements ICounterSvc.

Definition at line 282 of file CounterSvc.cpp.

00286 {
00287   // try to find existing counter:
00288   refpCounter = get ( grp , nam ) ;
00289   if ( 0 != refpCounter ) { return COUNTER_EXISTS ; }                // RETURN
00290   // create the new counter
00291   Counter* newc = new Counter() ;
00292   refpCounter = newc ;
00293   if ( 0 != initial_value ) {
00294         refpCounter->addFlag ( static_cast<double>(initial_value) ) ;
00295   }
00296   // find a proper group
00297   CountMap::iterator i = m_counts.find  ( grp ) ;
00298   // (create a group if needed)
00299   if (  m_counts.end() == i )
00300   { i = m_counts.insert ( std::make_pair ( grp , NameMap() ) ).first ; }
00301   // insert new counter with priper name into proper group:
00302   i->second.insert( std::make_pair( nam , newc ) ).first ;
00303   return StatusCode::SUCCESS ;                                     // RETURN
00304 }

CounterSvc::CountObject CounterSvc::create	(	const std::string &	group,
		const std::string &	name,
		longlong	initial_value = `0`
	)			`[virtual]`

Create a new counter object.

If the counter object exists already, a std::runtime_error exception is thrown. The ownership of the actual counter stays with the service.

Parameters:

	group	[IN] Hint for smart printing
	name	[IN] Counter name
	initial_value	[IN] Initial counter value
	refpCounter	[OUT] Reference to store pointer to counter.

Returns:: Fully initialized CountObject.

Implements ICounterSvc.

Definition at line 309 of file CounterSvc.cpp.

00312 {
00313   Counter* p = 0;
00314   StatusCode sc = create ( group, name, initial_value, p ) ;
00315   if ( sc.isSuccess() && 0 != p ) { return CountObject ( p , group , name ) ; }
00316   throw std::runtime_error("CounterSvc::Counter('"+group+"::"+name+"') exists already!");
00317 }

StatusCode CounterSvc::remove	(	const std::string &	group,
		const std::string &	name
	)			`[virtual]`

Remove a counter object.

If the counter object does not exists, the return code is COUNTER_NOT_PRESENT. The counter may not be used anymore after this call.

Parameters:

	group	[IN] Hint for smart printing
	name	[IN] Counter name
	initial_value	[IN] Initial counter value
	refpCounter	[OUT] Reference to store pointer to counter.

Returns:: StatusCode indicating failure or success.

Implements ICounterSvc.

Definition at line 322 of file CounterSvc.cpp.

00324 {
00325   CountMap::iterator i = m_counts.find  ( grp ) ;
00326   if (  m_counts.end() == i ) { return COUNTER_NOT_PRESENT ; }  // RETURN
00327   NameMap::iterator  j = i->second.find ( nam ) ;
00328   if ( i->second.end() == j ) { return COUNTER_NOT_PRESENT ; }  // RETURN
00329   delete j->second ;
00330   i->second.erase ( j ) ;
00331   return StatusCode::SUCCESS ;
00332 }

StatusCode CounterSvc::remove ( const std::string & group ) [virtual]

Remove all counters of a givem group.

If no such counter exists the return code is COUNTER_NOT_PRESENT

Parameters:

group

[IN] Hint for smart printing

Returns:: StatusCode indicating failure or success.

Implements ICounterSvc.

Definition at line 336 of file CounterSvc.cpp.

00337 {
00338   CountMap::iterator i = m_counts.find ( grp  ) ;
00339   if (  m_counts.end() == i ) { return COUNTER_NOT_PRESENT ; }  // RETURN
00340   for ( NameMap::iterator j = i->second.begin() ; i->second.end() != j ; ++j )
00341   { delete j->second ; }
00342   i->second.clear() ;
00343   return StatusCode::SUCCESS ;
00344 }

StatusCode CounterSvc::remove ( ) [virtual]

Remove all known counter objects.

Definition at line 348 of file CounterSvc.cpp.

00349 {
00350   // remove group by group
00351   for ( CountMap::iterator i = m_counts.begin() ; m_counts.end() != i ; ++i )
00352   { remove ( i->first ).ignore () ; }
00353   m_counts.clear() ;
00354   return StatusCode::SUCCESS;
00355 }

StatusCode CounterSvc::print	(	const std::string &	group,
		const std::string &	name,
		Printout &	printer
	)			const `[virtual]`

Print counter value.

Parameters:

	group	[IN] Hint for smart printing
	name	[IN] Counter name
	printer	[IN] Print actor

Returns:: StatusCode indicating failure or success.

Implements ICounterSvc.

Definition at line 360 of file CounterSvc.cpp.

00363 {
00364   const Counter* c = get( grp , nam ) ;
00365   if ( 0 == c ) { return COUNTER_NOT_PRESENT ; }                  // RETURN
00366   // create the stream and use it!
00367   MsgStream log ( msgSvc() , name() ) ;
00368   return printer ( log , c ) ;
00369 }

StatusCode CounterSvc::print	(	const std::string &	group,
		Printout &	printer
	)			const `[virtual]`

If no such counter exists the return code is COUNTER_NOT_PRESENT Note: This call is not direct access.

Parameters:

	group	[IN] Hint for smart printing
	printer	[IN] Print actor

Returns:: StatusCode indicating failure or success.

Implements ICounterSvc.

Definition at line 374 of file CounterSvc.cpp.

00376 {
00377   CountMap::const_iterator i = m_counts.find ( grp ) ;
00378   if ( m_counts.end() == i ) { return COUNTER_NOT_PRESENT ; }
00379   MsgStream log(msgSvc(), name());
00380   for ( NameMap::const_iterator  j = i->second.begin() ; i->second.end() != j ; ++j )
00381   { printer ( log , j->second ).ignore() ; }
00382   //
00383   return StatusCode::SUCCESS;   // RETURN
00384 }

StatusCode CounterSvc::print	(	const Counter *	pCounter,
		Printout &	printer
	)			const `[virtual]`

Print counter value.

Parameters:

	pCounter	[IN] Pointer to Counter object
	printer	[IN] Print actor

Returns:: StatusCode indicating failure or success.

Implements ICounterSvc.

Definition at line 389 of file CounterSvc.cpp.

00391 {
00392   MsgStream log(msgSvc(), name() ) ;
00393   return printer ( log , pCounter ) ;
00394 }

StatusCode CounterSvc::print	(	const CountObject &	pCounter,
		Printout &	printer
	)			const `[virtual]`

Print counter value.

Parameters:

	refCounter	[IN] Reference to CountObject object
	printer	[IN] Print actor

Returns:: StatusCode indicating failure or success.

Implements ICounterSvc.

Definition at line 399 of file CounterSvc.cpp.

00401 { return print( refCounter.counter() , printer ) ; }

StatusCode CounterSvc::print ( Printout & printer ) const [virtual]

Parameters:

printer

[IN] Print actor

Returns:: StatusCode indicating failure or success.

Implements ICounterSvc.

Definition at line 405 of file CounterSvc.cpp.

00406 {
00407   MsgStream log ( msgSvc() , name() ) ;
00408   for( CountMap::const_iterator i = m_counts.begin(); i != m_counts.end(); ++i)
00409   {
00410     for ( NameMap::const_iterator j = i->second.begin() ; i->second.end() != j ; ++j )
00411     { printer ( log , j->second ).ignore() ; }
00412   }
00413   return StatusCode::SUCCESS;
00414 }

StatusCode CounterSvc::defaultPrintout	(	MsgStream &	log,
		const Counter *	pCounter
	)			const `[virtual]`

Default Printout for counters.

Implements ICounterSvc.

Definition at line 419 of file CounterSvc.cpp.

00421 {
00422   if ( 0 == c ) { return StatusCode::FAILURE ; }
00423   std::pair<std::string,std::string> p = _find ( c ) ;
00424
00425   log << MSG::ALWAYS
00426       << CountObject( const_cast<Counter*>(c) , p.first , p.second )
00427       << endreq ;
00428
00429   return StatusCode::SUCCESS;
00430 }

std::pair<std::string,std::string> CounterSvc::_find ( const Counter * c ) const [inline, private]

Definition at line 207 of file CounterSvc.cpp.

00208   {
00209     if ( 0 == c ) { return std::pair<std::string,std::string>() ; }
00210     for ( CountMap::const_iterator i = m_counts.begin() ; m_counts.end() != i ; ++i )
00211     {
00212       for ( NameMap::const_iterator j = i->second.begin() ; i->second.end() != j ; ++j )
00213       { if ( j->second == c ) { return std::make_pair( i->first , j->first )  ; } }
00214     }
00215     return std::pair<std::string,std::string>() ;
00216   }

size_t CounterSvc::num ( ) const [inline, private]

Definition at line 218 of file CounterSvc.cpp.

00219   {
00220     size_t result = 0 ;
00221     {
00222       for ( CountMap::const_iterator i = m_counts.begin(); i != m_counts.end(); ++i )
00223       {
00224         for ( NameMap::const_iterator j = i->second.begin() ; i->second.end() != j ; ++j )
00225         { if ( 0 != j->second ) { ++result ; } ; }
00226       }
00227     }
00228     return result ;
00229   }

void CounterSvc::print ( ) const

"standard" printout a'la GaudiCommon

Definition at line 434 of file CounterSvc.cpp.

00435 {
00436   MsgStream log ( msgSvc() , name() ) ;
00437   // number of counters
00438   const size_t _num = num() ;
00439   if ( 0 != _num )
00440   {
00441     log << MSG::ALWAYS
00442         << "Number of counters : "  << _num << endreq
00443         << m_header << endreq ;
00444   }
00445   for ( CountMap::const_iterator i = m_counts.begin(); i != m_counts.end(); ++i )
00446   {
00447     for ( NameMap::const_iterator j = i->second.begin() ; i->second.end() != j ; ++j )
00448     {
00449       Counter* c = j->second ;
00450       if ( 0 == c ) { continue ; }
00451       log <<
00452         Gaudi::Utils::formatAsTableRow
00453         ( j->first , i->first , *c , m_useEffFormat , m_format1 , m_format2 )
00454           << endreq ;
00455     }
00456   }
00457 }

Member Data Documentation

CountMap CounterSvc::m_counts [private]

the actual map of counters

Definition at line 237 of file CounterSvc.cpp.

bool CounterSvc::m_print [private]

boolean flag to print statistics

Definition at line 239 of file CounterSvc.cpp.

std::string CounterSvc::m_header [private]

the header row

Definition at line 241 of file CounterSvc.cpp.

std::string CounterSvc::m_format1 [private]

format for regular statistical printout rows

Definition at line 243 of file CounterSvc.cpp.

std::string CounterSvc::m_format2 [private]

format for "efficiency" statistical printout rows

Definition at line 245 of file CounterSvc.cpp.

bool CounterSvc::m_useEffFormat [private]

flag to use the special "efficiency" format

Definition at line 247 of file CounterSvc.cpp.

The documentation for this class was generated from the following file:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r4/GaudiSvc/src/ChronoStatSvc/CounterSvc.cpp

	Gaudi Framework, version v20r4
	Generated: 8 Jan 2009

Gaudi Framework, version v20r4

CounterSvc Class Reference

Detailed Description

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
