DataOnDemandSvc Class Reference

#include <IncidentSvc/DataOnDemandSvc.h>

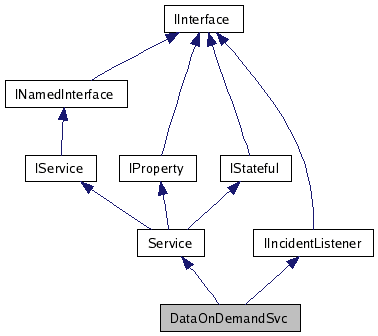

Inheritance diagram for DataOnDemandSvc:

[legend]

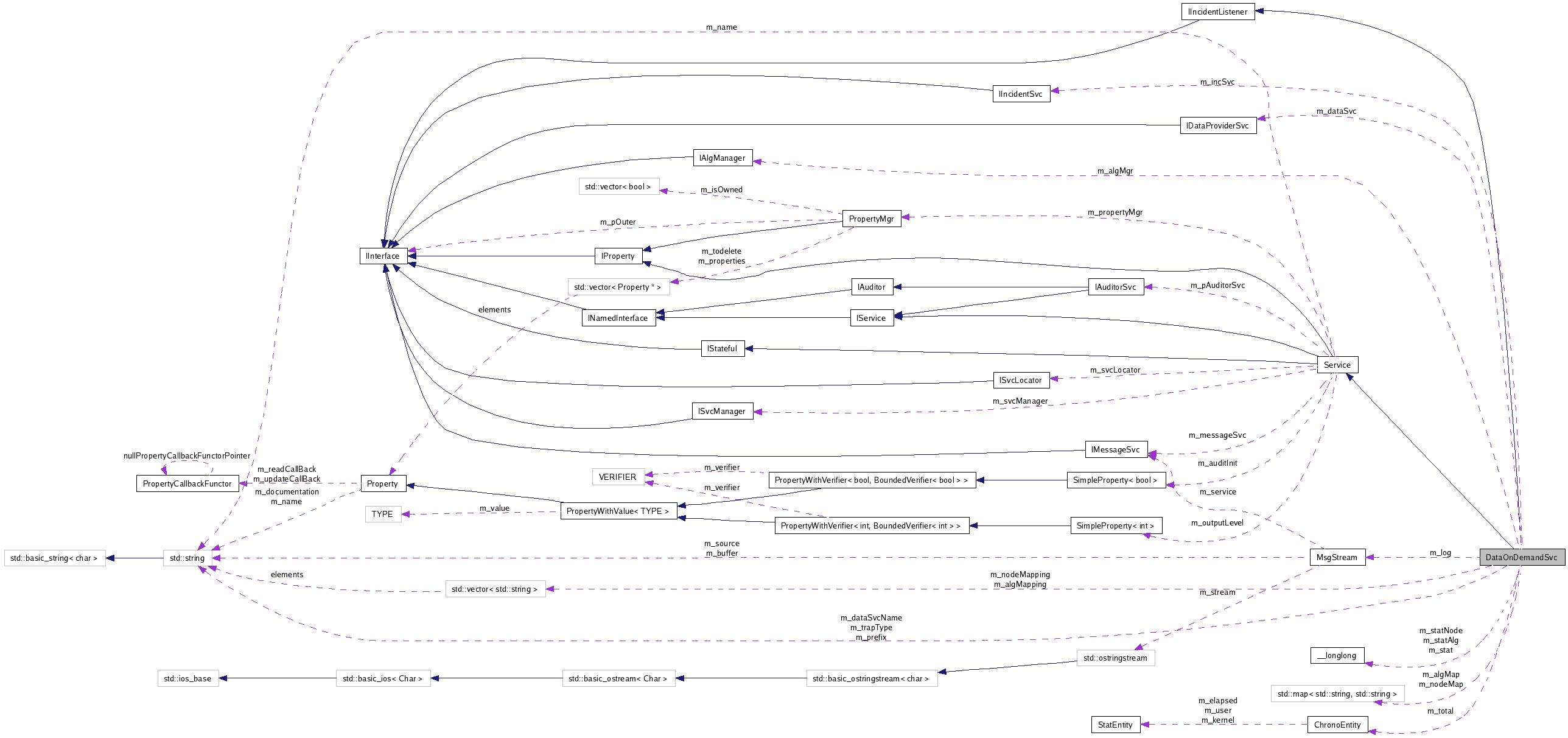

Collaboration diagram for DataOnDemandSvc:

[legend]

List of all members.

Detailed Description

The DataOnDemandSvc listens to incidents typically triggered by the data service of the configurable name "IncidentName".

In the job options handlers can be declared, which allow to configure this service. Such handlers are either:

Node handlers, if objects other than the default object type have to be instantiated. DataOnDemandSvc.Nodes = { "DATA='/Event/Rec' TYPE='DataObject'", "DATA='/Event/Rec/Muon' TYPE='DataObject'" };

Leaf handlers (Algorithms), which get instantiated and executed on demand. DataOnDemandSvc.Algorithms = { "DATA='/Event/Rec/Muon/Digits' TYPE='MuonDigitAlg/MyMuonDigits'" }; If the algorithm name is omitted the class name will be the instance name.

The handlers only get called if the exact path mathes. In the event already the partial path to any handler is missing a leaf handler may be triggered, which includes the partal pathes ( DataOnDemandSvc.UsePreceedingPath = true )

2006-10-15: New options (using map-like semantics:)

    DataOnDemandSvc.AlgMap  +=
   { "Phys/StdLoosePions/Particles" : "PreLoadParticles/StdLoosePions" ,
     "Phys/StdLoosePions/Vertioces" : "PreLoadParticles/StdLoosePions" } ;

    DataOnDemandSvc.NodeMap +=
   { "Phys" : "DataObject" ,
     "MC"   : "DataObject" } ;

New treatment of preceeding paths. for each registered leaf or node the all parent nodes are added into the node-map with default directory type 'DataObject'

The major properties are equipped with handlers (more or less mandatory for interactive work in python)

From now the default prefix ( "/Event/" ) coudl be omitted from any data-item. It will be added automatically.

Author:: M.Frank

Version:: 1.0

Definition at line 89 of file DataOnDemandSvc.h.


Public Types
typedef std::vector< std::string >	Setup
typedef ROOT::Reflex::Type	ClassH
typedef std::map< std::string, Node >	NodeMap
typedef std::map< std::string, Leaf >	AlgMap
Public Member Functions
virtual StatusCode	initialize ()
	Inherited Service overrides: Service initialization.
virtual StatusCode	finalize ()
	Inherited Service overrides: Service finalization.
virtual StatusCode	reinitialize ()
	Inherited Service overrides: Service reinitialization.
virtual StatusCode	queryInterface (const InterfaceID &riid, void **ppvInterface)
	Inherited Service overrides: query existing interfaces.
virtual void	handle (const Incident &incident)
	IIncidentListener interfaces overrides: incident handling.
	DataOnDemandSvc (const std::string &name, ISvcLocator *svc)
	Standard initializing service constructor.
virtual	~DataOnDemandSvc ()
	Standard destructor.
void	update_1 (Property &p)
void	update_2 (Property &p)
void	update_3 (Property &p)
Protected Member Functions
StatusCode	configureHandler (Leaf &leaf)
	Configure handler for leaf.
StatusCode	execHandler (const std::string &tag, Leaf &leaf)
	Execute leaf handler (algorithm).
StatusCode	execHandler (const std::string &tag, Node &node)
	Execute node handler (simple object creation using seal reflection).
StatusCode	setupNodeHandlers ()
	Initialize node handlers.
StatusCode	setupAlgHandlers ()
	Initialize leaf handlers.
StatusCode	setup ()
	Setup routine (called by (re-) initialize.
StatusCode	update ()
	update the handlers
MsgStream &	stream () const
	get the message stream
void	dump (const MSG::Level level, const bool mode=true) const
	dump the content of DataOnDemand service
Private Types
typedef std::map< std::string, std::string >	Map
Private Attributes
IIncidentSvc *	m_incSvc
	Incident service.
IAlgManager *	m_algMgr
	Algorithm manager.
IDataProviderSvc *	m_dataSvc
	Data provider reference.
std::string	m_trapType
	Trap name.
std::string	m_dataSvcName
	Data service name.
bool	m_partialPath
	Flag to allow for the creation of partial leaves.
bool	m_dump
	flag to force the printout
Setup	m_algMapping
	Mapping to algorithms.
Setup	m_nodeMapping
	Mapping to nodes.
AlgMap	m_algs
	Map of algorithms to handle incidents.
NodeMap	m_nodes
	Map of "empty" objects to be placed as intermediate nodes.
Map	m_algMap
	the major configuration property { 'data' : 'algorithm' }
Map	m_nodeMap
	the major configuration property { 'data' : 'type' }
bool	m_updateRequired
std::string	m_prefix
MsgStream *	m_log
ChronoEntity	m_total
ulonglong	m_statAlg
ulonglong	m_statNode
ulonglong	m_stat
Classes
struct	Leaf
struct	Node
	Helper class of the DataOnDemandSvc. More...
struct	Protection
	Helper class of the DataOnDemandSvc. More...
struct	Timer

Member Typedef Documentation

typedef std::vector<std::string> DataOnDemandSvc::Setup

Definition at line 96 of file DataOnDemandSvc.h.

typedef ROOT::Reflex::Type DataOnDemandSvc::ClassH

Definition at line 97 of file DataOnDemandSvc.h.

typedef std::map<std::string, Node> DataOnDemandSvc::NodeMap

Definition at line 168 of file DataOnDemandSvc.h.

typedef std::map<std::string, Leaf> DataOnDemandSvc::AlgMap

Definition at line 169 of file DataOnDemandSvc.h.

typedef std::map<std::string,std::string> DataOnDemandSvc::Map [private]

Definition at line 267 of file DataOnDemandSvc.h.

Constructor & Destructor Documentation

DataOnDemandSvc::DataOnDemandSvc	(	const std::string &	name,
		ISvcLocator *	svc
	)

Standard initializing service constructor.

Parameters:

	name	[IN] Service name
	svc	[IN] Pointer to service locator

Returns:: Reference to DataOnDemandSvc object.

Definition at line 39 of file DataOnDemandSvc.cpp.

00040   : Service(name, svc)
00041   , m_incSvc   ( 0 )
00042   , m_algMgr   ( 0 )
00043   , m_dataSvc  ( 0 )
00044   //
00045   , m_trapType    ( "DataFault")
00046   , m_dataSvcName ( "EventDataSvc" )
00047   , m_partialPath ( true  )
00048   , m_dump        ( false )
00049   //
00050   , m_algMapping  ()
00051   , m_nodeMapping ()
00052   //
00053   , m_algMap   (   )
00054   , m_nodeMap  (   )
00055   //
00056   , m_updateRequired ( true )
00057   , m_prefix         ( "/Event/" )
00058   , m_log      ( 0 )
00059   , m_total    (   )
00060   , m_statAlg  ( 0 )
00061   , m_statNode ( 0 )
00062   , m_stat     ( 0 )
00063 {
00064   // ==========================================================================
00065   declareProperty ( "IncidentName"       , m_trapType    ) ;
00066   declareProperty ( "DataSvc"            , m_dataSvcName ) ;
00067   declareProperty ( "UsePreceedingPath"  , m_partialPath ) ;
00068   declareProperty ( "Dump"               , m_dump        ) ;
00069   //
00070   declareProperty ( "Algorithms"         , m_algMapping  )  ->
00071     declareUpdateHandler ( &DataOnDemandSvc::update_2 , this ) ;
00072   declareProperty ( "Nodes"              , m_nodeMapping ) ->
00073     declareUpdateHandler ( &DataOnDemandSvc::update_3 , this ) ;
00074   //
00075   declareProperty ( "AlgMap"  , m_algMap  ) ->
00076     declareUpdateHandler ( &DataOnDemandSvc::update_1 , this ) ;
00077   declareProperty ( "NodeMap" , m_nodeMap ) ->
00078     declareUpdateHandler ( &DataOnDemandSvc::update_1 , this ) ;
00079   //
00080   declareProperty ( "Prefix"             , m_prefix      ) ;
00081   // ==========================================================================
00082 }

DataOnDemandSvc::~DataOnDemandSvc ( ) [virtual]

Standard destructor.

Definition at line 267 of file DataOnDemandSvc.cpp.

00268 { if ( 0 != m_log      ) { delete m_log      ; m_log      = 0 ; } }

Member Function Documentation

StatusCode DataOnDemandSvc::initialize ( ) [virtual]

Inherited Service overrides: Service initialization.

Reimplemented from Service.

Definition at line 272 of file DataOnDemandSvc.cpp.

00273 {
00274   // initialize the Service Base class
00275   StatusCode sc = Service::initialize();
00276   if ( sc.isFailure() )  { return sc; }
00277   sc = setup();
00278   if ( sc.isFailure() )  { return sc; }
00279   //
00280   if      ( m_dump )                      { dump ( MSG::INFO  ) ; }
00281   else if ( MSG::DEBUG >= outputLevel() ) { dump ( MSG::DEBUG ) ; }
00282   //
00283   return StatusCode::SUCCESS ;
00284 }

StatusCode DataOnDemandSvc::finalize ( void ) [virtual]

Inherited Service overrides: Service finalization.

Reimplemented from Service.

Definition at line 403 of file DataOnDemandSvc.cpp.

00404 {
00405   //
00406   stream ()
00407     << MSG::INFO
00408     << "Handled \"" << m_trapType << "\" incidents: "
00409     << m_statAlg  << "/" << m_statNode << "/" << m_stat << "(Alg/Node/Total)."
00410     << endreq ;
00411   if ( m_dump || MSG::DEBUG >= outputLevel() )
00412   {
00413     stream ()
00414       << MSG::INFO
00415       << m_total.outputUserTime
00416       ( "Algorithm timing: Mean(+-rms)/Min/Max:%3%(+-%4%)/%6%/%7%[ms] " , System::milliSec )
00417       << m_total.outputUserTime ( "Total:%2%[s]" , System::Sec ) << endreq ;
00418   }
00419   // dump it!
00420   if      ( m_dump )                      { dump ( MSG::INFO  , false ) ; }
00421   else if ( MSG::DEBUG >= outputLevel() ) { dump ( MSG::DEBUG , false ) ; }
00422   //
00423   if ( m_incSvc )
00424   {
00425     m_incSvc->removeListener(this, m_trapType);
00426     m_incSvc->release();
00427     m_incSvc = 0;
00428   }
00429   if ( 0 != m_algMgr  ) { m_algMgr   -> release () ; m_algMgr  = 0 ; }
00430   if ( 0 != m_dataSvc ) { m_dataSvc  -> release () ; m_dataSvc = 0 ; }
00431   //
00432   return Service::finalize();
00433 }

StatusCode DataOnDemandSvc::reinitialize ( ) [virtual]

Inherited Service overrides: Service reinitialization.

re-initialization of the service

Reimplemented from Service.

Definition at line 437 of file DataOnDemandSvc.cpp.

00438 {
00439   // reinitialize the Service Base class
00440   if ( 0 != m_incSvc )
00441   {
00442     m_incSvc -> removeListener ( this , m_trapType );
00443     m_incSvc -> release ();
00444     m_incSvc = 0;
00445   }
00446   if ( 0 != m_algMgr  ) { m_algMgr   -> release() ; m_algMgr  = 0 ; }
00447   if ( 0 != m_dataSvc ) { m_dataSvc  -> release() ; m_dataSvc = 0 ; }
00448   if ( 0 != m_log     ) { delete m_log ; m_log = 0 ; }
00449   //
00450   StatusCode sc = Service::reinitialize();
00451   if ( sc.isFailure() )  { return sc; }
00452   //
00453   sc = setup() ;
00454   if ( sc.isFailure() )  { return sc; }
00455   //
00456   if ( m_dump ) { dump ( MSG::INFO ) ; }
00457   else if ( MSG::DEBUG >= outputLevel() ) { dump ( MSG::DEBUG  ) ; }
00458   //
00459   return StatusCode::SUCCESS ;
00460 }

StatusCode DataOnDemandSvc::queryInterface	(	const InterfaceID &	riid,
		void **	ppvInterface
	)			`[virtual]`

Inherited Service overrides: query existing interfaces.

Reimplemented from Service.

Definition at line 465 of file DataOnDemandSvc.cpp.

00467 {
00468   if ( IIncidentListener::interfaceID() == riid )
00469   {
00470     *ppvInterface = static_cast<IIncidentListener*>(this);
00471     addRef();
00472     return StatusCode::SUCCESS;
00473   }
00474   // Interface is not directly available: try out a base class
00475   return Service::queryInterface(riid, ppvInterface);
00476 }

void DataOnDemandSvc::handle ( const Incident & incident ) [virtual]

IIncidentListener interfaces overrides: incident handling.

Implements IIncidentListener.

Definition at line 615 of file DataOnDemandSvc.cpp.

00616 {
00617   ++m_stat ;
00618   // proper incident type?
00619   if ( incident.type() != m_trapType ) { return ; }             // RETURN
00620   const DataIncident* inc = dynamic_cast<const DataIncident*>(&incident);
00621   if ( 0 == inc                      ) { return ; }             // RETURN
00622   // update if needed!
00623   if ( m_updateRequired ) { update() ; }
00624   const std::string& tag = inc->tag();
00625   if ( MSG::VERBOSE >= outputLevel() )
00626   {
00627     stream()
00628       << MSG::VERBOSE
00629       << "Incident: [" << incident.type   () << "] "
00630       << " = "         << incident.source ()
00631       << " Location:"  << tag  << endmsg;
00632   }
00633   // ==========================================================================
00634   NodeMap::iterator icl = m_nodes.find ( tag ) ;
00635   if ( icl != m_nodes.end() )
00636   {
00637     StatusCode sc = execHandler ( tag , icl->second ) ;
00638     if ( sc.isSuccess() ) { ++m_statNode ; }
00639     return ;                                                        // RETURN
00640   }
00641   // ==========================================================================
00642   AlgMap::iterator ialg = m_algs.find ( tag ) ;
00643   if ( ialg != m_algs.end() )
00644   {
00645     StatusCode sc = execHandler ( tag , ialg->second ) ;
00646     if ( sc.isSuccess() ) { ++m_statAlg ; }
00647     return ;                                                        // RETURN
00648   }
00649 }

StatusCode DataOnDemandSvc::configureHandler ( Leaf & leaf ) [protected]

Configure handler for leaf.

Parameters:

leaf

[IN] Reference to leaf handler

Returns:: StatusCode indicating success or failure

Definition at line 595 of file DataOnDemandSvc.cpp.

00596 {
00597   if ( 0 == m_algMgr  ) { return StatusCode::FAILURE ; }
00598   StatusCode sc = m_algMgr->getAlgorithm(l.name, l.algorithm);
00599   if ( sc.isFailure() )
00600   {
00601     sc = m_algMgr->createAlgorithm(l.type, l.name, l.algorithm, true );
00602     if ( sc.isFailure() )
00603     {
00604       stream()
00605         << MSG::ERROR
00606         << "Failed to create algorithm "
00607         << l.type << "('" << l.name<< "')" << endmsg;
00608     }
00609   }
00610   return sc;
00611 }

StatusCode DataOnDemandSvc::execHandler	(	const std::string &	tag,
		Leaf &	leaf
	)			`[protected]`

Execute leaf handler (algorithm).

Parameters:

	tag	[IN] Path to requested leaf
	leaf	[IN] Reference to leaf handler

Returns:: StatusCode indicating success or failure

Definition at line 700 of file DataOnDemandSvc.cpp.

00701 {
00702   //
00703   if ( l.executing ) { return StatusCode::FAILURE ; }             // RETURN
00704   //
00705   if ( 0 == l.algorithm )
00706   {
00707     StatusCode sc = configureHandler ( l ) ;
00708     if ( sc.isFailure() )
00709     {
00710       stream()
00711         << MSG::ERROR
00712         << "Failed to configure handler for: "
00713         << l.name << "[" << l.type << "] " << tag << endmsg;
00714       return sc ;                                                 // RETURN
00715     }
00716   }
00717   //
00718   Timer timer ( m_total ) ;
00719   //
00720   Protection p(l.executing);
00721   StatusCode sc = l.algorithm->sysExecute();
00722   if ( sc.isFailure() )
00723   {
00724     stream() << MSG::ERROR
00725              << "Failed to execute the algorithm:"
00726              << l.algorithm->name() << " for location:" << tag << endmsg;
00727     return sc ;                                                       // RETURN
00728   }
00729   ++l.num ;
00730   //
00731   return StatusCode::SUCCESS ;
00732 }

StatusCode DataOnDemandSvc::execHandler	(	const std::string &	tag,
		Node &	node
	)			`[protected]`

Execute node handler (simple object creation using seal reflection).

Parameters:

	tag	[IN] Path to requested leaf
	node	[IN] Reference to node handler

Returns:: StatusCode indicating success or failure

Definition at line 654 of file DataOnDemandSvc.cpp.

00655 {
00656   if ( n.executing ) { return StatusCode::FAILURE ; }            // RETURN
00657
00658   // try to recover the handler
00659   if ( !n.clazz  ) { n.clazz = ROOT::Reflex::Type::ByName(n.name) ; }
00660   if ( !n.clazz  )
00661   {
00662     stream()
00663       << MSG::ERROR
00664       << "Failed to get dictionary for class '"
00665       << n.name
00666       << "' for location:" << tag << endmsg;
00667     return StatusCode::FAILURE ;                               // RETURN
00668   }
00669
00670   ROOT::Reflex::Object obj = n.clazz.Construct();
00671   DataObject* pO = (DataObject*)obj.Address();
00672   if ( !pO )
00673   {
00674     stream()
00675       << MSG::ERROR
00676       << "Failed to create an object of type:"
00677       << n.clazz.Name(ROOT::Reflex::SCOPED) << " for location:" << tag
00678       << endmsg;
00679     return StatusCode::FAILURE  ;                               // RETURN
00680   }
00681   //
00682   Protection p(n.executing);
00683   StatusCode sc = m_dataSvc->registerObject(tag, pO);
00684   if ( sc.isFailure() )
00685   {
00686     stream()
00687       << MSG::ERROR << "Failed to register an object of type:"
00688       << n.clazz.Name(ROOT::Reflex::SCOPED) << " at location:" << tag
00689       << endmsg;
00690     return sc ;                                                  // RETURN
00691   }
00692   ++n.num ;
00693   //
00694   return StatusCode::SUCCESS ;
00695 }

StatusCode DataOnDemandSvc::setupNodeHandlers ( ) [protected]

Initialize node handlers.

Definition at line 514 of file DataOnDemandSvc.cpp.

00515 {
00516   Setup::const_iterator j;
00517   std::string nam, typ, tag;
00518   StatusCode sc = StatusCode::SUCCESS;
00519   // Setup for node leafs, where simply a constructor is called...
00520   for ( j=m_nodeMapping.begin(); j != m_nodeMapping.end(); ++j)
00521   {
00522     Tokenizer tok(true);
00523     tok.analyse(*j, " ", "", "", "=", "'", "'");
00524     for ( Tokenizer::Items::iterator i = tok.items().begin();
00525           i != tok.items().end(); i++ )   {
00526       const std::string& t = (*i).tag();
00527       const std::string& v = (*i).value();
00528       switch( ::toupper(t[0]) )    {
00529       case 'D':
00530         tag = v;
00531         break;
00532       case 'T':
00533         nam = v;
00534         break;
00535       }
00536     }
00537     if ( m_algMap  .end () != m_algMap  .find ( tag ) ||
00538          m_nodeMap .end () != m_nodeMap .find ( tag ) )
00539     {
00540       stream()
00541         << MSG::WARNING
00542         << "The obsolete property 'Nodes' redefines the action for '"
00543         + tag + "' to be '" +nam+"'"
00544         << endreq ;
00545     }
00546     m_nodeMap[tag] = nam ;
00547   }
00548   //
00549   m_updateRequired = true ;
00550   //
00551   return sc;
00552 }

StatusCode DataOnDemandSvc::setupAlgHandlers ( ) [protected]

Initialize leaf handlers.

Definition at line 556 of file DataOnDemandSvc.cpp.

00557 {
00558   Setup::const_iterator j;
00559   std::string typ, tag;
00560
00561   for(j=m_algMapping.begin(); j != m_algMapping.end(); ++j)
00562   {
00563     Tokenizer tok(true);
00564     tok.analyse(*j, " ", "", "", "=", "'", "'");
00565     for(Tokenizer::Items::iterator i = tok.items().begin(); i != tok.items().end(); i++ )   {
00566       const std::string& t = (*i).tag();
00567       const std::string& v = (*i).value();
00568       switch( ::toupper(t[0]) )    {
00569       case 'D':
00570         tag = v;
00571         break;
00572       case 'T':
00573         typ = v;
00574         break;
00575       }
00576     }
00577     ListItem item(typ);
00578     if ( m_algMap  .end () != m_algMap  .find ( tag ) ||
00579          m_nodeMap .end () != m_nodeMap .find ( tag ) )
00580     {
00581       stream()
00582         << MSG::WARNING
00583         << "The obsolete property 'Algorithms' redefines the action for '"
00584         + tag + "' to be '" +item.type() +"/"+item.name()+"'"
00585         << endreq ;
00586     }
00587     m_algMap[tag] = item.type() + "/" + item.name() ;
00588   }
00589   m_updateRequired = true ;
00590   return StatusCode::SUCCESS;
00591 }

StatusCode DataOnDemandSvc::setup ( ) [protected]

Setup routine (called by (re-) initialize.

Definition at line 480 of file DataOnDemandSvc.cpp.

00481 {
00482   m_algMgr = 0;
00483   StatusCode sc =
00484     serviceLocator()->queryInterface(IID_IAlgManager, pp_cast<void>(&m_algMgr));
00485   if ( sc.isFailure () )
00486   {
00487     stream()
00488       << MSG::ERROR
00489       << "Failed to retrieve the IAlgManager interface." << endmsg;
00490     return sc;
00491   }
00492   sc = service("IncidentSvc", m_incSvc, true);
00493   if ( sc.isFailure () )
00494   {
00495     stream()
00496       << MSG::ERROR << "Failed to retrieve Incident service." << endmsg;
00497     return sc;
00498   }
00499   m_incSvc->addListener(this, m_trapType);
00500   sc = service(m_dataSvcName, m_dataSvc, true);
00501   if ( sc.isFailure () )
00502   {
00503     stream()
00504       << MSG::ERROR
00505       << "Failed to retrieve the data provider interface of "
00506       << m_dataSvcName << endmsg;
00507     return sc;
00508   }
00509   return update() ;
00510 }

void DataOnDemandSvc::update_1 ( Property & p )

Definition at line 86 of file DataOnDemandSvc.cpp.

00087 {
00088   stream() << MSG::VERBOSE << " I am update handler for property " << p << endreq ;
00089   // force update
00090   m_updateRequired = true ;
00091 }

void DataOnDemandSvc::update_2 ( Property & p )

Definition at line 107 of file DataOnDemandSvc.cpp.

00108 {
00109   stream() << MSG::WARNING
00110            << "The property 'Algorithms' is obsolete, switch to map-like 'AlgMap'  "
00111            << " = { 'data' : 'algorithm' } "
00112            << endreq ;
00113   // force update
00114   m_updateRequired = true ;
00115 }

void DataOnDemandSvc::update_3 ( Property & p )

Definition at line 95 of file DataOnDemandSvc.cpp.

00096 {
00097   stream() << MSG::WARNING
00098            << "The property 'Nodes'      is obsolete, switch to map-like 'NodeMap' "
00099            << " = { 'data' : 'type'      } "
00100            << endreq ;
00101   // force update
00102   m_updateRequired = true ;
00103 }

StatusCode DataOnDemandSvc::update ( ) [protected]

update the handlers

convert obsolete "Nodes" into new "NodeMap"

convert obsolete "Algorithms" into new "AlgMap"

add the default prefix

get all directories

setup algorithms

setup nodes

Definition at line 199 of file DataOnDemandSvc.cpp.

00200 {
00201   StatusCode sc = StatusCode::SUCCESS ;
00203   sc = setupNodeHandlers() ; // convert "Nodes"      new "NodeMap"
00204   if ( sc.isFailure() )
00205   {
00206     stream() << MSG::ERROR << "Failed to setup old \"Nodes\""      << endreq ;
00207     return sc ;
00208   }
00210   sc = setupAlgHandlers()   ; // convert "Algorithms" into "AlgMap"
00211   if ( sc.isFailure() )
00212   {
00213     stream() << MSG::ERROR << "Failed to setup old \"Algorithms\"" << endreq ;
00214     return sc ;
00215   }
00217   add_prefix ( m_algMap  , m_prefix ) ;
00219   add_prefix ( m_nodeMap , m_prefix ) ;
00221   typedef std::set<std::string> Set ;
00222   Set dirs ;
00223   if ( m_partialPath ){ get_dirs ( m_algMap  , dirs ) ; }
00224   if ( m_partialPath ){ get_dirs ( m_nodeMap , dirs ) ; }
00225   //
00226   Set::iterator _e = dirs.find("/Event") ;
00227   if ( dirs.end() != _e ) { dirs.erase( _e ) ; }
00228   // add all directories as nodes
00229   for ( Set::const_iterator dir = dirs.begin() ; dirs.end() != dir ; ++dir )
00230   {
00231     if ( m_algMap  .end () != m_algMap  .find ( *dir ) ) { continue ; }
00232     if ( m_nodeMap .end () != m_nodeMap .find ( *dir ) ) { continue ; }
00233     m_nodeMap [*dir] = "DataObject" ;
00234   }
00235   //
00236   m_algs  .clear  () ;
00237   m_nodes .clear  () ;
00238   //
00240   for ( Map::const_iterator ialg = m_algMap.begin() ;
00241         m_algMap.end() != ialg ; ++ialg )
00242   {
00243     ListItem alg ( ialg->second ) ;
00244     m_algs[ialg->first] =  Leaf( alg.type() , alg.name() ) ;
00245   }
00247   for ( Map::const_iterator inode = m_nodeMap.begin() ;
00248         m_nodeMap.end() != inode ; ++inode )
00249   {
00250     ClassH cl = ROOT::Reflex::Type::ByName( inode->second ) ;
00251     if ( !cl )
00252     {
00253       stream() << MSG::WARNING
00254                << "Failed to access dictionary class for "
00255                << inode->first << " of type:" << inode->second << endmsg;
00256     }
00257     m_nodes[inode->first] = Node ( cl , false , inode->second ) ;
00258   }
00260   m_updateRequired = false ;
00261   //
00262   return StatusCode::SUCCESS ;
00263 }

MsgStream& DataOnDemandSvc::stream ( ) const [inline, protected]

get the message stream

Definition at line 231 of file DataOnDemandSvc.h.

00232   {
00233     if ( 0 == m_log ) { m_log = new MsgStream( msgSvc() , name() ) ; }
00234     return *m_log;
00235   }

void DataOnDemandSvc::dump	(	const MSG::Level	level,
		const bool	mode = `true`
	)			const `[protected]`

dump the content of DataOnDemand service

Parameters:

	level	the printout level
	mode	the printout mode

Definition at line 292 of file DataOnDemandSvc.cpp.

00294 {
00295   if ( m_algs.empty()  &&  m_nodes.empty() ) { return ; }
00296
00297   typedef std::pair<std::string,std::string> Pair ;
00298   typedef std::map<std::string,Pair>         PMap ;
00299
00300   PMap _m ;
00301   for ( AlgMap::const_iterator alg = m_algs.begin() ;
00302         m_algs.end() != alg ; ++alg )
00303   {
00304     PMap::const_iterator check = _m.find(alg->first) ;
00305     if ( _m.end() != check )
00306     {
00307       stream()
00308         << MSG::WARNING
00309         << " The data item is activated for '"
00310         << check->first << "' as '" << check->second.first << "'" << endreq ;
00311     }
00312     const Leaf& l = alg->second ;
00313     std::string nam = ( l.name == l.type ? l.type  : (l.type+"/"+l.name) ) ;
00314     //
00315     if ( !mode && 0 == l.num ) { continue ; }
00316     //
00317     std::string val ;
00318     if ( mode ) { val = ( 0 == l.algorithm ) ? "F" : "T" ; }
00319     else { val = boost::lexical_cast<std::string>( l.num ) ; }
00320     //
00321     _m[ no_prefix ( alg->first , m_prefix ) ] = std::make_pair ( nam , val ) ;
00322   }
00323   // nodes:
00324   for ( NodeMap::const_iterator node = m_nodes.begin() ;
00325         m_nodes.end() != node ; ++node )
00326   {
00327     PMap::const_iterator check = _m.find(node->first) ;
00328     if ( _m.end() != check )
00329     {
00330       stream()
00331         << MSG::WARNING
00332         << " The data item is already activated for '"
00333         << check->first << "' as '" << check->second.first << "'" << endreq ;
00334     }
00335     const Node& n = node->second ;
00336     std::string nam = "'" + n.name + "'"  ;
00337     //
00338     std::string val ;
00339
00340     if ( !mode && 0 == n.num ) { continue ; }
00341
00342     if ( mode ) { val = ( 0 == n.clazz ) ? "F" : "T" ; }
00343     else { val = boost::lexical_cast<std::string>( n.num ) ; }
00344     //
00345     _m[ no_prefix ( node->first , m_prefix ) ] = std::make_pair ( nam , val ) ;
00346   }
00347   //
00348   if ( _m.empty() ) { return ; }
00349
00350   // find the correct formats
00351   size_t n1 = 0 ;
00352   size_t n2 = 0 ;
00353   size_t n3 = 0 ;
00354   for  ( PMap::const_iterator it = _m.begin() ; _m.end() != it ; ++it )
00355   {
00356     n1 = std::max ( n1 , it->first.size()         ) ;
00357     n2 = std::max ( n2 , it->second.first.size()  ) ;
00358     n3 = std::max ( n3 , it->second.second.size() ) ;
00359   }
00360   if ( 10 > n1 ) { n1 = 10 ; }
00361   if ( 10 > n2 ) { n2 = 10 ; }
00362   if ( 60 < n1 ) { n1 = 60 ; }
00363   if ( 60 < n2 ) { n2 = 60 ; }
00364   //
00365
00366   const std::string _f = " | %%1$-%1%.%1%s | %%2$-%2%.%2%s | %%3$%3%.%3%s |" ;
00367   boost::format _ff ( _f ) ;
00368   _ff % n1 % n2 % n3 ;
00369
00370   const std::string _format  = _ff.str() ;
00371
00372   MsgStream& msg = stream() << level ;
00373
00374   if ( mode ) { msg << "Data-On-Demand Actions enabled for:"       ; }
00375   else        { msg << "Data-On-Demand Actions has been used for:" ; }
00376
00377   boost::format fmt1( _format)  ;
00378   fmt1 % "Address" % "Creator" % ( mode ? "S" : "#" ) ;
00379   //
00380   const std::string header = fmt1.str() ;
00381   std::string line = std::string( header.size() , '-' ) ;
00382   line[0] = ' ' ;
00383
00384   msg << std::endl << line
00385       << std::endl << header
00386       << std::endl << line ;
00387
00388   // make the actual printout:
00389   for ( PMap::const_iterator item = _m.begin() ;
00390         _m.end() != item ; ++item )
00391   {
00392     boost::format fmt( _format)  ;
00393     msg << std::endl <<
00394       ( fmt % item->first % item->second.first % item->second.second ) ;
00395   }
00396
00397   msg << std::endl << line << endreq ;
00398
00399 }

Member Data Documentation

IIncidentSvc* DataOnDemandSvc::m_incSvc [private]

Incident service.

Definition at line 245 of file DataOnDemandSvc.h.

IAlgManager* DataOnDemandSvc::m_algMgr [private]

Algorithm manager.

Definition at line 247 of file DataOnDemandSvc.h.

IDataProviderSvc* DataOnDemandSvc::m_dataSvc [private]

Data provider reference.

Definition at line 249 of file DataOnDemandSvc.h.

std::string DataOnDemandSvc::m_trapType [private]

Trap name.

Definition at line 251 of file DataOnDemandSvc.h.

std::string DataOnDemandSvc::m_dataSvcName [private]

Data service name.

Definition at line 253 of file DataOnDemandSvc.h.

bool DataOnDemandSvc::m_partialPath [private]

Flag to allow for the creation of partial leaves.

Definition at line 255 of file DataOnDemandSvc.h.

bool DataOnDemandSvc::m_dump [private]

flag to force the printout

Definition at line 257 of file DataOnDemandSvc.h.

Setup DataOnDemandSvc::m_algMapping [private]

Mapping to algorithms.

Definition at line 259 of file DataOnDemandSvc.h.

Setup DataOnDemandSvc::m_nodeMapping [private]

Mapping to nodes.

Definition at line 261 of file DataOnDemandSvc.h.

AlgMap DataOnDemandSvc::m_algs [private]

Map of algorithms to handle incidents.

Definition at line 263 of file DataOnDemandSvc.h.

NodeMap DataOnDemandSvc::m_nodes [private]

Map of "empty" objects to be placed as intermediate nodes.

Definition at line 265 of file DataOnDemandSvc.h.

Map DataOnDemandSvc::m_algMap [private]

the major configuration property { 'data' : 'algorithm' }

Definition at line 269 of file DataOnDemandSvc.h.

Map DataOnDemandSvc::m_nodeMap [private]

the major configuration property { 'data' : 'type' }

Definition at line 271 of file DataOnDemandSvc.h.

bool DataOnDemandSvc::m_updateRequired [private]

Definition at line 272 of file DataOnDemandSvc.h.

std::string DataOnDemandSvc::m_prefix [private]

Definition at line 273 of file DataOnDemandSvc.h.

MsgStream* DataOnDemandSvc::m_log [mutable, private]

Definition at line 274 of file DataOnDemandSvc.h.

ChronoEntity DataOnDemandSvc::m_total [private]

Definition at line 276 of file DataOnDemandSvc.h.

ulonglong DataOnDemandSvc::m_statAlg [private]

Definition at line 277 of file DataOnDemandSvc.h.

ulonglong DataOnDemandSvc::m_statNode [private]

Definition at line 278 of file DataOnDemandSvc.h.

ulonglong DataOnDemandSvc::m_stat [private]

Definition at line 279 of file DataOnDemandSvc.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r4/GaudiSvc/src/IncidentSvc/DataOnDemandSvc.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r4/GaudiSvc/src/IncidentSvc/DataOnDemandSvc.cpp

	Gaudi Framework, version v20r4
	Generated: 8 Jan 2009

Gaudi Framework, version v20r4

DataOnDemandSvc Class Reference

Detailed Description

Public Types

Public Member Functions

Protected Member Functions

Private Types

Private Attributes

Classes

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
