Gaudi::Generic3D< INTERFACE, IMPLEMENTATION > Class Template Reference

#include <GaudiPI/Generic3D.h>

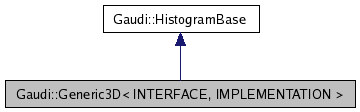

Inheritance diagram for Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >:

[legend]

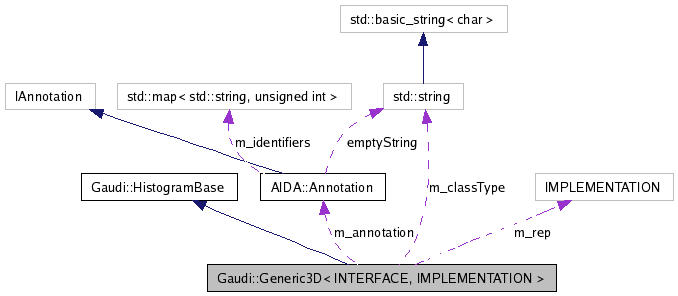

Collaboration diagram for Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >:

[legend]

List of all members.

Detailed Description

template<typename INTERFACE, typename IMPLEMENTATION>
class Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >

Common AIDA implementation stuff for histograms and profiles using ROOT implementations.

Credits: This code is the result of some stripdown implementation of LCG/PI. Credits to them!

Author:: M.Frank

Definition at line 27 of file Generic3D.h.


Public Types
typedef Generic3D< INTERFACE, IMPLEMENTATION >	Base
Public Member Functions
	Generic3D ()
	Default constructor.
virtual	~Generic3D ()
	Destructor.
TObject *	representation () const
	ROOT object implementation.
virtual void	adoptRepresentation (TObject *rep)
	Adopt ROOT histogram representation.
virtual int	dimension () const
	Get the Histogram's dimension.
virtual std::string	title () const
	Get the title of the object.
virtual bool	setTitle (const std::string &title)
	Set the title of the object.
virtual std::string	name () const
	object name
bool	setName (const std::string &newName)
	Sets the name of the object.
virtual AIDA::IAnnotation &	annotation ()
	Access annotation object.
virtual const AIDA::IAnnotation &	annotation () const
	Access annotation object (cons).
virtual int	entries () const
	Get the number or all the entries.
virtual int	allEntries () const
	Get the number or all the entries, both in range and underflow/overflow bins of the IProfile.
virtual double	sumBinHeights () const
	Get the sum of in range bin heights in the IProfile.
virtual double	sumAllBinHeights () const
	Get the sum of all the bins heights (including underflow and overflow bin).
virtual double	sumExtraBinHeights () const
	Get the sum of the underflow and overflow bin height.
virtual double	minBinHeight () const
	Get the minimum height of the in-range bins.
virtual double	maxBinHeight () const
	Get the maximum height of the in-range bins.
int	rIndexX (int index) const
int	rIndexY (int index) const
int	rIndexZ (int index) const
double	binMeanX (int indexX, int, int) const
	The weighted mean along the x axis of a given bin.
double	binMeanY (int, int indexY, int) const
	The weighted mean along the y axis of a given bin.
double	binMeanZ (int, int, int indexZ) const
	The weighted mean along the z axis of a given bin.
int	binEntries (int indexX, int indexY, int indexZ) const
	Number of entries in the corresponding bin (ie the number of times fill was calle d for this bin).
virtual int	binEntriesX (int index) const
	Sum of all the entries of the bins along a given x bin.
virtual int	binEntriesY (int index) const
	Sum of all the entries of the bins along a given y bin.
virtual int	binEntriesZ (int index) const
	Sum of all the entries of the bins along a given z bin.
double	binHeight (int indexX, int indexY, int indexZ) const
	Total height of the corresponding bin (ie the sum of the weights in this bin).
virtual double	binHeightX (int index) const
	Sum of all the heights of the bins along a given x bin.
virtual double	binHeightY (int index) const
	Sum of all the heights of the bins along a given y bin.
virtual double	binHeightZ (int index) const
	Sum of all the heights of the bins along a given z bin.
virtual double	binError (int indexX, int indexY, int indexZ) const
	The error of a given bin.
virtual double	meanX () const
	The mean of the IHistogram3D along the x axis.
virtual double	meanY () const
	The mean of the IHistogram3D along the y axis.
virtual double	meanZ () const
	The mean of the IHistogram3D along the z axis.
virtual double	rmsX () const
	The RMS of the IHistogram3D along the x axis.
virtual double	rmsY () const
	The RMS of the IHistogram3D along the y axis.
virtual double	rmsZ () const
	The RMS of the IHistogram3D along the z axis.
virtual const AIDA::IAxis &	xAxis () const
	Get the x axis of the IHistogram3D.
virtual const AIDA::IAxis &	yAxis () const
	Get the y axis of the IHistogram3D.
virtual const AIDA::IAxis &	zAxis () const
	Get the z axis of the IHistogram3D.
virtual int	coordToIndexX (double coord) const
	Get the bin number corresponding to a given coordinate along the x axis.
virtual int	coordToIndexY (double coord) const
	Get the bin number corresponding to a given coordinate along the y axis.
virtual int	coordToIndexZ (double coord) const
	Get the bin number corresponding to a given coordinate along the z axis.
virtual double	equivalentBinEntries () const
	Number of equivalent entries, i.e. `SUM[ weight ] ^ 2 / SUM[ weight^2 ]`.
virtual bool	scale (double scaleFactor)
	Scale the weights and the errors of all the IHistogram's bins (in-range and out-of-range ones) by a given scale factor.
virtual bool	add (const INTERFACE &hist)
	Add to this Histogram3D the contents of another IHistogram3D.
int	extraEntries () const
virtual std::ostream &	print (std::ostream &s) const
	Print (ASCII) the histogram into the output stream.
virtual std::ostream &	write (std::ostream &s) const
	Write (ASCII) the histogram table into the output stream.
virtual int	write (const char *file_name) const
	Write (ASCII) the histogram table into a file.
template<>
void	adoptRepresentation (TObject *rep)
	Adopt ROOT histogram representation.
Protected Attributes
Gaudi::Axis	m_xAxis
Gaudi::Axis	m_yAxis
Gaudi::Axis	m_zAxis
AIDA::Annotation	m_annotation
	Object annotations.
IMPLEMENTATION *	m_rep
	Reference to underlying implementation.
std::string	m_classType
int	m_sumEntries

Member Typedef Documentation

template<typename INTERFACE, typename IMPLEMENTATION>

typedef Generic3D<INTERFACE,IMPLEMENTATION> Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::Base

Definition at line 29 of file Generic3D.h.

Constructor & Destructor Documentation

template<typename INTERFACE, typename IMPLEMENTATION>

Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::Generic3D ( ) [inline]

Default constructor.

Definition at line 31 of file Generic3D.h.

00031 : m_rep(0)  {}

template<typename INTERFACE, typename IMPLEMENTATION>

virtual Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::~Generic3D ( ) [inline, virtual]

Destructor.

Definition at line 33 of file Generic3D.h.

00033 { delete m_rep; }

Member Function Documentation

template<typename INTERFACE, typename IMPLEMENTATION>

TObject* Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::representation ( ) const [inline, virtual]

ROOT object implementation.

Implements Gaudi::HistogramBase.

Definition at line 35 of file Generic3D.h.

00035 { return m_rep;                       }

template<typename INTERFACE, typename IMPLEMENTATION>

virtual void Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::adoptRepresentation ( TObject * rep ) [virtual]

Adopt ROOT histogram representation.

Implements Gaudi::HistogramBase.

template<typename INTERFACE, typename IMPLEMENTATION>

virtual int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::dimension ( ) const [inline, virtual]

Get the Histogram's dimension.

Definition at line 40 of file Generic3D.h.

00040 { return 3; }

template<typename INTERFACE, typename IMPLEMENTATION>

virtual std::string Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::title ( ) const [inline, virtual]

Get the title of the object.

Definition at line 42 of file Generic3D.h.

00042 {  return m_annotation.value("Title");}

template<class INTERFACE, class IMPLEMENTATION>

bool Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::setTitle ( const std::string & title ) [inline, virtual]

Set the title of the object.

Definition at line 219 of file Generic3D.h.

00219                                                                              {
00220     m_rep->SetTitle(title.c_str());
00221     if ( !annotation().addItem( "Title", title ) )
00222       m_annotation.setValue( "Title" , title );
00223     if ( !annotation().addItem( "title", title ) )
00224       annotation().setValue( "title", title );
00225     return true;
00226   }

template<typename INTERFACE, typename IMPLEMENTATION>

virtual std::string Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::name ( ) const [inline, virtual]

object name

Definition at line 46 of file Generic3D.h.

00046 { return m_annotation.value("Name"); }

template<class INTERFACE, class IMPLEMENTATION>

bool Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::setName ( const std::string & newName ) [inline]

Sets the name of the object.

Definition at line 229 of file Generic3D.h.

00229                                                                               {
00230     m_rep->SetName(newName.c_str());
00231     m_annotation.setValue( "Name", newName );
00232     return true;
00233   }

template<typename INTERFACE, typename IMPLEMENTATION>

virtual AIDA::IAnnotation& Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::annotation ( ) [inline, virtual]

Access annotation object.

Definition at line 50 of file Generic3D.h.

00050 { return m_annotation;               }

template<typename INTERFACE, typename IMPLEMENTATION>

virtual const AIDA::IAnnotation& Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::annotation ( ) const [inline, virtual]

Access annotation object (cons).

Definition at line 52 of file Generic3D.h.

00052 { return m_annotation;               }

template<class INTERFACE, class IMPLEMENTATION>

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::entries ( ) const [inline, virtual]

Get the number or all the entries.

Definition at line 235 of file Generic3D.h.

00235                                                                                {
00236     return (int)m_rep->GetEntries();
00237   }

template<class INTERFACE, class IMPLEMENTATION>

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::allEntries ( ) const [inline, virtual]

Get the number or all the entries, both in range and underflow/overflow bins of the IProfile.

Definition at line 240 of file Generic3D.h.

00240                                                                 {
00241     return int(m_rep->GetEntries());
00242   }

template<class INTERFACE, class IMPLEMENTATION>

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::sumBinHeights ( ) const [inline, virtual]

Get the sum of in range bin heights in the IProfile.

Definition at line 255 of file Generic3D.h.

00255                                                                     {
00256     return m_rep->GetSumOfWeights();
00257   }

template<class INTERFACE, class IMPLEMENTATION>

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::sumAllBinHeights ( ) const [inline, virtual]

Get the sum of all the bins heights (including underflow and overflow bin).

Definition at line 260 of file Generic3D.h.

00260                                                                        {
00261     return m_rep->GetSum();
00262   }

template<typename INTERFACE, typename IMPLEMENTATION>

virtual double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::sumExtraBinHeights ( ) const [inline, virtual]

Get the sum of the underflow and overflow bin height.

Definition at line 63 of file Generic3D.h.

00063 { return  sumAllBinHeights()-sumBinHeights(); }

template<class INTERFACE, class IMPLEMENTATION>

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::minBinHeight ( ) const [inline, virtual]

Get the minimum height of the in-range bins.

Definition at line 245 of file Generic3D.h.

00245                                                                    {
00246     return m_rep->GetMinimum();
00247   }

template<class INTERFACE, class IMPLEMENTATION>

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::maxBinHeight ( ) const [inline, virtual]

Get the maximum height of the in-range bins.

Definition at line 250 of file Generic3D.h.

00250                                                                    {
00251     return m_rep->GetMaximum();
00252   }

template<typename INTERFACE, typename IMPLEMENTATION>

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::rIndexX ( int index ) const [inline]

Definition at line 69 of file Generic3D.h.

00069 { return m_xAxis.rIndex(index);}

template<typename INTERFACE, typename IMPLEMENTATION>

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::rIndexY ( int index ) const [inline]

Definition at line 70 of file Generic3D.h.

00070 { return m_yAxis.rIndex(index);}

template<typename INTERFACE, typename IMPLEMENTATION>

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::rIndexZ ( int index ) const [inline]

Definition at line 71 of file Generic3D.h.

00071 { return m_zAxis.rIndex(index);}

template<typename INTERFACE, typename IMPLEMENTATION>

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::binMeanX	(	int	indexX,
		int	,
		int
	)			const `[inline]`

The weighted mean along the x axis of a given bin.

Definition at line 74 of file Generic3D.h.

00075     { return (m_rep->GetXaxis())->GetBinCenter( rIndexX(indexX) ); }

template<typename INTERFACE, typename IMPLEMENTATION>

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::binMeanY	(	int	,
		int	indexY,
		int
	)			const `[inline]`

The weighted mean along the y axis of a given bin.

Definition at line 77 of file Generic3D.h.

00078     { return (m_rep->GetYaxis())->GetBinCenter( rIndexY(indexY) ); }

template<typename INTERFACE, typename IMPLEMENTATION>

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::binMeanZ	(	int	,
		int	,
		int	indexZ
	)			const `[inline]`

The weighted mean along the z axis of a given bin.

Definition at line 80 of file Generic3D.h.

00081     { return (m_rep->GetYaxis())->GetBinCenter( rIndexY(indexZ) ); }

template<typename INTERFACE, typename IMPLEMENTATION>

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::binEntries	(	int	indexX,
		int	indexY,
		int	indexZ
	)			const `[inline]`

Number of entries in the corresponding bin (ie the number of times fill was calle d for this bin).

Definition at line 83 of file Generic3D.h.

00083                                                               {
00084       if (binHeight(indexX, indexY, indexZ)<=0) return 0;
00085       double xx =  binHeight(indexX, indexY, indexZ)/binError(indexX, indexY, indexZ);
00086       return int(xx*xx+0.5);
00087     }

template<typename INTERFACE, typename IMPLEMENTATION>

virtual int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::binEntriesX ( int index ) const [inline, virtual]

Sum of all the entries of the bins along a given x bin.

Definition at line 89 of file Generic3D.h.

00089                                                 {
00090       int n = 0;
00091       for (int i = -2; i < yAxis().bins(); ++i)
00092         for (int j = -2; j < zAxis().bins(); ++j)
00093           n += binEntries(index,i,j);
00094       return n;
00095
00096     }

template<typename INTERFACE, typename IMPLEMENTATION>

virtual int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::binEntriesY ( int index ) const [inline, virtual]

Sum of all the entries of the bins along a given y bin.

Definition at line 98 of file Generic3D.h.

00098                                                 {
00099       int n = 0;
00100       for (int i = -2; i < xAxis().bins(); ++i)
00101         for (int j = -2; j < zAxis().bins(); ++j)
00102           n += binEntries(i,index,j);
00103       return n;
00104     }

template<typename INTERFACE, typename IMPLEMENTATION>

virtual int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::binEntriesZ ( int index ) const [inline, virtual]

Sum of all the entries of the bins along a given z bin.

Definition at line 107 of file Generic3D.h.

00107                                                 {
00108       int n = 0;
00109       for (int i = -2; i < xAxis().bins(); ++i)
00110         for (int j = -2; j < yAxis().bins(); ++j)
00111           n += binEntries(i,j,index);
00112       return n;
00113     }

template<typename INTERFACE, typename IMPLEMENTATION>

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::binHeight	(	int	indexX,
		int	indexY,
		int	indexZ
	)			const `[inline]`

Total height of the corresponding bin (ie the sum of the weights in this bin).

Definition at line 116 of file Generic3D.h.

00117     { return m_rep->GetBinContent ( rIndexX(indexX), rIndexY(indexY), rIndexZ(indexZ) ); }

template<typename INTERFACE, typename IMPLEMENTATION>

virtual double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::binHeightX ( int index ) const [inline, virtual]

Sum of all the heights of the bins along a given x bin.

Definition at line 120 of file Generic3D.h.

00120                                                   {
00121       double s = 0;
00122       for (int i = -2; i < yAxis().bins(); ++i)
00123         for (int j = -2; j < zAxis().bins(); ++j)
00124           s += binHeight(index,i,j);
00125       return s;
00126     }

template<typename INTERFACE, typename IMPLEMENTATION>

virtual double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::binHeightY ( int index ) const [inline, virtual]

Sum of all the heights of the bins along a given y bin.

Definition at line 128 of file Generic3D.h.

00128                                                   {
00129       double s = 0;
00130       for (int i = -2; i < xAxis().bins(); ++i)
00131         for (int j = -2; j < zAxis().bins(); ++j)
00132           s += binHeight(i,index,j);
00133       return s;
00134     }

template<typename INTERFACE, typename IMPLEMENTATION>

virtual double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::binHeightZ ( int index ) const [inline, virtual]

Sum of all the heights of the bins along a given z bin.

Definition at line 136 of file Generic3D.h.

00136                                                   {
00137       double s = 0;
00138       for (int i = -2; i < xAxis().bins(); ++i)
00139         for (int j = -2; j < yAxis().bins(); ++j)
00140           s += binHeight(i,j,index);
00141       return s;
00142     }

template<typename INTERFACE, typename IMPLEMENTATION>

virtual double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::binError	(	int	indexX,
		int	indexY,
		int	indexZ
	)			const `[inline, virtual]`

The error of a given bin.

Definition at line 144 of file Generic3D.h.

00145     { return m_rep->GetBinError ( rIndexX(indexX), rIndexY(indexY ), rIndexZ(indexZ ) ); }

template<typename INTERFACE, typename IMPLEMENTATION>

virtual double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::meanX ( ) const [inline, virtual]

The mean of the IHistogram3D along the x axis.

Definition at line 147 of file Generic3D.h.

00147 { return m_rep->GetMean ( 1); }

template<typename INTERFACE, typename IMPLEMENTATION>

virtual double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::meanY ( ) const [inline, virtual]

The mean of the IHistogram3D along the y axis.

Definition at line 150 of file Generic3D.h.

00150 { return m_rep->GetMean ( 2 ); }

template<typename INTERFACE, typename IMPLEMENTATION>

virtual double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::meanZ ( ) const [inline, virtual]

The mean of the IHistogram3D along the z axis.

Definition at line 152 of file Generic3D.h.

00152 { return m_rep->GetMean ( 3 ); }

template<typename INTERFACE, typename IMPLEMENTATION>

virtual double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::rmsX ( ) const [inline, virtual]

The RMS of the IHistogram3D along the x axis.

Definition at line 154 of file Generic3D.h.

00154 { return m_rep->GetRMS( 1 ); }

template<typename INTERFACE, typename IMPLEMENTATION>

virtual double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::rmsY ( ) const [inline, virtual]

The RMS of the IHistogram3D along the y axis.

Definition at line 156 of file Generic3D.h.

00156 { return m_rep->GetRMS( 2 ); }

template<typename INTERFACE, typename IMPLEMENTATION>

virtual double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::rmsZ ( ) const [inline, virtual]

The RMS of the IHistogram3D along the z axis.

Definition at line 158 of file Generic3D.h.

00158 { return m_rep->GetRMS( 3 ); }

template<typename INTERFACE, typename IMPLEMENTATION>

virtual const AIDA::IAxis& Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::xAxis ( ) const [inline, virtual]

Get the x axis of the IHistogram3D.

Definition at line 160 of file Generic3D.h.

00160 { return m_xAxis; }

template<typename INTERFACE, typename IMPLEMENTATION>

virtual const AIDA::IAxis& Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::yAxis ( ) const [inline, virtual]

Get the y axis of the IHistogram3D.

Definition at line 162 of file Generic3D.h.

00162 { return m_yAxis; }

template<typename INTERFACE, typename IMPLEMENTATION>

virtual const AIDA::IAxis& Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::zAxis ( ) const [inline, virtual]

Get the z axis of the IHistogram3D.

Definition at line 164 of file Generic3D.h.

00164 { return m_zAxis; }

template<typename INTERFACE, typename IMPLEMENTATION>

virtual int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::coordToIndexX ( double coord ) const [inline, virtual]

Get the bin number corresponding to a given coordinate along the x axis.

Definition at line 166 of file Generic3D.h.

00166 { return xAxis().coordToIndex(coord);}

template<typename INTERFACE, typename IMPLEMENTATION>

virtual int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::coordToIndexY ( double coord ) const [inline, virtual]

Get the bin number corresponding to a given coordinate along the y axis.

Definition at line 168 of file Generic3D.h.

00168 { return yAxis().coordToIndex(coord);}

template<typename INTERFACE, typename IMPLEMENTATION>

virtual int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::coordToIndexZ ( double coord ) const [inline, virtual]

Get the bin number corresponding to a given coordinate along the z axis.

Definition at line 170 of file Generic3D.h.

00170 { return zAxis().coordToIndex(coord);}

template<class INTERFACE, class IMPLEMENTATION>

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::equivalentBinEntries ( ) const [inline, virtual]

Number of equivalent entries, i.e. SUM[ weight ] ^ 2 / SUM[ weight^2 ].

Definition at line 265 of file Generic3D.h.

00265                                                                           {
00266     if (sumBinHeights() <= 0) return 0;
00267     Stat_t stats[11];   // cover up to 3D...
00268     m_rep->GetStats(stats);
00269     return stats[0]*stats[0]/stats[1];
00270   }

template<class INTERFACE, class IMPLEMENTATION>

bool Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::scale ( double scaleFactor ) [inline, virtual]

Scale the weights and the errors of all the IHistogram's bins (in-range and out-of-range ones) by a given scale factor.

Definition at line 273 of file Generic3D.h.

00273                                                                       {
00274     m_rep->Scale ( scaleFactor );
00275     return true;
00276   }

template<typename INTERFACE, typename IMPLEMENTATION>

virtual bool Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::add ( const INTERFACE & hist ) [inline, virtual]

Add to this Histogram3D the contents of another IHistogram3D.

Definition at line 177 of file Generic3D.h.

00177                                                  {
00178       const Base* p = dynamic_cast<const Base*>(&hist);
00179       if ( p )  {
00180         m_rep->Add(p->m_rep);
00181         return true;
00182       }
00183       throw std::runtime_error("Cannot add profile histograms of different implementations.");
00184     }

template<typename INTERFACE, typename IMPLEMENTATION>

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::extraEntries ( ) const [inline]

Definition at line 187 of file Generic3D.h.

00187                              {
00188       return
00189         binEntries(AIDA::IAxis::UNDERFLOW_BIN,AIDA::IAxis::UNDERFLOW_BIN,AIDA::IAxis::UNDERFLOW_BIN) +
00190         binEntries(AIDA::IAxis::UNDERFLOW_BIN,AIDA::IAxis::UNDERFLOW_BIN,AIDA::IAxis::OVERFLOW_BIN)  +
00191         binEntries(AIDA::IAxis::UNDERFLOW_BIN, AIDA::IAxis::OVERFLOW_BIN,AIDA::IAxis::UNDERFLOW_BIN)  +
00192         binEntries(AIDA::IAxis::OVERFLOW_BIN,AIDA::IAxis::UNDERFLOW_BIN,AIDA::IAxis::UNDERFLOW_BIN) +
00193         binEntries(AIDA::IAxis::OVERFLOW_BIN,AIDA::IAxis::UNDERFLOW_BIN,AIDA::IAxis::OVERFLOW_BIN) +
00194         binEntries(AIDA::IAxis::OVERFLOW_BIN,AIDA::IAxis::OVERFLOW_BIN,AIDA::IAxis::UNDERFLOW_BIN)  +
00195         binEntries(AIDA::IAxis::OVERFLOW_BIN, AIDA::IAxis::OVERFLOW_BIN,AIDA::IAxis::OVERFLOW_BIN);
00196     }

template<class INTERFACE, class IMPLEMENTATION>

std::ostream & Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::print ( std::ostream & s ) const [inline, virtual]

Print (ASCII) the histogram into the output stream.

bin contents and errors are printed for all bins including under and overflows

Implements Gaudi::HistogramBase.

Definition at line 279 of file Generic3D.h.

00280   {
00282     m_rep->Print("all");
00283     return s;
00284   }

template<class INTERFACE, class IMPLEMENTATION>

std::ostream & Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::write ( std::ostream & s ) const [inline, virtual]

Write (ASCII) the histogram table into the output stream.

Implements Gaudi::HistogramBase.

Definition at line 289 of file Generic3D.h.

00290   {
00291     s << "\n3D Histogram Table: " << std::endl;
00292     s << "BinX, BinY, BinZ, Height, Error " << std::endl;
00293     for ( int i = 0; i < xAxis().bins(); ++i )
00294       for ( int j = 0; j < yAxis().bins(); ++j )
00295         for ( int k = 0; k < zAxis().bins(); ++k )
00296         s << binMeanX( i, j, k )    << ", "
00297           << binMeanY( i, j, k )    << ", "
00298           << binMeanZ( i, j, k )    << ", "
00299           << binHeight( i, j, k ) << ", "
00300           << binError ( i, j, k ) << std::endl;
00301     s << std::endl;
00302     return s;
00303   }

template<class INTERFACE, class IMPLEMENTATION>

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::write ( const char * file_name ) const [inline, virtual]

Write (ASCII) the histogram table into a file.

Implements Gaudi::HistogramBase.

Definition at line 307 of file Generic3D.h.

00308   {
00309     TFile *f = TFile::Open(file_name,"RECREATE");
00310     Int_t nbytes = m_rep->Write();
00311     f->Close();
00312     return nbytes;
00313   }

template<>

void Gaudi::Generic3D< AIDA::IHistogram3D, TH3D >::adoptRepresentation ( TObject * rep ) [inline, virtual]

Adopt ROOT histogram representation.

Implements Gaudi::HistogramBase.

Definition at line 51 of file H3D.cpp.

00051                                                                           {
00052     TH3D* imp = dynamic_cast<TH3D*>(rep);
00053     if ( imp )  {
00054       if ( m_rep ) delete m_rep;
00055       m_rep = imp;
00056       m_xAxis.initialize(m_rep->GetXaxis(),true);
00057       m_yAxis.initialize(m_rep->GetYaxis(),true);
00058       m_zAxis.initialize(m_rep->GetZaxis(),true);
00059       const TArrayD* a = m_rep->GetSumw2();
00060       if ( 0 == a || (a && a->GetSize()==0) ) m_rep->Sumw2();
00061       setTitle(m_rep->GetTitle());
00062       return;
00063     }
00064     throw std::runtime_error("Cannot adopt native histogram representation.");
00065   }

Member Data Documentation

template<typename INTERFACE, typename IMPLEMENTATION>

Gaudi::Axis Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::m_xAxis [protected]

Definition at line 205 of file Generic3D.h.

template<typename INTERFACE, typename IMPLEMENTATION>

Gaudi::Axis Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::m_yAxis [protected]

Definition at line 206 of file Generic3D.h.

template<typename INTERFACE, typename IMPLEMENTATION>

Gaudi::Axis Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::m_zAxis [protected]

Definition at line 207 of file Generic3D.h.

template<typename INTERFACE, typename IMPLEMENTATION>

AIDA::Annotation Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::m_annotation [mutable, protected]

Object annotations.

Definition at line 209 of file Generic3D.h.

template<typename INTERFACE, typename IMPLEMENTATION>

IMPLEMENTATION* Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::m_rep [protected]

Reference to underlying implementation.

Definition at line 211 of file Generic3D.h.

template<typename INTERFACE, typename IMPLEMENTATION>

std::string Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::m_classType [protected]

Definition at line 213 of file Generic3D.h.

template<typename INTERFACE, typename IMPLEMENTATION>

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::m_sumEntries [protected]

Definition at line 215 of file Generic3D.h.

The documentation for this class was generated from the following file:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r4/GaudiSvc/src/HistogramSvc/Generic3D.h

	Gaudi Framework, version v20r4
	Generated: 8 Jan 2009

Gaudi Framework, version v20r4

Gaudi::Generic3D< INTERFACE, IMPLEMENTATION > Class Template Reference

Detailed Description

template<typename INTERFACE, typename IMPLEMENTATION> class Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >

Public Types

Public Member Functions

Protected Attributes

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<typename INTERFACE, typename IMPLEMENTATION>
class Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >
