OutputStream Class Reference

#include <OutputStream.h>

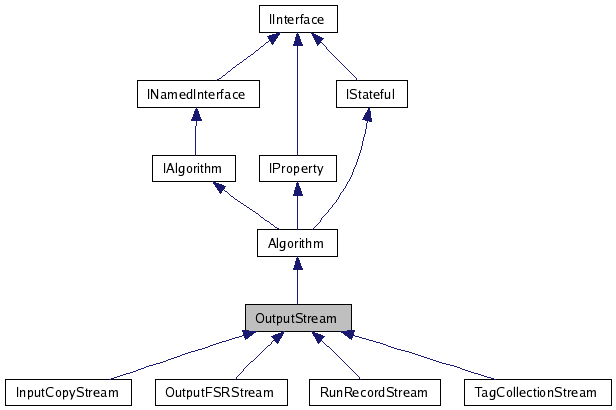

Inheritance diagram for OutputStream:

[legend]

Collaboration diagram for OutputStream:

[legend]

List of all members.

---

Detailed Description

A small to stream Data I/O.

Author: M.Frank Version: 1.0

Definition at line 30 of file OutputStream.h.

Public Types
typedef std::vector < DataStoreItem * >	Items
typedef std::vector< std::string >	ItemNames
Public Member Functions
	OutputStream (const std::string &name, ISvcLocator *pSvcLocator)
	Standard algorithm Constructor.
virtual	~OutputStream ()
	Standard Destructor.
virtual StatusCode	initialize ()
	Initialize OutputStream.
virtual StatusCode	finalize ()
	Terminate OutputStream.
virtual StatusCode	execute ()
	Working entry point.
virtual StatusCode	connectConversionSvc ()
virtual bool	collect (IRegistry *dir, int level)
	Store agent's classback.
virtual StatusCode	collectObjects ()
	Collect all objects to be written tio the output stream.
void	clearItems (Items &itms)
	Clear item list.
void	addItem (Items &itms, const std::string &descriptor)
	Add item to output stramer list.
void	clearSelection ()
	Clear list of selected objects.
IDataSelector *	selectedObjects ()
	Return the list of selected objects.
Protected Member Functions
StatusCode	decodeAcceptAlgs ()
	Decode list of Algorithms that this stream accepts.
void	acceptAlgsHandler (Property &theProp)
	Handler for AcceptAlgs Property.
StatusCode	decodeRequireAlgs ()
	Decode list of Algorithms that this stream requires.
void	requireAlgsHandler (Property &theProp)
	Handler for RequireAlgs Property.
StatusCode	decodeVetoAlgs ()
	Decode list of Algorithms that this stream is vetoed by.
void	vetoAlgsHandler (Property &theProp)
	Handler for VetoAlgs Property.
StatusCode	decodeAlgorithms (StringArrayProperty &theNames, std::vector< Algorithm * > *theAlgs)
	Decode specified list of Algorithms.
bool	isEventAccepted () const
	Test whether this event should be output.
DataStoreItem *	findItem (const std::string &path)
	Find single item identified by its path (exact match).
virtual StatusCode	writeObjects ()
	Select the different objects and write them to file.
Protected Attributes
bool	m_doPreLoad
	Flag indicating wether data pre-loading should be performed.
bool	m_doPreLoadOpt
	Flag indicating whether optional items should be preloaded.
bool	m_verifyItems
	Flag to indicate that item consistency should be checked.
std::string	m_storeName
	Name of the service managing the data store.
std::string	m_persName
	Name of the persistency service capable to write data from the store.
std::string	m_output
	Name of the output file specification.
std::string	m_outputName
	Name of the output file.
std::string	m_outputType
	Output type: NEW(NEW,CREATE,WRITE,RECREATE), UPDATE).
OutputStreamAgent *	m_agent
	Keep reference of agent.
IDataProviderSvc *	m_pDataProvider
	Keep reference to the data provider service.
IDataManagerSvc *	m_pDataManager
	Keep reference to the data manager service.
IConversionSvc *	m_pConversionSvc
	Keep reference to the data conversion service.
DataStoreItem *	m_currentItem
	Keep track of the current item.
ItemNames	m_itemNames
	Vector of item names.
Items	m_itemList
	Vector of items to be saved to this stream.
ItemNames	m_optItemNames
	Vector of item names.
Items	m_optItemList
	Vector of optional items to be saved to this stream.
IDataSelector	m_objects
	Collection of objects beeing selected.
int	m_events
	Number of events written to this output stream.
StringArrayProperty	m_acceptNames
	Vector of names of Algorithms that this stream accepts.
StringArrayProperty	m_requireNames
	Vector of names of Algorithms that this stream requires.
StringArrayProperty	m_vetoNames
	Vector of names of Algorithms that this stream is vetoed by.
std::vector< Algorithm * > *	m_acceptAlgs
	Vector of Algorithms that this stream accepts.
std::vector< Algorithm * > *	m_requireAlgs
	Vector of Algorithms that this stream requires.
std::vector< Algorithm * > *	m_vetoAlgs
	Vector of Algorithms that this stream is vetoed by.
Friends
class	AlgFactory< OutputStream >
class	Factory< OutputStream, IAlgorithm *(std::string, ISvcLocator *)>

---

Member Typedef Documentation

typedef std::vector<DataStoreItem*> OutputStream::Items

Definition at line 35 of file OutputStream.h.

typedef std::vector<std::string> OutputStream::ItemNames

Definition at line 36 of file OutputStream.h.

---

Constructor & Destructor Documentation

OutputStream::OutputStream	(	const std::string &	name,
		ISvcLocator *	pSvcLocator
	)

Standard algorithm Constructor.

Definition at line 27 of file OutputStream.cpp.

 : Algorithm(name, pSvcLocator)
{
  m_doPreLoad      = true;
  m_doPreLoadOpt   = false;
  m_verifyItems    = true;
  m_output         = "";
  m_outputName     = "";
  m_outputType     = "UPDATE";
  m_storeName      = "EventDataSvc";
  m_persName       = "EventPersistencySvc";
  m_agent          = new OutputStreamAgent(this);
  m_pDataManager   = 0;
  m_pDataProvider  = 0;
  m_pConversionSvc = 0;
  m_acceptAlgs     = new std::vector<Algorithm*>();
  m_requireAlgs    = new std::vector<Algorithm*>();
  m_vetoAlgs       = new std::vector<Algorithm*>();
  declareProperty("ItemList",         m_itemNames);
  declareProperty("OptItemList",      m_optItemNames);
  declareProperty("Preload",          m_doPreLoad);
  declareProperty("PreloadOptItems",  m_doPreLoadOpt);
  declareProperty("Output",           m_output);
  declareProperty("OutputFile",       m_outputName);
  declareProperty("EvtDataSvc",       m_storeName);
  declareProperty("EvtConversionSvc", m_persName);
  declareProperty("AcceptAlgs",       m_acceptNames);
  declareProperty("RequireAlgs",      m_requireNames);
  declareProperty("VetoAlgs",         m_vetoNames);
  declareProperty("VerifyItems",      m_verifyItems);

  // Associate action handlers with the AcceptAlgs, RequireAlgs & VetoAlgs properties
  m_acceptNames.declareUpdateHandler ( &OutputStream::acceptAlgsHandler , this );
  m_requireNames.declareUpdateHandler( &OutputStream::requireAlgsHandler, this );
  m_vetoNames.declareUpdateHandler   ( &OutputStream::vetoAlgsHandler   , this );
}

OutputStream::~OutputStream

(

)

[virtual]

Standard Destructor.

Definition at line 65 of file OutputStream.cpp.

                              {
  delete m_agent;
  delete m_acceptAlgs;
  delete m_requireAlgs;
  delete m_vetoAlgs;
}

---

Member Function Documentation

StatusCode OutputStream::decodeAcceptAlgs

(

)

[protected]

Decode list of Algorithms that this stream accepts.

Definition at line 413 of file OutputStream.cpp.

                                           {
  return decodeAlgorithms( m_acceptNames, m_acceptAlgs );
}

void OutputStream::acceptAlgsHandler

(

Property &

theProp

)

[protected]

Handler for AcceptAlgs Property.

Definition at line 417 of file OutputStream.cpp.

                                                               {
  StatusCode sc = decodeAlgorithms( m_acceptNames, m_acceptAlgs );
  if (sc.isFailure()) {
    throw GaudiException("Failure in OutputStream::decodeAlgorithms",
                         "OutputStream::acceptAlgsHandler",sc);
  }
}

StatusCode OutputStream::decodeRequireAlgs

(

)

[protected]

Decode list of Algorithms that this stream requires.

Definition at line 425 of file OutputStream.cpp.

                                             {
  return decodeAlgorithms( m_requireNames, m_requireAlgs );
}

void OutputStream::requireAlgsHandler

(

Property &

theProp

)

[protected]

Handler for RequireAlgs Property.

Definition at line 429 of file OutputStream.cpp.

                                                                {
  StatusCode sc = decodeAlgorithms( m_requireNames, m_requireAlgs );
  if (sc.isFailure()) {
    throw GaudiException("Failure in OutputStream::decodeAlgorithms",
                         "OutputStream::requireAlgsHandler",sc);
  }
}

StatusCode OutputStream::decodeVetoAlgs

(

)

[protected]

Decode list of Algorithms that this stream is vetoed by.

Definition at line 437 of file OutputStream.cpp.

                                          {
  return decodeAlgorithms( m_vetoNames, m_vetoAlgs );
}

void OutputStream::vetoAlgsHandler

(

Property &

theProp

)

[protected]

Handler for VetoAlgs Property.

Definition at line 441 of file OutputStream.cpp.

                                                             {
  StatusCode sc = decodeAlgorithms( m_vetoNames, m_vetoAlgs );
  if (sc.isFailure()) {
    throw GaudiException("Failure in OutputStream::decodeAlgorithms",
                         "OutputStream::vetoAlgsHandler",sc);
  }
}

StatusCode OutputStream::decodeAlgorithms	(	StringArrayProperty &	theNames,
		std::vector< Algorithm * > *	theAlgs
	)			[protected]

Decode specified list of Algorithms.

Definition at line 449 of file OutputStream.cpp.

{
  // Reset the list of Algorithms
  theAlgs->clear( );

  MsgStream log( msgSvc( ), name( ) );

  IAlgManager* theAlgMgr;
  StatusCode result = serviceLocator()->getService( "ApplicationMgr",
    IID_IAlgManager,
    *pp_cast<IInterface>(&theAlgMgr) );
  if ( result.isSuccess( ) ) {
    // Build the list of Algorithms from the names list
    const std::vector<std::string> nameList = theNames.value( );
    std::vector<std::string>::const_iterator it;
    std::vector<std::string>::const_iterator itend = nameList.end( );
    for (it = nameList.begin(); it != itend; it++) {
      // Check whether the suppied name corresponds to an existing
      // Algorithm object.
      std::string theName = (*it);
      IAlgorithm* theIAlg;
      Algorithm*  theAlgorithm;
      result = theAlgMgr->getAlgorithm( theName, theIAlg );
      if ( result.isSuccess( ) ) {
        try{
          theAlgorithm = dynamic_cast<Algorithm*>(theIAlg);
        } catch(...){
          result = StatusCode::FAILURE;
        }
      }
      if ( result.isSuccess( ) ) {
        // Check that the specified algorithm doesn't already exist in the list
        std::vector<Algorithm*>::iterator ita;
        std::vector<Algorithm*>::iterator itaend = theAlgs->end( );
        for (ita = theAlgs->begin(); ita != itaend; ita++) {
          Algorithm* existAlgorithm = (*ita);
          if ( theAlgorithm == existAlgorithm ) {
            result = StatusCode::FAILURE;
            break;
          }
        }
        if ( result.isSuccess( ) ) {
          theAlgs->push_back( theAlgorithm );
        }
      }
      else {
        log << MSG::INFO << theName << " doesn't exist - ignored" << endreq;
      }
    }
    result = StatusCode::SUCCESS;
  }
  else {
    log << MSG::FATAL << "Can't locate ApplicationMgr!!!" << endreq;
  }
  return result;
}

bool OutputStream::isEventAccepted

(

)

const [protected]

Test whether this event should be output.

Definition at line 507 of file OutputStream.cpp.

                                           {
  typedef std::vector<Algorithm*>::iterator AlgIter;
  bool result = true;

  // Loop over all Algorithms in the accept list to see
  // whether any have been executed and have their filter
  // passed flag set. Any match causes the event to be
  // provisionally accepted.
  if ( ! m_acceptAlgs->empty() ) {
    result = false;
    for(AlgIter i=m_acceptAlgs->begin(),end=m_acceptAlgs->end(); i != end; ++i) {
      if ( (*i)->isExecuted() && (*i)->filterPassed() ) {
        result = true;
        break;
      }
    }
  }

  // Loop over all Algorithms in the required list to see
  // whether all have been executed and have their filter
  // passed flag set. Any mismatch causes the event to be
  // rejected.
  if ( result && ! m_requireAlgs->empty() ) {
    for(AlgIter i=m_requireAlgs->begin(),end=m_requireAlgs->end(); i != end; ++i) {
      if ( !(*i)->isExecuted() || !(*i)->filterPassed() ) {
        result = false;
        break;
      }
    }
  }

  // Loop over all Algorithms in the veto list to see
  // whether any have been executed and have their filter
  // passed flag set. Any match causes the event to be
  // rejected.
  if ( result && ! m_vetoAlgs->empty() ) {
    for(AlgIter i=m_vetoAlgs->begin(),end=m_vetoAlgs->end(); i != end; ++i) {
      if ( (*i)->isExecuted() && (*i)->filterPassed() ) {
        result = false;
        break;
      }
    }
  }
  return result;
}

DataStoreItem * OutputStream::findItem

(

const std::string &

path

)

[protected]

Find single item identified by its path (exact match).

Definition at line 286 of file OutputStream.cpp.

                                             {
  for(Items::const_iterator i=m_itemList.begin(); i != m_itemList.end(); ++i)  {
    if ( (*i)->path() == path )  return (*i);
  }
  for(Items::const_iterator j=m_optItemList.begin(); j != m_optItemList.end(); ++j)  {
    if ( (*j)->path() == path )  return (*j);
  }
  return 0;
}

StatusCode OutputStream::writeObjects

(

)

[protected, virtual]

Select the different objects and write them to file.

Reimplemented in TagCollectionStream.

Definition at line 175 of file OutputStream.cpp.

                                       {
  // Connect the output file to the service
  StatusCode status = collectObjects();
  if ( status.isSuccess() )   {
    IDataSelector*  sel = selectedObjects();
    if ( sel->begin() != sel->end() )  {
      status = m_pConversionSvc->connectOutput(m_outputName, m_outputType);
      if ( status.isSuccess() )   {
        // Now pass the collection to the persistency service
        IDataSelector::iterator j;
        IOpaqueAddress* pAddress = 0;
        for ( j = sel->begin(); j != sel->end(); j++ )    {
          StatusCode iret = m_pConversionSvc->createRep( *j, pAddress );
          if ( !iret.isSuccess() )      {
            status = iret;
            continue;
          }
          IRegistry* pReg = (*j)->registry();
          pReg->setAddress(pAddress);
        }
        for ( j = sel->begin(); j != sel->end(); j++ )    {
          IRegistry* pReg = (*j)->registry();
          StatusCode iret = m_pConversionSvc->fillRepRefs( pReg->address(), *j );
          if ( !iret.isSuccess() )      {
            status = iret;
          }
        }
              // Commit the data if there was no error; otherwise possibly discard
        if ( status.isSuccess() )  {
          status = m_pConversionSvc->commitOutput(m_outputName, true);
        }
        else   {
          m_pConversionSvc->commitOutput(m_outputName, false);
        }
      }
    }
  }
  return status;
}

StatusCode OutputStream::initialize

(

)

[virtual]

Initialize OutputStream.

Reimplemented from Algorithm.

Reimplemented in TagCollectionStream.

Definition at line 73 of file OutputStream.cpp.

                                    {
  StatusCode status = StatusCode::SUCCESS;
  MsgStream log(msgSvc(), name());

  // Reset the number of events written
  m_events = 0;
  // Get access to the DataManagerSvc
  status = serviceLocator()->service(m_storeName, m_pDataManager, true);
  if( !status.isSuccess() )   {
    log << MSG::FATAL << "Unable to locate IDataManagerSvc interface" << endreq;
    return status;
  }
  // Get access to the assigned data service
  status = serviceLocator()->service(m_storeName, m_pDataProvider, true);
  if( !status.isSuccess() )   {
    log << MSG::FATAL << "Unable to locate IDataProviderSvc interface of " << m_storeName << endreq;
    return status;
  }
  if ( !(m_itemNames.empty() && m_optItemNames.empty()) )  {
    status = connectConversionSvc();
    if( !status.isSuccess() )   {
      log << MSG::FATAL << "Unable to connect to conversion service." << endreq;
      return status;
    }
  }

  // Clear the list with optional items
  clearItems(m_optItemList);
  // Clear the item list
  clearItems(m_itemList);

  ItemNames::iterator i;
  // Take the new item list from the properties.
  for(i = m_itemNames.begin(); i != m_itemNames.end(); i++)   {
    addItem( m_itemList, *i );
  }

  // Take the new item list from the properties.
  for(i = m_optItemNames.begin(); i != m_optItemNames.end(); i++)   {
    addItem( m_optItemList, *i );
  }

  // Take the item list to the data service preload list.
  if ( m_doPreLoad )    {
    for(Items::iterator j = m_itemList.begin(); j != m_itemList.end(); j++)   {
      m_pDataProvider->addPreLoadItem( *(*j) ).ignore();
    }
    // Not working: bad reference counting! pdataSvc->release();
  }

  if ( m_doPreLoadOpt )    {
    for(Items::iterator j=m_optItemList.begin(); j!=m_optItemList.end(); j++) {
      m_pDataProvider->addPreLoadItem( *(*j) );
    }
  }
  log << MSG::INFO << "Data source: " << m_storeName  << " output: " << m_output << endreq;

  // Decode the accept, required and veto Algorithms. The logic is the following:
  //  a. The event is accepted if all lists are empty.
  //  b. The event is provisionally accepted if any Algorithm in the accept list
  //     has been executed and has indicated that its filter is passed. This
  //     provisional acceptance can be overridden by the other lists.
  //  c. The event is rejected unless all Algorithms in the required list have
  //     been executed and have indicated that their filter passed.
  //  d. The event is rejected if any Algorithm in the veto list has been
  //     executed and has indicated that its filter has passed.
  decodeAcceptAlgs ().ignore();
  decodeRequireAlgs().ignore();
  decodeVetoAlgs   ().ignore();
  return status;
}

StatusCode OutputStream::finalize

(

void

)

[virtual]

Terminate OutputStream.

Reimplemented from Algorithm.

Reimplemented in OutputFSRStream, RunRecordStream, and TagCollectionStream.

Definition at line 146 of file OutputStream.cpp.

                                  {
  MsgStream log(msgSvc(), name());
  log << MSG::INFO << "Events output: " << m_events << endreq;
  if ( m_pDataProvider ) m_pDataProvider->release();
  m_pDataProvider = 0;
  if ( m_pDataManager ) m_pDataManager->release();
  m_pDataManager = 0;
  if ( m_pConversionSvc ) m_pConversionSvc->release();
  m_pConversionSvc = 0;
  clearItems(m_optItemList);
  clearItems(m_itemList);
        return StatusCode::SUCCESS;
}

StatusCode OutputStream::execute

(

)

[virtual]

Working entry point.

Implements IAlgorithm.

Reimplemented in RunRecordStream.

Definition at line 161 of file OutputStream.cpp.

                                 {
  // Clear any previously existing item list
  clearSelection();
  // Test whether this event should be output
  if ( isEventAccepted() )  {
    StatusCode sc = writeObjects();
    clearSelection();
    m_events++;
    return sc;
  }
  return StatusCode::SUCCESS;
}

StatusCode OutputStream::connectConversionSvc

(

)

[virtual]

Definition at line 327 of file OutputStream.cpp.

                                                {
  StatusCode status = StatusCode::FAILURE;
        MsgStream log(msgSvc(), name());
  // Get output file from input
  std::string dbType, svc, shr;
  Tokenizer tok(true);
  tok.analyse(m_output, " ", "", "", "=", "'", "'");
  for(Tokenizer::Items::iterator i = tok.items().begin(); i != tok.items().end(); ++i)   {
    const std::string& tag = (*i).tag();
    const std::string& val = (*i).value();
    switch( ::toupper(tag[0]) )    {
    case 'D':
      m_outputName = val;
      break;
    case 'T':
      dbType = val;
      break;
    case 'S':
      switch( ::toupper(tag[1]) )   {
      case 'V':    svc = val;      break;
      case 'H':    shr = "YES";    break;
      }
      break;
    case 'O':   // OPT='<NEW<CREATE,WRITE,RECREATE>, UPDATE>'
      switch( ::toupper(val[0]) )   {
      case 'R':
        if ( ::strncasecmp(val.c_str(),"RECREATE",3)==0 )
          m_outputType = "RECREATE";
        else if ( ::strncasecmp(val.c_str(),"READ",3)==0 )
          m_outputType = "READ";
        break;
      case 'C':
      case 'N':
      case 'W':
        m_outputType = "NEW";
        break;
      case 'U':
        m_outputType = "UPDATE";
        break;
      default:
        m_outputType = "???";
        break;
      }
      break;
    default:
      break;
    }
  }
  if ( !shr.empty() ) m_outputType += "|SHARED";
  // Get access to the default Persistency service
  // The default service is the same for input as for output.
  // If this is not desired, then a specialized OutputStream must overwrite
  // this value.
  if ( dbType.length() > 0 && svc.length()==0 )   {
    IPersistencySvc* ipers = 0;
    status = serviceLocator()->service(m_persName, ipers );
    if( !status.isSuccess() )   {
      log << MSG::FATAL << "Unable to locate IPersistencySvc interface of " << m_persName << endreq;
      return status;
    }
    status = ipers->getService(dbType, m_pConversionSvc);
    if( !status.isSuccess() )   {
      log << MSG::FATAL << "Unable to locate IConversionSvc interface of database type " << dbType << endreq;
      return status;
    }
    // Increase reference count and keep service.
    m_pConversionSvc->addRef();
  }
  else if ( svc.length() > 0 )    {
    // On success reference count is automatically increased.
    status = serviceLocator()->service(svc, m_pConversionSvc, true );
    if( !status.isSuccess() )   {
      log << MSG::FATAL << "Unable to locate IConversionSvc interface of " << svc << endreq;
      return status;
    }
  }
  else    {
    log << MSG::FATAL
        << "Unable to locate IConversionSvc interface (Unknown technology) " << endreq
        << "You either have to specify a technology name or a service name!" << endreq
        << "Please correct the job option \"" << name() << ".Output\" !"     << endreq;
    status = StatusCode::FAILURE;
  }
  return status;
}

bool OutputStream::collect	(	IRegistry *	dir,
		int	level
	)			[virtual]

Store agent's classback.

Definition at line 216 of file OutputStream.cpp.

                                                       {
  if ( level < m_currentItem->depth() )   {
    if ( dir->object() != 0 )   {
      /*
      std::cout << "Analysing ("
                << dir->name()
                << ") Object:"
                << ((dir->object()==0) ? "UNLOADED" : "LOADED")
                << std::endl;
      */
      m_objects.push_back(dir->object());
      return true;
    }
  }
  return false;
}

StatusCode OutputStream::collectObjects

(

)

[virtual]

Collect all objects to be written tio the output stream.

Reimplemented in InputCopyStream.

Definition at line 234 of file OutputStream.cpp.

                                          {
  MsgStream log(msgSvc(), name());
  StatusCode status = StatusCode::SUCCESS;
  Items::iterator i;
  // Traverse the tree and collect the requested objects
  for ( i = m_itemList.begin(); i != m_itemList.end(); i++ )    {
    DataObject* obj = 0;
    m_currentItem = (*i);
    StatusCode iret = m_pDataProvider->retrieveObject(m_currentItem->path(), obj);
    if ( iret.isSuccess() )  {
      iret = m_pDataManager->traverseSubTree(obj, m_agent);
      if ( !iret.isSuccess() )  {
        status = iret;
      }
    }
    else  {
      log << MSG::ERROR << "Cannot write mandatory object(s) (Not found) "
          << m_currentItem->path() << endreq;
      status = iret;
    }
  }
  // Traverse the tree and collect the requested objects (tolerate missing itmes here)
  for ( i = m_optItemList.begin(); i != m_optItemList.end(); i++ )    {
    DataObject* obj = 0;
    m_currentItem = (*i);
    StatusCode iret = m_pDataProvider->retrieveObject(m_currentItem->path(), obj);
    if ( iret.isSuccess() )  {
      iret = m_pDataManager->traverseSubTree(obj, m_agent);
    }
    if ( !iret.isSuccess() )    {
      log << MSG::DEBUG << "Ignore request to write non-mandatory object(s) "
          << m_currentItem->path() << endreq;
    }
  }
  return status;
}

void OutputStream::clearItems

(

Items &

itms

)

Clear item list.

Definition at line 277 of file OutputStream.cpp.

                                             {
  for ( Items::iterator i = itms.begin(); i != itms.end(); i++ )    {
    delete (*i);
  }
  itms.erase(itms.begin(), itms.end());
}

void OutputStream::addItem	(	Items &	itms,
		const std::string &	descriptor
	)

Add item to output stramer list.

Definition at line 297 of file OutputStream.cpp.

                                                                     {
        MsgStream log(msgSvc(), name());
  int level = 0;
  size_t sep = descriptor.rfind("#");
  std::string obj_path (descriptor,0,sep);
  std::string slevel   (descriptor,sep+1,descriptor.length());
  if ( slevel == "*" )  {
    level = 9999999;
  }
  else   {
    level = atoi(slevel.c_str());
  }
  if ( m_verifyItems )  {
    size_t idx = obj_path.find("/",1);
    while(idx != std::string::npos)  {
      std::string sub_item = obj_path.substr(0,idx);
      if ( 0 == findItem(sub_item) )   {
        addItem(itms, sub_item+"#1");
      }
      idx = obj_path.find("/",idx+1);
    }
  }
  DataStoreItem* item = new DataStoreItem(obj_path, level);
  log << MSG::DEBUG << "Adding OutputStream item " << item->path()
      << " with " << item->depth()
      << " level(s)." << endreq;
  itms.push_back( item );
}

void OutputStream::clearSelection

(

)

Clear list of selected objects.

Definition at line 272 of file OutputStream.cpp.

                                      {
  m_objects.erase(m_objects.begin(), m_objects.end());
}

IDataSelector* OutputStream::selectedObjects

(

)

[inline]

Return the list of selected objects.

Definition at line 137 of file OutputStream.h.

                                      {
    return &m_objects;
  }

---

Friends And Related Function Documentation

friend class AlgFactory< OutputStream > [friend]

Definition at line 31 of file OutputStream.h.

friend class Factory< OutputStream, IAlgorithm *(std::string, ISvcLocator *)> [friend]

Definition at line 32 of file OutputStream.h.

---

Member Data Documentation

bool OutputStream::m_doPreLoad [protected]

Flag indicating wether data pre-loading should be performed.

Definition at line 39 of file OutputStream.h.

bool OutputStream::m_doPreLoadOpt [protected]

Flag indicating whether optional items should be preloaded.

Definition at line 41 of file OutputStream.h.

bool OutputStream::m_verifyItems [protected]

Flag to indicate that item consistency should be checked.

Definition at line 43 of file OutputStream.h.

std::string OutputStream::m_storeName [protected]

Name of the service managing the data store.

Definition at line 45 of file OutputStream.h.

std::string OutputStream::m_persName [protected]

Name of the persistency service capable to write data from the store.

Definition at line 47 of file OutputStream.h.

std::string OutputStream::m_output [protected]

Name of the output file specification.

Definition at line 49 of file OutputStream.h.

std::string OutputStream::m_outputName [protected]

Name of the output file.

Definition at line 51 of file OutputStream.h.

std::string OutputStream::m_outputType [protected]

Output type: NEW(NEW,CREATE,WRITE,RECREATE), UPDATE).

Definition at line 53 of file OutputStream.h.

OutputStreamAgent* OutputStream::m_agent [protected]

Keep reference of agent.

Definition at line 55 of file OutputStream.h.

IDataProviderSvc* OutputStream::m_pDataProvider [protected]

Keep reference to the data provider service.

Definition at line 57 of file OutputStream.h.

IDataManagerSvc* OutputStream::m_pDataManager [protected]

Keep reference to the data manager service.

Definition at line 59 of file OutputStream.h.

IConversionSvc* OutputStream::m_pConversionSvc [protected]

Keep reference to the data conversion service.

Definition at line 61 of file OutputStream.h.

DataStoreItem* OutputStream::m_currentItem [protected]

Keep track of the current item.

Definition at line 63 of file OutputStream.h.

ItemNames OutputStream::m_itemNames [protected]

Vector of item names.

Definition at line 65 of file OutputStream.h.

Items OutputStream::m_itemList [protected]

Vector of items to be saved to this stream.

Definition at line 67 of file OutputStream.h.

ItemNames OutputStream::m_optItemNames [protected]

Vector of item names.

Definition at line 69 of file OutputStream.h.

Items OutputStream::m_optItemList [protected]

Vector of optional items to be saved to this stream.

Definition at line 71 of file OutputStream.h.

IDataSelector OutputStream::m_objects [protected]

Collection of objects beeing selected.

Definition at line 73 of file OutputStream.h.

int OutputStream::m_events [protected]

Number of events written to this output stream.

Definition at line 75 of file OutputStream.h.

StringArrayProperty OutputStream::m_acceptNames [protected]

Vector of names of Algorithms that this stream accepts.

Definition at line 77 of file OutputStream.h.

StringArrayProperty OutputStream::m_requireNames [protected]

Vector of names of Algorithms that this stream requires.

Definition at line 79 of file OutputStream.h.

StringArrayProperty OutputStream::m_vetoNames [protected]

Vector of names of Algorithms that this stream is vetoed by.

Definition at line 81 of file OutputStream.h.

std::vector<Algorithm*>* OutputStream::m_acceptAlgs [protected]

Vector of Algorithms that this stream accepts.

Definition at line 83 of file OutputStream.h.

std::vector<Algorithm*>* OutputStream::m_requireAlgs [protected]

Vector of Algorithms that this stream requires.

Definition at line 85 of file OutputStream.h.

std::vector<Algorithm*>* OutputStream::m_vetoAlgs [protected]

Vector of Algorithms that this stream is vetoed by.

Definition at line 87 of file OutputStream.h.

---

The documentation for this class was generated from the following files:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r4/GaudiSvc/src/PersistencySvc/OutputStream.h
• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r4/GaudiSvc/src/PersistencySvc/OutputStream.cpp
