RunRecordDataSvc Class Reference

#include <RunRecordDataSvc.h>

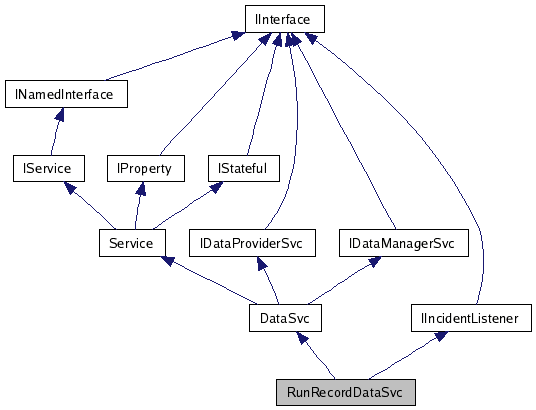

Inheritance diagram for RunRecordDataSvc:

[legend]

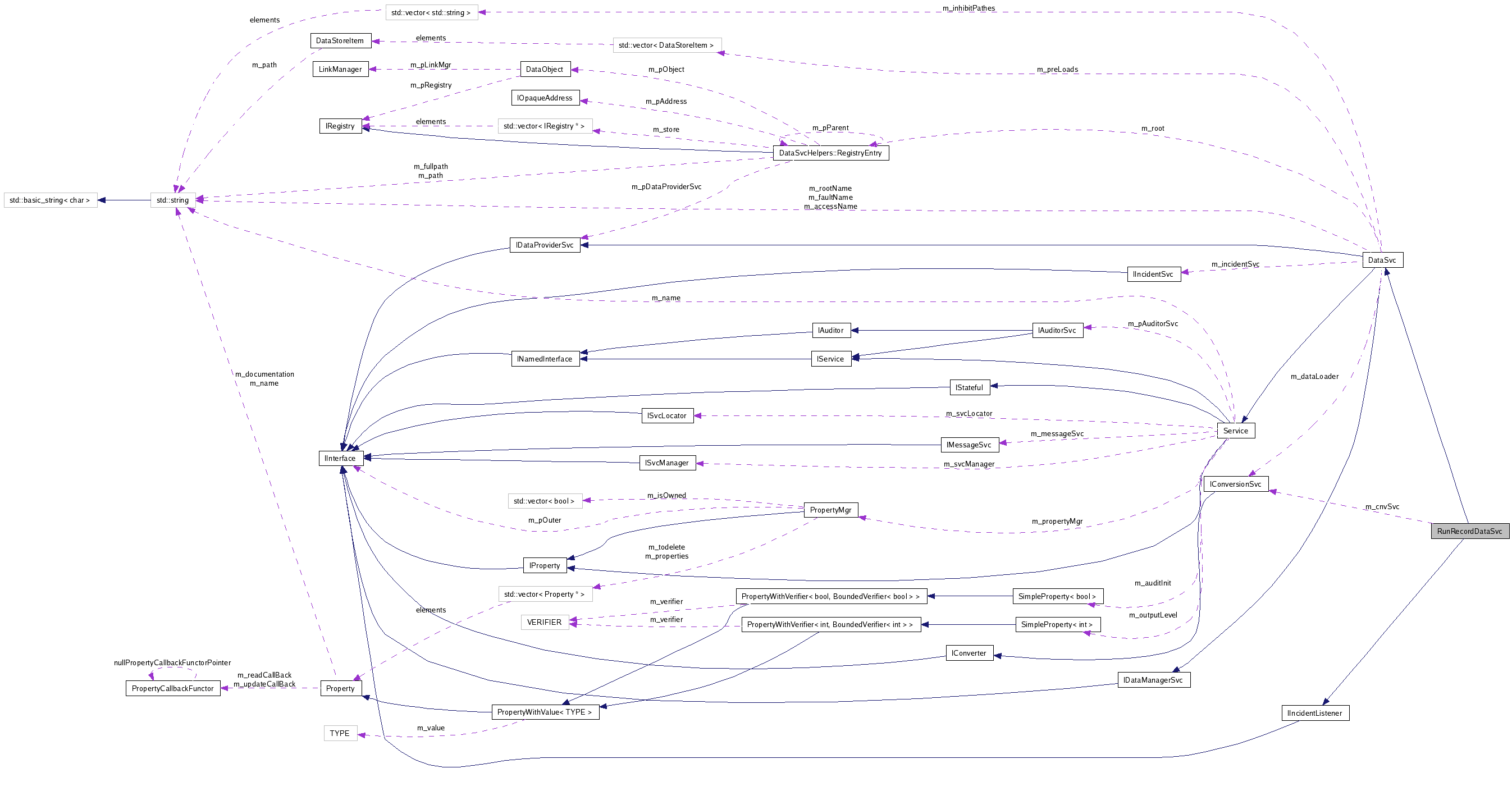

Collaboration diagram for RunRecordDataSvc:

[legend]

List of all members.

Detailed Description

A RunRecordDataSvc is the base class for event services.

When a new datafile is opened the data service retrieves an incident from the persistency area (currently only from POOL) together with an opaque address describing the run record. These history records are put onto the run-records datastore under the name of the logical file (FID): /RunRecords/<FID>/.....

The data service by default has two top level leafs: /RunRecords/SOR (start-of-run-record) and /RunRecords/EOR (end-of-run-record)

Hence, each history records can be addresses the same way: /RunRecord/<FID>/SOR (/EOR)

Author:: M.Frank

Version:: 1.0

Definition at line 30 of file RunRecordDataSvc.h.


Public Member Functions
virtual StatusCode	initialize ()
	Service initialisation.
virtual StatusCode	reinitialize ()
	Service reinitialisation.
virtual StatusCode	finalize ()
	Service finalization.
virtual StatusCode	queryInterface (const InterfaceID &riid, void **ppvInterface)
	IInterface override: Query interfaces of Interface.
virtual void	handle (const Incident &incident)
	IIncidentListener override: Inform that a new incident has occured.
	RunRecordDataSvc (const std::string &name, ISvcLocator *svc)
	Standard Constructor.
virtual	~RunRecordDataSvc ()
	Standard Destructor.
Protected Types
typedef std::vector< std::string >	StringV
Protected Member Functions
void	registerRunRecord (const std::string &data, IOpaqueAddress *pAddr)
	Load new run record into the data store if necessary.
Private Attributes
IConversionSvc *	m_cnvSvc
	Reference to the main data conversion service.
Friends
class	SvcFactory< RunRecordDataSvc >

Member Typedef Documentation

typedef std::vector<std::string> RunRecordDataSvc::StringV [protected]

Definition at line 33 of file RunRecordDataSvc.h.

Constructor & Destructor Documentation

RunRecordDataSvc::RunRecordDataSvc	(	const std::string &	name,
		ISvcLocator *	svc
	)

Standard Constructor.

Definition at line 150 of file RunRecordDataSvc.cpp.

00151 : DataSvc(name,svc)   {
00152   m_cnvSvc = 0;
00153   m_rootName = "/RunRecords";
00154 }

RunRecordDataSvc::~RunRecordDataSvc ( ) [virtual]

Standard Destructor.

Definition at line 157 of file RunRecordDataSvc.cpp.

00157                                      {
00158 }

Member Function Documentation

StatusCode RunRecordDataSvc::initialize ( ) [virtual]

Service initialisation.

We need to subscribe to 2 incident: 1) FILE_OPEN_READ: fired by conversion service on open file 2) IncidentType::BeginEvent fired by event loop BEFORE the event processing starts. Do everything to bootstract access to the old event record.

Reimplemented from DataSvc.

Definition at line 39 of file RunRecordDataSvc.cpp.

00039                                            {
00040   // Nothing to do: just call base class initialisation
00041   StatusCode      sc  = DataSvc::initialize();
00042   ISvcLocator*    svc_loc = serviceLocator();
00043   MsgStream log(msgSvc(),name());
00044
00045   if ( !sc.isSuccess() ) { // Base class failure
00046     return sc;
00047   }
00048   // Attach data loader facility
00049   sc = svc_loc->service("PersistencySvc/RunRecordPersistencySvc", m_cnvSvc, true);
00050   if ( !sc.isSuccess() ) {
00051     log << MSG::ERROR << "Failed to access RunRecordPersistencySvc." << endmsg;
00052     return sc;
00053   }
00054   SmartIF<IProperty> prp(m_cnvSvc);
00055   if ( prp ) {
00056     //prp->setProperty();
00057   }
00058   sc = setDataLoader( m_cnvSvc );
00059   if ( !sc.isSuccess() ) {
00060     log << MSG::ERROR << "Failed to attach dataloader RunRecordPersistencySvc." << endmsg;
00061     return sc;
00062   }
00063
00064   sc = setRoot(m_rootName, new DataObject());
00065   if( !sc.isSuccess() )  {
00066     log << MSG::WARNING << "Error declaring RunRecord root DataObject" << endreq;
00067     return sc;
00068   }
00069
00070   if( !m_incidentSvc )  {
00071     log << MSG::FATAL << "IncidentSvc is invalid--base class failed." << endreq;
00072     return sc;
00073   }
00074
00079   m_incidentSvc->addListener(this,IncidentType::BeginEvent);
00080   m_incidentSvc->addListener(this,"FILE_OPEN_READ");
00081   m_incidentSvc->addListener(this,"SAVE_RUN_RECORD");
00082
00083   return sc;
00084 }

StatusCode RunRecordDataSvc::reinitialize ( ) [virtual]

Service reinitialisation.

Reimplemented from DataSvc.

Definition at line 87 of file RunRecordDataSvc.cpp.

00087                                              {
00088   // Do nothing for this service
00089   return StatusCode::SUCCESS;
00090 }

StatusCode RunRecordDataSvc::finalize ( void ) [virtual]

Service finalization.

Reimplemented from DataSvc.

Definition at line 93 of file RunRecordDataSvc.cpp.

00093                                          {
00094   if( m_cnvSvc ) m_cnvSvc->release();
00095   m_cnvSvc = 0;
00096   DataSvc::finalize().ignore();
00097   return StatusCode::SUCCESS ;
00098 }

StatusCode RunRecordDataSvc::queryInterface	(	const InterfaceID &	riid,
		void **	ppvInterface
	)			`[virtual]`

IInterface override: Query interfaces of Interface.

Query interfaces of Interface.

Parameters:

	riid	ID of Interface to be retrieved
	ppvInterface	Pointer to Location for interface pointer

Reimplemented from DataSvc.

Definition at line 101 of file RunRecordDataSvc.cpp.

00101                                                                                  {
00102   if ( 0 == ppvIf )
00103     return StatusCode::FAILURE;
00104   else if ( IIncidentListener::interfaceID().versionMatch(riid) )
00105     *ppvIf = static_cast<IIncidentListener*>( this );
00106   else
00107     return DataSvc::queryInterface(riid,ppvIf);
00108   // increment reference counter
00109   addRef();
00110   return SUCCESS;
00111 }

void RunRecordDataSvc::handle ( const Incident & incident ) [virtual]

IIncidentListener override: Inform that a new incident has occured.

Inform that a new incident has occured.

Implements IIncidentListener.

Definition at line 114 of file RunRecordDataSvc.cpp.

00114                                                       {
00115   if ( incident.type() == "FILE_OPEN_READ" ) {
00116     typedef ContextIncident<IOpaqueAddress*> Ctxt;
00117     const Ctxt* inc = dynamic_cast<const Ctxt*>(&incident);
00118     if ( inc ) {
00119       registerRunRecord(inc->source(),inc->tag());
00120       return;
00121     }
00122     MsgStream log(msgSvc(),name());
00123     log << MSG::ALWAYS << "Received invalid incident of type:" << incident.type() << endmsg;
00124   }
00125   else if ( incident.type() == "SAVE_RUN_RECORD" ) {
00126     MsgStream log(msgSvc(),name());
00127     log << MSG::ALWAYS << "Saving run records not implemented." << endmsg;
00128   }
00129 }

void RunRecordDataSvc::registerRunRecord	(	const std::string &	data,
		IOpaqueAddress *	pAddr
	)			`[protected]`

Load new run record into the data store if necessary.

Definition at line 132 of file RunRecordDataSvc.cpp.

00132                                                                                        {
00133   if ( !data.empty() && 0 != pAddr ) {
00134     MsgStream log(msgSvc(),name());
00135     std::string fid = data;
00136     log << MSG::ALWAYS << "Request to load run record for file " << fid << endmsg;
00137     StatusCode sc = registerAddress(m_root,fid,pAddr);
00138     if ( !sc.isSuccess() ) {
00139       log << MSG::ERROR << "Failed to register run record for:" << fid << endmsg;
00140       pAddr->release();
00141     }
00142   }
00143   else if ( !data.empty() && 0 == pAddr ) {
00144     MsgStream log(msgSvc(),name());
00145     log << MSG::ERROR << "Failed to register run record for:" << data << " [Invalid Address]" << endmsg;
00146   }
00147 }

Friends And Related Function Documentation

friend class SvcFactory< RunRecordDataSvc > [friend]

Definition at line 31 of file RunRecordDataSvc.h.

Member Data Documentation

IConversionSvc* RunRecordDataSvc::m_cnvSvc [private]

Reference to the main data conversion service.

Definition at line 60 of file RunRecordDataSvc.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r4/GaudiSvc/src/DataSvc/RunRecordDataSvc.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r4/GaudiSvc/src/DataSvc/RunRecordDataSvc.cpp
