Gaudi::Histogram2D Class Reference

AIDA implementation for 2 D histograms using ROOT THD2. More...

#include <H2D.h>

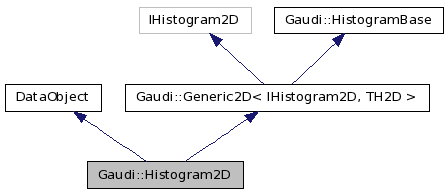

Inheritance diagram for Gaudi::Histogram2D:

Collaboration diagram for Gaudi::Histogram2D:

List of all members.

Public Member Functions

Histogram2D ()

Standard Constructor.

Histogram2D (TH2D *rep)

Standard initializing Constructor with TH2D representation to be adopted.

virtual ~Histogram2D ()

Destructor.

bool fill (double x, double y, double weight=1.)

Fill the Histogram2D with a value and the.

virtual bool setBinContents (int binIndexX, int binIndexY, int entries, double height, double error, double centreX, double centreY)

Fast filling method for a given bin. It can be also the over/underflow bin.

bool setRms (double rmsX, double rmsY)

Sets the rms of the histogram.

bool reset ()

void copyFromAida (const IHistogram2D &h)

Create new histogram from any AIDA based histogram.

virtual const CLID & clID () const

Retrieve reference to class defininition identifier.

Static Public Member Functions

static const CLID & classID ()

Retrieve reference to class definition structure (static access).

Protected Attributes

double m_sumwx

double m_sumwy

Detailed Description

AIDA implementation for 2 D histograms using ROOT THD2.

Author:: M.Frank

Definition at line 20 of file H2D.h.

Constructor & Destructor Documentation

Gaudi::Histogram2D::Histogram2D ( )

Standard Constructor.

Definition at line 117 of file H2D.cpp.

00117                               {
00118   m_rep = new TH2D();
00119   m_rep->Sumw2();
00120   m_sumEntries = 0;
00121   m_sumwx = m_sumwy = 0;
00122   setTitle("");
00123   m_rep->SetDirectory(0);
00124 }

Gaudi::Histogram2D::Histogram2D ( TH2D * rep )

Standard initializing Constructor with TH2D representation to be adopted.

Definition at line 126 of file H2D.cpp.

00126                                         {
00127   m_rep = 0;
00128   adoptRepresentation(rep);
00129   m_sumEntries = 0;
00130   m_sumwx = m_sumwy = 0;
00131   m_rep->SetDirectory(0);
00132 }

virtual Gaudi::Histogram2D::~Histogram2D ( ) [inline, virtual]

Destructor.

Definition at line 27 of file H2D.h.

00027 {}

Member Function Documentation

bool Gaudi::Histogram2D::fill	(	double	x,
		double	y,
		double	weight = `1.`
	)

Fill the Histogram2D with a value and the.

Definition at line 158 of file H2D.cpp.

00158                                                              {
00159   (weight==1.) ? m_rep->Fill(x,y) : m_rep->Fill(x,y,weight );
00160   return true;
00161 }

bool Gaudi::Histogram2D::setBinContents	(	int	binIndexX,
		int	binIndexY,
		int	entries,
		double	height,
		double	error,
		double	centreX,
		double	centreY
	)			`[virtual]`

Fast filling method for a given bin. It can be also the over/underflow bin.

Definition at line 134 of file H2D.cpp.

00134                                                                                                                        {
00135   m_rep->SetBinContent(rIndexX(i), rIndexY(j), height);
00136   m_rep->SetBinError(rIndexX(i), rIndexY(j), error);
00137   // accumulate sumwx for in range bins
00138   if (i >=0 && j >= 0) {
00139     m_sumwx += centreX*height;
00140     m_sumwy += centreY*height;
00141   }
00142   m_sumEntries += entries;
00143   return true;
00144 }

bool Gaudi::Histogram2D::setRms	(	double	rmsX,
		double	rmsY
	)

Sets the rms of the histogram.

Definition at line 163 of file H2D.cpp.

00163                                                      {
00164   m_rep->SetEntries(m_sumEntries);
00165   std::vector<double> stat(11);
00166   stat[0] =  sumBinHeights();
00167   stat[1] = 0;
00168   if(equivalentBinEntries() != 0)
00169     stat[1] = (sumBinHeights() * sumBinHeights()) / equivalentBinEntries();
00170   stat[2] = m_sumwx;
00171   double meanX = 0;
00172   if(sumBinHeights() != 0) meanX =  m_sumwx/ sumBinHeights();
00173   stat[3] = (meanX*meanX + rmsX*rmsX) * sumBinHeights();
00174   stat[4] = m_sumwy;
00175   double meanY = 0;
00176   if(sumBinHeights() != 0) meanY =  m_sumwy/ sumBinHeights();
00177   stat[5] = (meanY*meanY + rmsY*rmsY) * sumBinHeights();
00178   stat[6] = 0;
00179   m_rep->PutStats(&stat.front());
00180   return true;
00181 }

bool Gaudi::Histogram2D::reset ( )

Reimplemented from Gaudi::Generic2D< IHistogram2D, TH2D >.

Definition at line 146 of file H2D.cpp.

00146                               {
00147   m_sumwx = 0;
00148   m_sumwy = 0;
00149   return Base::reset();
00150 }

void Gaudi::Histogram2D::copyFromAida ( const IHistogram2D & h )

Create new histogram from any AIDA based histogram.

Definition at line 183 of file H2D.cpp.

00183                                                          {
00184   // implement here the copy
00185   delete m_rep;
00186   const char* tit = h.title().c_str();
00187   if (h.xAxis().isFixedBinning() && h.yAxis().isFixedBinning()  )
00188     m_rep = new TH2D(tit,tit,
00189                      h.xAxis().bins(),h.xAxis().lowerEdge(),h.xAxis().upperEdge(),
00190                      h.yAxis().bins(),h.yAxis().lowerEdge(),h.yAxis().upperEdge() );
00191   else {
00192     Edges eX, eY;
00193     for (int i =0; i < h.xAxis().bins(); ++i)
00194       eX.push_back(h.xAxis().binLowerEdge(i));
00195     // add also upperedges at the end
00196     eX.push_back(h.xAxis().upperEdge() );
00197     for (int i =0; i < h.yAxis().bins(); ++i)
00198       eY.push_back(h.yAxis().binLowerEdge(i));
00199     // add also upperedges at the end
00200     eY.push_back(h.yAxis().upperEdge() );
00201     m_rep = new TH2D(tit,tit,eX.size()-1,&eX.front(),eY.size()-1,&eY.front());
00202   }
00203   m_xAxis.initialize(m_rep->GetXaxis(),true);
00204   m_yAxis.initialize(m_rep->GetYaxis(),true);
00205   m_rep->Sumw2();
00206   m_sumEntries = 0;
00207   m_sumwx = 0;
00208   m_sumwy = 0;
00209   // statistics
00210   double sumw = h.sumBinHeights();
00211   double sumw2 = 0;
00212   if (h.equivalentBinEntries() != 0)
00213     sumw2 = ( sumw * sumw ) /h.equivalentBinEntries();
00214   double sumwx = h.meanX()*h.sumBinHeights();
00215   double sumwx2 = (h.meanX()*h.meanX() + h.rmsX()*h.rmsX() )*h.sumBinHeights();
00216   double sumwy = h.meanY()*h.sumBinHeights();
00217   double sumwy2 = (h.meanY()*h.meanY() + h.rmsY()*h.rmsY() )*h.sumBinHeights();
00218   double sumwxy = 0;
00219
00220   // copy the contents in  (AIDA underflow/overflow are -2,-1)
00221   for (int i=-2; i < xAxis().bins(); ++i) {
00222     for (int j=-2; j < yAxis().bins(); ++j) {
00223       // root binning starts from one !
00224       m_rep->SetBinContent(rIndexX(i), rIndexY(j), h.binHeight(i,j) );
00225       m_rep->SetBinError(rIndexX(i), rIndexY(j), h.binError(i,j) );
00226       // calculate statistics
00227       if ( i >= 0 && j >= 0) {
00228         sumwxy += h.binHeight(i,j)*h.binMeanX(i,j)*h.binMeanY(i,j);
00229       }
00230     }
00231   }
00232   // need to do set entries after setting contents otherwise root will recalulate them
00233   // taking into account how many time  SetBinContents() has been called
00234   m_rep->SetEntries(h.allEntries());
00235   // fill stat vector
00236   std::vector<double> stat(11);
00237   stat[0] = sumw;
00238   stat[1] = sumw2;
00239   stat[2] = sumwx;
00240   stat[3] = sumwx2;
00241   stat[4] = sumwy;
00242   stat[5] = sumwy2;
00243   stat[6] = sumwxy;
00244   m_rep->PutStats(&stat.front());
00245 }

virtual const CLID& Gaudi::Histogram2D::clID ( ) const [inline, virtual]

Retrieve reference to class defininition identifier.

Reimplemented from DataObject.

Definition at line 41 of file H2D.h.

00041 { return Gaudi::Histogram2D::classID(); }

static const CLID& Gaudi::Histogram2D::classID ( ) [inline, static]

Retrieve reference to class definition structure (static access).

Retrieve Pointer to class definition structure.

Reimplemented from DataObject.

Definition at line 42 of file H2D.h.

00042 { return CLID_H2D; }

Member Data Documentation

double Gaudi::Histogram2D::m_sumwx [protected]

Definition at line 45 of file H2D.h.

double Gaudi::Histogram2D::m_sumwy [protected]

Definition at line 46 of file H2D.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r10p1/GaudiSvc/src/HistogramSvc/H2D.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r10p1/GaudiSvc/src/HistogramSvc/H2D.cpp


Public Member Functions
	Histogram2D ()
	Standard Constructor.
	Histogram2D (TH2D *rep)
	Standard initializing Constructor with TH2D representation to be adopted.
virtual	~Histogram2D ()
	Destructor.
bool	fill (double x, double y, double weight=1.)
	Fill the Histogram2D with a value and the.
virtual bool	setBinContents (int binIndexX, int binIndexY, int entries, double height, double error, double centreX, double centreY)
	Fast filling method for a given bin. It can be also the over/underflow bin.
bool	setRms (double rmsX, double rmsY)
	Sets the rms of the histogram.
bool	reset ()
void	copyFromAida (const IHistogram2D &h)
	Create new histogram from any AIDA based histogram.
virtual const CLID &	clID () const
	Retrieve reference to class defininition identifier.
Static Public Member Functions
static const CLID &	classID ()
	Retrieve reference to class definition structure (static access).
Protected Attributes
double	m_sumwx
double	m_sumwy
