IInterface.h File Reference

#include "GaudiKernel/Kernel.h"
#include "GaudiKernel/System.h"
#include "GaudiKernel/StatusCode.h"
#include <ostream>
#include <boost/mpl/set.hpp>
#include <boost/mpl/insert.hpp>
#include <boost/mpl/fold.hpp>
#include <boost/mpl/for_each.hpp>
#include <typeinfo>
#include "GaudiKernel/extend_interfaces.h"
#include "GaudiKernel/implements.h"
#include "GaudiKernel/extends.h"

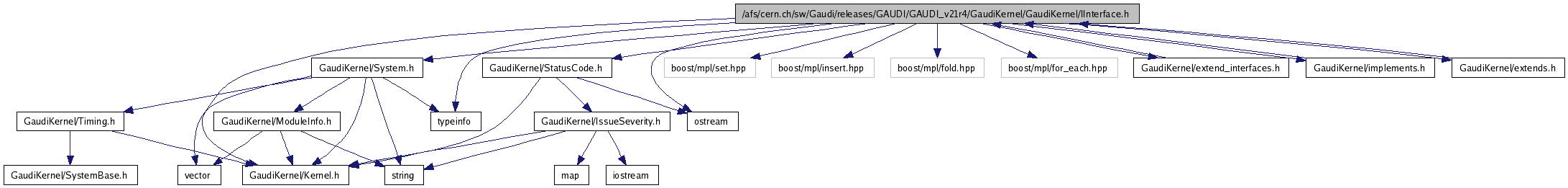

Include dependency graph for IInterface.h:

Go to the source code of this file.

Namespaces
namespace	Gaudi
Classes
class	InterfaceID
	Interface ID class. More...
class	Gaudi::InterfaceId< INTERFACE, majVers, minVers >
	Class to handle automatically the versioning of the interfaces when they are inheriting from other interfaces. More...
class	IInterface
	Definition of the basic interface. More...
Defines
#define	DeclareInterfaceID(name, major, minor)
	Macro to declare the interface ID when using the new mechanism of extending and implementing interfaces.
#define	DeclareInterfaceIDMultiBase(name, major, minor)
	Macro to declare the interface ID when using the new mechanism of extending and implementing interfaces.
Functions
template<typename TARGET>
TARGET *	Gaudi::Cast (IInterface *i)
	Cast a IInterface pointer to an IInterface specialization (TARGET).
template<typename TARGET>
const TARGET *	Gaudi::Cast (const IInterface *i)
	Cast a IInterface pointer to an IInterface specialization (TARGET).
template<class I>
bool	isValidInterface (I *i)
	Templated function that throws an exception if the version if the interface implemented by the object behind the interface is incompatible.
std::ostream &	operator<< (std::ostream &s, const InterfaceID &id)
	ostream operator for InterfaceID. Needed by PluginSvc
template<class DEST, class SRC>
DEST **	pp_cast (SRC **ptr)
	Small function to be used instead of the construct (void**)&pointer, which produces, on gcc 4.1 optimized, the warning warning: dereferencing type-punned pointer will break strict-aliasing rules The assempler code produced is equivalent to the one with the direct cast.

---

Define Documentation

#define DeclareInterfaceID	(	name,
		major,
		minor		)

Value:

static const InterfaceID &interfaceID(){ return iid::interfaceID(); } \
  typedef Gaudi::InterfaceId< name , major , minor > iid; \
  typedef iid::iids::type ext_iids

Macro to declare the interface ID when using the new mechanism of extending and implementing interfaces.

Definition at line 24 of file IInterface.h.

#define DeclareInterfaceIDMultiBase	(	name,
		major,
		minor		)

Value:

static const InterfaceID &interfaceID(){ return iid::interfaceID(); } \
  typedef Gaudi::InterfaceId< name , major , minor > iid

Macro to declare the interface ID when using the new mechanism of extending and implementing interfaces.

Definition at line 36 of file IInterface.h.

---

Function Documentation

template<class I>

bool isValidInterface

(

I *

i

)

[inline]

Templated function that throws an exception if the version if the interface implemented by the object behind the interface is incompatible.

This is the case if the major version differs or that the minor version of the client is bigger than of the implementer.

Author:

Pere Mato

Definition at line 255 of file IInterface.h.

                             {
  void* ii;
  StatusCode sc =  i->queryInterface( I::interfaceID(), &ii);
  return sc.isSuccess();
}

std::ostream& operator<<	(	std::ostream &	s,
		const InterfaceID &	id
	)			[inline]

ostream operator for InterfaceID. Needed by PluginSvc

Definition at line 263 of file IInterface.h.

                                                                       {
    s << "IID_" << id.id();
    return s;
}

template<class DEST, class SRC>

DEST** pp_cast

(

SRC **

ptr

)

[inline]

Small function to be used instead of the construct (void**)&pointer, which produces, on gcc 4.1 optimized, the warning warning: dereferencing type-punned pointer will break strict-aliasing rules The assempler code produced is equivalent to the one with the direct cast.

The function can be used als to replace the construct (IInterface *&)m_MySvc. Replacement rules:

(void**)&pointer	pp_cast<void>(&pointer)
(IInterface *&)m_mySvc	*pp_cast<IInterface>(&m_mySvc)

Definition at line 280 of file IInterface.h.

                                {
  return reinterpret_cast<DEST**>(ptr);
}
