EventCollectionSelector Class Reference

#include <EventCollectionSelector.h>

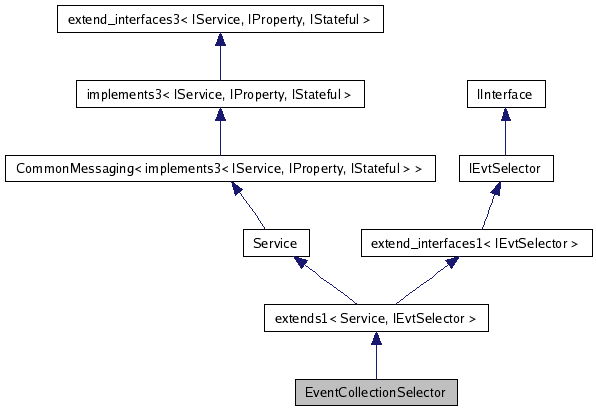

Inheritance diagram for EventCollectionSelector:

Inheritance graph
[legend]
Collaboration diagram for EventCollectionSelector:

Collaboration graph
[legend]

List of all members.

Detailed Description

Definition of class EventCollectionSelector.

Basic event selector service. The event selector service itself is able to connect other services to attached streams.

History: +---------+----------------------------------------------+---------+ | Date | Comment | Who | +---------+----------------------------------------------+---------+ | 3/10/00 | Initial version | M.Frank | +---------+----------------------------------------------+---------+

Author:
Markus Frank
Version:
1.0

Definition at line 41 of file EventCollectionSelector.h.


Public Member Functions

virtual StatusCode initialize ()
 Service override: Initialize service.
virtual StatusCode finalize ()
 Service override: Finalize Service.
virtual StatusCode createContext (Context *&refpCtxt) const
 Create a new event loop context.
virtual StatusCode next (Context &refCtxt) const
 Get next iteration item from the event loop context.
virtual StatusCode next (Context &refCtxt, int jump) const
 Get next iteration item from the event loop context, but skip jump elements.
virtual StatusCode previous (Context &refCtxt) const
 Get previous iteration item from the event loop context.
virtual StatusCode previous (Context &refCtxt, int jump) const
 Get previous iteration item from the event loop context, but skip jump elements.
virtual StatusCode rewind (Context &refCtxt) const
 Rewind the dataset.
virtual StatusCode createAddress (const Context &refCtxt, IOpaqueAddress *&refpAddr) const
 Create new Opaque address corresponding to the current record.
virtual StatusCode releaseContext (Context *&refCtxt) const
 Release existing event iteration context.
virtual StatusCode resetCriteria (const std::string &cr, Context &c) const
 Will set a new criteria for the selection of the next list of events and will change the state of the context in a way to point to the new list.
virtual StatusCode last (Context &refCtxt) const
 Access last item in the iteration.
virtual StatusCode connectCollection (MyContextType *ctxt) const
 Connect collection to selector.
virtual StatusCode connectDataSource (const std::string &db, const std::string &typ) const
 Connect collection's data source to selector.
virtual StatusCode connectTuple (const std::string &nam, const std::string &itName, NTuple::Tuple *&tup, NTuple::Item< IOpaqueAddress * > *&item) const
 Connect to existing N-tuple.
virtual StatusCode connectStatement (const std::string &typ, const std::string &crit, INTuple *tuple) const
 Connect selection statement to refine data access.
virtual StatusCode getNextRecord (NTuple::Tuple *tuple) const
 Read next record of the N-tuple.
virtual StatusCode getPreviousRecord (NTuple::Tuple *tuple) const
 Read next record of the N-tuple.
 EventCollectionSelector (const std::string &name, ISvcLocator *svcloc)
 Standard Constructor.
 ~EventCollectionSelector ()
 Standard Destructor.

Protected Attributes

SmartIF< INTupleSvc > m_tupleSvc
 Reference to Tuple service.
SmartIF< IAddressCreator > m_pAddrCreator
std::string m_tupleSvcName
 Name of the event collection service name.
std::string m_authentication
 Authentication string (if needed).
std::string m_cntName
 Container name.
std::string m_itemName
 Item name.
std::string m_criteria
 Criteria.
std::string m_database
 Datafile name.
std::string m_dbType
 Database type identifier.
std::string m_statement
 Selector name.

Classes

class  MyContextType

Constructor & Destructor Documentation

EventCollectionSelector::EventCollectionSelector ( const std::string &  name,
ISvcLocator *  svcloc
)

Standard Constructor.

Definition at line 79 of file EventCollectionSelector.cpp.

00080   : base_class(name, svcloc)
00081 {
00082   declareProperty("CnvService",    m_tupleSvcName = "EvtTupleSvc");
00083   declareProperty("Authentication",m_authentication= "");
00084   declareProperty("Container",     m_cntName  = "B2PiPi");
00085   declareProperty("Item",          m_itemName = "Address");
00086   declareProperty("Criteria",      m_criteria = "");
00087   declareProperty("DB",            m_database = "");
00088   declareProperty("DbType",        m_dbType   = "");
00089   declareProperty("Function",      m_statement= "NTuple::Selector");
00090 }

EventCollectionSelector::~EventCollectionSelector (  )

Standard Destructor.

Definition at line 92 of file EventCollectionSelector.cpp.

00092                                                     {
00093 }

Member Function Documentation

StatusCode EventCollectionSelector::initialize (  )  [virtual]

Service override: Initialize service.

Reimplemented from Service.

Definition at line 96 of file EventCollectionSelector.cpp.

00096                                                   {
00097   // Initialize base class
00098   StatusCode status = Service::initialize();
00099   MsgStream log(msgSvc(), name());
00100   if ( !status.isSuccess() )    {
00101     log << MSG::ERROR << "Error initializing base class Service!" << endmsg;
00102     return status;
00103   }
00104   m_pAddrCreator = serviceLocator()->service("EventPersistencySvc");
00105   if(!m_pAddrCreator.isValid()) {
00106     log << MSG::ERROR << "Unable to locate IAddressCreator interface of " << "EventPersistencySvc" << endmsg;
00107     return status;
00108   }
00109   m_tupleSvc = serviceLocator()->service(m_tupleSvcName);
00110   if( !m_tupleSvc.isValid() )   {
00111     log << MSG::ERROR << "Unable to locate INTupleSvc interface of " << m_tupleSvcName << endmsg;
00112     return status;
00113   }
00114   return status;
00115 }

StatusCode EventCollectionSelector::finalize ( void   )  [virtual]

Service override: Finalize Service.

Reimplemented from Service.

Definition at line 248 of file EventCollectionSelector.cpp.

00248                                                 {
00249   // release services
00250   m_pAddrCreator = 0;
00251   m_tupleSvc = 0;
00252   return Service::finalize();
00253 }

StatusCode EventCollectionSelector::createContext ( Context *&  refpCtxt  )  const [virtual]

Create a new event loop context.

Parameters:
refpCtxt [IN/OUT] Reference to pointer to store the context
Returns:
StatusCode indicating success or failure

Implements IEvtSelector.

Definition at line 257 of file EventCollectionSelector.cpp.

00258 {
00259   refpCtxt = 0;
00260   std::auto_ptr<MyContextType> ctxt(new MyContextType());
00261   StatusCode status = connectCollection(ctxt.get());
00262   if( !status.isSuccess() )  {
00263     MsgStream log(msgSvc(), name());
00264     log << MSG::ERROR << "Unable to connect Collection file \"" << m_database << "\"" << endmsg;
00265     return status;
00266   }
00267   refpCtxt = ctxt.release();
00268   return StatusCode::SUCCESS;
00269 }

StatusCode EventCollectionSelector::next ( Context &  refCtxt  )  const [virtual]

Get next iteration item from the event loop context.

Parameters:
refCtxt [IN/OUT] Reference to the context
Returns:
StatusCode indicating success or failure

Implements IEvtSelector.

Definition at line 273 of file EventCollectionSelector.cpp.

00274 {
00275   return next(refCtxt, 1);
00276 }

StatusCode EventCollectionSelector::next ( Context &  refCtxt,
int  jump
) const [virtual]

Get next iteration item from the event loop context, but skip jump elements.

Parameters:
refCtxt [IN/OUT] Reference to the context
Returns:
StatusCode indicating success or failure

Implements IEvtSelector.

Definition at line 280 of file EventCollectionSelector.cpp.

00281 {
00282   MyContextType *ctxt  = dynamic_cast<MyContextType*>(&refCtxt);
00283   if ( ctxt )    {
00284     *(ctxt->item) = ctxt->addressBuffer;
00285     StatusCode sc = StatusCode::SUCCESS;
00286     for ( int i=0; i<jump && sc.isSuccess(); ++i ) {
00287       sc = getNextRecord(ctxt->tuple);
00288     }
00289     return sc;
00290   }
00291   return StatusCode::FAILURE;
00292 }

StatusCode EventCollectionSelector::previous ( Context &  refCtxt  )  const [virtual]

Get previous iteration item from the event loop context.

Parameters:
refCtxt [IN/OUT] Reference to the context
jump [IN] Number of events to be skipped
Returns:
StatusCode indicating success or failure

Implements IEvtSelector.

Definition at line 296 of file EventCollectionSelector.cpp.

00297 {
00298   return previous(refCtxt, 1);
00299 }

StatusCode EventCollectionSelector::previous ( Context &  refCtxt,
int  jump
) const [virtual]

Get previous iteration item from the event loop context, but skip jump elements.

Parameters:
refCtxt [IN/OUT] Reference to the context
jump [IN] Number of events to be skipped
Returns:
StatusCode indicating success or failure

Implements IEvtSelector.

Definition at line 303 of file EventCollectionSelector.cpp.

00304 {
00305   MyContextType *ctxt  = dynamic_cast<MyContextType*>(&refCtxt);
00306   if ( ctxt )    {
00307     *(ctxt->item) = ctxt->addressBuffer;
00308     StatusCode sc = StatusCode::SUCCESS;
00309     for ( int i=0; i<jump && sc.isSuccess(); ++i ) {
00310       sc = getPreviousRecord(ctxt->tuple);
00311     }
00312     return sc;
00313   }
00314   return StatusCode::FAILURE;
00315 }

StatusCode EventCollectionSelector::rewind ( Context &  refCtxt  )  const [virtual]

Rewind the dataset.

Parameters:
refCtxt [IN/OUT] Reference to the context
Returns:
StatusCode indicating success or failure

Implements IEvtSelector.

Definition at line 319 of file EventCollectionSelector.cpp.

00320 {
00321   return StatusCode::FAILURE;
00322 }

StatusCode EventCollectionSelector::createAddress ( const Context &  refCtxt,
IOpaqueAddress *&  refpAddr
) const [virtual]

Create new Opaque address corresponding to the current record.

Parameters:
refCtxt [IN/OUT] Reference to the context
refpAddr [OUT] Reference to address pointer
Returns:
StatusCode indicating success or failure

Implements IEvtSelector.

Definition at line 326 of file EventCollectionSelector.cpp.

00327 {
00328   const MyContextType* ctxt = dynamic_cast<const MyContextType*>(&refCtxt);
00329   if ( ctxt )   {
00330     IOpaqueAddress* pA = *(ctxt->item);
00331     if ( pA )  {
00332       IOpaqueAddress* pAddress = 0;
00333       StatusCode status = m_pAddrCreator->createAddress(pA->svcType(),
00334                                                         pA->clID(),
00335                                                         pA->par(),
00336                                                         pA->ipar(),
00337                                                         pAddress);
00338       if ( status.isSuccess() )   {
00339         refpAddr = pAddress;
00340         return StatusCode::SUCCESS;
00341       }
00342       else    {
00343         MsgStream log(msgSvc(), name());
00344         log << MSG::ERROR << "Failed to access " << pA->par()[0]
00345             << ":" << pA->par()[1]
00346             << " SvcTyp:" << long(pA->svcType())
00347             << " CLID:"   << pA->clID()
00348             << endmsg;
00349       }
00350     }
00351   }
00352   return StatusCode::FAILURE;
00353 }

StatusCode EventCollectionSelector::releaseContext ( Context *&  refCtxt  )  const [virtual]

Release existing event iteration context.

Parameters:
refCtxt [IN/OUT] Reference to the context
Returns:
StatusCode indicating success or failure

Implements IEvtSelector.

Definition at line 357 of file EventCollectionSelector.cpp.

00358 {
00359   MyContextType *ctxt  = dynamic_cast<MyContextType*>(refCtxt);
00360   if ( ctxt )   {
00361     delete ctxt;
00362     ctxt = 0;
00363     return StatusCode::SUCCESS;
00364   }
00365   return StatusCode::FAILURE;
00366 }

StatusCode EventCollectionSelector::resetCriteria ( const std::string &  cr,
Context &  refCtxt
) const [virtual]

Will set a new criteria for the selection of the next list of events and will change the state of the context in a way to point to the new list.

Will set a new criteria for the selection of the next list of events and will change the state of the context in a way to point to the new list.

Parameters:
cr The new criteria string.
c Reference pointer to the Context object.
Returns:
StatusCode indicating success or failure

Implements IEvtSelector.

Definition at line 371 of file EventCollectionSelector.cpp.

00372 {
00373   MyContextType *ctxt  = dynamic_cast<MyContextType*>(&refCtxt);
00374   if ( ctxt )   {
00375     ctxt->criteria = cr;
00376     return StatusCode::SUCCESS;
00377   }
00378   return StatusCode::FAILURE;
00379 }

StatusCode EventCollectionSelector::last ( Context &  refCtxt  )  const [virtual]

Access last item in the iteration.

Parameters:
refCtxt [IN/OUT] Reference to the Context object.
Returns:
StatusCode indicating success or failure

Implements IEvtSelector.

Definition at line 383 of file EventCollectionSelector.cpp.

00384 {
00385   return StatusCode::FAILURE;
00386 }

StatusCode EventCollectionSelector::connectCollection ( MyContextType *  ctxt  )  const [virtual]

Connect collection to selector.

Definition at line 228 of file EventCollectionSelector.cpp.

00229 {
00230   if ( ctxt )  {
00231     StatusCode status = connectDataSource(m_database, m_dbType);
00232     if ( status.isSuccess() )   {
00233       status = connectTuple(m_cntName, m_itemName, ctxt->tuple, ctxt->item);
00234       if ( status.isSuccess() )   {
00235         status = connectStatement(m_statement, m_criteria, ctxt->tuple);
00236         if ( status.isSuccess() )   {
00237           *(ctxt->item) = 0;
00238           return status;
00239         }
00240       }
00241     }
00242     return status;
00243   }
00244   return StatusCode::FAILURE;
00245 }

StatusCode EventCollectionSelector::connectDataSource ( const std::string &  db,
const std::string &  typ
) const [virtual]

Connect collection's data source to selector.

Definition at line 119 of file EventCollectionSelector.cpp.

00119                                                                                                   {
00120   StatusCode status = StatusCode::FAILURE;
00121   SmartIF<IDataSourceMgr> svc(m_tupleSvc);
00122   if ( svc.isValid( ) && db.length() > 0 )   {
00123     std::string ident = name() + ' ';
00124     ident += "DATAFILE='" + m_database.substr(5,m_database.length()) + "' ";
00125     ident += "TYP='" + m_dbType + "' ";
00126     ident += "OPT='READ' ";
00127     if ( m_authentication.length() > 0 )    {
00128       ident += "AUTH='" + m_authentication + "' ";
00129     }
00130     status = svc->connect(ident);
00131   }
00132   return status;
00133 }

StatusCode EventCollectionSelector::connectTuple ( const std::string &  nam,
const std::string &  itName,
NTuple::Tuple *&  tup,
NTuple::Item< IOpaqueAddress * > *&  item
) const [virtual]

Connect to existing N-tuple.

Definition at line 137 of file EventCollectionSelector.cpp.

00137                                                                                                                                                  {
00138   std::string top = "/NTUPLES/" + name() + '/' + nam;
00139   StatusCode status = m_tupleSvc->retrieveObject(top, (DataObject*&)tup);
00140   if ( status.isSuccess() )    {
00141     item = new NTuple::Item<IOpaqueAddress*>();
00142     status = tup->item(itName, *item);
00143     if ( status.isSuccess() )   {
00144       return status;
00145     }
00146     else    {
00147       MsgStream log(msgSvc(), name());
00148       log << MSG::ERROR << "Item " << itName << " is not part of the collection:" << top << endmsg;
00149     }
00150     delete item;
00151     item = 0;
00152   }
00153   else  {
00154     MsgStream err(msgSvc(), name());
00155     err << MSG::ERROR << "Cannot connect to collection:" << top << endmsg;
00156   }
00157   tup = 0;
00158   return status;
00159 }

StatusCode EventCollectionSelector::connectStatement ( const std::string &  typ,
const std::string &  crit,
INTuple *  tuple
) const [virtual]

Connect selection statement to refine data access.

Definition at line 163 of file EventCollectionSelector.cpp.

00163                                                                                                             {
00164   std::string seltyp = typ;
00165   if ( seltyp.length() > 0 || crit.length() > 0 )   {
00166     if ( crit.length() > 0 && seltyp.length() == 0 ) seltyp = "NTuple::Selector";
00167     SmartIF<ISelectStatement> stmt(ROOT::Reflex::PluginService::Create<IInterface*>(seltyp, (IInterface*)serviceLocator()));
00168     if ( stmt.isValid( ) )    {
00169       if ( crit.length() > 0 ) stmt->setCriteria(crit);
00170       tuple->attachSelector(stmt).ignore();
00171       return StatusCode::SUCCESS;
00172     }
00173     return StatusCode::FAILURE;
00174   }
00175   return StatusCode::SUCCESS;
00176 }

StatusCode EventCollectionSelector::getNextRecord ( NTuple::Tuple *  tuple  )  const [virtual]

Read next record of the N-tuple.

Definition at line 179 of file EventCollectionSelector.cpp.

00179                                                                             {
00180   StatusCode status = StatusCode::FAILURE;
00181   if ( 0 != tuple )   {
00182     do {
00183       status = m_tupleSvc->readRecord(tuple);
00184       if ( status.isSuccess() )   {
00185         ISelectStatement* statement = tuple->selector();
00186         bool use_it = (statement) ? (*statement)(tuple) : true;
00187         if ( use_it )   {
00188           return status;
00189         }
00190       }
00191     } while ( status.isSuccess() );
00192   }
00193   return status;
00194 }

StatusCode EventCollectionSelector::getPreviousRecord ( NTuple::Tuple *  tuple  )  const [virtual]

Read next record of the N-tuple.

Read previous record of the N-tuple.

Definition at line 197 of file EventCollectionSelector.cpp.

00197                                                                                  {
00198   StatusCode status = StatusCode::FAILURE;
00199   if ( tuple )  {
00200     IRegistry* pReg = tuple->registry();
00201     if ( pReg )  {
00202       IOpaqueAddress* pAddr = pReg->address();
00203       if ( pAddr )  {
00204         long* ip = (long*)pAddr->ipar();
00205         do {
00206           if ( ip[1] > 1 )  {
00207             ip[1] -= 2;
00208             status = m_tupleSvc->readRecord(tuple);
00209             if ( status.isSuccess() )   {
00210               ISelectStatement* statement = tuple->selector();
00211               bool use_it = (statement) ? (*statement)(tuple) : true;
00212               if ( use_it )   {
00213                 return status;
00214               }
00215             }
00216           }
00217           else  {
00218             return StatusCode::FAILURE;
00219           }
00220         } while ( status.isSuccess() );
00221       }
00222     }
00223   }
00224   return StatusCode::FAILURE;
00225 }

Member Data Documentation

SmartIF<INTupleSvc> EventCollectionSelector::m_tupleSvc [mutable, protected]

Reference to Tuple service.

Definition at line 79 of file EventCollectionSelector.h.

SmartIF<IAddressCreator> EventCollectionSelector::m_pAddrCreator [mutable, protected]

Definition at line 80 of file EventCollectionSelector.h.

std::string EventCollectionSelector::m_tupleSvcName [protected]

Name of the event collection service name.

Definition at line 82 of file EventCollectionSelector.h.

std::string EventCollectionSelector::m_authentication [protected]

Authentication string (if needed).

Definition at line 84 of file EventCollectionSelector.h.

std::string EventCollectionSelector::m_cntName [protected]

Container name.

Definition at line 86 of file EventCollectionSelector.h.

std::string EventCollectionSelector::m_itemName [protected]

Item name.

Definition at line 88 of file EventCollectionSelector.h.

std::string EventCollectionSelector::m_criteria [protected]

Criteria.

Definition at line 90 of file EventCollectionSelector.h.

std::string EventCollectionSelector::m_database [protected]

Datafile name.

Definition at line 92 of file EventCollectionSelector.h.

std::string EventCollectionSelector::m_dbType [protected]

Database type identifier.

Definition at line 94 of file EventCollectionSelector.h.

std::string EventCollectionSelector::m_statement [protected]

Selector name.

Definition at line 96 of file EventCollectionSelector.h.

The documentation for this class was generated from the following files:
Generated at Mon Sep 7 18:17:33 2009 for Gaudi Framework, version v21r4 by Doxygen version 1.5.6 written by Dimitri van Heesch, © 1997-2004
