Gaudi::IODataManager Class Reference

#include <IODataManager.h>

Inheritance diagram for Gaudi::IODataManager:

[legend]

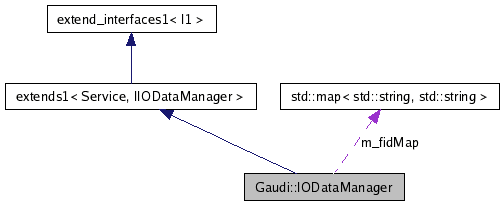

Collaboration diagram for Gaudi::IODataManager:

[legend]

List of all members.

Detailed Description

Definition at line 25 of file IODataManager.h.


Public Member Functions
	IODataManager (CSTR nam, ISvcLocator *loc)
	Initializing constructor.
virtual	~IODataManager ()
	Standard destructor.
virtual StatusCode	initialize ()
	IService implementation: initialize the service.
virtual StatusCode	finalize ()
	IService implementation: finalize the service.
virtual StatusCode	connectRead (bool keep_open, Connection *ioDesc)
	Open data stream in read mode.
virtual StatusCode	connectWrite (Connection *con, IoType mode=Connection::CREATE, CSTR doctype="UNKNOWN")
	Open data stream in write mode.
virtual StatusCode	disconnect (Connection *ioDesc)
	Release data stream.
virtual Connection *	connection (const std::string &dsn) const
	Retrieve known connection.
virtual Connections	connections (const IInterface *owner) const
	Get connection by owner instance (0=ALL).
virtual StatusCode	read (Connection ioDesc, void const data, size_t len)
	Read raw byte buffer from input stream.
virtual StatusCode	write (Connection con, const void data, int len)
	Write raw byte buffer to output stream.
virtual long long int	seek (Connection *ioDesc, long long int where, int origin)
	Seek on the file described by ioDesc. Arguments as in seek().
Protected Types
typedef const std::string &	CSTR
typedef std::map< std::string, Entry * >	ConnectionMap
typedef std::map< std::string, std::string >	FidMap
Protected Member Functions
StatusCode	connectDataIO (int typ, IoType rw, CSTR fn, CSTR technology, bool keep, Connection *con)
StatusCode	reconnect (Entry *e)
StatusCode	error (CSTR msg, bool rethrow)
StatusCode	establishConnection (Connection *con)
Protected Attributes
std::string	m_catalogSvcName
	Property: Name of the file catalog service.
int	m_ageLimit
	Property: Age limit.
bool	m_useGFAL
	Property: Flag for auto gfal data acesss.
bool	m_quarantine
	Property: Flag if unaccessible files should be quarantines in job.
ConnectionMap	m_connectionMap
	Map with I/O descriptors.
SmartIF< IFileCatalog >	m_catalog
	Reference to file catalog.
FidMap	m_fidMap
	Map of FID to PFN.
Classes
struct	Entry

Member Typedef Documentation

typedef const std::string& Gaudi::IODataManager::CSTR [protected]

Definition at line 27 of file IODataManager.h.

typedef std::map<std::string,Entry*> Gaudi::IODataManager::ConnectionMap [protected]

Definition at line 37 of file IODataManager.h.

typedef std::map<std::string, std::string> Gaudi::IODataManager::FidMap [protected]

Definition at line 38 of file IODataManager.h.

Constructor & Destructor Documentation

IODataManager::IODataManager	(	CSTR	nam,
		ISvcLocator *	loc
	)

Initializing constructor.

Parameters:

`[in]`	nam	Name of the service
`[in]`	loc	Pointer to the service locator object

Returns:: Initialized reference to service object

Definition at line 19 of file IODataManager.cpp.

00020 : base_class(nam, svcloc), m_ageLimit(2)
00021 {
00022   declareProperty("CatalogType",     m_catalogSvcName="Gaudi::MultiFileCatalog/FileCatalog");
00023   declareProperty("UseGFAL",         m_useGFAL = true);
00024   declareProperty("QuarantineFiles", m_quarantine = true);
00025   declareProperty("AgeLimit",        m_ageLimit = 2);
00026 }

virtual Gaudi::IODataManager::~IODataManager ( ) [inline, virtual]

Standard destructor.

Definition at line 69 of file IODataManager.h.

00069 {}

Member Function Documentation

StatusCode IODataManager::connectDataIO	(	int	typ,
		IoType	rw,
		CSTR	fn,
		CSTR	technology,
		bool	keep,
		Connection *	con
	)			`[protected]`

Definition at line 224 of file IODataManager.cpp.

00224                                                                                                                      {
00225   MsgStream log(msgSvc(),name());
00226   std::string dsn = dataset;
00227   try  {
00228     StatusCode sc(StatusCode::SUCCESS,true);
00229     if ( ::strncasecmp(dsn.c_str(),"FID:",4)==0 )
00230       dsn = dataset.substr(4), typ = FID;
00231     else if ( ::strncasecmp(dsn.c_str(),"LFN:",4)==0 )
00232       dsn = dataset.substr(4), typ = LFN;
00233     else if ( ::strncasecmp(dsn.c_str(),"PFN:",4)==0 )
00234       dsn = dataset.substr(4), typ = PFN;
00235     else if ( typ == UNKNOWN )
00236       return connectDataIO(PFN, rw, dsn, technology, keep_open, connection);
00237
00238     if(std::find(s_badFiles.begin(),s_badFiles.end(),dsn) != s_badFiles.end())  {
00239       return IDataConnection::BAD_DATA_CONNECTION;
00240     }
00241     if ( typ == FID )  {
00242       ConnectionMap::iterator fi = m_connectionMap.find(dsn);
00243       if ( fi == m_connectionMap.end() )  {
00244         IFileCatalog::Files files;
00245         m_catalog->getPFN(dsn,files);
00246         if ( files.size() == 0 ) {
00247           if ( !m_useGFAL )   {
00248             if ( m_quarantine ) s_badFiles.insert(dsn);
00249             error("connectDataIO> failed to resolve FID:"+dsn,false);
00250             return IDataConnection::BAD_DATA_CONNECTION;
00251           }
00252           else if ( dsn.length() == 36 && dsn[8]=='-' && dsn[13]=='-' )  {
00253             std::string gfal_name = "gfal:guid:" + dsn;
00254             m_fidMap[dsn] = m_fidMap[dataset] = m_fidMap[gfal_name] = dsn;
00255             sc = connectDataIO(PFN, rw, gfal_name, technology, keep_open, connection);
00256             if ( sc.isSuccess() ) return sc;
00257             if ( m_quarantine ) s_badFiles.insert(dsn);
00258           }
00259           if ( m_quarantine ) s_badFiles.insert(dsn);
00260           error("connectDataIO> Failed to resolve FID:"+dsn,false);
00261           return IDataConnection::BAD_DATA_CONNECTION;
00262         }
00263         std::string pfn = files[0].first;
00264         m_fidMap[dsn] = m_fidMap[dataset] = m_fidMap[pfn] = dsn;
00265         sc = connectDataIO(PFN, rw, pfn, technology, keep_open, connection);
00266         if ( !sc.isSuccess() )  {
00267           if ( m_quarantine ) s_badFiles.insert(pfn);
00268           return IDataConnection::BAD_DATA_CONNECTION;
00269         }
00270         return sc;
00271       }
00272       return S_ERROR;
00273       //Connection* c = (*fi).second->connection;
00274       //sc = connectDataIO(PFN, rw, c->pfn(), technology, keep_open, connection);
00275       //if ( !sc.isSuccess() && m_quarantine ) s_badFiles.insert(c->pfn());
00276       //return sc;
00277     }
00278     std::string fid;
00279     FidMap::iterator j = m_fidMap.find(dsn);
00280     if ( j == m_fidMap.end() )  {
00281       IFileCatalog::Files files;
00282       switch(typ)  {
00283       case LFN:
00284         fid = m_catalog->lookupLFN(dsn);
00285         if ( fid.empty() )  {
00286           log << MSG::ERROR << "Failed to resolve LFN:" << dsn
00287               << " Cannot access this dataset." << endmsg;
00288           return IDataConnection::BAD_DATA_CONNECTION;
00289         }
00290         break;
00291       case PFN:
00292         fid = m_catalog->lookupPFN(dsn);
00293         if ( !fid.empty() ) m_catalog->getPFN(fid, files);
00294         if ( files.empty() )   {
00295           if ( rw == Connection::CREATE || rw == Connection::RECREATE )  {
00296             if ( fid.empty() ) fid = m_catalog->createFID();
00297             m_catalog->registerPFN(fid,dsn,technology);
00298             log << MSG::INFO << "Referring to dataset " << dsn
00299                 << " by its file ID:" << fid << endmsg;
00300           }
00301           else  {
00302             fid = dsn;
00303           }
00304         }
00305         break;
00306       }
00307     }
00308     else {
00309       fid = (*j).second;
00310     }
00311     if ( typ == PFN )  {
00312       // Open PFN
00313       ConnectionMap::iterator fi = m_connectionMap.find(fid);
00314       if ( fi == m_connectionMap.end() )  {
00315         connection->setFID(fid);
00316         connection->setPFN(dsn);
00317         Entry* e = new Entry(technology, keep_open, rw, connection);
00318         // Here we open the file!
00319         if ( !reconnect(e).isSuccess() )   {
00320           delete e;
00321           if ( m_quarantine ) s_badFiles.insert(dsn);
00322           error("connectDataIO> Cannot connect to database: PFN="+dsn+" FID="+fid,false);
00323           return IDataConnection::BAD_DATA_CONNECTION;
00324         }
00325         fid = connection->fid();
00326         m_fidMap[dataset] = m_fidMap[dsn] = m_fidMap[fid] = fid;
00327         if (  !(rw==Connection::CREATE || rw==Connection::RECREATE) )  {
00328           if ( strcasecmp(dsn.c_str(),fid.c_str()) == 0 )  {
00329             log << MSG::ERROR << "Referring to existing dataset " << dsn
00330                 << " by its physical name." << endmsg;
00331             log << "You may not be able to navigate back to the input file"
00332                 << " -- processing continues" << endmsg;
00333           }
00334         }
00335         m_connectionMap.insert(std::make_pair(fid,e)).first;
00336         return S_OK;
00337       }
00338       // Here we open the file!
00339       if ( !reconnect((*fi).second).isSuccess() )   {
00340         if ( m_quarantine ) s_badFiles.insert(dsn);
00341         error("connectDataIO> Cannot connect to database: PFN="+dsn+" FID="+fid,false);
00342         return IDataConnection::BAD_DATA_CONNECTION;
00343       }
00344       return S_OK;
00345     }
00346     sc = connectDataIO(FID, rw, fid, technology, keep_open, connection);
00347     if ( !sc.isSuccess() && m_quarantine ) {
00348       s_badFiles.insert(fid);
00349     }
00350     else if ( typ == LFN ) {
00351       m_fidMap[dataset] = fid;
00352     }
00353     return sc;
00354   }
00355   catch (std::exception& e)  {
00356     error(std::string("connectDataIO> Caught exception:")+e.what(), false);
00357   }
00358   catch(...)  {
00359   }
00360   error("connectDataIO> The dataset "+dsn+" cannot be opened.",false).ignore();
00361   s_badFiles.insert(dsn);
00362   return IDataConnection::BAD_DATA_CONNECTION;
00363 }

StatusCode IODataManager::reconnect ( Entry * e ) [protected]

Definition at line 151 of file IODataManager.cpp.

00151                                              {
00152   StatusCode sc = S_ERROR;
00153   if ( e && e->connection )  {
00154     switch(e->ioType)  {
00155       case Connection::READ:
00156         sc = e->connection->connectRead();
00157         break;
00158       case Connection::UPDATE:
00159       case Connection::CREATE:
00160       case Connection::RECREATE:
00161         sc = e->connection->connectWrite(e->ioType);
00162         break;
00163       default:
00164         return S_ERROR;
00165     }
00166     if ( sc.isSuccess() && e->ioType == Connection::READ )  {
00167       std::vector<Entry*> to_retire;
00168       e->connection->resetAge();
00169       for(ConnectionMap::iterator i=m_connectionMap.begin(); i!=m_connectionMap.end();++i) {
00170         IDataConnection* c = (*i).second->connection;
00171         if ( e->connection != c && c->isConnected() && !(*i).second->keepOpen )  {
00172           c->ageFile();
00173           if ( c->age() > m_ageLimit ) {
00174             to_retire.push_back((*i).second);
00175           }
00176         }
00177       }
00178       if ( !to_retire.empty() )  {
00179         MsgStream log(msgSvc(),name());
00180         for(std::vector<Entry*>::iterator j=to_retire.begin(); j!=to_retire.end();++j)  {
00181           IDataConnection* c = (*j)->connection;
00182           c->disconnect();
00183           log << MSG::INFO << "Disconnect from dataset " << c->pfn()
00184               << " [" << c->fid() << "]" << endmsg;
00185         }
00186       }
00187     }
00188   }
00189   return sc;
00190 }

StatusCode IODataManager::error	(	CSTR	msg,
		bool	rethrow
	)			`[protected]`

Definition at line 55 of file IODataManager.cpp.

00055                                                        {
00056   MsgStream log(msgSvc(),name());
00057   log << MSG::ERROR << "Error: " << msg << endmsg;
00058   if ( rethrow )  {
00059     System::breakExecution();
00060   }
00061   return S_ERROR;
00062 }

StatusCode IODataManager::establishConnection ( Connection * con ) [protected]

Definition at line 202 of file IODataManager.cpp.

00202                                                               {
00203   if ( con )  {
00204     if ( !con->isConnected() )  {
00205       ConnectionMap::const_iterator i=m_connectionMap.find(con->name());
00206       if ( i != m_connectionMap.end() )  {
00207         Connection* c = (*i).second->connection;
00208         if ( c != con )  {
00209           return error("Severe logic bug: Twice identical connection object for DSN:"+con->name(),true);
00210         }
00211         if ( reconnect((*i).second).isSuccess() ) {
00212           return S_OK;
00213         }
00214       }
00215       return S_ERROR;
00216     }
00217     con->resetAge();
00218     return S_OK;
00219   }
00220   return error("Severe logic bug: No connection object avalible.",true);
00221 }

StatusCode IODataManager::initialize ( ) [virtual]

IService implementation: initialize the service.

IService implementation: Db event selector override.

Definition at line 29 of file IODataManager.cpp.

00029                                       {
00030   // Initialize base class
00031   StatusCode status = Service::initialize();
00032   MsgStream log(msgSvc(), name());
00033   if ( !status.isSuccess() )    {
00034     log << MSG::ERROR << "Error initializing base class Service!" << endmsg;
00035     return status;
00036   }
00037   // Retrieve conversion service handling event iteration
00038   m_catalog = serviceLocator()->service(m_catalogSvcName);
00039   if( !m_catalog.isValid() ) {
00040     log << MSG::ERROR
00041         << "Unable to localize interface IFileCatalog from service:"
00042         << m_catalogSvcName << endmsg;
00043     return StatusCode::FAILURE;
00044   }
00045   return status;
00046 }

StatusCode IODataManager::finalize ( void ) [virtual]

IService implementation: finalize the service.

Definition at line 49 of file IODataManager.cpp.

00049                                     {
00050   m_catalog = 0; // release
00051   return Service::finalize();
00052 }

StatusCode IODataManager::connectRead	(	bool	keep_open,
		Connection *	ioDesc
	)			`[virtual]`

Open data stream in read mode.

Connect data file for writing.

Definition at line 75 of file IODataManager.cpp.

00075                                                                       {
00076   if ( !establishConnection(con) )  {
00077     return connectDataIO(UNKNOWN,Connection::READ,con->name(),"UNKNOWN",keep_open,con);
00078   }
00079   std::string dsn = con ? con->name() : std::string("Unknown");
00080   return error("Failed to connect to data:"+dsn,false);
00081 }

StatusCode IODataManager::connectWrite	(	Connection *	con,
		IoType	mode = `Connection::CREATE`,
		CSTR	doctype = `"UNKNOWN"`
	)			`[virtual]`

Open data stream in write mode.

Connect data file for reading.

Definition at line 84 of file IODataManager.cpp.

00084                                                                                 {
00085   if ( !establishConnection(con) )  {
00086     return connectDataIO(UNKNOWN,mode,con->name(),doctype,true,con);
00087   }
00088   std::string dsn = con ? con->name() : std::string("Unknown");
00089   return error("Failed to connect to data:"+dsn,false);
00090 }

StatusCode IODataManager::disconnect ( Connection * ioDesc ) [virtual]

Release data stream.

Definition at line 107 of file IODataManager.cpp.

00107                                                        {
00108   if ( con )  {
00109     std::string dataset = con->name();
00110     std::string dsn = dataset;
00111     StatusCode sc = con->disconnect();
00112     if ( ::strncasecmp(dsn.c_str(),"FID:",4)==0 )
00113       dsn = dataset.substr(4);
00114     else if ( ::strncasecmp(dsn.c_str(),"LFN:",4)==0 )
00115       dsn = dataset.substr(4);
00116     else if ( ::strncasecmp(dsn.c_str(),"PFN:",4)==0 )
00117       dsn = dataset.substr(4);
00118
00119     FidMap::iterator j = m_fidMap.find(dataset);
00120     if ( j != m_fidMap.end() )  {
00121       std::string fid = (*j).second;
00122       std::string gfal_name = "gfal:guid:" + fid;
00123       ConnectionMap::iterator i=m_connectionMap.find(fid);
00124       m_fidMap.erase(j);
00125       if ( (j=m_fidMap.find(fid)) != m_fidMap.end() )
00126         m_fidMap.erase(j);
00127       if ( (j=m_fidMap.find(gfal_name)) != m_fidMap.end() )
00128         m_fidMap.erase(j);
00129       if ( i != m_connectionMap.end() ) {
00130         if ( (*i).second )  {
00131           IDataConnection* c = (*i).second->connection;
00132           std::string pfn = c->pfn();
00133           if ( (j=m_fidMap.find(pfn)) != m_fidMap.end() )
00134             m_fidMap.erase(j);
00135           if ( c->isConnected() )  {
00136             MsgStream log(msgSvc(),name());
00137             c->disconnect();
00138             log << MSG::INFO << "Disconnect from dataset " << dsn
00139                 << " [" << fid << "]" << endmsg;
00140           }
00141           delete (*i).second;
00142           m_connectionMap.erase(i);
00143         }
00144       }
00145     }
00146     return sc;
00147   }
00148   return S_ERROR;
00149 }

virtual Connection* Gaudi::IODataManager::connection ( const std::string & dsn ) const [virtual]

Retrieve known connection.

IODataManager::Connections IODataManager::connections ( const IInterface * owner ) const [virtual]

Get connection by owner instance (0=ALL).

Definition at line 64 of file IODataManager.cpp.

00064                                                                                   {
00065   Connections conns;
00066   for(ConnectionMap::const_iterator i=m_connectionMap.begin(); i!=m_connectionMap.end();++i) {
00067     IDataConnection* c = (*i).second->connection;
00068     if ( 0 == owner || c->owner() == owner )
00069       conns.push_back(c);
00070   }
00071   return conns;
00072 }

StatusCode IODataManager::read	(	Connection *	ioDesc,
		void *const	data,
		size_t	len
	)			`[virtual]`

Read raw byte buffer from input stream.

Definition at line 93 of file IODataManager.cpp.

00093                                                                              {
00094   return establishConnection(con).isSuccess() ? con->read(data,len) : S_ERROR;
00095 }

StatusCode IODataManager::write	(	Connection *	con,
		const void *	data,
		int	len
	)			`[virtual]`

Write raw byte buffer to output stream.

Definition at line 98 of file IODataManager.cpp.

00098                                                                            {
00099   return establishConnection(con).isSuccess() ? con->write(data,len) : S_ERROR;
00100 }

long long int IODataManager::seek	(	Connection *	ioDesc,
		long long int	where,
		int	origin
	)			`[virtual]`

Seek on the file described by ioDesc. Arguments as in seek().

Definition at line 103 of file IODataManager.cpp.

00103                                                                                    {
00104   return establishConnection(con).isSuccess() ? con->seek(where,origin) : -1;
00105 }

Member Data Documentation

std::string Gaudi::IODataManager::m_catalogSvcName [protected]

Property: Name of the file catalog service.

Definition at line 41 of file IODataManager.h.

int Gaudi::IODataManager::m_ageLimit [protected]

Property: Age limit.

Definition at line 43 of file IODataManager.h.

bool Gaudi::IODataManager::m_useGFAL [protected]

Property: Flag for auto gfal data acesss.

Definition at line 45 of file IODataManager.h.

bool Gaudi::IODataManager::m_quarantine [protected]

Property: Flag if unaccessible files should be quarantines in job.

Definition at line 47 of file IODataManager.h.

ConnectionMap Gaudi::IODataManager::m_connectionMap [protected]

Map with I/O descriptors.

Definition at line 50 of file IODataManager.h.

SmartIF<IFileCatalog> Gaudi::IODataManager::m_catalog [protected]

Reference to file catalog.

Definition at line 52 of file IODataManager.h.

FidMap Gaudi::IODataManager::m_fidMap [protected]

Map of FID to PFN.

Definition at line 54 of file IODataManager.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r4/GaudiUtils/src/component/IODataManager.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r4/GaudiUtils/src/component/IODataManager.cpp

Gaudi Framework, version v21r4

Gaudi::IODataManager Class Reference

Detailed Description

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Classes

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
