GaudiTuples< PBASE > Class Template Reference

#include <GaudiAlg/GaudiTuples.h>

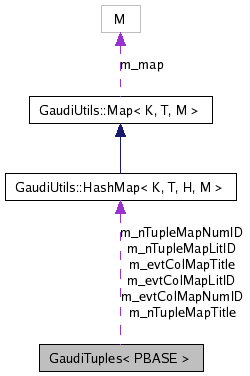

Collaboration diagram for GaudiTuples< PBASE >:

[legend]

List of all members.

Detailed Description

template<class PBASE>
class GaudiTuples< PBASE >

Templated base class providing common 'ntupling' methods.

Author:: Chris Jones Christopher.Rob.Jones@cern.ch
Vanya BELYAEV Ivan.Belyaev@itep.ru

Date:: 2005-08-08

Definition at line 40 of file GaudiTuples.h.


Public Types
typedef GaudiAlg::HistoID	HistoID
	the actual type for histogram identifier
typedef Tuples::Tuple	Tuple
	the actual type of the tuple
typedef GaudiAlg::TupleID	TupleID
	the actual type of N-tuple ID
typedef GaudiAlg::TupleMapTitle	TupleMapTitle
	the actual type of (title) -> (tuple) mappping
typedef GaudiAlg::TupleMapNumericID	TupleMapNumID
	the actual type of (Numeric ID) -> (tuple) mappping
typedef GaudiAlg::TupleMapLiteralID	TupleMapLitID
	the actual type of (Literal ID) -> (tuple) mappping
Public Member Functions
Tuple	nTuple (const std::string &title, const CLID &clid=CLID_ColumnWiseTuple) const
	Access an N-Tuple object (book on-demand) with unique identifier.
Tuple	nTuple (const TupleID &ID, const std::string &title, const CLID &clid=CLID_ColumnWiseTuple) const
	Access an N-Tuple object (book on-demand) with forced identifier.
Tuple	evtCol (const std::string &title, const CLID &clid=CLID_ColumnWiseTuple) const
	Access an Event Tag Collection object (book on-demand) with unique identifier.
Tuple	evtCol (const TupleID &ID, const std::string &title, const CLID &clid=CLID_ColumnWiseTuple) const
	Access an Event Tag Collection object (book on-demand) with forced identifier.
bool	produceNTuples () const
	get the flag for N-Tuple production (property "NTupleProduce")
bool	splitNTupleDir () const
	get the flag for N-Tuple path split (property "NTupleSplitDir")
const std::string &	nTupleLUN () const
	get the logical unit for N-Tuples (property "NTupleLUN")
const std::string &	nTupleTopDir () const
	get the top-level N-Tuple directory (property "NTupleTopDir")
const std::string &	nTupleDir () const
	get the N-Tuple directory (property "NTupleDir")
TupleID::NumericID	nTupleOffSet () const
	get the value for N-Tuple offset (property "NTupleOffSet")
std::string	nTuplePath () const
	get the constructed N-Tuple path
bool	produceEvtCols () const
	get the flag for Event Tag Collection production (property "EvtColsProduce")
bool	splitEvtColDir () const
	get the flag for Event Tag Collection path split (property "EvtColsSplitDir")
const std::string &	evtColLUN () const
	get the logical unit for Event Tag Collections (property "EvtColsLUN")
const std::string &	evtColTopDir () const
	get the top-level Event Tag Collection directory (property "EvtColsTopDir")
const std::string &	evtColDir () const
	get the Event Tag Collection directory (property "EvtColsDir")
TupleID::NumericID	evtColOffSet () const
	get the value for Event Tag Collection offset (property "EvtColsOffSet")
std::string	evtColPath () const
	get the constructed Event Tag Collection path
bool	tuplesPrint () const
	print tuples at finalization
bool	evtColsPrint () const
	print event collections at finalization
long	printTuples () const
	perform the actual printout of N-tuples
long	printEvtCols () const
	perform the actual printout of Event Tag Collections
bool	nTupleExists (const TupleID &ID) const
	check the existence AND validity of the N-Tuple with the given ID
bool	evtColExists (const TupleID &ID) const
	check the existence AND validity of the Event Tag Collection with the given ID
	GaudiTuples (const std::string &name, ISvcLocator *pSvcLocator)
	Algorithm constructor.
	GaudiTuples (const std::string &type, const std::string &name, const IInterface *parent)
	Tool constructor.
virtual	~GaudiTuples ()
	Destructor.
Protected Member Functions
const TupleMapTitle &	nTupleMapTitle () const
	access to the all ntuples by title
const TupleMapTitle &	evtColMapTitle () const
	access to the all evet tag collections by title
const TupleMapNumID &	nTupleMapNumID () const
	access to the all ntuples by numeric ID
const TupleMapNumID &	evtColMapNumID () const
	access to the all evet tag collections by numeric ID
const TupleMapLitID &	nTupleMapLitID () const
	access to the all ntuples by literal ID
const TupleMapLitID &	evtColMapLitID () const
	access to the all evet tag collections by literal ID
virtual Tuples::TupleObj *	createNTuple (const std::string &name, NTuple::Tuple *tuple, const CLID &clid) const
	create TupleObj
virtual Tuples::TupleObj *	createEvtCol (const std::string &name, NTuple::Tuple *tuple, const CLID &clid) const
	create TupleObj for event tag collection
virtual StatusCode	initialize ()
	standard initialization method
virtual StatusCode	finalize ()
	standard finalization method
Private Member Functions
void	initGaudiTuplesConstructor ()
	Constructor initialization and job options.
void	printNTupleHandler (Property &)
	handler for "NTuplePrint" property
void	printEvtColHandler (Property &)
	handler for "EvtColsPrint" property
Private Attributes
bool	m_produceNTuples
	flag to switch ON/OFF the ntuple filling and booking
bool	m_splitNTupleDir
	flag to indicate splitting of tuple directories (useful for HBOOK)
std::string	m_nTupleLUN
	name of logical unit for tuple directory
std::string	m_nTupleTopDir
	top level tuple directory
std::string	m_nTupleDir
	local tuple directory
TupleID::NumericID	m_nTupleOffSet
	the offset for ntuple numerical ID
bool	m_produceEvtCols
	flag to switch ON/OFF the ntuple filling and booking
bool	m_splitEvtColDir
	flag to indicate splitting of tuple directories (useful for HBOOK)
std::string	m_evtColLUN
	name of Logical Unit for tuple directory
std::string	m_evtColTopDir
	top level tuple directory
std::string	m_evtColDir
	local tuple directory
TupleID::NumericID	m_evtColOffSet
	the offset for ntuple numerical ID
bool	m_tuplesPrint
	print tuples at finalization?
bool	m_evtColsPrint
	print event collections at finalization
TupleMapTitle	m_nTupleMapTitle
	the actual storage of ntuples by title
TupleMapNumID	m_nTupleMapNumID
	the actual storage of ntuples by numeric ID
TupleMapLitID	m_nTupleMapLitID
	the actual storage of ntuples by literal ID
TupleMapTitle	m_evtColMapTitle
	the actual storage of event collections by title
TupleMapNumID	m_evtColMapNumID
	the actual storage of event collections by numeric ID
TupleMapLitID	m_evtColMapLitID
	the actual storage of event collections by literal ID

Member Typedef Documentation

template<class PBASE>

typedef GaudiAlg::HistoID GaudiTuples< PBASE >::HistoID

the actual type for histogram identifier

Definition at line 45 of file GaudiTuples.h.

template<class PBASE>

typedef Tuples::Tuple GaudiTuples< PBASE >::Tuple

the actual type of the tuple

Reimplemented in TupleTool.

Definition at line 47 of file GaudiTuples.h.

template<class PBASE>

typedef GaudiAlg::TupleID GaudiTuples< PBASE >::TupleID

the actual type of N-tuple ID

Reimplemented in TupleTool.

Definition at line 49 of file GaudiTuples.h.

template<class PBASE>

typedef GaudiAlg::TupleMapTitle GaudiTuples< PBASE >::TupleMapTitle

the actual type of (title) -> (tuple) mappping

Definition at line 51 of file GaudiTuples.h.

template<class PBASE>

typedef GaudiAlg::TupleMapNumericID GaudiTuples< PBASE >::TupleMapNumID

the actual type of (Numeric ID) -> (tuple) mappping

Definition at line 53 of file GaudiTuples.h.

template<class PBASE>

typedef GaudiAlg::TupleMapLiteralID GaudiTuples< PBASE >::TupleMapLitID

the actual type of (Literal ID) -> (tuple) mappping

Definition at line 55 of file GaudiTuples.h.

Constructor & Destructor Documentation

template<class PBASE>

GaudiTuples< PBASE >::GaudiTuples	(	const std::string &	name,
		ISvcLocator *	pSvcLocator
	)

Algorithm constructor.

template<class PBASE>

GaudiTuples< PBASE >::GaudiTuples	(	const std::string &	type,
		const std::string &	name,
		const IInterface *	parent
	)

Tool constructor.

template<class PBASE>

GaudiTuples< PBASE >::~GaudiTuples ( ) [inline, virtual]

Destructor.

Definition at line 38 of file GaudiTuples.icpp.

00038 {}

Member Function Documentation

template<class PBASE>

Tuples::Tuple GaudiTuples< PBASE >::nTuple	(	const std::string &	title,
		const CLID &	clid = `CLID_ColumnWiseTuple`
	)			const `[inline]`

Access an N-Tuple object (book on-demand) with unique identifier.

  Tuple tuple = nTuple( "My N-Tuple" ) ;
  tuple->column( "A" , sin(0.1) );
  tuple->column( "B" , cos(0.1) );
  tuple->column( "C" , tan(0.1) );
  tuple->write();

Attention:: The NTuple will get a unique identifier automatically assigned which by default will be equal to the histogram title. An option exists to instead use numerical IDs. In this case the first NTuple booked will be ID=1 the next ID=2 and so on. Note though this scheme is not recommended as it does NOT guarantee predictability of the ID a given NTuple will be given when filled under conditional statements, since in these circumstances the order in which the NTuple are first filled, and thus booked, will depend on the nature of the first few events read. This is particularly problematic when users submit many parallel 'sub-jobs' and then attempt to merge the final output ROOT (or HBOOK) files, since a given NTuple could have different IDs in each of the sub-jobs. Consequently it is strongly recommended that users do not use numerical automatic IDs unless they are sure they understand what they are doing.

Parameters:

	title	Unique title for N-Tuple
	clid	N-Tuple class identifier (row or column wise)

Returns:: ntuple The ntuple object

Reimplemented in TupleTool.

Definition at line 146 of file GaudiTuples.icpp.

00148 {
00149   // look up in the table
00150   Tuples::TupleObj* tuple = m_nTupleMapTitle[ title ]  ;
00151   if ( 0 != tuple ) { return Tuple( tuple ) ; }                  // RETURN
00152   // Create the tuple ID
00153   TupleID ID;
00154   if ( this->useNumericAutoIDs() || title.empty() )
00155   {
00156     if ( ! this->useNumericAutoIDs() )
00157     {
00158       this -> Warning( "Cannot generate automatic literal ID from an empty title ! Using numeric ID instead for nTuple ID",
00159                        StatusCode::SUCCESS );
00160     }
00161     // propose the tuple ID
00162     ID = TupleID ( m_nTupleMapNumID.size() + 1 + nTupleOffSet() );
00163     // adjust the proposed ID
00164     while ( nTupleExists(ID) || evtColExists(ID) )
00165     { ID = TupleID ( ID.numeric() + 1 ) ; }
00166   }
00167   else
00168   {
00169     // use the title to create a unique literal ID
00170     ID = TupleID( this->convertTitleToID(title) );
00171     // Just in case ...
00172     while ( nTupleExists(ID) || evtColExists(ID) )
00173     { ID = TupleID(ID.idAsString()+"_"); }
00174   }
00175   // return
00176   return nTuple( ID , title , clid ) ;
00177 }

template<class PBASE>

Tuples::Tuple GaudiTuples< PBASE >::nTuple	(	const TupleID &	ID,
		const std::string &	title,
		const CLID &	clid = `CLID_ColumnWiseTuple`
	)			const `[inline]`

Access an N-Tuple object (book on-demand) with forced identifier.

  // Book Ntuple with a numeric ID
  Tuple tuple = nTuple(  1,  "My tuple" ) ;
  // ... or
  Tuple tuple = nTuple( "1", "My tuple" ) ;

  // ... or, Book Ntuple with a literal ID
  Tuple tuple = nTuple( "mytuple", "My tuple" ) ;

  // ... or, Book Ntuple with a literal ID in a sub-dir
  Tuple tuple = nTuple( "subdir/mytuple", "My tuple" ) ;

  // Fill and write NTuple
  tuple->column( "A" , sin(0.1) );
  tuple->column( "B" , cos(0.1) );
  tuple->column( "C" , tan(0.1) );
  tuple->write();

Attention:: If the N-Tuple with given ID is already booked through automatic assignment of N-Tuple ID, the error will not be detected. Therefore it is recommended to use a non-trivial N-Tuple ID offset (property "NTupleOffSet") if one need to combine these techniques together It is still desirable to use the unique N-Tuple title to avoid a bad interference.

Parameters:

	ID	The forced N-Tuple ID
	title	Unique title for N-Tuple
	clid	N-Tuple class identifier (row or column wise)

Returns:: ntuple The ntuple object

Reimplemented in TupleTool.

Definition at line 224 of file GaudiTuples.icpp.

00227 {
00228   // Check ID
00229   if ( ID.undefined() )
00230   { this->Error("Undefined NTuple ID : Title='"+title1+"'"); return Tuple(0); }
00231
00232   // look up in the table
00233   Tuples::TupleObj * tuple =
00234     ( ID.numeric() ? m_nTupleMapNumID[ID.numericID()] : m_nTupleMapLitID[ID.literalID()] ) ;
00235   if( 0 != tuple ) { return Tuple( tuple ) ; }                   // RETURN
00236
00237   // convert ID to the string
00238   const std::string tID = ID.idAsString() ;
00239
00240   // adjust the NTuple title
00241   const std::string title = title1.empty() ? ( "NTuple #" + tID ) : title1 ;
00242
00243   // book new ntuple
00244   if( produceNTuples() )
00245   {
00246     // book NTupel
00247     NTuple::Tuple * tup = 0;
00248     if ( ID.numeric() )
00249     {
00250       tup = this->ntupleSvc() -> book ( nTuplePath() , ID.numericID() , clid , title );
00251     }
00252     else if ( ID.literal() )
00253     {
00254       tup = this->ntupleSvc() -> book ( nTuplePath() , ID.literalID() , clid , title );
00255     }
00256     else { this->Error( "Undefined NTuple ID" ); }
00257
00258     // assertion
00259     this->Assert( 0 != tup , "Could not book the N-Tuple='" + title + "'" ) ;
00260     // some printout
00261     if( 0 != tup -> registry() && this->msgLevel(MSG::DEBUG) )
00262     { this->debug() << "Booked NTuple '" << title << "' ID=" << tID
00263                     << "' Path='"  << nTuplePath() << "' TS='"
00264                     << tup -> registry() -> identifier() << "'" << endmsg; }
00265
00266     tuple = createNTuple ( title , tup                , clid ) ;
00267   }
00268   else
00269   {
00270     tuple = createNTuple ( title , (NTuple::Tuple*) 0 , clid ) ;
00271   }
00272   // increment the reference
00273   tuple -> addRef();
00274   if   ( ID.numeric() ) { m_nTupleMapNumID [ ID.numericID() ] = tuple ; }
00275   else                  { m_nTupleMapLitID [ ID.literalID() ] = tuple ; }
00276   tuple -> addRef();
00277   m_nTupleMapTitle[ title ] = tuple ;
00278   // return
00279   return Tuple( tuple ) ;
00280 };

template<class PBASE>

Tuples::Tuple GaudiTuples< PBASE >::evtCol	(	const std::string &	title,
		const CLID &	clid = `CLID_ColumnWiseTuple`
	)			const `[inline]`

Access an Event Tag Collection object (book on-demand) with unique identifier.

  Tuple tuple = evtCol( "My Tag Collection" ) ;
  tuple->column( "A" , sin(0.1) );
  tuple->column( "B" , cos(0.1) );
  tuple->column( "C" , tan(0.1) );
  tuple->write();

The Event Tag Collection will get a unique identifier automatically assigned which by default will be equal to the histogram title. An option exists to instead use numerical IDs. In this case the first Event Tag Collection booked will be ID=1 the next ID=2 and so on. Note though this scheme is not recommended as it does NOT guarantee predictability of the ID a given Event Tag Collection will be given when filled under conditional statements, since in these circumstances the order in which the Event Tag Collection are first filled, and thus booked, will depend on the nature of the first few events read. This is particularly problematic when users submit many parallel 'sub-jobs' and then attempt to merge the final output ROOT (or HBOOK) files, since a given Event Tag Collection could have different IDs in each of the sub-jobs. Consequently it is strongly recommended that users do not use numerical automatic IDs unless they are sure they understand what they are doing.

Parameters:

	title	Unique title for Event Tag Collection
	clid	N-Tuple class identifier (row or column wise)

Returns:: ntuple The Event Tag Collection object

Reimplemented in TupleTool.

Definition at line 185 of file GaudiTuples.icpp.

00187 {
00188   // look up in the table
00189   Tuples::TupleObj* tuple = m_evtColMapTitle[ title ]  ;
00190   if ( 0 != tuple ) { return Tuple( tuple ) ; }                   // RETURN
00191   // Create the tuple ID
00192   TupleID ID;
00193   if ( this->useNumericAutoIDs() || title.empty() )
00194   {
00195     if ( ! this->useNumericAutoIDs() )
00196     {
00197       this -> Warning( "Cannot generate automatic literal ID from an empty title ! Using numeric ID instead for evtCol ID",
00198                        StatusCode::SUCCESS );
00199     }
00200     // proposed the tuple ID
00201     ID = m_evtColMapNumID.size() + 1 + evtColOffSet() ;
00202     // adjust the proposed ID
00203     while ( nTupleExists(ID) || evtColExists(ID) )
00204     { ID = TupleID ( ID.numeric() + 1 ) ; }
00205   }
00206   else
00207   {
00208     // use the title to create a unique literal ID
00209     ID = TupleID( this->convertTitleToID(title) );
00210     // Just in case ...
00211     while ( nTupleExists(ID) || evtColExists(ID) )
00212     { ID = TupleID ( ID.idAsString()+"_" ) ; }
00213   }
00214   // return
00215   return evtCol( ID , title , clid ) ;
00216 }

template<class PBASE>

Tuples::Tuple GaudiTuples< PBASE >::evtCol	(	const TupleID &	ID,
		const std::string &	title,
		const CLID &	clid = `CLID_ColumnWiseTuple`
	)			const `[inline]`

Access an Event Tag Collection object (book on-demand) with forced identifier.

  // Book Ntuple with a numeric ID
  Tuple tuple = evtCol(  1,  "My Tag Collection" ) ;
  // ... or
  Tuple tuple = evtCol( "1", "My Tag Collection" ) ;

  // ... or, Book Ntuple with a literal ID
  Tuple tuple = evtCol( "mytuple", "My Tag Collection" ) ;

  // ... or, Book Ntuple with a literal ID in a sub-dir
  Tuple tuple = evtCol( "subdir/mytuple", "My Tag Collection" ) ;

  // Fill and write
  tuple->column( "A" , sin(0.1) );
  tuple->column( "B" , cos(0.1) );
  tuple->column( "C" , tan(0.1) );
  tuple->write();

Attention:: If the Event Tag Collection with given ID is already booked through automatic assignment of Event Tag Collection ID, the error will not be detected. Therefore it is recommended to use a non-trivial Event Tag Collection ID offset (property "EvtColOffSet") if one need to combine these techniques together It is still desirable to use the unique Event Tag Collection title to avoid a bad interference.

Parameters:

	ID	The forced Event Tag Collection ID
	title	Unique title for Event Tag Collection
	clid	N-Tuple class identifier (row or column wise)

Returns:: ntuple The Event Tag Collection object

Reimplemented in TupleTool.

Definition at line 285 of file GaudiTuples.icpp.

00288 {
00289   // Check ID
00290   if ( ID.undefined() )
00291   { this->Error("Undefined NTuple ID : Title='"+title1+"'"); return Tuple(0); }
00292
00293   // look up in the table
00294   Tuples::TupleObj* tuple =
00295     ( ID.numeric() ? m_evtColMapNumID[ID.numericID()] : m_evtColMapLitID[ID.literalID()] ) ;
00296   if ( 0 != tuple ) { return Tuple( tuple ) ; }                   // RETURN
00297
00298   // convert ID to the string
00299   const std::string tID = ID.idAsString() ;
00300
00301   // adjust the NTuple title
00302   const std::string title = title1.empty() ? ( "EvtCol #" + tID ) : title1 ;
00303
00304   // book new ntuple
00305   if( produceEvtCols() )
00306   {
00307     // book NTuple
00308     NTuple::Tuple* tup = 0;
00309     if (  ID.numeric() )
00310     {
00311       tup = this->evtColSvc()->book ( evtColPath() , ID.numericID() , clid , title ) ;
00312     }
00313     else if ( ID.literal() )
00314     {
00315       tup = this->evtColSvc()->book ( evtColPath() , ID.literalID() , clid , title ) ;
00316     }
00317     else { this->Error( "Undefined NTuple ID" ); }
00318
00319     // assertion
00320     this->Assert( 0 != tup , "Could not book the EvtCol='" + title + "'" ) ;
00321     // some printout
00322     if( 0 != tup -> registry() && this->msgLevel(MSG::DEBUG) )
00323     { this->debug() << "Booked EvtCol '" << title << "' ID=" << tID
00324                     << "' Path='" << evtColPath() << "' TS='"
00325                     << tup -> registry() -> identifier() << "'" << endmsg ; }
00326
00327     tuple = createEvtCol ( title , tup                , clid ) ;
00328   }
00329   else
00330   {
00331     tuple = createEvtCol ( title , (NTuple::Tuple*) 0 , clid ) ;
00332   }
00333   // increment the reference
00334   tuple -> addRef();
00335   if   ( ID.numeric() ) { m_evtColMapNumID [ ID.numericID() ] = tuple ; }
00336   else                  { m_evtColMapLitID [ ID.literalID() ] = tuple ; }
00337   tuple -> addRef();
00338   m_evtColMapTitle[ title ] = tuple ;
00339   // return
00340   return Tuple( tuple ) ;
00341 }

template<class PBASE>

bool GaudiTuples< PBASE >::produceNTuples ( ) const [inline]

get the flag for N-Tuple production (property "NTupleProduce")

Definition at line 213 of file GaudiTuples.h.

00213 { return m_produceNTuples ; }

template<class PBASE>

bool GaudiTuples< PBASE >::splitNTupleDir ( ) const [inline]

get the flag for N-Tuple path split (property "NTupleSplitDir")

Definition at line 215 of file GaudiTuples.h.

00215 { return m_splitNTupleDir ; }

template<class PBASE>

const std::string& GaudiTuples< PBASE >::nTupleLUN ( ) const [inline]

get the logical unit for N-Tuples (property "NTupleLUN")

Definition at line 217 of file GaudiTuples.h.

00217 { return m_nTupleLUN      ; }

template<class PBASE>

const std::string& GaudiTuples< PBASE >::nTupleTopDir ( ) const [inline]

get the top-level N-Tuple directory (property "NTupleTopDir")

Definition at line 219 of file GaudiTuples.h.

00219 { return m_nTupleTopDir   ; }

template<class PBASE>

const std::string& GaudiTuples< PBASE >::nTupleDir ( ) const [inline]

get the N-Tuple directory (property "NTupleDir")

Definition at line 221 of file GaudiTuples.h.

00221 { return m_nTupleDir      ; }

template<class PBASE>

TupleID::NumericID GaudiTuples< PBASE >::nTupleOffSet ( ) const [inline]

get the value for N-Tuple offset (property "NTupleOffSet")

Definition at line 223 of file GaudiTuples.h.

00223 { return m_nTupleOffSet   ; }

template<class PBASE>

std::string GaudiTuples< PBASE >::nTuplePath ( ) const [inline]

get the constructed N-Tuple path

Definition at line 225 of file GaudiTuples.h.

00226   {
00227     const std::string path = nTupleLUN() + "/" + nTupleTopDir() + nTupleDir();
00228     return ( splitNTupleDir() ? dirHbookName( path ) : path ) ;
00229   }

template<class PBASE>

bool GaudiTuples< PBASE >::produceEvtCols ( ) const [inline]

get the flag for Event Tag Collection production (property "EvtColsProduce")

Definition at line 231 of file GaudiTuples.h.

00231 { return m_produceEvtCols ; }

template<class PBASE>

bool GaudiTuples< PBASE >::splitEvtColDir ( ) const [inline]

get the flag for Event Tag Collection path split (property "EvtColsSplitDir")

Definition at line 233 of file GaudiTuples.h.

00233 { return m_splitEvtColDir ; }

template<class PBASE>

const std::string& GaudiTuples< PBASE >::evtColLUN ( ) const [inline]

get the logical unit for Event Tag Collections (property "EvtColsLUN")

Definition at line 235 of file GaudiTuples.h.

00235 { return m_evtColLUN      ; }

template<class PBASE>

const std::string& GaudiTuples< PBASE >::evtColTopDir ( ) const [inline]

get the top-level Event Tag Collection directory (property "EvtColsTopDir")

Definition at line 237 of file GaudiTuples.h.

00237 { return m_evtColTopDir   ; }

template<class PBASE>

const std::string& GaudiTuples< PBASE >::evtColDir ( ) const [inline]

get the Event Tag Collection directory (property "EvtColsDir")

Definition at line 239 of file GaudiTuples.h.

00239 { return m_evtColDir      ; }

template<class PBASE>

TupleID::NumericID GaudiTuples< PBASE >::evtColOffSet ( ) const [inline]

get the value for Event Tag Collection offset (property "EvtColsOffSet")

Definition at line 241 of file GaudiTuples.h.

00241 { return m_evtColOffSet   ; }

template<class PBASE>

std::string GaudiTuples< PBASE >::evtColPath ( ) const [inline]

get the constructed Event Tag Collection path

Definition at line 243 of file GaudiTuples.h.

00244   {
00245     std::string path = evtColLUN() + "/" + evtColTopDir() + evtColDir();
00246     return ( splitEvtColDir() ? dirHbookName( path ) : path );
00247   }

template<class PBASE>

bool GaudiTuples< PBASE >::tuplesPrint ( ) const [inline]

print tuples at finalization

Definition at line 249 of file GaudiTuples.h.

00249 { return m_tuplesPrint  ; }

template<class PBASE>

bool GaudiTuples< PBASE >::evtColsPrint ( ) const [inline]

print event collections at finalization

Definition at line 251 of file GaudiTuples.h.

00251 { return m_evtColsPrint ; }

template<class PBASE>

long GaudiTuples< PBASE >::printTuples ( ) const [inline]

perform the actual printout of N-tuples

Returns:: number of active N-Tuples

Definition at line 376 of file GaudiTuples.icpp.

00377 {
00378
00379   typedef std::set<const NTuple::Tuple*> _Tuples ;
00380
00381   if ( nTupleMapTitle().empty() &&
00382        nTupleMapNumID().empty() &&
00383        nTupleMapLitID().empty() )
00384   { if (this->msgLevel(MSG::DEBUG)) this->debug() << "No N-Tuples   are booked" << endmsg ; }
00385   else
00386   { this->always() << "List of booked N-Tuples in directory "
00387                    << "\"" << nTuplePath() << "\"" << endmsg ; }
00388
00389   _Tuples tuples ;
00390   { // N-Tuple by Numeric ID
00391     typedef std::map<TupleMapNumID::key_type, TupleMapNumID::mapped_type> ordered_map_t;
00392     ordered_map_t ordered_map(nTupleMapNumID().begin(), nTupleMapNumID().end());
00393     for ( ordered_map_t::const_iterator entry = ordered_map.begin() ;
00394           ordered_map.end() != entry ; ++entry )
00395     {
00396       if ( 0 == entry->second ) { continue ; }
00397       const NTuple::Tuple* tuple = entry->second->tuple() ;
00398       if ( 0 == tuple )
00399       { this->error() << " NTuple::Tuple* points to NULL" << endmsg ; continue ; }
00400       if ( tuples.end() != tuples.find( tuple ) ) { continue ; }
00401       tuples.insert ( tuple ) ;
00402       this->always() << GaudiAlg::PrintTuple::print ( tuple , entry->first ) << endmsg ;
00403     }
00404   }
00405   { // N-Tuple by Literal ID
00406     typedef std::map<TupleMapLitID::key_type, TupleMapLitID::mapped_type> ordered_map_t;
00407     ordered_map_t ordered_map(nTupleMapLitID().begin(), nTupleMapLitID().end());
00408     for ( ordered_map_t::const_iterator entry = ordered_map.begin() ;
00409           ordered_map.end() != entry ; ++entry )
00410     {
00411       if ( 0 == entry->second ) { continue ; }
00412       const NTuple::Tuple* tuple = entry->second->tuple() ;
00413       if ( 0 == tuple )
00414       { this->error() << " NTuple::Tuple* points to NULL" << endmsg ; continue ; }
00415       if ( tuples.end() != tuples.find( tuple ) ) { continue ; }
00416       tuples.insert ( tuple ) ;
00417       this->always() << GaudiAlg::PrintTuple::print ( tuple , entry->first ) << endmsg ;
00418     }
00419   }
00420   { // N-Tuples by Title
00421     typedef std::map<TupleMapTitle::key_type, TupleMapTitle::mapped_type> ordered_map_t;
00422     ordered_map_t ordered_map(nTupleMapTitle().begin(), nTupleMapTitle().end());
00423     for ( ordered_map_t::const_iterator entry = ordered_map.begin() ;
00424           ordered_map.end() != entry ; ++entry )
00425     {
00426       if ( 0 == entry->second ) { continue ; }
00427       const NTuple::Tuple* tuple = entry->second->tuple() ;
00428       if ( 0 == tuple )
00429       { this->error() << " NTuple::Tuple* points to NULL" << endmsg ; continue ; }
00430       if ( tuples.end() != tuples.find( tuple ) ) { continue ; }
00431       tuples.insert ( tuple ) ;
00432       this->always() << GaudiAlg::PrintTuple::print ( tuple )             << endmsg ;
00433     }
00434   }
00435
00436   return tuples.size() ;
00437 };

template<class PBASE>

long GaudiTuples< PBASE >::printEvtCols ( ) const [inline]

perform the actual printout of Event Tag Collections

Returns:: number of active Event Tag Collections

Definition at line 444 of file GaudiTuples.icpp.

00445 {
00446   typedef std::set<const NTuple::Tuple*> _Tuples ;
00447
00448   if ( evtColMapTitle().empty() &&
00449        evtColMapNumID().empty() &&
00450        evtColMapLitID().empty() )
00451   { this->always() << "No Event Tag Collections are booked" << endmsg ; }
00452   else
00453   { this->always() << "List of booked Event Tag Collections in directory "
00454                    << "\"" << evtColPath() << "\"" << endmsg ; }
00455
00456   _Tuples tuples ;
00457   { // EvtCols by Numeric ID
00458     for ( TupleMapNumID::const_iterator entry = evtColMapNumID().begin() ;
00459           evtColMapNumID().end() != entry ; ++entry )
00460     {
00461       if ( 0 == entry->second ) { continue ; }
00462       const NTuple::Tuple* tuple = entry->second->tuple() ;
00463       if ( 0 == tuple )
00464       { this->error() << "NTuple::Tuple* points to NULL" << endmsg ; continue ; }
00465       if ( tuples.end() != tuples.find( tuple ) ) { continue ; }
00466       tuples.insert ( tuple ) ;
00467       this->always() << GaudiAlg::PrintTuple::print ( tuple , entry->first )
00468                      << " Items:"
00469                      << Gaudi::Utils::toString ( entry->second->items() )    << endmsg ;
00470     }
00471   }
00472   { // EvtCols by literal ID
00473     for ( TupleMapLitID::const_iterator entry = evtColMapLitID().begin() ;
00474           evtColMapLitID().end() != entry ; ++entry )
00475     {
00476       if ( 0 == entry->second ) { continue ; }
00477       const NTuple::Tuple* tuple = entry->second->tuple() ;
00478       if ( 0 == tuple )
00479       { this->error() << "NTuple::Tuple* points to NULL" << endmsg ; continue ; }
00480       if ( tuples.end() != tuples.find( tuple ) ) { continue ; }
00481       tuples.insert ( tuple ) ;
00482       this->always() << GaudiAlg::PrintTuple::print ( tuple , entry->first )
00483                      << " Items:"
00484                      << Gaudi::Utils::toString ( entry->second->items() )    << endmsg ;
00485     }
00486   }
00487   { // EvtCols by Title
00488     for ( TupleMapTitle::const_iterator entry = evtColMapTitle().begin() ;
00489           evtColMapTitle().end() != entry ; ++entry )
00490     {
00491       if ( 0 == entry->second ) { continue ; }
00492       const NTuple::Tuple* tuple = entry->second->tuple() ;
00493       if ( 0 == tuple )
00494       { this->error() << "NTuple::Tuple* points to NULL" << endmsg ; continue ; }
00495       if ( tuples.end() != tuples.find( tuple ) ) { continue ; }
00496       tuples.insert ( tuple ) ;
00497       this->always() << GaudiAlg::PrintTuple::print ( tuple )
00498                      << " Items:"
00499                      << Gaudi::Utils::toString ( entry->second->items() ) << endmsg ;
00500     }
00501   }
00502
00503   return tuples.size() ;
00504 }

template<class PBASE>

bool GaudiTuples< PBASE >::nTupleExists ( const TupleID & ID ) const [inline]

check the existence AND validity of the N-Tuple with the given ID

Definition at line 510 of file GaudiTuples.icpp.

00511 {
00512   bool OK(false);
00513   if ( ID.numeric() )
00514   {
00515     TupleMapNumID::iterator found = m_nTupleMapNumID.find( ID.numericID() ) ;
00516     OK = ( m_nTupleMapNumID.end() != found );
00517   }
00518   else
00519   {
00520     TupleMapLitID::iterator found = m_nTupleMapLitID.find( ID.literalID() ) ;
00521     OK = ( m_nTupleMapLitID.end() != found );
00522   }
00523   return OK;
00524 }

template<class PBASE>

bool GaudiTuples< PBASE >::evtColExists ( const TupleID & ID ) const [inline]

check the existence AND validity of the Event Tag Collection with the given ID

Definition at line 530 of file GaudiTuples.icpp.

00531 {
00532   bool OK(false);
00533   if ( ID.numeric() )
00534   {
00535     TupleMapNumID::iterator found = m_evtColMapNumID.find( ID.numericID() ) ;
00536     OK = ( m_evtColMapNumID.end() != found );
00537   }
00538   else
00539   {
00540     TupleMapLitID::iterator found = m_evtColMapLitID.find( ID.literalID() ) ;
00541     OK = ( m_evtColMapLitID.end() != found );
00542   }
00543   return OK;
00544 }

template<class PBASE>

const TupleMapTitle& GaudiTuples< PBASE >::nTupleMapTitle ( ) const [inline, protected]

access to the all ntuples by title

Definition at line 274 of file GaudiTuples.h.

00274 { return m_nTupleMapTitle ; }

template<class PBASE>

const TupleMapTitle& GaudiTuples< PBASE >::evtColMapTitle ( ) const [inline, protected]

access to the all evet tag collections by title

Definition at line 276 of file GaudiTuples.h.

00276 { return m_evtColMapTitle ; }

template<class PBASE>

const TupleMapNumID& GaudiTuples< PBASE >::nTupleMapNumID ( ) const [inline, protected]

access to the all ntuples by numeric ID

Definition at line 278 of file GaudiTuples.h.

00278 { return m_nTupleMapNumID ; }

template<class PBASE>

const TupleMapNumID& GaudiTuples< PBASE >::evtColMapNumID ( ) const [inline, protected]

access to the all evet tag collections by numeric ID

Definition at line 280 of file GaudiTuples.h.

00280 { return m_evtColMapNumID ; }

template<class PBASE>

const TupleMapLitID& GaudiTuples< PBASE >::nTupleMapLitID ( ) const [inline, protected]

access to the all ntuples by literal ID

Definition at line 282 of file GaudiTuples.h.

00282 { return m_nTupleMapLitID ; }

template<class PBASE>

const TupleMapLitID& GaudiTuples< PBASE >::evtColMapLitID ( ) const [inline, protected]

access to the all evet tag collections by literal ID

Definition at line 284 of file GaudiTuples.h.

00284 { return m_evtColMapLitID ; }

template<class PBASE>

Tuples::TupleObj * GaudiTuples< PBASE >::createNTuple	(	const std::string &	name,
		NTuple::Tuple *	tuple,
		const CLID &	clid
	)			const `[inline, protected, virtual]`

create TupleObj

Attention:: The method should never used directly by users

Parameters:

	name	name/title
	tuple	the underlying ntuple implementation
	clid	unique classID for ntuple

Returns:: pointer to newly created TupleObj

Definition at line 349 of file GaudiTuples.icpp.

00352 {
00353   return Tuples::createTupleObj
00354     ( this , "Tuple '" + name  + "'" , tuple , clid , Tuples::NTUPLE ) ;
00355 }

template<class PBASE>

Tuples::TupleObj * GaudiTuples< PBASE >::createEvtCol	(	const std::string &	name,
		NTuple::Tuple *	tuple,
		const CLID &	clid
	)			const `[inline, protected, virtual]`

create TupleObj for event tag collection

Attention:: The method should never used directly by users

Parameters:

	name	name/title
	tuple	the underlying ntuple implementation
	clid	unique classID for ntuple

Returns:: pointer to newly created TupelObj

Definition at line 363 of file GaudiTuples.icpp.

00366 {
00367   return Tuples::createTupleObj
00368     ( this , "EvtCol '" + name  + "'" , tuple , clid , Tuples::EVTCOL ) ;
00369 }

template<class PBASE>

StatusCode GaudiTuples< PBASE >::initialize ( ) [inline, protected, virtual]

standard initialization method

Returns:: status code

Reimplemented in GaudiTupleAlg, and GaudiTupleTool.

Definition at line 43 of file GaudiTuples.icpp.

00044 {
00045   // initialize base class
00046   const StatusCode sc = PBASE::initialize();
00047   if ( sc.isFailure() ) return sc;
00048
00049   if ( produceNTuples() )
00050   {
00051     // check the existance of service
00052     if ( this->ntupleSvc() == 0 )
00053     { return  this->Error( "INTupleSvc* points to NULL!" ); }
00054     // Print ntuple path
00055     Print( "The N-Tuple   path is set to be '" + nTuplePath() + "'",
00056            StatusCode(StatusCode::SUCCESS, true) , MSG::DEBUG);
00057   }
00058   else
00059   { this->debug() << "Production of N-Tuples is switched OFF" << endmsg; }
00060
00061   if ( produceEvtCols() )
00062   {
00063     // check the existance of service
00064     if ( 0 == this->evtColSvc() )
00065     { return  this->Error( "INTupleSvc* points to NULL!" ); }
00066     // Print EvtCol path
00067     Print( "The EventCol  path is set to be '" + evtColPath() + "'",
00068            StatusCode(StatusCode::SUCCESS, true) , MSG::DEBUG );
00069   }
00070   else
00071   { this->debug() << "Production of Event Collections is switched OFF" << endmsg; }
00072
00073   return sc;
00074 }

template<class PBASE>

StatusCode GaudiTuples< PBASE >::finalize ( void ) [inline, protected, virtual]

standard finalization method

Returns:: status code

Reimplemented in GaudiTupleAlg, and GaudiTupleTool.

Definition at line 80 of file GaudiTuples.icpp.

00081 {
00082   if ( !( nTupleMapTitle() .empty() &&
00083           nTupleMapNumID() .empty() &&
00084           nTupleMapLitID() .empty() &&
00085           evtColMapTitle() .empty() &&
00086           evtColMapNumID() .empty() &&
00087           evtColMapLitID() .empty()
00088           ) )
00089   {
00090     const int nNtuples = nTupleMapNumID().size() + nTupleMapLitID().size();
00091     const int nEvtCols = evtColMapNumID().size() + evtColMapLitID().size();
00092     this->always()
00093       << "Booked " << nNtuples << " N-Tuples and " << nEvtCols
00094       << " Event Tag Collections" << endmsg ;
00095   }
00096
00097   if ( produceNTuples () && tuplesPrint  () ) { printTuples  () ; }
00098   if ( produceEvtCols () && evtColsPrint () ) { printEvtCols () ; }
00099
00100   { // release ntuples and clear the container
00101     for( TupleMapTitle::iterator itup = m_nTupleMapTitle.begin() ;
00102          m_nTupleMapTitle.end() != itup ; ++itup )
00103     { if( 0 != itup->second ) { itup->second->release() ; } }
00104     m_nTupleMapTitle.clear() ;
00105   }
00106   { // release ntuples and clear the container
00107     for( TupleMapNumID::iterator itup = m_nTupleMapNumID.begin() ;
00108          m_nTupleMapNumID.end() != itup ; ++itup )
00109     { if( 0 != itup->second ) { itup->second->release() ; } }
00110     m_nTupleMapNumID.clear();
00111   }
00112   { // release ntuples and clear the container
00113     for( TupleMapLitID::iterator itup = m_nTupleMapLitID.begin() ;
00114          m_nTupleMapLitID.end() != itup ; ++itup )
00115     { if( 0 != itup->second ) { itup->second->release() ; } }
00116     m_nTupleMapLitID.clear();
00117   }
00118   { // release ntuples and clear the container
00119     for( TupleMapTitle::iterator itup = m_evtColMapTitle.begin() ;
00120          m_evtColMapTitle.end() != itup ; ++itup )
00121     { if( 0 != itup->second ) { itup->second->release() ; } }
00122     m_evtColMapTitle.clear();
00123   }
00124   { // release ntuples and clear the container
00125     for( TupleMapNumID::iterator itup = m_evtColMapNumID.begin() ;
00126          m_evtColMapNumID.end() != itup ; ++itup )
00127     { if( 0 != itup->second ) { itup->second->release() ; } }
00128     m_evtColMapNumID.clear() ;
00129   }
00130   { // release ntuples and clear the container
00131     for( TupleMapLitID::iterator itup = m_evtColMapLitID.begin() ;
00132          m_evtColMapLitID.end() != itup ; ++itup )
00133     { if( 0 != itup->second ) { itup->second->release() ; } }
00134     m_evtColMapLitID.clear() ;
00135   }
00136
00137   // finalize base class
00138   return PBASE::finalize();
00139 }

template<class PBASE>

void GaudiTuples< PBASE >::initGaudiTuplesConstructor ( ) [inline, private]

Constructor initialization and job options.

Definition at line 337 of file GaudiTuples.h.

00338   {
00339     m_produceNTuples = true ;     // Switch ON/OFF ntuple production
00340     m_splitNTupleDir = false ;    // for HBOOK it is better to use 'true'
00341     m_nTupleLUN      = "FILE1" ;  // logical unit for ntuples
00342     m_nTupleTopDir   = "" ;       // top level ntuple directory
00343     m_nTupleDir      = this->name() ;   // ntuple directory
00344     m_nTupleOffSet   = 0  ;       // offset for ntuples
00345     //
00346     m_produceEvtCols = false ;    // Switch ON/OFF ntupel production
00347     m_splitEvtColDir = false ;    // for HBOOK it is better to use 'true'
00348     m_evtColLUN      = "EVTCOL" ; // logical unit for ntuples
00349     m_evtColTopDir   = ""    ;    // top level ntuple directory
00350     m_evtColDir      = this->name() ;   // ntuple directory
00351     m_evtColOffSet   = 0   ;      // offset for ntuples
00352     //
00353     m_tuplesPrint    = true  ;    // print tuples at end of job
00354     m_evtColsPrint   = false  ;   // print event collections at end of job
00355     //
00356     this -> declareProperty
00357       ( "NTupleProduce"  , m_produceNTuples         ,
00358         "General switch to enable/disable N-tuples" ) ;
00359     this -> declareProperty
00360       ( "NTuplePrint"    , m_tuplesPrint    ,
00361         "Print N-tuple statistics"        )
00362       -> declareUpdateHandler ( &GaudiTuples<PBASE>::printNTupleHandler , this ) ;
00363     this -> declareProperty
00364       ( "NTupleSplitDir" , m_splitNTupleDir ,
00365         "Split long directory names into short pieces (suitable for HBOOK)" ) ;
00366     this -> declareProperty
00367       ( "NTupleOffSet"   , m_nTupleOffSet   ,
00368         "Offset for numerical N-tuple ID" ) ;
00369     this -> declareProperty
00370       ( "NTupleLUN"      , m_nTupleLUN      ,
00371         "Logical File Unit for N-tuples"  ) ;
00372     this -> declareProperty
00373       ( "NTupleTopDir"   , m_nTupleTopDir   ,
00374         "Top-level directory for N-Tuples") ;
00375     this -> declareProperty
00376       ( "NTupleDir"      , m_nTupleDir      ,
00377         "Subdirectory for N-Tuples"       ) ;
00378     // ========================================================================
00379     this -> declareProperty
00380       ( "EvtColsProduce" , m_produceEvtCols ,
00381         "General switch to enable/disable Event Tag Collections" ) ;
00382     this -> declareProperty
00383       ( "EvtColsPrint"   , m_evtColsPrint   ,
00384         "Print statistics for Event Tag Collections " )
00385       -> declareUpdateHandler ( &GaudiTuples<PBASE>::printEvtColHandler , this ) ;
00386     this -> declareProperty
00387       ( "EvtColSplitDir" , m_splitEvtColDir ,
00388         "Split long directory names into short pieces" ) ;
00389     this -> declareProperty
00390       ( "EvtColOffSet"   , m_evtColOffSet   ,
00391         "Offset for numerical N-tuple ID" ) ;
00392     this -> declareProperty
00393       ( "EvtColLUN"      , m_evtColLUN      ,
00394         "Logical File Unit for Event Tag Collections"   ) ;
00395     this -> declareProperty
00396       ( "EvtColTopDir"   , m_evtColTopDir   ,
00397         "Top-level directory for Event Tag Collections" ) ;
00398     this -> declareProperty
00399       ( "EvtColDir"      , m_evtColDir      ,
00400         "Subdirectory for Event Tag Collections"        ) ;
00401     // ========================================================================
00402   }

template<class PBASE>

void GaudiTuples< PBASE >::printNTupleHandler ( Property & ) [inline, private]

handler for "NTuplePrint" property

Definition at line 549 of file GaudiTuples.icpp.

00550 {
00551   // no action if not yet initialized
00552   if ( this -> FSMState() < Gaudi::StateMachine::INITIALIZED ) { return ; }
00553   if ( this -> tuplesPrint() ) { this -> printTuples () ; }
00554 }

template<class PBASE>

void GaudiTuples< PBASE >::printEvtColHandler ( Property & ) [inline, private]

handler for "EvtColsPrint" property

Definition at line 559 of file GaudiTuples.icpp.

00560 {
00561   // no action if not yet initialized
00562   if ( this -> FSMState() < Gaudi::StateMachine::INITIALIZED ) { return ; }
00563   if ( this -> evtColsPrint() ) { this -> printEvtCols () ; }
00564 }

Member Data Documentation

template<class PBASE>

bool GaudiTuples< PBASE >::m_produceNTuples [private]

flag to switch ON/OFF the ntuple filling and booking

Definition at line 414 of file GaudiTuples.h.

template<class PBASE>

bool GaudiTuples< PBASE >::m_splitNTupleDir [private]

flag to indicate splitting of tuple directories (useful for HBOOK)

Definition at line 416 of file GaudiTuples.h.

template<class PBASE>

std::string GaudiTuples< PBASE >::m_nTupleLUN [private]

name of logical unit for tuple directory

Definition at line 418 of file GaudiTuples.h.

template<class PBASE>

std::string GaudiTuples< PBASE >::m_nTupleTopDir [private]

top level tuple directory

Definition at line 420 of file GaudiTuples.h.

template<class PBASE>

std::string GaudiTuples< PBASE >::m_nTupleDir [private]

local tuple directory

Definition at line 422 of file GaudiTuples.h.

template<class PBASE>

TupleID::NumericID GaudiTuples< PBASE >::m_nTupleOffSet [private]

the offset for ntuple numerical ID

Definition at line 424 of file GaudiTuples.h.

template<class PBASE>

bool GaudiTuples< PBASE >::m_produceEvtCols [private]

flag to switch ON/OFF the ntuple filling and booking

Definition at line 427 of file GaudiTuples.h.

template<class PBASE>

bool GaudiTuples< PBASE >::m_splitEvtColDir [private]

flag to indicate splitting of tuple directories (useful for HBOOK)

Definition at line 429 of file GaudiTuples.h.

template<class PBASE>

std::string GaudiTuples< PBASE >::m_evtColLUN [private]

name of Logical Unit for tuple directory

Definition at line 431 of file GaudiTuples.h.

template<class PBASE>

std::string GaudiTuples< PBASE >::m_evtColTopDir [private]

top level tuple directory

Definition at line 433 of file GaudiTuples.h.

template<class PBASE>

std::string GaudiTuples< PBASE >::m_evtColDir [private]

local tuple directory

Definition at line 435 of file GaudiTuples.h.

template<class PBASE>

TupleID::NumericID GaudiTuples< PBASE >::m_evtColOffSet [private]

the offset for ntuple numerical ID

Definition at line 437 of file GaudiTuples.h.

template<class PBASE>

bool GaudiTuples< PBASE >::m_tuplesPrint [private]

print tuples at finalization?

Definition at line 440 of file GaudiTuples.h.

template<class PBASE>

bool GaudiTuples< PBASE >::m_evtColsPrint [private]

print event collections at finalization

Definition at line 442 of file GaudiTuples.h.

template<class PBASE>

TupleMapTitle GaudiTuples< PBASE >::m_nTupleMapTitle [mutable, private]

the actual storage of ntuples by title

Definition at line 445 of file GaudiTuples.h.

template<class PBASE>

TupleMapNumID GaudiTuples< PBASE >::m_nTupleMapNumID [mutable, private]

the actual storage of ntuples by numeric ID

Definition at line 447 of file GaudiTuples.h.

template<class PBASE>

TupleMapLitID GaudiTuples< PBASE >::m_nTupleMapLitID [mutable, private]

the actual storage of ntuples by literal ID

Definition at line 449 of file GaudiTuples.h.

template<class PBASE>

TupleMapTitle GaudiTuples< PBASE >::m_evtColMapTitle [mutable, private]

the actual storage of event collections by title

Definition at line 452 of file GaudiTuples.h.

template<class PBASE>

TupleMapNumID GaudiTuples< PBASE >::m_evtColMapNumID [mutable, private]

the actual storage of event collections by numeric ID

Definition at line 454 of file GaudiTuples.h.

template<class PBASE>

TupleMapLitID GaudiTuples< PBASE >::m_evtColMapLitID [mutable, private]

the actual storage of event collections by literal ID

Definition at line 456 of file GaudiTuples.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r4/GaudiAlg/GaudiAlg/GaudiTuples.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r4/GaudiAlg/GaudiAlg/GaudiTuples.icpp

Gaudi Framework, version v21r4

GaudiTuples< PBASE > Class Template Reference

Detailed Description

template<class PBASE> class GaudiTuples< PBASE >

Public Types

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class PBASE>
class GaudiTuples< PBASE >
