AlgTool Class Reference

#include <GaudiKernel/AlgTool.h>

Inheritance diagram for AlgTool:

[legend]

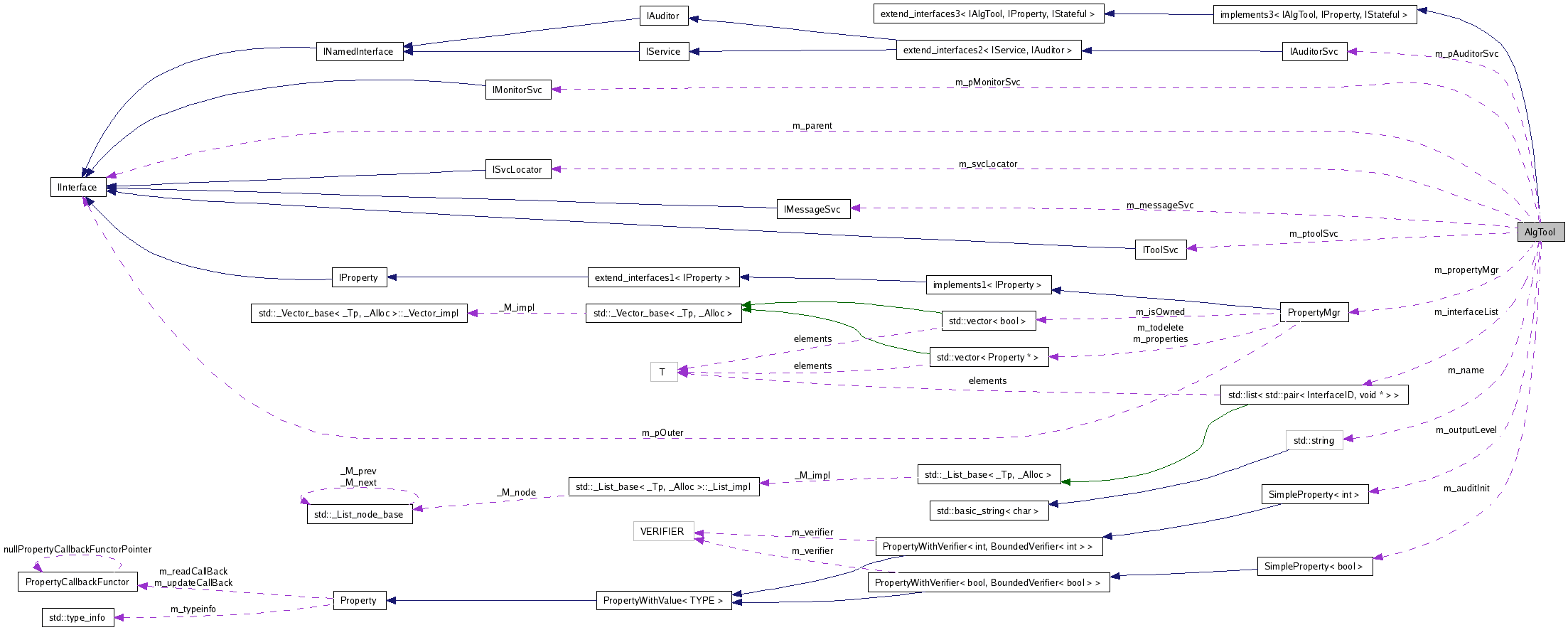

Collaboration diagram for AlgTool:

[legend]

List of all members.

Detailed Description

Base class from which all the concrete tool classes should be derived.

Specific methods for doing something useful should be implemented in the concrete tools. Sub-types of this class could implement an additional interface for behavior common to sets of concrete tools (for example vertexers).

Author:: Gloria Corti
Pere Mato

Definition at line 35 of file AlgTool.h.


Public Member Functions
virtual StatusCode	queryInterface (const InterfaceID &riid, void **ppvUnknown)
	Query for a given interface.
virtual const std::string &	name () const
	Retrieve full identifying name of the concrete tool object.
virtual const std::string &	type () const
	Retrieve type (concrete class) of the sub-algtool.
virtual const IInterface *	parent () const
	Retrieve parent of the sub-algtool.
virtual StatusCode	configure ()
virtual StatusCode	initialize ()
virtual StatusCode	start ()
virtual StatusCode	stop ()
virtual StatusCode	finalize ()
virtual StatusCode	terminate ()
virtual StatusCode	reinitialize ()
virtual StatusCode	restart ()
virtual Gaudi::StateMachine::State	FSMState () const
virtual Gaudi::StateMachine::State	targetFSMState () const
virtual StatusCode	sysInitialize ()
	Initialize AlgTool.
virtual StatusCode	sysStart ()
	Start AlgTool.
virtual StatusCode	sysStop ()
	Stop AlgTool.
virtual StatusCode	sysFinalize ()
	Finalize AlgTool.
virtual StatusCode	sysReinitialize ()
	Initialize AlgTool.
virtual StatusCode	sysRestart ()
	Start AlgTool.
virtual StatusCode	setProperty (const Property &p)
	Default implementations for IProperty interface.
virtual StatusCode	setProperty (const std::string &s)
virtual StatusCode	setProperty (const std::string &n, const std::string &v)
virtual StatusCode	getProperty (Property *p) const
virtual const Property &	getProperty (const std::string &name) const
virtual StatusCode	getProperty (const std::string &n, std::string &v) const
virtual const std::vector < Property * > &	getProperties () const
PropertyMgr *	getPropertyMgr ()
template<class TYPE>
StatusCode	setProperty (const std::string &name, const TYPE &value)
	set the property form the value
	AlgTool (const std::string &type, const std::string &name, const IInterface *parent)
	Standard Constructor.
ISvcLocator *	serviceLocator () const
	Retrieve pointer to service locator.
ISvcLocator *	svcLoc () const
	shortcut for the method service locator
IMessageSvc *	msgSvc () const
	Retrieve pointer to message service.
IToolSvc *	toolSvc () const
	The standard ToolSvc service, Return a pointer to the service if present.
StatusCode	setProperties ()
	Method for setting declared properties to the values specified in the jobOptions via the job option service.
template<class T>
StatusCode	service (const std::string &name, T *&svc, bool createIf=true) const
	Access a service by name, creating it if it doesn't already exist.
template<class T>
StatusCode	service (const std::string &type, const std::string &name, T *&svc) const
	Access a service by name, type creating it if it doesn't already exist.
void	declInterface (const InterfaceID &, void *)
	declare interface
template<class T>
Property *	declareProperty (const std::string &name, T &property, const std::string &doc="none") const
	Declare the named property.
Property *	declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="") const
	Declare remote named properties.
IAuditorSvc *	auditorSvc () const
	Access the auditor service.
IMonitorSvc *	monitorSvc () const
	Access the monitor service.
template<class T>
void	declareInfo (const std::string &name, const T &var, const std::string &desc) const
	Declare monitoring information.
void	declareInfo (const std::string &name, const std::string &format, const void *var, int size, const std::string &desc) const
	Declare monitoring information (special case).
Protected Member Functions
int	outputLevel () const
	get tool's output level
IntegerProperty &	outputLevelProperty ()
	Accessor for the Message level property.
void	initOutputLevel (Property &prop)
	callback for output level property
virtual	~AlgTool ()
Private Types
typedef std::list< std::pair < InterfaceID, void * > >	InterfaceList
Private Member Functions
StatusCode	service_i (const std::string &algName, bool createIf, const InterfaceID &iid, void **ppSvc) const
	implementation of service method
StatusCode	service_i (const std::string &svcType, const std::string &svcName, const InterfaceID &iid, void **ppS) const
Private Attributes
IntegerProperty	m_outputLevel
	AlgTool output level.
std::string	m_type
	AlgTool type (concrete class name).
const std::string	m_name
	AlgTool full name.
const IInterface *	m_parent
	AlgTool parent.
ISvcLocator *	m_svcLocator
	Pointer to Service Locator service.
IMessageSvc *	m_messageSvc
	Message service.
IToolSvc *	m_ptoolSvc
	Tool service.
IMonitorSvc *	m_pMonitorSvc
	Online Monitoring Service.
std::string	m_monitorSvcName
	Name to use for Monitor Service.
PropertyMgr *	m_propertyMgr
	Property Manager.
InterfaceList	m_interfaceList
	Interface list.
std::string	m_threadID
	Thread Id for Alg Tool.
IAuditorSvc *	m_pAuditorSvc
	Auditor Service.
BooleanProperty	m_auditInit
bool	m_auditorInitialize
	flag for auditors in "initialize()"
bool	m_auditorStart
	flag for auditors in "start()"
bool	m_auditorStop
	flag for auditors in "stop()"
bool	m_auditorFinalize
	flag for auditors in "finalize()"
bool	m_auditorReinitialize
	flag for auditors in "reinitialize()"
bool	m_auditorRestart
	flag for auditors in "restart()"
Gaudi::StateMachine::State	m_state
	state of the Tool
Gaudi::StateMachine::State	m_targetState
	state of the Tool
Friends
class	ToolSvc
Classes
class	declareInterface

Member Typedef Documentation

typedef std::list<std::pair<InterfaceID,void*> > AlgTool::InterfaceList [private]

Definition at line 313 of file AlgTool.h.

Constructor & Destructor Documentation

AlgTool::AlgTool	(	const std::string &	type,
		const std::string &	name,
		const IInterface *	parent
	)

Standard Constructor.

Parameters:

	type	the concrete class of the sub-algtool
	name	the full name of the concrete sub-algtool
	parent	the parent of the concrete sub-algtool

Definition at line 184 of file AlgTool.cpp.

00188   : m_outputLevel ( MSG::NIL )
00189   , m_type          ( type )
00190   , m_name          ( name )
00191   , m_parent        ( parent )
00192   , m_svcLocator    ( 0 )
00193   , m_messageSvc    ( 0 )
00194   , m_ptoolSvc      ( 0 )
00195   , m_pMonitorSvc   ( NULL )
00196   , m_propertyMgr   ( new PropertyMgr() )
00197   , m_interfaceList (       )
00198   , m_threadID      (       )
00199   , m_pAuditorSvc   ( 0     )
00200   , m_auditInit     ( false )
00201   , m_state         ( Gaudi::StateMachine::CONFIGURED )
00202   , m_targetState   ( Gaudi::StateMachine::CONFIGURED )
00203 {
00204   addRef(); // Initial count set to 1
00205
00206   declareProperty( "MonitorService", m_monitorSvcName = "MonitorSvc" );
00207
00208   { // get the "OutputLevel" property from parent
00209     const Property* _p = Gaudi::Utils::getProperty ( parent , "OutputLevel") ;
00210     if ( 0 != _p ) { m_outputLevel.assign( *_p ) ; }
00211     declareProperty ( "OutputLevel"     , m_outputLevel ) ;
00212      m_outputLevel.declareUpdateHandler(&AlgTool::initOutputLevel, this);
00213   }
00214
00215   IInterface* _p = const_cast<IInterface*> ( parent ) ;
00216
00217   if      ( Algorithm* _alg = dynamic_cast<Algorithm*> ( _p ) )
00218   {
00219     m_svcLocator  = _alg -> serviceLocator  () ;
00220     m_messageSvc  = _alg -> msgSvc          () ;
00221     m_threadID    = getGaudiThreadIDfromName ( _alg -> name() ) ;
00222   }
00223   else if ( Service*   _svc = dynamic_cast<Service*>  ( _p ) )
00224   {
00225     m_svcLocator  = _svc -> serviceLocator () ;
00226     m_messageSvc  = _svc -> msgSvc         () ;
00227     m_threadID    = getGaudiThreadIDfromName ( _svc -> name() ) ;
00228   }
00229   else if ( AlgTool*   _too = dynamic_cast<AlgTool*>  ( _p ) )
00230   {
00231     m_svcLocator  = _too -> m_svcLocator;
00232     m_messageSvc  = _too -> m_messageSvc;
00233     m_threadID    = getGaudiThreadIDfromName ( _too ->m_threadID ) ;
00234   }
00235   else if ( Auditor*   _aud = dynamic_cast<Auditor*>  ( _p ) )
00236   {
00237     m_svcLocator  = _aud -> serviceLocator() ;
00238     m_messageSvc  = _aud -> msgSvc()         ;
00239     m_threadID    = getGaudiThreadIDfromName ( _aud -> name() )    ;
00240   }
00241   else
00242   {
00243     throw GaudiException
00244       ( "Failure to create tool '"
00245         + type + "/" + name + "': illegal parent type '"
00246         + System::typeinfoName(typeid(*_p)) + "'", "AlgTool", 0 );
00247   }
00248
00249
00250   { // audit tools
00251     SmartIF<IProperty> appMgr(m_svcLocator->service("ApplicationMgr"));
00252     if ( !appMgr.isValid() ) {
00253       throw GaudiException("Could not locate ApplicationMgr","AlgTool",0);
00254     }
00255     const Property* p = Gaudi::Utils::getProperty( appMgr , "AuditTools");
00256     if ( 0 != p ) { m_auditInit.assign ( *p ) ; }
00257     declareProperty ( "AuditTools", m_auditInit );
00258     bool audit = m_auditInit.value();
00259     // Declare common AlgTool properties with their defaults
00260     declareProperty ( "AuditInitialize" , m_auditorInitialize = audit ) ;
00261     declareProperty ( "AuditStart"      , m_auditorStart      = audit ) ;
00262     declareProperty ( "AuditStop"       , m_auditorStop       = audit ) ;
00263     declareProperty ( "AuditFinalize"   , m_auditorFinalize   = audit ) ;
00264   }
00265
00266   // check thread ID and try if tool name indicates thread ID
00267   if ( m_threadID.empty() )
00268   { m_threadID = getGaudiThreadIDfromName ( AlgTool::name() ) ; }
00269 }

AlgTool::~AlgTool ( ) [protected, virtual]

Definition at line 574 of file AlgTool.cpp.

00576 {
00577   delete m_propertyMgr;
00578   if( m_ptoolSvc ) m_ptoolSvc->release();
00579   if( m_pAuditorSvc ) m_pAuditorSvc->release();
00580   if ( m_pMonitorSvc ) { m_pMonitorSvc->undeclareAll(this); m_pMonitorSvc->release(); }
00581 }

Member Function Documentation

StatusCode AlgTool::queryInterface	(	const InterfaceID &	riid,
		void **	ppvUnknown
	)			`[virtual]`

Query for a given interface.

Reimplemented in extends1< AlgTool, IDataStreamTool >, extends1< GaudiTool, IFuncMinimum >, extends1< AlgTool, IGslErrorHandler >, extends1< AlgTool, IFileAccess >, extends1< AlgTool, IPartitionControl >, and extends1< GaudiTool, IEqSolver >.

Definition at line 20 of file AlgTool.cpp.

00023 {
00024   if ( 0 == ppvi ) { return StatusCode::FAILURE ; } // RETURN
00025   StatusCode sc = base_class::queryInterface(riid,ppvi);
00026   if (sc.isSuccess()) {
00027     return sc;
00028   }
00029   else {
00030     for ( InterfaceList::iterator it = m_interfaceList.begin() ;
00031           m_interfaceList.end() != it ; ++it )
00032     {
00033       if ( !it->first.versionMatch ( riid ) ) { continue ; }
00034       // OK
00035       *ppvi = it->second ;
00036       addRef() ;
00037       return SUCCESS ;     // RETURN
00038     }
00039     *ppvi = 0 ;
00040     return NO_INTERFACE ;  // RETURN
00041   }
00042   // increment the reference counter
00043   addRef() ;
00044   //
00045   return SUCCESS;
00046 }

const std::string & AlgTool::name ( ) const [virtual]

Retrieve full identifying name of the concrete tool object.

Definition at line 56 of file AlgTool.cpp.

00058 {
00059   return m_name;
00060 }

const std::string & AlgTool::type ( ) const [virtual]

Retrieve type (concrete class) of the sub-algtool.

Definition at line 63 of file AlgTool.cpp.

00065 {
00066   return m_type;
00067 }

const IInterface * AlgTool::parent ( ) const [virtual]

Retrieve parent of the sub-algtool.

Definition at line 70 of file AlgTool.cpp.

00072 {
00073   return m_parent;
00074 }

virtual StatusCode AlgTool::configure ( ) [inline, virtual]

Definition at line 52 of file AlgTool.h.

00052 { return StatusCode::SUCCESS; }

StatusCode AlgTool::initialize ( ) [virtual]

Reimplemented in GaudiHistoTool, GaudiTool, GaudiTupleTool, SequencerTimerTool, EqSolver, FuncMinimum, DataStreamTool, PartitionSwitchTool, GaudiCommon< AlgTool >, GaudiHistos< GaudiTool >, and GaudiTuples< GaudiHistoTool >.

Definition at line 307 of file AlgTool.cpp.

00309 {
00310   // For the time being there is nothing to be done here.
00311   // Setting the properties is done by the ToolSvc calling setProperties()
00312   // explicitly.
00313   return StatusCode::SUCCESS;
00314 }

StatusCode AlgTool::start ( ) [virtual]

Definition at line 352 of file AlgTool.cpp.

00354 {
00355   // For the time being there is nothing to be done here.
00356   return StatusCode::SUCCESS;
00357 }

StatusCode AlgTool::stop ( ) [virtual]

Definition at line 395 of file AlgTool.cpp.

00397 {
00398   // For the time being there is nothing to be done here.
00399   return StatusCode::SUCCESS;
00400 }

StatusCode AlgTool::finalize ( void ) [virtual]

Reimplemented in GaudiHistoTool, GaudiTool, GaudiTupleTool, SequencerTimerTool, EqSolver, FuncMinimum, GslErrorCount, DataStreamTool, PartitionSwitchTool, GaudiCommon< AlgTool >, GaudiHistos< GaudiTool >, and GaudiTuples< GaudiHistoTool >.

Definition at line 438 of file AlgTool.cpp.

00440 {
00441   // For the time being there is nothing to be done here.
00442   return StatusCode::SUCCESS;
00443 }

virtual StatusCode AlgTool::terminate ( ) [inline, virtual]

Definition at line 57 of file AlgTool.h.

00057 { return StatusCode::SUCCESS; }

StatusCode AlgTool::reinitialize ( ) [virtual]

Definition at line 487 of file AlgTool.cpp.

00489 {
00490   /* @TODO
00491    * MCl 2008-10-23: the implementation of reinitialize as finalize+initialize
00492    *                 is causing too many problems
00493    *
00494   // Default implementation is finalize+initialize
00495   StatusCode sc = finalize();
00496   if (sc.isFailure()) {
00497     MsgStream log ( msgSvc() , name() );
00498     log << MSG::ERROR << "reinitialize(): cannot be finalized" << endmsg;
00499     return sc;
00500   }
00501   sc = initialize();
00502   if (sc.isFailure()) {
00503     MsgStream log ( msgSvc() , name() );
00504     log << MSG::ERROR << "reinitialize(): cannot be initialized" << endmsg;
00505     return sc;
00506   }
00507   */
00508   return StatusCode::SUCCESS;
00509 }

StatusCode AlgTool::restart ( ) [virtual]

Definition at line 554 of file AlgTool.cpp.

00556 {
00557   // Default implementation is stop+start
00558   StatusCode sc = stop();
00559   if (sc.isFailure()) {
00560     MsgStream log ( msgSvc() , name() );
00561     log << MSG::ERROR << "restart(): cannot be stopped" << endmsg;
00562     return sc;
00563   }
00564   sc = start();
00565   if (sc.isFailure()) {
00566     MsgStream log ( msgSvc() , name() );
00567     log << MSG::ERROR << "restart(): cannot be started" << endmsg;
00568     return sc;
00569   }
00570   return StatusCode::SUCCESS;
00571 }

virtual Gaudi::StateMachine::State AlgTool::FSMState ( ) const [inline, virtual]

Definition at line 60 of file AlgTool.h.

00060 { return m_state; }

virtual Gaudi::StateMachine::State AlgTool::targetFSMState ( ) const [inline, virtual]

Definition at line 61 of file AlgTool.h.

00061 { return m_targetState; }

StatusCode AlgTool::sysInitialize ( ) [virtual]

Initialize AlgTool.

Definition at line 272 of file AlgTool.cpp.

00272                                   {
00273   //-----------------------------------------------------------------------------
00274   StatusCode sc;
00275
00276   try {
00277     m_targetState = Gaudi::StateMachine::ChangeState(Gaudi::StateMachine::INITIALIZE,m_state);
00278     Gaudi::Guards::AuditorGuard guard(this,
00279                                       // check if we want to audit the initialize
00280                                       (m_auditorInitialize) ? auditorSvc() : 0,
00281                                       IAuditor::Initialize);
00282     sc = initialize();
00283     if (sc.isSuccess())
00284       m_state = m_targetState;
00285     return sc;
00286   }
00287   catch( const GaudiException& Exception ) {
00288     MsgStream log ( msgSvc() , name() + ".sysInitialize()" );
00289     log << MSG::FATAL << " Exception with tag=" << Exception.tag()
00290         << " is caught " << endmsg;
00291     log << MSG::ERROR << Exception  << endmsg;
00292   }
00293   catch( const std::exception& Exception ) {
00294     MsgStream log ( msgSvc() , name() + ".sysInitialize()" );
00295     log << MSG::FATAL << " Standard std::exception is caught " << endmsg;
00296     log << MSG::ERROR << Exception.what()  << endmsg;
00297   }
00298   catch( ... ) {
00299     MsgStream log ( msgSvc() , name() + ".sysInitialize()" );
00300     log << MSG::FATAL << "UNKNOWN Exception is caught " << endmsg;
00301   }
00302   return StatusCode::FAILURE ;
00303
00304 }

StatusCode AlgTool::sysStart ( ) [virtual]

Start AlgTool.

Definition at line 317 of file AlgTool.cpp.

00317                              {
00318   //-----------------------------------------------------------------------------
00319   StatusCode sc;
00320
00321   try {
00322     m_targetState = Gaudi::StateMachine::ChangeState(Gaudi::StateMachine::START,m_state);
00323     Gaudi::Guards::AuditorGuard guard(this,
00324                                       // check if we want to audit the initialize
00325                                       (m_auditorStart) ? auditorSvc() : 0,
00326                                       IAuditor::Start);
00327     sc = start();
00328     if (sc.isSuccess())
00329       m_state = m_targetState;
00330     return sc;
00331   }
00332   catch( const GaudiException& Exception ) {
00333     MsgStream log ( msgSvc() , name() + ".sysStart()" );
00334     log << MSG::FATAL << " Exception with tag=" << Exception.tag()
00335         << " is caught " << endmsg;
00336     log << MSG::ERROR << Exception  << endmsg;
00337   }
00338   catch( const std::exception& Exception ) {
00339     MsgStream log ( msgSvc() , name() + ".sysStart()" );
00340     log << MSG::FATAL << " Standard std::exception is caught " << endmsg;
00341     log << MSG::ERROR << Exception.what()  << endmsg;
00342   }
00343   catch( ... ) {
00344     MsgStream log ( msgSvc() , name() + ".sysStart()" );
00345     log << MSG::FATAL << "UNKNOWN Exception is caught " << endmsg;
00346   }
00347   return StatusCode::FAILURE ;
00348
00349 }

StatusCode AlgTool::sysStop ( ) [virtual]

Stop AlgTool.

Definition at line 360 of file AlgTool.cpp.

00360                             {
00361   //-----------------------------------------------------------------------------
00362   StatusCode sc;
00363
00364   try {
00365     m_targetState = Gaudi::StateMachine::ChangeState(Gaudi::StateMachine::STOP,m_state);
00366     Gaudi::Guards::AuditorGuard guard(this,
00367                                       // check if we want to audit the initialize
00368                                       (m_auditorStop) ? auditorSvc() : 0,
00369                                       IAuditor::Stop);
00370     sc = stop();
00371     if (sc.isSuccess())
00372       m_state = m_targetState;
00373     return sc;
00374   }
00375   catch( const GaudiException& Exception ) {
00376     MsgStream log ( msgSvc() , name() + ".sysStop()" );
00377     log << MSG::FATAL << " Exception with tag=" << Exception.tag()
00378         << " is caught " << endmsg;
00379     log << MSG::ERROR << Exception  << endmsg;
00380   }
00381   catch( const std::exception& Exception ) {
00382     MsgStream log ( msgSvc() , name() + ".sysStop()" );
00383     log << MSG::FATAL << " Standard std::exception is caught " << endmsg;
00384     log << MSG::ERROR << Exception.what()  << endmsg;
00385   }
00386   catch( ... ) {
00387     MsgStream log ( msgSvc() , name() + ".sysStop()" );
00388     log << MSG::FATAL << "UNKNOWN Exception is caught " << endmsg;
00389   }
00390   return StatusCode::FAILURE ;
00391
00392 }

StatusCode AlgTool::sysFinalize ( ) [virtual]

Finalize AlgTool.

Definition at line 403 of file AlgTool.cpp.

00403                                 {
00404   //-----------------------------------------------------------------------------
00405
00406   StatusCode sc;
00407
00408   try {
00409     m_targetState = Gaudi::StateMachine::ChangeState(Gaudi::StateMachine::FINALIZE,m_state);
00410     Gaudi::Guards::AuditorGuard guard(this,
00411                                       // check if we want to audit the initialize
00412                                       (m_auditorFinalize) ? auditorSvc() : 0,
00413                                       IAuditor::Finalize);
00414     sc = finalize();
00415     if (sc.isSuccess())
00416       m_state = m_targetState;
00417     return sc;
00418   }
00419   catch( const GaudiException& Exception ) {
00420     MsgStream log ( msgSvc() , name() + ".sysFinalize()" );
00421     log << MSG::FATAL << " Exception with tag=" << Exception.tag()
00422         << " is caught " << endmsg;
00423     log << MSG::ERROR << Exception  << endmsg;
00424   }
00425   catch( const std::exception& Exception ) {
00426     MsgStream log ( msgSvc() , name() + ".sysFinalize()" );
00427     log << MSG::FATAL << " Standard std::exception is caught " << endmsg;
00428     log << MSG::ERROR << Exception.what()  << endmsg;
00429   }
00430   catch( ... ) {
00431     MsgStream log ( msgSvc() , name() + ".sysFinalize()" );
00432     log << MSG::FATAL << "UNKNOWN Exception is caught " << endmsg;
00433   }
00434   return StatusCode::FAILURE;
00435
00436 }

StatusCode AlgTool::sysReinitialize ( ) [virtual]

Initialize AlgTool.

Definition at line 446 of file AlgTool.cpp.

00446                                     {
00447   //-----------------------------------------------------------------------------
00448   StatusCode sc;
00449
00450   // Check that the current status is the correct one.
00451   if ( Gaudi::StateMachine::INITIALIZED != FSMState() ) {
00452     MsgStream log ( msgSvc() , name() );
00453     log << MSG::ERROR
00454         << "sysReinitialize(): cannot reinitialize tool not initialized"
00455         << endmsg;
00456     return StatusCode::FAILURE;
00457   }
00458
00459   try {
00460     Gaudi::Guards::AuditorGuard guard(this,
00461                                       // check if we want to audit the initialize
00462                                       (m_auditorReinitialize) ? auditorSvc() : 0,
00463                                       IAuditor::ReInitialize);
00464     sc = reinitialize();
00465     return sc;
00466   }
00467   catch( const GaudiException& Exception ) {
00468     MsgStream log ( msgSvc() , name() + ".sysReinitialize()" );
00469     log << MSG::FATAL << " Exception with tag=" << Exception.tag()
00470         << " is caught" << endmsg;
00471     log << MSG::ERROR << Exception  << endmsg;
00472   }
00473   catch( const std::exception& Exception ) {
00474     MsgStream log ( msgSvc() , name() + ".sysReinitialize()" );
00475     log << MSG::FATAL << " Standard std::exception is caught" << endmsg;
00476     log << MSG::ERROR << Exception.what()  << endmsg;
00477   }
00478   catch( ... ) {
00479     MsgStream log ( msgSvc() , name() + ".sysReinitialize()" );
00480     log << MSG::FATAL << "UNKNOWN Exception is caught" << endmsg;
00481   }
00482   return StatusCode::FAILURE ;
00483
00484 }

StatusCode AlgTool::sysRestart ( ) [virtual]

Start AlgTool.

Definition at line 512 of file AlgTool.cpp.

00512                                {
00513   //-----------------------------------------------------------------------------
00514   StatusCode sc;
00515
00516   // Check that the current status is the correct one.
00517   if ( Gaudi::StateMachine::RUNNING != FSMState() ) {
00518     MsgStream log ( msgSvc() , name() );
00519     log << MSG::ERROR
00520         << "sysRestart(): cannot reinitialize tool not started"
00521         << endmsg;
00522     return StatusCode::FAILURE;
00523   }
00524
00525   try {
00526     m_targetState = Gaudi::StateMachine::ChangeState(Gaudi::StateMachine::START,m_state);
00527     Gaudi::Guards::AuditorGuard guard(this,
00528                                       // check if we want to audit the initialize
00529                                       (m_auditorRestart) ? auditorSvc() : 0,
00530                                       IAuditor::ReStart);
00531     sc = restart();
00532     return sc;
00533   }
00534   catch( const GaudiException& Exception ) {
00535     MsgStream log ( msgSvc() , name() + ".sysRestart()" );
00536     log << MSG::FATAL << " Exception with tag=" << Exception.tag()
00537         << " is caught" << endmsg;
00538     log << MSG::ERROR << Exception  << endmsg;
00539   }
00540   catch( const std::exception& Exception ) {
00541     MsgStream log ( msgSvc() , name() + ".sysRestart()" );
00542     log << MSG::FATAL << " Standard std::exception is caught" << endmsg;
00543     log << MSG::ERROR << Exception.what()  << endmsg;
00544   }
00545   catch( ... ) {
00546     MsgStream log ( msgSvc() , name() + ".sysRestart()" );
00547     log << MSG::FATAL << "UNKNOWN Exception is caught" << endmsg;
00548   }
00549   return StatusCode::FAILURE ;
00550
00551 }

StatusCode AlgTool::setProperty ( const Property & p ) [virtual]

Default implementations for IProperty interface.

Definition at line 104 of file AlgTool.cpp.

00106 {
00107   return m_propertyMgr->setProperty(p);
00108 }

StatusCode AlgTool::setProperty ( const std::string & s ) [virtual]

Definition at line 111 of file AlgTool.cpp.

00113 {
00114   return m_propertyMgr->setProperty(s);
00115 }

StatusCode AlgTool::setProperty	(	const std::string &	n,
		const std::string &	v
	)			`[virtual]`

Definition at line 118 of file AlgTool.cpp.

00120 {
00121   return m_propertyMgr->setProperty(n,v);
00122 }

StatusCode AlgTool::getProperty ( Property * p ) const [virtual]

Definition at line 125 of file AlgTool.cpp.

00127 {
00128   return m_propertyMgr->getProperty(p);
00129 }

const Property & AlgTool::getProperty ( const std::string & name ) const [virtual]

Definition at line 132 of file AlgTool.cpp.

00133 {
00134   return m_propertyMgr->getProperty(n);
00135 }

StatusCode AlgTool::getProperty	(	const std::string &	n,
		std::string &	v
	)			const `[virtual]`

Definition at line 138 of file AlgTool.cpp.

00140 {
00141   return m_propertyMgr->getProperty(n,v);
00142 }

const std::vector< Property * > & AlgTool::getProperties ( ) const [virtual]

Definition at line 145 of file AlgTool.cpp.

00147 {
00148   return m_propertyMgr->getProperties();
00149 }

PropertyMgr* AlgTool::getPropertyMgr ( ) [inline]

Definition at line 90 of file AlgTool.h.

00090 { return m_propertyMgr; }

template<class TYPE>

StatusCode AlgTool::setProperty	(	const std::string &	name,
		const TYPE &	value
	)			`[inline]`

set the property form the value

  std::vector<double> data = ... ;
  setProperty( "Data" , data ) ;

  std::map<std::string,double> cuts = ... ;
  setProperty( "Cuts" , cuts ) ;

  std::map<std::string,std::string> dict = ... ;
  setProperty( "Dictionary" , dict ) ;

Note: the interface IProperty allows setting of the properties either directly from other properties or from strings only

This is very convenient in resetting of the default properties in the derived classes. E.g. without this method one needs to convert everything into strings to use IProperty::setProperty

    setProperty ( "OutputLevel" , "1"    ) ;
    setProperty ( "Enable"      , "True" ) ;
    setProperty ( "ErrorMax"    , "10"   ) ;

For simple cases it is more or less ok, but for complicated properties it is just ugly..

Parameters:

	name	name of the property
	value	value of the property

See also:: Gaudi::Utils::setProperty

Author:: Vanya BELYAEV ibelyaev@physics.syr.edu

Date:: 2007-05-13

Definition at line 136 of file AlgTool.h.

00138   { return Gaudi::Utils::setProperty ( m_propertyMgr , name , value ) ; }

ISvcLocator * AlgTool::serviceLocator ( ) const

Retrieve pointer to service locator.

Definition at line 77 of file AlgTool.cpp.

00079 {
00080   return m_svcLocator;
00081 }

ISvcLocator* AlgTool::svcLoc ( ) const [inline]

shortcut for the method service locator

Definition at line 154 of file AlgTool.h.

00154 { return serviceLocator() ; }

IMessageSvc * AlgTool::msgSvc ( ) const

Retrieve pointer to message service.

Definition at line 84 of file AlgTool.cpp.

00086 {
00087   return m_messageSvc;
00088 }

IToolSvc * AlgTool::toolSvc ( ) const

The standard ToolSvc service, Return a pointer to the service if present.

Definition at line 91 of file AlgTool.cpp.

00093 {
00094   if ( 0 == m_ptoolSvc ) {
00095     StatusCode sc = service( "ToolSvc", m_ptoolSvc, true );
00096     if( sc.isFailure() ) {
00097       throw GaudiException("Service [ToolSvc] not found", name(), sc);
00098     }
00099   }
00100   return m_ptoolSvc;
00101 }

StatusCode AlgTool::setProperties ( )

Method for setting declared properties to the values specified in the jobOptions via the job option service.

This method is called by the ToolSvc after creating the concrete tool, before passing it to the requesting parent and does not need to be called explicitly.

Definition at line 152 of file AlgTool.cpp.

00154 {
00155   if( m_svcLocator == 0) {
00156     return StatusCode::FAILURE;
00157   }
00158   SmartIF<IJobOptionsSvc> jos(m_svcLocator->service("JobOptionsSvc"));
00159   if( !jos.isValid() )  return StatusCode::FAILURE;
00160
00161   // set first generic Properties
00162   StatusCode sc = jos->setMyProperties( getGaudiThreadGenericName(name()), this );
00163   if( sc.isFailure() ) return StatusCode::FAILURE;
00164
00165   // set specific Properties
00166   if (isGaudiThreaded(name())) {
00167     if(jos->setMyProperties( name(), this ).isFailure()) {
00168       return StatusCode::FAILURE;
00169     }
00170   }
00171
00172   // Change my own outputlevel
00173   if ( 0 != m_messageSvc )
00174   {
00175     if ( MSG::NIL != m_outputLevel )
00176     { m_messageSvc -> setOutputLevel ( name () , m_outputLevel ) ; }
00177     m_outputLevel = m_messageSvc -> outputLevel ( name () ) ;
00178   }
00179
00180   return StatusCode::SUCCESS;
00181 }

template<class T>

StatusCode AlgTool::service	(	const std::string &	name,
		T *&	svc,
		bool	createIf = `true`
	)			const `[inline]`

Access a service by name, creating it if it doesn't already exist.

Definition at line 174 of file AlgTool.h.

00174                                                                  {
00175     return service_i(name, createIf, T::interfaceID(), (void**)&svc);
00176   }

template<class T>

StatusCode AlgTool::service	(	const std::string &	type,
		const std::string &	name,
		T *&	svc
	)			const `[inline]`

Access a service by name, type creating it if it doesn't already exist.

Definition at line 181 of file AlgTool.h.

00181                                                                                    {
00182     return service_i(type, name, T::interfaceID(), (void**)&svc);
00183   }

void AlgTool::declInterface	(	const InterfaceID &	iid,
		void *	ii
	)

declare interface

Definition at line 48 of file AlgTool.cpp.

00050 {
00051   m_interfaceList.push_back(std::make_pair(iid, ii));
00052 }

template<class T>

Property* AlgTool::declareProperty	(	const std::string &	name,
		T &	property,
		const std::string &	doc = `"none"`
	)			const `[inline]`

Declare the named property.

  MyTool ( const std::string& type   ,
           const std::string& name   ,
           const IInterface*  parent )
     : AlgTool  ( type , name , pSvc )
     , m_property1   ( ... )
     , m_property2   ( ... )
   {
     // declare the property
     declareProperty( "Property1" , m_property1 , "Doc fro property #1" ) ;

     // declare the property and attach the handler  to it
     declareProperty( "Property2" , m_property2 , "Doc for property #2" )
        -> declareUpdateHandler( &MyAlg::handler_2 ) ;

   }

See also:: PropertyMgr
PropertyMgr::declareProperty

Parameters:

	name	the property name
	property	the property itself,
	doc	the documentation string

Returns:: the actual property objects

Definition at line 226 of file AlgTool.h.

00229   {
00230     return m_propertyMgr -> declareProperty ( name , property , doc ) ;
00231   }

Property* AlgTool::declareRemoteProperty	(	const std::string &	name,
		IProperty *	rsvc,
		const std::string &	rname = `""`
	)			const `[inline]`

Declare remote named properties.

Definition at line 234 of file AlgTool.h.

00237   {
00238     return m_propertyMgr-> declareRemoteProperty ( name , rsvc , rname ) ;
00239   }

IAuditorSvc * AlgTool::auditorSvc ( ) const

Access the auditor service.

Definition at line 605 of file AlgTool.cpp.

00605                                        {
00606 //---------------------------------------------------------------------------
00607   if ( 0 == m_pAuditorSvc ) {
00608     StatusCode sc = service( "AuditorSvc", m_pAuditorSvc, true );
00609     if( sc.isFailure() ) {
00610       throw GaudiException("Service [AuditorSvc] not found", name(), sc);
00611     }
00612   }
00613   return m_pAuditorSvc;
00614 }

IMonitorSvc* AlgTool::monitorSvc ( ) const [inline]

Access the monitor service.

Attention:: Note that this method will return a NULL pointer if no monitor service is configured to be present. You must take this possibility into account when using the pointer

Returns:: Pointer to the Monitor service

Return values:

	NULL	No monitor service is present
	non-NULL	A monitor service is present and available to be used

Definition at line 253 of file AlgTool.h.

00254   {
00255     // If not already located try to locate it without forcing a creation
00256     if ( !m_pMonitorSvc ){
00257       service_i( m_monitorSvcName, false,
00258                  IMonitorSvc::interfaceID(), pp_cast<void>(&m_pMonitorSvc) ).ignore();
00259     }
00260     return m_pMonitorSvc;
00261   }

template<class T>

void AlgTool::declareInfo	(	const std::string &	name,
		const T &	var,
		const std::string &	desc
	)			const `[inline]`

Declare monitoring information.

Parameters:

	name	Monitoring information name known to the external system
	var	Monitoring Listener address (the item to monitor...)
	desc	Textual description of the information being monitored

Definition at line 269 of file AlgTool.h.

00272   {
00273     IMonitorSvc* mS = monitorSvc();
00274     if ( mS ) mS->declareInfo(name, var, desc, this);
00275   }

void AlgTool::declareInfo	(	const std::string &	name,
		const std::string &	format,
		const void *	var,
		int	size,
		const std::string &	desc
	)			const `[inline]`

Declare monitoring information (special case).

Parameters:

	name	Monitoring information name known to the external system
	format	Format information
	var	Monitoring Listener address
	size	Monitoring Listener address size
	desc	Textual description of the information being monitored

Definition at line 284 of file AlgTool.h.

00289   {
00290     IMonitorSvc* mS = monitorSvc();
00291     if ( mS ) mS->declareInfo(name, format, var, size, desc, this);
00292   }

int AlgTool::outputLevel ( ) const [inline, protected]

get tool's output level

Definition at line 297 of file AlgTool.h.

00297 { return (int)m_outputLevel ; }

IntegerProperty& AlgTool::outputLevelProperty ( ) [inline, protected]

Accessor for the Message level property.

Definition at line 300 of file AlgTool.h.

00300 { return m_outputLevel; }

void AlgTool::initOutputLevel ( Property & prop ) [protected]

callback for output level property

Definition at line 618 of file AlgTool.cpp.

00618                                                  {
00619 //-----------------------------------------------------------------------------
00620    // do nothing... yet ?
00621 }

StatusCode AlgTool::service_i	(	const std::string &	algName,
		bool	createIf,
		const InterfaceID &	iid,
		void **	ppSvc
	)			const `[private]`

implementation of service method

Definition at line 586 of file AlgTool.cpp.

00589                                        {
00590   const ServiceLocatorHelper helper(*serviceLocator(), *this);
00591   return helper.getService(svcName, createIf, iid, ppSvc);
00592 }

StatusCode AlgTool::service_i	(	const std::string &	svcType,
		const std::string &	svcName,
		const InterfaceID &	iid,
		void **	ppS
	)			const `[private]`

Definition at line 596 of file AlgTool.cpp.

00599                                        {
00600   const ServiceLocatorHelper helper(*serviceLocator(), *this);
00601   return  helper.createService(svcType, svcName, iid, ppSvc);
00602 }

Friends And Related Function Documentation

friend class ToolSvc [friend]

Definition at line 36 of file AlgTool.h.

Member Data Documentation

IntegerProperty AlgTool::m_outputLevel [private]

AlgTool output level.

Definition at line 314 of file AlgTool.h.

std::string AlgTool::m_type [private]

AlgTool type (concrete class name).

Reimplemented in EqSolver, and FuncMinimum.

Definition at line 315 of file AlgTool.h.

const std::string AlgTool::m_name [private]

AlgTool full name.

Definition at line 316 of file AlgTool.h.

const IInterface* AlgTool::m_parent [private]

AlgTool parent.

Definition at line 317 of file AlgTool.h.

ISvcLocator* AlgTool::m_svcLocator [mutable, private]

Pointer to Service Locator service.

Definition at line 318 of file AlgTool.h.

IMessageSvc* AlgTool::m_messageSvc [mutable, private]

Message service.

Definition at line 319 of file AlgTool.h.

IToolSvc* AlgTool::m_ptoolSvc [mutable, private]

Tool service.

Definition at line 320 of file AlgTool.h.

IMonitorSvc* AlgTool::m_pMonitorSvc [mutable, private]

Online Monitoring Service.

Definition at line 321 of file AlgTool.h.

std::string AlgTool::m_monitorSvcName [private]

Name to use for Monitor Service.

Definition at line 322 of file AlgTool.h.

PropertyMgr* AlgTool::m_propertyMgr [private]

Property Manager.

Definition at line 323 of file AlgTool.h.

InterfaceList AlgTool::m_interfaceList [private]

Interface list.

Definition at line 324 of file AlgTool.h.

std::string AlgTool::m_threadID [private]

Thread Id for Alg Tool.

Definition at line 325 of file AlgTool.h.

IAuditorSvc* AlgTool::m_pAuditorSvc [mutable, private]

Auditor Service.

Definition at line 337 of file AlgTool.h.

BooleanProperty AlgTool::m_auditInit [private]

Definition at line 339 of file AlgTool.h.

bool AlgTool::m_auditorInitialize [private]

flag for auditors in "initialize()"

Definition at line 340 of file AlgTool.h.

bool AlgTool::m_auditorStart [private]

flag for auditors in "start()"

Definition at line 341 of file AlgTool.h.

bool AlgTool::m_auditorStop [private]

flag for auditors in "stop()"

Definition at line 342 of file AlgTool.h.

bool AlgTool::m_auditorFinalize [private]

flag for auditors in "finalize()"

Definition at line 343 of file AlgTool.h.

bool AlgTool::m_auditorReinitialize [private]

flag for auditors in "reinitialize()"

Definition at line 344 of file AlgTool.h.

bool AlgTool::m_auditorRestart [private]

flag for auditors in "restart()"

Definition at line 345 of file AlgTool.h.

Gaudi::StateMachine::State AlgTool::m_state [private]

state of the Tool

Definition at line 347 of file AlgTool.h.

Gaudi::StateMachine::State AlgTool::m_targetState [private]

state of the Tool

Definition at line 348 of file AlgTool.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r6/GaudiKernel/GaudiKernel/AlgTool.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r6/GaudiKernel/src/Lib/AlgTool.cpp

Gaudi Framework, version v21r6

AlgTool Class Reference

Detailed Description

Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Friends

Classes

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
