Gaudi::IODataManager Class Reference

#include <IODataManager.h>

Inheritance diagram for Gaudi::IODataManager:

[legend]

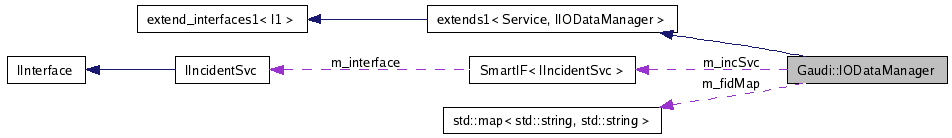

Collaboration diagram for Gaudi::IODataManager:

[legend]

List of all members.

Detailed Description

Definition at line 29 of file IODataManager.h.


Public Member Functions
	IODataManager (CSTR nam, ISvcLocator *loc)
	the incident service
virtual	~IODataManager ()
	Standard destructor.
virtual StatusCode	initialize ()
	IService implementation: initialize the service.
virtual StatusCode	finalize ()
	IService implementation: finalize the service.
virtual StatusCode	connectRead (bool keep_open, Connection *ioDesc)
	Open data stream in read mode.
virtual StatusCode	connectWrite (Connection *con, IoType mode=Connection::CREATE, CSTR doctype="UNKNOWN")
	Open data stream in write mode.
virtual StatusCode	disconnect (Connection *ioDesc)
	Release data stream.
virtual Connection *	connection (const std::string &dsn) const
	Retrieve known connection.
virtual Connections	connections (const IInterface *owner) const
	Get connection by owner instance (0=ALL).
virtual StatusCode	read (Connection ioDesc, void const data, size_t len)
	Read raw byte buffer from input stream.
virtual StatusCode	write (Connection con, const void data, int len)
	Write raw byte buffer to output stream.
virtual long long int	seek (Connection *ioDesc, long long int where, int origin)
	Seek on the file described by ioDesc. Arguments as in seek().
Protected Types
typedef const std::string &	CSTR
typedef std::map< std::string, Entry * >	ConnectionMap
typedef std::map< std::string, std::string >	FidMap
Protected Member Functions
StatusCode	connectDataIO (int typ, IoType rw, CSTR fn, CSTR technology, bool keep, Connection *con)
StatusCode	reconnect (Entry *e)
StatusCode	error (CSTR msg, bool rethrow)
StatusCode	establishConnection (Connection *con)
Protected Attributes
std::string	m_catalogSvcName
	Property: Name of the file catalog service.
int	m_ageLimit
	Property: Age limit.
bool	m_useGFAL
	Property: Flag for auto gfal data access.
bool	m_quarantine
	Property: Flag if unaccessible files should be quarantines in job.
ConnectionMap	m_connectionMap
	Map with I/O descriptors.
SmartIF< IFileCatalog >	m_catalog
	Reference to file catalog.
FidMap	m_fidMap
	Map of FID to PFN.
SmartIF< IIncidentSvc >	m_incSvc
Classes
struct	Entry

Member Typedef Documentation

typedef const std::string& Gaudi::IODataManager::CSTR [protected]

Definition at line 31 of file IODataManager.h.

typedef std::map<std::string,Entry*> Gaudi::IODataManager::ConnectionMap [protected]

Definition at line 41 of file IODataManager.h.

typedef std::map<std::string, std::string> Gaudi::IODataManager::FidMap [protected]

Definition at line 42 of file IODataManager.h.

Constructor & Destructor Documentation

IODataManager::IODataManager	(	CSTR	nam,
		ISvcLocator *	loc
	)

the incident service

Initializing constructor

Parameters:

`[in]`	nam	Name of the service
`[in]`	loc	Pointer to the service locator object

Returns:: Initialized reference to service object

Definition at line 22 of file IODataManager.cpp.

00023   : base_class(nam, svcloc), m_ageLimit(2)
00024 {
00025   declareProperty("CatalogType",     m_catalogSvcName="Gaudi::MultiFileCatalog/FileCatalog");
00026   declareProperty("UseGFAL",         m_useGFAL = true);
00027   declareProperty("QuarantineFiles", m_quarantine = true);
00028   declareProperty("AgeLimit",        m_ageLimit = 2);
00029 }

virtual Gaudi::IODataManager::~IODataManager ( ) [inline, virtual]

Standard destructor.

Definition at line 76 of file IODataManager.h.

00076 {}

Member Function Documentation

StatusCode IODataManager::connectDataIO	(	int	typ,
		IoType	rw,
		CSTR	fn,
		CSTR	technology,
		bool	keep,
		Connection *	con
	)			`[protected]`

Definition at line 234 of file IODataManager.cpp.

00234                                                                                                                      {
00235   MsgStream log(msgSvc(),name());
00236   std::string dsn = dataset;
00237   try  {
00238     StatusCode sc(StatusCode::SUCCESS,true);
00239     if ( ::strncasecmp(dsn.c_str(),"FID:",4)==0 )
00240       dsn = dataset.substr(4), typ = FID;
00241     else if ( ::strncasecmp(dsn.c_str(),"LFN:",4)==0 )
00242       dsn = dataset.substr(4), typ = LFN;
00243     else if ( ::strncasecmp(dsn.c_str(),"PFN:",4)==0 )
00244       dsn = dataset.substr(4), typ = PFN;
00245     else if ( typ == UNKNOWN )
00246       return connectDataIO(PFN, rw, dsn, technology, keep_open, connection);
00247
00248     if(std::find(s_badFiles.begin(),s_badFiles.end(),dsn) != s_badFiles.end())  {
00249       m_incSvc->fireIncident(Incident(dsn,IncidentType::FailInputFile));
00250       return IDataConnection::BAD_DATA_CONNECTION;
00251     }
00252     if ( typ == FID )  {
00253       ConnectionMap::iterator fi = m_connectionMap.find(dsn);
00254       if ( fi == m_connectionMap.end() )  {
00255         IFileCatalog::Files files;
00256         m_catalog->getPFN(dsn,files);
00257         if ( files.size() == 0 ) {
00258           if ( !m_useGFAL )   {
00259             if ( m_quarantine ) s_badFiles.insert(dsn);
00260             m_incSvc->fireIncident(Incident(dsn,IncidentType::FailInputFile));
00261             error("connectDataIO> failed to resolve FID:"+dsn,false);
00262             return IDataConnection::BAD_DATA_CONNECTION;
00263           }
00264           else if ( dsn.length() == 36 && dsn[8]=='-' && dsn[13]=='-' )  {
00265             std::string gfal_name = "gfal:guid:" + dsn;
00266             m_fidMap[dsn] = m_fidMap[dataset] = m_fidMap[gfal_name] = dsn;
00267             sc = connectDataIO(PFN, rw, gfal_name, technology, keep_open, connection);
00268             if ( sc.isSuccess() ) return sc;
00269             if ( m_quarantine ) s_badFiles.insert(dsn);
00270           }
00271           if ( m_quarantine ) s_badFiles.insert(dsn);
00272           m_incSvc->fireIncident(Incident(dsn,IncidentType::FailInputFile));
00273           error("connectDataIO> Failed to resolve FID:"+dsn,false);
00274           return IDataConnection::BAD_DATA_CONNECTION;
00275         }
00276         std::string pfn = files[0].first;
00277         m_fidMap[dsn] = m_fidMap[dataset] = m_fidMap[pfn] = dsn;
00278         sc = connectDataIO(PFN, rw, pfn, technology, keep_open, connection);
00279         if ( !sc.isSuccess() )  {
00280           if ( m_quarantine ) s_badFiles.insert(pfn);
00281           m_incSvc->fireIncident(Incident(pfn,IncidentType::FailInputFile));
00282           return IDataConnection::BAD_DATA_CONNECTION;
00283         }
00284
00285         return sc;
00286       }
00287       return S_ERROR;
00288       //Connection* c = (*fi).second->connection;
00289       //sc = connectDataIO(PFN, rw, c->pfn(), technology, keep_open, connection);
00290       //if ( !sc.isSuccess() && m_quarantine ) s_badFiles.insert(c->pfn());
00291       //return sc;
00292     }
00293     std::string fid;
00294     FidMap::iterator j = m_fidMap.find(dsn);
00295     if ( j == m_fidMap.end() )  {
00296       IFileCatalog::Files files;
00297       switch(typ)  {
00298       case LFN:
00299         fid = m_catalog->lookupLFN(dsn);
00300         if ( fid.empty() )  {
00301           m_incSvc->fireIncident(Incident(dsn,IncidentType::FailInputFile));
00302           log << MSG::ERROR << "Failed to resolve LFN:" << dsn
00303               << " Cannot access this dataset." << endmsg;
00304           return IDataConnection::BAD_DATA_CONNECTION;
00305         }
00306         break;
00307       case PFN:
00308         fid = m_catalog->lookupPFN(dsn);
00309         if ( !fid.empty() ) m_catalog->getPFN(fid, files);
00310         if ( files.empty() )   {
00311           if ( rw == Connection::CREATE || rw == Connection::RECREATE )  {
00312             if ( fid.empty() ) fid = m_catalog->createFID();
00313             m_catalog->registerPFN(fid,dsn,technology);
00314             log << MSG::INFO << "Referring to dataset " << dsn
00315                 << " by its file ID:" << fid << endmsg;
00316           }
00317           else  {
00318             fid = dsn;
00319           }
00320         }
00321         break;
00322       }
00323     }
00324     else {
00325       fid = (*j).second;
00326     }
00327     if ( typ == PFN )  {
00328       // Open PFN
00329       ConnectionMap::iterator fi = m_connectionMap.find(fid);
00330       if ( fi == m_connectionMap.end() )  {
00331         connection->setFID(fid);
00332         connection->setPFN(dsn);
00333         Entry* e = new Entry(technology, keep_open, rw, connection);
00334         // Here we open the file!
00335         if ( !reconnect(e).isSuccess() )   {
00336           delete e;
00337           if ( m_quarantine ) s_badFiles.insert(dsn);
00338           m_incSvc->fireIncident(Incident(dsn,IncidentType::FailInputFile));
00339           error("connectDataIO> Cannot connect to database: PFN="+dsn+" FID="+fid,false);
00340           return IDataConnection::BAD_DATA_CONNECTION;
00341         }
00342         fid = connection->fid();
00343         m_fidMap[dataset] = m_fidMap[dsn] = m_fidMap[fid] = fid;
00344         if (  !(rw==Connection::CREATE || rw==Connection::RECREATE) )  {
00345           if ( strcasecmp(dsn.c_str(),fid.c_str()) == 0 )  {
00346             log << MSG::ERROR << "Referring to existing dataset " << dsn
00347                 << " by its physical name." << endmsg;
00348             log << "You may not be able to navigate back to the input file"
00349                 << " -- processing continues" << endmsg;
00350           }
00351         }
00352         m_connectionMap.insert(std::make_pair(fid,e)).first;
00353         return S_OK;
00354       }
00355       // Here we open the file!
00356       if ( !reconnect((*fi).second).isSuccess() )   {
00357         if ( m_quarantine ) s_badFiles.insert(dsn);
00358         m_incSvc->fireIncident(Incident(dsn,IncidentType::FailInputFile));
00359         error("connectDataIO> Cannot connect to database: PFN="+dsn+" FID="+fid,false);
00360         return IDataConnection::BAD_DATA_CONNECTION;
00361       }
00362       return S_OK;
00363     }
00364     sc = connectDataIO(FID, rw, fid, technology, keep_open, connection);
00365     if ( !sc.isSuccess() && m_quarantine ) {
00366       s_badFiles.insert(fid);
00367     }
00368     else if ( typ == LFN ) {
00369       m_fidMap[dataset] = fid;
00370     }
00371     return sc;
00372   }
00373   catch (std::exception& e)  {
00374     error(std::string("connectDataIO> Caught exception:")+e.what(), false);
00375   }
00376   catch(...)  {
00377   }
00378   m_incSvc->fireIncident(Incident(dsn,IncidentType::FailInputFile));
00379   error("connectDataIO> The dataset "+dsn+" cannot be opened.",false).ignore();
00380   s_badFiles.insert(dsn);
00381   return IDataConnection::BAD_DATA_CONNECTION;
00382 }

StatusCode IODataManager::reconnect ( Entry * e ) [protected]

Definition at line 160 of file IODataManager.cpp.

00160                                              {
00161   StatusCode sc = S_ERROR;
00162   if ( e && e->connection )  {
00163     switch(e->ioType)  {
00164     case Connection::READ:
00165       sc = e->connection->connectRead();
00166       break;
00167     case Connection::UPDATE:
00168     case Connection::CREATE:
00169     case Connection::RECREATE:
00170       sc = e->connection->connectWrite(e->ioType);
00171       break;
00172     default:
00173       return S_ERROR;
00174     }
00175     if ( sc.isSuccess() && e->ioType == Connection::READ )  {
00176       std::vector<Entry*> to_retire;
00177       e->connection->resetAge();
00178       for(ConnectionMap::iterator i=m_connectionMap.begin(); i!=m_connectionMap.end();++i) {
00179         IDataConnection* c = (*i).second->connection;
00180         if ( e->connection != c && c->isConnected() && !(*i).second->keepOpen )  {
00181           c->ageFile();
00182           if ( c->age() > m_ageLimit ) {
00183             to_retire.push_back((*i).second);
00184           }
00185         }
00186       }
00187       if ( !to_retire.empty() )  {
00188         MsgStream log(msgSvc(),name());
00189         for(std::vector<Entry*>::iterator j=to_retire.begin(); j!=to_retire.end();++j)  {
00190           IDataConnection* c = (*j)->connection;
00191           c->disconnect();
00192           log << MSG::INFO << "Disconnect from dataset " << c->pfn()
00193               << " [" << c->fid() << "]" << endmsg;
00194         }
00195       }
00196     }
00197   }
00198   return sc;
00199 }

StatusCode IODataManager::error	(	CSTR	msg,
		bool	rethrow
	)			`[protected]`

Definition at line 64 of file IODataManager.cpp.

00064                                                        {
00065   MsgStream log(msgSvc(),name());
00066   log << MSG::ERROR << "Error: " << msg << endmsg;
00067   if ( rethrow )  {
00068     System::breakExecution();
00069   }
00070   return S_ERROR;
00071 }

StatusCode IODataManager::establishConnection ( Connection * con ) [protected]

Definition at line 211 of file IODataManager.cpp.

00211                                                               {
00212   if ( con )  {
00213     if ( !con->isConnected() )  {
00214       ConnectionMap::const_iterator i=m_connectionMap.find(con->name());
00215       if ( i != m_connectionMap.end() )  {
00216         Connection* c = (*i).second->connection;
00217         if ( c != con )  {
00218           m_incSvc->fireIncident(Incident(con->name(),IncidentType::FailInputFile));
00219           return error("Severe logic bug: Twice identical connection object for DSN:"+con->name(),true);
00220         }
00221         if ( reconnect((*i).second).isSuccess() ) {
00222           return S_OK;
00223         }
00224       }
00225       return S_ERROR;
00226     }
00227     con->resetAge();
00228     return S_OK;
00229   }
00230   return error("Severe logic bug: No connection object avalible.",true);
00231 }

StatusCode IODataManager::initialize ( ) [virtual]

IService implementation: initialize the service.

IService implementation: Db event selector override.

Definition at line 32 of file IODataManager.cpp.

00032                                       {
00033   // Initialize base class
00034   StatusCode status = Service::initialize();
00035   MsgStream log(msgSvc(), name());
00036   if ( !status.isSuccess() )    {
00037     log << MSG::ERROR << "Error initializing base class Service!" << endmsg;
00038     return status;
00039   }
00040   // Retrieve conversion service handling event iteration
00041   m_catalog = serviceLocator()->service(m_catalogSvcName);
00042   if( !m_catalog.isValid() ) {
00043     log << MSG::ERROR
00044         << "Unable to localize interface IFileCatalog from service:"
00045         << m_catalogSvcName << endmsg;
00046     return StatusCode::FAILURE;
00047   }
00048   m_incSvc = serviceLocator()->service("IncidentSvc");
00049   if( !m_incSvc.isValid() ) {
00050     log << MSG::ERROR << "Error initializing IncidentSvc Service!" << endmsg;
00051     return status;
00052   }
00053
00054   return status;
00055 }

StatusCode IODataManager::finalize ( void ) [virtual]

IService implementation: finalize the service.

Definition at line 58 of file IODataManager.cpp.

00058                                     {
00059   m_catalog = 0; // release
00060   return Service::finalize();
00061 }

StatusCode IODataManager::connectRead	(	bool	keep_open,
		Connection *	ioDesc
	)			`[virtual]`

Open data stream in read mode.

Connect data file for writing.

Definition at line 84 of file IODataManager.cpp.

00084                                                                       {
00085   if ( !establishConnection(con) )  {
00086     return connectDataIO(UNKNOWN,Connection::READ,con->name(),"UNKNOWN",keep_open,con);
00087   }
00088   std::string dsn = con ? con->name() : std::string("Unknown");
00089   return error("Failed to connect to data:"+dsn,false);
00090 }

StatusCode IODataManager::connectWrite	(	Connection *	con,
		IoType	mode = `Connection::CREATE`,
		CSTR	doctype = `"UNKNOWN"`
	)			`[virtual]`

Open data stream in write mode.

Connect data file for reading.

Definition at line 93 of file IODataManager.cpp.

00093                                                                                 {
00094   if ( !establishConnection(con) )  {
00095     return connectDataIO(UNKNOWN,mode,con->name(),doctype,true,con);
00096   }
00097   std::string dsn = con ? con->name() : std::string("Unknown");
00098   return error("Failed to connect to data:"+dsn,false);
00099 }

StatusCode IODataManager::disconnect ( Connection * ioDesc ) [virtual]

Release data stream.

Definition at line 116 of file IODataManager.cpp.

00116                                                        {
00117   if ( con )  {
00118     std::string dataset = con->name();
00119     std::string dsn = dataset;
00120     StatusCode sc = con->disconnect();
00121     if ( ::strncasecmp(dsn.c_str(),"FID:",4)==0 )
00122       dsn = dataset.substr(4);
00123     else if ( ::strncasecmp(dsn.c_str(),"LFN:",4)==0 )
00124       dsn = dataset.substr(4);
00125     else if ( ::strncasecmp(dsn.c_str(),"PFN:",4)==0 )
00126       dsn = dataset.substr(4);
00127
00128     FidMap::iterator j = m_fidMap.find(dataset);
00129     if ( j != m_fidMap.end() )  {
00130       std::string fid = (*j).second;
00131       std::string gfal_name = "gfal:guid:" + fid;
00132       ConnectionMap::iterator i=m_connectionMap.find(fid);
00133       m_fidMap.erase(j);
00134       if ( (j=m_fidMap.find(fid)) != m_fidMap.end() )
00135         m_fidMap.erase(j);
00136       if ( (j=m_fidMap.find(gfal_name)) != m_fidMap.end() )
00137         m_fidMap.erase(j);
00138       if ( i != m_connectionMap.end() ) {
00139         if ( (*i).second )  {
00140           IDataConnection* c = (*i).second->connection;
00141           std::string pfn = c->pfn();
00142           if ( (j=m_fidMap.find(pfn)) != m_fidMap.end() )
00143             m_fidMap.erase(j);
00144           if ( c->isConnected() )  {
00145             MsgStream log(msgSvc(),name());
00146             c->disconnect();
00147             log << MSG::INFO << "Disconnect from dataset " << dsn
00148                 << " [" << fid << "]" << endmsg;
00149           }
00150           delete (*i).second;
00151           m_connectionMap.erase(i);
00152         }
00153       }
00154     }
00155     return sc;
00156   }
00157   return S_ERROR;
00158 }

virtual Connection* Gaudi::IODataManager::connection ( const std::string & dsn ) const [virtual]

Retrieve known connection.

IODataManager::Connections IODataManager::connections ( const IInterface * owner ) const [virtual]

Get connection by owner instance (0=ALL).

Definition at line 73 of file IODataManager.cpp.

00073                                                                                   {
00074   Connections conns;
00075   for(ConnectionMap::const_iterator i=m_connectionMap.begin(); i!=m_connectionMap.end();++i) {
00076     IDataConnection* c = (*i).second->connection;
00077     if ( 0 == owner || c->owner() == owner )
00078       conns.push_back(c);
00079   }
00080   return conns;
00081 }

StatusCode IODataManager::read	(	Connection *	ioDesc,
		void *const	data,
		size_t	len
	)			`[virtual]`

Read raw byte buffer from input stream.

Definition at line 102 of file IODataManager.cpp.

00102                                                                              {
00103   return establishConnection(con).isSuccess() ? con->read(data,len) : S_ERROR;
00104 }

StatusCode IODataManager::write	(	Connection *	con,
		const void *	data,
		int	len
	)			`[virtual]`

Write raw byte buffer to output stream.

Definition at line 107 of file IODataManager.cpp.

00107                                                                            {
00108   return establishConnection(con).isSuccess() ? con->write(data,len) : S_ERROR;
00109 }

long long int IODataManager::seek	(	Connection *	ioDesc,
		long long int	where,
		int	origin
	)			`[virtual]`

Seek on the file described by ioDesc. Arguments as in seek().

Definition at line 112 of file IODataManager.cpp.

00112                                                                                    {
00113   return establishConnection(con).isSuccess() ? con->seek(where,origin) : -1;
00114 }

Member Data Documentation

std::string Gaudi::IODataManager::m_catalogSvcName [protected]

Property: Name of the file catalog service.

Definition at line 45 of file IODataManager.h.

int Gaudi::IODataManager::m_ageLimit [protected]

Property: Age limit.

Definition at line 47 of file IODataManager.h.

bool Gaudi::IODataManager::m_useGFAL [protected]

Property: Flag for auto gfal data access.

Definition at line 49 of file IODataManager.h.

bool Gaudi::IODataManager::m_quarantine [protected]

Property: Flag if unaccessible files should be quarantines in job.

Definition at line 51 of file IODataManager.h.

ConnectionMap Gaudi::IODataManager::m_connectionMap [protected]

Map with I/O descriptors.

Definition at line 54 of file IODataManager.h.

SmartIF<IFileCatalog> Gaudi::IODataManager::m_catalog [protected]

Reference to file catalog.

Definition at line 56 of file IODataManager.h.

FidMap Gaudi::IODataManager::m_fidMap [protected]

Map of FID to PFN.

Definition at line 58 of file IODataManager.h.

SmartIF<IIncidentSvc> Gaudi::IODataManager::m_incSvc [protected]

Definition at line 64 of file IODataManager.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r6/GaudiUtils/src/component/IODataManager.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r6/GaudiUtils/src/component/IODataManager.cpp

Gaudi Framework, version v21r6

Gaudi::IODataManager Class Reference

Detailed Description

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Classes

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
