IChronoSvc Class Reference

#include <GaudiKernel/IChronoSvc.h>

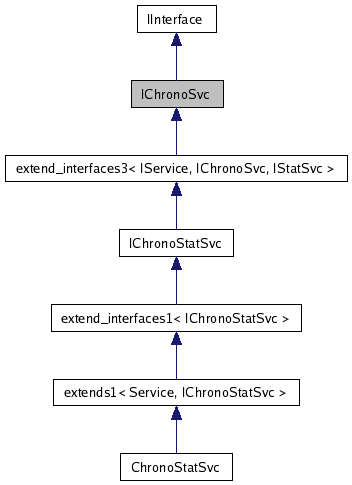

Inheritance diagram for IChronoSvc:

[legend]

Collaboration diagram for IChronoSvc:

[legend]

List of all members.

---

Detailed Description

"Chrono"-related part of interface IChronoStatSvc

The IChronoSvc is the interface implemented by the ChronoStatService. This interface is used by any algorithm or services wanting to study its own performance and CPU consumption and some statistical computation

Author:

Vanya BELYAEV ibelyaev@physics.syr.edu (inspired by Mauro VILLA's codes used within ARTE framework )

Date:

December 1, 1999

2007-07-08

Definition at line 33 of file IChronoSvc.h.

Public Types
enum	ChronoStatus { UNKNOWN = 0, RUNNING, STOPPED }
enum	ChronoType { USER = 0, KERNEL, ELAPSED }
typedef std::string	ChronoTag
	the actual type of identifier for Chrono objects
typedef double	ChronoTime
	Type of the delta-time.
Public Member Functions
	DeclareInterfaceID (IChronoSvc, 3, 0)
	InterfaceID.
virtual ChronoEntity *	chronoStart (const ChronoTag &t)=0
	start chrono, tagged by its name
virtual const ChronoEntity *	chronoStop (const ChronoTag &t)=0
	stop chrono, tagged by its name
virtual ChronoTime	chronoDelta (const ChronoTag &t, ChronoType f)=0
	return chrono delta time of last start/stop pair
virtual void	chronoPrint (const ChronoTag &t)=0
	prints (using message service) info about chrono, tagged by its name
virtual ChronoStatus	chronoStatus (const ChronoTag &t)=0
	return the status of named chrono
virtual const ChronoEntity *	chrono (const ChronoTag &t) const =0
	extract the chrono entity for the given tag (name)
Protected Member Functions
virtual	~IChronoSvc ()
	protected and virtual destructor

---

Member Typedef Documentation

typedef std::string IChronoSvc::ChronoTag

the actual type of identifier for Chrono objects

Definition at line 40 of file IChronoSvc.h.

typedef double IChronoSvc::ChronoTime

Type of the delta-time.

Definition at line 43 of file IChronoSvc.h.

---

Member Enumeration Documentation

enum IChronoSvc::ChronoStatus

Enumerator:

UNKNOWN
RUNNING
STOPPED

Definition at line 48 of file IChronoSvc.h.

    {
      UNKNOWN = 0 ,
      RUNNING     ,
      STOPPED
    };

enum IChronoSvc::ChronoType

Enumerator:

USER
KERNEL
ELAPSED

Definition at line 55 of file IChronoSvc.h.

    {
      USER = 0 ,
      KERNEL   ,
      ELAPSED
    } ;

---

Constructor & Destructor Documentation

IChronoSvc::~IChronoSvc

(

)

[protected, virtual]

protected and virtual destructor

Definition at line 20 of file IChronoStatSvc.cpp.

{}

---

Member Function Documentation

IChronoSvc::DeclareInterfaceID	(	IChronoSvc	,
		3	,
		0
	)

InterfaceID.

virtual ChronoEntity* IChronoSvc::chronoStart

(

const ChronoTag &

t

)

[pure virtual]

start chrono, tagged by its name

Parameters:

t

chrono tag (name)

Returns:

chrono object

Implemented in ChronoStatSvc.

virtual const ChronoEntity* IChronoSvc::chronoStop

(

const ChronoTag &

t

)

[pure virtual]

stop chrono, tagged by its name

Parameters:

t

chrono tag (name)

Returns:

status code

Implemented in ChronoStatSvc.

virtual ChronoTime IChronoSvc::chronoDelta	(	const ChronoTag &	t,
		ChronoType	f
	)			[pure virtual]

return chrono delta time of last start/stop pair

Parameters:

	t	chrono tag (name)
	f	chtono type

Returns:

delta time

Implemented in ChronoStatSvc.

virtual void IChronoSvc::chronoPrint

(

const ChronoTag &

t

)

[pure virtual]

prints (using message service) info about chrono, tagged by its name

Parameters:

t

chrono tag (name)

Returns:

status code

Implemented in ChronoStatSvc.

virtual ChronoStatus IChronoSvc::chronoStatus

(

const ChronoTag &

t

)

[pure virtual]

return the status of named chrono

Parameters:

t

chrono tag (name)

Returns:

chrono status

Implemented in ChronoStatSvc.

virtual const ChronoEntity* IChronoSvc::chrono

(

const ChronoTag &

t

)

const [pure virtual]

extract the chrono entity for the given tag (name)

Parameters:

t

chrono tag(name)

Returns:

pointer to chrono entity

Implemented in ChronoStatSvc.

---

The documentation for this class was generated from the following files:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r6/GaudiKernel/GaudiKernel/IChronoSvc.h
• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r6/GaudiKernel/src/Lib/IChronoStatSvc.cpp
