PoolDbDirectoryCnv Class Reference

Description: NTuple directory converter class definition Definition of the converter to manage the directories in an database representing N-Tuples. More...

#include <GaudiPoolDb/PoolDbDirectoryCnv.h>

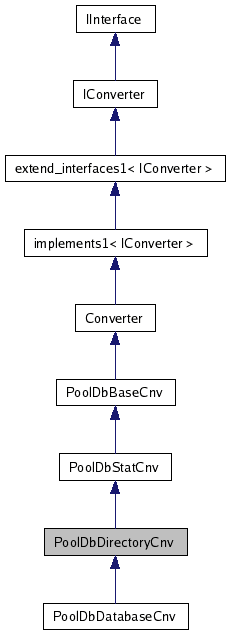

Inheritance diagram for PoolDbDirectoryCnv:

Inheritance graph
[legend]

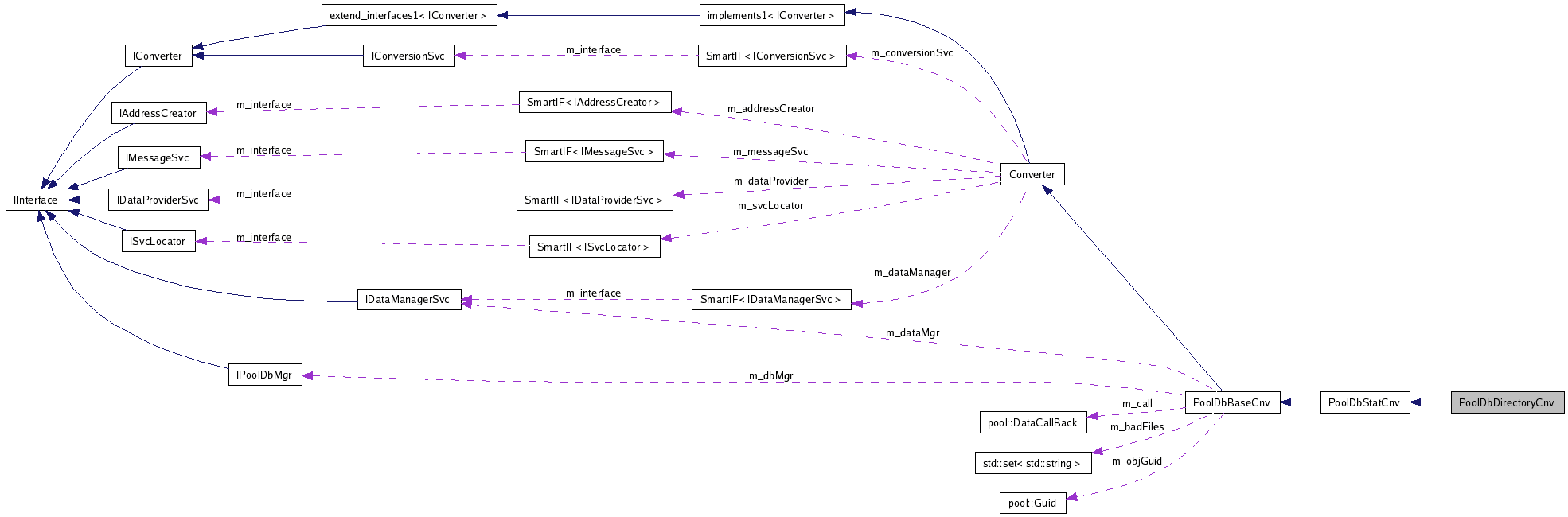

Collaboration diagram for PoolDbDirectoryCnv:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 PoolDbDirectoryCnv (long typ, const CLID &clid, ISvcLocator *svc)
 Initializing Constructor.
virtual ~PoolDbDirectoryCnv ()
 Standard Destructor.
virtual StatusCode createObj (IOpaqueAddress *pAddr, DataObject *&refpObj)
 Converter overrides: Create transient object from persistent data.
virtual StatusCode fillObjRefs (IOpaqueAddress *pAddr, DataObject *pObj)
 Converter overrides: Resolve the references of the transient object.
virtual StatusCode updateObj (IOpaqueAddress *pAddr, DataObject *pObj)
 Converter overrides: Update transient object from persistent data.
virtual StatusCode updateObjRefs (IOpaqueAddress *pAddr, DataObject *pObj)
 Converter overrides: Update the references of an updated transient object.
virtual StatusCode createRep (DataObject *pObj, IOpaqueAddress *&refpAddr)
 Converter overrides: Convert the transient object to the requested representation.
virtual StatusCode updateRep (IOpaqueAddress *pAddr, DataObject *pObj)
 Converter overrides: Update persistent object representation.
virtual StatusCode updateRepRefs (IOpaqueAddress *pAddr, DataObject *pObj)
 Converter overrides: Update references of persistent object representation.

Detailed Description

Description: NTuple directory converter class definition Definition of the converter to manage the directories in an database representing N-Tuples.

Author:
M.Frank
Version:
1.0

Definition at line 26 of file PoolDbDirectoryCnv.h.

Constructor & Destructor Documentation

PoolDbDirectoryCnv::PoolDbDirectoryCnv ( long  typ,
const CLID &  clid,
ISvcLocator *  svc
)

Initializing Constructor.

Parameters:
typ [IN] Concrete storage type of the converter
clid [IN] Class identifier of the object
svc [IN] Pointer to service locator object
Returns:
Reference to PoolDbBaseCnv object

Definition at line 38 of file PoolDbDirectoryCnv.cpp.

00041 : PoolDbStatCnv(typ, clid, svc)
00042 {
00043 }

virtual PoolDbDirectoryCnv::~PoolDbDirectoryCnv (  )  [inline, virtual]

Standard Destructor.

Definition at line 39 of file PoolDbDirectoryCnv.h.

00039 {  }

Member Function Documentation

StatusCode PoolDbDirectoryCnv::createObj ( IOpaqueAddress *  pAddr,
DataObject *&  refpObj
) [virtual]

Converter overrides: Create transient object from persistent data.

Create transient object from persistent data.

Parameters:
pAddr [IN] Pointer to object address.
refpObj [OUT] Location to pointer to store data object
Returns:
Status code indicating success or failure.

Reimplemented from PoolDbBaseCnv.

Reimplemented in PoolDbDatabaseCnv.

Definition at line 47 of file PoolDbDirectoryCnv.cpp.

00049 {
00050   refpObject = new NTuple::Directory();
00051   return StatusCode::SUCCESS;
00052 }

StatusCode PoolDbDirectoryCnv::fillObjRefs ( IOpaqueAddress *  pAddr,
DataObject *  pObj
) [virtual]

Converter overrides: Resolve the references of the transient object.

Parameters:
pAddr [IN] Pointer to object address.
pObj [IN] Pointer to data object
Returns:
Status code indicating success or failure.

Reimplemented from PoolDbBaseCnv.

Definition at line 78 of file PoolDbDirectoryCnv.cpp.

00079 {
00080   return updateObjRefs(pAddr, pObj);
00081 }

StatusCode PoolDbDirectoryCnv::updateObj ( IOpaqueAddress *  pAddr,
DataObject *  pObj
) [virtual]

Converter overrides: Update transient object from persistent data.

Parameters:
pAddr [IN] Pointer to object address.
pObj [IN] Pointer to data object
Returns:
Status code indicating success or failure.

Reimplemented from PoolDbBaseCnv.

Definition at line 179 of file PoolDbDirectoryCnv.cpp.

00181 {
00182   return StatusCode::SUCCESS;
00183 }

StatusCode PoolDbDirectoryCnv::updateObjRefs ( IOpaqueAddress *  pAddr,
DataObject *  pObj
) [virtual]

Converter overrides: Update the references of an updated transient object.

Parameters:
pAddr [IN] Pointer to object address.
pObj [IN] Pointer to data object
Returns:
Status code indicating success or failure.

Reimplemented from PoolDbBaseCnv.

Definition at line 84 of file PoolDbDirectoryCnv.cpp.

00086 {
00087   typedef std::vector<PoolDbNTupleDescriptor*> REFS;
00088   REFS refs;
00089   StatusCode status = StatusCode(StatusCode::FAILURE,true);
00090   MsgStream log(msgSvc(), "PoolDbDatabaseCnv");
00091   if ( pAddr ) {
00092     IRegistry* pReg = pAddr->registry();
00093     if ( pReg )  {
00094       std::string ident   = pReg->identifier();
00095       std::string fname   = fileName(pReg);
00096       std::string cntName = containerName(pReg);
00097       std::auto_ptr<pool::DbSelect> iter(m_dbMgr->createSelect("*", fname, "GaudiStatisticsDescription"));
00098       if ( iter.get() )  {
00099         pool::DbObjectCallBack cb(pool::DbReflex::forTypeName("PoolDbNTupleDescriptor"));
00100         typedef std::vector<IRegistry*> Leaves;
00101         pool::Token* token = 0;
00102         Leaves leaves;
00103         while( iter->next(token).isSuccess() )  {
00104           m_dbMgr->read(&cb, *token).ignore();
00105           PoolDbNTupleDescriptor* ref = (PoolDbNTupleDescriptor*)cb.object();
00106           std::string s = ref->container.substr(0,cntName.length());
00107           if ( s == cntName )  {
00108             if ( ref->container.length() > cntName.length()+1 )  {
00109               if ( ref->container.find('/',cntName.length()+1) == std::string::npos ) {
00110                 refs.push_back(ref);
00111                 token->release();
00112                 continue;
00113               }
00114             }
00115           }
00116           delete ref;
00117           token->release();
00118         }
00119         status = m_dataMgr->objectLeaves(pObject, leaves);
00120         if ( status.isSuccess() )    {
00121           for(REFS::iterator i = refs.begin(); i != refs.end(); ++i)  {
00122             REFS::value_type& ref = *i;
00123             if ( ref )   {
00124               bool need_to_add = true;
00125               for(Leaves::iterator j=leaves.begin(); j != leaves.end(); ++j )  {
00126                 std::string curr_leaf = containerName(*j);
00127                 if ( curr_leaf == ref->container )  {
00128                   need_to_add = false;
00129                   break;
00130                 }
00131               }
00132               if ( need_to_add )  {
00133                 IOpaqueAddress* pA= 0;
00134                 if ( ref->clid == CLID_StatisticsDirectory ||
00135                      ref->clid == CLID_StatisticsFile      ||
00136                      ref->clid == CLID_RowWiseTuple        ||
00137                      ref->clid == CLID_ColumnWiseTuple      )
00138                 {
00139                   std::string spar[]   = { fname, ref->container};
00140                   unsigned long ipar[] = { pool::INVALID, pool::INVALID};
00141                   status = m_dbMgr->createAddress(repSvcType(),
00142                                                   ref->clid,
00143                                                   spar,
00144                                                   ipar,
00145                                                   pA);
00146                 }
00147                 if ( status.isSuccess() )  {
00148                   std::string top = topLevel(pReg);
00149                   std::string leaf_name = top + ref->container.substr(7);
00150                   status = m_dataMgr->registerAddress(leaf_name, pA);
00151                   if ( status.isSuccess() )  {
00152                     continue;
00153                   }
00154                   makeError("Failed to register leaves to directory:"+ident,false).ignore();
00155                   break;
00156                 }
00157                 makeError("Failed to create leave address to directory:"+ident,false).ignore();
00158                 break;
00159               }
00160             }
00161             makeError("Failed to add leaves to directory:"+ident,false).ignore();
00162             break;
00163           }
00164         }
00165       }
00166       else  {
00167         return makeError("Failed to access required tuple data description.",false);
00168       }
00169     }
00170   }
00171   for(REFS::iterator k = refs.begin(); k != refs.end(); ++k)  {
00172     if ( *k ) delete (*k);
00173   }
00174   return status;
00175 }

StatusCode PoolDbDirectoryCnv::createRep ( DataObject *  pObj,
IOpaqueAddress *&  refpAddr
) [virtual]

Converter overrides: Convert the transient object to the requested representation.

Parameters:
pObj [IN] Pointer to data object
refpAddr [OUT] Location to store pointer to object address.
Returns:
Status code indicating success or failure.

Reimplemented from PoolDbBaseCnv.

Definition at line 55 of file PoolDbDirectoryCnv.cpp.

00057 {
00058   std::string dsc;
00059   pool::Guid guid(pool::Guid::null());
00060   guid.Data1 = objType();
00061
00062   if ( objType() == CLID_StatisticsDirectory )  {
00063     dsc = "Directory containing statistics results.";
00064   }
00065   else if ( objType() == CLID_StatisticsFile )  {
00066     dsc = "File containing statistics results.";
00067   }
00068   else  {
00069     return StatusCode::FAILURE;
00070   }
00071   std::string ident = containerName(pObject->registry());
00072   std::string path  = fileName(pObject->registry());
00073   return saveDescription(path, ident, dsc, "", guid, objType(), "UPDATE");
00074 }

StatusCode PoolDbDirectoryCnv::updateRep ( IOpaqueAddress *  pAddr,
DataObject *  pObj
) [virtual]

Converter overrides: Update persistent object representation.

Parameters:
pObj [IN] Pointer to data object
refpAddr [OUT] Location to store pointer to object address.
Returns:
Status code indicating success or failure.

Reimplemented from PoolDbBaseCnv.

Definition at line 187 of file PoolDbDirectoryCnv.cpp.

00189 {
00190   return StatusCode::SUCCESS;
00191 }

StatusCode PoolDbDirectoryCnv::updateRepRefs ( IOpaqueAddress *  pAddr,
DataObject *  pObj
) [virtual]

Converter overrides: Update references of persistent object representation.

Parameters:
pObj [IN] Pointer to data object
refpAddr [OUT] Location to store pointer to object address.
Returns:
Status code indicating success or failure.

Reimplemented from PoolDbBaseCnv.

Definition at line 195 of file PoolDbDirectoryCnv.cpp.

00197 {
00198   return StatusCode::SUCCESS;
00199 }

The documentation for this class was generated from the following files:
