THistSvc Class Reference

#include <THistSvc.h>

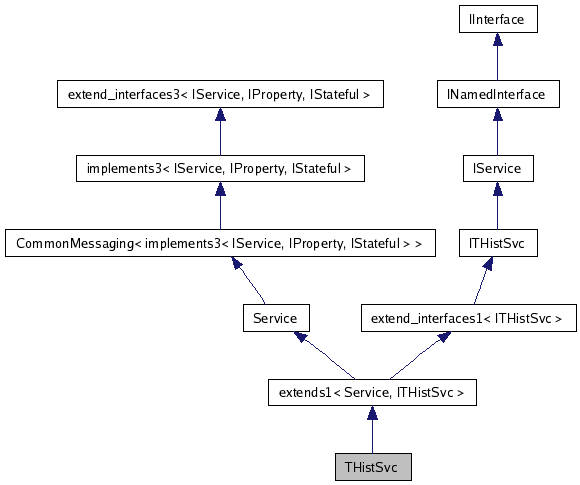

Inheritance diagram for THistSvc:

Collaboration diagram for THistSvc:

Detailed Description

Definition at line 24 of file THistSvc.h.

Member Typedef Documentation

typedef std::map<std::string, THistID> THistSvc::uidMap [private]

Definition at line 108 of file THistSvc.h.

typedef std::multimap<std::string, THistID> THistSvc::idMap [private]

Definition at line 109 of file THistSvc.h.

typedef std::map<TObject*, THistID> THistSvc::objMap [private]

Definition at line 110 of file THistSvc.h.

typedef std::multimap<std::string, std::string> THistSvc::streamMap [private]

Definition at line 111 of file THistSvc.h.

Member Enumeration Documentation

enum THistSvc::Mode [private]

Enumerator:

READ
WRITE
UPDATE
APPEND
SHARE

Definition at line 100 of file THistSvc.h.

00100             {
00101     READ,
00102     WRITE,
00103     UPDATE,
00104     APPEND,
00105     SHARE
00106   };

Constructor & Destructor Documentation

THistSvc::THistSvc	(	const std::string &	name,
		ISvcLocator *	svc
	)

Definition at line 39 of file THistSvc.cpp.

00040   : base_class(name, svc) {
00041
00042   declareProperty ("Output", m_outputfile );
00043   declareProperty ("Input", m_inputfile );
00044   declareProperty ("AutoSave", m_autoSave=0 );
00045   declareProperty ("PrintAll", m_print=false);
00046   declareProperty ("CompressionLevel", m_compressionLevel=1 );
00047
00048   m_inputfile.declareUpdateHandler ( &THistSvc::setupInputFile,  this );
00049   m_outputfile.declareUpdateHandler( &THistSvc::setupOutputFile, this );
00050 }

THistSvc::~THistSvc ( ) [protected, virtual]

Definition at line 54 of file THistSvc.cpp.

00054                     {
00055
00056 }

Member Function Documentation

StatusCode THistSvc::initialize ( ) [virtual]

Reimplemented from Service.

Definition at line 61 of file THistSvc.cpp.

00061                      {
00062   GlobalDirectoryRestore restore;
00063
00064   m_alreadyConnectedOutFiles.clear();
00065   m_alreadyConnectedInFiles.clear();
00066
00067   StatusCode status = Service::initialize();
00068
00069   if (status.isFailure()) {
00070     MsgStream log ( msgSvc(), name() );
00071     log << MSG::ERROR << "initializing service" << endmsg;
00072     return status;
00073   }
00074
00075   vector<string>::const_iterator itr;
00076   StatusCode st(StatusCode::SUCCESS);
00077
00078   try {
00079     setupOutputFile( m_outputfile );
00080   } catch ( GaudiException& err ) {
00081     MsgStream msg( msgSvc(), name() );
00082     msg << MSG::ERROR
00083         << "Caught: " << err << endmsg;
00084     st = StatusCode::FAILURE;
00085   }
00086
00087   try {
00088     setupInputFile( m_inputfile );
00089   } catch ( GaudiException& err ) {
00090     MsgStream msg( msgSvc(), name() );
00091     msg << MSG::ERROR
00092         << "Caught: " << err << endmsg;
00093     st = StatusCode::FAILURE;
00094   }
00095
00096   // Protect against multiple instances of TROOT
00097   if ( 0 == gROOT )   {
00098     static TROOT root("root","ROOT I/O");
00099     //    gDebug = 99;
00100   } else {
00101     MsgStream log ( msgSvc(), name() );
00102     log << MSG::VERBOSE << "ROOT already initialized, debug = "
00103         << gDebug<< endmsg;
00104   }
00105
00106
00107   if (st.isFailure()) {
00108     MsgStream log ( msgSvc(), name() );
00109     log << MSG::FATAL << "Unable to initialize THistSvc" << endmsg;
00110   }
00111
00112   return st;
00113
00114 }

StatusCode THistSvc::reinitialize ( ) [virtual]

Reimplemented from Service.

Definition at line 119 of file THistSvc.cpp.

00119                        {
00120
00121   GlobalDirectoryRestore restore;
00122
00123   MsgStream log ( msgSvc(), name() );
00124   log << MSG::WARNING << "reinitialize not implemented" << endmsg;
00125
00126
00127   return StatusCode::SUCCESS;
00128
00129 }

StatusCode THistSvc::finalize ( void ) [virtual]

Reimplemented from Service.

Definition at line 134 of file THistSvc.cpp.

00134                    {
00135
00136   GlobalDirectoryRestore restore;
00137
00138   MsgStream log ( msgSvc(), name() );
00139   log << MSG::DEBUG << "THistSvc::finalize" << endmsg;
00140
00141   uidMap::const_iterator uitr;
00142   for (uitr=m_uids.begin(); uitr != m_uids.end(); ++uitr) {
00143
00144     TObject* to = uitr->second.obj;
00145
00146     string dirname("none");
00147     if (to->IsA()->InheritsFrom("TTree")) {
00148       TTree* tr = dynamic_cast<TTree*>(to);
00149       if (tr->GetDirectory() != 0) {
00150         dirname = tr->GetDirectory()->GetPath();
00151       }
00152     } else if (to->IsA()->InheritsFrom("TGraph")) {
00153       if (!uitr->second.temp) {
00154         dirname = uitr->second.file->GetPath();
00155         string id2(uitr->second.id);
00156         id2.erase(0,id2.find("/",1));
00157         id2.erase(id2.rfind("/"), id2.length());
00158         if (id2.find("/") == 0) {
00159           id2.erase(0,1);
00160         }
00161         dirname += id2;
00162       } else {
00163         dirname = "/tmp";
00164       }
00165     } else if (to->IsA()->InheritsFrom("TH1")) {
00166       TH1* th = dynamic_cast<TH1*>(to);
00167       if (th == 0) {
00168         log << MSG::ERROR << "Couldn't dcast: " << uitr->first << endmsg;
00169       } else {
00170         if (th->GetDirectory() != 0) {
00171           dirname = th->GetDirectory()->GetPath();
00172         }
00173       }
00174     }
00175
00176     MsgStream log ( msgSvc(), name() );
00177     log << MSG::DEBUG << "uid: \"" << uitr->first << "\"  temp: "
00178         << uitr->second.temp << "  dir: " << dirname
00179         << endmsg;
00180
00181
00182 //     if (uitr->second.temp == true) {
00183 //       MsgStream log ( msgSvc(), name() );
00184 //       log << MSG::INFO << "Deleting \"" << uitr->first << "\"" << endmsg;
00185 //       delete uitr->second.obj;
00186 //     }
00187   }
00188
00189   StatusCode sc = write();
00190   if (sc.isFailure()) {
00191     MsgStream log ( msgSvc(), name() );
00192     log << MSG::ERROR << "problems writing histograms" << endmsg;
00193   }
00194
00195   if (m_print) {
00196     log << MSG::INFO << "Listing contents of ROOT files: " << endmsg;
00197   }
00198   vector<TFile*> deleted_files;
00199   map<string, pair<TFile*,Mode> >::const_iterator itr;
00200   for (itr = m_files.begin(); itr != m_files.end(); ++itr) {
00201
00202     if (find(deleted_files.begin(), deleted_files.end(), itr->second.first) ==
00203         deleted_files.end()) {
00204       deleted_files.push_back(itr->second.first);
00205
00206       log << MSG::DEBUG << "finalizing stream/file " << itr->first << ":"
00207           << itr->second.first->GetName()
00208           << endmsg;
00209     } else {
00210       log << MSG::DEBUG << "already finalized stream " << itr->first << endmsg;
00211       continue;
00212     }
00213
00214
00215     if (m_print && log.level() <= MSG::INFO) {
00216
00217       log << MSG::INFO;
00218       log << "==> File: " << itr->second.first->GetName()
00219           << "  stream: " << itr->first << endmsg;
00220
00221       itr->second.first->Print("base");
00222     }
00223
00224     string tmpfn=itr->second.first->GetName();
00225
00226     itr->second.first->Close();
00227
00228     if (itr->second.second==SHARE) {
00229       TFile *outputfile;
00230       //Merge File
00231       try {
00232         log << MSG::DEBUG << "Openning Final Output File: " <<m_sharedFiles[itr->first].c_str()<<endmsg;
00233         outputfile = new TFile(m_sharedFiles[itr->first].c_str(), "UPDATE");
00234       } catch (const std::exception& Exception) {
00235       log << MSG::ERROR << "exception caught while trying to open root"
00236           << " file for appending: " << Exception.what() << std::endl
00237           << "  -> file probably corrupt." << endmsg;
00238       return StatusCode::FAILURE;
00239       } catch (...) {
00240         log << MSG::ERROR << "Problems opening output file  \"" << m_sharedFiles[itr->first]
00241             << "\" for append: probably corrupt" << endmsg;
00242         return StatusCode::FAILURE;
00243       }
00244
00245       log << MSG::DEBUG << "THistSvc::write()::Merging Rootfile "<<endmsg;
00246       TFile *inputfile;
00247       try {
00248         log << MSG::DEBUG << "Openning again Temporary File: " <<tmpfn.c_str()<<endmsg;
00249         inputfile=new TFile(tmpfn.c_str(),"READ");
00250       } catch (const std::exception& Exception) {
00251         log << MSG::ERROR << "exception caught while trying to open root"
00252             << " file for appending: " << Exception.what() << std::endl
00253             << "  -> file probably corrupt." << endmsg;
00254         return StatusCode::FAILURE;
00255       } catch (...) {
00256         log << MSG::ERROR << "Problems opening output file  \"" << tmpfn.c_str()
00257             << "\" for append: probably corrupt" << endmsg;
00258         return StatusCode::FAILURE;
00259       }
00260
00261       MergeRootFile(outputfile, inputfile);
00262
00263       outputfile->SetCompressionLevel( m_compressionLevel );
00264
00265       outputfile->Write();
00266       outputfile->Close();
00267       inputfile->Close();
00268
00269       log << MSG::DEBUG << "Trying to remove temporary file \"" << tmpfn
00270           << "\""<<endmsg;
00271
00272       std::remove(tmpfn.c_str());
00273     }
00274     delete itr->second.first;
00275   }
00276
00277   m_sharedFiles.clear();
00278   m_fileStreams.clear();
00279   m_files.clear();
00280   m_uids.clear();
00281   m_ids.clear();
00282   m_tobjs.clear();
00283
00284   return Service::finalize();
00285 }

StatusCode THistSvc::regHist ( const std::string & name ) [virtual]

Implements ITHistSvc.

Definition at line 519 of file THistSvc.cpp.

00519                                      {
00520
00521   TH1 *hist(0);
00522
00523   return regHist_i(hist, id);
00524 }

StatusCode THistSvc::regHist	(	const std::string &	name,
		TH1 *	hist
	)			`[virtual]`

Implements ITHistSvc.

Definition at line 529 of file THistSvc.cpp.

00529                                                 {
00530   return regHist_i(hist, id);
00531 }

StatusCode THistSvc::regHist	(	const std::string &	name,
		TH2 *	hist
	)			`[virtual]`

Implements ITHistSvc.

Definition at line 536 of file THistSvc.cpp.

00536                                                 {
00537   return regHist_i(hist, id);
00538 }

StatusCode THistSvc::regHist	(	const std::string &	name,
		TH3 *	hist
	)			`[virtual]`

Implements ITHistSvc.

Definition at line 543 of file THistSvc.cpp.

00543                                                 {
00544   return regHist_i(hist, id);
00545 }

StatusCode THistSvc::getHist	(	const std::string &	name,
		TH1 *&	hist
	)			const `[virtual]`

Implements ITHistSvc.

Definition at line 598 of file THistSvc.cpp.

00598                                                        {
00599   return getHist_i(id, hist);
00600 }

StatusCode THistSvc::getHist	(	const std::string &	name,
		TH2 *&	hist
	)			const `[virtual]`

Implements ITHistSvc.

Definition at line 605 of file THistSvc.cpp.

00605                                                        {
00606   return getHist_i(id, hist);
00607 }

StatusCode THistSvc::getHist	(	const std::string &	name,
		TH3 *&	hist
	)			const `[virtual]`

Implements ITHistSvc.

Definition at line 612 of file THistSvc.cpp.

00612                                                        {
00613   return getHist_i(id, hist);
00614 }

StatusCode THistSvc::regTree ( const std::string & name ) [virtual]

Implements ITHistSvc.

Definition at line 550 of file THistSvc.cpp.

00550                                      {
00551   TTree *hist(0);
00552   return regHist_i(hist, id);
00553 }

StatusCode THistSvc::regTree	(	const std::string &	name,
		TTree *	hist
	)			`[virtual]`

Implements ITHistSvc.

Definition at line 558 of file THistSvc.cpp.

00558                                                   {
00559   StatusCode sc = regHist_i(hist, id);
00560   if (hist != 0 && m_autoSave != 0 && sc.isSuccess()) {
00561     hist->SetAutoSave(m_autoSave);
00562   }
00563   return sc;
00564 }

StatusCode THistSvc::getTree	(	const std::string &	name,
		TTree *&	hist
	)			const `[virtual]`

Implements ITHistSvc.

Definition at line 640 of file THistSvc.cpp.

00640                                                          {
00641   return getHist_i(id, hist);
00642 }

StatusCode THistSvc::regGraph ( const std::string & name ) [virtual]

Implements ITHistSvc.

Definition at line 569 of file THistSvc.cpp.

00569                                       {
00570   TGraph *hist(0);
00571   return regHist_i(hist, id);
00572 }

StatusCode THistSvc::regGraph	(	const std::string &	name,
		TGraph *	hist
	)			`[virtual]`

Implements ITHistSvc.

Definition at line 577 of file THistSvc.cpp.

00577                                                     {
00578   if ( strcmp(hist->GetName(),"Graph") == 0 ) {
00579
00580     std::string id2(id);
00581     string::size_type i = id2.rfind("/");
00582     if (i != string::npos) {
00583       id2.erase(0,i+1);
00584     }
00585
00586     MsgStream log ( msgSvc(), name() );
00587     log << MSG::INFO << "setting name of TGraph id: \"" << id << "\" to \""
00588         << id2 << "\" since it is unset" << endmsg;
00589     hist->SetName(id2.c_str());
00590   }
00591
00592   return regHist_i(hist, id);
00593 }

StatusCode THistSvc::getGraph	(	const std::string &	name,
		TGraph *&	hist
	)			const `[virtual]`

Implements ITHistSvc.

Definition at line 668 of file THistSvc.cpp.

00668                                                            {
00669   return getHist_i(id, hist);
00670 }

StatusCode THistSvc::deReg ( TObject * obj ) [virtual]

Implements ITHistSvc.

Definition at line 439 of file THistSvc.cpp.

00439                             {
00440
00441   objMap::iterator itr = m_tobjs.find(obj);
00442   if (itr != m_tobjs.end()) {
00443     THistID hid = itr->second;
00444
00445     uidMap::iterator itr2 = m_uids.find(hid.id);
00446     if (itr2 == m_uids.end()) {
00447       MsgStream log ( msgSvc(), name() );
00448       log << MSG::ERROR << "Problems deregistering TObject \""
00449           << obj->GetName()
00450           << "\" with id \"" << hid.id << "\"" << endmsg;
00451       return StatusCode::FAILURE;
00452     }
00453
00454     std::string id,root,rem;
00455     parseString(hid.id, root, rem);
00456
00457     idMap::iterator itr3;
00458     bool found(false);
00459
00460     std::pair<idMap::iterator, idMap::iterator> mitr = m_ids.equal_range(rem);
00461     if (mitr.first == mitr.second) {
00462       MsgStream log ( msgSvc(), name() );
00463       log << MSG::ERROR << "Problems deregistering TObject \""
00464           << obj->GetName()
00465           << "\" with id \"" << hid.id << "\"" << endmsg;
00466       return StatusCode::FAILURE;
00467     } else {
00468       for (itr3 = mitr.first; itr3 != mitr.second; ++itr3) {
00469         if (itr3->second.obj == obj) {
00470           found = true;
00471           break;
00472         }
00473       }
00474       if (!found) {
00475         MsgStream log ( msgSvc(), name() );
00476         log << MSG::ERROR << "Problems deregistering TObject \""
00477             << obj->GetName()
00478             << "\" with id \"" << hid.id << "\"" << endmsg;
00479       }
00480     }
00481
00482     m_tobjs.erase(itr);
00483     m_uids.erase(itr2);
00484     m_ids.erase(itr3);
00485
00486     return StatusCode::SUCCESS;
00487
00488   } else {
00489     MsgStream log ( msgSvc(), name() );
00490     log << MSG::ERROR << "Cannot unregister TObject \"" << obj->GetName()
00491         << "\": not known to THistSvc" << endmsg;
00492     return StatusCode::FAILURE;
00493   }
00494
00495 }

StatusCode THistSvc::deReg ( const std::string & name ) [virtual]

Implements ITHistSvc.

Definition at line 501 of file THistSvc.cpp.

00501                                    {
00502
00503   uidMap::iterator itr = m_uids.find(id);
00504   if (itr == m_uids.end()) {
00505     MsgStream log ( msgSvc(), name() );
00506     log << MSG::ERROR << "Problems deregistering id \""
00507         << id << "\"" << endmsg;
00508     return StatusCode::FAILURE;
00509   }
00510
00511   TObject* obj = itr->second.obj;
00512
00513   return deReg(obj);
00514 }

std::vector< std::string > THistSvc::getHists ( ) const [virtual]

Implements ITHistSvc.

Definition at line 619 of file THistSvc.cpp.

00619                          {
00620
00621   std::vector<std::string> names;
00622   names.reserve(m_uids.size());
00623
00624   uidMap::const_iterator itr;
00625   for (itr = m_uids.begin(); itr != m_uids.end(); ++itr) {
00626     THistID tid = itr->second;
00627
00628     if (tid.obj->IsA()->InheritsFrom("TH1")) {
00629       names.push_back(itr->first);
00630     }
00631
00632   }
00633
00634   return names;
00635
00636 }

std::vector< std::string > THistSvc::getTrees ( ) const [virtual]

Implements ITHistSvc.

Definition at line 647 of file THistSvc.cpp.

00647                          {
00648
00649   std::vector<std::string> names;
00650   names.reserve(m_uids.size());
00651
00652   uidMap::const_iterator itr;
00653   for (itr = m_uids.begin(); itr != m_uids.end(); ++itr) {
00654     THistID tid = itr->second;
00655
00656     if (tid.obj->IsA()->InheritsFrom("TTree")) {
00657       names.push_back(itr->first);
00658     }
00659
00660   }
00661
00662   return names;
00663
00664 }

std::vector< std::string > THistSvc::getGraphs ( ) const [virtual]

Implements ITHistSvc.

Definition at line 675 of file THistSvc.cpp.

00675                           {
00676
00677   std::vector<std::string> names;
00678   names.reserve(m_uids.size());
00679
00680   uidMap::const_iterator itr;
00681   for (itr = m_uids.begin(); itr != m_uids.end(); ++itr) {
00682     THistID tid = itr->second;
00683
00684     if (tid.obj->IsA()->InheritsFrom("TGraph")) {
00685       names.push_back(itr->first);
00686     }
00687
00688   }
00689
00690   return names;
00691
00692 }

StatusCode THistSvc::getTHists	(	TDirectory *	td,
		TList &	tl
	)			const `[virtual]`

Implements ITHistSvc.

Definition at line 337 of file THistSvc.cpp.

00337                                                     {
00338
00339   MsgStream log ( msgSvc(), name() );
00340   GlobalDirectoryRestore restore;
00341
00342   gErrorIgnoreLevel = kBreak;
00343
00344   if (!td->cd()) {
00345     log << MSG::ERROR << "No such TDirectory \"" << td->GetPath() << "\""
00346         << endmsg;
00347     return StatusCode::FAILURE;
00348   }
00349
00350   TIter nextkey(td->GetList());
00351   while (TObject *key = (TObject*)nextkey()) {
00352     if (key != 0) {
00353       if (key->IsA()->InheritsFrom("TH1")) { tl.Add(key); }
00354     }
00355   }
00356
00357
00358   return StatusCode::SUCCESS;
00359
00360 }

StatusCode THistSvc::getTHists	(	const std::string &	name,
		TList &	tl
	)			const `[virtual]`

Implements ITHistSvc.

Definition at line 365 of file THistSvc.cpp.

00365                                                           {
00366
00367   MsgStream log ( msgSvc(), name() );
00368   GlobalDirectoryRestore restore;
00369
00370   gErrorIgnoreLevel = kBreak;
00371
00372   StatusCode sc;
00373
00374   if (!gDirectory->cd(dir.c_str())) {
00375     log << MSG::ERROR << "No such TDirectory \"" << dir << "\""
00376          << endmsg;
00377     sc = StatusCode::FAILURE;
00378   } else {
00379     sc = getTHists(gDirectory,tl);
00380   }
00381
00382   return sc;
00383
00384 }

StatusCode THistSvc::getTTrees	(	TDirectory *	td,
		TList &	tl
	)			const `[virtual]`

Implements ITHistSvc.

Definition at line 388 of file THistSvc.cpp.

00388                                                     {
00389
00390   MsgStream log ( msgSvc(), name() );
00391   GlobalDirectoryRestore restore;
00392
00393   gErrorIgnoreLevel = kBreak;
00394
00395   if (!td->cd()) {
00396     log << MSG::ERROR << "No such TDirectory \"" << td->GetPath() << "\""
00397         << endmsg;
00398     return StatusCode::FAILURE;
00399   }
00400
00401   TIter nextkey(td->GetList());
00402   while (TObject *key = (TObject*)nextkey()) {
00403     if (key != 0) {
00404       if (key->IsA()->InheritsFrom("TTree")) { tl.Add(key); }
00405     }
00406   }
00407
00408   return StatusCode::SUCCESS;
00409
00410 }

StatusCode THistSvc::getTTrees	(	const std::string &	name,
		TList &	tl
	)			const `[virtual]`

Implements ITHistSvc.

Definition at line 415 of file THistSvc.cpp.

00415                                                           {
00416
00417   MsgStream log ( msgSvc(), name() );
00418   GlobalDirectoryRestore restore;
00419
00420   gErrorIgnoreLevel = kBreak;
00421
00422   StatusCode sc;
00423
00424   if (!gDirectory->cd(dir.c_str())) {
00425     log << MSG::ERROR << "No such TDirectory \"" << dir << "\""
00426          << endmsg;
00427     sc = StatusCode::FAILURE;
00428   } else {
00429     sc = getTTrees(gDirectory,tl);
00430   }
00431
00432   return sc;
00433
00434 }

template<typename T>

StatusCode THistSvc::regHist_i	(	T *	hist,
		const std::string &	name
	)			`[inline, private]`

template<typename T>

StatusCode THistSvc::getHist_i	(	const std::string &	name,
		T *&	hist
	)			const `[inline, private]`

template<typename T>

StatusCode THistSvc::readHist_i	(	const std::string &	name,
		T *&	hist
	)			const `[inline, private]`

StatusCode THistSvc::readHist	(	const std::string &	name,
		TH1 *&	hist
	)			const `[private]`

Definition at line 696 of file THistSvc.cpp.

00696                                                         {
00697   return readHist_i(id, hist);
00698 }

StatusCode THistSvc::readHist	(	const std::string &	name,
		TH2 *&	hist
	)			const `[private]`

Definition at line 703 of file THistSvc.cpp.

00703                                                         {
00704   return readHist_i(id, hist);
00705 }

StatusCode THistSvc::readHist	(	const std::string &	name,
		TH3 *&	hist
	)			const `[private]`

Definition at line 710 of file THistSvc.cpp.

00710                                                         {
00711   return readHist_i(id, hist);
00712 }

StatusCode THistSvc::readTree	(	const std::string &	name,
		TTree *&	hist
	)			const `[private]`

Definition at line 717 of file THistSvc.cpp.

00717                                                           {
00718   return readHist_i(id, hist);
00719 }

void THistSvc::updateFiles ( ) [private]

Definition at line 854 of file THistSvc.cpp.

00854                       {
00855
00856   // If TTrees grow beyond TTree::fgMaxFileSize, a new file is
00857   // automatically created by root, and the old one closed. We
00858   // need to migrate all the UIDs over to show the correct file
00859   // pointer. This is ugly.
00860
00861   uidMap::iterator uitr, uitr2;
00862   for (uitr=m_uids.begin(); uitr != m_uids.end(); ++uitr) {
00863     TObject* to = uitr->second.obj;
00864     TFile* oldFile = uitr->second.file;
00865     if (to->IsA()->InheritsFrom("TTree")) {
00866       TTree* tr = dynamic_cast<TTree*>(to);
00867       TFile* newFile = tr->GetCurrentFile();
00868
00869       if (oldFile != newFile) {
00870         std::string newFileName = newFile->GetName();
00871         std::string oldFileName(""), streamName, rem;
00872         TFile* dummy;
00873         findStream(uitr->second.id, streamName, rem, dummy);
00874
00875         MsgStream log( msgSvc(), name() );
00876         log << MSG::DEBUG << "migrating uid: " << uitr->second.id
00877             << "   stream: " << streamName << "   newFile: " << newFileName
00878             << endmsg;
00879
00880         map<string, pair<TFile*,Mode> >::iterator itr;
00881         for (itr=m_files.begin(); itr!= m_files.end(); ++itr) {
00882           if (itr->second.first == oldFile) {
00883             itr->second.first = newFile;
00884
00885           }
00886         }
00887
00888         uitr2 = uitr;
00889         for (uitr2++; uitr2 != m_uids.end(); ++uitr2) {
00890           if (uitr2->second.file == oldFile) {
00891             uitr2->second.file = newFile;
00892           }
00893         }
00894
00895         streamMap::iterator sitr;
00896         for (sitr = m_fileStreams.begin(); sitr!=m_fileStreams.end(); ++sitr) {
00897           if (sitr->second == streamName) {
00898             oldFileName = sitr->first;
00899             break;
00900           }
00901         }
00902
00903         if (oldFileName != "") {
00904           while ( (sitr=m_fileStreams.find(oldFileName)) != m_fileStreams.end() ) {
00905             log << MSG::DEBUG << "changing filename \"" << oldFileName
00906                 << "\" to \"" << newFileName << "\" for stream \""
00907                 << sitr->second << "\"" << endmsg;
00908             m_fileStreams.erase(sitr);
00909             m_fileStreams.insert( make_pair<std::string,std::string>(newFileName,streamName) );
00910           }
00911
00912
00913         } else {
00914           log << MSG::ERROR
00915               << "Problems updating fileStreams with new file name" << endmsg;
00916         }
00917
00918       }
00919
00920     }
00921   }
00922
00923 }

StatusCode THistSvc::write ( ) [private]

Definition at line 928 of file THistSvc.cpp.

00928                 {
00929
00930   updateFiles();
00931
00932   MsgStream log(msgSvc(), name() );
00933
00934   map<string, pair<TFile*,Mode> >::const_iterator itr;
00935   for (itr=m_files.begin(); itr!= m_files.end(); ++itr) {
00936     if (itr->second.second == WRITE || itr->second.second == UPDATE
00937         ||itr->second.second==SHARE) {
00938       itr->second.first->Write("",TObject::kOverwrite);
00939     } else if (itr->second.second == APPEND) {
00940       itr->second.first->Write("");
00941     }
00942   }
00943
00944
00945   log << MSG::DEBUG << "THistSvc::write()::List of Files connected in ROOT "
00946       <<endmsg;
00947
00948   TSeqCollection *filelist=gROOT->GetListOfFiles();
00949   for (int ii=0; ii<filelist->GetEntries(); ii++) {
00950     log << MSG::DEBUG
00951         << "THistSvc::write()::List of Files connected in ROOT: \""
00952         <<filelist->At(ii)->GetName()<<"\""<<endmsg;
00953   }
00954
00955   return StatusCode::SUCCESS;
00956
00957 }

StatusCode THistSvc::connect ( const std::string & ident ) [private]

Definition at line 962 of file THistSvc.cpp.

00962                                         {
00963
00964   MsgStream log ( msgSvc(), name() );
00965   Tokenizer tok(true);
00966
00967   string::size_type loc = ident.find(" ");
00968   string stream = ident.substr(0,loc);
00969   char typ(0);
00970   typedef std::pair<std::string,std::string>      Prop;
00971   std::vector<Prop> props;
00972   string val,VAL,TAG,filename,db_typ("ROOT");
00973
00974   tok.analyse(ident.substr(loc+1,ident.length()), " ", "", "", "=", "'", "'");
00975
00976   for ( Tokenizer::Items::iterator i = tok.items().begin(); i != tok.items().end(); i++)    {
00977     const std::string& tag = (*i).tag();
00978     TAG = tag;
00979     toupper(TAG);
00980
00981     val = (*i).value();
00982     VAL = val;
00983     toupper(VAL);
00984
00985     if (TAG == "FILE" || TAG == "DATAFILE") {
00986       filename = val;
00987       removeDoubleSlash( filename );
00988     } else if ( TAG == "OPT" ) {
00989       if ( VAL == "APPEND" || VAL == "UPDATE" ) {
00990         typ = 'A';
00991       } else if ( VAL == "CREATE" || VAL == "NEW" || VAL == "WRITE" ) {
00992         typ = 'N';
00993       } else if ( VAL == "RECREATE" ) {
00994         typ = 'R';
00995       } else if (VAL == "SHARE") {
00996         typ = 'S';
00997       } else if ( VAL == "OLD" || VAL == "READ" ) {
00998         typ = 'O';
00999       } else {
01000         log << MSG::ERROR << "Unknown OPT: \"" << (*i).value() << "\""
01001             << endmsg;
01002         typ = 0;
01003       }
01004     } else if (TAG == "TYP") {
01005       db_typ = (*i).value();
01006     } else {
01007       props.push_back( Prop((*i).tag(), (*i).value()));
01008     }
01009
01010   }
01011
01012   if (stream == "temp") {
01013     log << MSG::ERROR << "in JobOption \"" << ident
01014         << "\": stream name \"temp\" reserved."
01015         << endmsg;
01016     return StatusCode::FAILURE;
01017   }
01018
01019   if (db_typ != "ROOT") {
01020     log << MSG::ERROR << "in JobOption \"" << ident
01021         << "\": technology type \"" << db_typ << "\" not supported."
01022         << endmsg;
01023     return StatusCode::FAILURE;
01024   }
01025
01026
01027   if (m_files.find(stream) != m_files.end()) {
01028     log << MSG::ERROR << "in JobOption \"" << ident
01029         << "\":\n stream \"" << stream << "\" already connected to file: \""
01030         << m_files[stream].first->GetName() << "\""
01031         << endmsg;
01032     return StatusCode::FAILURE;
01033   }
01034
01035   Mode newMode;
01036   if (typ == 'O') {
01037     newMode = THistSvc::READ;
01038   } else if (typ == 'N') {
01039     newMode = THistSvc::WRITE;
01040   } else if (typ == 'A') {
01041     newMode = THistSvc::APPEND;
01042   } else if (typ == 'R') {
01043     newMode = THistSvc::UPDATE;
01044   } else if (typ == 'S') {
01045     newMode = THistSvc::SHARE;
01046   } else {
01047     // something else?
01048     log << MSG::ERROR << "No OPT= specified or unknown access mode in: "
01049         << ident << endmsg;
01050     return StatusCode::FAILURE;
01051   }
01052
01053   // Is this file already connected to another stream?
01054   if (m_fileStreams.find(filename) != m_fileStreams.end()) {
01055     std::pair<streamMap::iterator, streamMap::iterator> fitr =
01056       m_fileStreams.equal_range(filename);
01057
01058     std::string oldstream = (fitr.first)->second;
01059
01060     std::pair<TFile*,Mode> f_info = m_files[oldstream];
01061
01062     if (newMode != f_info.second) {
01063       log << MSG::ERROR << "in JobOption \"" << ident
01064           << "\":\n file \"" << filename << "\" already opened by stream: \""
01065           << oldstream << "\" with different access mode."
01066           << endmsg;
01067       return StatusCode::FAILURE;
01068     } else {
01069       TFile *f2 = f_info.first;
01070       m_files[stream] = make_pair<TFile*,Mode>(f2,newMode);
01071       log << MSG::DEBUG << "Connecting stream: \"" << stream
01072           << "\" to previously opened TFile: \"" << filename << "\""
01073           << endmsg;
01074       return StatusCode::SUCCESS;
01075     }
01076   }
01077
01078
01079   TFile *f(0) ;
01080   if (newMode == THistSvc::READ) {
01081     // old file
01082
01083     try {
01084       f = TFile::Open(filename.c_str(),"READ");
01085     } catch (const std::exception& Exception) {
01086       log << MSG::ERROR << "exception caught while trying to open root"
01087           << " file for reading: " << Exception.what() << std::endl
01088           << "  -> file probably corrupt." << endmsg;
01089       return StatusCode::FAILURE;
01090     } catch (...) {
01091       log << MSG::ERROR << "Problems opening input file  \"" << filename
01092           << "\": probably corrupt" << endmsg;
01093       return StatusCode::FAILURE;
01094     }
01095
01096     if (!f->IsOpen()) {
01097       log << MSG::ERROR << "Unable to open input file \"" << filename
01098           << "\": file does not exist" << endmsg;
01099       return StatusCode::FAILURE;
01100     }
01101
01102
01103   } else if (newMode == THistSvc::WRITE) {
01104     // new file
01105
01106     f = TFile::Open(filename.c_str(),"NEW");
01107     if (!f->IsOpen()) {
01108       log << MSG::ERROR << "Unable to create new output file \"" << filename
01109           << "\" for writing: file already exists" << endmsg;
01110       return StatusCode::FAILURE;
01111     }
01112     f->SetCompressionLevel( m_compressionLevel );
01113
01114   } else if (newMode == THistSvc::APPEND) {
01115     // update file
01116
01117     try {
01118       f =  TFile::Open(filename.c_str(),"UPDATE");
01119     } catch (const std::exception& Exception) {
01120       log << MSG::ERROR << "exception caught while trying to open root"
01121           << " file for appending: " << Exception.what() << std::endl
01122           << "  -> file probably corrupt." << endmsg;
01123       return StatusCode::FAILURE;
01124     } catch (...) {
01125       log << MSG::ERROR << "Problems opening output file  \"" << filename
01126           << "\" for append: probably corrupt" << endmsg;
01127       return StatusCode::FAILURE;
01128     }
01129
01130     if (!f->IsOpen()) {
01131       log << MSG::ERROR << "Unable to open output file \"" << filename
01132           << "\" for appending" << endmsg;
01133       return StatusCode::FAILURE;
01134     }
01135     f->SetCompressionLevel( m_compressionLevel );
01136
01137   } else if (newMode == THistSvc::SHARE) {
01138     // SHARE file type
01139     //For SHARE files, all data will be stored in a temp file and will be merged into the target file
01140     //in write() when finalize(), this help to solve some confliction. e.g. with storegate
01141
01142   static int ishared = 0;
01143   stringstream out;
01144   string realfilename=filename;
01145   out << ishared;
01146   filename = string("tmp_THistSvc_")+out.str()+string(".root");
01147
01148   log << MSG::DEBUG << "Creating temp file \"" << filename
01149       << "\" and realfilename="<<realfilename << endmsg;
01150   m_sharedFiles[stream]=realfilename;
01151
01152   try {
01153   f = TFile::Open(filename.c_str(),"NEW");
01154   } catch (const std::exception& Exception) {
01155     log << MSG::ERROR << "exception caught while trying to open root"
01156         << " file for appending: " << Exception.what() << std::endl
01157         << "  -> file probably corrupt." << endmsg;
01158   return StatusCode::FAILURE;
01159   } catch (...) {
01160     log << MSG::ERROR << "Problems opening output file  \"" << filename
01161         << "\" for append: probably corrupt" << endmsg;
01162   return StatusCode::FAILURE;
01163   }
01164
01165   if (!f->IsOpen()) {
01166     log << MSG::ERROR << "Unable to open output file \"" << filename
01167         << "\" for appending" << endmsg;
01168   return StatusCode::FAILURE;
01169   }
01170     f->SetCompressionLevel( m_compressionLevel );
01171
01172   } else if (newMode == THistSvc::UPDATE) {
01173     // update file
01174
01175     try {
01176       f =  TFile::Open(filename.c_str(),"RECREATE");
01177     } catch (const std::exception& Exception) {
01178       log << MSG::ERROR << "exception caught while trying to open root"
01179           << " file for updating: " << Exception.what() << std::endl
01180           << "  -> file probably corrupt." << endmsg;
01181       return StatusCode::FAILURE;
01182     } catch (...) {
01183       log << MSG::ERROR << "Problems opening output file  \"" << filename
01184           << "\" for update: probably corrupt" << endmsg;
01185       return StatusCode::FAILURE;
01186     }
01187
01188     if (!f->IsOpen()) {
01189       log << MSG::ERROR << "Unable to open output file \"" << filename
01190           << "\" for updating" << endmsg;
01191       return StatusCode::FAILURE;
01192     }
01193     f->SetCompressionLevel( m_compressionLevel );
01194
01195   }
01196
01197   m_files[stream] = make_pair<TFile*,Mode>(f,newMode);
01198   m_fileStreams.insert(make_pair<std::string,std::string>(filename,stream));
01199
01200   log << MSG::DEBUG << "Opening TFile \"" << filename << "\"  stream: \""
01201       << stream << "\"  mode: \"" << typ << "\""
01202       << endmsg;
01203
01204   return StatusCode::SUCCESS;
01205 }

TDirectory * THistSvc::changeDir ( const THistSvc::THistID & hid ) const [private]

Definition at line 1210 of file THistSvc.cpp.

01210                                                     {
01211
01212   string uid = hid.id;
01213   TFile* file = hid.file;
01214   string stream, fdir, bdir, dir, id;
01215
01216   if (file != 0) {
01217     file->cd("/");
01218   } else {
01219     gROOT->cd();
01220   }
01221
01222   fdir = uid;
01223   bdir = dirname(fdir);
01224
01225   while ( (dir = dirname(fdir)) != "") {
01226     if (! gDirectory->GetKey(dir.c_str())) {
01227       gDirectory->mkdir(dir.c_str());
01228     }
01229     gDirectory->cd(dir.c_str());
01230   }
01231
01232   return gDirectory;
01233
01234 }

std::string THistSvc::dirname ( std::string & dir ) const [private]

Definition at line 1239 of file THistSvc.cpp.

01239                                       {
01240
01241
01242   string::size_type i = dir.find("/");
01243
01244   if (i == string::npos) {
01245     return "";
01246   }
01247
01248   if ( i == 0 ) {
01249     dir.erase(0,1);
01250     return dirname(dir);
01251   }
01252
01253   string root = dir.substr(0,i);
01254   dir.erase(0,i);
01255
01256   return root;
01257
01258 }

void THistSvc::removeDoubleSlash ( std::string & id ) const [private]

Definition at line 1277 of file THistSvc.cpp.

01277                                                {
01278
01279   while (id.find("//") != std::string::npos) {
01280     id.replace(id.find("//"),2,"/");
01281   }
01282
01283 }

bool THistSvc::browseTDir ( TDirectory * dir ) const [private]

Definition at line 290 of file THistSvc.cpp.

00290                                           {
00291
00292   if (dir == 0) {
00293     std::cerr << "TDirectory == 0" << std::endl;
00294     return false;
00295   }
00296
00297   GlobalDirectoryRestore restore;
00298
00299   MsgStream log(msgSvc(), name());
00300
00301   dir->cd();
00302
00303
00304   cout << "-> " << dir->GetPath() << "  "
00305        << dir->GetListOfKeys()->GetSize() << endl;
00306
00307   //  TIter nextkey(dir->GetListOfKeys());
00308   TIter nextkey(dir->GetList());
00309   while (TKey *key = (TKey*)nextkey()) {
00310
00311     TObject *obj = key->ReadObj();
00312     if (obj == 0) { cout << key->GetName() << " obj==0"<< endl; continue; }
00313     //    if (obj->IsA()->InheritsFrom("TDirectory")) {
00314       cout << "  Key: " << key->GetName() << "   "
00315            << " tit: " << obj->GetTitle() << "   "
00316            << " (" << key->GetClassName() << ")" << endl;
00317       //    }
00318   }
00319
00320   nextkey = dir->GetListOfKeys();
00321   while (TKey *key = (TKey*)nextkey()) {
00322
00323     TObject *obj = key->ReadObj();
00324     if (obj == 0) { cout << key->GetName() << " obj==0"<< endl; continue; }
00325     if (obj->IsA()->InheritsFrom("TDirectory")) {
00326       TDirectory *tt = dynamic_cast<TDirectory*>(obj);
00327       browseTDir(tt);
00328     }
00329   }
00330
00331   return true;
00332 }

bool THistSvc::findStream	(	const std::string &	name,
		std::string &	root,
		std::string &	rem,
		TFile *&	file
	)			const `[private]`

Definition at line 724 of file THistSvc.cpp.

00725                                        {
00726
00727   string::size_type pos = id.find("/");
00728
00729   if (pos == string::npos) {
00730     stream = "temp";
00731     rem = id;
00732   } else if (pos != 0) {
00733     stream = "temp";
00734     rem = id;
00735   } else {
00736
00737     string::size_type pos2 = id.find("/",pos+1);
00738
00739     if (pos2 == string::npos) {
00740       MsgStream log( msgSvc(), name() );
00741       log << MSG::ERROR << "badly formed Hist/Tree id: \"" << id << "\""
00742           << endmsg;
00743       return false;
00744     }
00745
00746     parseString(id,stream,rem);
00747
00748   }
00749
00750   if (stream == "temp") {
00751     file = 0;
00752     return true;
00753   }
00754
00755   map< string,pair<TFile*,Mode> >::const_iterator itr = m_files.find(stream);
00756   if (itr != m_files.end()) {
00757     file = itr->second.first;
00758   } else {
00759     file = 0;
00760     MsgStream log( msgSvc(), name() );
00761     log << MSG::WARNING << "no stream \"" << stream
00762         << "\" associated with id: \"" << id << "\""
00763         << endmsg;
00764   }
00765
00766   return true;
00767
00768 }

void THistSvc::parseString	(	const std::string &	id,
		std::string &	root,
		std::string &	rem
	)			const `[private]`

Definition at line 773 of file THistSvc.cpp.

00773                                                                        {
00774   string::size_type pos = id.find("/");
00775
00776   if (pos == string::npos) {
00777     root = "";
00778     rem = id;
00779     return;
00780   }
00781
00782   if (pos == 0) {
00783     parseString(id.substr(1,id.length()),root,rem);
00784   } else {
00785     root = id.substr(0,pos);
00786     rem = id.substr(pos+1,id.length());
00787   }
00788
00789 }

void THistSvc::setupInputFile ( Property & inputfile ) [private]

call-back method to handle input stream property

Definition at line 794 of file THistSvc.cpp.

00795 {
00796   StatusCode sc = StatusCode::SUCCESS;
00797
00798   typedef std::vector<std::string> Strings_t;
00799   for ( Strings_t::const_iterator
00800           itr  = m_inputfile.value().begin(),
00801           iEnd = m_inputfile.value().end();
00802         itr != iEnd;
00803         ++itr ) {
00804     if ( m_alreadyConnectedInFiles.end() ==
00805          m_alreadyConnectedInFiles.find( *itr ) ) {
00806       if ( connect(*itr).isFailure() ) {
00807         sc = StatusCode::FAILURE;
00808       } else {
00809         m_alreadyConnectedInFiles.insert( *itr );
00810       }
00811     }
00812   }
00813
00814   if ( !sc.isSuccess() ) {
00815     throw GaudiException( "Problem connecting inputfile !!", name(),
00816                           StatusCode::FAILURE );
00817   }
00818   return;
00819 }

void THistSvc::setupOutputFile ( Property & outputfile ) [private]

call-back method to handle input stream property

Definition at line 824 of file THistSvc.cpp.

00825 {
00826   StatusCode sc = StatusCode::SUCCESS;
00827
00828   typedef std::vector<std::string> Strings_t;
00829   for ( Strings_t::const_iterator
00830           itr  = m_outputfile.value().begin(),
00831           iEnd = m_outputfile.value().end();
00832         itr != iEnd;
00833         ++itr ) {
00834     if ( m_alreadyConnectedOutFiles.end() ==
00835          m_alreadyConnectedOutFiles.find( *itr ) ) {
00836       if ( connect(*itr).isFailure() ) {
00837         sc = StatusCode::FAILURE;
00838       } else {
00839         m_alreadyConnectedOutFiles.insert( *itr );
00840       }
00841     }
00842   }
00843
00844   if ( !sc.isSuccess() ) {
00845     throw GaudiException( "Problem connecting outputfile !!", name(),
00846                           StatusCode::FAILURE );
00847   }
00848   return;
00849 }

void THistSvc::MergeRootFile	(	TDirectory *	target,
		TDirectory *	source
	)			`[private]`

Definition at line 1287 of file THistSvc.cpp.

01287                                                                    {
01288
01289   MsgStream log(msgSvc(), name() );
01290
01291   log <<MSG::DEBUG << "Target path: " << target->GetPath() << endmsg;
01292   TString path( (char*)strstr(target->GetPath(), ":") );
01293   path.Remove( 0, 2);
01294
01295   source->cd(path);
01296   TDirectory *current_sourcedir = gDirectory;
01297
01298   // loop over all keys in this directory
01299   TList *lkeys=current_sourcedir->GetListOfKeys();
01300   int nkeys=lkeys->GetEntries();
01301   TKey *key;
01302   for (int jj=0; jj<nkeys; jj++) {
01303     key=(TKey*) lkeys->At(jj);
01304     string pathnameinsource=current_sourcedir->GetPath()+string("/")+key->GetName();
01305     log <<MSG::DEBUG << "Reading Key:" << pathnameinsource << endmsg;
01306     //key->Dump();
01307     //TObject *obj=key->ReadObj();
01308     TObject *obj=source->Get(pathnameinsource.c_str());
01309
01310     if (obj->IsA()->InheritsFrom("TDirectory") ) {
01311       // it's a subdirectory
01312
01313       log <<MSG::DEBUG << "Found subdirectory " << obj->GetName()
01314           << endmsg;
01315
01316       // create a new subdir of same name and title in the target file
01317       target->cd();
01318       TDirectory *newtargetdir =
01319         target->mkdir(obj->GetName(), obj->GetTitle() );
01320
01321       MergeRootFile(newtargetdir, source);
01322
01323     } else if (obj->IsA()->InheritsFrom("TTree")) {
01324       log <<MSG::DEBUG << "Found TTree " << obj->GetName() << endmsg;
01325       TTree *mytree=dynamic_cast<TTree*>(obj);
01326       int nentries=(int) mytree->GetEntries();
01327       mytree->SetBranchStatus("*",1);
01328
01329       log <<MSG::DEBUG << "Dumping TTree " << nentries <<" entries"
01330           << endmsg;
01331       //mytree->Print();
01332       //for (int ij=0; ij<nentries; ij++) {
01333       //log <<MSG::DEBUG << "Dumping TTree Show( " << ij <<" )"
01334       //<< endmsg;
01335       //mytree->Show(ij);
01336       //}
01337       target->cd();
01338       mytree->CloneTree();
01339
01340       //log <<MSG::DEBUG << "Writing TTree to target file: ( "
01341       //<< mycopiedtree->Write(key->GetName()) <<" ) bytes written"
01342       //<< endmsg;
01343
01344     } else if (obj) {
01345       target->cd();
01346       obj->Write(key->GetName() );
01347     }
01348
01349   } // while ( ( TKey *key = (TKey*)nextkey() ) )
01350
01351   // save modifications to target file
01352
01353 }

Member Data Documentation

StringArrayProperty THistSvc::m_inputfile [private]

Definition at line 146 of file THistSvc.h.

StringArrayProperty THistSvc::m_outputfile [private]

Definition at line 146 of file THistSvc.h.

std::vector<std::string> THistSvc::m_Rstream [private]

Definition at line 147 of file THistSvc.h.

std::vector<std::string> THistSvc::m_Wstream [private]

Definition at line 147 of file THistSvc.h.

IntegerProperty THistSvc::m_autoSave [private]

Definition at line 148 of file THistSvc.h.

IntegerProperty THistSvc::m_compressionLevel [private]

Definition at line 148 of file THistSvc.h.

BooleanProperty THistSvc::m_print [private]

Definition at line 149 of file THistSvc.h.

std::set<std::string> THistSvc::m_alreadyConnectedInFiles [private]

list of already connected files.

This is to keep track of files registered by the setupInputFile callback method

Definition at line 153 of file THistSvc.h.

std::set<std::string> THistSvc::m_alreadyConnectedOutFiles [private]

list of already connected files.

This is to keep track of files registered by the setupOutputFile callback method

Definition at line 157 of file THistSvc.h.

uidMap THistSvc::m_uids [private]

Definition at line 161 of file THistSvc.h.

idMap THistSvc::m_ids [private]

Definition at line 162 of file THistSvc.h.

objMap THistSvc::m_tobjs [private]

Definition at line 163 of file THistSvc.h.

std::map<std::string, std::pair<TFile*,Mode> > THistSvc::m_files [private]

Definition at line 165 of file THistSvc.h.

streamMap THistSvc::m_fileStreams [private]

Definition at line 166 of file THistSvc.h.

std::map<std::string, std::string > THistSvc::m_sharedFiles [private]

Definition at line 168 of file THistSvc.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r7/GaudiSvc/src/THistSvc/THistSvc.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r7/GaudiSvc/src/THistSvc/THistSvc.cpp


Public Member Functions
virtual StatusCode	initialize ()
virtual StatusCode	reinitialize ()
virtual StatusCode	finalize ()
virtual StatusCode	regHist (const std::string &name)
virtual StatusCode	regHist (const std::string &name, TH1 *)
virtual StatusCode	regHist (const std::string &name, TH2 *)
virtual StatusCode	regHist (const std::string &name, TH3 *)
virtual StatusCode	getHist (const std::string &name, TH1 *&) const
virtual StatusCode	getHist (const std::string &name, TH2 *&) const
virtual StatusCode	getHist (const std::string &name, TH3 *&) const
virtual StatusCode	regTree (const std::string &name)
virtual StatusCode	regTree (const std::string &name, TTree *)
virtual StatusCode	getTree (const std::string &name, TTree *&) const
virtual StatusCode	regGraph (const std::string &name)
virtual StatusCode	regGraph (const std::string &name, TGraph *)
virtual StatusCode	getGraph (const std::string &name, TGraph *&) const
virtual StatusCode	deReg (TObject *obj)
virtual StatusCode	deReg (const std::string &name)
virtual std::vector< std::string >	getHists () const
virtual std::vector< std::string >	getTrees () const
virtual std::vector< std::string >	getGraphs () const
virtual StatusCode	getTHists (TDirectory *td, TList &) const
virtual StatusCode	getTHists (const std::string &name, TList &) const
virtual StatusCode	getTTrees (TDirectory *td, TList &) const
virtual StatusCode	getTTrees (const std::string &name, TList &) const
	THistSvc (const std::string &name, ISvcLocator *svc)
Protected Member Functions
virtual	~THistSvc ()
Private Types
enum	Mode { READ, WRITE, UPDATE, APPEND, SHARE }
typedef std::map< std::string, THistID >	uidMap
typedef std::multimap < std::string, THistID >	idMap
typedef std::map< TObject *, THistID >	objMap
typedef std::multimap < std::string, std::string >	streamMap
Private Member Functions
template<typename T>
StatusCode	regHist_i (T *hist, const std::string &name)
template<typename T>
StatusCode	getHist_i (const std::string &name, T *&hist) const
template<typename T>
StatusCode	readHist_i (const std::string &name, T *&hist) const
StatusCode	readHist (const std::string &name, TH1 *&) const
StatusCode	readHist (const std::string &name, TH2 *&) const
StatusCode	readHist (const std::string &name, TH3 *&) const
StatusCode	readTree (const std::string &name, TTree *&) const
void	updateFiles ()
StatusCode	write ()
StatusCode	connect (const std::string &)
TDirectory *	changeDir (const THistSvc::THistID &hid) const
std::string	dirname (std::string &dir) const
void	removeDoubleSlash (std::string &) const
bool	browseTDir (TDirectory *dir) const
bool	findStream (const std::string &name, std::string &root, std::string &rem, TFile *&file) const
void	parseString (const std::string &id, std::string &root, std::string &rem) const
void	setupInputFile (Property &inputfile)
	call-back method to handle input stream property
void	setupOutputFile (Property &outputfile)
	call-back method to handle input stream property
void	MergeRootFile (TDirectory target, TDirectory source)
Private Attributes
StringArrayProperty	m_inputfile
StringArrayProperty	m_outputfile
std::vector< std::string >	m_Rstream
std::vector< std::string >	m_Wstream
IntegerProperty	m_autoSave
IntegerProperty	m_compressionLevel
BooleanProperty	m_print
std::set< std::string >	m_alreadyConnectedInFiles
	list of already connected files.
std::set< std::string >	m_alreadyConnectedOutFiles
	list of already connected files.
uidMap	m_uids
idMap	m_ids
objMap	m_tobjs
std::map< std::string, std::pair< TFile *, Mode > >	m_files
streamMap	m_fileStreams
std::map< std::string, std::string >	m_sharedFiles
Classes
class	GlobalDirectoryRestore
struct	THistID

Gaudi Framework, version v21r7

THistSvc Class Reference

Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Classes

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
