Gaudi::Generic1D< INTERFACE, IMPLEMENTATION > Class Template Reference

Common AIDA implementation stuff for histograms and profiles using ROOT implementations. More...

#include <GaudiPI/Generic1D.h>

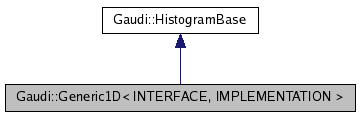

Inheritance diagram for Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >:

Inheritance graph
[legend]

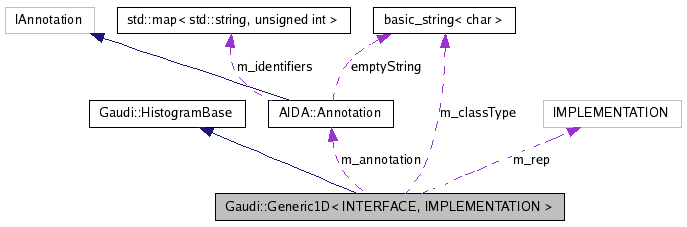

Collaboration diagram for Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >:

Collaboration graph
[legend]

List of all members.

Public Types

typedef Generic1D< INTERFACE,
IMPLEMENTATION > 		Base

Public Member Functions

 Generic1D ()
 Default constructor.
virtual ~Generic1D ()
 Default destructor.
virtual const std::string & userLevelClassType () const
 The AIDA user-level unterface leaf class type.
virtual void * cast (const std::string &cl) const
 Manual cast by class name.
TObject * representation () const
 ROOT object implementation.
virtual void adoptRepresentation (TObject *rep)
 Adopt ROOT histogram representation.
virtual std::string title () const
 Get the title of the object.
virtual bool setTitle (const std::string &title)
 Set the title of the object.
std::string name () const
 object name
bool setName (const std::string &newName)
 Set the name of the object.
virtual AIDA::IAnnotation & annotation ()
 Access annotation object.
virtual const AIDA::IAnnotation & annotation () const
 Access annotation object (cons).
Axis & axis ()
 Access to axis object.
const Axis & axis () const
 Get the x axis of the IHistogram1D.
virtual int entries () const
 Get the number or all the entries.
virtual int allEntries () const
 Get the number or all the entries, both in range and underflow/overflow bins of the IProfile.
virtual int extraEntries () const
 Get the number of entries in the underflow and overflow bins.
virtual int binEntries (int index) const
 Number of entries in the corresponding bin (ie the number of times fill was called for this bin).
virtual double binRms (int index) const
virtual double sumBinHeights () const
 Get the sum of in range bin heights in the IProfile.
virtual double sumAllBinHeights () const
 Get the sum of all the bins heights (including underflow and overflow bin).
virtual double sumExtraBinHeights () const
 Get the sum of the underflow and overflow bin height.
virtual double minBinHeight () const
 Get the minimum height of the in-range bins.
virtual double maxBinHeight () const
 Get the maximum height of the in-range bins.
virtual double equivalentBinEntries () const
 Number of equivalent entries, i.e. SUM[ weight ] ^ 2 / SUM[ weight^2 ].
virtual bool scale (double scaleFactor)
 Scale the weights and the errors of all the IHistogram's bins (in-range and out-of-range ones) by a given scale factor.
virtual bool reset ()
 Reset the Histogram; as if just created.
virtual bool add (const INTERFACE &profile)
 Modifies this IProfile1D by adding the contents of profile to it.
virtual int rIndex (int index) const
 operator methods
virtual double binMean (int index) const
 The weighted mean of a bin.
virtual double binHeight (int index) const
 Total height of the corresponding bin (ie the sum of the weights in this bin).
virtual double binError (int index) const
 The error of a given bin.
virtual double mean () const
 The mean of the whole IHistogram1D.
virtual double rms () const
 The RMS of the whole IHistogram1D.
virtual int coordToIndex (double coord) const
 Get the bin number corresponding to a given coordinate along the x axis.
virtual int dimension () const
 Get the Histogram's dimension.
virtual std::ostream & print (std::ostream &s) const
 Print (ASCII) the histogram into the output stream.
virtual std::ostream & write (std::ostream &s) const
 Write (ASCII) the histogram table into the output stream.
virtual int write (const char *file_name) const
 Write (ASCII) the histogram table into a file.
template<>
void * cast (const std::string &className) const
template<>
int binEntries (int index) const
template<>
void adoptRepresentation (TObject *rep)
 Adopt ROOT histogram representation.
template<>
int binEntries (int index) const
template<>
void * cast (const std::string &className) const
template<>
void adoptRepresentation (TObject *rep)
 Adopt ROOT histogram representation.

Protected Attributes

Axis m_axis
 Axis member.
AIDA::Annotation m_annotation
 Object annotations.
IMPLEMENTATION * m_rep
 Reference to underlying implementation.
std::string m_classType
int m_sumEntries

Detailed Description

template<class INTERFACE, class IMPLEMENTATION>
class Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >

Common AIDA implementation stuff for histograms and profiles using ROOT implementations.

Credits: This code is the result of some stripdown implementation of LCG/PI. Credits to them!

Author:
M.Frank

Definition at line 29 of file Generic1D.h.

Member Typedef Documentation

template<class INTERFACE, class IMPLEMENTATION>
typedef Generic1D<INTERFACE,IMPLEMENTATION> Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::Base

Definition at line 31 of file Generic1D.h.

Constructor & Destructor Documentation

template<class INTERFACE, class IMPLEMENTATION>
Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::Generic1D (  )  [inline]

Default constructor.

Definition at line 33 of file Generic1D.h.

00033 : m_rep(0) {}

template<class INTERFACE, class IMPLEMENTATION>
virtual Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::~Generic1D (  )  [inline, virtual]

Default destructor.

Definition at line 35 of file Generic1D.h.

00035 { delete m_rep;                       }

Member Function Documentation

template<class INTERFACE, class IMPLEMENTATION>
virtual const std::string& Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::userLevelClassType (  )  const [inline, virtual]

The AIDA user-level unterface leaf class type.

Definition at line 37 of file Generic1D.h.

00037 { return m_classType;                 }

template<class INTERFACE, class IMPLEMENTATION>
virtual void* Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::cast ( const std::string &  cl  )  const [virtual]

Manual cast by class name.

template<class INTERFACE, class IMPLEMENTATION>
TObject* Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::representation (  )  const [inline, virtual]

ROOT object implementation.

Implements Gaudi::HistogramBase.

Definition at line 41 of file Generic1D.h.

00041 { return m_rep;                       }

template<class INTERFACE, class IMPLEMENTATION>
virtual void Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::adoptRepresentation ( TObject *  rep  )  [virtual]

Adopt ROOT histogram representation.

Implements Gaudi::HistogramBase.

template<class INTERFACE, class IMPLEMENTATION>
virtual std::string Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::title (  )  const [inline, virtual]

Get the title of the object.

Definition at line 45 of file Generic1D.h.

00045 { return m_annotation.value("Title"); }

template<class INTERFACE, class IMPLEMENTATION>
bool Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::setTitle ( const std::string &  title  )  [inline, virtual]

Set the title of the object.

Definition at line 127 of file Generic1D.h.

00127                                                                              {
00128     m_rep->SetTitle(title.c_str());
00129     if ( !annotation().addItem( "Title", title ) )
00130       m_annotation.setValue( "Title" , title );
00131     if ( !annotation().addItem( "title", title ) )
00132       annotation().setValue( "title", title );
00133     return true;
00134   }

template<class INTERFACE, class IMPLEMENTATION>
std::string Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::name (  )  const [inline]

object name

Definition at line 49 of file Generic1D.h.

00049 { return m_annotation.value("Name");  }

template<class INTERFACE, class IMPLEMENTATION>
bool Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::setName ( const std::string &  newName  )  [inline]

Set the name of the object.

Definition at line 137 of file Generic1D.h.

00137                                                                               {
00138     m_rep->SetName(newName.c_str());
00139     m_annotation.setValue( "Name", newName );
00140     return true;
00141   }

template<class INTERFACE, class IMPLEMENTATION>
virtual AIDA::IAnnotation& Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::annotation (  )  [inline, virtual]

Access annotation object.

Definition at line 53 of file Generic1D.h.

00053 { return m_annotation;                }

template<class INTERFACE, class IMPLEMENTATION>
virtual const AIDA::IAnnotation& Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::annotation (  )  const [inline, virtual]

Access annotation object (cons).

Definition at line 55 of file Generic1D.h.

00055 { return m_annotation;                }

template<class INTERFACE, class IMPLEMENTATION>
Axis& Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::axis (  )  [inline]

Access to axis object.

Definition at line 57 of file Generic1D.h.

00057 { return m_axis;                      }

template<class INTERFACE, class IMPLEMENTATION>
const Axis& Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::axis (  )  const [inline]

Get the x axis of the IHistogram1D.

Definition at line 59 of file Generic1D.h.

00059 { return m_axis;                      }

template<class INTERFACE, class IMPLEMENTATION>
virtual int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::entries (  )  const [inline, virtual]

Get the number or all the entries.

Definition at line 62 of file Generic1D.h.

00062 { return (int)m_rep->GetEntries();           }

template<class INTERFACE, class IMPLEMENTATION>
virtual int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::allEntries (  )  const [inline, virtual]

Get the number or all the entries, both in range and underflow/overflow bins of the IProfile.

Definition at line 64 of file Generic1D.h.

00064 { return int(m_rep->GetEntries());           }

template<class INTERFACE, class IMPLEMENTATION>
int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::extraEntries (  )  const [inline, virtual]

Get the number of entries in the underflow and overflow bins.

Definition at line 164 of file Generic1D.h.

00164                                                               {
00165     return binEntries(AIDA::IAxis::UNDERFLOW_BIN) +
00166           binEntries(AIDA::IAxis::OVERFLOW_BIN);
00167   }

template<class INTERFACE, class IMPLEMENTATION>
virtual int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::binEntries ( int  index  )  const [virtual]

Number of entries in the corresponding bin (ie the number of times fill was called for this bin).

template<class INTERFACE, class IMPLEMENTATION>
double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::binRms ( int  index  )  const [inline, virtual]

Definition at line 144 of file Generic1D.h.

00144                                                                     {
00145     return m_rep->GetBinError ( rIndex(index) );
00146   }

template<class INTERFACE, class IMPLEMENTATION>
virtual double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::sumBinHeights (  )  const [inline, virtual]

Get the sum of in range bin heights in the IProfile.

Definition at line 72 of file Generic1D.h.

00072 { return m_rep->GetSumOfWeights();            }

template<class INTERFACE, class IMPLEMENTATION>
virtual double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::sumAllBinHeights (  )  const [inline, virtual]

Get the sum of all the bins heights (including underflow and overflow bin).

Definition at line 74 of file Generic1D.h.

00074 { return m_rep->GetSum();                     }

template<class INTERFACE, class IMPLEMENTATION>
virtual double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::sumExtraBinHeights (  )  const [inline, virtual]

Get the sum of the underflow and overflow bin height.

Definition at line 76 of file Generic1D.h.

00076 { return  sumAllBinHeights()-sumBinHeights(); }

template<class INTERFACE, class IMPLEMENTATION>
virtual double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::minBinHeight (  )  const [inline, virtual]

Get the minimum height of the in-range bins.

Definition at line 78 of file Generic1D.h.

00078 { return m_rep->GetMinimum();                 }

template<class INTERFACE, class IMPLEMENTATION>
virtual double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::maxBinHeight (  )  const [inline, virtual]

Get the maximum height of the in-range bins.

Definition at line 80 of file Generic1D.h.

00080 { return m_rep->GetMaximum();                 }

template<class INTERFACE, class IMPLEMENTATION>
double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::equivalentBinEntries (  )  const [inline, virtual]

Number of equivalent entries, i.e. SUM[ weight ] ^ 2 / SUM[ weight^2 ].

Definition at line 176 of file Generic1D.h.

00176                                                                           {
00177     if (sumBinHeights() <= 0) return 0;
00178     Stat_t stats[11];   // cover up to 3D...
00179     m_rep->GetStats(stats);
00180     return stats[0]*stats[0]/stats[1];
00181   }

template<class INTERFACE, class IMPLEMENTATION>
bool Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::scale ( double  scaleFactor  )  [inline, virtual]

Scale the weights and the errors of all the IHistogram's bins (in-range and out-of-range ones) by a given scale factor.

Definition at line 184 of file Generic1D.h.

00184                                                                       {
00185     m_rep->Scale ( scaleFactor );
00186     return true;
00187   }

template<class INTERFACE, class IMPLEMENTATION>
bool Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::reset (  )  [inline, virtual]

Reset the Histogram; as if just created.

Definition at line 169 of file Generic1D.h.

00169                                                     {
00170     m_sumEntries = 0;
00171     m_rep->Reset();
00172     return true;
00173   }

template<class INTERFACE, class IMPLEMENTATION>
bool Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::add ( const INTERFACE &  profile  )  [inline, virtual]

Modifies this IProfile1D by adding the contents of profile to it.

Definition at line 190 of file Generic1D.h.

00190                                                                     {
00191     const Generic1D<INTERFACE,IMPLEMENTATION>* p =
00192       dynamic_cast<const Generic1D<INTERFACE,IMPLEMENTATION>*>(&h);
00193     if ( p )  {
00194       m_rep->Add(p->m_rep);
00195       return true;
00196     }
00197     throw std::runtime_error("Cannot add profile histograms of different implementations.");
00198   }

template<class INTERFACE, class IMPLEMENTATION>
virtual int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::rIndex ( int  index  )  const [inline, virtual]

operator methods

Definition at line 91 of file Generic1D.h.

00091 { return m_axis.rIndex(index);}

template<class INTERFACE, class IMPLEMENTATION>
double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::binMean ( int  index  )  const [inline, virtual]

The weighted mean of a bin.

Definition at line 149 of file Generic1D.h.

00149                                                                          {
00150     return m_rep->GetBinCenter ( rIndex(index) );
00151   }

template<class INTERFACE, class IMPLEMENTATION>
double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::binHeight ( int  index  )  const [inline, virtual]

Total height of the corresponding bin (ie the sum of the weights in this bin).

Definition at line 154 of file Generic1D.h.

00154                                                                            {
00155     return m_rep->GetBinContent ( rIndex(index) );
00156   }

template<class INTERFACE, class IMPLEMENTATION>
double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::binError ( int  index  )  const [inline, virtual]

The error of a given bin.

Definition at line 159 of file Generic1D.h.

00159                                                                           {
00160     return m_rep->GetBinError ( rIndex(index) );
00161   }

template<class INTERFACE, class IMPLEMENTATION>
virtual double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::mean (  )  const [inline, virtual]

The mean of the whole IHistogram1D.

Definition at line 99 of file Generic1D.h.

00099 { return m_rep->GetMean();                    }

template<class INTERFACE, class IMPLEMENTATION>
virtual double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::rms (  )  const [inline, virtual]

The RMS of the whole IHistogram1D.

Definition at line 101 of file Generic1D.h.

00101 {  return m_rep->GetRMS();                    }

template<class INTERFACE, class IMPLEMENTATION>
virtual int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::coordToIndex ( double  coord  )  const [inline, virtual]

Get the bin number corresponding to a given coordinate along the x axis.

Definition at line 103 of file Generic1D.h.

00103 { return axis().coordToIndex(coord);}

template<class INTERFACE, class IMPLEMENTATION>
virtual int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::dimension (  )  const [inline, virtual]

Get the Histogram's dimension.

Definition at line 105 of file Generic1D.h.

00105 { return 1; }

template<class INTERFACE, class IMPLEMENTATION>
std::ostream & Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::print ( std::ostream &  s  )  const [inline, virtual]

Print (ASCII) the histogram into the output stream.

bin contents and errors are printed for all bins including under and overflows

Implements Gaudi::HistogramBase.

Definition at line 201 of file Generic1D.h.

00201                                                                                  {
00203     m_rep->Print("all");
00204     return s;
00205   }

template<class INTERFACE, class IMPLEMENTATION>
std::ostream & Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::write ( std::ostream &  s  )  const [inline, virtual]

Write (ASCII) the histogram table into the output stream.

Implements Gaudi::HistogramBase.

Definition at line 209 of file Generic1D.h.

00209                                                                                {
00210     s << "\n1D Histogram Table: " << std::endl;
00211     s << "Bin, Height, Error "  << std::endl;
00212     for( int i = 0; i < axis().bins(); ++i )
00213       s << binMean( i ) << ", "
00214         << binHeight( i ) << ", "
00215         << binError ( i ) << std::endl;
00216     s << std::endl;
00217     return s;
00218   }

template<class INTERFACE, class IMPLEMENTATION>
int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::write ( const char *  file_name  )  const [inline, virtual]

Write (ASCII) the histogram table into a file.

Implements Gaudi::HistogramBase.

Definition at line 222 of file Generic1D.h.

00223   {
00224     TFile *f = TFile::Open(file_name,"RECREATE");
00225     Int_t nbytes = m_rep->Write();
00226     f->Close();
00227     return nbytes;
00228   }

template<>
void * Gaudi::Generic1D< AIDA::IHistogram1D, TH1D >::cast ( const std::string &  className  )  const [inline]

Definition at line 25 of file H1D.cpp.

00025                                                                                             {
00026     if (className == "AIDA::IHistogram1D")
00027       return const_cast<AIDA::IHistogram1D*>((AIDA::IHistogram1D*)this);
00028     if (className == "AIDA::IHistogram")
00029       return const_cast<AIDA::IHistogram*>((AIDA::IHistogram*)this);
00030     return 0;
00031   }

template<>
int Gaudi::Generic1D< AIDA::IHistogram1D, TH1D >::binEntries ( int  index  )  const [inline]

Definition at line 33 of file H1D.cpp.

00033                                                                                {
00034     if (binHeight(index)<=0) return 0;
00035     double xx =  binHeight(index)/binError(index);
00036     return int(xx*xx+0.5);
00037   }

template<>
void Gaudi::Generic1D< AIDA::IHistogram1D, TH1D >::adoptRepresentation ( TObject *  rep  )  [inline, virtual]

Adopt ROOT histogram representation.

Implements Gaudi::HistogramBase.

Definition at line 40 of file H1D.cpp.

00040                                                                           {
00041     TH1D* imp = dynamic_cast<TH1D*>(rep);
00042     if ( imp )  {
00043       if ( m_rep ) delete m_rep;
00044       m_rep = imp;
00045       return;
00046     }
00047     throw std::runtime_error("Cannot adopt native histogram representation.");
00048   }

template<>
int Gaudi::Generic1D< AIDA::IProfile1D, TProfile >::binEntries ( int  index  )  const [inline]

Definition at line 34 of file P1D.cpp.

00034                                                                       {
00035     return int(m_rep->GetBinEntries( rIndex(index) )+0.5);
00036   }

template<>
void * Gaudi::Generic1D< AIDA::IProfile1D, TProfile >::cast ( const std::string &  className  )  const [inline]

Definition at line 38 of file P1D.cpp.

00038                                                                                              {
00039     if (className == "AIDA::IProfile1D")
00040       return const_cast<AIDA::IProfile1D*>((AIDA::IProfile1D*)this);
00041     else if (className == "AIDA::IProfile")
00042       return const_cast<AIDA::IProfile*>((AIDA::IProfile*)this);
00043     else if (className == "AIDA::IBaseHistogram")
00044       return const_cast<AIDA::IBaseHistogram*>((AIDA::IBaseHistogram*)this);
00045     return 0;
00046   }

template<>
void Gaudi::Generic1D< AIDA::IProfile1D, TProfile >::adoptRepresentation ( TObject *  rep  )  [inline, virtual]

Adopt ROOT histogram representation.

Implements Gaudi::HistogramBase.

Definition at line 49 of file P1D.cpp.

00049                                                                             {
00050     TProfile* imp = dynamic_cast<TProfile*>(rep);
00051     if ( imp )  {
00052     if ( m_rep ) delete m_rep;
00053       m_rep = imp;
00054       m_axis.initialize(m_rep->GetXaxis(),true);
00055       const TArrayD* a = m_rep->GetSumw2();
00056       if ( 0 == a || (a && a->GetSize()==0) ) m_rep->Sumw2();
00057       setTitle(m_rep->GetTitle());
00058       return;
00059     }
00060     throw std::runtime_error("Cannot adopt native histogram representation.");
00061   }

Member Data Documentation

template<class INTERFACE, class IMPLEMENTATION>
Axis Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::m_axis [protected]

Axis member.

Definition at line 115 of file Generic1D.h.

template<class INTERFACE, class IMPLEMENTATION>
AIDA::Annotation Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::m_annotation [mutable, protected]

Object annotations.

Definition at line 117 of file Generic1D.h.

template<class INTERFACE, class IMPLEMENTATION>
IMPLEMENTATION* Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::m_rep [protected]

Reference to underlying implementation.

Definition at line 119 of file Generic1D.h.

template<class INTERFACE, class IMPLEMENTATION>
std::string Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::m_classType [protected]

Definition at line 121 of file Generic1D.h.

template<class INTERFACE, class IMPLEMENTATION>
int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::m_sumEntries [protected]

Definition at line 123 of file Generic1D.h.

The documentation for this class was generated from the following file:
Generated at Wed Mar 17 18:21:14 2010 for Gaudi Framework, version v21r8 by Doxygen version 1.5.6 written by Dimitri van Heesch, © 1997-2004
