Gaudi::Histogram3D Class Reference

AIDA implementation for 2 D histograms using ROOT THD2. More...

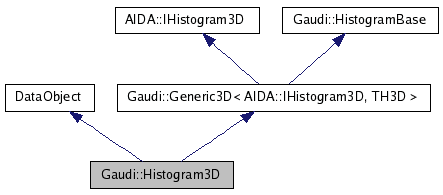

Inheritance diagram for Gaudi::Histogram3D:

Inheritance graph
[legend]
Collaboration diagram for Gaudi::Histogram3D:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 Histogram3D ()
 Standard Constructor.
 Histogram3D (TH3D *rep)
 Standard Constructor.
virtual ~Histogram3D ()
 Destructor.
bool fill (double x, double y, double z, double weight)
 Fill bin content.
virtual bool setBinContents (int i, int j, int k, int entries, double height, double error, double centreX, double centreY, double centreZ)
 Fast filling method for a given bin. It can be also the over/underflow bin.
virtual bool setRms (double rmsX, double rmsY, double rmsZ)
 Sets the rms of the histogram.
virtual bool reset ()
void * cast (const std::string &className) const
 Introspection method.
void copyFromAida (const AIDA::IHistogram3D &h)
 Create new histogram from any AIDA based histogram.
virtual const CLID & clID () const
 Retrieve reference to class defininition identifier.

Static Public Member Functions

static const CLID & classID ()
 Retrieve reference to class definition structure (static access).

Protected Attributes

double m_sumwx
double m_sumwy
double m_sumwz

Detailed Description

AIDA implementation for 2 D histograms using ROOT THD2.

Author:
M.Frank

Definition at line 15 of file H3D.cpp.

Constructor & Destructor Documentation

Gaudi::Histogram3D::Histogram3D (  )

Standard Constructor.

Definition at line 88 of file H3D.cpp.

00088                               {
00089   m_rep = new TH3D();
00090   setTitle("");
00091   m_rep->Sumw2();
00092   m_sumEntries = 0;
00093   m_sumwx = 0;
00094   m_sumwy = 0;
00095   m_sumwz = 0;
00096   m_rep->SetDirectory(0);
00097 }

Gaudi::Histogram3D::Histogram3D ( TH3D *  rep  )

Standard Constructor.

Definition at line 99 of file H3D.cpp.

00099                                        {
00100   m_rep = 0;
00101   adoptRepresentation(rep);
00102   m_sumEntries = 0;
00103   m_sumwx = 0;
00104   m_sumwy = 0;
00105   m_sumwz = 0;
00106   m_rep->SetDirectory(0);
00107 }

virtual Gaudi::Histogram3D::~Histogram3D (  )  [inline, virtual]

Destructor.

Definition at line 22 of file H3D.cpp.

00022 {}

Member Function Documentation

bool Gaudi::Histogram3D::fill ( double  x,
double  y,
double  z,
double  weight
)

Fill bin content.

Definition at line 159 of file H3D.cpp.

00159                                                                           {
00160   m_rep->Fill ( x , y, z, weight );
00161   return true;
00162 }

bool Gaudi::Histogram3D::setBinContents ( int  i,
int  j,
int  k,
int  entries,
double  height,
double  error,
double  centreX,
double  centreY,
double  centreZ
) [virtual]

Fast filling method for a given bin. It can be also the over/underflow bin.

Definition at line 110 of file H3D.cpp.

00110                                                                                                                                               {
00111   m_rep->SetBinContent(rIndexX(i), rIndexY(j), rIndexZ(k), height);
00112   m_rep->SetBinError(rIndexX(i), rIndexY(j), rIndexZ(k), error);
00113   // accumulate sum bin centers
00114   if (i >=0 && j >= 0 && k >= 0) {
00115     m_sumwx += centreX*height;
00116     m_sumwy += centreY*height;
00117     m_sumwz += centreZ*height;
00118   }
00119   m_sumEntries += entries;
00120   return true;
00121 }

bool Gaudi::Histogram3D::setRms ( double  rmsX,
double  rmsY,
double  rmsZ
) [virtual]

Sets the rms of the histogram.

Definition at line 123 of file H3D.cpp.

00123                                                                       {
00124   m_rep->SetEntries(m_sumEntries);
00125   std::vector<double> stat(11);
00126   // sum weights
00127   stat[0] =  sumBinHeights();
00128   stat[1] = 0;
00129   if (equivalentBinEntries() != 0)
00130     stat[1] = (  sumBinHeights() * sumBinHeights() ) / equivalentBinEntries();
00131   stat[2] = m_sumwx;
00132   double meanX = 0;
00133   if ( sumBinHeights() != 0 ) meanX =  m_sumwx/ sumBinHeights();
00134   stat[3] = ( meanX*meanX + rmsX*rmsX )* sumBinHeights();
00135   stat[4] = m_sumwy;
00136   double meanY = 0;
00137   if ( sumBinHeights() != 0 ) meanY =  m_sumwy/ sumBinHeights();
00138   stat[5] = ( meanY*meanY + rmsY*rmsY )* sumBinHeights();
00139   stat[6] = 0;
00140   stat[7] = m_sumwz;
00141   double meanZ = 0;
00142   if ( sumBinHeights() != 0 ) meanZ =  m_sumwz/ sumBinHeights();
00143   stat[8] = ( meanZ*meanZ + rmsZ*rmsZ )* sumBinHeights();
00144   // do not need to use sumwxy sumwxz and sumwyz
00145
00146   m_rep->PutStats(&stat.front());
00147   return true;
00148 }

bool Gaudi::Histogram3D::reset (  )  [virtual]

Definition at line 150 of file H3D.cpp.

00150                                   {
00151   m_sumwx = 0;
00152   m_sumwy = 0;
00153   m_sumwz = 0;
00154   m_sumEntries = 0;
00155   m_rep->Reset ( );
00156   return true;
00157 }

void * Gaudi::Histogram3D::cast ( const std::string &  className  )  const

Introspection method.

Definition at line 164 of file H3D.cpp.

00164                                                                 {
00165   if (className == "AIDA::IHistogram3D")   {
00166     return (AIDA::IHistogram3D*)this;
00167   }
00168   else if (className == "AIDA::IHistogram")   {
00169     return (AIDA::IHistogram*)this;
00170   }
00171   return 0;
00172 }

void Gaudi::Histogram3D::copyFromAida ( const AIDA::IHistogram3D &  h  )

Create new histogram from any AIDA based histogram.

Definition at line 174 of file H3D.cpp.

00174                                                               {
00175   delete m_rep;
00176   // implement here the copy
00177   const char* tit = h.title().c_str();
00178   if (h.xAxis().isFixedBinning() && h.yAxis().isFixedBinning() &&  h.zAxis().isFixedBinning() )  {
00179     m_rep = new TH3D(tit,tit,
00180       h.xAxis().bins(), h.xAxis().lowerEdge(), h.xAxis().upperEdge(),
00181       h.yAxis().bins(), h.yAxis().lowerEdge(), h.yAxis().upperEdge(),
00182       h.zAxis().bins(), h.zAxis().lowerEdge(), h.zAxis().upperEdge() );
00183   }
00184   else {
00185     Edges eX, eY, eZ;
00186     for (int i =0; i < h.xAxis().bins(); ++i)
00187       eX.push_back(h.xAxis().binLowerEdge(i));
00188     // add also upperedges at the end
00189     eX.push_back(h.xAxis().upperEdge() );
00190     for (int i =0; i < h.yAxis().bins(); ++i)
00191       eY.push_back(h.yAxis().binLowerEdge(i));
00192     // add also upperedges at the end
00193     eY.push_back(h.yAxis().upperEdge() );
00194     for (int i =0; i < h.zAxis().bins(); ++i)
00195       eZ.push_back(h.zAxis().binLowerEdge(i));
00196     // add also upperedges at the end
00197     eZ.push_back(h.zAxis().upperEdge() );
00198     m_rep = new TH3D(tit,tit,eX.size()-1,&eX.front(),eY.size()-1,&eY.front(),eZ.size()-1,&eZ.front());
00199   }
00200   m_xAxis.initialize(m_rep->GetXaxis(),true);
00201   m_yAxis.initialize(m_rep->GetYaxis(),true);
00202   m_zAxis.initialize(m_rep->GetZaxis(),true);
00203   const TArrayD* a = m_rep->GetSumw2();
00204   if ( 0 == a || (a && a->GetSize()==0) ) m_rep->Sumw2();
00205   m_sumEntries = 0;
00206   m_sumwx = 0;
00207   m_sumwy = 0;
00208   m_sumwz = 0;
00209
00210   // statistics
00211   double sumw   = h.sumBinHeights();
00212   double sumw2  = 0;
00213   if (h.equivalentBinEntries() != 0)
00214     sumw2 = ( sumw * sumw ) /h.equivalentBinEntries();
00215   double sumwx  = h.meanX()*h.sumBinHeights();
00216   double sumwx2 = (h.meanX()*h.meanX() + h.rmsX()*h.rmsX() )*h.sumBinHeights();
00217   double sumwy  = h.meanY()*h.sumBinHeights();
00218   double sumwy2 = (h.meanY()*h.meanY() + h.rmsY()*h.rmsY() )*h.sumBinHeights();
00219   double sumwz  = h.meanZ()*h.sumBinHeights();
00220   double sumwz2 = (h.meanZ()*h.meanZ() + h.rmsZ()*h.rmsZ() )*h.sumBinHeights();
00221   double sumwxy = 0;
00222   double sumwxz = 0;
00223   double sumwyz = 0;
00224
00225   // copy the contents in  (AIDA underflow/overflow are -2,-1)
00226   for (int i=-2; i < xAxis().bins(); ++i) {
00227     for (int j=-2; j < yAxis().bins(); ++j) {
00228       for (int k=-2; k < zAxis().bins(); ++k) {
00229         m_rep->SetBinContent(rIndexX(i), rIndexY(j), rIndexZ(k), h.binHeight(i,j,k) );
00230         m_rep->SetBinError(rIndexX(i), rIndexY(j), rIndexZ(k), h.binError(i,j,k) );
00231         // calculate statistics
00232         if ( i >= 0 && j >= 0 && k >= 0) {
00233           sumwxy += h.binHeight(i,j,k)*h.binMeanX(i,j,k)*h.binMeanY(i,j,k);
00234           sumwxz += h.binHeight(i,j,k)*h.binMeanX(i,j,k)*h.binMeanZ(i,j,k);
00235           sumwyz += h.binHeight(i,j,k)*h.binMeanY(i,j,k)*h.binMeanZ(i,j,k);
00236         }
00237       }
00238     }
00239   }
00240   // need to do set entries after setting contents otherwise root will recalulate them
00241   // taking into account how many time  SetBinContents() has been called
00242   m_rep->SetEntries(h.allEntries());
00243
00244   // fill stat vector
00245   std::vector<double> stat(11);
00246   stat[0] = sumw;
00247   stat[1] = sumw2;
00248   stat[2] = sumwx;
00249   stat[3] = sumwx2;
00250   stat[4] = sumwy;
00251   stat[5] = sumwy2;
00252   stat[6] = sumwxy;
00253   stat[7] = sumwz;
00254   stat[8] = sumwz2;
00255   stat[9] = sumwxz;
00256   stat[10] = sumwyz;
00257   m_rep->PutStats(&stat.front());
00258 }

virtual const CLID& Gaudi::Histogram3D::clID (  )  const [inline, virtual]

Retrieve reference to class defininition identifier.

Reimplemented from DataObject.

Definition at line 36 of file H3D.cpp.

00036 { return Gaudi::Histogram3D::classID(); }

static const CLID& Gaudi::Histogram3D::classID (  )  [inline, static]

Retrieve reference to class definition structure (static access).

Retrieve Pointer to class definition structure.

Reimplemented from DataObject.

Definition at line 37 of file H3D.cpp.

00037 { return CLID_H3D; }

Member Data Documentation

double Gaudi::Histogram3D::m_sumwx [protected]

Definition at line 41 of file H3D.cpp.

double Gaudi::Histogram3D::m_sumwy [protected]

Definition at line 42 of file H3D.cpp.

double Gaudi::Histogram3D::m_sumwz [protected]

Definition at line 43 of file H3D.cpp.

The documentation for this class was generated from the following file:
