GaudiHistoAlg Class Reference

Simple class to extend the functionality of class GaudiAlgorithm. More...

#include <GaudiAlg/GaudiHistoAlg.h>

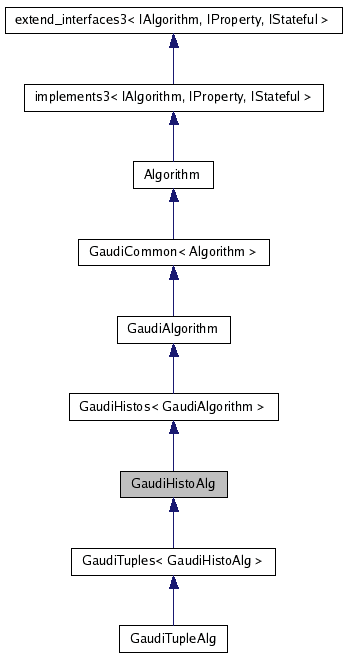

Inheritance diagram for GaudiHistoAlg:

[legend]

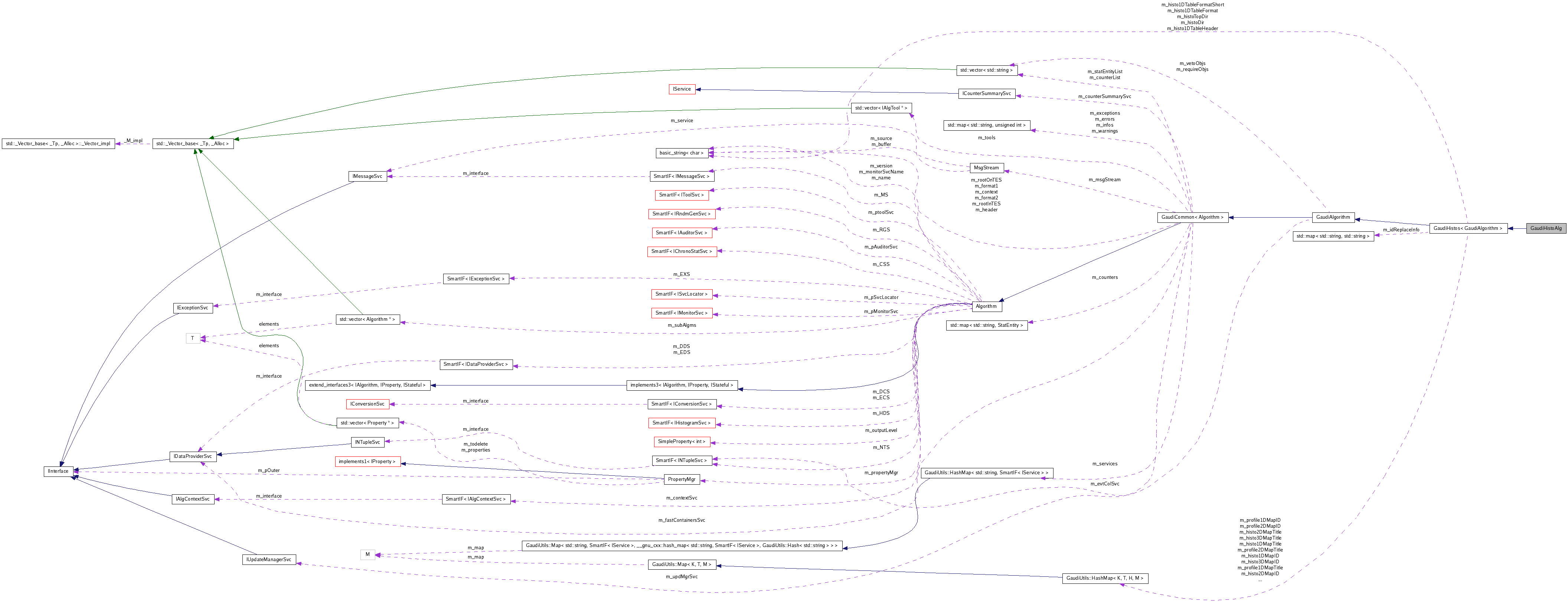

Collaboration diagram for GaudiHistoAlg:

[legend]

List of all members.

Protected Member Functions
	GaudiHistoAlg (const std::string &name, ISvcLocator *pSvc)
	Standard constructor (protected).
virtual	~GaudiHistoAlg ()
	virtual destructor
virtual StatusCode	initialize ()
	standard initialization method
virtual StatusCode	finalize ()
	standard finalization method
Private Member Functions
	GaudiHistoAlg ()
	GaudiHistoAlg (const GaudiHistoAlg &)
GaudiHistoAlg &	operator= (const GaudiHistoAlg &)

---

Detailed Description

Simple class to extend the functionality of class GaudiAlgorithm.

Class is instrumented with a selection of plotting functions for easy creation of histograms.

Attention:

See the class GaudiHistos, which implements the common functionality between GaudiHistoTool and GaudiHistoAlg

Author:

Vanya BELYAEV Ivan.Belyaev@itep.ru

Chris Jones Christopher.Rob.Jones@cern.ch

Date:

2003-12-11

Definition at line 38 of file GaudiHistoAlg.h.

---

Constructor & Destructor Documentation

GaudiHistoAlg::GaudiHistoAlg	(	const std::string &	name,
		ISvcLocator *	pSvc
	)			[protected]

Standard constructor (protected).

See also:

GaudiAlgorithm

Algorithm

Parameters:

	name	name of the algorithm
	pSvcLocator	poinetr to Service Locator

Definition at line 43 of file GaudiHistoAlg.cpp.

  : GaudiHistos<GaudiAlgorithm> ( name , pSvc ) { }

GaudiHistoAlg::~GaudiHistoAlg

(

)

[protected, virtual]

virtual destructor

Definition at line 51 of file GaudiHistoAlg.cpp.

{ }

GaudiHistoAlg::GaudiHistoAlg

(

)

[private]

GaudiHistoAlg::GaudiHistoAlg

(

const GaudiHistoAlg &

)

[private]

---

Member Function Documentation

StatusCode GaudiHistoAlg::initialize

(

)

[protected, virtual]

standard initialization method

See also:

Algorithm

IAlgorithm

Returns:

status code

Reimplemented from GaudiHistos< GaudiAlgorithm >.

Reimplemented in GaudiTupleAlg, and GaudiTuples< GaudiHistoAlg >.

Definition at line 57 of file GaudiHistoAlg.cpp.

{
  // initialize the base class and return
  return GaudiHistos<GaudiAlgorithm>::initialize();
}

StatusCode GaudiHistoAlg::finalize

(

void

)

[protected, virtual]

standard finalization method

See also:

Algorithm

IAlgorithm

Returns:

status code

Reimplemented from GaudiHistos< GaudiAlgorithm >.

Reimplemented in GaudiTupleAlg, and GaudiTuples< GaudiHistoAlg >.

Definition at line 67 of file GaudiHistoAlg.cpp.

{
  // finalize the base class and return
  return GaudiHistos<GaudiAlgorithm>::finalize();
}

GaudiHistoAlg& GaudiHistoAlg::operator=

(

const GaudiHistoAlg &

)

[private]

---

The documentation for this class was generated from the following files:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r8/GaudiAlg/GaudiAlg/GaudiHistoAlg.h
• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r8/GaudiAlg/src/lib/GaudiHistoAlg.cpp
