IAlgManager Class Reference

The IAlgManager is the interface implemented by the Algorithm Factory in the Application Manager to support management functions. More...

#include <GaudiKernel/IAlgManager.h>

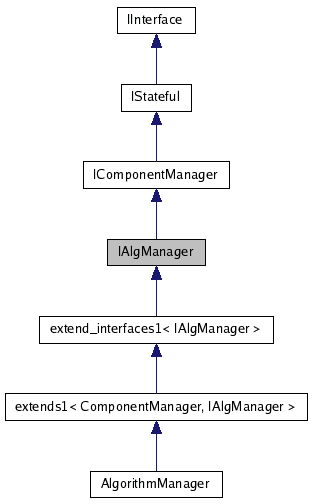

Inheritance diagram for IAlgManager:

[legend]

Collaboration diagram for IAlgManager:

[legend]

List of all members.

Public Member Functions
	DeclareInterfaceID (IAlgManager, 5, 0)
	InterfaceID.
virtual StatusCode	addAlgorithm (IAlgorithm *alg)=0
	Add an algorithm to the list of known algorithms.
virtual StatusCode	removeAlgorithm (IAlgorithm *alg)=0
	Remove an algorithm from the list of known algorithms.
virtual StatusCode	createAlgorithm (const std::string &algtype, const std::string &algname, IAlgorithm *&alg, bool managed=false)=0
	Create an instance of a algorithm type that has been declared beforehand and assigns to it a name.
virtual StatusCode	getAlgorithm (const std::string &name, IAlgorithm *&alg) const
	Find an algorithm with given name in the list of known algorithms.
virtual bool	existsAlgorithm (const std::string &name) const =0
	Check the existence of an algorithm with a given name in the list of known algorithms.
virtual const std::list < IAlgorithm * > &	getAlgorithms () const =0
	Return the list of Algorithms.
virtual StatusCode	initializeAlgorithms ()
	Initializes the list of "managed" algorithms.
virtual StatusCode	startAlgorithms ()
	Starts the list of "managed" algorithms.
virtual StatusCode	stopAlgorithms ()
	Stops the list of "managed" algorithms.
virtual StatusCode	finalizeAlgorithms ()
	Finalizes the list of "managed" algorithms.
virtual StatusCode	reinitializeAlgorithms ()
	Initializes the list of "managed" algorithms.
virtual StatusCode	restartAlgorithms ()
	Starts the list of "managed" algorithms.
virtual SmartIF< IAlgorithm > &	algorithm (const Gaudi::Utils::TypeNameString &typeName, const bool createIf=true)=0
	Returns a smart pointer to a service.
template<typename T>
SmartIF< T >	algorithm (const Gaudi::Utils::TypeNameString &typeName, const bool createIf=true)
	Returns a smart pointer to the requested interface of a service.

---

Detailed Description

The IAlgManager is the interface implemented by the Algorithm Factory in the Application Manager to support management functions.

Clients use this interface to declare abstract algorithm factories, and to create concrete instances of algorithms. There are currently 3 methods for the declaration: static creator method (creator), an abstract factory (factory) or a sharable library (module).

Author:

Pere Mato

Definition at line 28 of file IAlgManager.h.

---

Member Function Documentation

IAlgManager::DeclareInterfaceID	(	IAlgManager	,
		5	,
		0
	)

InterfaceID.

virtual StatusCode IAlgManager::addAlgorithm

(

IAlgorithm *

alg

)

[pure virtual]

Add an algorithm to the list of known algorithms.

Implemented in AlgorithmManager.

virtual StatusCode IAlgManager::removeAlgorithm

(

IAlgorithm *

alg

)

[pure virtual]

Remove an algorithm from the list of known algorithms.

Implemented in AlgorithmManager.

virtual StatusCode IAlgManager::createAlgorithm	(	const std::string &	algtype,
		const std::string &	algname,
		IAlgorithm *&	alg,
		bool	managed = false
	)			[pure virtual]

Create an instance of a algorithm type that has been declared beforehand and assigns to it a name.

It returns a pointer to an IAlgorithm.

Implemented in AlgorithmManager.

virtual StatusCode IAlgManager::getAlgorithm	(	const std::string &	name,
		IAlgorithm *&	alg
	)			const [inline, virtual]

Find an algorithm with given name in the list of known algorithms.

Definition at line 48 of file IAlgManager.h.

                                         {
    SmartIF<IAlgorithm> &si = const_cast<IAlgManager*>(this)->algorithm(name, false);
    alg = si.get();
    return si.isValid() ? StatusCode::SUCCESS : StatusCode::FAILURE;
  }

virtual bool IAlgManager::existsAlgorithm

(

const std::string &

name

)

const [pure virtual]

Check the existence of an algorithm with a given name in the list of known algorithms.

Implemented in AlgorithmManager.

virtual const std::list<IAlgorithm*>& IAlgManager::getAlgorithms

(

)

const [pure virtual]

Return the list of Algorithms.

Implemented in AlgorithmManager.

virtual StatusCode IAlgManager::initializeAlgorithms

(

)

[inline, virtual]

Initializes the list of "managed" algorithms.

Definition at line 64 of file IAlgManager.h.

{ return initialize(); }

virtual StatusCode IAlgManager::startAlgorithms

(

)

[inline, virtual]

Starts the list of "managed" algorithms.

Definition at line 67 of file IAlgManager.h.

{ return start(); }

virtual StatusCode IAlgManager::stopAlgorithms

(

)

[inline, virtual]

Stops the list of "managed" algorithms.

Definition at line 70 of file IAlgManager.h.

{ return stop(); }

virtual StatusCode IAlgManager::finalizeAlgorithms

(

)

[inline, virtual]

Finalizes the list of "managed" algorithms.

Definition at line 73 of file IAlgManager.h.

{ return finalize(); }

virtual StatusCode IAlgManager::reinitializeAlgorithms

(

)

[inline, virtual]

Initializes the list of "managed" algorithms.

Definition at line 76 of file IAlgManager.h.

{ return reinitialize(); }

virtual StatusCode IAlgManager::restartAlgorithms

(

)

[inline, virtual]

Starts the list of "managed" algorithms.

Definition at line 79 of file IAlgManager.h.

{ return restart(); }

virtual SmartIF<IAlgorithm>& IAlgManager::algorithm	(	const Gaudi::Utils::TypeNameString &	typeName,
		const bool	createIf = true
	)			[pure virtual]

Returns a smart pointer to a service.

Implemented in AlgorithmManager.

template<typename T>

SmartIF<T> IAlgManager::algorithm	(	const Gaudi::Utils::TypeNameString &	typeName,
		const bool	createIf = true
	)			[inline]

Returns a smart pointer to the requested interface of a service.

Reimplemented in AlgorithmManager.

Definition at line 87 of file IAlgManager.h.

                                                                                                    {
    return SmartIF<T>(algorithm(typeName, createIf));
  }

---

The documentation for this class was generated from the following file:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r8/GaudiKernel/GaudiKernel/IAlgManager.h
