IAppMgrUI Class Reference

Application Manager User Interface. More...

#include <GaudiKernel/IAppMgrUI.h>

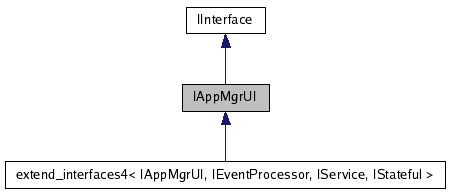

Inheritance diagram for IAppMgrUI:

[legend]

Collaboration diagram for IAppMgrUI:

[legend]

List of all members.

Public Member Functions
	DeclareInterfaceID (IAppMgrUI, 3, 0)
	InterfaceID.
virtual StatusCode	run ()=0
	Run the complete job (from initialize to terminate).
virtual StatusCode	configure ()=0
	Configure the job.
virtual StatusCode	terminate ()=0
	Terminate the job.
virtual StatusCode	initialize ()=0
	Initialize the job.
virtual StatusCode	finalize ()=0
	Finalize the job.
virtual StatusCode	nextEvent (int maxevt)=0
	Process the next maxevt events.
virtual const std::string &	name () const =0
	The identifying name of the AppMgrUI object.
virtual StatusCode	start ()=0
	Start (from INITIALIZED to RUNNING).
virtual StatusCode	stop ()=0
	Stop (from RUNNING to INITIALIZED).
virtual StatusCode	reinitialize ()=0
	Initialization (from INITIALIZED or RUNNING to INITIALIZED, via CONFIGURED).
virtual StatusCode	restart ()=0
	Initialization (from RUNNING to RUNNING, via INITIALIZED).
virtual Gaudi::StateMachine::State	FSMState () const =0
	Get the current state.

---

Detailed Description

Application Manager User Interface.

This is the interface offered to the UI to control the JOB or Application.

Author:

Pere Mato

Date:

30/10/98

Definition at line 21 of file IAppMgrUI.h.

---

Member Function Documentation

IAppMgrUI::DeclareInterfaceID	(	IAppMgrUI	,
		3	,
		0
	)

InterfaceID.

virtual StatusCode IAppMgrUI::run

(

)

[pure virtual]

Run the complete job (from initialize to terminate).

virtual StatusCode IAppMgrUI::configure

(

)

[pure virtual]

Configure the job.

virtual StatusCode IAppMgrUI::terminate

(

)

[pure virtual]

Terminate the job.

virtual StatusCode IAppMgrUI::initialize

(

)

[pure virtual]

Initialize the job.

virtual StatusCode IAppMgrUI::finalize

(

)

[pure virtual]

Finalize the job.

virtual StatusCode IAppMgrUI::nextEvent

(

int

maxevt

)

[pure virtual]

Process the next maxevt events.

virtual const std::string& IAppMgrUI::name

(

)

const [pure virtual]

The identifying name of the AppMgrUI object.

virtual StatusCode IAppMgrUI::start

(

)

[pure virtual]

Start (from INITIALIZED to RUNNING).

virtual StatusCode IAppMgrUI::stop

(

)

[pure virtual]

Stop (from RUNNING to INITIALIZED).

virtual StatusCode IAppMgrUI::reinitialize

(

)

[pure virtual]

Initialization (from INITIALIZED or RUNNING to INITIALIZED, via CONFIGURED).

virtual StatusCode IAppMgrUI::restart

(

)

[pure virtual]

Initialization (from RUNNING to RUNNING, via INITIALIZED).

virtual Gaudi::StateMachine::State IAppMgrUI::FSMState

(

)

const [pure virtual]

Get the current state.

---

The documentation for this class was generated from the following file:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r8/GaudiKernel/GaudiKernel/IAppMgrUI.h
