INTupleSvc Class Reference

#include <GaudiKernel/INTupleSvc.h>

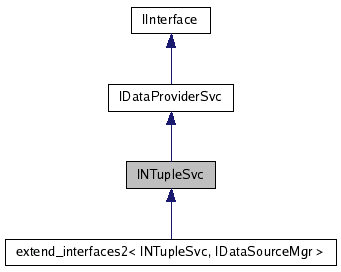

Inheritance diagram for INTupleSvc:

[legend]

Collaboration diagram for INTupleSvc:

[legend]

List of all members.

Public Member Functions
	DeclareInterfaceID (INTupleSvc, 2, 0)
	InterfaceID.
virtual StatusCode	create (const CLID &typ, const std::string &title, NTuple::Tuple *&refpTuple)=0
	Create requested N tuple (Hide constructor).
virtual NTuple::Tuple *	book (const std::string &fullPath, const CLID &type, const std::string &title)=0
	Book Ntuple and register it with the data store.
virtual NTuple::Tuple *	book (const std::string &dirPath, const std::string &relPath, const CLID &type, const std::string &title)=0
	Book Ntuple and register it with the data store.
virtual NTuple::Tuple *	book (const std::string &dirPath, long id, const CLID &type, const std::string &title)=0
	Book Ntuple and register it with the data store.
virtual NTuple::Tuple *	book (DataObject *pParent, const std::string &relPath, const CLID &type, const std::string &title)=0
	Book Ntuple and register it with the data store.
virtual NTuple::Tuple *	book (DataObject *pParent, long id, const CLID &type, const std::string &title)=0
	Book Ntuple and register it with the data store.
virtual NTuple::Directory *	createDirectory (DataObject *pParent, const std::string &title)=0
	Create Ntuple directory and register it with the data store.
virtual NTuple::Directory *	createDirectory (DataObject *pParent, long id)=0
	Create Ntuple directory and register it with the data store.
virtual NTuple::Directory *	createDirectory (const std::string &dirPath, long id)=0
	Create Ntuple directory and register it with the data store.
virtual NTuple::Directory *	createDirectory (const std::string &dirPath, const std::string &title)=0
	Create Ntuple directory and register it with the data store.
virtual NTuple::Directory *	createDirectory (const std::string &fullPath)=0
	Create Ntuple directory and register it with the data store.
virtual NTuple::Tuple *	access (const std::string &fullPath, const std::string &filename)=0
	Access N tuple on disk.
virtual StatusCode	save (const std::string &fullPath)=0
	Save N tuple to disk.
virtual StatusCode	save (NTuple::Tuple *tuple)=0
	Save N tuple to disk.
virtual StatusCode	save (DataObject *pParent, const std::string &relPath)=0
	Save N tuple to disk.
virtual StatusCode	writeRecord (NTuple::Tuple *tuple)=0
	Write single record to N tuple.
virtual StatusCode	writeRecord (const std::string &fullPath)=0
	Write single record to N tuple.
virtual StatusCode	writeRecord (DataObject *pParent, const std::string &relPath)=0
	Write single record to N tuple.
virtual StatusCode	readRecord (NTuple::Tuple *tuple)=0
	Read single record from N tuple.
virtual StatusCode	readRecord (const std::string &fullPath)=0
	Read single record from N tuple.
virtual StatusCode	readRecord (DataObject *pParent, const std::string &relPath)=0
	Read single record from N tuple.

---

Detailed Description

The ntuple service interface allows to:

• Export the data provider's functionality.
• Extend the functionality in order to book abstract N tuples:
  • Book COLUMN WISE N tuples.
  • Book ROW WISE N tuples.
  • Access a persistent N tuple within a file
  • Save the N tuple after filling.
  • Write individual records from to a N tuple.
  • Read individual records from an existing N tuple.
  created N tuples are automatically put onto the N tuple data store.

Author:

Markus Frank

Version:

1.0

Definition at line 37 of file INTupleSvc.h.

---

Member Function Documentation

INTupleSvc::DeclareInterfaceID	(	INTupleSvc	,
		2	,
		0
	)

InterfaceID.

virtual StatusCode INTupleSvc::create	(	const CLID &	typ,
		const std::string &	title,
		NTuple::Tuple *&	refpTuple
	)			[pure virtual]

Create requested N tuple (Hide constructor).

virtual NTuple::Tuple* INTupleSvc::book	(	const std::string &	fullPath,
		const CLID &	type,
		const std::string &	title
	)			[pure virtual]

Book Ntuple and register it with the data store.

Connects the object identified by its full path to the parent object identified by the base name of the full path.

Parameters:

	fullPath	Full path to the node of the object.
	type	Class ID of the N tuple: Column or row wise.
	title	Title property of the N tuple.
	refpTuple	Reference to pointer to the N tuple to be booled and registered.

Returns:

Status code indicating success or failure.

virtual NTuple::Tuple* INTupleSvc::book	(	const std::string &	dirPath,
		const std::string &	relPath,
		const CLID &	type,
		const std::string &	title
	)			[pure virtual]

Book Ntuple and register it with the data store.

Connects the object identified by its relative path to the parent object identified by the base name.

Parameters:

	dirPath	Path to parent node of the object.
	relPath	Relative path to the object with respect to the parent node. The relative path is the identifier of the tuple.
	title	Title property of the N tuple.
	type	Class ID of the N tuple: Column or row wise.
	refpTuple	Reference to pointer to the N tuple to be booled and registered.

Returns:

Status code indicating success or failure.

virtual NTuple::Tuple* INTupleSvc::book	(	const std::string &	dirPath,
		long	id,
		const CLID &	type,
		const std::string &	title
	)			[pure virtual]

Book Ntuple and register it with the data store.

Connects the object identified by an identifier to the parent object identified by the base name.

Parameters:

	dirPath	Path to parent node of the object.
	id	Identifier of the tuple within the parent's directory.
	type	Class ID of the N tuple: Column or row wise.
	title	Title property of the N tuple.
	refpTuple	Reference to pointer to the N tuple to be booled and registered.

Returns:

Status code indicating success or failure.

virtual NTuple::Tuple* INTupleSvc::book	(	DataObject *	pParent,
		const std::string &	relPath,
		const CLID &	type,
		const std::string &	title
	)			[pure virtual]

Book Ntuple and register it with the data store.

Connects the object identified by an identifier (id) to the parent object identified by the parent's pointer.

Parameters:

	pParent	Pointer to parent object.
	relPath	Relative path to the object with respect to the parent node. The relative path is the identifier of the tuple.
	type	Class ID of the N tuple: Column or row wise.
	title	Title property of the N tuple.
	refpTuple	Reference to pointer to the N tuple to be booled and registered.

Returns:

Status code indicating success or failure.

virtual NTuple::Tuple* INTupleSvc::book	(	DataObject *	pParent,
		long	id,
		const CLID &	type,
		const std::string &	title
	)			[pure virtual]

Book Ntuple and register it with the data store.

Connects the object identified by its relative path to the parent object identified by the parent's pointer.

Parameters:

	pParent	Pointer to parent object.
	id	Identifier of the tuple within the parent's directory.
	type	Class ID of the N tuple: Column or row wise.
	title	Title property of the N tuple.

Returns:

Status code indicating success or failure.

virtual NTuple::Directory* INTupleSvc::createDirectory	(	DataObject *	pParent,
		const std::string &	title
	)			[pure virtual]

Create Ntuple directory and register it with the data store.

Connects the object identified by its relative path to the parent object identified by the parent's pointer.

Parameters:

	pParent	Pointer to parent object.
	title	Directory identifier.

Returns:

Status code indicating success or failure.

virtual NTuple::Directory* INTupleSvc::createDirectory	(	DataObject *	pParent,
		long	id
	)			[pure virtual]

Create Ntuple directory and register it with the data store.

Connects the object identified by its relative path to the parent object identified by the parent's pointer.

Parameters:

	pParent	Pointer to parent object.
	id	Identifier of the tuple within the parent's directory.

Returns:

Status code indicating success or failure.

virtual NTuple::Directory* INTupleSvc::createDirectory	(	const std::string &	dirPath,
		long	id
	)			[pure virtual]

Create Ntuple directory and register it with the data store.

Connects the object identified by its relative path to the parent object identified by the parent's pointer.

Parameters:

	dirPath	Full directory path to parent
	id	Identifier of the tuple within the parent's directory.

Returns:

Status code indicating success or failure.

virtual NTuple::Directory* INTupleSvc::createDirectory	(	const std::string &	dirPath,
		const std::string &	title
	)			[pure virtual]

Create Ntuple directory and register it with the data store.

Connects the object identified by its path to the parent object identified by the parent's path.

Parameters:

	dirPath	Full directory path to parent
	title	Directory identifier.

Returns:

Status code indicating success or failure.

virtual NTuple::Directory* INTupleSvc::createDirectory

(

const std::string &

fullPath

)

[pure virtual]

Create Ntuple directory and register it with the data store.

Parameters:

fullPath

Full directory path

Returns:

Status code indicating success or failure.

virtual NTuple::Tuple* INTupleSvc::access	(	const std::string &	fullPath,
		const std::string &	filename
	)			[pure virtual]

Access N tuple on disk.

Parameters:

	fullPath	Full path to the N tuple within the transient store
	filename	Name of the file the ntuple resides in.

Returns:

Status code indicating success or failure.

virtual StatusCode INTupleSvc::save

(

const std::string &

fullPath

)

[pure virtual]

Save N tuple to disk.

Must be called in order to close the ntuple file properly

Parameters:

fullPath

Full path to the N tuple in memory.

Returns:

Status code indicating success or failure.

virtual StatusCode INTupleSvc::save

(

NTuple::Tuple *

tuple

)

[pure virtual]

Save N tuple to disk.

Must be called in order to close the ntuple file properly

Parameters:

tuple

Pointer to the Ntuple in memory

Returns:

Status code indicating success or failure.

virtual StatusCode INTupleSvc::save	(	DataObject *	pParent,
		const std::string &	relPath
	)			[pure virtual]

Save N tuple to disk.

Must be called in order to close the ntuple file properly

Parameters:

	pParent	Parent object of the N tuple
	relPath	Relative path to the N tuple in memory with respect to the parent object.

Returns:

Status code indicating success or failure.

virtual StatusCode INTupleSvc::writeRecord

(

NTuple::Tuple *

tuple

)

[pure virtual]

Write single record to N tuple.

Parameters:

tuple

Pointer to the Ntuple in memory

Returns:

Status code indicating success or failure.

virtual StatusCode INTupleSvc::writeRecord

(

const std::string &

fullPath

)

[pure virtual]

Write single record to N tuple.

Parameters:

fullPath

Full path to the N tuple in memory.

Returns:

Status code indicating success or failure.

virtual StatusCode INTupleSvc::writeRecord	(	DataObject *	pParent,
		const std::string &	relPath
	)			[pure virtual]

Write single record to N tuple.

Parameters:

	pParent	Parent object of the N tuple
	relPath	Relative path to the N tuple in memory with respect to the parent object.

Returns:

Status code indicating success or failure.

virtual StatusCode INTupleSvc::readRecord

(

NTuple::Tuple *

tuple

)

[pure virtual]

Read single record from N tuple.

Parameters:

tuple

Pointer to the Ntuple in memory

Returns:

Status code indicating success or failure.

virtual StatusCode INTupleSvc::readRecord

(

const std::string &

fullPath

)

[pure virtual]

Read single record from N tuple.

Parameters:

fullPath

Full path to the N tuple in memory.

Returns:

Status code indicating success or failure.

virtual StatusCode INTupleSvc::readRecord	(	DataObject *	pParent,
		const std::string &	relPath
	)			[pure virtual]

Read single record from N tuple.

Parameters:

	pParent	Parent object of the N tuple
	relPath	Relative path to the N tuple in memory with respect to the parent object.

Returns:

Status code indicating success or failure.

---

The documentation for this class was generated from the following file:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r8/GaudiKernel/GaudiKernel/INTupleSvc.h
